Notes: With the latest PCB revision, Lunanoise have added a tree power connector to share the power with another instrument.

Lumamix accept voltage from 12 to 20 volts, the voltage present at the rear power in connector, will be shared with the power out connectors, with one power supply you can now power the mixer and other 3 instruments.

The new LUMAMIX is the latest addition to the Lumanoise family, a four channel RESONANT mixer with send\return and a resonant equalizer, inspired by the Polymoog resonator section.

Lumamix has four jack\mini jack audio inputs, jack\mini jack send\return, the send out is pre the resonant equalizer and the return can be seen as 5- input.

The main output is mono jack or stereo mini jack, all the channels go through the resonant equalizer where you can select the type of filter; low pass, band pass, high pass and the frequency range low, medium, high.

The equalizer can resonate, the cut-off can be controlled via the Light Dependent Resistor, and the LDR can be activated with the switch.

The gain knob sets the level before the equalizer.

Lumamix works with 12v 500ma tip+.

Notes: Lush analogue EQ switchable between tilt and Baxandall high-shelf configurations.

Perform a variety of mixing and sound design duties ranging from subtle brightness and clarity adjustments to low-end rumble removal, boosted low-pass filtering and sweep EQ.

In the default tilt mode, turning the control knob clockwise simultaneously boosts treble and cuts bass. Turning anti-clockwise boosts bass and cuts treble. These boosts and cuts are pivoted around the mid-range. With the control knob at 12 o'clock the frequency response is neutral.

With Baxandall high-shelf mode enabled, turning the control knob clockwise past 12 o'clock introduces and gentle high-shelf EQ weighted around the upper mid-range. Turning the control knob anti-clockwise results in a wide high-shelf cut with subtle bass and mid-range adjustments.

Patching the channels in series allows for radical sound shaping and band-pass responses. Each channel provides up to +/- 8db of low and high-frequency gain control, summing into a low noise output stage. Hot input signals over 15vpp are saturated by active Zener diode clipping.

Features

Precise voltage control of EQ tilt and shelf
Seamless switching between EQ modes
High-quality components used throughout

Specifications

Intellijel 1U format
Width 18HP
Depth 32mm
Power requirements ~60mA +12V/~58mA -12V
Control voltage range 0-8V
Impedance Input 100K / Output 1K

Notes: Catena is a control voltage powerhouse, packing in four channels of attenuation and offsets, two VC slew engines, half and full wave rectification, input voltage doubling and switchable voltage reference sources with an external offset input. As well as the standard cascading offset and polarisation utilities, the module can act as a percussive envelope generator or sidechain ducker, slow lag or glide control, waveshaper and mixer. Four channels of attenuators or attenuvertors are chained together, running from left to right, with an additional alternative mode per channel. The channel functions are chosen using a three-way slide switch above each control pot. Alternative modes use attenuvertion at the preamp stage allowing the modified signal to be polarised.

Alternative Modes

CH 1: Percussive Slew

CH2: Lazy Slew

CH 3: Half Wave Rectification (with gain boost)

CH 4: Full Wave Rectification

VREF Control

With no CV input patched, each channel generates +-5V or +-10V depending on the attenuvertor and VREF Switch position. The switch toggles between +5V and +10V precision voltage references. All Inputs and outputs soft clip at +-10V.

Slew Controls

CH 1 & 2 in the alt (slew) modes can have the slew response switched between tight and loose. There is further CV control via the CV input jack.

Offset Control

The pot controls the additional VREF amount added to CH 2, 3 & 4. With a CV input patched the pot controls an external signal input amount.CH 1 can also be offset by shifting a jumper on the rear panel.

Signal Doubler

Instead of unity gain as per the other channels, CH 4 doubles the input gain of a patched signal, but keeps any chained or offset signals at unity gain.

Mixer

High quality OPA op amps are used throughout, and Catena will happily serve as a mixer for 1-4 channels of audio. A five channel mixer is also possible by adding an audio signal to the offset jack.

Specifications

Intellijel 1U format
Width 28HP
Depth 34mm
Power requirements ~80mA +12V/~80mA -12V
Control voltage range +-10V
Impedance Input 100K / Output 1K

Notes: Catena is a control voltage powerhouse, packing in four channels of attenuation and offsets, two VC slew engines, half and full wave rectification, input voltage doubling and switchable voltage reference sources with an external offset input. As well as the standard cascading offset and polarisation utilities, the module can act as a percussive envelope generator or sidechain ducker, slow lag or glide control, waveshaper and mixer. Four channels of attenuators or attenuvertors are chained together, running from left to right, with an additional alternative mode per channel. The channel functions are chosen using a three-way slide switch above each control pot. Alternative modes use attenuvertion at the preamp stage allowing the modified signal to be polarised.

Alternative Modes

CH 1: Percussive Slew

CH2: Lazy Slew

CH 3: Half Wave Rectification (with gain boost)

CH 4: Full Wave Rectification

VREF Control

With no CV input patched, each channel generates +-5V or +-10V depending on the attenuvertor and VREF Switch position. The switch toggles between +5V and +10V precision voltage references. All Inputs and outputs soft clip at +-10V.

Slew Controls

CH 1 & 2 in the alt (slew) modes can have the slew response switched between tight and loose. There is further CV control via the CV input jack.

Offset Control
The pot controls the additional VREF amount added to CH 2, 3 & 4. With a CV input patched the pot controls an external signal input amount.CH 1 can also be offset by shifting a jumper on the rear panel.

Signal Doubler

Instead of unity gain as per the other channels, CH 4 doubles the input gain of a patched signal, but keeps any chained or offset signals at unity gain.

Mixer

High quality OPA op amps are used throughout, and Catena will happily serve as a mixer for 1-4 channels of audio. A five channel mixer is also possible by adding an audio signal to the offset jack.

Specifications

Intellijel 1U format
Width 28HP
Depth 34mm
Power requirements ~80mA +12V/~80mA -12V
Control voltage range +-10V
Impedance Input 100K / Output 1K

Review: Joni Mitchell's Ladies of the Canyon is one of the great albums that captures the essence of the late '60s counterculture with poetic grace and introspective depth. Released in 1970, the record blends folk, pop, and jazz influences while showcasing Mitchell's unique artistry. Iconic tracks like 'Big Yellow Taxi,' 'Woodstock,' and 'The Circle Game' highlight her sharp lyrical wit and melodic inventiveness. Overall, the music paints vivid portraits of life in Laurel Canyon and celebrates themes of love, loss, and social change. Mitchell's ethereal vocals and intricate guitar work make Ladies of the Canyon an essential listen that cemented her legacy as a pioneering singer-songwriter.

Notes: The legendary Kaoss Pad returns as part of Korg's DIY Nu:Tekt range. Simple to build, easy to use and infinitely customisable for those who want to go deep. Great value.

Supplier's Notes:
Build your KAOSS

Discover the Nu:Tekt NTS-3 KAOSS Pad: the iconic KAOSS Pad reimagined in a build-it-yourself format. This compact, customizable DIY effects unit integrates Korg's legendary KAOSS touch interface with up to 4 simultaneous effects. It offers intuitive controls, extensive effect customization via logueSDK, and versatile connectivity. Perfect for dynamic performances, it's designed for musicians and DIY enthusiasts seeking to explore new sonic territories with ease and creativity.

Build-it-yourself creativity

The NTS-3 KAOSS Pad goes beyond the boundaries of conventional effects units. It's a playground for creativity, offering up to four simultaneous effects with extensive editing options. From essential filters and compressors to imaginative delays and reverbs, the NTS-3 KAOSS Pad opens up a universe of creative possibilities. The ability to work with individual effects or combine them seamlessly, along with the freedom to tweak each parameter, makes it a perfect tool for live performances and studio sessions alike.

Embracing the essence of KAOSS products, the NTS-3 KAOSS Pad features user-friendly controls and adaptable connectivity, packaged in a performance-ready design. The XY pad is at the heart of its interface, enabling dynamic control over effects, rhythm, and depth, enhancing your performance with a fresh, tactile approach.

Customise the KAOSS

The NTS-3 KAOSS Pad isn't just about sound; it's about making your mark. With an open development API and logueSDK, you can dive into creating unique effects, while the included Librarian application allows for easy management of your custom creations. The physical customization options, including reversible side panels and 3D schematics, mean you can even add a personal touch to your performance hardware.

Seamless integration and effortless DIY assembly
The Nu:Tekt NTS-3 KAOSS Pad is meticulously designed for straightforward integration into any musical setup, offering advanced connectivity with Sync IN/OUT and MIDI In/Out ports. But what truly sets it apart is its effortless DIY assembly process. Emphasizing the joy of building your own gear, the NTS-3 can be assembled quickly and safely, with no soldering required. This ease of assembly ensures that you can start exploring its vast sonic possibilities in less than 20 minutes, making it a delight for both seasoned musicians and DIY beginners.

Specifications

Effect: 35
Filter: 5
Modulation: 6
Delay: 4
Reverb: 5
Other: 5 (looper, grainshifter, vinyl break)
Mastering: 7
OSC: 3
Performance programs: 200 programs (more than 100 preload, 100 user programs)

Input/output jacks:

Headphone / AUDIO OUT jack (3.5 mm stereo mini-phone jack), AUDIO IN jack (3.5 mm stereo mini-phone jack), SYNC OUT jack (3.5 mm TRS mini-phone jack, 5V output level), SYNC IN jack (3.5 mm TRS mini-phone jack, 20V maximum input level), USB port (Type-C),

Power supply: USB bus power mode
Current consumption: 500 mA or less
Dimensions (W × D × H): 104 × 101 × 39 mm
Weight: 119 g/4.20 oz

Notes: When you add drive, dirt or other sound manipulation devices to your signal, the trade-off is always noise. So, many players turn to noise gates to help tame these unwanted nasties. Unlike many noise gates on the market, the PYLON ATB Noise Gate seeks to not only drive back the hordes of fizz and hum, but also arms and reinforces your tonal attack, shutting down the noise and yet helping you enjoy your rig's true potential.

This advanced, multi-functional and super-versatile pedal not only features an ultra-fast Gate with a smooth trigger, an integrated Boost section, an External Trigger Input for external bypass switching or Gate-triggering, a relay-based Channel Switcher for your amp but also sports a built-in Audio Transformer to help enhance and balance your rig. Hear and feel the quiet in the eye of the storm!

"Deep within the solitude of the temple, the Sau's of the Per-Ankh assembled in silence. Their conclusion was self-evident. Only those pure of tone could be received in the temple and find sonic peace. From the centre of their silent circle, the Orb swelled and raised above the Pylons. Erupting in a rain of light and spewing forth daggers of lightning, their new God subdued and separated the chaotic ocean of noise from the perfect breeze of stillness. Peace reigned once more, the hordes of cacophony overcome."

When talking about signal gain, we all know drive circuits at full tilt can be noisy malice monsters. To help get a grip on your noise floor, PYLON's NOISE GATE is based on a high-performance Blackmerr VCA and provides lightning-fast and precise performance. To find the right spot, simply choose between one of the two detection-range settings and dial in the THRESHOLD to taste. With either softly decaying notes using HIGH mode or a fast-closing response in LOW mode, you're sure to be able to dial in super tight tones when you need it, but without interfering with your sonic signature. Fast palm-mutes? No problem. Decaying notes? Dead simple to accomplish and just so you know when it is operating, the white status LED will also turn blue as soon as the gate starts to act.

Providing up to 30 dB of gain, the integrated BOOST circuit can really help to fine tune your tone, but it can also serve as an attenuator too. Its CUT control will tighten up your low end and is selectable between 65-730 Hz to ensure a mid-focussed and cutting lead sound when pushing your amp's preamp into saturation. Choosing between three different modes for the boost's on/off state, gives you plenty of options on how you want to use it. Either leave it ON to always help shape your tone, OFF if you don't need it, or use SYNC mode so it is activated with the GATE. Both CUT & BOOST knobs are backlit, in order to show you the on/off status of the BOOST section at a glance.

Using transformers in pro-audio gear is nothing new, but while they help to easily match the impedance of low-level and unbalanced signals such as from guitar or bass instruments, PYLON's audio-grade-transformer also gives additional warmth with associated nice low-frequency harmonics. Your guitars, synths or in fact anything you put through the pedal will never have sounded so solid. The pedal gives more 'heft' and enhances the core tone, in a much finer way and without any of the phase issues that can happen when using EQ alone!

However, when the output transformer is boosted even further in level, it can overload many amplifier or pre-amp inputs and make things appear muddy, especially with high levels of additional gain. So, to help tame superfluous low end (especially for rhythm chugging and soloing), KMA Machines added a fixed built-in roll off that affects everything below 65 Hz when the internal BOOST section is activated.

Powered by an optional standard 9V DC (max.) PSU (negative center, 2.1mm, >160mA current draw)

Notes: From the outset, KMA Machine's goal was to create the most flexible analogue upper octave pedal ever yet produced. Based on a highly refined and improved version of the Shriek circuit from KMA's venerated MOAI MAEA pedal, the MANDRAKE brings an even more robust and present upper octave to the sonic table. By combining that upper-octave might with a versatile, yet highly intuitive user interface, the pedal provides a ton of killer tonal options in a very modern and pedalboard-friendly package.

"The humanesque abomination, begat of the evils that once fertilised his empire of dirt, now senses the bleak emptiness of the air that surrounds him. In recognition of his harvest and the perpetual change to his existence, his mesmerising scream is both devastating and euphoric, so all those that encircle him are subdued from the aural toxicity that emanates from the disfigured effigy."

Octave up pedals (as used by so many legendary performers including Hendrix, Tony Iommi, Josh Homme, Billy Corgan, Jack White and so many more), can really give added bite to your sound. But often, many of these fun tools can be untamed and lead to nasty clashing overtones.

With MANDRAKE however, KMA didn't want to just make a one trick pony octave up device. The powerful and ultra-fast tracking Shriek circuit was expanded on with its edgy and fuzzy character that's reminiscent of many of the best vintage octave-up devices. To do this, a 2nd order Low-Pass Filter was introduced, a TIMBRE and individual Mix controls to KMA's well-regarded circuit to make it way more versatile in a single pedal. Let's look at those cool new things in more detail.

The FILTER control helps to tame your upper harmonics, as well as to improve tracking, letting you achieve unhinged, cutting and shrieking mayhem when the control is fully turned all the way to the left. While turning the knob in the other direction gives a more mellow and blooming synth-like texture. The FILTER section is also very useful for tailoring the upper octave effect to different instruments and pickups, where getting the right tone is not a "one size fits all" equation.

In addition, to enable the octave voicing in MANDRAKE to be sculpted exactly to your own personal taste, the TIMBRE control defines the amount of fuzzy gain present in the upper octave. This allows you to perfectly blend in the pedal's tonality with the rest of your signal chain. Turning the control fully counterclockwise, gives a slightly crunchy and percussive tone that's ideal for melodic arpeggio enhancements. While cranking the TIMBRE knob fully clockwise will transform MANDRAKE into a crushingly saturated doom-hammer, instantly ready to wreak havoc with each power chord you throw at it!

Topping off the features, the DRY and OCT+ controls allow the dry signal and effected upper octave to be mixed independently, for precise tonal balancing. This is especially handy when using MANDRAKE together with other dirt pedals or when you just want to retain the natural body and attack of your instrument.

Subtle descant or decimating octaval Armageddon? With MANDRAKE the choice is totally yours!

Notes: Mixer & CV/clock-controlled Switcher

Focused versatility seems an oxymoron when describing the features that led to the design of the Mixwitch.

With only a pinch of mixing, inverting and controlled switching, Klavis Electronics brew up a plethora of combinations and uses.

This is voltage processing magic!

The Mixwitch design comes from a frustration with attenuvertors (bipolar attenuators-inverters) whose off (neutral) position is difficult to retrieve, especially in live situations.

Klavis went for a digitally-controlled analogue path where polarity inversion would be at the touch of a button. So, the usefulness of attenuating/inverting can be realized by turning the pot down, swiftly pressing the inversion button and reopening the level. The zero level is where you expect it, with the pot full down.

Once a clean polarity control was established, a mute function was added, offering the benefit of pre-adjusted pot settings ready to be activated at will.

The next step was to bring something extra, useful and creative. There are plenty of analogue switches controlled by a clock; but arbitrarily selecting an input with a voltage is less known. Having both control capabilities combined with Klavis' specific mixer features creates a unique fusion: welcome to the Mixwitch!

Dimensions
8 HP
25 mm deep

Current Draw
39 mA +12V
24 mA -12V
0 mA 5V

Notes: The ComPair is a versatile yet compact and affordable tool to expand your sonic arsenal. Voltage comparison is used to trigger events, reshape and mangle waveforms and realize level-dependent logic functions.

Two sections can be used independently as voltage against manual setting comparison. Additionally, the first section allows voltage against voltage comparison with offset adjustment.

When used globally, the module offers a powerful window comparator with CV-controlled top setting.

The outputs benefit from three triple-position switches, allowing independently settable polarity and muting.

Three LEDs indicate the output logic to keep track of what's happening.

Notes: Programmable Volt/Octave CV calibrator and transposer

Clever four-channel utility module designed to make it easier to achieve perfect oscillator tracking and transpose CV signals. Also includes some neat quantising and portamento features.

The CalTrans solves issues encountered when playing tonal music with a modular system: tracking problems, curves unrelated to Volt per octave ratio, limited octave range, cumbersome transpose, ...

The CalTrans corrects and expands the range of troublesome VCOs and brings V/Oct tracking to anything that oscillates.

Besides calibration, the CalTrans offers live play features. Each channel can be quantized and any combination of them transposed jointly.

A pair of rotary encoders with detent allow an precise selection of octaves and semitones.

VCOs whose tracking doesn't go high enough to follow the leader will see their pitch repositioned in their highest possible octave so that the global harmony is unaffected.

You can add a pinch of portamento and glissando to each channel and save the whole in user presets.

Firmware 1.17 offers:
* User editable input scaling to match sources that don't generate perfect 1V per octave signals.
* Complete rewrite of the main processing with higher precision.
* ... and the unavoidable fixes and tweaks ;-)

The updated user manual 1.4 is much expanded with operations described in exquisite details :-)
.. and a version 1.5 corrects a mistake in the input calibration description and eases the reading elsewhere.

Dimensions
6 HP
36 mm deep

Current Draw
44 mA +12V
8 mA -12V
0 mA 5V

Notes: Clever four-channel utility module designed to make it easier to achieve perfect oscillator tracking and transpose CV signals. Also includes some neat quantising and portamento features.

Supplier notes:
The CalTrans solves issues encountered when playing tonal music with a modular system: tracking problems, curves unrelated to Volt per octave ratio, limited octave range, cumbersome transpose, ...

The CalTrans corrects and expands the range of troublesome VCOs and brings V/Oct tracking to anything that oscillates.

Besides calibration, the CalTrans offers live play features. Each channel can be quantized and any combination of them transposed jointly.

A pair of rotary encoders with detent allow an precise selection of octaves and semitones.

VCOs whose tracking doesn't go high enough to follow the leader will see their pitch repositioned in their highest possible octave so that the global harmony is unaffected.

You can add a pinch of portamento and glissando to each channel and save the whole in user presets.

Notes: Receives MIDI data from a single MIDI OUT (e.g. sequencer or master keyboard) and produces identical copies at the 25 MIDI THRU sockets. These can then be connected to the MIDI INs of sound modules or other devices which require MIDI signals sent to them.

High quality Kenton MIDI Thru box with opto-isolated MIDI In and separate drive for each MIDI Out. Powered from a mains adaptor (wall wart) so you can fit and forget.

Comes with multi-regional power supply

Notes: The PRO-SOLO Mk3 converts MIDI data into CV- gate and clock signals. The operation is easy and clear, settings can be saved in non-volatile memory. High-resolution 16-Bit converters provide accurate tracking and fast response. 1V/oct and Hz/V characteristics are possible as well as normal gate and Switched Trigger (S-Trig).

The unit features two CV- and one gate output, additionally there's an analogue clock output. MIDI thru socket can also be used as DIN-Sync output or it can output two additional voltages with a special cable. MIDI synched LFO.

Notes: - CV & Gate inputs on 3.5mm mono jack sockets
- A to D conversion for main CV input is 16 bit high quality ADC
- V/octave, Hz/V or 1.2V/oct modes selectable
- Gate type can be selected as Gate or S-trig
- Aux1 & 2 inputs on 3.5mm mono jack (continuously variable or switch selectable)
- Auxes can select controller number
- Auto tune feature makes setup easy
- MIDI Out on 5 pin DIN socket
- Non-volatile memory EEPROM (no back-up battery required)
- 32 bit ARM processor

Comes with multi-regional power supply

Notes: Merges the data from up to eight separate MIDI sources (e.g. master keyboards, controllers, computers etc.) into a single MIDI data stream which appears at both the MIDI out sockets. Merges all MIDI data including MIDI Clock, MIDI time code and SysEx (see the manual for merging rules). Can also be configured as two completely independent 4 into 1 mergers with the simple press of a recessed button (see manual for details).

- 8 opto-isolated MIDI Ins
- 2 MIDI Outs

Comes with mult-regional power supply

Notes: K-Board-C is a simple yet expressive, durable, portable USB MPE MIDI keyboard designed for music producers and performers to use anywhere. K-Board-C works with all of your music software, connecting to your computer or mobile device via USB-C. K-Board-C is MPE compatible with 25 touch sensitive keys to detect velocity, polyphonic aftertouch, and per-key tilt, giving you total control of musical expression. The new K-Board-C enclosure features a durable ABS polycarbonate finish that comes in 5 fun colours: Snow, Galaxy, Orchid, Lime and Aqua. Powerful and portable, the K-Board-C is designed for everyone making music!

K-BOARD-C Key Features

Colourful Options

K-Board-C comes in 5 exciting colours: Galaxy, Snow, Orchid, Lime and Aqua. These new enclosures built from durable ABS Polycarbonate are built to last and fun to play. Express yourself!

Play MPE Synths

K-Board-C is the simplest, most affordable way to start playing with the multidimensional sounds of MPE synths. Connect K-Board-C to a synth with MPE enabled and instantly the dimensions of velocity, tilt and pressure of each key bring the synth to life. Express yourself!

USB-C Connection

Modernizing the K-Board connection jack to USB-C adds a new level of robustness to the K-Board-C design, and we look forward to connecting with more and more devices as the new standard grows.

Notes: K-Board-C is a simple yet expressive, durable, portable USB MPE MIDI keyboard designed for music producers and performers to use anywhere. K-Board-C works with all of your music software, connecting to your computer or mobile device via USB-C. K-Board-C is MPE compatible with 25 touch sensitive keys to detect velocity, polyphonic aftertouch, and per-key tilt, giving you total control of musical expression. The new K-Board-C enclosure features a durable ABS polycarbonate finish that comes in 5 fun colours: Snow, Galaxy, Orchid, Lime and Aqua. Powerful and portable, the K-Board-C is designed for everyone making music!

K-BOARD-C Key Features

Colourful Options

K-Board-C comes in 5 exciting colours: Galaxy, Snow, Orchid, Lime and Aqua. These new enclosures built from durable ABS Polycarbonate are built to last and fun to play. Express yourself!

Play MPE Synths

K-Board-C is the simplest, most affordable way to start playing with the multidimensional sounds of MPE synths. Connect K-Board-C to a synth with MPE enabled and instantly the dimensions of velocity, tilt and pressure of each key bring the synth to life. Express yourself!

USB-C Connection

Modernizing the K-Board connection jack to USB-C adds a new level of robustness to the K-Board-C design, and we look forward to connecting with more and more devices as the new standard grows.

Notes: You must absolutely own Skippy to use this module; it cannot operate independently.

The firmware version 2.21 or higher must be installed on your Skippy.

Additional features:
1 CV gate or trig input for Reset
1 CV gate or trig input for Play/stop
1 Reset button
1 Play/stop button
1 Live mode on/off button
16 function potentiometers distributed over 4 rows: you can freely choose a function (BPM, STEP, BEGIN, END, GAUSS, GATE, PROBA, CHAOS, SWING, WAY) for each row.
1 row of 4 algorithm potentiometers: you can freely choose an algorithm (Euclid, Jazzy, PolyR, Tiles) for each potentiometer.
The Save function takes into account the settings used in Skippy Live.
The selected parameters for Skippy Live are automatically saved.

Technical specifications:
10 HP
Depth: 25 mm
Power consumption:
+12 V 0 mA
-12 V 0 mA
+5 V 15 mA
Comes with a connector to Skippy and Knurlies.

Notes: Random rhythm generator

Joey is a Eurorack module that generates random gate sequences. It is the offspring of Skippy (Kaona's polyrhythmic sequencer), without simply copying it: it's a very straightforward module that provides unexpected yet controllable sequences.

It offers three main modes:

Random

For random triggers controlled by an internal speed or an external clock.

Fractal

A unique algorithm sprinkled with 5% chaos, creating evolving and surprising patterns.

Euclid

Generates four different Euclidean patterns for complex and evolving rhythms.

Each mode has three adjustable parameters set via a clickable encoder: speed, a mode-specific parameter (probability, fractal root, or Euclidean pattern), and gate length. An external gate input can take over to synchronize speed. A PLAY/STOP button instantly suspends or restarts the gates.

Specifications

Width: 6 HP

Power Consumption:
+12 V: 50 mA
-12 V: 0 mA
+5 V: 0 mA

Depth: 28 mm

Supplied with power cable and Knurlies

Notes: Simple but effective output module, converts stereo instrument-level signal to balanced XLR outs. Ideal for live use but just as good for avoiding unwanted hum in the studio.

Supplier's notes:
Whether it's in the studio or on a live stage, keeping audio interconnections free from unwanted hum and interference can be a challenge. Balanced lines are the proven solution to this problem.

Conventional balanced output solutions often rely on transformers providing galvanic isolation to mitigate the effects of ground loops. Unfortunately, these components are bulky, expensive and colour the sound (often unfavourably, especially in the low end).

Instead, Transmit 2 (or TX2 for short) takes a fully solid-state approach. Offering a stereo pair of XLR balanced outputs, it ensures that the sonic clarity of your carefully planned modular system is not lost in its interface to the outside world.

Engineered to provide massive headroom while retaining extremely low noise and distortion, Transmit 2's circuitry incorporates low-impedance design practices, radio-frequency (RF) filtering and premium balanced drivers to provide transformer-like interconnect performance in a compact and affordable module. And thanks to the electrostatic (ESD) and phantom power discharge protection, it's rugged enough to survive the rigours of performing on the road.

Adjusting the main output level is a breeze thanks to the dual peak-responding LED meters. A high-end headphone amplifier is included as well, controlled by a separate level knob. It can deliver the voltage and current required to power practically any headphones, regardless of the impedance or driver technology. This 3.5 mm stereo socket can function as an auxiliary stereo line output or even drive small passive speakers, making Transmit 2 an all-round flexible answer to all your output needs.

Notes: While modular synthesisers are most often used as stand-alone instruments, they also present exciting opportunities for processing external signals. Anything from an electric guitar to an effects send on a studio mixing desk can benefit from the unique sonic capabilities of even a modest Eurorack system.

However, patching in an external source usually requires an adapter cable and plenty of clean gain to bring the signal to Eurorack level. If the signal source is balanced, a balanced input is required as well to provide the best possible interference rejection.

Receive 2 (or RX2 for short) provides a convenient all-in-one solution. It offers two universal external inputs, which accept both balanced or single-ended signals via XLR or 6.35 mm jack connectors.

The circuit incorporates low-impedance design practices, radio-frequency (RF) filtering and premium balanced receivers to provide transformer-like interconnect performance in a compact and affordable module. And thanks to the electrostatic discharge (ESD) protection, it’s rugged enough to survive the rigours of performing on the road.

The very clean integrated pre-amps feature variable gain, ranging from unity to +40 dB on each channel. As a result, Receive 2 can handle just about any signal source you may encounter, including electric instruments, piezoelectric pickups and many dynamic microphones.

Adjusting the gains is a breeze thanks to the dual peak-responding LED meters. A mix output is included as well, so external signals can be easily mixed directly in the module.

Notes: Make quick changes to signal routing manually or with CV control. Any audio or CV signal can be routed via two outputs in series, parallel or reverse series. Quick, clever and easy to use.

Supplier's Notes:
Signal flow is an essential concept in modular synthesis: the path taken by audio or control voltages (CVs) may be long or short, branching or linear, intuitive or highly complex.

While the patch programmability of a modular system is its greatest strength, it can also be a weakness: quick experimentation is often hampered by the need to repatch the synthesiser to change the signal flow.

Pivot 2 offers a unique solution: a compact, fully voltage controlled variable signal router. At the turn of a single knob, any signal can be routed through two external modules in series, parallel or reverse series, as well as any combination in between.

Experiment with patching wavefolders before, after or alongside filters, shuffle multiple delay lines, precisely dial in two-stage audio compression or easily control intricate feedback patches.

Looking beyond the basic signal routing application, Pivot 2 will also function as a complementary pair of counter-acting linear voltage controlled amplifiers (VCAs), a voltage controlled crossfader or a voltage controlled panner.

Analogue voltage controlled send/return router.
Seamless transitions from series, through parallel on to reverse series effect routing.
Also functions as a complementary VCA pair, voltage controlled crossfader or panner.
Impedance-compensated outputs with dual-colour LEDs.
Premium mounting hardware: black screws, black nylon washers and matching hex key.
High-quality components and assembly; designed and made in Belgium.

4 HP | +12: 60 mA, -12: 60 mA

Notes: Designed with versatility in mind, the Fold 6 is a six-stage wavefolder with simultaneous series and parallel outputs, dual signal inputs and voltage-controlled folding and overdrive shaping.

Supplier's Notes:
Often considered to be the opposite of filters within a modular system, wavefolders are designed to fold a signal over itself multiple times. This generates additional harmonics, resulting in rich timbres.

While there is a bewildering array of filter types within the synthesiser world, most wavefolders fall within only a few categories. Diode wavefolders in particular come in just two variants: series and parallel circuit topologies. Choosing a specific folder also means being limited to specific sounds and capabilities.

For the first time, Fold 6 puts forward a 6-stage hybrid series/parallel topology, yielding a greater sonic palette than ever in just 4 HP. Having both main (series) and alternate (parallel) outputs means a single module now gives access to just about all wavefolding tones imaginable.

To take things even further, an integrated symmetrical soft clipper limits the output signals to approximately 10 Vpp, keeping the amplitude within typical Eurorack levels and making it easier to create overdriven sounds at high fold ratios. This clipping stage can be driven continuously using the shape parameter, smoothly transforming the folded waveforms into pulse waves for even more harmonic content.

Two signal inputs are included, to mix audio signals or add in a DC voltage for asymmetric folding. The symmetry can also be manually controlled using the dedicated knob. Of course, both fold and shape parameters feature voltage control, to enable continuous timbral modulation.

Moving beyond simple signal processing, Fold 6 also lends itself perfectly for feedback patching, CV folding or frequency multiplication; its modest size belies the sonic capabilities within.

Notes: A comprehensive solution for stereo signals in Eurorack, the Enhance 2 offers stereo and mid/side processing with tons of CV control. Balance, widen and sculpt frequency bands.

Supplier's Notes:
Moving from mono to stereo sound: a logical progression for any synthesist looking to expand their sonic palette. Making use of two audio channels, rather than just one, quite literally adds another dimension to the capabilities of a synthesiser.

Unfortunately, controlling stereo signals can be a challenge within a modular system. This realisation led to the development of Enhance 2: a convenient yet high-fidelity tool for stereo enhancement. It can be used to adjust balance, width and spectral content, while also opening up a world of mid/side processing; all under voltage control and in just 8 HP.

The primary stereo parameters are balance (moving the sound left or right) and width (making it narrower or wider). The balance circuit uses a true constant-power gain law, while the width stage allows for seamless transitions from pure mono to extra-wide stereo.

In addition, tone control is provided by a pair of unique, wide-ranging mid/side voltage controlled tilt filters with selectable corner frequency. These make 'cleaning up' a muddy-sounding mix straightforward, but also provide unique binaural effects when modulated.

Mid/side processing encodes the stereo signals into one containing only the mono material (mid), and another containing the differences between both channels (side). Apart from the internal tilt filters, mid/side outputs also enable external signal processing such as compression or reverberation. An integrated mid/side decoder returns the results back to standard stereo. And at all times, a LED bar phase meter ensures that phase correlation can be easily maintained.

Stereo field modulation, mid/side equalisation and beyond; Enhance 2 brings true analogue stereo control to the Eurorack world.

8 HP
+12: 70 mA, -12: 70 mA

Notes: For anyone who has ever struggled with finding their way around a Eurorack synthesiser on a dark stage or a dimly lit studio, Dim 2 presents an illuminating experience. In just 4 HP, it provides a complete solution to upgrade your modular system with a pair of dimmable console lights.

The high-efficiency PWM dimmers run at high frequency, ensuring flicker-free and noise-free operation. Additionally, extensive line filtering keeps your Eurorack power supply happy and clean.

Not limited to just manual control, both dimmers also feature control voltage (CV) inputs, turning the connected lamps from simple light sources to voltage controlled audio-visual spectacles.

While the use of the included BNC LED lamps is recommended in order to keep power consumption low, halogen lamps may be used as well. Provided your power supply is beefy enough, up to 6 W of power may be drawn from each output. This even makes it possible to drive 12 V LED strips, truly making your patches shine bright.

4 HP | +12: 150 mA, -12: 5 mA | JORD2

Notes: A rock-solid all-rounder of a VCO, the Cycle 5 is a triangle-core oscillator with morphable wave shapes as well as conventional sine, triangle, saw and pulse outputs. Switchable octaves and 5th transposition make the module even more user friendly.

Supplier's Notes:
A small Eurorack oscillator that packs a punch: that's the best way to summarise Cycle 5.

At its heart lies a refined high-stability triangle core voltage controlled oscillator (VCO), with performance matching or exceeding that of much bigger and costly oscillator modules.

Instead of a coarse frequency knob, a 7-position octave switch is provided. This in combination with a perfect fifth transposition switch and factory pitch tuning, makes Cycle 5 an exceptionally straightforward and musical VCO to use: simply centre the fine tune knob, and the module will be instantly tuned to reference C.

Meanwhile, its dual precision volt per octave inputs add a great deal of versatility. For example, one could be used for pitch sequencing and the other as a generic exponential FM input, or both sequenced together for transposition effectsithe dual inputs serving as a built-in precision adder.

Sporting all the classic waveforms, ranging from sine wave, triangle, saw and square/saw, as well as a hard sync input and low frequency oscillator (LFO) mode, Cycle 5 makes for a real workhorse VCO. The novel trigonometric waveshaper results in a very clean sine wave, ideal for sub bass duty.

Cycle 5's highlight however, is its vari-wave feature. By adjusting the vari-wave knob, the waveform on the matching output will smoothly morph from sine, to triangle, saw, square and finally a very narrow pulse. The vari-wave parameter can be CV controlled, up to audio frequencies for some intense timbres.

Equally at home as a modest modulation companion to big VCOs, as being in the spotlight in miniature or polyphonic systems, Cycle 5 might just be the most multi-talented tiny analogue oscillator yet.

6 HP | +12: 75 mA, -12: 70 mA

Notes: KRONO offers multiple clock modes (including Euclidean, Logic, Probabilistic, and more), tap-tempo or external clocking, real-time A/B output swapping, and full state memory.

All 12 outputs are customizable, and everything runs on an STM32F411 - with open code available via GitHub for advanced users and developers.

Modes - firmware v1.0

Ratios: Direct multiplications and divisions of the base tempo for proportional rhythmic ratios.

Euclidean: Generates Euclidean rhythms by distributing K pulses over N steps.

Musical: Applies common musical ratios (e.g., triplets, dotted notes, predefined swing divisions).

Probabilistic: Outputs trigger based on defined probability thresholds for each output.

Sequential: Generates clocks based on mathematical sequences (Fibonacci, prime numbers).

Swing: Applies individual swing/shuffle levels per output, delaying even beats.

Polyrhythm: Assigns independent X:Y ratios to outputs; output 6 can generate a logical sum.

Logic: Applies logic operations (AND, OR, XOR, NAND, XNOR) between internal clocks or external inputs (if configured).

Phasing: Generates pulses with configurable time offsets (phase shifts) relative to the main clock.

Chaos: Creates unpredictable rhythmic patterns based on chaotic algorithms

Notes: GITGUD is a pack of 9 chained LFOs.

Why:

To move stuff all around.
To creatively trigger drums and voltage-controlled gates.
To change the whole vibe of a composition with just a slide on the skin-sensitive panel.
To create dependencies on a group of modulations and defuse them un-chaining the LFOs on the fly.

With:

Filters - create a relation between the cutoff and the resonance.
Drums - send a pulse to the trigger input and a ramp to modulate another parameter.
LPGs - squares to make them BONG and ramps for slow linear increments.
FM or any other CV inputs you want it to take care of.

Dimensions:

8 HP
18 mm deep

Current Draw:

135 mA +12V

Notes: ASCOLTA is a dual high fidelity input preamp with envelope follower and peak detector output for each channel.

Ascolta consist of two individual high quality preamp connected to an envelope follower and a peak detector output.

On the back of the module you can select the behaviour of its internal normalization when no cable is plugged into I2:

S: the first input I1 will accept stereo 3.5mm standard cables from any source and split L and R to output O1 and O2 respectively. This way you can directly amplify stereo signals without the need of external splitters and regulate the gain of each channel individually.

G: the second amplifier will double the amplification of the first totalling a gain range of 80dB - 10.000x.

Envelope E and peak P outputs are strictly related to the gain level of their corresponding amplifier and will follow the dynamic of any input plugged.

Features

Two high quality 40dB amplifiers.
Customizable internal normalization.
Envelope and Peak output following the input signal
Audio graded potentiometers.
"Whatever" power connector a.k.a. don't mind the polarity.

Technical Specs

Width: 4HP
Depth: 25mm
50mA +12V
30mA -12V

Review: A grand, limited-edition 7-LP vinyl set that celebrates the legendary composer through live performances with some of the world's most renowned orchestras, capturing Williams conducting iconic scores with ensembles like the Saito Kinen Orchestra, Berliner Philharmoniker and Wiener Philharmoniker. Additionally, it includes the world premiere of Williams' Violin Concerto No. 2, featuring violinist Anne-Sophie Mutter and the Boston Symphony Orchestra. The set covers a wide range of Williams' celebrated film compositions, including unforgettable themes from Harry Potter (like 'Hedwig's Theme') and Star Wars (featuring tracks such as 'Princess Leia's Theme' and 'The Imperial March'). Other highlights include E.T.'s 'Flying Theme', Jurassic Park's evocative main theme and the suspenseful, instantly recognizable score from Jaws. The box set's careful design includes a booklet with liner notes, essays by film-music writer Jon Burlingame, and personal reflections from Williams and other performers. Each LP is dedicated to a different concert experience, with memorable encore performances from Tokyo, Vienna and Boston adding to the collection's richness. A thoughtfully curated release and a unique journey through Williams' music.

Notes: ***B-STOCK: Box opened, product unused & in perfect condition***

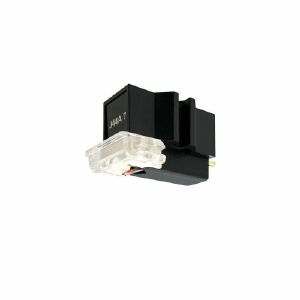

The J44 models are JICO CUSTOM SHOP brand alternate replacements for the iconic SHURE M44 cartridges. JICO has two products available on the market: the J44A 7 and the J44D. The J44A 7 is designed to be a replacement for the SHURE M447, while the J44D is designed to be a replacement for the SHURE M44G. The JICO J44 models are made to be as close to the actual SHURE M44 cartridges in terms of output performance.

The J44A 7 and the J44D are the same exact cartridge, just as the original SHURE M447 and M44G cartridges. The difference in the sound reproduction is created by the stylus that is used with the cartridge, which produces the distinct sound that is reproduced in conjunction with the J44 cartridges from JICO.

The N-44-7 stylus that is included with the J44A 7 offers a brighter sound, than the N-44G stylus that is included with the J44D, with a thicker bass sound-the same difference as with the SHURE 44 cartridges. JICO has followed the structure of the SHURE products to release the alternative replacement. Not only the sound output is as close to the SHURE M44 cartridge models but the tracking ability of the J44 performs as the same with sticking to a record groove with high jump/skip resistance and low record wear.

The JICO J44A 7 with N44-7 stylus provides a crisp and clear sound in the higher frequencies, with the bass being heavy, bold and pronounced. This gives a lively, vigorous and dynamic sound experience. The J44A 7 produces powerful bass frequencies with a smooth, balanced sound, similar to the specification of the genuine Shure M44-7 cartridge.

Cartridge: J44A 7
Cartridge: Type Moving Magnet
Stylus: N44-7 DJ Improved Nude
Stylus: Type Nude Conical (Spherical)
Tip Size: 0.7 mil
Cantilever: JICO S-Type Aluminium
Weight: 5.6 g
Height: 16 mm
Output Voltage: 8 mV
Frequency Range: 20Hz-20kHz
Recommended Load: 47 kO
Direct Current Resistance: 800 O
Compliance: L8.5 / V7.8
Stereo Channel Balance: 1.5 or below
Channel Separation (at 1kHz): 20 db
Tone Arm Mount: 1/2 inch standard mount
Tracking Force: 3.5-4.5 g
Glow in the Dark: False
Use: DJ (scratching)

Notes: The J44 models are JICO CUSTOM SHOP brand alternate replacements for the iconic SHURE M44 cartridges. JICO has two products available on the market: the J44A 7 and the J44D. The J44A 7 is designed to be a replacement for the SHURE M447, while the J44D is designed to be a replacement for the SHURE M44G. The JICO J44 models are made to be as close to the actual SHURE M44 cartridges in terms of output performance.

The J44A 7 and the J44D are the same exact cartridge, just as the original SHURE M447 and M44G cartridges. The difference in the sound reproduction is created by the stylus that is used with the cartridge, which produces the distinct sound that is reproduced in conjunction with the J44 cartridges from JICO.

The N-44-7 stylus that is included with the J44A 7 offers a brighter sound, than the N-44G stylus that is included with the J44D, with a thicker bass sound-the same difference as with the SHURE 44 cartridges. JICO has followed the structure of the SHURE products to release the alternative replacement. Not only the sound output is as close to the SHURE M44 cartridge models but the tracking ability of the J44 performs as the same with sticking to a record groove with high jump/skip resistance and low record wear.

The JICO J44A 7 with N44-7 stylus provides a crisp and clear sound in the higher frequencies, with the bass being heavy, bold and pronounced. This gives a lively, vigorous and dynamic sound experience. The J44A 7 produces powerful bass frequencies with a smooth, balanced sound, similar to the specification of the genuine Shure M44-7 cartridge.

Cartridge: J44A 7
Cartridge: Type Moving Magnet
Stylus: N44-7 DJ Improved Nude
Stylus: Type Nude Conical (Spherical)
Tip Size: 0.7 mil
Cantilever: JICO S-Type Aluminium
Weight: 5.6 g
Height: 16 mm
Output Voltage: 8 mV
Frequency Range: 20Hz-20kHz
Recommended Load: 47 kO
Direct Current Resistance: 800 O
Compliance: L8.5 / V7.8
Stereo Channel Balance: 1.5 or below
Channel Separation (at 1kHz): 20 db
Tone Arm Mount: 1/2 inch standard mount
Tracking Force: 3.5-4.5 g
Glow in the Dark: False
Use: DJ (scratching)

Notes: The J44 models are JICO CUSTOM SHOP brand alternate replacements for the iconic SHURE M44 cartridges. JICO has two products available on the market: the J44A 7 and the J44D. The J44A 7 is designed to be a replacement for the SHURE M447, while the J44D is designed to be a replacement for the SHURE M44G. The JICO J44 models are made to be as close to the actual SHURE M44 cartridges in terms of output performance.

The J44A 7 and the J44D are the same exact cartridge, just as the original SHURE M447 and M44G cartridges. The difference in the sound reproduction is created by the stylus that is used with the cartridge, which produces the distinct sound that is reproduced in conjunction with the J44 cartridges from JICO.

The N-44-7 stylus that is included with the J44A 7 offers a brighter sound than the N-44G stylus that is included with the J44D, with a thicker bass sound- the same difference as with the SHURE 44 cartridges. JICO has followed the structure of the SHURE products to release the alternative replacement. Not only the sound output is as close to the SHURE M44 cartridge models but the tracking ability of the J44 performs as the same with sticking to a record groove with high jump/skip resistance and low record wear.

The JICO J44A 7 with N44-7 stylus provides a crisp and clear sound in the higher frequencies, with the bass being heavy, bold and pronounced. This gives a lively, vigorous and dynamic sound experience. The J44A 7 produces powerful bass frequencies with a smooth, balanced sound, similar to the specification of the genuine Shure M44-7 cartridge.

Cartridge: J447 A
Cartridge: Type Moving Magnet
Stylus: N44-7 Improved Nude
Stylus Type: Nude Conical (Spherical)
Tip Size: 0.7 mil
Cantilever: JICO S-Type Aluminium
Weight: 5.6 g
Height: 16 mm
Output Voltage: 8 mV
Frequency Range: 20Hz-20kHz
Recommended Load: 47 kO
Direct Current Resistance: 800 O
Compliance: L8.5 / V7.8
Stereo Channel Balance: 1.5 or below
Channel Separation (at 1kHz): 20 db
Tone Arm Mount: 1/2 inch standard mount
Tracking Force: 0.75 - 1.5 g
Glow in the Dark: False
Use: Listening / Playback

Notes: Made of black powder-coated aluminum for 2 keyboards, With height-adjustable and tiltable shelves, each equipped with 1 pair of 40 cm long holdersThe stand is delivered pre-assembled, the assembly time is approx. 15 minutes.

Notes: Made of black powder-coated aluminum for 2 keyboards, with height-adjustable and tiltable shelves, each equipped with 1 pair of 40 cm long holders. The stand is delivered pre-assembled, the assembly time is approx. 15 minutes.

Notes: Made of black powder-coated aluminum for 2 keyboards. With height-adjustable and tiltable shelves, each equipped with 1 pair of 30 cm long holders. The stand is delivered pre-assembled, the assembly time is approx. 15 minutes.

Notes: The Golden Boy Mini - the epitome of versatile and transparent overdrive, designed in collaboration with the renowned guitarist Joey Landreth. With its exceptional harmonic detail and abundant headroom, this compact overdrive pedal takes the concept of transparent overdrive to new heights, using a simple and powerful interface.

The Golden Boy Mini is the perfect addition to any guitarist's arsenal, allowing you to shape and enhance your tone in ways you've never imagined. Its transparent nature ensures that your core tone remains intact, while adding a dynamic of warmth, richness, and depth that elevates your playing to new levels.

Its intuitive controls allow you to dial in the perfect blend of overdrive, from subtle grit to soaring, harmonically rich tones. The pedal's wide-ranging gain control ensures that it can adapt to any musical style or genre, whether you're playing delicate fingerpicked melodies or unleashing blistering solos. Pair it with Asymmetrical or Led Clipping and put the final touches with it's 3-band Baxandall-style EQ.

Beyond its exceptional sound, the Golden Boy Mini is built to withstand the rigors of the road. Its rugged construction and top-quality components ensure reliability and durability, making it a reliable companion for both studio sessions and live performances.

Whether you're a seasoned professional or an aspiring guitarist, the Golden Boy Mini will transform your tone and ignite your creativity.

Discover the Golden Boy Mini and unlock the true potential of your guitar tone. Order yours today and witness the power of transparent overdrive like never before. Elevate your sound and embark on a sonic journey with the GOLDEN BOY Mini!

Notes: IsoAcoustics introduce the next evolution of their specialized line of speaker stands for the audio professional, music hobbyist, audiophile, and music lover. The new ISO Series of speaker stands provide superior acoustic isolation and enhance the sound clarity of any speakers including studio monitors, home theatre systems and sound reinforcement.

With a lower profile and new contemporary design, the ISO Series of stands positions your studio closer to the supporting surface or meter bridge, and the new redesigned isolators moves the acoustic performance another step forward.

IsoAcoustics ISO Series speaker stands are built with a unique, patented isolation technology that provides a high degree of isolations and manages the speaker's energy to deliver authentic, uncoloured sound. This next generation of speaker stands effectively eliminates energy transfer into the supporting surfaces. Bass becomes tighter, overall imaging is enhanced and your speakers are enabled to perform to their full potential. Following the same design philosophy as the ISO-L8R Series, these isolation stands provide 14 variations of height and tilt adjustment to optimize the placement and performance of studio monitors by getting the tweeters in the correct alignment with the listening position.

Whether you're a pro mixing in the studio - a musician creating in a home project environment - or an audiophile who appreciates every nuance of music and sound - you'll hear and appreciate the difference with the ISO Series speaker stands. It's simply the best investment you can make for superior audio.

ISO-200:

Designed for larger speakers and studio monitors. These stands provide 14 variations of height and tilt to optimize speaker placement and performance. Isolate your studio monitors from the supporting surface and allow them to breathe so they can deliver the clearest and most accurate sound possible.

7.8"x10"/20×25.4cm Short: 3.5"/12.5cm Tall: 8.75"/22.5cm 60 lbs/27.2kg

Notes: XFADE 1U is a classic DJ-style stereo crossfader, with a few extra tricks up its sleeve. The 'A' and 'B' sides both have L+R inputs. The crossfader blends two stereo input signals together - crossfading one into the other depending on the position of the slider and the selected XFADE Shape. The blended output appears at the MIX L and MIX R output jacks.

In addition, XFADE 1U can be used as a modulation source for controlling other modules, since the crossfader also outputs control voltages from the CV A and CV B jacks. A switch determines whether these voltages are unipolar (crossfading from 0V to 5V; and 5V to 0V), or bipolar (crossfading from -5V to +5V; and +5V to -5V). The two LEDs indicate the polarity and relative levels of the CV A and CV B signals.

XFADE 1U uses a precision Innofader crossfader submodule, with moving capacitance technology for smooth and precise control. This is the same part found on many high-end DJ mixers.

Features:

Smooth and ultra-low friction Innofader Mini-Innofader module with moving capacitance technology
Stereo or Mono operation
DC coupled inputs and outputs
Three crossfade shapes: DJ cut, Constant Power and Linear
Unipolar or Bipolar CV outputs

Width: 26HP
Depth: 38mm
Power: 48mA @ +12V / 41mA @ -12

Notes: The Shifty is essentially a combination of four sample and hold stages, a sequential gate and sequencer controller. This collection of functions allows for some specific and useful utility application.

One of the primary uses for Shifty is to take a monophonic sequence source and route each new note of the sequence to up to four different synthesizer voices in a specific pattern. In this way you can create pseudo polyphonic sequences since each voice can be triggered to play and sustain while the next voice int the sequence gets triggered. Another term for this is hocketing.

The other main application of the Shifty is to function as an Analog Shift Register. In this mode each new gate input received causes the current set of pitches to be shifted to new output locations as a new one is added and the oldest one is replaced. This can be an interesting way to create chords that are up to four stacked notes when used with a pitch sequence source that has a harmonious series of notes (e.g. a pentatonic scale works really well). Even just using two of the outputs will yield very interesting melodic interplay and is an excellent way to make a simple sequence much more complex and interesting.

In a more basic way the Shifty could be used as a simple Sample/Track and Hold module or as a sequential gate.

Notes: The Quad VCA is a compact and feature packed module that is sure to find its way it almost all of your patches. In addition to being used for standard VCA duties it can also be used as a mixer and signal booster.

Features:

- Manual LEVEL control per VCA which is convenient when using the module as a mixer or for biasing when CV modulating the VCA with a bipolar LFO.
- Dedicated CV attenuators with dual colour LEDs for monitoring bipolar CV signals.
- Continuously adjustable response from linear to exponential per VCA.
- Each CV input is normalled to the adjacent one for cascaded control.
- Each output is normalled to the mix input of the adjacent one which allows you to use adjacent sets as submixes or the fourth output can be used as a master mix output when none of the other outputs are patched.
- Each VCA has a boost switch that increases the output level by approximately +6dB (double).

Notes: A great solution for highly customisable control, the EN16 Grid module offers 16 velocity-sensitive rotary encoders, with configurable push button modes, multi-coloured LEDs and programmable range.

Supplier's Notes:
EN16 is made for fine-tuning enthusiasts: this Grid module offers 16 velocity sensitive incremental encoders with infinite rotation and mappable push functionality.

Create separate actions by left and right rotation or add distinguished commands with push rotation. Map banks to the same control or switch immediately from one command to another in just a second using only one module. Unlock potential through the Grid Editor with coarse or fine settings.

Equipped with customisable multi-coloured LED lights to enable labelling in dark environments. Facilitate differentiating each potmeter by changing the colour of each indicator LED, adjusting brightness levels individually or adding pulsing animations.

It is recommended that, Grid is connected directly to the computer with the supplied Intech Studio USB-C cable. Some USB hubs may not work with Grid, due to issues with how the various class compliant communication methods establish connection through a hub with the host computer.

Most digital audio workstations can identify Grid as a MIDI controller and appear as a MIDI mappable device. When multiple modules are interconnected, Grid is identified as a single control surface. If the interconnected controllers are plugged in separately into the same Host, they appear as Grid #1, Grid #2 MIDI devices and so forth.

By default, through the Host's MIDI learn functionality, all of the control elements can be mapped. Grid's default firmware uses a unique dynamic assignment, so a 10 module Grid control surface will have unique Channel, Command and CC/Note assignments on each control element.

Grid controllers are shipped with firmware default configuration. To modify the configurations of the controllers, the Grid Editor cross-platform application can be used. Through the Grid Editor, suggested manufacturer profiles and community profiles are also available. Grid has an event driven architecture, where every interaction with the controller triggers an event. The triggered event runs the configured actions, like setting LED colours and intensity.

Events on Grid available for configuration:
Init - when a page is initialized
Potmeter - fader or potentiometer change event
Encoder - rotation of endless encoders
Button - switch button or encoder interaction
Utility - side button
Midi rx - MIDI processing incoming to Grid
Timer - delayed message triggers

Grids are created to suit distinguished workflows. Whether it comes to controlling outboard hardware gear like synthesizers, guitar pedals, and effect boxes, or inboard software such as DAWs, Lightning, and VSTs, a Grid controller is an ideal choice.

Get started with Grid in an instant: just plug in, snap together and play. There is no need for a brain module or any additional software components.

Tech specs

Weight: ~ 175 grams (~ 0,38 lb)
Size: 106 mm x 106 mm (4.19 x 4.19 inches) Eurorack-sized modules
16 velocity sensitive incremental encoders with 360- rotation and mappable push functionality
Customizable multi-coloured LED lights for easy labelling in dark environments

Materials

Black aluminium front panel with a metallic, rugged finish
Ergonomic plastic encoders in black
Injection moulded plastic base
Golden spring-loaded connector pins
Strong N52 neodymium magnets
Silicone feet on the back for extra stability

Compatibility

Class compliant MIDI device with simple PnP (Plug and Play) experience
USB HID keyboard class
Compatible with Mac OS (intel & arm), Windows, Linux and mobile platforms with support provided

Powering options

Single USB cable to power up to 8 modules
High speed USB 2.0
Draws ~250mA
