Notes: RackBrute 3U is a comprehensive Eurorack housing, transport, and protection solution. Featuring configurable positions, dependable power supply, and maximum practicality, you can be assured your precious modules will be well guarded.

Don't worry; your beloved modules are under heavy guard.

Modular gear is a precious commodity, and you need a versatile housing and security system to accommodate them. A first glance, you'll see that this is a perfectly fitted 3U, 88 HP case made of a light but strong aluminium chassis, fitted with wood side panels.

Deceptively simple, RackBrute is far more than a simple box. It includes many smart additions, such as the included +12V / -12V / +5V power supply that ensures that keeps everything up and running, and the multi-position handle system that not only lets you carry your collection with ease, but also lets you deploy an optimal operating angle, whatever your preference.

Ready for anything

Secure an unobstructed viewpoint over the theatre of operation, and hold the position 'til further orders.

In addition to keeping your modules safe and secure, RackBrute 3U gives you total control of the situation, no matter the context. The first of its secret weapons is the Link fastening system. Paired with the included handle, it will let you choose one of several configurations and orientations for your modular arsenal. Whether you want your gear stealthy and prone, or standing to attention, RackBrute is at your command.

The second trick up its sleeve is the stalwart, ever-reliable, power supply module. Including two independent circuits to supply common modular voltages, it will more than cover your need for +12V, -12V and +5V, providing up to 1600mA in total.

Thirdly, its robust power rail includes a sophisticated noise-filtering technology, and provides 20 standard slots to leave plenty of space for your collection.

Once you're powered, in position, and locked down, you'll feel like your modular rig could withstand a siege.

Joining forces with allies

Always remember the Modular Republic's motto: Unity is strength.

The Link fastening system not only equips the RackBrute 3U, but also its large-calibre sibling, RackBrute 6U as well the MiniBrute 2 and MiniBrute 2S. No matter the combination you go for, you can make the most out of your extensive module collection, or create a powerful EcoSystem with the extensive CV/Gate connectivity of the MiniBrute 2 and 2S.

It's also worth noting that although this technology comes straight from the top secret Arturia research labs, they are working for the greater good. The Link system is patent-free, so you can expect more and more Link-enhanced equipment to become available in the near future.

Do not wait for reinforcements, bring them yourself.

Let's move out

Arturia have made sure that your gear would arrive without any scratches.

When carrying precious cargo, dozens of fragile modules, a unique and irreplaceable collection, you need to be certain of their safety. With RackBrute 3U, you have nothing to fear: from the handle, all the way to the threaded nut strips, you'll find strong aluminum and steel. Wherever you go, however long your journey, however heavy your setup, RackBrute was built to last. Even transporting two RackBrutes or a RackBrute and a MiniBrute 2 is totally risk-free thanks to the built-in Spacers, eliminating any chance of collision.

If you are planning an undercover mission, the dedicated, discrete RackBrute Travel Case will keep your precious equipment free from harm.

When you need to take your show on the road, rehearse, or even just rearrange your creative space, you can depend on RackBrute.

What's in the box

Box content:

RackBrute 3U unit
Power cord
Instrument dimensions
Size : 19 x 6.6 x 3.3 inches (484 x 167 x 83mm)
Weight : 4.7 lbs. (2.1 Kg)

Main Features:

Eurorack format, 88 HP
Aluminum Chassis
Provided with a 5 HP power module
Up to 1600mA on +12V and 1600mA on -12V (2 separate circuits of 800mA)
Up to 900mA on 5V (USB + 5V modules)
Power rail with noise filtering
20 standard power slots with up to 800mA on +12V and -12V
Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations
Built-in Spacers for the highest protection in transport configuration

Notes: Soundlab 2 x 6.35 mm Mono Jack Plug to 3.5 mm Stereo Jack Plug Lead

Notes: Eight channels of audio and CV sampling with real-time editing and processing. Does basic sampling well but quickly gets creative and weird.

Supplier's notes:
The 'Squid Salmpler' is a Eurorack 8 channel audio & CV sampler. It is designed for immediate real time sampling, editing and mangling within a modular context.

Taking influence from early hardware samplers, The Squid Salmple focuses on usability and instinctive operation, incorporating a proven Pamela's Workout style user interface for minimal screen dependence and a fun, hands on experience.

With support for sampling and playback for both audio and CV, as well as CV control of all parameters, on-the-fly bank loading and saving to USB, The Squid Salmple brings a unique take on old school sampling into the modular realm.

The Squid Salmple comes with a USB Stick containing approximately 90 banks of original carefully curated royalty free samples. This includes a wide range of sounds from classic drum machines and weird synths to field recordings and CV modulations. Banks are provided by both ALM and some of our favourite artists and friends including Mumdance, Solid Blake, Russell Haswell, Lauren Flax, Dave Burraston (NYZ), Sue Zuki, Dungeon Acid, Sasha Lewis and Andrew Duff.

Notes: The all-rounder has 8 push-encoders without detents, 9 faders and 8 buttons, all switchable to 8 controller groups that allow to control a total amount of 264 control parameters. A 4-digit-display and 8 leds show the current values of all controls.

Various kinds of MIDI commands like program change, pitchbend, aftertouch and control change in relative and absolute mode with different acceleration amounts are possible. All these properties are fully programmable on the devices very fast and easy for each control separately.

The encoders can work as high resolution 14bit controllers too (control change or pitchbend) which makes them suitable for sensitive parameters like resonating filter cutoffs or similar things.

Use the internal 18 setups to save your individual settings. Backup and restore of all settings by sysex dumps is possible too.

The factory settings are perfect to control music and video software products out of the box if they are freely assignable. So any additional device programming isn't necessary for many applications.

The little box is also a great extension for your Ableton Live setup.

There you can control all the continues parameters like track volumes, rack macros, send amounts, track pannings and switchable patameters like clip launch/stop, mute, solo, rec arm, monitor and track select. A special control surface script for Ableton Live 8/9 with all necessary mappings is enclosed in the package. With that script you can also use two UC4 devices to control up to 16 tracks simultaneously.

Check out this amazing power box and you will get a reliable mate...

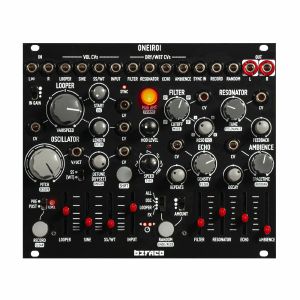

Notes: A really interesting synth voice module from Befaco, the Oneiroi specialises in ambient pads, drones and soundscapes thanks to a combination of oscillators, looping, effects and randomisation. True stereo textures from a single module.

Supplier's Notes:
Experimental synth voice focused on ambient pads and drone-like soundscapes.

Shape your performance

At its core, there is a Sine Wave Oscillator, Wavetable/Supersaw, and a joyful Looper. This is followed by an FX section featuring a Multimode filter, a Resonator, a Delay, and a Reverb.

His randomizer creates instant patches at the touch of a button.

The Looper can record the external input or the output with "Sound On Sound" looping.

5-second Looper records either the stereo input or the module's output, the Wavetable oscillator uses the Looper buffer

The atmosphere creator

A full-stereo synthesiser that easily creates dense atmospheres for hypnotic music or cinematic sound design.

Featuring three oscillators, four effects, a looper, modulation with complex routing, and a randomizer.

Powerful randomizer with four different targets that acts in different ways depending on the position of the two switches, three levels of intensity and undo/redo.

Specs

Current needs: +12V=200mA, -12V=60mA
Width: 30 HP
Depth Assembled Version: 25mm
Designed, kits prepared and assembled in Barcelona.

Notes: Latest version of an interface that's become a modern classic. Up to 18 audio inputs and 22 outputs in total, spread over a mixture of analogue and digital connections. A true all-rounder that's hard to beat.

Supplier's Notes:
The MOTU UltraLite-mk5 is the latest incarnation of the best-selling UltraLite series (replacing the UltraLite-mk4). It takes the winning formula of the half-rack form factor with 18 in x 22 out analog and digital I/O and adds state-of-the-art enhancements at the same great price :

Best-in-class Audio Quality - the UltraLite-mk5 includes renowned ESS Sabre32 DAC technology, featuring the ES9026PRO DAC, to deliver 125dB dynamic range and -114 dB THD+N.

Ultra-low Latency - optimised Drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW the UltraLite-mk5 delivers an astonishing round-trip latency of 2.4ms (at 96kHz with a 32-sample host buffer

New Design - while retaining the same front and back panel layout as its predecessors the UltraLite-mk5 has a sleek new look, incorporating a high-resolution, high-contrast white OLED display providing precision metering for all analog inputs and outputs, along with digital I/O activity indicators and status info

Connectivity and Compatibility- the UltraLite-mk5 has a USB-C connector and is also class-compliant for operation with iOS devices. It is also compatible with MacOS 11 Big Sur and M1 Macs

New Software and Simplified Monitoring - live monitoring of inputs is controlled via the new CueMix 5 software

Rack-mount options - a half-rack mounting kit (sold separately) allows the steel-encased UltraLite-mk5 to be rack-mounted with thick steel brackets to withstand the punishment of touring. Alternatively, two UltraLite-mk5 units can be joined together with a Half-rack Coupler Kit (sold separately)

Technical Specifications:

Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/line/guitar inputs: 2 x XLR/TRS "combo" jacks, 1 MO impedance on the line/instr inputs
Analog inputs: 6 x 1/4" TRS line in (balanced)
Analog outputs: 10 x 1/4" TRS line out (balanced, DC coupled)

Digital I/O:
1 bank (8 ch) of ADAT optical at 1x sample rates
1 bank (4 ch) of SMUX optical at 2x sample rates
Switchable to stereo TOSLink (optical S/PDIF)
1 x stereo S/PDIF on RCA (up to 96 kHz)

Computer I/O:
1 x USB-C 2.0 audio class compliant
Compatible with USB Type A (with adapter or C-to-A cable)

Total audio I/O:
18 in / 22 out (40 total) at 1x sample rates
14 in / 18 out (32 total) at 2x sample rates
8 in / 12 out (20 total) at 4x sample rates

MIDI I/O:
1 x MIDI IN
1 x MIDI OUT
16 MIDI channels to/from computer host

Headphone: 1 x 1/4" TRS stereo phone
Phantom power: 2 x individual +48V

Front panel:
2 x XLR/TRS combo inputs
1 x 1/4" TRS headphone output
1 x potentiometer - phone/monitor vol
2 x potentiometer - mic/instr input gain
4 x switches - (2) 48V and (2) pad
1x high-resolution white OLED display for metering/status
Power: External 12-18V DC power supply - 1.0A max - tip pos or neg

Dimensions and weight: (width x depth x height, enclosure only)
8.6 x 6.9 x 1.75 inches
22 x 17.5 x 4.5 cm
2.875 lbs / 1.31 kg

Notes: *** Osmose 2.0 Firmware Update- August 2024 ***

What's New in Osmose 2.0?

Here's a quick overview of the new features:

Press Glide in External MIDI Mode
MPE Arpeggiator in External MIDI Mode
Preset Favourites & Playlists
2048 Preset Slots
Preset & Playlist Changes via Program Changes
New Soundbank Management System
and more!


Next-gen standalone expressive synthesizer. Add emotion & movement to your music with a simple touch.

Osmose is the new standard for musical expressivity. Use intuitive gestures to control this standalone synthesizer and upgrade your playing & production skills. Press, bend, shake, strum & more to interact with keyboards & electronic sounds in a new organic way. Whether you're a veteran keyboardist, a workflow-oriented producer, a daring sound designer, or anything in between, Osmose will take your musical journey to uncharted places.

Explore new ways to play

Behind the expressivity of Osmose lies a few natural gestures you already know well. Discover how they interact with Osmose and enhance your musicianship from the very first touch.

Design & build quality

Designed in France to stand the test of time and touring with style, Osmose is made of quality components and boasts a high repairability index.

A sound engine by Haken Audio

Made for expressivity by Haken Audio, the EaganMatrix sound engine is at home with FM, virtual analogue, and physical modeling synthesis, as well as everything in-between.

Fun to play

Easy-to-tweak presets, a playful interface, and an innovative keybed make for a fun & refreshing playing experience, for players of all levels.

Osmose's browser has been tailored to make it a hassle-free experience. It offers various filters and sub-filters based on both sound types and colours so you can find the sounds in your head quickly.

Main features:

49 Key MPE keyboard with polyphonic aftertouch
Full-size keys with 3-dimension MPE control
EaganMatrix sound engine by Haken Audio: a digital modular sandbox allowing subtractive, FM and different physical modeling synthesis
24 voices of polyphony
Assignable mod and pitch sliders
500 factory presets
128 user presets
Configuration modes: standalone synthesizer, MPE MIDI Controller, and classic MIDI Controller
Filters and sub-filters for browsing
Customisable sensitivity and velocity curves
Multi-mode MPE arpeggiator and innovative pressure glide feature
Digital stereo effects: select between reverb , mod delay, swept echo,analog echo or LPF and HPF delay
Large colour display
9 push encoders
2 Line outputs: Two 14" TS pseudo balanced line outputs
MIDI input, output, and MIDI-thru
USB MIDI
Separated 1/4" TRS headphone output on the front panel (with its dedicated volume knob)
2 continuous pedal inputs assignable to macro or sustain: 6.35 mm Jack
Power: External PSU with lockable connector, 12V, 1.5A, center positive
Dimensions (W x H x D): 894 x 316 x 87.5 mm / 35.2" x 12.4" x 3.4"
Weight: 8.3 kg / 18.4 lbs
Includes a software updater for new firmware and library versions
Includes a Mac/PC editor to create and edit sound

Notes: There are lots of good reasons why these are some of the most popular studio headphones on the market. Clear sound, comfortable and good isolation. Perennial favourites from Japanese headphone specialists Audio-Technica.

Supplier's notes:
This is the most critically acclaimed model in the M-Series line, praised by top audio engineers and pro audio reviewers year after year.

The ATH-M50x features the same coveted sonic signature, now with refined earpads and detachable cables.

From large-aperture drivers to sound isolating earcups and robust construction, the M50x provides an unmatched experience for the most critical audio professionals.

This product includes interchangeable coiled and straight cables, a carry pouch and a 1/4" jack adapter for universal compatibility.

Notes: High quality audio leads for exceptional sound quality and reliability. High grade cable comprises 2 insulated pure copper cores and global shielding. The durable PVC sheath has a soft texture and is reinforced with cotton cord to avoid tangling. Terminated at one end with a 3.5mm stereo (TRS) jack and at the other end with a 6.3mm stereo (TRS) jack plug.

Notes: Balanced microphone/audio lead terminated at one end with an XLR socket and at the other end with an XLR plug.

Notes: We're familiar with IsoAcoustics' highly effective line of monitor isolation stands that seem to bring out the best from any speaker. NAMM 2017 will see IsoAcoustics release the new Iso-Puck - the same concept as the bigger stands, yet in a low-profile, flexible, scalable version. The little puck-like discs are placed under your speaker to isolate them from the surface they're sitting on.

An Iso-Puck is pretty small - just 3cm tall and 6cm in diameter. Its round shape makes positioning a bit easier than with stands, especially on varied surfaces like the narrow space on top of a console meter bridge. The multipart isolation construction of the Iso-Puck lets it move to isolate and manage the energy in line with the same isolation concepts employed in other IsoAcoustics products. The Pucks feature a flange suction cup on the top to hold tight the speaker surface, as well as a bottom suction cup flange for the supporting surface. Energy is transferred to the core of the multipart isolator in between which resists lateral movement and offers better isolation.

Notes: High quality audio leads for exceptional sound quality and reliability. High grade twin cable comprises an insulated pure copper core and global shielding. The durable PVC sheath has a soft texture to avoid knotting. Terminated at one end with a pair of RCA phono plugs and at the other end with 2 x 6.3mm mono jack plugs.

Notes: These cables are designed to interconnect pro audio gear with balanced phone jacks. They are ideal for use with balanced phone patch bays. Features include:

- Nickel-plated plugs for rugged durability and efficient signal transfer
- Oxygen-Free Copper (OFC) conductors for enhanced signal clarity
- OFC spiral shields for effective EMI and RFI rejection and flexibility

Connectors: 1/4 in TRS to Same
Conductors: 26 AWG x 2 OFC
Shield: 85% OFC Spiral
Quantity: 8 pc

Notes: Highly sought-after utility tool that always sells out quickly. Full colour display gives visualisation as an oscilloscope, spectral analyser, spectograph, tuner and more. Waveform and clock generator options too.

Supplier's Notes:
The Ultimate Eurorack Utility Module (and a whole lot more!)

The DATA is a digital platform for testing, measurement, and signal generation in Eurorack modular synthesis systems. It is a modular tool kit, with functions applicable to any system and style.

Use the DATA's scope to view the interactions between your control voltages and audio signals, allowing you to master your modules by understanding their voltage ranges, control shapes, and parameter responses. Use the DATA's dual waveform generator to dial in a precisely scaled LFO for CV control, or use the waveform's frequency "note mode" to effortlessly make dyads (two note chords). Use the DATA's clock program as a master clock or to divide or multiply an incoming clock signal, sending four different clock outs to gate modules directly or as control to sequencers.

The possibilities of the DATA are basically unlimited; with the included microSD you can update the DATA's firmware and we can continue to refine and create new programs.

Notes: Stereo jack to jack lead, 0.23m length.

Notes: A high quality MIDI cable for connecting music controllers and devices together. Strong and flexible cable comes with low loss conductors and global shielding ensure a clean data stream. It is terminated at each end with a 180- 5-pin DIN plug.

Notes: Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod34X is 34HP wide and has extra room to fit even the deepest modules (2.16" / 55mm of available module depth). The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

This Pod requires a power brick (not included).

Or, if you already have a Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain power supplies.

Pods are a perfect way to get started in Eurorack, or add a couple more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. The power supply can handle up to 1.4A of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods are also available unpowered)

Each Pod typically will house one or two modules, but three or more can be accommodated using a multi-power cable accessory.

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Pods can even daisy- chain with the 4ms Row Power system making them a convenient outboard mini-skiff. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Basic Features:

34 HP Eurorack modular space
Standard M3 threaded holes
100% lightweight anodized aluminum
Built-in Power supply
Red, White, and Blue LED power indicators

Includes:
34HP Pod, black anodized aluminum
Extra deep (2.16"/55mm) fits virtually every Eurorack module
Built-in power supply with four Eurorack power headers
M3 x 8mm pan-head screws, stainless steel (10)
Adhesive rubber feet (4)
Does not include barrel cable or power brick
Power Supply:
Four 16-pin Eurorack power shrouded headers
+12V max 1.4A
-12V max 0.65A
+5V max 1.0A
Power input: Two barrel jacks for daisy-chaining
15V-20VDC, 2.1mm positive tip
Exterior dimensions:
Width: 177.3mm (6.98")
Height: 159.5mm (6.28")
Depth: 57mm (2.24")
Interior dimensions:
Max module depth: 55mm (2.16")
Module width: 34HP
Weight:
0.3 kg = 10 oz

Notes: Custom ALM finger friendly case mount screws sized M3 with a 6mm depth.

No screwdriver necessary - makes your daily case rearranging ritual even easier!

These low profile and stylish screws stay out of hands way and will fit underneath a Decksaver lid with ALM cases.

Available in boxes of 100 screws.

Notes: After Later Audio Braided Patch Cables for Eurorack in Gold and Black. One size per pack of five cables. Packs come in 15, 30, 45, and 60 centimeters, or 6, 12, 18, and 24 inches.

Notes: Save space in your rack with stackable cables.

These are the newer shorter stackable Eurorack Patch Cables. Patching is more stable and makes it easier to get a lid on that performance case.

Each end of the cable has a male and female jack. They come in sets of 5 cables.

Available in 6in (15cm), 12in (30cm), 18in (45cm), 24in (60cm).

Notes: These rack screws for Eurorack can be screwed by hand for quick changes, or use a standard Phillips head screw driver.

Each Standard Size M3 X 8mm black steel screw comes with a black nylon washer in a gold tin.

Notes: Multi-model stereo delay with reverb, featuring tape, bucket brigade and crossfading digital models, plus saturation, filters, internal modulation plus tons of CV control. Vibey as hell.

Supplier's Notes:
It's all gone a bit wobbly

Intellijel's design goal for Sealegs was to create the warmest, most musical and organic delay module possible - something that would sweeten and enhance any audio one chose to feed into it. As such, great care has gone into modelling the most distinctive and desirable sonic characteristics of three different types of delay circuits: Tape; Bucket Brigade, and Crossfading Digital.

A plethora of onboard controls enable you to dial in exactly the sound you want; synced or un-synced delays times (for both left and right channels); a built-in modulator with seven morphing waveshapes, a Wow & Flutter emulation, and an envelope follower; plus dedicated low- and high-pass filters; built-in hiss & crackle noises; per-model colour controls; a spacious reverb; and a re-configurable signal flow through the unit. In addition, attenuverted modulation inputs abound - ensuring the delay ebbs and flows with your musical needs.

Features
Three Unique delay models with per-model "Color", modulation behaviour, and saturation/limiting
Three Stereo configurations (PONG, L/R, Time/Width)
Built-in modulator with multiple, morphing wave shapes
Lush, routable 1970s-inspired reverb
Noise control to introduce hiss and crackle.
Highpass and lowpass filters for filtered repeats
Input drive with level trim
Per-model Freeze functionality for holding the delay contents and looping
Delay times up to 6 sec (L channel) and 8 sec (R channel, Width adds 33% to Time)
9 CV inputs (with attenuverters)
Stable external clock syncing (or tap tempo)
96 kHz, 32-bit stereo floating point processing

Size: 20HP
Depth: 29mm
Power: 116mA @ +12V 10mA @ -12V

Notes: Great value from M-Audio's compact monitors, designed for both studio and DJ use. 6.5-inch bass drivers offer powerful low frequency response, while Bluetooth streaming offers convenience for casual listening. Sold individually.

Supplier's Notes:
The Forty Series brings pristine audio to life with built-in DSP that provides precise crossover and customisable equalisation to deliver sound quality above and beyond the analogue filtering currently available in monitors at this price point.

M-Audio Forty Series: Experience your sound

Designed for every beat-maker, producer, DJ, mix engineer, content creator and party starter out there. The M-Audio Forty Series is a perfect choice for the new generation of creators.

For the producer hustle

Whether you're laying down heavy beats, tracking powerful lead guitar riffs, or crafting euphoric electronic adventures, the Forty Sixty and Forty Eighty monitors are clever production partners. Enjoy detailed and customisable sound that invites every element of your track to come to life. With these monitors, what you hear in your studio will sound outstanding in the club, on streaming platforms, and everywhere in between.

DJ Essentials

The Forty Series monitors are built to handle deep bass lines and crisp highs so you can keep track of your mix and deliver the smoothest transitions and fattest double drops with absolute precision. Whether you're practicing your set or throwing a party, your mix will sound tight and dynamic, giving you the confidence to push your mix to the max.

Precision sound engineering

Mix engineers are familiar with the importance of precision and clarity, and that's exactly where the Forty Series delivers. With professional-grade Burr-Brown analogue-to-digital conversion and DSP processing, you'll hear every detail of your mix. These monitors create a clean and accurate representation of your sound, so you can make informed decisions and craft mixes that translate perfectly from car systems to club systems.

The creator's workhorse

For content creators, consistent sound quality is everything. Whether you're producing a podcast, editing a video, or streaming, the Forty Series monitors deliver crystal-clear audio that ensures your content sounds professional. The precise DSP crossover helps you pick up every detail, ensuring your audience hears exactly what you intended.

Party with Bluetooth

Throwing a house party or just want to kick back and jam? The Forty Series allows you to do just that with Bluetooth 5.0 true wireless stereo (TWS) audio streaming. Simply connect any device and fill your space with rich sound. No cables, no hassle - just seamless and immersive sound that keeps the party going.

Instant listening modes

A lot of time and precision goes in to delivering a perfected final mixdown, but music is enjoyed outside of a perfectly treated acoustic room. To address this, M-Audio designed a simple front panel button that allows you to easily switch from a ruler-flat mix reference to HYPE mode that emulates a mix common in ear buds and car stereos. Beyond that, experiment with a custom mode where you can specifically define all parameters of your sound with the M-Audio Studio Control App.

Tailor your sound with the M-Audio Studio Control app

The M-Audio Studio Control App gives you the power to shape your sound as you see fit. Access customizable presets and a 5-band EQ to tweak your output to match your room, and your preferences via the front panel Instant Listening Modes. Rear panel trim control lets you dial in your XLR and TRS analogue inputs to ensure you can integrate these monitors seamlessly into any studio setup.

Product only

Weight (lbs): 15.8 lbs
Weight (kg): 7.2 kg
Imperial (in): 8.5" W x 8.6" D x 13.2" H
Metric (cm): 21.6 W x 21.8 D x 33.5 H

Product in box

Weight (lbs): 20 lbs
Weight (kg): 9.07 kg
Imperial (in): 13.5" W x 12.9" D x 18.75" H
Metric (cm): 34.29 W x 32.77 D x 47.63 H

In the box

Forty Sixty studio monitor
5FT (1.5M) AC power Cable
Foam Isolation Pad
Quickstart Guide

Notes: The Moog Sound Studio Accessory Kit is the 3-tier rack solution your Mother Ecosystem synths have been waiting for.

Mount any combination of Mother-32, DFAM, Subharmonicon, Spectravox, and Labyrinth semi-modular synths together vertically for maximum modularity and synthesis possibilities.

Each Moog Sound Studio Accessory Kit includes a compact summing mixer with three-way power distribution to provide flexible signal routing and power your entire system conveniently from a single power supply. Also included is a patch cable organizer, dust cover, and of course, all the cables needed to connect your instruments together.

Personal Stereo Summing Mixer and Instrument Cables:
This four-input analogue summing mixer features selectable mono or stereo configurations for versatile routing options, and the built-in three-way power distribution hub supplies power for up to three 60HP instruments conveniently from a single source. The included instrument cables come in lengths and colours to complement the system and reduce clutter. The 1/8" output with a built-in level control allows you to connect headphones, an audio interface, or monitor speakers.

Three-Tier Rack Kit:
Conveniently stack all three synthesizers* and summing mixer together as one connected system to maximize studio space and orient instruments vertically for optimal interconnectivity. Designed for both stability and style, the rack not only optimizes your space but also creates an ergonomic setup that makes for easy access to all controls and patch points.

Protective Dust Cover:
Protect your instruments when not in use. This water repellent cover is made from rugged Ballistic Cordura to safeguard your gear from dust, spills, and other studio (and stage) mishaps, while the ultra-soft interior remains gentle against your synth. Custom-fit with room to accommodate patch cabling and rear I/O panel access. Adjustable Velcro straps ensure your cover fits snug and stays in place.

Cable Organizer and Custom Patch Cable Set:
The included patch cable organizer connects to the three-tier rack, keeping patch cables neat and orderly for a hassle-free workflow. A custom set of patch cables have been selected in lengths and quantities to maximize system patchability.

Notes: Great value from Xaoc's pingable dual VCA, capable of creating organic, acoustic-style decay curves which replicate the dynamics of real-life instruments. Ideal for processing audio as well as CV.

Supplier's Notes:
Xaoc Devices Lublin is a high-quality dual VCA module with exponential CV inputs. On top of that, its two identical channels feature additional inputs for pinging. These inputs use an elaborate analogue circuit to model the dynamic behaviour of vactrols, allowing you to trigger a carefully crafted gain response that mimics the natural decay of plucked and struck acoustic instruments. Unlike lowpass gate modules though, Lublin reduces gain while retaining the full frequency bandwidth, so it is perfect for harmonically rich signals, like our Odessa additive VCO. The vactrol-like behaviour is just a starting point as the envelope may be varied within a wide range using a switch (natural, shortened and prolonged response) and a potentiometer, so you are not stuck with one decay characteristic. Therefore, you can use it not only to create bongos, but also for fat compressed kicks! The built-in gain control circuit (saturating CV instead of the audio signal) prevents distortion from excessive amplification. Lublin is DC-coupled, so you can use it to process CV as well as audio signals.

Width 6HP, Depth 33mm (including cable bracket)
40mA/-20mA

Notes: Units like the Akai MPC Live 2 sequencer are music-production powerhouses - they are the fulcrum of your setup and cannot go unprotected.

Our super durable polycarbonate shell offers protection from dust, spillages and accidental impact.

Each Decksaver is trimmed precisely to fit, leaving cables in place. Slides straight into a flight case or controller bag, perfect for transportation.

Shields delicate controls and internal components from damage on the road, at home or in the club.

Key features:

Patented smoked/clear transparency, unique to Decksaver.
Protects against dust, liquid and impacts.
Shields vulnerable faders, pads and knobs during transportation.
Low profile design enables compatibility with most flight cases and travel bags.

Fits:

MPC Live II Beatclub Edition
MPC Live II Timbaland Edition

Dimensions:

Weight 0.850kgs
Length 41.60cm
Width 24.80cm
Height 3.00cm

Notes: The S-4 carry case is designed to protect your S-4 while you are on-the-go.

The custom shockproof hard shell is covered with a matte black PU and features moulded inserts to secure an ideal fit.

Notes: A synth-focused tuner merging Korg's pioneering experience in tuner technology with a deep understanding of the characteristics of analogue and modular synthesis. Designed with the unique needs of synth players in mind, the ST1K is compact, precise, and offers high visibility, ensuring your synthesizer is accurately tuned the way you want every time.

Analogue synthesisers can be tricky to tune! Not only can their pitch often fluctuate as the circuit adjusts to temperature changes, but you may also want to micro-tune different oscillators within the one synth.

This makes reliable tuning essential, whether you're recording in the studio or performing live. The ST1K delivers this with its capability for ultra-precise tuning to +/-0.1 cents. It features a large CMD LCD display that gives a clear, visually appealing readout of your tuning status, aligning with the aesthetics of modular and analogue synths. It also includes a built-in high-sensitivity microphone, expanding its use to a broader range of instruments!

At only 83 grams, this incredibly compact and light tuner is perfect for musicians and performers on the move.

Optimized circuitry for stable tuning of analogue synths

The ST1K's input circuit has been finely tuned to provide stable tuning for modular synths, accommodating high voltage levels without interference from LED noise, and with a clear focus on maintaining sound quality.

3D visual meter with large-screen visibility

The large, easy-to-read note name display and glowing LEDs allow the user to clearly perceive pitch deviations and changes at a glance. The 3D visual meter makes it possible to tune to within i0.1 cents, which is difficult with needle meters.

Ultra-precise tuning down to +/-0.1 cents
Professional recording and stage performances always require perfect tuning. The ST1K is capable of ultra-high-precision tuning down to +/-0.1 cents in strobe mode. With the high measurement accuracy of the flagship model, this compact device is a truly professional tuner that allows you to track down even the smallest errors in pitch.

Three meter display modes in addition to note name display

Three types of meter display mode can be selected to suit the player's style. In addition to the standard "Regular Mode", the "Strobe Mode" and "Half Strobe Mode" indicate pitch changes by the direction and speed of meter flow, making it easy to see even the smallest errors.

Compact, flat design allows you to carry a large screen with you

The meter display is large and easy to read, yet the body is smaller and more compact. The flat design provides excellent visibility and portability.

Specifications
Scale: 12 averages
Detection range: A0 (27.50Hz) to C8 (4186Hz)
Calibration range: A4=436 to 445 Hz (1 Hz steps)
Detection accuracy: within +/-0.1 cents
Connectors: INPUT (monaural standard), OUTPUT (monaural standard)
Switch: POWER / DISPLAY / CALIB
Power supply: 2 x AAA batteries
Battery life: Approx. 50 hours continuous
Dimensions: 99 (W) x 65 (D) x 16 (H) mm
Weight: 83 g (including batteries)
Accessories: 3.5-6.3mmmini to standard conversion plug (included)

Notes: The 1010music line of stereo breakout cables are designed to connect 2 mono audio signals to a single stereo TRS 3.5 mm minijack plug. The slim caps fit side by side with other cables in compactly spaced input jacks, like those on the 1010music bluebox. These cables may have been designed for the bluebox, but they have a wide variety of uses with other gear as well.

Each of these cables has a male TRS stereo 3.5mm minijack plug on one end and two male TS mono 3.5 mm minijack plugs on the other end. They are 1.4 m/4.5 ft long with the 1010music logo printed on the plug caps.

This stereo breakout cable connects two 3.5mm male mono TS minijack plugs to the left and right channels of one 3.5 mm male stereo TRS minijack plug. Red and black end caps on the split end differentiate the left and right channels. Each cable is 1.4 m/4.5 ft long and has slim metal caps with the 1010music logo on all plugs.

Specifications:
1.4 m/4.5 ft long
one 3.5 mm male stereo TRS to two 3.5 mm male mono TS
Nickel / 24K Gold plated connector
Highly flexible PVC / TPE Jacket Materials
Rohs, UL, CE, and FCC approved

Notes: Break out MIDI signals into a 3.5mm stereo jack.

- Tip = Pin 4 (Source)
- Ring = Pin 5 (Sink)
- Sleeve = Pin 2 (Shield)

Notes: OXI designed One to be compact and slender. Implementing MIDI TRS ports has had a big role reducing its weight and volume substantially.

OXI Split comes as an efficient and inexpensive solution for users that want to control more equipment through DIN connections, providing one MIDI DIN Thru, one MIDI DIN Output and two MIDI TRS outputs, tripling the data transfer capacity and the number of MIDI channels up to 48. With OXI Split, users can chain more hardware instruments reliably.

Notes: Small Just Got Very Big

The LiveTrak L6 is Zomo's most compact and portable digital mixer / recorder. With 10-tracks of studio quality audio, effects, MIDI, and sound pads, it's perfect for bands, synth players, live streaming, and more.

Full Featured Mixer

Don't let its size fool you. The L6 is designed with big mixer capabilities; a full channel strip for each track including aux sends, pan, effects, and a 3-band mid-sweepable EQ.

Powerful Multi-Track Recording

The L6 records 10 discrete tracks plus the full stereo mix on microSD cards up to 2TB. Share the live mix, or transfer your stems to your favorite DAW for editing and mixing.

MIDI Connectivity for Synths and Keyboards

Connect, program, and sync the L6 to your outboard gear via the 3.5mm MIDI I/O, or to a computer via USB.

Map parameter controls such as volume, pan, and EQ to outboard gear
Trigger sound pads and scene switching
Tempo sync delay and echo

Features

10-channel ultra-Compact digital mixer
2 XLR/TRS Combo inputs + 4-Stereo inputs
12-track simultaneous recording
MIDI In/Out for mixer control and USB MIDI interface
3 Scene memory for storing mixer and tempo setting
32-bit float multi-track recording to micro SD card
5 Internal Send Effects
2 AUX send outputs
4 Assignable sound pads (sample player)
3-Band EQ with MID freq control for each channel
Headphone output + Master output
Eurorack compatible
12-in / 4-out Audio interface
4 AA battery power operation or USB power

Specs
Input and output channels
Inputs MIC/LINE (mono) 2
LINE (stereo) 4
Outputs
AUX SEND (mono): 2
MASTER (stereo): 1
MONITOR (stereo): 1

Inputs

MIC/LINE:
Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: Adjustment unnecessary (dual A/D converter circuits used)
Input impedance:XLR: 3.8 kO or more, TRS: 39 kO or more
Maximum input level XLR: +4 dBu, TRS: +24 dBu
Phantom power: +48 V, Channel total of 10 mA or less

LINE

Connectors: 8 TS phone jacks (unbalanced)
Input impedance: 10 kO
Maximum input level: +9 dBu

Outputs

AUX SEND
Connectors: 2 TRS phone jacks (impedance balanced)
Maximum output level: +9.5 dBu
Output impedance: 147 O

MASTER
Connectors: 2 TRS phone jacks (balanced)
Maximum output level: +15 dBu
Output impedance: 147 O

MONITOR
Connector: TRS phone jack
Maximum output level: 50 mW + 50 mW (63 O load)
Output impedance: 14.7 O

Buses

MASTER: 1
AUX SEND: 2
SEND EFX: 1

Channel strip

3 BAND EQ:
HIGH: 10 kHz, +/-15 dB, shelving
MID: 100 Hz - 8 kHz, +/-15 dB, peaking
LOW: 100 Hz, +/-15 dB, shelving

Level meters: 6 segments
Send effects: 5 types

Recorder

Maximum simultaneous recording tracks: 12
Maximum simultaneous playback tracks: 2
Recording formats: 48 kHz, 32-bit float, mono/stereo WAV
Recording media: microSDHC memory cards (Class 10 or higher), microSDXC memory cards (Class 10 or higher)

Audio interface

Input and output channels: Input: 12 channels, Output: 4 channels
Sampling frequency: 48 kHz
Bit depth: 32-bit float / 24-bit
Interface: USB 2.0

Card reader: Mass storage class USB 2.0 High Speed
Sampling frequency: 48 kHz
Frequency response: 20 Hz - 20 kHz / -1.0 dB
Equivalent input noise: -120 dBu or less (IHF-A) at 150O input

Power
4 AA batteries - Alkaline, Lithium, or Rechargeable NiMH
AC adapter: ZOOM AD-17 : DC 5V/1A
USB bus power is supported.

Estimated continuous recording time using batteries
Alkaline batteries: About 3 hours
NiMH batteries (1900 mAh): About 3.5 hours
Lithium batteries: About 7 hours

12-track recording, phantom power off, headphones used (63O load), no MASTER output connections
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.

Power consumption 5 W maximum
Dimensions: 223 mm (W) × 114 mm (D) × 46.5 mm (H)
Weight (main unit only): 526 g
Weight (including batteries): 618 g
Note: 0 dBu = 0.775 Vrms

Notes: Audio Optimized USB-C to USB-B Cables

56kO pull-up resistor to protect your devices
Dual slimline ferrites prevent signal dropouts
High quality connectors ensure long cable life
Works with all USB-B devices

Ideal for home and professional use where impeccable audio is a must, Chroma Cables complement the modern DJ and music production technology with a streamlined styling that keeps your setup looking fresh and sleek. All cables are not created equal, and ours are engineered from scratch for digital performers, by digital performers.

Noise-Filtering Features

Each cable has two ferrite core chokes, one at each end of the cable. Paired with fully-braided shielding, Chroma Cables do a great job of eliminating interference along the signal path - making these the best USB cables for DJs.

No More Adapters

Forget about tiny adapters that can easily get lost in a dark booth. These high quality USB-C cables ensure that all your audio and MIDI devices have a reliable connection with no compromises.

Always Strapped

Even after placing your cables neatly in your bag, it's easy to wind up with a tangled clump of cables. The built-in velcro cable strap helps prevent this, keeping your gig bag nice and tidy. You'll wonder how you managed without this.

Compatibility Notes:

Works with all* USB devices with a USB type B connector but it's worth checking for obstructions if you plan on ordering an angled cable.

*Please note that the right angle cable won't work with a Kontrol D2, S2, S4, S5, S8, or Z1 or Traktor Audio 10 while using the power supply.

Size + Weight:
Length: 59.05" / 150cm
Weight: 0.18lb / 0.08kg"

Notes: Cutting-edge tech meets ancient sounds in this truly original 'instrumentalis electronicum'. Create beats using genuinely old-school drum sounds, lutes, lyres and more, then load or record your own samples to expand your sonic options.

Supplier's Notes:
EP-1320 Medieval

The world's first medieval electronic instrument

Hurdy gurdys, lutes, Gregorian chants, thundering drums and punishing percussive foley FX. The EP-1320 is the first of its kind: featuring a large library of phrases, play ready instruments and one-shot samples from an age where darkness reigned supreme, the instrumentali electronicum is the ultimate, and only, medieval beat machine.

Unlock the magic of medieval sounds

The EP-1320 comes with hundreds of medieval sounds and samples, a redesigned set of send effects and punch-in FX, a brand new arpeggiator and a collection of craftily captured multi-sampled instruments. The line input and the internal microphone allow you to sample your own sounds in just seconds. Whether you're into making sultry serenades or bubonic beats, the EP-1320 has you covered.

Become your own bard

Alongside a bucketful of one-shot samples the instrumentalis electronicum features a number of readily playable medieval instruments - play them on the pads or on an external MIDI keyboard.

Summon your inner troubadour

In Demus mode, choose any of the 9 medieval songs and jam along using the sounds and instruments on the four banks. Add some punch-in FX and you're ready to send any tavern floor into a frenzy! (Also perfect for banquets and fetes).

An unrivalled medieval experience; EP-1320 features a hundreds of built-in medieval sounds for your nostalgic pleasure. Go back in time and play along with the built-in magical melodies, sultry serenades and bubonic beats. Included in the box are 4 knobs, a sticker pack and a quick start guide for you to hit the ground running.

Packaging: 262x262x28mm
Product weight: 0.625 kg
Total weight: 0.750 kg
Power: USB-C (cable not included)
Battery: 4 x AAA (not included)
Start up guide included
Exclusive medieval sticker pack included
Knobs to be affixed by customer (supplied separately, in same box)

Specifications

Sampling frequency: 46 kHz / 16-bit
Internal signal chain: 32-bit
128 MB total memory
96MB ROM SOUNDS
32MB user sample memory
9 built-in demo songs
High resolution sequencer
Built-in pocus
Fader
Pressure sensitive pads
Six stereo voices, or twelve mono
Runs on 4x AAA batteries with the option to be powered via USB-C

inputs and outputs

Stereo output
SYNC IN/OUT
TRS-A MIDI IN/OUT
USB-C

Dimensions and weight
240 mm x 176 mm x 16 mm
9.45 in x 6.93 in x 0.63 in
620 g / 22 oz

Electronic specifications

3.5 mm TRRS jacks
Stereo input: 24 bit
SNR: 96 dBA
Impedance: 6.5 kOhm
Analogue gain: 0 - 12 dBmax level: 8 dBu, 2.0 Vrms
Stereo Headphone/Line Output: 24 bit
SNR: 98 dBA
Max level: 5 dBu, 1.4 Vrms

MIDI input
MMA compliant pinout (type A)
opto-coupled

MIDI output:
MMA compliant pinout (type A)
Voltage: 3.3 V

Sync output
TIP: Sync 8th, 16th, 24 PPQN
RING: Start/Stop
Voltage: 3.3 V

Sync input
TIP: Sync 8th, 16th, 24 PPQN
Ring: Start/Stop
Voltage: 3.3 V
Max level: 10 V

Notes: The Headliner 3-Tier Desktop Synth Stand was designed to improve your workflow and help you stay organized while fitting more gear on your production desk. It fits three compact devices like synthesizers, controllers, drum machines, and effects modules. The angled design makes it easier to reach knobs and view LCD screens.

The Headliner 3-Tier Desktop Synth Stand is adjustable in width from 7.3" to 11.5" and fits a variety of devices from Roland, Korg, Elektron, and more (partial list below). It is made from solid steel and includes non-slip rubber strips for added stability.

Features
Improve your workflow and stay organized while fitting more gear on your production desk.
Fits three devices such as synthesizers, controllers, drum machines, and effects modules.
Angled stand makes it easier to reach knobs and view LCD screens.
Solid steel construction with non-slip rubber strips keep stand and equipment in place.
Width adjustable from 7.25" to 11.5". Best fits devices from 8" to 14" in width.
The lower tier has a depth of 7". The middle and upper tiers have a depth of 5.25".
Overall dimensions of stand (WxDxH): 7.25"-11.5" x 17" x 17.5".
Includes non-slip rubber strips.

Fits*: Akai Fire, Alesis SR-16, Arturia SparkLE, Behringer Crave, Behringer TD-3, Behringer RD-6, Elektron Digitone, Native Instruments Maschine Mikro MK3, PreSonus ATOM SQ, Akai LPD8, Akai MPX8, Dreadbox Typhon, Korg nanoPAD2, Korg SQ-1, Korg Volca Bass, Korg Volca Beats, Korg Volca Drum, Korg Volca Kick, Korg Volca NuBass, Korg Volca Sample 2, Roland Boutique Series, Roland MC-101, Roland TB-3 Touch Bassline, Roland TR-6S
*Some devices may not fit on all tiers.

Notes: The studio legends

For decades now, professional users all around the world have placed their trust in Beyerdynamic's classic range: DT 770/880/990 PRO. These benchmark-setting studio headphones, available in three different models, boast extremely detailed resolution and very transparent sound.

The DT 770 PRO headphones is the range's closed-back model and offers maximum flexibility and detailed sound that you can rely on.

Impressive sound volume

The Beyerdynamic DT 770 PRO headphones have established themselves as a firm favourite amongst music producers, sound engineers and broadcasters and are used in studios all over the world. They reproduce the entire frequency range with incredible precision, and even reproduce low frequencies in punchy detail.

Top-notch impulse response

The headphones are designed for critical music and sound monitoring, providing a perfectly neutral listening environment with exceptional isolation and top-notch impulse response. High frequencies are translated into an analytical and differentiated sound. Ultra-low bass sounds are defined and reproduced crisply.

Extreme comfort

The robust spring steel headband ensures a secure fit for the wearer. Soft ear cups mean that the headphones are comfortable even if worn for prolonged periods. The single-sided cable allows the headphones to be put on and taken off frequently without cables getting tangled.

Allrounder; universal studio

These 80-ohm headphones are the ideal Choice for a range of studio applications.

Made in Germany

The DT 770 PRO headphones are and always have been handcrafted in Germany. The durability of these headphones is worth noting, because all the components used are replaceable if necessary.

High-end studio quality

Thanks to the Tesla technology developed in Heilbronn, the DT 770 PRO offers even finer resolution with precise and powerful bass. The pro flagship also sets new standards in terms of wearing comfort and workmanship.

Technical specifcations

Transmission type: wired
Weight headphones without cable: 270 g
Transducer type: Dynamic
Operating principle: Closed
Nominal frequency response: 5 - 35,000 Hz
Nominal impedance: 80 O
Nominal SPL: 96 dB
Nominal T.H.D: < 0.2%
Power handling capacity: 100 mW
Sound coupling to ear: Circumaural
Ambient noise isolation: approx. 18 dBA
Nominal headband pressure: approx. 3.5 N
Weight: 345 g
Length and type of cable: 3 m / straight cable
Connection: Gold plated mini stereo jack plug (3.5 mm) & 1/4" adapter (6.35 mm)

Notes: Collabing with YouTube sensation Andrew Huang, Endorphin.es offer up this impressive multipurpose processor module. Building blocks of stereo filtering, compression, reverb and more offer huge creative potential.

Supplier's Notes:
In collaboration with Andrew Huang, based on his modern music production techniques, Endorphin.es developed a creative audio processor with multiple blocks that can be moved around in order to achieve different flavours for sound design.

Processing unit without fixed structure: intuitively create astonishing and ephemeral timbres, from atmospheric rumbles to heavy or distorted textures.
Creative stereo effect processor with delay, reverb, filter and distortion with quickly explorable routing chain with single button press.
New generation ARM Cortex - M7 processor with 96 kHz 32 bit internal processing.
Lush hall and whooshing reverse reverbs with audio freeze and pre-delay.
Sidechain audio ducking envelope available both internally and externally with additional one knob single band compressor.
Tap delay with maximum delay time up to 2.5 seconds, external clock input with onboard clock divider and 1v/oct time control.
8x oversampled distortion algorithm.
Pre- and post - VCA, tone and volume controls with extra gain.

Power consumption:
135 mA +12V
35 mA -12V
0 mA 5V

Dimensions:
16 HP
26 mm deep with power ribbon cable connected.

Notes: Pulse case for Elektron Digitakt / Syntakt / Digitone

The perfect lightweight travel case for your Digitakt, Syntakt, or Digitone! Just zip it up and go make music anywhere. Our durable PULSE cases are designed for mobile electronic musicians.

PULSE cases are made from moulded EVA that holds its shape and provides excellent protection. This case is designed to hold the Digitakt or Digitone along with its power supply, and it also includes a nylon mesh compartment for holding your cables.

Specifications

Perfect fit for your Digitakt or Digitone + cables
Versatile and lightweight
Spacious and comfortable handle
High quality Analog Cases logo zipper puller
Interior dimensions 10.25 x 7.25 x 2.75 inches

Notes: Bass line synthesizer and sequencer with parameter locks, punch-in effects and play styles.

Pocket operators are cleverly designed on a single circuit board. By placing all vital and sensitive components under the LCD display there's no need for an outer case. By saving this cost, high quality components could be used to guarantee the best possible sound and very low power consumption. The space under the display also doubles as a speaker box.

Experience a fresh new way to create music using your thumbs. With its pocket size, its animated graphics, real synthesizer engines, sync, punch-in effects, built-in speaker, alarm clock and impossibly low price, making electronic music has never been this much fun!

Notes: Part of Sonicware's Liven groovebox series, this time focussing on granular synthesis and effects processing. 128-step sequencer and shimmer reverb allow you to create grooves.

Supplier's Notes:
Sample, slice, transform and reconstruct audio to synthesize completely new sounds

The LIVEN Texture Lab offers a wide variety of sound textures ranging from beautifully lush ambient pads to chaotically aggressive experimental noise that will take you to new sonic frontiers.

The Texture Lab uses a granular processor that slices sounds into grains ranging from 2 ms to 1 second in length, then transforms and reconstructs them in a variety of ways, including manipulating grain shape, density, time warp, spatial position, and playback method to create entirely new sounds.

Granular synthesis parameters are easily accessed from 10 knobs and are designed for intuitive control

Granular synthesizer with granular effects processor mode

The LIVEN Texture Lab is a 4-voice polyphonic synthesizer that can record 32 samples of up to 6 seconds, generate grains from any part of a sample, and synthesize them using two modulations sources, an envelope generator, and process the sound through different filter types.

The Texture Lab can also be used as an effects processor for real-time granular processing of stereo signals from the line input. It is also possible to freeze the flowing sounds for 6 seconds to add granulated sound effects.

Shimmer reverb for fantastical and majestic sounding spaces

The LIVEN Texture Lab features six high-quality stereo reverb types. All reverb types have a shimmer parameter that allows you to layer reverb on top of reverb in octaves to create fantastical and majestic sounding spaces.

128-step sequencer with parameter locking

The LIVEN Texture Lab is equipped with a high-performance 128-step sequencer that has earned the LIVEN series a solid reputation. In addition to recording notes, it can also record changes in granular processing parameters over time.

You can record knob operations in real time or directly record parameters to specific steps allowing for more complex sound textures.

Specifications

[Granular processor]

Synthesizer mode
- Sampling up to 6 seconds per sample (16bit - 32kHz mono, Start/end point adjustment)
- Auto start sampling function with the input level (input level can be set)
- Internal resampling function
- 32 sample memory slots

Effects processor mode
- Real-time processing of stereo signals from the line inputs
- Freeze function


- Pitch: Pitch of the sample (i2 octaves)
- Position, Length/FB: The sample range for generating grains (with random position function)
- Speed, Direction: Playback speed, scan direction, and playback direction of the grains.
- Size, Shape: Size and shape of the grains (with random function)
- Timing, Jitter: Interval of generating grains (with our original LUSH setting)
- Density: Number of the grains (up to 64 grains in legato mode)
- Diffusion: Diffusion width of the grains
- Blend: Balance between the sample and the granular sound mix
- Modulation 1: LFO assignable to various parameters (with wave shape selection, start fade-in time, retrigger, and tempo sync)
- Modulation 2: LFO assignable to various parameters (with wave shape selection, retrigger, and tempo sync)


- Attack
- Release


- Low Pass
- High Pass
- Band Pass

Reverb effects
6 high-quality reverbs with Shimmer reverb parameters
- Hall
- Room
- Arena
- Plate
- Tunnel
- Infinity


- 4-note polyphonic mode (Up to 16 grains per voice, internal sequencer records up to 3 voices of polyphony)
- Mono mode (Up to 32 grains, adjustable glide time)
- Legato mode (Up to 64 grains, adjustable glide time)
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

[Sequencer]
- 1 track
- Up to 128 steps per pattern
- 128 patterns
- Step length can be set from 1/1 to 1/32
- Real-time recording
- Directly enter notes for each step when sequencer is on or off
- Enter longer notes (Tied notes)
- Metronome and pre-count function
- Undo/Redo function
- Transpose function
- Swing function
- Pattern BPM / Global BPM can be set
- Pattern chain function
- Parameter Lock function to record parameter settings for each step
- RANDOM function to play back steps in random order
- STUTTER function to play back only the step being pressed

[MIDI]
- Notes, control changes, clock input/output
- IMPORT/EXPORT of user data (Including samples) via Sysex
- Firmware update via Sysex

[Unit]

27 keys (with a hold function)


- 15 physical control knobs
- Optional LATCH function prevents jumps in value when knob position and parameter values do not match.
- One physical encoder for fine adjustments.
- LCD dot indicates when a parameter value matches the saved value, or when the value has been changed.

Notes: Protect tomorrow's future classics, today!

The ISLA Instruments S2400 is a 21st Century homage to one of the electronic music world's most iconic drum samplers - the SP1200.

Dust, liquid and accidental impact have taken many a good analogue drum machine down over the years - and this is where Decksaver steps in.

Designed to mould perfectly around the outer case of the unit and precision trimmed for a superb finish, whilst accommodating cables at the rear, the S2400 can sit ready for operation.

Slides straight into a flight or soft case for maximum protection during transportation.

Shields delicate faders, knobs and internal components from damage at home, in the studio, or on the move.

Dimensions:

Weight: 0.8kg
Length: 45cm
Width: 30cm
Height: 4.7cm

Notes: The little brother to the original DrumBrute arguably packs a bigger punch. Gritty analogue sounds are on offer, but the sequencer is just as inspiring. A great alternative to the usual Roland suspects.

Supplier notes:
This is the drum machine you've been waiting for.

Combining bold, hard-hitting analogue sounds, a monstrous output distortion, performable controls, superb connectivity, and a powerful sequencer, DrumBrute Impact will fill your music with energy and muscle.

Putting the focus on "Brute", DrumBrute Impact features 10 high-energy, refined, punchy analogue sounds.

You can also use the exclusive "Colour" sound-shapers to introduce unique, per instrument effect for some variation. Boost the harmonic content, add some drive, snap, or crack at the touch of a button, you can even automate tonal changes by creating a "Colour" sequence. If you want your drums to push even harder, use the built-in distortion on the output for some drum-optimized crunch.

DrumBrute Impact is a drum machine for musicians and producers who crave raw power and monstrous tone.

Awesome drums made easy:

Sharing the same prize-fighting sequencing architecture found in the original DrumBrute, you'll love the simple, fun, and intuitive sequencer in DrumBrute Impact.

Whether you want to create complex, phasing polyrhythms or straight, pounding rhythms; record a finger-drumming performance; punch in a step-sequenced masterpiece; DrumBrute Impact beats to your rhythm. Use the touch strip to create some real-time glitchy, beat-repeat breakdowns, spice up a single instrument or your whole pattern with a dedicated 'Random' knob, and add some syncopation and groove with the 'Swing' feature.

A true analogue experience:

Connect to your other gear, sync up, and make some music the old-school way.

Get away from computer screens, say goodbye to sub-menus, and jump into the world of tactile, instant, analogue satisfaction. Featuring a huge array of sync and connectivity options, you'll be able to hook up and jam with practically any other synth, sequencer, or MIDI-enabled instrument. Mix on the fly with dedicated controls for every function, multitrack, record, effect, and mix the sound your way with multiple bus outputs. Save patterns that you love, chain them together, and create full songs and live sets, all without looking at a single screen.

DrumBrute Impact is a massive sounding, creativity fuelling beast, with effortless workflow and amazing performance controls.

Notes: The tools we use to compose and produce music are dear to our hearts. The studio elements of dust, smoke and liquid have taken many a good groovebox down over the years. This is where Decksaver steps in. Precision trimmed for perfect fit whilst accommodating cables, the TR-8S can sit ready for operation. Slides straight into a flight or soft case for maximum protection during transportation. Shields delicate controls and internal components from damage at home, on the road and on stage.

Notes: Digital delay meets analogue filtering in this versatile little effects box. Single-tap delay with loop option and clever time multiplication, plus low-pass and high-pass filters.

Supplier's Notes:
Digital delay settings combined with analog sound shaping

SPECIFICATIONS:

Audio output: impedance balanced 1/4" TRS Jack

Audio input: impedance balanced 1/4" TRS Jack

DC Input: 12VDC, 500mA, centre positive, 2.1mm*5,5mm barrel type connector

Dimensions: 145mm x 130mm x 60mm

12VDC 1A power supply included.

Notes: Black 2m heavy duty 4 core screened 5-pin MIDI plug to 5-pin MIDI plug.

Notes: Audio Optimized USB-A to USB-B Cables
Dual slimline ferrites prevent signal dropouts
Gold connectors ensure long cable life
Available in 8 colors and 2 types
Ideal for home and professional use where impeccable audio is a must, Chroma Cables complement the modern DJ and music production technology with a streamlined styling that keeps your setup looking fresh and sleek. All cables are not created equal, and ours are engineered from scratch for digital performers, by digital performers.

Why are these the best cables for DJs?

Snug fit
Audio optimized
Fully shielded
Braided cables
Two ferrite chokes
Includes cable ties
Extensively tested
Trusted by DJs worldwide
Works with all USB-B devices

Noise-Filtering Features
Each cable has two ferrite core chokes, one at each end of the cable. Paired with fully-braided shielding, Chroma Cables do a great job of eliminating interference along the signal path - making these the best USB cables for DJs.

Two Styles, Eight Colors
Cables come in straight and right-angle options. The angled cable helps to prevent accidental removal and takes up less space, giving you a less crowded DJ booth. Label gear by color so you always know your soundcard from your controller.

Always Strapped
Audio Optimized USB-A to USB-B Cables
Dual slimline ferrites prevent signal dropouts
Gold connectors ensure long cable life
Available in 8 colours and 2 types
Ideal for home and professional use where impeccable audio is a must, Chroma Cables complement the modern DJ and music production technology with a streamlined styling that keeps your setup looking fresh and sleek. All cables are not created equal, and ours are engineered from scratch for digital performers, by digital performers.

Why are these the best cables for DJs?

Snug fit
Audio optimized
Fully shielded
Braided cables
Two ferrite chokes
Includes cable ties
Extensively tested
Trusted by DJs worldwide
Works with all USB-B devices
Noise-Filtering Features

Each cable has two ferrite core chokes, one at each end of the cable. Paired with fully-braided shielding, Chroma Cables do a great job of eliminating interference along the signal path - making these the best USB cables for DJs.

Two Styles, Eight Colours

Cables come in straight and right-angle options. The angled cable helps to prevent accidental removal and takes up less space, giving you a less crowded DJ booth. Label gear by color so you always know your soundcard from your controller.

Always Strapped

Even after placing your cables neatly in your bag, it's easy to wind up with a tangled clump of cables. The built-in velcro cable strap helps prevent this, keeping your gig bag nice and tidy. You'll wonder how you managed without this.

Technical Details

Features:
High-speed USB 2.0 cable
Fully-shielded: protects against interference from club lights and other electrical noise sources
Two ferrite chokes: help eliminate noise in both directions
Gold-plated USB contacts last longer
Includes DJTT velcro strap for easy storage.

Compatibility Notes:

Works with all* USB devices with a USB type B connector but it's worth checking for obstructions if you plan on ordering an angled cable.

*Please note that the right angle cable won't work with a Kontrol D2, S2, S4, S5, S8, or Z1 or Traktor Audio 10 while using the power supply.

Size + Weight:
Lenght: 59.05" / 150cm
Weight: 0.18lb / 0.08kg

Notes: Banana cable for modular systems, as used by companies such as Buchla. The length is 25,4 centimeters.

Patch cable with banana plugs.

Length: 25,4 centimeters

Color: Orange

Notes: Compact USB bus-powered 64-button clip launcher for Ableton Live

The APC Mini Mk2 clip launching controller for Ableton Live is the ultimate compact solution for music creation in any environment. APC Mini delivers dynamic control of your Ableton Live sessions in a powerful yet efficient footprint, perfect for creative looping, remixing, and experimenting in the studio or on the stage.

Focus on your performance

64 brilliant RGB-backlit pads

APC Mini features 64 new RGB-backlit pads for a brilliant and precise representation of your Ableton Live session clips. Whether in the studio or on stage, the scrollable RGB-enabled pad matrix will boldly shine through. In the heart of your most creative moment, launch and activate loops, instruments, vocals, and more with confidence.

Launch an immersive music-creation experience

APC Mini allows you to trigger individual loops, samples, and melodies or entire Scenes for the most imaginative and inspirational music creation performances. Even with your largest projects, the 64 RGB-backlit pads across the customizable 8x8 grid accurately reflect clips from your Ableton Live Session and are always in reach for the ultimate creative experience.

Simple controls for powerful music making

A more powerful Ableton experience
Enjoy serious hands-on control for a powerfully creative Ableton Live experience. APC Mini features 9 faders to adjust volume, pan, insert effect sends and more for smooth, intuitive control of your sessions. Tweak reverbs, sweep filters, or write automation that will bring your music to life. Shape your sounds instantly using the assignable fader controls.

Precise intuitive control

Create your own distinct sounds with ease. With Device Mode, the APC Mini faders are automatically mapped to the eight Macro Controls of Ableton Live's selected device. Control multiple parameters with one fader to generate totally innovative sounds. Get more hands-on control with Soft Keys for easy access to Solo, Mute, Stop and Record arm functions.

Inspiring features to empower your creativity

Drum mode for Ableton Drum Rack

Drum Mode provides seamless integration with Ableton's Drum Rack isolating a 4x4 quadrant of the APC Mini to control Ableton, while still giving you the ability to assign the remaining pads. This allows for ultra-customized pad layouts and equally inventive and creative performances-not achievable with any other APC controller.

Real-time key and scale control

The Smart Scale View provides instant visual feedback while you change keys or scale types. In this mode, the musical key currently selected is also visible across the pads to ensure you know what scale you're in. The Notes Mode delivers a new performance workflow, allowing you to play pitch-perfect musical parts in Ableton without playing wrong notes

Ableton Live Lite and Air Technology software bundle

Launch with Ableton Live Lite

APC Mini includes Ableton Live Lite software. Start creating and making music with this powerful clip launching DAW packed with instruments, mixing effects, samples, and the ability to record and mix audio and MIDI. Ableton Live Lite offers all the tools to transform your musical ideas into exciting songs and performances.

Elevate your sound with AIR
Elevate your sound with the included virtual instrument pack from award-winning sound design company AIR Music Technology. In addition to Ableton Live Lite, APC Mini also includes multiple world-class plugin instruments including Hybrid 3 - a powerful polyphonic analog synth, Mini Grand - an acoustic piano instrument, and Velvet - a vintage electric piano instrument.

Drum Mode

Drum sample mode featuring seamless integration with Ableton Drum Rack.

Notes Mode

Melodic control of plugin instruments and sounds for inspirational performances.

Smart Scale Mode

Visual feedback of current Note Mode key across the 8x8 pad matrix.

Technical Specifications

Power: USB-bus-powered
Dimensions: 9.5" x 8.3" x 1.3" 240 x 210 x 32 mm (width x depth x height)
Weight: 1.79 lbs. | 0.81 kg

Notes: A high-quality, custom Eurorack patch cable and bundled them in handy packs of four (4).

Instead of rainbow packs, each colour will be linked to a specific size, offering extra convenience for patching and sorting cable lengths.

Each pack of four comes with a custom velcro cable tie and is attached to a cardboard display hangar, in an effort to reduce plastic packaging where possible.

Notes: High quality audio leads for exceptional sound quality and reliability. High grade cable comprises an insulated pure copper core and global shielding.

The durable PVC sheath has a soft texture and is reinforced with cotton cord to avoid tangling. Terminated at one end with a 6.3mm stereo (TRS) jack plug and at the other end with a male XLR connector.
