***B-STOCK: Item refurbished, repaired and in perfect working order.***


Inspirational west coast sounds from one of the masters. Additive oscillator with eight harmonics, direct outputs and powerful CV control to scan, tilt and mix the waveforms.

Supplier's Notes:

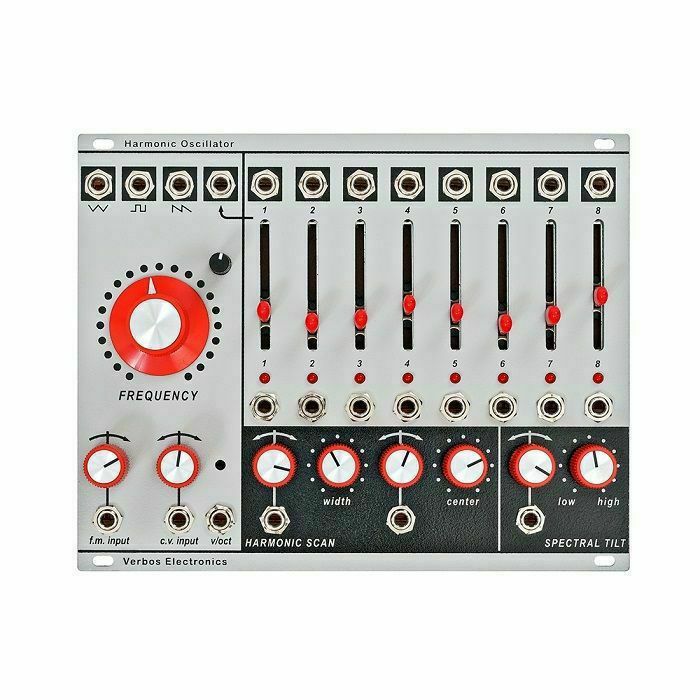

For the first time in Eurorack, this oscillator module provides outputs for the first 8 harmonics as sine waves. Also included are triangle, saw, square waves.

A voltage controlled mixer with various methods of address allows the user to scan, tilt and mix the harmonics from both panel and external voltage control. It is built on a discrete, all analog triangle core with an old school discrete transistor exponential converter. It has inputs for linear and exponential FM, the exponential with a reversing attenuator. Of course there's a 1 volt / octave trimmed CV input as well.

Power consumption: 120mA at +12 V and 90mA at -12 V

HP : 32
