Synthesisers

Notes: Sound:
Vintage Keyboard Sound Engine with six incredibly detailed vintage keyboard types.

Each keyboard type matches a carefully chosen Drive and Tremolo setting to provide an incredibly musical pairing.

The six keyboard types are:

- RdI, early '70s tine electric piano

- RdII, late '70s tine electric piano

- Wr, late '60s reed electric piano

- Clv, 70s struck string Clavinet

- Toy, toy piano

- CP, Yamaha CP80 electric grand piano

128-note polyphony ensures dropout-free performance.

Five stomp box-style effects with direct control@
The effect types are:

- Drive (adds harmonics and distortion)

- Tremolo (Auto-Pan for Rd) or VCM Wah with adjustable depth and rate

- Chorus with adjustable depth and speed

- VCM Phaser with adjustable depth and speed

- Digital or Analog-Type Delay with adjustable time and depth

- Reverb with adjustable depth

Control:
- Based on the FS action found on the flagship Motif XF, HQ (High Quality) Mini Keys provide premium feel and response for fast, accurate and natural playing

- Sustain pedal input allows the sustain function for all electric piano sounds

Mobility & Connectivity:
- Speakers

2W 3cm stereo speaker system lets you play any place, any time.

Specially designed bass reflex port technology enhances bass response for full, rich sound.

- USB

USB "TO HOST" allows MIDI connectivity to your USB-equipped computer or iOS device.

- Audio output

Dual 1/4"unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more.

- Audio input

A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument.

Battery Operation:
- Battery powered - uses six "AA" batteries with five hours of life

Create your Soundmondo. Inspire and be inspired:
Soundmondo is a free sound sharing community that lets you discover, create and share reface Voices and Set Lists using Google Chrome any place, any time you're online.

Powered by Web MIDI, Soundmondo is simple to use - just connect reface to Chrome and you're ready to create or start browsing.

Notes: 12-voice version of Waldorf's Iridium Core, a compact synth from the same range as the Quantum. Running on the Waldorf OS, the Iridium features a versatile selection of Wavetable, Multi- & Granular-Sampling, Waveform, Kernel FM and Resonator synth engines.

Supplier's Notes:
The Core

Iridium Core provides the core synthesis engine of the Quantum / Iridium platform. It is the heart of Waldorf's most advanced hardware-based synthesis. The essence of forward-looking sound. The Core.

Sonic Explorer

Iridium Core contains 5 synthesis engines: Wavetable, Multi- & Granular-Sampling, Waveform, Kernel FM and Resonator. Combined with a broad selection of digital filter and processing options Iridium Core lets you explore a huge sonic universe of electronic sound. Iridium Core's intuitive and easy graphical interface helps you to keep your flow of creativity.

Wave Traveller

The compact form factor makes Iridium Core an ideal companion to travel with you to all your sonic explorations and performances. It fits well into laptop size bags and in carry on-baggage it leaves enough space to all your other devices you need for your performances.

Driven by Inspiration

Iridium Core comes with a huge collection of more than 1700 factory presets and samples to drive your sonic Wanderlust. Get inspired what the broad and diverse array of sound designers have created to fuel your musical endeavours.

Team Player

Iridium Core integrates into various live performance and studio setups. Its connects with your modular synths, drum machines, sequencers and computers. The compact form factor fits well into your tabletop or space limited setups.

Family Member

Iridium Core shares the same software platform like Quantum, Iridium Desktop & Iridium Keyboard. All instruments are powered by the Waldorf synthesiser OS and will receive joint updates. Thus, the whole family participates from future enhancements and developments.

Specifications

Compatible with the Waldorf Quantum synth engine
Software: Waldorf Synthesis Platform OS

Oscillators
3 Oscillators each capable of 5 synthesis modes:
Wavetable
Waveform (VA)
Particle (Sampling and Granular Sampling)
Resonator
Kernels (up to 6 sub-oscillators which can be interlinked through FM, AM or Wavetable-position at audio rate)

Dual Stereo Filters per voice
True stereo path Dual Digital Filter with independent modes:
12/24dB LP/HP/BP in all combinations
Nave, Largo, PPG, Quantum and StateVariable models
Analyzer displayed in Filter view
Filter curve animation when modulated (optional)
Sophisticated filter routing options with modulatable panning and levels

Digital Former
Filter models like State Variable, Waldorf Nave, Largo and PPG in HP/LP/BP/Notch
Comb filters, Bit-Crusher, various Drives, Ring-Modulation

Modulators
6 Envelopes
6 LFO
Komplex Modulator (LFO/Envelope combination with user-definable shape and morphing)

Mod Matrix
40 slots
Fast assign mode
One additional control amount per slot
Identical Sources and Destinations can be used multiple times until the matrix is full

Effects
5 slots per layer
Various parallel and sequential routing options
Reverb, Delay, Chorus, Phaser, Flanger, Drive, EQ, Compressor, Tremolo

Performance features
Advanced Arpeggiator
Step-sequencer with up to 64 steps for notes and parameters
2x4 button pads assignable to notes or chords
4 user-assignable potentiometers
6 user-configurable macro buttons
Favourites screen for quick patch recall
XY control on touchscreen
Wheels touchscreen for MIDI controls like mod wheel, pitch bend, aftertouch and velocity
MPE capable

Screen
Industrial-grade highly responsive touch screen with Brightness control
1024x600 pixels

Voices
12 voice polyphony
Duo-timbral
Mono, Legato and Unisono modes

Patches
Over 1700 factory patches
Capacity of 7000 patch memory slots (numbers 0000-9999 can be used)
Patches from Quantum and other Iridium variants can be loaded and vice-versa
Category filter for patch list
2.6 GB sample flash memory preloaded with 2 GB factory samples

Connections
Stereo Audio Out: 2x TS jacks
Stereo Audio In: 2x TS jacks
Headphones TRS output with level control
DIN MIDI IN & Out, mini-TRS Type A (two adapters to DIN MIDI sockets included)
USB Type B (device) for MIDI connection to computer
USB Type A (host) for storage media and MIDI devices
MicroSD slot
2 high-resolution CV Inputs which can be used as modulation sources in the Mod-Matrix
Analogue clock In & Out with clock divider settings

Overall
Sturdy metal case
Dimensions: 346 mm wide by 200 mm depth by 64 mm height (including controls)
Weight: 2.2 kg
External Power Supply: Input 100-240 V / AC 50-60 Hz, Output 12 V DC / 3 A

What's In the Box?
Iridium Core Synthesizer
Two MIDI adapters: mini TRS to DIN sockets
Power Supply
Printed Quick Start Guide

Notes: A true powerhouse of a synth, packaging the Quantum synth engine into a more manageable four-octave design. Five synthesis modes, powerful stereo filters, performance features and outstanding playability.

Supplier's Notes:
Waldorf Iridium has made the impossible possible. The mighty synth engine from Quantum is now available in a compact form. Tracing the footsteps of its bigger brother, Iridium features all the synthesis elements of Quantum as well in a rack-compatible format. The combination of the powerful engine, incredible flexibility and detailed sound shaping facilities creates sheer endless possibilities of sound. Yet, the comprehensive layout and easy-to-understand structure lets you design your own sounds in no time. Sporting a solid metal casing and the same high level of craftsmanship like Quantum, Iridium is now ready to take over studios and stages throughout the world.

Contributing another entry in Waldorf's rich history, Iridium joins the family as a direct descendant of the PPG Wave. Though, Iridium offers much more than its ancestor. Five different synthesis models are provided by Iridium for each of the three oscillators:

Wavetable
Waveform (Virtual Analog)
Particle (Sampling and Granular Sampling)
Resonator
Kernels

Kernel mode has been introduced with the OS 2.0 of Quantum. This huge upgrade allows one oscillator to be turned into up to six sub oscillators. These can be interlinked through FM at audio rate and arranged in user-definable constellations. Just this upgrade alone would have provided enough additional features to create a synthesizer on its own. Now, all those functions have been integrated into Iridium as well.

Up to 7000 patches can be saved in Iridium. Patches from Quantum can be loaded in Iridium and vice-versa.

Iridium features three digital filters per voice. Two in the Dual Filter section and another one in the Digital Former. Several types are available to choose from:
12 or 24dB and Lowpass/Highpass/Bandpass with optional saturation or dirtiness.
Various filter models are available including those from Waldorf Nave, Largo and PPG 3V.
The Dual Filter section can be controlled independently or together in several different link modes.

The Digital Former offers all the filter types and models from the Dual Filter plus unusual models like Comb, Drive, Bitcrusher and more in addition.

All filters retain a true stereo signal throughout the entire structure of the instrument.

Specifications
16-voice polyphony, duo-timbral
Compatible with the Waldorf Quantum synth engine

3 Oscillators
Oscillator Modes:
Wavetable
Waveform (VA)
Particle (Sampling and Granular Sampling)
Resonator
Kernels (up to 6 sub-oscillators which can be interlinked through FM at audio rate)

3 Stereo Filters per voice
True stereo path
Dual Digital Filter:
Two filters with independable modes
12/24dB LP/HP/BP in all combinations
Nave, Largo, PPG, Quantum and StateVariable models
Digital Former:
Filter models from Waldorf Nave, Largo and PPG in HP/LP/BP/Notch
Comb filter
Bitcrusher
Drive
RingMod
StateVariable mode
Analyzer displayed in Filter view
Filter curve moves when modulated (optional)
Sophisticated filter routing options with modulatable panning and levels

Modulators:
6 Envelopes
6 LFOs
Komplex Modulator (LFO/Envelope combination with user-definable shape)

Mod Matrix:
40 slots
Fast assign mode
One additional control amount per slot
Identical Sources and Destinations can be used multiple times until the matrix is full

Pads:
4x4 silicon pad matrix with RGB backlights
Pads can play notes, chords, arpeggios and sequences
Latch mode

Performance features:
Arpeggiator
Step sequencer with up to 32 steps for notes and parameters
Favourites screen for quick patch recall
Onscreen Mod Wheel, Pitch Bend and Aftertouch

Screen:
Industrial-grade highly responsive touch screen

Patches:
Over 1000 factory sounds
Capacity of 7000 patch memory slots (numbers 0000-9999 can be used)
Patches from Quantum can be loaded and vice-versa
Category filter for patch list
2GB user sample flash memory

Connections:
2x TS output
2x TS input
Headphones output with Gain control
DIN MIDI In/Out/Thru
USB MIDI
USB host for storage and MIDI devices
MicroSD slot
Kensingtonr lock

CV connections:
4 CV inputs plus Gate In, Trigger In, Clock In, Clock Out
Inputs can be used as modulation sources in the Mod Matrix

Overall:
Sturdy metal case with aluminium knobs

Dimensions: 440mm wide by 305mm depth by 85mm height (including controls)
Weight: 5.4kg
19" rack assembly parts available

Notes: Tracing the footsteps of its bigger brother, Iridium features all the synthesis elements of Quantum as well in a rack-compatible format. The combination of the powerful engine, incredible flexibility and detailed sound shaping facilities creates sheer endless possibilities of sound. Yet, the comprehensive layout and easy-to-understand structure lets you design your own sounds in no time. Sporting a solid metal casing and the same high level of craftsmanship like Quantum, Iridium is now ready to take over studios and stages throughout the world.

Contributing another entry in Waldorf's rich history, Iridium joins the family as a direct descendant of the PPG Wave. Though, Iridium offers much more than its ancestor. Five different synthesis models are provided by Iridium for each of the three oscillators:

Wavetable
Waveform (Virtual Analog)
Particle (Sampling and Granular Sampling)
Resonator
Kernels

Kernel mode has been introduced with the OS 2.0 of Quantum. This huge upgrade allows one oscillator to be turned into up to six sub oscillators. These can be interlinked through FM at audio rate and arranged in user-definable constellations. Just this upgrade alone would have provided enough additional features to create a synthesizer on its own. Now, all those functions have been integrated into Iridium as well.

Up to 7000 patches can be saved in Iridium. Patches from Quantum can be loaded in Iridium and vice-versa.

Iridium features three digital filters per voice. Two in the Dual Filter section and another one in the Digital Former. Several types are available to choose from:

12 or 24dB and Lowpass/Highpass/Bandpass with optional saturation or dirtiness.
Various filter models are available including those from Waldorf Nave, Largo and PPG 3V.
The Dual Filter section can be controlled independently or together in several different link modes.
The Digital Former offers all the filter types and models from the Dual Filter plus unusual models like Comb, Drive, Bitcrusher and more in addition.

All filters retain a true stereo signal throughout the entire structure of the instrument.

Up and down, back and forth
6 Envelopes, 6 LFOs and many more are just waiting for being used as sources in the 40 slots of the Modulation Matrix. Each slot has one additional control amount. Modulations can be directed to almost every numerical value in Iridium. All sources and destinations can be used as many times as desired until the Modulation Matrix is full. If you ever happen to run out of LFOs or Envelopes, you can use the Komplex Modulator for generating a custom shape LFO or Envelope.

Even though Iridium features a staggering amount of parameters to control, everything is organized in a logic structure which is easy to master. The major controls have their own dedicated knob, while the rest is accessible through the touch screen and the encoders around. There are no long menus keeping you from doing what you had planned. Instead, you will find a workflow which you will soon miss on other synthesizers.

Embedded in the front panel, a 4x4 silicon pad matrix invites you to launch notes, chords, arpeggios and sequences with up to 32 steps for notes and multiple parameter lines. Direct access to the parameters is granted by the seven encoders to the left and the right hand side of the touch screen.

Iridium's large color touch screen keeps you informed at all times. Upon moving a knob, Iridium gives you an optical feedback of your changes in real-time. Filter curves move, Particle grain sizes change, Envelopes warp and much more:

Komplex Modulator curves can be drawn with your finger
Envelopes show at which point the voices currently are
Wavetables are displayed in comprehensive view modes
VU meters show which voices are used and the individual voice levels
Different Analyzers show the audio signal at different points

Two Audio Outputs allow you to listen to Iridium, while two Inputs allow Iridium to process external signals. 4 CV inputs plus Gate In and Trigger In are ready to forward external signals to the Mod Matrix. Furthermore, Clock In and Clock Out will get your gear in sync. MIDI connections can be made through USB and DIN MIDI. Iridium is also equipped with a USB Host port for MIDI devices. This port also handles data exchange, in addition to the MicroSD card slot.

Once again, Waldorf have underlined their status with a new and exciting synthesizer.

Notes: *** Synthesizer comes with a free copy of The Waldorf Edition software, including D Pole Filter Module, PPG Wave 2.V & Attack ***

Waldorf are back in the game. With the Blofeld. this synthesizer offers all the unique qualities that made Waldorf a truly legendary brand.

The engine inside the heavy duty, full metal chassis of the Blofeld delivers the same fat and rich sound that so many Waldorf users worldwide love when they play their Pulse, Q, Q+, Micro Q, Microwave, Microwave II/XT, or even the flagship Wave.

Yes, you've heard it right. The Blofeld is not only capable of producing these warm, organic analog sounds known from the Q synthesizer line, it also sports a wavetable engine like its predecessors with Wave in their names.

This unique synthesis system is based upon the revolutionary PPG Wave synthesizers of the early 80s. So when you listen to the Blofeld for the first time, you will instantly recognize those edgy, hard-hitting and bell-like timbres that have been an integral part of so many world hits from the PPG era on, and become increasingly popular once more.

In fact it is amazing to realize that nowadays this complex technology fits into such a slim and elegant device. And for a price no-one would have imagined a couple of years ago.

Notes: The new PerFourMer is a real analog synthesizer, through its simple control surface and very flexible sound production it is able to offer a near inexhaustible variety of Bass, Lead, Pad and Effect sounds. Additionally, with its total of six filter inputs, the PerFourMer is also perfectly suited as a complex filter-bank. Even though the PerFourMer is not considered a modular system, it can still be described as a modular or at the very least a semi-modular. The basic concept is reminiscent of classics such as the Oberheim 4 Voice or the Korg Monopoly.

The PerFourMer is a 4 voice synthesizer, consisting of completely independent synthesizers, which can be adjusted and played independently from each other. These four synthesizer channels can be linked with each other and be played in 3 different operating modes.

Next to the already mentioned filter inputs, each channel has a single output, which can also be used as an insert for external effect devices, and make it possible to easily integrate the PerFourMer with already established equipment. It is also possible to transmit the unedited VCO signal. Additionally the opportunities of the PerFourMer can be expanded through internal patching between the channels, for example; you can route a VCO through multiple filters and VCAs, or use 2 channels to create 1 voice with 2 ADSR envelopes (1 for VCA and 1 for VCF). Use the PerFourMer as a filter-bank and the slope envelope can be doubled by interconnecting the filter in series. The PerFourMer is controlled via MIDI and additionally via CV/gate (1V/octave) inputs for every synthesizer channel.

Notes: Mono Lancet '15 might be small-sized device, despite it is a bona fide analogue synthesizer.

Two oscillators and a noise generator are the foundation for its sound. Together with the musical lowpass filter and VCA it's capable of producing warm and precious sounds full of character.

Beside its audio qualities Mono Lancet '15 has a dead simple and intuitive user interface. Each parameter has its own control. We are absolutely convinced that you will quickly learn how to realize your sounds with Mono Lancet '15 without thinking about what you do.

Expandable with Modular Dock:
Mono Lancet '15's functionality can even be enhanced using the optional Modular Dock eurorack module. It offers various in- and out-connections to the individual sections of the synthesizer. With just a few additional modules you can multiply the strong sound base of Mono Lancet '15.

Mono Lancet '15 is manufactured in our Elektroakustischen Manufaktur in historical Vogtland. For us it is not only a piece of high-quality analogue technology but rather a musical instrument, handmade with love and passion.

Ships with UK 3-pin power supply.

For audio demos, please visit - http://www.vermona.com/en/products/synthesizer/product/mono-lancet-15/

Notes: Vintage FM synthesis meets analogue character in the TWISTfm. Eight-voice polyphonic sound engine with superb versatility thanks to 15 filter modes including Heat saturation and adjustable resonance.

Supplier's Notes:
Unleash the full potential of FM synthesis with TWISTfm, a cutting-edge polyphonic synthesiser that blends vintage FM synthesis with advanced analogue filtering and modern control. Designed to offer a rich, dynamic sound palette, TWISTfm is the perfect tool for musicians and sound designers looking to push the boundaries of sonic creativity.

At the core of TWISTfm are two legendary Yamaha OPL-3 YMF262 FM chips paired with dual YAC512 stereo DACs, providing 8 discrete voices. Each voice is equipped with its own analog multimode filter for an unparalleled range of sound design possibilities.

With HEAT and Dual Resonance Modes: Featuring 8 individual analogue filters, inspired by the iconic designs of Mutable Instruments, TWISTfm gives you precise control over sound shaping with 15 filter modes, including low-pass, high-pass, band-pass, phaser, notch, and more. The HEAT parameter adds anything from warm, subtle saturation to harsh analog distortion, allowing you to push the filters to their limit. Additionally, you can switch between two resonance flavors-LIQUID, for smooth and subtle resonance, and MS20, for more aggressive, cutting tones. With digital control over resonance and cutoff, the filters offer flexible modulation and the ability to store settings with presets.

TWISTfm's MPE mode fully supports three dimensions of control-pitch (X), timbre (Y via CC74), and pressure (Z)-offering precise per-note modulation for unparalleled expressiveness and depth in your sound.

Whether you're composing in the studio or performing live, TWISTfm's robust feature set and intuitive design make it a powerful addition to any setup. Its combination of vintage FM tones and modern control capabilities offers a unique, versatile sound engine capable of producing everything from smooth ambient pads to aggressive basses and leads.

Notes: Still based on 80s games console circuits, this second-generation model of the unique Twisted Electrons FM synth gives more freedom to try out different chips. Same gritty sound and hands-on control.

Supplier's Notes:
This updated version is identical in appearance and functionality but will include a pair of YM3438 chips instead of the YM2612. The YM3438 is a variant of the YM2612 that is identical in functionality and was featured in the Sega Megadrive II. The circuit layout has also been updated to grant access to the FM chips with minimal disassembly.

Indeed the chips are now socketed (removable) and accessible by removing the bottom panel.

This allows you to install alternate FM chips (like the YM2612, modern alternatives or even custom sound chips).

You can also mix different versions of FM chip as there are 2 slots that can be configured individually.

MEGAfm MKII features the same audio circuitry and analog distortion as the MKI, as a result both chips sound very similar inside of MEGAfm.

The firmware will work identically on both versions.

Beautiful dirt

Unlike most FM synthesizers that are very clean and digital, the vintage FM chips within MEGAfm have very characterful tone allowing a broad sound palette ranging from beautiful plucked strings to growly distorted bass lines.

Tactile operators

Hardware FM synthesizers are infamous for their reduced controls and complexity to program, with tiny LCD screens and only a couple of buttons to operate a load of menus...
With its 32 operators faders, 14 knobs and 15 buttons MEGAfm offers unprecedented hands-on FM control!

Every knob and fader can easily be modulated by the easy to use LFOs.

Make it a double!
The vintage FM chips from the 90s each offer 6 voices of crispy FM, 4 operators per voice and 8 algorithms.


MegaFM features 2 chips for a total of 12 voices spread across two outputs (or summed to one)

Features:

12 Voice Polyphony
Dual vintage FM chips (included)
8 Algorithms
600 preset memory (saving to any slot) arranged in 6 banks. Easy upload/download of banks to and from computer vis SYSEX.
Preset randomiser
4 Voicing modes (Poly12, stereo/wide6, special CH3 mode, 12 voice unison with detune/fat knob
Stereo or Mono output (1 chip per channel or both chips summed)
32 Sliders for total control of all 4 operators
14 knobs
15 buttons
23 LEDS, LED numeric display.
3 LFOs to modulate any parameter
7-mode arpeggiator with transposable Sh-style step sequencer
Vibrato with depth and rate
MIDI clock on all LFOs, ARP and Vibrato
All faders/knobs send MIDI (use MegaFM to control your favourite modern FM synth!)
Full MIDI automation
Dual 6.35mm TS output and 6.35mm Stereo Headphones output
Brushed/Anodized Aluminum Case
Sturdy metal panel bolted potentiometers
Dimensions: 30CM x 13CM x 5CM
DIN5 MIDI input with MIDI channel learn and thru/out

Notes: Beautiful chiptune synth inspired by the RP2A07 sound chip found in the NES games console. Four-voice polysynth with plenty of sound sculpting options.

Supplier's Notes:
hapiNES is a multitrack chiptune synthesizer inspired by the RP2A07 sound chip found in the NES games console.

The 4 voices allow you to create authentic sounding tunes in real time!

The L(arge) version offers the same features as its slimsynth counterpart, with the addition of hardware MIDI (MIDI Type A) and analog sync in and out connectivity and packed in a rugged metal case.

FREQUENTLY ASKED QUESTIONS:

Q:How do I copy/paste a pattern?

A:Hold SLIDE and press OCT- to copy and OCT+ to paste.

Q:The briefly LEDS go out when I stop the sequencer - is something wrong?

A:This is normal and occurs when the memory is updated (a few seconds after the sequencer is stopped when a change has been made).

Notes: Heavily redesigned for version three, Twisted Electrons offer up a new take on their compact acid synth: dual oscillators, new digital filter, real-time effects and more. Great value.

Supplier's Notes:
acid8 is an 8Bit bass-line synthesizer with a revisited sound and interface.

MKIII has been rethought from the ground up. The filter has been replaced with an new all digital one, the handling has been redesigned for more immediate handling and many other real time features have been added including transposition automation, filter wobbler, stutter and vinyl spin-down effects.

The synth engine now has dual oscillators allowing fat and harmonized sounds.

acid8 MKIII offers the same features as its slimsynth uAcid8 counterpart, but with the addition of hardware MIDI and analog sync in and out connectivity and packed in a rugged metal case.

A vst plugin is available to easily take control of the synth's parameters.

FREQUENTLY ASKED QUESTIONS:

Q:How do I copy/paste a pattern?

A:Hold SLIDE and press OCT- to copy and OCT+ to paste

Q:The briefly LEDS go out when I stop the sequencer - is something wrong?

A:This is normal and occurs when the memory is updated (a few seconds after the sequencer is stopped when a change has been made).

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***

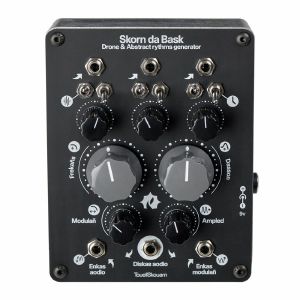

The Skorn da Bask table top module is the same module as the eurorack version but in a hammond 1590BB enclosure and aluminium panel, it can be powered thru a 2,1mm negative pin power jack, compatible with Boss and Ibanez standard power supplies.

Thanks to their routing options, the VCOs can not only be used to generate audio signals, but for modulating the VCF's cutoff frequency as well. Besides processing internally produced saw tooth waves, the filter is also usable for editing sound coming from other modules. Typical Touell Skouarn, the Skorn da Bask distorts like hell. Primary application: The creation of dirty, experimental sound structures and abstract rhythms.

The front panel of Skorn da Bask shows three areas highlighted in red. These zones contain the connectors and control elements for the oscillators. Each VCO comes equipped with a pitch CV input, a tune potentiometer and two switches for defining the routing as well as the frequency range used. In detail, the oscillators can be connected to the audio or CV input of the filter. Thanks to their range switches, each VCO is able to work with audio or low frequency rates. The pitch input does not follow the standard 1v per octave.

After all, Skorn da Bask is not an ordinary oscillator module, but an experimental sound generator.

The low pass filter features a slope of 24 dB per octave. A potentiometer named FreqaNs regulates the circuit's cutoff parameter, Dasson sets the resonance. For processing external signals, there is an audio input. As long as a cable is plugged into this socket, the VCOs are disconnected from the filter's audio path. Third-company modules, like an envelope or LFO, can influence the VCF's frequency via a CV input. For damping modulation signals coming from the oscillators, there is an attenuator knob. The audio output is equipped with a level potentiometer. High settings lead to juicy overdrive effects.

Notes: The Skorn da Bask table top module is the same module as the eurorack version but in a hammond 1590BB enclosure and aluminium panel, it can be powered thru a 2,1mm negative pin power jack, compatible with Boss and Ibanez standard power supplies.

Thanks to their routing options, the VCOs can not only be used to generate audio signals, but for modulating the VCF's cutoff frequency as well. Besides processing internally produced saw tooth waves, the filter is also usable for editing sound coming from other modules. Typical Touell Skouarn, the Skorn da Bask distorts like hell. Primary application: The creation of dirty, experimental sound structures and abstract rhythms.

The front panel of Skorn da Bask shows three areas highlighted in red. These zones contain the connectors and control elements for the oscillators. Each VCO comes equipped with a pitch CV input, a tune potentiometer and two switches for defining the routing as well as the frequency range used. In detail, the oscillators can be connected to the audio or CV input of the filter. Thanks to their range switches, each VCO is able to work with audio or low frequency rates. The pitch input does not follow the standard 1v per octave.

After all, Skorn da Bask is not an ordinary oscillator module, but an experimental sound generator.

The low pass filter features a slope of 24 dB per octave. A potentiometer named FreqaNs regulates the circuit's cutoff parameter, Dasson sets the resonance. For processing external signals, there is an audio input. As long as a cable is plugged into this socket, the VCOs are disconnected from the filter's audio path. Third-company modules, like an envelope or LFO, can influence the VCF's frequency via a CV input. For damping modulation signals coming from the oscillators, there is an attenuator knob. The audio output is equipped with a level potentiometer. High settings lead to juicy overdrive effects.

Notes: Live synthesizer and sequencer, with parameter locks, glide control and punch-in effects.

All pocket operator models perfectly complement each other. From drum machine, bass and lead synthesisers to noise percussion, the six unique units allow you to start a pocket band. Use them separately or connect them together, the choice is yours.

Use the built-in speaker for instant sound, connect a pair of headphones for detailed personal listening, or hook up a speaker system and the club will go boom!

Pocket operators are designed on a single multiple-layer circuit board using high quality components. They all share a compact and durable form factor.

By placing all vital and sensitive components under the LCD display there's no need for an outer case. By saving this cost, high quality components could be used to guarantee the best possible sound and very low power consumption. The space under the display also doubles as a speaker box.

Optional extras:
Add the silicone pro case to protect your pocket operator and get anti-slip feet, neck strap, battery protection and pro feel buttons. Use the SP-10 display protection to protect the LCD screen, and start a jam sync session with your friends using the MC-3 mini cables.

Notes: Arcade-themed synth from Teenage Engineering's amazing Pocket Operator range. Tiny portable synth with quirky chiptune-style sounds, built-in sequencer effects. Super fun.

Supplier's notes:
Arcade synthesizer and sequencer, with parameter locks, chord control and punch-in effects.

All pocket operator models perfectly complement each other. From drum machine, bass and lead synthesisers to noise percussion, the six unique units allow you to start a pocket band. Use them separately or connect them together, the choice is yours.

Use the built-in speaker for instant sound, connect a pair of headphones for detailed personal listening, or hook up a speaker system and the club will go boom!

Pocket operators are designed on a single multiple-layer circuit board using high quality components. They all share a compact and durable form factor.

By placing all vital and sensitive components under the LCD display there's no need for an outer case. By saving this cost, high quality components could be used to guarantee the best possible sound and very low power consumption. The space under the display also doubles as a speaker box.

Optional extras:
Add the silicone pro case to protect your pocket operator and get anti-slip feet, neck strap, battery protection and pro feel buttons. Use the SP-10 display protection to protect the LCD screen, and start a jam sync session with your friends using the MC-3 mini cables.

Notes: Melody synthesizer and sequencer with parameter locks, punch-in effects, arpeggio and chord play styles.

Pocket operators are cleverly designed on a single circuit board. By placing all vital and sensitive components under the LCD display there's no need for an outer case. By saving this cost, high quality components could be used to guarantee the best possible sound and very low power consumption. The space under the display also doubles as a speaker box.

Experience a fresh new way to create music using your thumbs. With its pocket size, its animated graphics, real synthesizer engines, sync, punch-in effects, built-in speaker, alarm clock and impossibly low price, making electronic music has never been this much fun!

Notes: Bass line synthesizer and sequencer with parameter locks, punch-in effects and play styles.

Pocket operators are cleverly designed on a single circuit board. By placing all vital and sensitive components under the LCD display there's no need for an outer case. By saving this cost, high quality components could be used to guarantee the best possible sound and very low power consumption. The space under the display also doubles as a speaker box.

Experience a fresh new way to create music using your thumbs. With its pocket size, its animated graphics, real synthesizer engines, sync, punch-in effects, built-in speaker, alarm clock and impossibly low price, making electronic music has never been this much fun!

Notes: Part of Teenage Engineering's high-end Field series, the OP-XY is best seen as a pro groovebox, combining polyphonic synthesis, sampling and sequencing. More music-focussed than its OP-Z predecessor, the OP-XY represents a new flagship for TE.

Supplier's Notes:
No-compromise, dual-CPU boosted and fully rebuilt sequencer, sampler, and performance instrument, based on the much-loved workflow of the OP-Z. Now including built-in cv, effect sends, and a best-in-class DAC. with 8 individual instrument tracks and 8 auxiliary tracks for controlling any external synthesizer, modular or otherwise, and adding effects. It's probably the most complete, portable sequencer ever built. It's here. It's real. it's black.

And it's got so much more than you've wished for.

The exterior is all black, and matches the exact dimensions of OP-1 field. A distinct grayscale gradient is at its centre, making it clear that OP-XY is all about serious sequencing. Hands-on graphics on the high-resolution display are all grayscale, with a bright red to indicate recording and parameter locks. all vital keys have LEDs to stay in full control.

Experience the ultra fast sequencing workflow. Punch-in FX lets you add quick, rapid-firing, unique, live variations and adding individual step components creates an extra dimension and deep rhythmic patterns. randomize note timing, velocity and pitch, or use live automation to alter filters. Use brain to create chord progressions, generating tracks that reinvent themselves. Literally.

Run every track, independently, at different speeds and lengths to form powerful polyrhythms. create new sequences every time with step components, variations that can be added to any step on the sequencer, controlling everything from altering pitch to bending, skipping or even multiplying steps.

Main audio-out

Multi-out, featuring:
MIDI
CV/gate
Sync
Aux audio
MIDI IN
AUDIO IN
USB-C

The 2 Vrms main output drives any sound system, real loud. Keep everything locked in sync and sequenced with the multi-out and take control with MID IN. process and sample external audio with the audio-in. control, record and charge with the audio/midi host over USB-C, plus a complete wireless experience with midi over Bluetooth LE -keine bedingungen [no strings attached].

Compose your album, head off to the gig, plug and play immediately, then keep everything locked-in with all the I/O you could ask for. 16-hour, battery-powered freedom lets you perform for hours on-end. create, produce and perform anywhere. Mit allen bedingungen [all strings attached]

The bottom left side features a pressure sensitive pitchbend

Instrument tracks:

8 individually sequenceable instrument tracks
8 unique synth engines
3 samplers
independent send levels per track

Step components
14 unique step components for advanced step sequencing
Apply up to all 14 to every step screen
480 x 222px IPS TFT display

Patterns
9 patterns per track
up to 64 bars per pattern
spread across 4 pages
presets per pattern

Effects: reverb, delay, chorus, distortion, lo-fi, phaser

Hardware
Dual blackfin processing cores
Dual DDR memory
Triple-core dsp co-processor
2x controller MCU's for wireless & low power IO domain

Sensors: 6-axis IMU accelerometer

Microphone: immediate, high quality sampling with the built-in microphone.

Connectors: 3.5 mm stereo line-out with headset mic support
3.5 mm multi-out
3.5 mm midi in
3.5 mm stereo line-in

Tactile input
2 octave musical keyboard
68 ultra low profile mechanical buttons
Pressure sensitive pitch bend
4 x multi purpose grayscale encoders

USB
USB type C connector
USB MIDI host & device
USB audio host & device

Notes: Updated version of the ground-breaking synth, sampler and sequencer. Better than ever, with legendary sound quality and portability.

Supplier's Notes:
The beauty of evolution.

Louder, thinner and 100 times better.

Introducing the all new OP-1 field. Injected with more than a decade of ideas, refinements and improvements. Just to mention a few: stereo throughout the whole signal chain, Bluetooth MIDI, USB type-C, a new speaker system with a passive driver for detailed, fat and loud sound, a massive 24 hour battery life, multiple tapes and recording formats, new great sounding reverb and the 'dimension' synth engine, an all glass, flush, high resolution display. The graphics have also been meticulously reworked, screen by screen.

Reworked, refined, reborn.

Think of OP-1 field as the natural continuation of its predecessor. Updated with the latest technology, improved design and finely tuned with professional musicians, recording artists and sound designers in mind. Higher quality in all aspects, from its circuitry to connectivity and flexibility, it's tailor made for professionals in the field.

The new stereo sample engine is just one of the features that takes the OP-1 field to a higher level. With increased sampling time up to 20 seconds and dual layer mode for instant mixing of the a and b channels or via an assigned LFO.

Four new recording formats: Studio 4-track, vintage 4-track, porta and disc mini.
All with their own unique characteristics and graphics. Now with multiple tapes or discs, up to 8 in total.

If it feels thinner, it is.

By lowering the aluminium body around the keyboard, the new OP-1 field feels lighter, thinner and more precise. with 2k moulding Teenage Engineering have also managed to fit a dual 2.4 GHz antenna system inside the aluminium body.

The back is warm, velcro and bass.

Two soft velcro rings have been added on the back for fastening covers and accessories. Perhaps you want to stick your op-1 field on top of your full size keyboard, or slap it on a guitar? Use the included adhesive looped back and start experimenting. On the right you'll find an additional passive loudspeaker for hugely improved bass. And for a 'no-more-cold-metal-on-your-lap' experience, the aluminium body has been folded in a warm, soft touch, hard cover.

The first accessory out using the velcro rings is the Bill Amberg leather wrap that attaches to the back and wraps around the op-1 field and locks around the encoders.

Dimensions: 28.8 cm x 10.2 cm x 2.9 cm

Notes: Arpeggio is a powerful and portable melody maker with a built-in speaker, and battery power. It's a synthesizer, arpeggiator, and sequencer all in one. You can compose and perform anywhere, save hundreds of melodies and create millions of arpeggiator styles. It creates a looping sequence of the notes you select in real time. It's a completely new musical instrument designed to give you the freedom to make melodies with nuance and distinction. Save hundreds of melodies and create millions of arpeggiator styles. Control your gear wirelessly with MIDI over bluetooth or go old school with control voltage and gate. The notes you select from the one octave keyboard instantly create a looping sequence. Unlike a step sequencer, Arpeggio does not limit you to a set number of notes in your sequence. Add rests into your melody and adjust note lengths, tempo, octave, portamento, and swing. Save your melodic phrases as they are created into one of 512 memory banks. They can be chained together to create more complex melodies.

It's equally at home on stage, in the studio, or on the couch. With an editable 2-oscillator virtual analog synthesizer, a built-in speaker, and battery power, Arpeggio can help you make melodies wherever inspiration strikes.

Sequences are created and saved on the fly. You can create a sequence and then save it to a bank while it's playing. Sequences are monophonic and can be up to 128 notes long. Individual steps in a sequence can be of different note lengths, and gate lengths. Like an arpeggiator the sequence length expands as notes are added. You can link melodic sequences together, add rest notes, and delete notes all in real time. Attach the advanced sequencing overlay and scrub through your sequence to delete or insert notes, add slides, and adjust swing to create the exact melody in your head.

A monophonic virtual analog synthesizer. Turn the voice knob to cycle through 24 different synth patches and adjust shape, attack, and portamento. Synth features include: dual oscillators, dual ADSR Envelopes, dual LFOs, six oscillator waveforms, low-pass filter & detune. Dive deeper using the synthesizer overlay and completely customize all synth parameters, create and save your own sounds.

A one octave keyboard from low C to a high B is where you'll play the notes to create your own melodic sequences. Turn the octave knob to shift the pitch of the keyboard up and down to play any note you want. Notes may also be input using an external MIDI controller. In transpose mode the currently playing sequence can be shifted up and down by either selecting a note from the built in one octave keyboard, a whole octave by turning the octave knob or by playing a note on an external MIDI controller. The melody will be shifted up by the number of steps the selected key is away from the low C.

Arpeggio is an amazing instrument all on its own, but its expansive I/O makes it a powerful companion for your other electronic instruments. Add an arpeggiator to any synth. Connect a larger external MIDI keyboard and record a full chord's worth of notes into arpeggio instantly. Expand your sonic palette by using it as a sequencer to control other synthesizers and sound modules. Sync it up to external clock sources for integration with drum machines, samplers, iOS devices and computers. Instant looping sequences. Up, up-down, down, down-up, sequence (as played), reverse styles. Or activate the Arpeggiator Overlay to create your own arp styles and rhythms. Millions are possible.

The Arpeggiator Overlay gives you an insane amount of control over custom arp styles. Start by mixing and matching any two of the base note orders (or just pick one): Up, Down, Sequence, Reverse, and Random. Then apply and combine separate modifiers to each like Inside Out, Skip Forward, Alternating First, Zig Zag, and more. Each arp style can also have an Arpeggiator Rhythm of up to 16-steps. The result of all this is that literally millions of unique arp styles are possible.

The Sequencer Overlay lets you go through each note of your saved sequences and change the pitch or octave, add slide notes where you want, adjust swing, and note probability. Here you can also customize global settings and create sequence frequency patterns to add sections of silence before or after your melodies.

The Synthesizer Overlay lets you explore new sonic territory, tweak and fine tune Arpeggio's built-in synth engine, and create and save your own custom synth presets. The virtual analog synthesizer architecture is designed to reproduce a wide range of timbres. Features include: dual oscillators, dual ADSR Envelopes, dual LFOs, six oscillator waveforms, low-pass filter & detune.

Notes: The iconic Synclavier brand returns with this digital powerhouse, based around FM synthesis but also offering additive and subtractive methods. Super versatile, with up to 98-voice polyphony and MPE support.

Supplier's Notes:
The new buck in the Synclavier stable

Synclavier Regen is the newest in an auspicious line of Digital FM synthesizers. Designed for desktop use, it contains the power of the Synclavier II DSP engine, enhanced and optimised. Full colour screen, liquid-like touch controls, high fidelity audio output coupled with a sound design powerhouse makes this the synth you always dreamed of.

Regen supports additive synthesis for full control of 24 harmonics. Synclavier have now added subtractive synthesis to the Synclavier synthesis engine, especially for Regen, allowing creation of super saws, PCM square waves, and noise generation. Or you can use samples for your carrier waveform.

And these different waveform generators can be mixed. You have up to 12 partials to use in your sound design creation with crossfades assignable to inputs such as velocity, pressure, mod wheel, and of course, keyboard.

Regen is loaded with content to get you inspired fast. There are over 550 timbre presets across 10 newly commissioned timbre libraries. On top of that, there are over 2000 royalty-free samples built-in, including over 350 selected original samples from the NED era and 2 exclusive artist sample libraries.

When you're done exploring the factory content, you'll have fun with the sound design possibilities. You can layer up to 12 partials with different sound generators (additive, subtractive, samples) then apply dynamic effects per partial. It's truly an expressive instrument, both to program and to play. Polyphonic aftertouch and MPE is fully supported and there's a sophisticated modulators section where you can apply responsive curves to properties driven by pressure, velocity, mod wheel position, and so on.

Synclavier Regen is a desktop unit measuring 310mm wide by 260mm tall and 42mm deep.

Housed in aluminium, finished with a sand-textured black and Synclavier red surround. It has rubberized plinths.

User interface consists of many silicone buttons with multi-colour backlighting, a virtual knob capacitive-touch slider with epoxy-coating. A VK display is included as well as a main modal display that shows current parameters, user settings, timbre library, etc.

Over 40 years of synth design has led to this product. It's a sound-designer's dream in a timeless desktop package.

Sound-design Capabilities

Advanced DSP synth engine, as used on Synclavier II, has been extended for Regen.
12 separate tracks of multi-timbrality, assignable to MIDI tracks and keyboard ranges.
Up to 98 simultaneous voices. Voice count is dependent on system load and is likely to be much higher in typical scenarios.
12 partials per timbre. Each partial can be 1 of 3 oscillator synth modes: additive, subtractive, or samples.
Additive mode supports coefficient and phase control of 24 harmonics.
In samples mode, up to 128 samples can be placed on the partial's patchlist.
Subtractive can have a noise generator or up to 9 de-tunable continuous sawtooth waveforms.
Hybrid (resynthesized samples)
Timbre-level effects, including:
Stereo reverb algorithm with pre-delay and library of presets.
Highly-optimised multi-mode filter with sophisticated filter envelope.
Bit-crusher (for use with additive, sample, and hybrid modes).
Frequency modulation (FM) controllable per partial (all modes) with envelope.
Sophisticated modulation system that allows many Regen parameters to be controlled via MIDI, LFOs (24 per timbre), or driven by envelopes (24 per timbre).
Approx 300MB of sample space in memory = 100 mins @ 48Khz 24-bit mono shared across all active tracks and partials.

Hardware

Balanced stereo output through XLR connections at pro-level 4dBu. Designed for studio and home use. These are DC-coupled for maximum bass impact.
Single-ended TS stereo outputs, also DC-coupled.
Convenient headphones TRS jack for monitoring master audio with independent volume
control. For headphones in range 32O - 300O.
DAC circuit is designed for ultra-low noise floor. 11dB of headroom over nominal level. A
measured 130dB of dynamic range. 24-bit, 50kHz sample rate, as per Synclavier II.
Hybrid sound design engine: original Synlcavier II hardware is modelled in software.
High quality audio components throughout, including a precision temperature compensated crystal oscillator for jitter-free digital audio.
Two glorious full-colour sunken displays.
Responsive silicon back-lit parameter buttons.
The vertical value swiper is touch accurate to 128 levels of resolution for precise control
of every parameter.
12 selector buttons are touch-sensitive and can handle gestures to quickly select
multiple partials or tracks.
SD Card reader for unlimited user timbre and sample libraries.
4 USB accessory ports for MIDI keyboards, sequencers, and audio interfaces. Plus 1 USB Host port for connecting to a computer for MIDI input from a DAW.
Take it on the road. Rugged, full metal enclosure.

Notes: Process and generate synth sounds with the unique Magnetar distortion synth, based around distortion and fuzz circuits in series. Adjustable feedback and LFO modulation give super distinctive tones.

Supplier's Notes:
Magnetar is a dual distortion synthesizer featuring distortion, fuzz (connected in series), equalization/feedback, delay, and LFO. However, the capabilities of this synth go far beyond a simple sound processor. It can generate incredible sounds without any input, simply by tweaking the controls to create unpredictable sounds, perfect for drone, ambient, noise, and more. You can see it in action in the video. It's highly recommended to read the manual carefully, as the synth is very sensitive to input level changes. The level pots not only control the levels but also produce unique textures and intriguing sound variations.

Signal Chain: IN + DISTORTION + FUZZ + DELAY + OUT EQ + FB LFO MAGNETAR

Controls:

Distortion Module: (From left to right and top to bottom) In
Input level to the distortion Dist 1
Distortion level Hue
Distortion tone (the associated switch changes the tone) Tone
Equalisation In
Input jack Mod
LFO frequency (modulates GIG) Level
LFO level (modulates GIG) Takes DC 28V Feedback
From the distortion module Out - Output NXPTD
Feedback delay D/W
Delay effect level On/Off switch BP
Unit bypass

Fuzz Module: Level
Input level (linked to the distortion input) Gain
Gain Dist 2
Fuzz distortion level Fog
Changes the fuzz tone

Notes: Building on Supercritical's back catalogue, the Redshift provides a range of characters, based around the Demon Core Oscillator and Neutron Flux Filter. Six-voice analogue design with multitimbral options, MPE control and DSP effects.

Supplier's Notes:
Supercritical Synthesizers introduces their first desktop instrument, Redshift 6 - six voice analogue Variable Character Synthesizer

Supermassively dense analogue oscillator combined with a chameleon analogue filter with versatile gain staging. Now sixfold.

Redshift 6 combines technology from the company's previous products, the Demon Core Oscillator and the Neutron Flux Filter. Each of the six voices features a DCO with analogue waveforms generated under digital control. The filter core is an analogue 4-pole state variable filter also digitally controlled to act like almost any classic vintage synthesizer filter and more. In addition to the oscillators and filters, Redshift 6 has all the features expected of a modern synth - plenty of modulators, flexible voice routing, multitimbrality, MPE, and DSP effects.

Redshift 6's idea is something that is wrapped in the moniker "Variable Character Synthesizer". Each voice's analogue path regarding tuning, gain staging, filter, and more is under strict digital control. Redshift 6 has as lush and warm sweet spot inspired by the analogue polysynth tradition, but it can also cover the full range from almost digitally sterile and clean to distorted misbehaviour and beyond. No modelling here - it's all analogue until the bypassable stereo DSP effects processor.

The oscillator, already road-tested in the Demon Core Oscillator eurorack module, is featured in each of the six voices. The oscillator has multiple tricks up its sleeve, each one wrapped as an Engine for the user to choose between. Traditional twin oscillator engines, supersaw engines, flanging phase sync engines, and transistor organ engines are all powerful modes in user-friendly ways that are easily controllable and modulatable.

Redshift 6's six voices can be configured in plenty of ways. Choose between true six-voice polyphony, classic vintage poly dual layer mode with 3+3 voices, six individual voices each with their own patch and physical output, or any combination of the above. Each of the six voices can also operate as a paraphonic voice with up to 16 note paraphony. Additionally, multiple filters can be chained by routing audio from one voice to another.

The form factor of Redshift 6 is a modern, compact desktop device with a 2.7-inch colour screen. Menu diving is reduced to a minimum, with quick navigation via the shortcut button grid. A selection of familiar synth controls are featured on the front panel. A macro mode is included with six user-assignable controls. The back panel features main audio outputs with a DSP effects processor and four auxiliary voice outputs.

One of the major design principles of Redshift 6 is to have a versatile and capable analogue platform and a flexible UI for new Engines, easily updateable via software updates.

Supercritical Redshift 6 Desktop synthesizer module

Technical specifications

Six voices each featuring:
Full analogue signal chain
Digitally controlled analogue Supercritical Demon Core Oscillator
Analog four pole Variable Character Filter
Flexible gain staging with an analogue boost circuit
Physical audio output per voice (2 main outputs and 4 aux outputs)
Optional voice chaining
Bypassable digital effects in main outputs 1-2
2.7" TFT IPS colour screen with a bank of 8 endless clickable potentiometers and quick navigation via button grid
Quick powerful controls for oscillators and filters.
Six user-assignable macro controls
Six parts multitimbral
Modern MIDI implementation with USB-B connection and DIN IN/OUT
MPE
12V power supply
Physical dimensions: 378 mm x 254 mm x 63 mm

Notes: Part of Sonicware's Liven groovebox series, this time focussing on granular synthesis and effects processing. 128-step sequencer and shimmer reverb allow you to create grooves.

Supplier's Notes:
Sample, slice, transform and reconstruct audio to synthesize completely new sounds

The LIVEN Texture Lab offers a wide variety of sound textures ranging from beautifully lush ambient pads to chaotically aggressive experimental noise that will take you to new sonic frontiers.

The Texture Lab uses a granular processor that slices sounds into grains ranging from 2 ms to 1 second in length, then transforms and reconstructs them in a variety of ways, including manipulating grain shape, density, time warp, spatial position, and playback method to create entirely new sounds.

Granular synthesis parameters are easily accessed from 10 knobs and are designed for intuitive control

Granular synthesizer with granular effects processor mode

The LIVEN Texture Lab is a 4-voice polyphonic synthesizer that can record 32 samples of up to 6 seconds, generate grains from any part of a sample, and synthesize them using two modulations sources, an envelope generator, and process the sound through different filter types.

The Texture Lab can also be used as an effects processor for real-time granular processing of stereo signals from the line input. It is also possible to freeze the flowing sounds for 6 seconds to add granulated sound effects.

Shimmer reverb for fantastical and majestic sounding spaces

The LIVEN Texture Lab features six high-quality stereo reverb types. All reverb types have a shimmer parameter that allows you to layer reverb on top of reverb in octaves to create fantastical and majestic sounding spaces.

128-step sequencer with parameter locking

The LIVEN Texture Lab is equipped with a high-performance 128-step sequencer that has earned the LIVEN series a solid reputation. In addition to recording notes, it can also record changes in granular processing parameters over time.

You can record knob operations in real time or directly record parameters to specific steps allowing for more complex sound textures.

Specifications

[Granular processor]

Synthesizer mode
- Sampling up to 6 seconds per sample (16bit - 32kHz mono, Start/end point adjustment)
- Auto start sampling function with the input level (input level can be set)
- Internal resampling function
- 32 sample memory slots

Effects processor mode
- Real-time processing of stereo signals from the line inputs
- Freeze function


- Pitch: Pitch of the sample (i2 octaves)
- Position, Length/FB: The sample range for generating grains (with random position function)
- Speed, Direction: Playback speed, scan direction, and playback direction of the grains.
- Size, Shape: Size and shape of the grains (with random function)
- Timing, Jitter: Interval of generating grains (with our original LUSH setting)
- Density: Number of the grains (up to 64 grains in legato mode)
- Diffusion: Diffusion width of the grains
- Blend: Balance between the sample and the granular sound mix
- Modulation 1: LFO assignable to various parameters (with wave shape selection, start fade-in time, retrigger, and tempo sync)
- Modulation 2: LFO assignable to various parameters (with wave shape selection, retrigger, and tempo sync)


- Attack
- Release


- Low Pass
- High Pass
- Band Pass

Reverb effects
6 high-quality reverbs with Shimmer reverb parameters
- Hall
- Room
- Arena
- Plate
- Tunnel
- Infinity


- 4-note polyphonic mode (Up to 16 grains per voice, internal sequencer records up to 3 voices of polyphony)
- Mono mode (Up to 32 grains, adjustable glide time)
- Legato mode (Up to 64 grains, adjustable glide time)
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

[Sequencer]
- 1 track
- Up to 128 steps per pattern
- 128 patterns
- Step length can be set from 1/1 to 1/32
- Real-time recording
- Directly enter notes for each step when sequencer is on or off
- Enter longer notes (Tied notes)
- Metronome and pre-count function
- Undo/Redo function
- Transpose function
- Swing function
- Pattern BPM / Global BPM can be set
- Pattern chain function
- Parameter Lock function to record parameter settings for each step
- RANDOM function to play back steps in random order
- STUTTER function to play back only the step being pressed

[MIDI]
- Notes, control changes, clock input/output
- IMPORT/EXPORT of user data (Including samples) via Sysex
- Firmware update via Sysex

[Unit]

27 keys (with a hold function)


- 15 physical control knobs
- Optional LATCH function prevents jumps in value when knob position and parameter values do not match.
- One physical encoder for fine adjustments.
- LCD dot indicates when a parameter value matches the saved value, or when the value has been changed.

Notes: Part of Sonicware's excellent Liven series of compact groove boxes, the Mega Synthesis draws on the unique sound of the Sega Mega Drive/Genesis games console to create characterful 80s/90s synths.

Supplier's Notes:
Revive the SONIC sensation of the golden era!

Create Diverse Game Music with a Sophisticated 6-Track Sequencer and 10 Types of Effects

You too must have fallen under the spell of the extraordinary visuals and sounds of the groundbreaking 16-bit video game console that once dominated the world! It was powered by the iconic "YM2612" sound chip, a legacy that endures even today.

The MEGA SYNTHESIS has resurrected the sound engine of this chip. Sonicware have faithfully recreated the 4-operator FM sound module, the 8-bit PCM sound module, and the "SN76489" PSG (Programmable Sound Generator) sound module used by the original console.

4-operator & 8-algorithm FM sound module with precise sound editing in Edit Mode - Including extra features like fine-tuning operator ratios, which was impossible at the time.

PSG (Programmable Sound Generator) sound module - Synthesize basic waveforms and white noise to recreate iconic retro-game-sounds.

And the 8-bit PCM sound part of YM2612 - Recreate the sound of PCM playback controlled by the Z80 microprocessor used at the time.

Sampling capabilities (8-bit - 12kHz: up to 8 seconds / 24kHz: 4 seconds / 48kHz: 2 seconds, 96 stored samples)

Legacy Mode to faithfully replicate the sound of the era

This feature simulates the characteristically grungy sounding quirks of the YM2612 sound and can be turned on/off for each track.

In the FM tracks, you can separately configure FILTER [frequency response simulation] and LADDER [replication of the unique 9-bit DAC]. And the PCM track can also be played back in 4BIT, allowing you to create the sound to your preferences.

Create Diverse Game Music with a Sophisticated 6-Track Sequencer and 10 Types of Effects

Creating game music is a breeze with this intuitive sequencer, featuring a straightforward 6-track layout comprising 3 FM synthesis tracks, 2 PSG synthesis tracks, and 1 PCM sample track. woo
Specifications

Synthesiser


FM sound module [Tracks 1, 2, 3]
- 4 operators - 8 algorithms
- Maximum polyphony: 6 voices
- Sound editing in FM Edit mode

- Polyphonic mode
- Mono mode with adjustable glide time
- Legato mode with adjustable glide time
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

PSG sound module [Tracks 4, 5]

- 11 types
Square wave
Noise (Low/Mid/High) -> Square wave
Pulse Wave
Noise (Low/Mid/High) -> Pulse Wave
Noise (Low/Mid/High)
- Maximum polyphony: 4 voices

- Polyphonic mode
- Mono mode with adjustable glide time
- Legato mode with adjustable glide time
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

PCM sound module [Track 6]

- 8bit - 12/24/48kHz (switchable) linear PCM sampling (mono)
- Up to 8 seconds of sampling per sample (12kHz), 4 seconds (24kHz) or 2 seconds (48kHz)
- Auto start sampling function with the input level (input level can be set)
- Auto-slice function (equal division by number of slices or length of one slice)
- Maximum polyphony: 3 voices (1 voice in One-shot mode)?- 96 sample memory slots (16 x 6 banks)
- Import and export of a slot or banks of samples (via MIDI)
*Import of audio files from PC/Mac is not supported.

- Drum mode (Drum kit performance)
- One-shot mode (Sample playback or chromatic performance)

- Sweep with adjustable speed, range, and curve
- Switchable between sweep envelope and LFO

[Effects]

Effect send amount can be set independently for each track

- Send Delay
- Insert Delay
- Reverb
- Crusher
- Distortion
- Compressor
- Low pass filter
- High pass filter
- Isolator
- Remix Performance effect

[Sequencer]

- 6 tracks
- Up to 128 steps per pattern
- 128 patterns
- Step length can be set from 1/1 to 1/32
- Real-time recording
- Directly enter notes for each step when playback is on or off
- Enter longer notes (Tied notes)
- Metronome and pre-count function
- Step copy and paste function
- Track copy and paste function
- Duplicate to extend a sequence
- Transpose function
- Swing function
- Pattern BPM / Global BPM can be set
- Pattern chain function (Loop playback possible)
- Track level and pan can be set independently
- Parameter Lock function to record parameter settings for each step
- Sound Lock function to record sound settings for each step
- Note playback probability can be set from 25 to 100% for each step
- RANDOM function to play back steps in random order
- STUTTER function to play back only the step being pressed

[MIDI]

- Notes, control changes, clock input/output
- Import and export user data
- Firmware update via Sysex

[Unit]


27 keys (with a hold function)

- 15 physical control knobs
- Optional LATCH function prevents jumps in value when knob position and parameter values do not match.
- One physical encoder for fine adjustments.
- LCD dot indicates when a parameter value matches the saved value, or when the value has been changed.

Notes: Part of Sonicware's Liven groovebox series, the 8bit Warps draws on retro 80s chiptune vibes to create a mini instrument with huge character and surprising range.

*** Update: New features of the version 3.0 firmware September 2023 ***

Added 6 effect types:
- Distortion
- Phaser
- Tremolo
- Ring Modulator
- Auto Wah
- Reverse Delay

Added the Sound Locking features

A sequence can be duplicated to double the length

Looping of chain playback is now possible

New preset 29 drum sounds that can be easily made drum patterns with the sound locking feature

And several bug fixes and improvements

Supplier's Notes:
The LIVEN 8bit warps combines an 8-bit waveform memory synthesizer with a step sequencer.

Carefully selected preset waveforms and editable user waveforms along with high-quality filters and effects can be used freely to create a wide spectrum of sounds. The LIVEN 8bit warps can generate classic retro game sounds of course, but its unique 8-bit sound can also be used in a range of music genres, including EDM, hip-hop, techno and rock.

Powerful functions for live electronic music performance include 16 physical control knobs, parameter locking for each sequencer step, a looper, and SYNC IN/OUT and MIDI IN/OUT connectors to make synchronized performance with other equipment easy.

All these powerful functions are in a device that weighs only 790 g. Play it anywhere at any time.

Size : 11.7 inch (W) x 6.92 inch (D) x 1.89 inch (H), 297mm (W) x 176mm (D) x 48mm (H)

Weight : 1.74lb., 790g

Accessories: Warranty

Power supply: AA batteries x 6, or 9V DC output AC adapter (1A or higher, EIAJ3 standard inner diameter 1.7mm outer diameter 4.75mm, center +)

Notes: All black version of Sonicware's excellent digital synth. The ELZ_1 Play features an impressive 17 different digital synth engines, including low-bit retro sounds and the unique DNA Explorer.

*** As of November 2024, Firmware 1.1 has been installed, including effects such as 4-Pole Filter, Trim Filter, Ambient Hall, Ambient Infinity and Ambient Room ***

Supplier's Notes:
17 Distinctive Synth Engines-Unlike Anything You've Ever Heard
The ELZ_1 play's synth engines are built from scratch using 32-bit floating point math. From hard low-bit textures to organic FM tones to granular synthesis, the ELZ_1 play offers unique synth engines unlike any other synthesizer.

LOW-BIT OSC: 2 ~ 8 bit variable low-bit oscillator. Sine, square, triangle and sawtooth waves.
STANDARD OSC: 32-bit floating-point processing high resolution oscillator. Sine, square, triangle and sawtooth waves.
CUSTOM OSC: Choose 2 waveforms / period of cycles.
DNA EXPLORER: Extract and generate waveform DNA from audio.
SiGRINDER: Granular synthesizer engine.
MASKED NOISE: Noise oscillator.
SAND FLUTE: Extract and generate tone from noise.
8BIT WAVE MEMORY: Editing your own waveform.
8BIT WAV MEM (MORPH): Morphing 3 waveforms.
8BIT WAV MEM (FM MODE): 2 operators, 8bit FM mode.
8BIT WAV MEM (WARP): Generates an intermediate waveform by crossfading two waveforms.
8BIT WAV MEM (ADSAR): Waveforms change according to envelope.
8BIT WAV MEM (TIME): 3 waveforms change in the orders.
FM SYNTH: 4 operators with 31 algorithms, 32-bit floating point processing.
ZTRINGS: Physical Modelling Strings engine.
SUPER OSC: Super synth engine with 5 detunable sub-oscillators.
STK DRUMMER: Drum machine engine equipped with 5 types of drum kits. (SmplTrek .stk file compatible)

28 Effects to Elevate Your Sound-From Soothing to Striking
Unlock a world of sound by combining 3 insert effects from 18 types and 1 master effect from 10 types, including Shimmer Reverb.
Insert effects: overdrive, distortion, fuzz, crusher, chorus, stereo chorus, flanger, phaser, tremolo, vibrato, ring modulator, auto wah, delay, reverse delay, ping pong delay, auto pan, tape echo & reverb, 4 pole filter, trim filter.

Master effects: hall, room, plate, arena, tunnel, infinity, custom reverb, crusher, ambient room, ambient hall, ambient inf, vinyl simulator & cassette tape simulator.

Flexible 4-Track Looper-Layer, Loop, and Remix with Ease
The newly developed 4-track looper allows easy recording, playback, and overdubbing by simply pressing the track buttons. You can record not only ELZ_1 play performances, but also LINE input and USB audio input.

Instrument Redefined - Velocity-enabled keyboard, Built-in Stereo Speakers and More:
To make it a musical instrument that is pleasant and expressive to play, the keyboard has been improved to support velocity on all keys, and high-quality loud stereo speakers are built into the side panels. It is also equipped with an SD card slot, USB-C, and DIN-MIDI jacks for flexible handling of audio and MIDI.

Notes: *** As of November 2024, Firmware 1.1 has been installed, including effects such as 4-Pole Filter, Trim Filter, Ambient Hall, Ambient Infinity and Ambient Room ***

17 Distinctive Synth Engines-Unlike Anything You've Ever Heard
The ELZ_1 play's synth engines are built from scratch using 32-bit floating point math. From hard low-bit textures to organic FM tones to granular synthesis, the ELZ_1 play offers unique synth engines unlike any other synthesizer.

LOW-BIT OSC: 2 ~ 8 bit variable low-bit oscillator. Sine, square, triangle and sawtooth waves.
STANDARD OSC: 32-bit floating-point processing high resolution oscillator. Sine, square, triangle and sawtooth waves.
CUSTOM OSC: Choose 2 waveforms / period of cycles.
DNA EXPLORER: Extract and generate waveform DNA from audio.
SiGRINDER: Granular synthesizer engine.
MASKED NOISE: Noise oscillator.
SAND FLUTE: Extract and generate tone from noise.
8BIT WAVE MEMORY: Editing your own waveform.
8BIT WAV MEM (MORPH): Morphing 3 waveforms.
8BIT WAV MEM (FM MODE): 2 operators, 8bit FM mode.
8BIT WAV MEM (WARP): Generates an intermediate waveform by crossfading two waveforms.
8BIT WAV MEM (ADSAR): Waveforms change according to envelope.
8BIT WAV MEM (TIME): 3 waveforms change in the orders.
FM SYNTH: 4 operators with 31 algorithms, 32-bit floating point processing.
ZTRINGS: Physical Modelling Strings engine.
SUPER OSC: Super synth engine with 5 detunable sub-oscillators.
STK DRUMMER: Drum machine engine equipped with 5 types of drum kits. (SmplTrek .stk file compatible)

28 Effects to Elevate Your Sound-From Soothing to Striking
Unlock a world of sound by combining 3 insert effects from 18 types and 1 master effect from 10 types, including Shimmer Reverb.
Insert effects: overdrive, distortion, fuzz, crusher, chorus, stereo chorus, flanger, phaser, tremolo, vibrato, ring modulator, auto wah, delay, reverse delay, ping pong delay, auto pan, tape echo & reverb, 4 pole filter, trim filter.

Master effects: hall, room, plate, arena, tunnel, infinity, custom reverb, crusher, ambient room, ambient hall, ambient inf, vinyl simulator & cassette tape simulator.

Flexible 4-Track Looper-Layer, Loop, and Remix with Ease
The newly developed 4-track looper allows easy recording, playback, and overdubbing by simply pressing the track buttons. You can record not only ELZ_1 play performances, but also LINE input and USB audio input.

Instrument Redefined - Velocity-enabled keyboard, Built-in Stereo Speakers and More:
To make it a musical instrument that is pleasant and expressive to play, the keyboard has been improved to support velocity on all keys, and high-quality loud stereo speakers are built into the side panels. It is also equipped with an SD card slot, USB-C, and DIN-MIDI jacks for flexible handling of audio and MIDI.

Notes: THE PIPE is a voice / breath / mouth-controlled dynamic FX processor and synthesiser.

It turns your voice into a powerful FX / beat / lead / soundscape synthesizer and it offers unprecedented levels of vocal processing, truly expanding the traditional boundaries of singing. Conventional singing with lyrics is also possible, and you can use the FX to add live modulations to your vocal performance.

Also, you can use the PIPE as a powerful FX processor for an external signal as a synth, drum machine etc.

THE PIPE has 12 different algorithms: ORPHEUS, FILTERRA, SYNTH, REVERB, MADELAY, PULSE, BASSDRUM (three versions), OCTAVA, GENERATOR, HARCHO!

The PIPE consists of the handheld part and a small break-out box with L R output jacks (1/4-inch) and DC IN for power. The handheld part and break-out box are connected by a single cable that contains both output channels and DC power.

The handheld part consists of the contact vocal mic (connected by a standard 1/4-inch jack), electronic components and the controls. You can easily attach a cable extension to the mic which opens up many more options. Attach it to a stand, or put it inside of or on the surface of acoustic instruments such as drums, guitars, trumpets etc. Also, you can use the mic in jack as external in and use the PIPE to process any signals you want.

Notes: The kind of instrument Soma Labs do so well: weird but wonderful. Based around 32 complex digital synth algorithms and 12 note velocity- and pressure-sensitive sensors, transposition techniques allow you to play the full range of a grand piano.

Supplier's Notes:
TERRA is a new SOMA Labs synth.

TERRA is a highly conceptual device. The core idea is unity of nature and technology, and a perfect balance between simplicity and versatility. Behind the extremely simple interface hides a complex polyphonic, microtonal synthesizer with a broad and flexible sound palette that ranges from classical beautiful tones to complex atonal noise, and offers smooth and fast transitions between these extremes.

The innovative keyboard design invites new playing techniques and covers the full range of a grand piano with the possibility to tune each note with an accuracy of 125 steps per semitone. To achieve this range with such a simple keyboard we designed a unique system of pitch shifting using four additional sensors. Pressing different combinations of them will result in 16 variations of keyboard transposing, including up to 3 octaves up and down, fifth, fourth, third, tone etc.

Not only do you get the full range of a grand piano in a very compact design, TERRA also offers an entirely new and different approach to playing melodies and chords.

The keyboard consists of 12-note sensors with velocity and pressure sensitivity allowing for the manual creation of slow attack and vibrato, 4 dynamic sensors for timbre modification and control, 4 pitch-shifting sensors and 2 hold sensors for holding the state of the timbre and note sensors.

Inside TERRA there is a three-axis motion sensor for creating a variety of different modulations by simple intuitive movements of your hands and body.

TERRA is digital and contains 32 complex synthesis algorithms. Each algorithm has been carefully designed to be a complete and flexible musical instrument on its own, ready for learning and playing in its own unique way. The goal is to free the musician from long exhausting programming, setting hundreds of parameters for creating one timbre, and instead putting the focus directly on music and performance and following your imagination and inspiration.

TERRA offers the best of both worlds: the direct intuitive tactile connection from acoustic instruments and the flexibility and versatility of synthesizers. TERRA inherits design principles from LYRA-8 and also contains application of the new principles that were announced for ReFLEX, exploring the future of synthesis.

TERRA has an extremely simple interface that gives you instant access to all its functions in several touches, including saving and loading the 96 presets that are stored directly on the playing sensors. TERRA has no display. Instead it shows and lets you dial all necessary data on the 6 LED-sensor triangle in the centre.

TERRA has a built-in FX processor so the stereo output is ready to use, making it a perfect stand-alone performance instrument. While the sound generation is digital, TERRA has a unique custom-built and top quality analogue part that makes it sound rich, natural, clear and powerful at the same time.

The housing of TERRA comes from a solid piece of wood, making each instrument unique and slightly different. In the photo above and in the announcement demo video you can see the prototype of the synth. The final design is in development and we intend to make several different versions.

TERRA is a sanctuary for a natural soul right in the middle of the rumbling plastic world, a ground where you can breathe in and out slowly, and hold on to your roots.

TERRA is our dream about a bright future where we will be both technologically advanced and more connected to nature, where machines and technology are not a prison for our feelings and spirit but their extension.

Synthesis algorithms: 32
Polyphony: 1-12 voices (depending on the algorithm)
Presets: 96
Pitch Shifter presets: 24
Line out: L, R TS/TRS 1/4-inch jacks / 6.35 mm jacks
Maximum line output signal: 13 V peak-to-peak
Nominal line output signal: ~1.5 V (volume 100%)
Headphone output: TRS 1/4 inch jack / 6.35 mm jacks
Headphones impedance: 6-64 ohm
CV-clock input voltage: 3-15 V
Power supply voltage: DC 12 V *
Consumption current: 0.2 A
DC jack: 5.5 x 2.1 mm, "+" in center
Dimensions: 405 x 365 x 57 mm
Weight: 2.2 kg
* TERRA comes with a high quality power supply . If it gets lost, use a high-quality modern switched-mode power supply with 12 V output voltage, at least 0.4 A maximum current, 5.5 x 2.1 mm DC jack, center "+".

What's included:

TERRA - 1 pc.
Power supply - 1 pc.
CV clock adapter (DIN5 - 3.5 mm mini-jack) - 1pc.
Short interface reference manual - 1 pc.
On-table mounting pads - 4 pcs.

Notes: Another intriguing experimental offering from Soma Labs. ROaT is a digital synth inspired by 80s video games. Four oscillators combine with a sequencer to create drones, soundscapes and glitchy loops.

Supplier's Notes:
Rumble of Ancient Times (RoAT) is an 8-bit noise synthesizer and sequencer inspired by the clever programming of the early PC era when an entire video game would fit on a floppy disk. RoAT is capable of a wide variety of sounds ranging from dense noise scapes to diverse glitching rhythmic patterns. The compact and portable instrument contains many elements that can be combined into surprising musical results.

The "heart" of the synthesizer contains 4 sound oscillators, each with a tunable waveform and an individual LFO, which can modulate the tone or volume of the oscillator. The modulated signal of each oscillator is mixed with other signals using 1,536 variations of complex summing algorithms that contain FM, ring modulation, bitwise logical operations and more.

The synth contains an 8-bit resonant lowpass filter with a distinct Lo-Fi character.
The built-in sequencer can be synced to an external device and also send clock out.
RoAT is battery powered and can work up to 130 hours on one set of AAA batteries.

Rumble of Ancient Times is built on a very simple 8-bit microcontroller similar to the ones used in the "brains" of old refrigerators and other simple electronic devices. Thanks to some very clever programming, it's also able to drive a very capable synth with many features!

In stark contrast to modern consumer electronics, this synth celebrates and emphasizes what can be achieved with efficiency of code and using chips considered obsolete by industry leaders. We live in an age where text editors can be 1GB or more and simple things like checking email require the latest OS and powerful processing, despite the core tasks being no different than 15 years ago with a fraction of the computational power.

So RoAT proposes a new kind of ecological thinking with the innovative use of chips that were developed and produced decades ago, instead of turning them into millions of tons of trash. We can still use technology that the industry forced us to consider obsolete, with the added benefit here of extremely low power consumption. It's an environmentally friendlier approach than galloping in the rush of planned obsolescence that damages our planet and wastes precious resources.

Rumble of Ancient Times was designed and programmed by Kakos Nonos, a new creative mind who joined the SOMA development team. His very unique style of building electronic musical instruments combines quality craftsmanship, advanced programming and a love for medieval acoustic instruments such as gusli, wheeled lyre and bagpipes.

Specifications:

Sync out voltage: 5 V
Minimum syn in voltage: 0.2 V
Current input: 20 mA
Maximum output voltage: 5 V
Audio output:3.5 mm jack
Sync out: 3.5 mm jack
Power Supply: 4*AAA battaries
Size: 122 x 136 x 40 mm
Weight (without batteries): 145 g

Notes: Brilliantly unusual synth based on eight analogue tone generators, functioning more like an electric organ or FM synth than a conventional subtractive architecture. Unique sound.

Supplier notes:
Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesizer designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of VCOs. Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications:

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS or TRS (balanced) jack
Output resistance: 100 Ohm
EXT IN: 1 v 0-to-peak
EXT IN connector: 6.3 mm TS jack
HOLD GATE: full HOLD volume +5 V
HOLD GATE connector: 6.3 mm TS jack
CV DELAY : unipolar, range of 0 to +5 volt
CV DELAY connector: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 2 watt
Dimensions: 266 x 266 x 62 mm
Weight (without power supply and packaging): 2.5 kg

Notes: Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesizer designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Notes: Pink version of Soma's excellent Lyra-8. Brilliantly unusual synth based on eight analogue tone generators, functioning more like an electric organ or FM synth than a conventional subtractive architecture. Unique sound.

Supplier's Notes:
Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesiser designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Notes: Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesiser designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesiser designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications:

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS or TRS (balanced) jack
Output resistance: 100 Ohm
EXT IN: 1 v 0-to-peak
EXT IN connector: 6.3 mm TS jack
HOLD GATE: full HOLD volume +5 V
HOLD GATE connector: 6.3 mm TS jack
CV DELAY : unipolar, range of 0 to +5 volt
CV DELAY connector: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 2 watt
Dimensions: 266 x 266 x 62 mm
Weight (without power supply and packaging): 2.5 kg

Notes: Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesiser designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications:

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS or TRS (balanced) jack
Output resistance: 100 Ohm
EXT IN: 1 v 0-to-peak
EXT IN connector: 6.3 mm TS jack
HOLD GATE: full HOLD volume +5 V
HOLD GATE connector: 6.3 mm TS jack
CV DELAY : unipolar, range of 0 to +5 volt
CV DELAY connector: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 2 watt
Dimensions: 266 x 266 x 62 mm
Weight (without power supply and packaging): 2.5 kg

Notes: Brilliantly unusual synth based on eight analogue tone generators, functioning more like an electric organ or FM synth than a conventional subtractive architecture. Unique sound.

Supplier notes:
Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesizer designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of VCOs. Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Notes: Introducing the revived version of LYRA-4 organismic synthesiser, the younger sister of the famous LYRA-8. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation. It's smaller and weighs less but is equally rugged in design, and still packs a lot of punch. This makes it easy to fit in a backpack and perfect for taking the LYRA sound on the road. And playing two LYRA-4s can actually sound very different than just one LYRA-8.

LYRA-4 is based on four generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into two pairs (12, 34), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-4 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of delay with feedback. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS jack
Output resistance: 10 KOhm
CV DELAY: unipolar, range of 0 to +5 volt
CV DELAY: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 1.2 watt
Headphones resistance: 6-64 Ohm
Power supply: stabilised, +12 V, 0.2 A, centre positive
Dimensions: 241 x 203 x 62 mm
Weight (without power supply and packaging): 1.2 kg

What's included:

LYRA-4 - 1 pc
Power supply - 1 pc

Notes: Derived from the excellent Lyra-8, the Lyra-4 features a similar 'organismic' approach to synthesis. Four-voice non-linear architecture offers unique tones in a compact, portable format.

Supplier's Notes:
Introducing the revived version of LYRA-4 organismic synthesiser, the younger sister of the famous LYRA-8. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation. It's smaller and weighs less but is equally rugged in design, and still packs a lot of punch. This makes it easy to fit in a backpack and perfect for taking the LYRA sound on the road. And playing two LYRA-4s can actually sound very different than just one LYRA-8.

LYRA-4 is based on four generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into two pairs (12, 34), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-4 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of delay with feedback. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS jack
Output resistance: 10 KOhm
CV DELAY: unipolar, range of 0 to +5 volt
CV DELAY: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 1.2 watt
Headphones resistance: 6-64 Ohm
Power supply stabilised, +12 V, 0.2 A, centre positive
Dimensions: 241 x 203 x 62 mm
Weight (without power supply and packaging): 1.2 kg

What's included:

LYRA-4 - 1 pc
Power supply - 1 pc

Notes: ETHER is a wide-band receiver that makes it possible to perceive the electromagnetic landscape around you.

ETHER is a kind of anti-radio. Instead of being tuned to a specific radio station, it receives all the interference and radiation that a traditional radio tries to eliminate in order to create a clean signal. It captures the radio waves as is from hertz to gigahertz because it doesn't contain the tuned input circuit that filters out all frequencies except the narrow band of a specific station. This allows ETHER to perceive the invisible electromagnetic landscape that humans created unintentionally, making possible live electromagnetic field listening and recording.

The design was inspired by the design for the very first radios (early 1900s) that had no tuning wheel. At this time there weren't many radio stations, and all of them used Morse code. It was possible to distinguish each transmitter by ear, as each one had its own specific timbre or voice.

ETHER is pocket-sized (103x58x17mm) and light-weight (73g with batteries). It consumes very little power and runs on two AAA batteries. How long it can run on two batteries is unclear,- but the battery life is more than 300 hours if you using alkaline or lithium batteries.

ETHER was intended to be a unique accessory for the conscious modern human. Special designed enclosures made in Europe were used, as well as high-quality PCB and furniture providing long life and high reliability. So with ETHER, you get both a unique sound experience and a cool-looking high-quality gizmo.

ETHER has both magnetic and electric components for sensing radiation. For the magnetic component, it has a built-in magnetic antenna, like the ones used in old long-wave radios. The antenna has maximum sensitivity on ETHER's axis. By changing the orientation, angle and position of ETHER, you will change the sound. For the electric component, it has antennas printed on the PCB and the special input pins placed on the anterior surface.

ETHER V2 has two external antenna pins. You can touch any conductive material or surface (including your body) with the pins and use objects or yourself as a big external antenna! Two pins are connected to different points of the circuit and interact differently with electromagnetic waves. Switching from one to another or using them both, you can change the sound. Far away from a city, we recommend trying to use a piece of wire 1-4 meters long connected to one of the pins for getting some interesting sound.

ETHER V2 has two wheels for sound control and the power switch. The upper wheel adjusts the amount of high-frequency amplification and regeneration. The lower wheel is the volume. By adjusting high-frequency gain you can focus ETHER on different dynamical levels of surround interferences getting the richest and interesting sound.

ETHER is not just an inductive sniffer like some projects you can easily find online. A simple low-frequency inductive sniffer will be silent in most places that are full of sounds in the video. Such devices need to be placed close to an emitting source and will not work on a street. All they contain is a coil and a low-frequency amplifier. In comparison, ETHER has a regenerative circuit and a demodulator, making it an actual radio wave receiver, not just an amplifier of low-frequency magnetic fields. However, ETHER can perceive the low-frequency magnetic fields as well. But, honestly, if your goal is to scan objects in close proximity (0-20 centimeters), a simple inductive sniffer will work cleaner and more focused due to its narrow band and lower sensitivity. ETHER was designed to be a part of your walks in the city and may even pick up sounds in a forest or at the seashore. Also, ETHER can perceive the electric component of the radiation as well, capturing radiation that is far above the audio range and is much more sensitive. Therefore, it has a significantly different design, functions and implementation than a simple inductive sniffer even if in some cases their functions can overlap.

ETHER is very sensitive to any kind of digital circuitry that's in close proximity, hence the lack of an SD-card recorder or something like that inside. You also have to make sure to keep other electronic devices that you carry (phone, laptop, recorder) at least 30cm/1ft away to avoid interference, but ETHER definitely works well when you walk around with a smartphone and laptop.

Notes: Typically experimental stuff from Soma, the Enner is a five-voice synth with an array of filters, electro-acoustic noise options, analogue effects and huge creative potential.

Supplier's Notes:
ENNER is a very expressive sound tool that can generate bits, pads, FX, noises, clicks, glitches, but also function as a cool vocal mic with built-in analogue FX and much more! A musician with a rich imagination and who's experienced in playing ENNER can perform an entire exciting gig using just this synth.

As an instrument, ENNER is a unique analogue synthesizer with the key principle being that all signals that make sound pass through and are managed by your body. Your hands become the central part of the circuitry. Touching different contact pads with different parts of your fingers and palms with different amounts of pressure, letting signals pass through your body defines the mixing, volume, timbre, feedback and other parameters of synthesis. Human skin has much more complex electric properties than we think. The skin provides not just resistance but also some capacitive properties and even nonlinear dependence of conductivity from current, its direction and time during which the current was applied. All of this affects the sound, making you the key part of the synthesis process.

All pots of ENNER are metallic and also function as inputs or outputs. Touching a pot can change not only the parameters but also patch the audio signals.

ENNER consists of:

The array of filters with fixed frequency properties (the triangle in the centre): the stereo high pass filter (HPF), the stereo bandpass filter (high mid - BPFH), the stereo bandpass filter (low mid - BPFL), the stereo lowpass filter (LPF). Stereo means that the filters have separate inputs for left and right channels as well as separate outputs. Sliding on the filters' pads with your fingers you can create a rich stereo image where each channel may have not only individual volume properties but also timbral ones. The outputs of the filters are mixed together and connected to the main output. Also in the triangle, you have a stereo direct input (DIR) that lets you bypass the filters.

The modulated stereo delay. The input of the delay is the two pads on the top of the triangle (DLY blue). The output of the delay is mixed with filter output and connected to the main output. Also, you have delay output connected to the pads placed on the left and right sides from the top of the triangle (DLY orange) that lets you create feedback and other interesting effects. The delay has two separate lines (left and right) with individual TIME controls (BPEMR pots), common FEEDBACK and the common pot that defines the amount of self-modulation (BIZZARE). The BPEMR pots are also touch inputs for delay time modulation.

On the right side of ENNER, there is a five-voice synthesizer with individual adjustment of frequency for each voice (TUNE knobs) with the possibility to change the pitch of all voices simultaneously (PITCH knob). TUNE knobs are also the outputs of the voices, so by touching them you can patch the voices to the filter's inputs. The synthesizer has separate output pads for each voice (pads OUT 1-5), individual modulation inputs (MOD 1-5) and ring modulation outputs (the RING 12, 23, 34 numbers indicate which voices are sources for the ring modulation). Connecting MOD and OUT pads of one voice with your fingers will pitch it up. The fifth voice has an additional modulation pad MOD 5- which can shift the pitch of the fifth voice down (connect it to +12 pad or any pad that has some positive signal including the output of the fifth voice).

On the left side of ENNER, there is the second synth that has one master generator, the output of which is divided six times by two with individual outputs for each stage of division (PULSE 1-6). This synth is aimed at creating rhythmical clicks, basses and octave tones. The frequency of the master generator is defined by the TEMPO knob. The output pads &1,2,3 are logical multiplications of different PULSE outputs giving additional and more complex rhythm combinations.

ENNER is also an electro-acoustic noise instrument. It has a piezo pickup attached to the front panel that captures sound from the casing itself. There is metallic spring and you can attach rubber bands to the panel to create various acoustic sounds. The piezo mic can capture clicks and scratches you make with your fingers, and it also allows you to create filtered feedback. Not only that, it can even capture your voice singing over the panel! To get sound from the piezo you have to connect the PIEZO OUT pad with some filters or delay inputs. Applying filters and delay on the piezo out while the panel works as a mic, catching the audio signal from the speakers connected to the ENNER output lets you create very cool acoustic feedback-based effects. PIEZO GAIN adjusts the piezo sensitivity.

The bottom of the triangle (NOISE pad) is the output of static pink noise.

External in (EXT socket and EXT pad) lets you send an external audio signal to ENNER and process it through the array of filters, delay and other ENNER stuff.

All of these features make ENNER a simple yet powerful kit of sound sources and FX that give you a rich and diverse sound palette with many possible playing techniques that you can change very fast as there is no other control over the sound other than your touches.

Specs

Array of filters

Pads DIR - direct input (no filters)
Pads HPF - highpass filter in
Pads BPFH - bandpass filter high mid in
Pads BPFL - bandpass filter low mid in
Pads LPF - lowpass filter in
(L - left channel, R - right channel)

Pink noise generator

NOISE - noise output

Delay

Pads DLY(blue) - delay in
Pads DLY(orange) - delay out
(L - left channel, R - right channel)
Pots BPEMR - delay time (L and R) also time modulation inputs
The UROBOROS pot - feedback (both channels)
Pot BIZZARE - delay self-modulation

Piezo

Pad PIEZO OUT - the output
Pot PIEZO GAIN - piezo amplification (also piezo output)

The five-voice synth

Pads OUT 1-5 - outputs of the voices
Pads MOD 1-5 - modulation inputs of the voices (try to connect them with OUT)
Pads RING 12, 23, 34 - outputs of ring modulators that multiply outputs of different voices
Pad MOD 5- - an additional modulation input for the fifth voice (try to connect it with +12)
Pots TUNE 1-5 - frequency of the voices (also voices outputs)
Pot PITCH - transposing all voices at once.

Rhythm\Bass synth

Pads PULSE 1-6 - output of binary dividers
Pads &1, 2, 3 - additional outputs that are logical AND of different PULSE outputs.
Pot TEMPO - the frequency of the source generator

External

Socket EXT - external in
Pad EXT - connected to EXT socket tip

Power

+12V center + 0.2A. ENNER requires a good stabilized and filtered PSU. We recommend contemporary switching mode PSUs with a wide input range. The PSU is included.

Grounding

In order that when playing on ENNER there would be no hum from the electricity grid interferences, the device must be properly grounded! A normal grounding connection at the electric socket, which is carried through the power cord to your audio equipment to which the ENNER is connected, is sufficient.

What's in the kit:

ENNER
12V center plus PSU
Several rubber bands

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


Co-developed by the late Chris Huggett, the Mantis is PWM's flagship synth, a duophonic hybrid design with high-performance digital oscillators and state-variable analogue filters. A fitting tribute to a legendary synth designer.

Supplier's Notes:
Mantis is a unique, duophonic hybrid synthesizer that was co-developed by the late Chris Huggett (of EDP Wasp, OScar & more fame) and is dubbed as a spiritual successor to the OSCar, sporting precision digital oscillators, dual state variable filters and more.

Mantis is a premium synthesizer, sporting a high quality 37-note velocity and pressure sensitive keybed, SSI2164 IC's for the VCF's and VCA's, custom high performance processors for the oscillators coupled with a pristine analogue signal path, which features a twice amplified gain structure for maximum clipping capabilities plus lush stereo digital FX.

The modulation capabilities are vast with:
Two unique ADSR's that feature "sustain fall" that allows you to create a drop before release...even while a key is held for greater sound design possibilities. The envelopes can also be set to cycle.
Two tempo-syncable LFO's with four waves, fade in and fade out parameters and a seriously wide operating range.
Ring modulation available at the mixer
And a unique modulation routing controller with 6 choices of modulation parameters, 6 choices of modulation sources and scale control, which used to scale the effect of the modulation.

In development over the last period of his life Chris threw everything into Mantis. Although incomplete when he sadly passed away in 2020, he handed the project over to Paul of PWM to carry on and continue the project.

PWM, with the support of Chris' estate, think this synthesiser deserves to be born into the world for everyone to enjoy!

PWM MANTIS Key Features:
Hybrid-Analogue Synthesiser, powerful digital oscillators with dual analogue filters
With Mathematically Generated Oscillators with a Pure Analogue Signal Path
A Modernised Design Architecture based on the WASP with an OSCar style filter designed by the late, great Chris Huggett
Duophonic - Two Fully Independent Voices each with 2 Oscillators plus Sub-Oscillator per voice
Dual Filters - Multi-Mode State Variable VCF's with Overdrive per voice that can be combined in Series or Parallel with Width Control
Keyboard - 37-Note Full-Size Semi-Weighted Keybed with Aftertouch plus Joystick
Fully featured Keyboard, Joystick and USB-MIDI Control for Easy Integration with any Studio or Live Environment

Specifications

200 Patches
All patches in RAM so can be overwritten
Bank A: 100 Factory presets
Bank B: 100 User presets (all set to initial patch)
Compare function
Initialise patch function

Duophonic with 2 analogue signal paths
Mathematically generated oscillators designed by Chris Huggett
Analogue signal path designed by Chris Huggett

2 Oscillators plus sub-oscillator per voice
Sine / Triangle / Saw / Pulse plus additional wave types
Shape control and shape modulation input
Will create pulse width modulation on the pulse waveform with perfect square at the centre
Pitch modulation control
Octave selects per oscillator
OSC 1 SUB follows oscillator 1 parameters

Oscillator Drift
Creates random pitch variations between oscillators

Multi-mode state variable VCA filters with overdrive
2 Analogue filters - 1 per signal path
Low Pass / Band Pass / High Pass in 12dB and 24dB configurations
Additional WBAND (series) and WSTOP (parallel) types
Filter Cutoff
Filter Cutoff Modulation
Filter Resonance
Filter Width
Filter Width Modulation
Filter Keytrack

LFO (Low Frequency Oscillator)
2 LFOs
4 waveshapes per oscillator
Fade In / Fade Out parameter
SYNCable
Rate control

Envelopes
2 Independent envelopes
ENV 1 normalised to amplitude
ADSR
+ Sustain Fall parameter for shaping during key-down
+ Repeat which can be used to create looping envelopes
Velocity positive and negative control

Ring modulation

Mixer
First mix: OSC1 and OSC2
Second mix: OSCillators and noise
Third mix: OSCillators + noise and Ring modulator

VCA (Voltage Controlled Amplifier)
All amplification is done in the analogue domain in multi-stage VCAs

Modulation Routes
Control - 6 choices of modulation parameters
Source - 6 choices of effectors from envelopes and LFOs
Scale - choices of controls used to scale the effect of the modulation

Glide
Glide amount
Auto-glide mode

Indicator LEDs
Two LEDs for Voice
LED for Keyboard activity

Master tune

Master volume

Triggering
ENV 1 Legato
ENV 2 Legato
LFO Keytrig
LFO Keytrig

Connections
Master power switch
DC 9V input
USBC
MIDI IN / OUT / THRU
Sustain pedal input (switch)
Pedal input (continuous)
Stereo 1/4" line Outs: L/Mono and R
Stereo 1/4" headphone out

Multi-function Joystick control
Left / right for pitch bend
Performable vibrato
Latching hold mode

Arpeggiator
6 arpeggiator types
- Up, Down, Up/Down 1, Up/Down 2, Played & Random
Sync rates control from 2nds to 32nds
Tap tempo button
Swing including positive and negative swing
Auto clock sync
- Detects MIDI or USB-MIDI clock and synchronises the arpeggiator automatically
Latch via joystick HOLD
6 Octave range

Dedicated tempo control

Duophonic mode control
Duo mode
Duo mode with simple filter
Pan control for duophonic voicing

Digital Effects
Reverb time
Reverb level
Reverb High Pass Filter
Reverb Low Pass Filter
Chorus level
Chorus type

Keyboard Control
37 Full-size semi-weighted velocity-sensitive keys
Channel aftertouch
Octave shift

Weights and Dimensions (product unboxed)
620 x 320 x 110 mm
5.3 kg

Includes:
Power Supply (9V 600mA)
USB C lead
Getting Started Guide

Notes: ***B-STOCK: Box opened, product in perfect working order***


Co-developed by the late Chris Huggett, the Mantis is PWM's flagship synth, a duophonic hybrid design with high-performance digital oscillators and state-variable analogue filters. A fitting tribute to a legendary synth designer.

Supplier's Notes:
Mantis is a unique, duophonic hybrid synthesizer that was co-developed by the late Chris Huggett (of EDP Wasp, OScar & more fame) and is dubbed as a spiritual successor to the OSCar, sporting precision digital oscillators, dual state variable filters and more.

Mantis is a premium synthesizer, sporting a high quality 37-note velocity and pressure sensitive keybed, SSI2164 IC's for the VCF's and VCA's, custom high performance processors for the oscillators coupled with a pristine analogue signal path, which features a twice amplified gain structure for maximum clipping capabilities plus lush stereo digital FX.

The modulation capabilities are vast with:
Two unique ADSR's that feature "sustain fall" that allows you to create a drop before release...even while a key is held for greater sound design possibilities. The envelopes can also be set to cycle.
Two tempo-syncable LFO's with four waves, fade in and fade out parameters and a seriously wide operating range.
Ring modulation available at the mixer
And a unique modulation routing controller with 6 choices of modulation parameters, 6 choices of modulation sources and scale control, which used to scale the effect of the modulation.

In development over the last period of his life Chris threw everything into Mantis. Although incomplete when he sadly passed away in 2020, he handed the project over to Paul of PWM to carry on and continue the project.

PWM, with the support of Chris' estate, think this synthesiser deserves to be born into the world for everyone to enjoy!

PWM MANTIS Key Features:
Hybrid-Analogue Synthesiser, powerful digital oscillators with dual analogue filters
With Mathematically Generated Oscillators with a Pure Analogue Signal Path
A Modernised Design Architecture based on the WASP with an OSCar style filter designed by the late, great Chris Huggett
Duophonic - Two Fully Independent Voices each with 2 Oscillators plus Sub-Oscillator per voice
Dual Filters - Multi-Mode State Variable VCF's with Overdrive per voice that can be combined in Series or Parallel with Width Control
Keyboard - 37-Note Full-Size Semi-Weighted Keybed with Aftertouch plus Joystick
Fully featured Keyboard, Joystick and USB-MIDI Control for Easy Integration with any Studio or Live Environment

Specifications

200 Patches
All patches in RAM so can be overwritten
Bank A: 100 Factory presets
Bank B: 100 User presets (all set to initial patch)
Compare function
Initialise patch function

Duophonic with 2 analogue signal paths
Mathematically generated oscillators designed by Chris Huggett
Analogue signal path designed by Chris Huggett

2 Oscillators plus sub-oscillator per voice
Sine / Triangle / Saw / Pulse plus additional wave types
Shape control and shape modulation input
Will create pulse width modulation on the pulse waveform with perfect square at the centre
Pitch modulation control
Octave selects per oscillator
OSC 1 SUB follows oscillator 1 parameters

Oscillator Drift
Creates random pitch variations between oscillators

Multi-mode state variable VCA filters with overdrive
2 Analogue filters - 1 per signal path
Low Pass / Band Pass / High Pass in 12dB and 24dB configurations
Additional WBAND (series) and WSTOP (parallel) types
Filter Cutoff
Filter Cutoff Modulation
Filter Resonance
Filter Width
Filter Width Modulation
Filter Keytrack

LFO (Low Frequency Oscillator)
2 LFOs
4 waveshapes per oscillator
Fade In / Fade Out parameter
SYNCable
Rate control

Envelopes
2 Independent envelopes
ENV 1 normalised to amplitude
ADSR
+ Sustain Fall parameter for shaping during key-down
+ Repeat which can be used to create looping envelopes
Velocity positive and negative control

Ring modulation

Mixer
First mix: OSC1 and OSC2
Second mix: OSCillators and noise
Third mix: OSCillators + noise and Ring modulator

VCA (Voltage Controlled Amplifier)
All amplification is done in the analogue domain in multi-stage VCAs

Modulation Routes
Control - 6 choices of modulation parameters
Source - 6 choices of effectors from envelopes and LFOs
Scale - choices of controls used to scale the effect of the modulation

Glide
Glide amount
Auto-glide mode

Indicator LEDs
Two LEDs for Voice
LED for Keyboard activity

Master tune

Master volume

Triggering
ENV 1 Legato
ENV 2 Legato
LFO Keytrig
LFO Keytrig

Connections
Master power switch
DC 9V input
USBC
MIDI IN / OUT / THRU
Sustain pedal input (switch)
Pedal input (continuous)
Stereo 1/4" line Outs: L/Mono and R
Stereo 1/4" headphone out

Multi-function Joystick control
Left / right for pitch bend
Performable vibrato
Latching hold mode

Arpeggiator
6 arpeggiator types
- Up, Down, Up/Down 1, Up/Down 2, Played & Random
Sync rates control from 2nds to 32nds
Tap tempo button
Swing including positive and negative swing
Auto clock sync
- Detects MIDI or USB-MIDI clock and synchronises the arpeggiator automatically
Latch via joystick HOLD
6 Octave range

Dedicated tempo control

Duophonic mode control
Duo mode
Duo mode with simple filter
Pan control for duophonic voicing

Digital Effects
Reverb time
Reverb level
Reverb High Pass Filter
Reverb Low Pass Filter
Chorus level
Chorus type

Keyboard Control
37 Full-size semi-weighted velocity-sensitive keys
Channel aftertouch
Octave shift

Weights and Dimensions (product unboxed)
620 x 320 x 110 mm
5.3 kg

Includes:
Power Supply (9V 600mA)
USB C lead
Getting Started Guide

Notes: Co-developed by the late Chris Huggett, the Mantis is PWM's flagship synth, a duophonic hybrid design with high-performance digital oscillators and state-variable analogue filters. A fitting tribute to a legendary synth designer.

Supplier's Notes:
Mantis is a unique, duophonic hybrid synthesizer that was co-developed by the late Chris Huggett (of EDP Wasp, OScar & more fame) and is dubbed as a spiritual successor to the OSCar, sporting precision digital oscillators, dual state variable filters and more.

Mantis is a premium synthesizer, sporting a high quality 37-note velocity and pressure sensitive keybed, SSI2164 IC's for the VCF's and VCA's, custom high performance processors for the oscillators coupled with a pristine analogue signal path, which features a twice amplified gain structure for maximum clipping capabilities plus lush stereo digital FX.

The modulation capabilities are vast with:
Two unique ADSR's that feature "sustain fall" that allows you to create a drop before release...even while a key is held for greater sound design possibilities. The envelopes can also be set to cycle.
Two tempo-syncable LFO's with four waves, fade in and fade out parameters and a seriously wide operating range.
Ring modulation available at the mixer
And a unique modulation routing controller with 6 choices of modulation parameters, 6 choices of modulation sources and scale control, which used to scale the effect of the modulation.

In development over the last period of his life Chris threw everything into Mantis. Although incomplete when he sadly passed away in 2020, he handed the project over to Paul of PWM to carry on and continue the project.

PWM, with the support of Chris' estate, think this synthesiser deserves to be born into the world for everyone to enjoy!

PWM MANTIS Key Features:
Hybrid-Analogue Synthesiser, powerful digital oscillators with dual analogue filters
With Mathematically Generated Oscillators with a Pure Analogue Signal Path
A Modernised Design Architecture based on the WASP with an OSCar style filter designed by the late, great Chris Huggett
Duophonic - Two Fully Independent Voices each with 2 Oscillators plus Sub-Oscillator per voice
Dual Filters - Multi-Mode State Variable VCF's with Overdrive per voice that can be combined in Series or Parallel with Width Control
Keyboard - 37-Note Full-Size Semi-Weighted Keybed with Aftertouch plus Joystick
Fully featured Keyboard, Joystick and USB-MIDI Control for Easy Integration with any Studio or Live Environment

Specifications

200 Patches
All patches in RAM so can be overwritten
Bank A: 100 Factory presets
Bank B: 100 User presets (all set to initial patch)
Compare function
Initialise patch function

Duophonic with 2 analogue signal paths
Mathematically generated oscillators designed by Chris Huggett
Analogue signal path designed by Chris Huggett

2 Oscillators plus sub-oscillator per voice
Sine / Triangle / Saw / Pulse plus additional wave types
Shape control and shape modulation input
Will create pulse width modulation on the pulse waveform with perfect square at the centre
Pitch modulation control
Octave selects per oscillator
OSC 1 SUB follows oscillator 1 parameters

Oscillator Drift
Creates random pitch variations between oscillators

Multi-mode state variable VCA filters with overdrive
2 Analogue filters - 1 per signal path
Low Pass / Band Pass / High Pass in 12dB and 24dB configurations
Additional WBAND (series) and WSTOP (parallel) types
Filter Cutoff
Filter Cutoff Modulation
Filter Resonance
Filter Width
Filter Width Modulation
Filter Keytrack

LFO (Low Frequency Oscillator)
2 LFOs
4 waveshapes per oscillator
Fade In / Fade Out parameter
SYNCable
Rate control

Envelopes
2 Independent envelopes
ENV 1 normalised to amplitude
ADSR
+ Sustain Fall parameter for shaping during key-down
+ Repeat which can be used to create looping envelopes
Velocity positive and negative control

Ring modulation

Mixer
First mix: OSC1 and OSC2
Second mix: OSCillators and noise
Third mix: OSCillators + noise and Ring modulator

VCA (Voltage Controlled Amplifier)
All amplification is done in the analogue domain in multi-stage VCAs

Modulation Routes
Control - 6 choices of modulation parameters
Source - 6 choices of effectors from envelopes and LFOs
Scale - choices of controls used to scale the effect of the modulation

Glide
Glide amount
Auto-glide mode

Indicator LEDs
Two LEDs for Voice
LED for Keyboard activity

Master tune

Master volume

Triggering
ENV 1 Legato
ENV 2 Legato
LFO Keytrig
LFO Keytrig

Connections
Master power switch
DC 9V input
USBC
MIDI IN / OUT / THRU
Sustain pedal input (switch)
Pedal input (continuous)
Stereo 1/4" line Outs: L/Mono and R
Stereo 1/4" headphone out

Multi-function Joystick control
Left / right for pitch bend
Performable vibrato
Latching hold mode

Arpeggiator
6 arpeggiator types
- Up, Down, Up/Down 1, Up/Down 2, Played & Random
Sync rates control from 2nds to 32nds
Tap tempo button
Swing including positive and negative swing
Auto clock sync
- Detects MIDI or USB-MIDI clock and synchronises the arpeggiator automatically
Latch via joystick HOLD
6 Octave range

Dedicated tempo control

Duophonic mode control
Duo mode
Duo mode with simple filter
Pan control for duophonic voicing

Digital Effects
Reverb time
Reverb level
Reverb High Pass Filter
Reverb Low Pass Filter
Chorus level
Chorus type

Keyboard Control
37 Full-size semi-weighted velocity-sensitive keys
Channel aftertouch
Octave shift

Weights and Dimensions (product unboxed)
620 x 320 x 110 mm
5.3 kg

Includes:
Power Supply (9V 600mA)
USB C lead
Getting Started Guide

Notes: Cracking value in this brutalist beauty manufactured by Bristol's Future Sound Systems. Interesting features like wave-shaping VCOs and Sallen-Key filter make it the ideal starting point for a bigger modular setup.

Supplier's Notes:
Malevolent has been designed by Paul Whittington in collaboration with Bristol based synth manufacturer Future Sound Systems who have provided the analogue circuitry, and Ben Supper who developed the control interface:

Paul has a had a long career in developing products for some of the biggest names in the industry and is now using his expertise to build instruments, bringing in talents from friends he's made during his tenure in development.

Future Sound Systems are a renowned Bristol based synthesizer manufacturer, who are responsible for some of most forward-thinking designs on the market, they specialize in modular and semi-modular synthesizers & their design prowess is very apparent in Malevolent.

Despite its diminutive size, Malevolent sounds big, aggressive and is capable of everything from soaring leads, huge bass sounds, percussive phrases, weird sound FX and more.

It's form factor, user interface and price point make it a great option for those taking their first step in the modular domain, but it's unique sound, extensive modulation capabilities and the options for integrating seamlessly with other synthesizers, makes it a great option for experienced user who's looking for something a little different.

Modular Pure Analogue Synthesiser

Pure Analogue signal path designed by Future Sound Systems
Pure VCOs

19 Outputs and 19 Inputs for 3.5mm mono jack cable patching
Normalised signal path for immediate sound Malevolence
Additional rear panel line out
Additional headphone out


2 Voltage Controlled Oscillators
Saw / Triangle / Pulse outputs plus Mix for each oscillator
1V/Oct pitch control input
Shape control / pulse width modulation input
2x Frequency Modulation inputs
Coarse / Fine tune control
Shape mod amount control
FM1 and 2 mod amount controls
Shape control
Selectable waveforms for the mix output
Individual osc level control


LFO (Low Frequency Oscillator)
Triangle / Square wave outputs
Rate control

2x Envelopes
Individual ADSR controls for each envelope
Individual gate inputs
Individual envelope outputs


Multi-mode 2 pole VCF (Voltage Controlled Filter)
Low pass / Band pass / High Pass individual inputs
2x Frequency Modulation inputs with amount controls
Filter cutoff
Filter resonance


Mixer
Noise w/level control
Aux input w/level control


VCA (Voltage Controlled Amplifier) with overdrive control
Compatible with Eurorack standard 1V/Oct gear
Monophonic and patchable allowing individual pitch control of each VCO and gate control of each envelope
USB bus-powered
MIDI In / Out
Headphone out
Line out
Analogue clock in & out


USB-MIDI to 1V/Oct CV & gate conversion
All pitch and gate control is fully analogue
Analogue clock In / Out


Multi-function Joystick control
Left / right for pitch bend
Performable portamento
Performable vibrato
This is in addition to the analogue LFO
Latching hold mode


Arpeggiator
6 arpeggiator types
Up, Down, Up/Down 1, Up/Down 2, Played & Random
Auto clock sync
Detects analogue / MIDI or USB-MIDI clock and synchronises the arpeggiator automatically
Selectable sync rates when clock detected
Rate / sync control
Latch
6 Octave range
Analogue / MIDI / USB-MIDI Clock output when arpeggiator is running


Keyboard Control
32 Velocity-sensitive mini-keys
Octave shift +/- 4 octaves
Pitch output
Velocity output
Gate output
Local Off mode for DAW use


Includes:
5 Patch cables

Power Supply (9V 600mA)
USB C lead

Getting Started Guide


Weights and Dimensions:

Product (unboxed):
490 x 250 x 80 mm
2.61 kg

Product (boxed with contents):
690 x 320 x 160 mm
3.70 kg

Notes: ***B-STOCK: Box damaged, product in perfect working order***


Another innovative groovebox from Polyend, the Synth allows you to sequence and perform up to three synths from eight different synth engines. Unique Smart Grid feature allows single-button chords and note followers.

Supplier's Notes:
Compact Design. Massive Sound. Unmatched Innovation.

Easily Play 3 Synths at Once

The power of three synth engines is at your fingertips, all running together seamlessly. Whether you're in the studio or performing live, you can juggle between different engines, adjust parameters on the fly, and layer effects with ease. The built-in sequencers, arpeggiators, and all new smart grid system keep everything flowing smoothly, letting you focus on creativity without interruption. With instantly recallable scenes, you can save and recall every detail of your setup.

Eight Synth Engines to Explore

Dive into a world of sound with eight distinct synth engines, each offering its own unique character. Whether you're drawn to the classic analogue warmth of FAT or the evolving textures of GRAIN, you'll find the sound to shape your creations exactly the way you want:

PHZ: A modern take on phase distortion synthesis with options for both retro and cutting-edge tones.
PMD: Physical modelling technology that simulates realistic instruments or creates entirely new sonic expressions.
GRAIN: A granular engine with two modes, burst and cloud, ideal for rhythmic textures or sweeping ambient layers.
WAVS: Morph between wavetables with intricate control over scanning and phase shifting to create evolving textures.
VAP: A dual-oscillator polysynth that draws inspiration from the classics, offering rich, lush pads and detailed soundscapes.
FAT: Massive sound with three oscillators and vintage ladder filters for deep basses and expressive leads.
ACD: The ultimate recreation of iconic vintage monophonic synths, but with increased customization.
WTFM: A unique FM synthesis engine that uses wavetable-based oscillators for complex sounds without the usual FM complications.

Three Customizable Effects

Take your sound to the next level with three onboard effects, each fully customizable to suit your style:

MOD: This versatile modulation engine can take you from subtle choruses to wild, feedback-heavy flanging.
DEL: Dual delay lines with five unique models, giving you the flexibility to sync with your track or create complex delay effects.
REV: Three reverb modes - Natural, Plate, and Warp - let you add anything from subtle space to massive, otherworldly reverbs.

Reimagined Rhythms

Unlock your full creative potential with three independent sequencers and arpeggiators. Control every aspect of your rhythm, from swing to groove, transposition, and more. Whether you're building tight, rhythmic patterns or sweeping melodies, this system adapts seamlessly to your music.

For Performers, Sound Designers, and Innovators Alike

Always Musical Smart Grid for Live Play

Stay in control even during the most chaotic performances. The customizable Smart Grid ensures every note and chord stays in the desired scale, while making live performances smoother and more intuitive.

Scenes on Demand

Imagine having every setting - from synth engines to sequences - saved in one easy-to-recall Scene file. Build entire live sets and instantly access them with a touch. Plus, share your unique setups with the community

Combo Knobs for Quick Tweaks

Create dramatic builds or subtle shifts with customizable combo knobs. Whether controlling one or all three synths at once, adding movement and dynamics to your sound has never been easier.

Polyphonic Aftertouch

Express every nuance of your performance with polyphonic aftertouch. Adjust multiple parameters with just the pressure of your fingers, allowing for truly expressive, dynamic control over your sounds.

A Dream for Sound Designers

Intuitive 3x3 Knob Matrix

Designed for hands-on control, the 3x3 knob matrix lets you quickly access and tweak key parameters. No need to dive into endless menus - everything you need is right in front of you, ready for real-time adjustments.

Real-Time Visual Feedback

Every adjustment you make is instantly reflected in the visual interface, giving you clear, real-time feedback on how your sound is evolving. Whether you're tweaking filters, modulating oscillators, or adjusting LFOs, you'll see the changes happen as you hear them.

Endless Customization

Expand your creative palette with SD and USB storage. Easily load new wavetables, presets, and entire setups, or share your creations with others. With endless possibilities, this synth is designed to grow with you

Notes: ***B-STOCK: Box opened, product in perfect working order***


Another innovative groovebox from Polyend, the Synth allows you to sequence and perform up to three synths from eight different synth engines. Unique Smart Grid feature allows single-button chords and note followers.

Supplier's Notes:
Compact Design. Massive Sound. Unmatched Innovation.

Easily Play 3 Synths at Once

The power of three synth engines is at your fingertips, all running together seamlessly. Whether you're in the studio or performing live, you can juggle between different engines, adjust parameters on the fly, and layer effects with ease. The built-in sequencers, arpeggiators, and all new smart grid system keep everything flowing smoothly, letting you focus on creativity without interruption. With instantly recallable scenes, you can save and recall every detail of your setup.

Eight Synth Engines to Explore

Dive into a world of sound with eight distinct synth engines, each offering its own unique character. Whether you're drawn to the classic analogue warmth of FAT or the evolving textures of GRAIN, you'll find the sound to shape your creations exactly the way you want:

PHZ: A modern take on phase distortion synthesis with options for both retro and cutting-edge tones.
PMD: Physical modelling technology that simulates realistic instruments or creates entirely new sonic expressions.
GRAIN: A granular engine with two modes, burst and cloud, ideal for rhythmic textures or sweeping ambient layers.
WAVS: Morph between wavetables with intricate control over scanning and phase shifting to create evolving textures.
VAP: A dual-oscillator polysynth that draws inspiration from the classics, offering rich, lush pads and detailed soundscapes.
FAT: Massive sound with three oscillators and vintage ladder filters for deep basses and expressive leads.
ACD: The ultimate recreation of iconic vintage monophonic synths, but with increased customization.
WTFM: A unique FM synthesis engine that uses wavetable-based oscillators for complex sounds without the usual FM complications.

Three Customizable Effects

Take your sound to the next level with three onboard effects, each fully customizable to suit your style:

MOD: This versatile modulation engine can take you from subtle choruses to wild, feedback-heavy flanging.
DEL: Dual delay lines with five unique models, giving you the flexibility to sync with your track or create complex delay effects.
REV: Three reverb modes - Natural, Plate, and Warp - let you add anything from subtle space to massive, otherworldly reverbs.

Reimagined Rhythms

Unlock your full creative potential with three independent sequencers and arpeggiators. Control every aspect of your rhythm, from swing to groove, transposition, and more. Whether you're building tight, rhythmic patterns or sweeping melodies, this system adapts seamlessly to your music.

For Performers, Sound Designers, and Innovators Alike

Always Musical Smart Grid for Live Play

Stay in control even during the most chaotic performances. The customizable Smart Grid ensures every note and chord stays in the desired scale, while making live performances smoother and more intuitive.

Scenes on Demand

Imagine having every setting - from synth engines to sequences - saved in one easy-to-recall Scene file. Build entire live sets and instantly access them with a touch. Plus, share your unique setups with the community

Combo Knobs for Quick Tweaks

Create dramatic builds or subtle shifts with customizable combo knobs. Whether controlling one or all three synths at once, adding movement and dynamics to your sound has never been easier.

Polyphonic Aftertouch

Express every nuance of your performance with polyphonic aftertouch. Adjust multiple parameters with just the pressure of your fingers, allowing for truly expressive, dynamic control over your sounds.

A Dream for Sound Designers

Intuitive 3x3 Knob Matrix

Designed for hands-on control, the 3x3 knob matrix lets you quickly access and tweak key parameters. No need to dive into endless menus - everything you need is right in front of you, ready for real-time adjustments.

Real-Time Visual Feedback

Every adjustment you make is instantly reflected in the visual interface, giving you clear, real-time feedback on how your sound is evolving. Whether you're tweaking filters, modulating oscillators, or adjusting LFOs, you'll see the changes happen as you hear them.

Endless Customization

Expand your creative palette with SD and USB storage. Easily load new wavetables, presets, and entire setups, or share your creations with others. With endless possibilities, this synth is designed to grow with you

Notes: Another innovative groovebox from Polyend, the Synth allows you to sequence and perform up to three synths from eight different synth engines. Unique Smart Grid feature allows single-button chords and note followers.

Supplier's Notes:
Compact Design. Massive Sound. Unmatched Innovation.

Easily Play 3 Synths at Once

The power of three synth engines is at your fingertips, all running together seamlessly. Whether you're in the studio or performing live, you can juggle between different engines, adjust parameters on the fly, and layer effects with ease. The built-in sequencers, arpeggiators, and all new smart grid system keep everything flowing smoothly, letting you focus on creativity without interruption. With instantly recallable scenes, you can save and recall every detail of your setup.

Eight Synth Engines to Explore

Dive into a world of sound with eight distinct synth engines, each offering its own unique character. Whether you're drawn to the classic analogue warmth of FAT or the evolving textures of GRAIN, you'll find the sound to shape your creations exactly the way you want:

PHZ: A modern take on phase distortion synthesis with options for both retro and cutting-edge tones.
PMD: Physical modelling technology that simulates realistic instruments or creates entirely new sonic expressions.
GRAIN: A granular engine with two modes, burst and cloud, ideal for rhythmic textures or sweeping ambient layers.
WAVS: Morph between wavetables with intricate control over scanning and phase shifting to create evolving textures.
VAP: A dual-oscillator polysynth that draws inspiration from the classics, offering rich, lush pads and detailed soundscapes.
FAT: Massive sound with three oscillators and vintage ladder filters for deep basses and expressive leads.
ACD: The ultimate recreation of iconic vintage monophonic synths, but with increased customization.
WTFM: A unique FM synthesis engine that uses wavetable-based oscillators for complex sounds without the usual FM complications.

Three Customizable Effects

Take your sound to the next level with three onboard effects, each fully customizable to suit your style:

MOD: This versatile modulation engine can take you from subtle choruses to wild, feedback-heavy flanging.
DEL: Dual delay lines with five unique models, giving you the flexibility to sync with your track or create complex delay effects.
REV: Three reverb modes - Natural, Plate, and Warp - let you add anything from subtle space to massive, otherworldly reverbs.

Reimagined Rhythms

Unlock your full creative potential with three independent sequencers and arpeggiators. Control every aspect of your rhythm, from swing to groove, transposition, and more. Whether you're building tight, rhythmic patterns or sweeping melodies, this system adapts seamlessly to your music.

For Performers, Sound Designers, and Innovators Alike

Always Musical Smart Grid for Live Play

Stay in control even during the most chaotic performances. The customizable Smart Grid ensures every note and chord stays in the desired scale, while making live performances smoother and more intuitive.

Scenes on Demand

Imagine having every setting - from synth engines to sequences - saved in one easy-to-recall Scene file. Build entire live sets and instantly access them with a touch. Plus, share your unique setups with the community

Combo Knobs for Quick Tweaks

Create dramatic builds or subtle shifts with customizable combo knobs. Whether controlling one or all three synths at once, adding movement and dynamics to your sound has never been easier.

Polyphonic Aftertouch

Express every nuance of your performance with polyphonic aftertouch. Adjust multiple parameters with just the pressure of your fingers, allowing for truly expressive, dynamic control over your sounds.

A Dream for Sound Designers

Intuitive 3x3 Knob Matrix

Designed for hands-on control, the 3x3 knob matrix lets you quickly access and tweak key parameters. No need to dive into endless menus - everything you need is right in front of you, ready for real-time adjustments.

Real-Time Visual Feedback

Every adjustment you make is instantly reflected in the visual interface, giving you clear, real-time feedback on how your sound is evolving. Whether you're tweaking filters, modulating oscillators, or adjusting LFOs, you'll see the changes happen as you hear them.

Endless Customization

Expand your creative palette with SD and USB storage. Easily load new wavetables, presets, and entire setups, or share your creations with others. With endless possibilities, this synth is designed to grow with you

Notes: Typically creative stuff from Pittsburgh Modular, the updated Voltage Lab is the pinnacle of the brand's synth output. Dual oscillator design with a 16-note touch controller, built-in sequencer and MIDI control.

Supplier's Notes:
The Pittsburgh Modular Voltage Lab 2 is a cutting edge synthesis laboratory that offers a new palette of analogue textures and waveforms to sonic researchers. Newly developed wave shaping capabilities paired with powerful synthesis tools, and a deep, performance oriented controller join together to create a complete sound design laboratory. This instrument has a very physical sound. The tones it creates feel natural and alive, with traditional waveforms becoming the seeds of unique new shapes and sounds that shift between analogue physical modeling and more unfamiliar, abstract timbres.

Laboratory Oscillator 1

Voltage Lab 2 includes a pair of Laboratory Oscillators. Each with a unique set of newly invented waveshaping tools designed to expand the sonic potential of analogue synthesis. Laboratory Oscillator 1 introduces Center Clipping to analogue synthesis. Center clipping unlocks independent control over the top and bottom of the waveform, allowing for detailed manipulation of harmonics and timbre without affecting pitch. It does this by processing waveforms from the center out as opposed to traditional methods which work from the peaks inwards.

Laboratory Oscillator 2

Laboratory Oscillator 2 introduces a host of new sonic possibilities with two new waveshapers. Pulse Symmetry and Reflection. Pulse Symmetry creates a new species of pulse wave that adds a step between the top and bottom of the waveform. The resulting wave looks like a set of stairs where the depth of the center step can be adjusted in addition to the pulse width. Wave Reflection takes the bottom half of the waveform and reflects it onto the top half. Each waveshape responds to this differently. For example, a saw wave morphs into a triangle while triangle and sine waves lose their fundamental harmonic and jump up an octave.

Pittsburgh Dynamics Controllers

The new Dynamics technology imparts Voltage Lab 2 with a uniquely organic depth and presence. By simultaneously managing both amplitude and harmonic content, the Pittsburgh Dynamics Controller expands beyond the one dimensional VCA found in other synthesizers. It does this by utilizing new advancements from traditional low pass gates to add additional definition and dimension to the voices of the Voltage Lab 2.

When used in low pass gate mode, sounds shed harmonic content and become warmer as they decrease in volume. This mimics how sound waves react to their environment. Because of this connection, the Voltage Lab 2 sounds more natural or complex compared to other instruments.

Touch Controller 2

The Touch Controller 2 enables artists to blend traditional pitched performances with the freedom to openly experiment, creating a flexible playground for music creation. Two independent channels offer a combination of real time, expressive playing and in-depth sequencing. Assignable scales, step conditions, jumps, chance effects, generative sequencing, and a host of other tools, come together allowing musicians to both create and interact with complex systems.

A Florist and Echos

The Voltage Lab 2 includes a set of analogue time based effects, Florist and Echos. The Florist is a flanger/chorus hybrid that focuses on brighter, short time shifts with highly controlled feedback allowing for maximum ringing before self oscillation. Echos is a more traditional, darker analogue BBD delay that also utilizes highly controlled feedback to provide a larger number of repeats before falling into self oscillation. Both effects are perfect for traditional workflows and unconventional experimentation.

Complete Set of Modular Tools

The Voltage Lab 2 includes a host of fully modular, analogue and digital synthesis tools to support and enhance it's core functionality. Analog tools include flexible mixers, a pair of complex function generators, noise, sample and hold, and an LFO. Digital tools cover external MIDI, arpeggiator, and a robust chance sequencer. The Voltage Lab 2 toolset is deep enough for all types of sonic experiments.
