Notes: Thererec is a 6hp smart dual-function generator based on a different approach! Two modern proximity sensors have replaced all the Attack/Decay thing, and this not only saved a lot of space but also turned Thererec into a whole new thing: a fusion between THEREmin gestural expressiveness and a tape RECorder,

Thererec, indeed, can quickly capture your hand movements and translate them into complex Envelopes and LFOs, adding a lot of expressiveness to your set. Once recorded, your movements can be mangled in both time and amplitude; they can be cycled or triggered in one-shot mode, letting you create complex but synchronized control voltage streams.

A straightforward movement with immediate feedback: move your fingers, listen, and connect yourself to the environment. Your body will do the rest.

Thererec sensors will track your movements to generate a voltage flow, and the LEDs and the CV outputs will reflect those movements.

Notes: ***B-STOCK: Box opened, light surface marks, product in perfect working condition ***


The classic Pantheon pedal gets even better with this Deluxe version. Two independent overdrive circuits give you classic Blues Breaker-style tone plus modern boutique sounds.

Supplier's Notes:
The now legendary Wampler Pantheon provided a unique interpretation of the classic "Blues Breaker" style stomp box, by capturing all the tonal nuance of the original, but with added flexibility and style. In doing so, it found its way onto thousands of pedalboards across the world. Enter the new Pantheon Deluxe - a dual overdrive pedal that takes this evolution several steps further by offering a flexible design with two completely independent Pantheon circuits, one voiced as a classic blues breaker and one with a more modern boutique sound. This palace of tone delivers a staggering 200 combinations of gain settings, featuring dual Inputs and Outputs, and for the first time ever, Wampler have added MIDI channel switching to one of their gain pedals.

The Pantheon Deluxe lets you dial in two channels of organic creamy gain, gritty overdrive, or heavy distortion while retaining Wampler's famous ease of use and flexibility. Channel 1 delivers a classic Blues Breaker tone, Channel 2 is a recreation of the original Pantheon, a similar circuit to the Blues Breaker but with a modern boutique feel. Independent side mounted Voicing and Gain Level switches allow you to further shape your tone to perfection.

DOUBLE UP

The Pantheon Deluxe lets you dial in two channels of organic creamy gain, gritty overdrive, or heavy distortion while retaining Wampler's famous ease of use and flexibility. Channel 1 delivers a classic Blues Breaker tone, Channel 2 is a recreation of the original Pantheon, a similar circuit to the Blues Breaker but with a modern boutique feel.

ALWAYS THE RIGHT FIT

Each Channel of the Pantheon Deluxe Dual Overdrive feature independent Gain, Level, Treble, and Bass controls to enhance the shaping of your tone. The Baxandall-style active Bass control is neutral at noon but boasts an extremely powerful sweep as you move through the range. A single global Presence control simultaneously alters each channel to add just the right amount of top-end chime to suit different guitars and amplifiers - perfect for when playing live or when in the studio.

MAXIMUM CONNECTIVITY

With the addition of MIDI In and Out, you can now also switch the analog channels of each circuit on and off with a MIDI switcher - saving you valuable hardware loops on your loop switcher. With dual analog inputs and outputs, you can split both channels in a loop switcher, insert pedals between each side, or run in stereo.

BUILT FOR FOREVER

Brian Wampler's attention to detail and commitment to bringing you the best-sounding & most usable Effects Boxes on the market is nothing new. Those qualities are on full display within the Pantheon Overdrive. We're all tone-freaks, and we're always trying new things, but we hope this pedal finds its forever home on your pedalboard, so we built it to last that long.

TECHNICAL DETAILS

Built in the U.S.A
Dual Independent drive channels using Brian Wampler's classic Pantheon circuits; Channel 1 Classic Blues Breaker voicing, Channel 2 Modern Boutique voicing.
Independent Volume, Gain, Treble and Bass controls for both channels, global Presence control, front mounted Channel Order Switch, side mounted independent Gain Level and Voicing switches, MIDI In and Out (3.5mm TRS) and 2 sets of input and output jacks.
Top-mounted jacks make pedalboard placement effortless
Power draw: 55mA
9-18V power jack: DC supply only, do not exceed 18V DC, battery Included.
Includes Wampler's limited 5-year warranty
5" x 4.5" x 1.5" (88.9mm x 114.3mm x 38.1mm) - height excludes knobs and switches

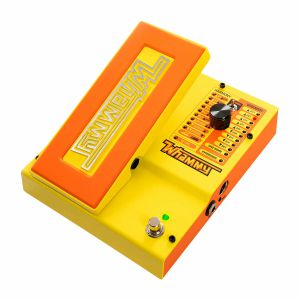

Notes: Make your music Hypersonic

Send your tone soaring with the HyperSonic 3-octave pitch rise.

New octaver blend modes

Create never-before-heard sonic textures with new octaver blend modes.

MIDI-capable

Ready to integrate with advanced performance rigs with support for 5-pin MIDI control.

Artist-inspired design

Unique artwork and signature style make the MonoNeon Signature Whammy a bold addition to your pedalboard.

The DigiTech MonoNeon Whammy pedal goes where no whammy pedal has gone before, with new octave blend modes and up to 3 octaves of HyperSonic pitch shifting. Developed in collaboration with trailblazing bassist MonoNeon, the MonoNeon Whammy delivers mind-blowing pitch manipulation for guitar and bass alike.

Included in the box:
MonoNeon Whammy Pedal
Power Supply
User's Manual
2 Guitar Case Stickers
Warranty Registration Information Card
Special MonoNeon Customizing Kit

> Gaffer's Tape - Neon Yellow & Neon Orange
> Mini Permanent Marker

Specifications

Input / Output
Instrument Input Type: Unbalanced 1/4" TS phone jack
Max Input Level: +5 dBu
Input Impedance: 1 MO
MIDI Input: 5-Pin DIN
Output Type: Unbalanced 1/4" TS phone jack
Max Output Level: +10 dBu
Output Impedance: 1 kO

Electronics

Frequency Response: 20 Hz to 20 kHz
Signal to Noise Ratio: >105 dB (A-weighted): ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1 kHz; ref =1 dBu w/ unity gain
Sample Rate: 44.1 kHz
A/D Conversion: 24-bit
D/A Conversion: 24-bit

Physical

Dimensions: 6.5" (16.51cm) x 7.75" (19.68cm) x 2.5" (6.35cm) (WxDxH)
Shipping Weight: 3.8 lbs. (1720g)

Power
Power Consumption: 2.4 W (265 mA @ 9VDC)
Power Requirements: 9 VDC External Adapter (center negative)
Included Power Adapter: PS0913DC (9V DC @ 1.3 A) center negative

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***

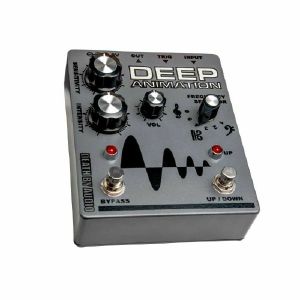

Envelope with filter with serious attitude

This mangled, filter-sweeping, abruptly overdriving pedal is designed to respond to your playing. It syncs its wave-thumping movement with the force at which you play. It multiplies dynamics into a hyper-exaggerated frenzy. It adds just the right amount of movement to punch through the mix and it reacts to an external trigger of your choosing to follow your tempo. Six selectable frequency ranges mean you're always gonna have just the right quack and oomph for whatever's plugged in! The sounds are wild, the thump is thick, and the animation is deep.

Controls

Input: Plug an instrument in to this jack.
Trig: Plug another instrument in to this jack and use it to trigger the filter sweep.
Out: Connect this to the amplifier.
Sensitivity: Determines the point at which the filter engages and the frequency range of the filter shift in relation to the input amplitude.
Intensity: Simultaneously blends in the resonance, amount, and grit of the filter.
Vol: Adjusts the output volume of the DEEP ANIMATION.
Frequency Selector: Selects the frequency range of the filter.
Bypass: True bypass the effect.
Up / Down: Controls the polarity of the filter decay once triggered. UP sweeps the frequency from higher frequencies to lower ones and DOWN, the opposite.
Additional Features: There is a subtle light to indicate the external trigger behind the main bypass LED.

Specifications

Dimensions: 5.92" x 4.72" x 2.34" (including hardware).
Weight: 21 oz.
Power: 9V (runs on standard 2.1mm negative center 9V adapter or included 9V battery).
Current Draw: 18 mA.

Notes: Toolbox is the newest essential utility module for your modular system. It's designed to summarize and replace all those necessary small one-function modules, often overlooked due to their space and cost requirements. With a compact 12hp design, it offers a comprehensive selection of carefully curated blocks to expand and enhance the potential of every patch. The module is also specifically designed for internal interaction, allowing the combination of various basic blocks to achieve compelling outcomes, from complex rhythm creation to unusual sound shaper. Every system needs a Toolbox!

Since VCAs are always not enough, the first two blocks on the top row consist of two linear and very fast VCAs, which are also great for AM modulation. They are arranged from left to right: input (DC coupled), control voltage input (ranging from 0 to 8V), and output. The two inputs and control voltages are normalized from left to right, facilitating easy stereo operation. These VCAs, designed primarily for voltage attenuation, are versatile tools that excel in scenarios requiring linear response. With audio, their true strengths shine when applied to amplitude modulation (AM) scenarios, where the benefits of linear control become quite significant. Although they are optimized for AM and voltage control, using exponential envelopes with these VCAs can transform them into two highly effective and fast VCAs for audio applications.

The threshold CV (0-8V) is crucial for the functionality of the blocks labeled with an asterisk (*): AND/OR gates, sequential switches, and flip-flops. By default, the threshold for each block (the voltage that must be reached at every input for the circuit to operate) is set very low, allowing almost any positive signal to be used. By increasing the threshold with an external voltage, you will change the point at which the circuits marked with the * begin to operate. This may seem a little tricky at first, but once you master all the functionality of the Toolbox, the Threshold CV rarely found in other Eurorack modules will open up many more possibilities!

Still composed of two identical parts, the second and third rows contain two blocks of two-channel summing (A & B). This region offers many ways to combine two signals. From left to right, input A, B, SUM out inverted SUM out, and two Boolean operators: AND/OR While any input signal can be used here, the first two outputs are primarily intended for audio sources. In contrast, the Boolean outputs are more suitable for summing gates and logic signals. This setup also allows for the use of both logic and analog signals together; don't hesitate to experiment with Boolean operators using analog or audio signals.For example, connecting two different LFOs to the input of the summing section can create many gate rhythms from the two Boolean outputs by varying the threshold with external voltages.

Summing mixers/Mult Out: This section consists of two 3-input summing mixers connected in series: the output of the upper mixer is routed to the first input of the lower mixer, allowing you to combine a total of five signals with two outputs available. To break this connection, insert a patch cable into the first input of the lower mixer. This action separates the two sections, enabling you to sum two sets of three signals each. Additionally, the lower section includes a multed output by default.

A bidirectional sequential switch is located at the center of the module and labeled with three "I/O" tags. This often overlooked component allows for a wide range of functions, from the most practical to the most creative. When a voltage exceeding the threshold level is applied to the * input, the switch connects the upper left jack to the lower right one. If the voltage is below the threshold, the lower left jack is connected instead. Being bidirectional, each I/O can function as both an input and an output, enabling a 2:1 or 1:2 configuration. Try using the switch at audio rate; this can function as a versatile oscillator waveform shaper. Think of something other than this block as a simple channel switcher!

On the right side of the sequential switch, we have a more classic block: the flip-flop. This block outputs a square wave at half the frequency of any signal applied to the input, whether audio or gate. Two flip-flops are available, which can be used individually or normalized in series. This block is handy for creating sub-octaves of square format from any sound or as a clock divider.

Offset / Attenuverters: Located at the bottom are two offset and attenuverting channels.This section comprises two identical blocks that can easily attenuate, invert, and offset any input signal. Each block features an input jack, one output, and two small knobs. The first knob functions as an attenuverter, allowing you to invert and scale the signal at the same moment. The second knob, the offset, adds a static voltage of +/-0-8V to the resulting output. This functionality is crucial when seeking a more refined control over voltage or a signal. Without any signal at the input, you can use the offset knob as a manual control generator for any control voltage (CV) in your system. For example, try to change the threshold with it.

Notes: Designed for Make Noise's New Universal Synthesizer System but compatible with all Eurorack modules, the Jumbled is a 6-in/6-out VCA-based signal router, designed to manipulate and reimagine control voltage signals.

Supplier's Notes:
The Jumbler music synthesiser module is a six by six channel analogue signal combiner and distributor for the New Universal Synthesizer System or any Eurorack modular synthesiser. Jumble is one of the N.U.S.S. concepts where the routings of a patch could be re-configured, or jumbled, instantly via voltage control to produce variations on a theme.

Jumbler gives you powerful two-parameter access to the rearrangement of both origins and destinations for up to six modular signals. One to six inputs are routed to one to six outputs, in an order determined by the Rotate control, and combination determined by the Radiate control. Unlike a simple switch module, Jumbler's analogue VCA-based design is specially geared for smooth transitions and hybrid signals.

Jumbler is a great module for hybrid control voltage mashing, complex waveform mixing, on-the-fly effects re-routing, gate and clock re-combinations and more. Some folks have said it is like patching a stack of 6 RxMx circuits.

Width: 10hp
Max Depth (incl. power cable): 43 mm

Power:
178mA@ +12V
92mA @ -12V

Notes: The MCO MK II is a highly versatile digital VCO and voice module inspired by 90s/00s digital synths shrunk into just 6HP.

It offers a broad collection of unique, high-quality synth voices, each with extensive, customizable parameters. These parameters can be directly controlled or modulated through assignable internal and external sources. Certain per-voice parameters support audio-rate modulation, including FM, sync, and DSP. Each voice also supports up to four-voice chords, external-triggered envelopes, multiple LFOs, and dual audio outputs for comprehensive desktop like synth functionality.

Voices include a multi dimensional wavetable oscillator based on the original MCO, a complex additive synthesis engine, a multi mode 'JP' type digi-synth, a lush virtual analog implementation, a fully featured vocoder, a bass synth for both kicks and sub sonic tones and finally arebirth and porting of our discontinued SID GUTs chip voice.

Each voice includes factory presets as well as the ability to store and recall user presets. All state is preserved across power cycles.

The MCO is designed to be familiar, quick and easy to use with a high resolution colour display and a rich visual user interface.

A USB-C connection allows for easy firmware updates, user wavetables upload and device config backup and restore. Axon expander modules are also supported to increase CV control options.

Notes: Instant ambient bliss coupled with the powerful ambience processing is a brand-new Ensemble engine, capable of creating pads and soundscapes that follow your playing organically - so if you change pickups or play in a different place on the neck you get different results. It's unlike anything you've ever heard or played before, all wrapped in a smaller form factor that still manages to house full stereo I/O, TRS MIDI and USB-C connectors on the back panel. Prepare to be inspired!

Cloudburst's Ensemble switch reveals a whole new world of captivating sounds never previously heard from a reverb pedal. Use it subtly to add harmonically rich and otherworldly dimensions to your ambient reverb soundscapes, or use it liberally to hear a lush synthesized string section swell under your guitar playing. Ensemble reacts to your entire guitar signal in an organic and musical way, delivering a richly responsive and uniquely inspiring playing experience.

Cloudburst gives you multiple reverb experiences, with beautifully-tuned and natural small spaces at one end of the Decay knob and vast, expansive atmospheres at the other. As you turn the Decay control numerous internal parameters are automatically adjusted, allowing this ambient reverb pedal to produce outstanding studio-quality spaces of any size at the turn of a single knob.

All of the premium components, sound quality and road-worthiness you expect from a Strymon reverb pedal are here in Cloudburst's new compact format. Featuring unbeatable ease of use and some of the finest reverb sounds we've ever created, Cloudburst could easily be the only reverb pedal you need on your pedalboard.

Notes: A user-friendly approach to melody and harmony, the Exquis offers an alternative control method for those who want to break away from conventional keyboards. Compatible with MIDI or CV/gate.

Supplier's notes:
A controller, an app, an instrument.

The Exquis controller gives you immediate access to the rules of harmony to improvise with or without theoretical prerequisites, and offers you dimensions of expressiveness that you can quickly master. In combination with the Exquis app, a unique workflow opens up, allowing you to create an entire song in a few minutes: choose sounds, record loops, play the conductor and structure your songs in complete spontaneity.

Exquis offers an intuitive way to guide you on the right path, while allowing you to get out of it. No hassle: just choose a scale, and follow its luminous path to play in tune. Thanks to our default note layout, it's very easy to make chords; Exquis arranges notes that sound good together next to one another. You will be amazed at how harmony falls under your fingers.

Compared to a piano keyboard, on our note layout the semitones are also arranged horizontally, the harmonious (third) notes are always next to one another, and the intervals starting from any note are always the same. If you prefer, you can change the note layout, and soon even create your own tailored note layout using our editor.

On the default note layout, scales can be simply represented by a pair of light paths; whether you are a beginner, amateur or experienced musician, just follow the colors, with one or two hands, to stay in tune and improvise spontaneously. Explore many scales (major, minor, dorian, oriental...) and soon you will be able to create your own using our editor.

Our default note layout goes back to the basic logic of harmony, putting notes that sound good together (thirds) next to one another vertically. Each type of chord (major, minor, diminished, dominant etc) always forms a single and unique transposable form.

Inspired by the finesse of acoustic instruments, the keys of Exquis are both firm enough to play percussion and short notes with precision, and soft enough to modulate long notes with sensitivity. Tap, press, and tilt multiple keys independently using the MIDI Polyphonic Expression (MPE) protocol. The encoders (clickable, with infinite and smooth rotation and with a slight resistance) allow you to control the effects of a sound being played, as well as certain essential settings in the various menus.

In order to allow musicians to create new rhythms and moods, the application natively includes exclusive features. For example, we were inspired by the workshops of Jacob Collier and will soon allow the use of tuplets (particular divisions of beats such as 1/5 or 1/7), useful for creating grooves with a drunk effect.

The Exquis keyboard is a MIDI controller compatible with all software, MIDI synthesizers and modular synthesizers. The Exquis app, although optimized for the controller, is also compatible with all MIDI controllers, and like all MIDI controllers, the Exquis keyboard is compatible with most DAWs and plug-ins.

Dear users of modular synthesizers, Exquis connects directly to your favorite devices thanks to the CV outputs: GATE, PITCH and MOD. You can also connect Exquis to your MIDI synthesizers using the MIDI IN and OUT ports.

Notes: The brilliant Perkons drum machine comes to Eurorack. A single hybrid drum voice with digital sound engine and analogue filter/overdrive, the Perkons Voice is flexible and supremely powerful.

Supplier's Notes:
Erica Synths Perkons Voice is a eurorack incarnation of the percussion voices from the PERKONS HD-01 Drum machine. Like on the drum machine, the module has hybrid architecture, featuring a digital sound engine followed by an analogue multimode filter and overdrive. Users can select among 13 sound generation algorithms and save up to 99 presets that can be recalled easily. Tune and Patch CV inputs are configurable for various CV settings and are tuned to 1V/oct. Module also features a 4-voice poly overlap mode and samples on the "Rompler" engine can be easily replaced.

Specifications:

Audio output: 10Vptp
CV levels configurable: -5V - +5V
Power consumption: +59mA, -30mA
Module width: 14HP
Module depth: 35mm

Review: Steely Dan's fourth studio album 'Katy Lied' was their 1975 standout moment, capturing a moment in time when the band had gained plenty of traction, and had already ridden the wave of fame for a good time. As a result, their music had grown in creativity and grandeur, expanding outwards from a mere prog rock outfit into a studio project, necessitating a steady stream of session musicians, highest-fidelity gear and lots of money. As ever, infectious guitar hooks and R&B funk structures make up most tracks here, making this an early party rock album if we've ever heard one. Katy may be a love interest or a sumptuous muse - but the title also alludes to a katydid, a species of insect related to grasshoppers or crickets.

Notes: The Stereo I/O 1U is an all-in-one audio input/output module designed to bridge the gap between your Eurorack system and line-level devices. Whether you want to process external audio with your modules, monitor your patch with headphones, or connect your system to mixers or interfaces with line level - Stereo I/O 1U has got you covered.

Audio I/O allows you to effectively interface your Eurorack modular system to the balanced line-level world (+4 dBu). You can send and return to rack mount/desktop fx units, patch to external line-level instruments like synths and drum machines, interface to a DAW and much more.

The rear-mounted 3-pin CHAIN IN connector allows you to sum (in parallel) other audio sources to go from Eurorack level to the BAL LINE OUTPUTS. This could be from modules like the Mixup 3U, Xfade 1U, Stereo Mix 1U, and XY I/O 1U. You could also use this to connect with the 3-pin headers on the Palette and 7U cases audio i/o boards.

The rear-mounted 3-pin CHAIN OUT connector allows you to directly connect the level-shifted BAL LINE IN to the inputs of other compatible devices such as the Mixup 3U, Outs 3U, Stereo Mix 1U, XY IO 1U, and Headphones v2 1U. You could also connect the to the TRS jacks of the Palette and 7U cases audio i/o boards.

Dual Balanced ins and outs for the studio or the road. Interface your rack with the balanced line level world; send and return to pedals or desktop FX units; patch in and out of your DAW, external synths, drum machines and other line-level instruments.

A space-friendly, feature-rich, highly flexible solution for all your stereo line level input and output needs. Includes a dedicated headphone jack/volume and a clever cue bus for monitoring signals outside of the main output or to add a 2nd source to the main outputs.

Notes: Part of TipTop's exceptional series of Eurorack-format Buchla modules, the 264t provides four sample-and-hold circuits, plus a logic circuit designed to control polyphonic patches. Deceptively simple but surprisingly creative, like most Buchla modules.

Supplier's Notes:
Four independent sample-and-hold circuits, plus a specialized logic circuit for expediently implementing polyphonic patches.

Sample-and-hold's are essentially one-cell analog memories. They are useful for "remembering" the instantaneous value of a control voltage (a detected envelope, for example), for generating equally spaced steps from a constant slope input (as from a 281t envelope generator), and for converting any continuously changing voltage (a random voltage, for instance) into a series of discrete values.

The 264's sample-and-hold circuits have two operating modes: sample and track. In the sample mode, the value of the input is sampled and applied to the output whenever a pulse is received. The output remains at this value until the next pulse arrives. The track mode diers in that an input is applied to the output for the duration of the pulse. The output tracks the input until the end of the pulse and remains at a constant value until the next pulse.

To use the 264t as four independent channels set the separate/common switch to separate. A single CV can be set to all four channels by setting the operate/common to common and plug CV in the the back jack on the with right side.

The Model 264t includes a polyphonic adaptor, which performs the logic necessary to implement four-voice polyphony. Facilities are incorporated for fine tuning and f.m. modulating the oscillators; light emitters display the adaptor's operation.

Specifications:

Size: 18 HP - Depth: 45mm
Power: +12V 60mA / -12V 30mA

Notes: PM DB25 MKII is an expander output for the MKII versions of the Performance Mixer and Channels.

Pre-fade and Post-fade connections are available for all channels. The DB25 has 16 outputs. All mixer channels are stereo, so one DB25 handles the main PM MKII (either pre or post), and the DB25 can handle 2x Channels (either pre or post).

Simply connect the cable to the Pre or Post headers on the back of the PM MKII or Channels MKII modules to choose pre/post.

The PM MKII has an additional header with both Aux Sends, Master Bus, and Submix Bus.

Connect a DB25 cable of your choice to the front connector and then straight to your DAW or recording interface.

For use with original WMD Performance Mixer, an adapter board can be added on. Please note that width behind panel is increased by 8mm when adapter board is added on. This may require some clever position in your case. The original Performance Mixer still only offers Pre Fader Outputs.

Notes: Your Dream Tone Starts Here.

Start your signal chain with the best possible version of your guitar tone. Treat your guitar signal to true studio quality analogue compression with two distinct voices for smooth transparency or vintage squeeze. Hit the Boost switch to add clean boost or soft-clipped dirty boost, with the EQ curve of your choice. Mix in some dry signal for natural attack even with extreme compression settings. Feel the perfectly tailored dynamic response, feeding your amp and effects just what they need to sound their best.

Your Everything Upgrade.

From pickups, tubes, capacitors, to speaker cabinets-the aspects of a rig that can be upgraded or changed are nearly endless. Plug in Compadre and you may find you already have everything you need for the tone you've been seeking.

Bring out your amp's character in ways you never thought possible. Compadre's Class A JFET input circuit, studio quality analogue compression, and musically voiced analogue boost circuits all work together to make your amp sound like it was just modified by a world-class boutique amp designer.

Super Flexible, Super Easy.

Compadre gives you everything you need to shape your front end tone, and nothing to slow you down. Auto makeup gain and auto threshold mean that all you have to do is turn up the Compression knob to dial in the desired amount. Compadre's wide variety of tone shaping features are all designed to easily sound great across a wide variety of settings.

Two Distinct Analogue Compression Circuits.

Choose between two compression circuits, each with its own unique character. Studio mode gives you the smooth, beautifully transparent compression typically found in the best vintage studio rack units. For a harder compression effect typical of classic guitar pedals, Compadre's Squeeze mode is designed to deliver heavy compression with maximum sustain.

Boost the Sweet Spot, Clean or Dirty.

Compadre gives you two distinct analogue boost circuits: a clean boost, and a dirty boost that introduces soft clipping, characteristic of an overdrive pedal. The selectable boost EQ ensures the perfect compliment to any guitar and amp combination. Add sparkle and shine with a treble boost, fatten your tone with the midrange boost, or level up the full frequency range with flat mode.

Extended Control.

Connect an expression pedal to add premium VCA-based volume control. Add an optional MiniSwitch or MultiSwitch Plus to store and recall your favourite settings. Integrate Compadre into a MIDI pedalboard using the MIDI EXP Cable and access up to 300 preset locations.

Vintage Inspiration, Modern Execution.

The Compadre design project started with a study of some of the finest analogue compressors ever created, inspiring and guiding the circuit design process. Utilizing a VCA in the compression circuits allowed Strymon to carefully tune the exact response and dynamics that were desired for each voicing.

For Studio mode, the goal was to achieve the musical and transparent sound found within Strymon's favourite studio rack units and the best vintage studio console bus compression. Careful tuning of the detection circuit provided Strymon with exacting control over decay, especially important for Squeeze mode. With ample sustain on tap, Strymon paid special attention to creating a completely smooth decay, with no unwanted pumping artifacts.

Notes: The iconic T50 headphone gets a major update, featuring a redesigned take on Fostex's Regular Phase flat-diaphragm driver. Superb sound, excellent comfort. A modern classic goes to the next level.

Supplier's Notes:
The T50RPmk4 is a brand-new headphone developed by Fostex, equipped with a completely redesigned RP planar magnetic driver. Since having debuted in 1974 as part of the T50, Fostex's first ever headphones, the renowned RP driver has been featured in numerous different headphone models throughout the years.

These headphones have been regarded as firstrate monitoring headphones by musicians and sound engineers all over the world. Audiophiles have also sought RP series headphones for their fantastic versatility and unparalleled value-to-performance.

Featuring a new 4th generation RP driver as well as an updated, improved housing design, listeners of all backgrounds can enjoy the increasingly-refined new generation of RP headphones from Fostex.

Specifications

Type: Semi-open
Driver: RP planar magnetic
Impedance: 28 ohm
Sensitivity: 97 dB/mW Max Input: 3,000 mW Freq. response: 10 - 40,000 Hz
Weight: Approx.330 g (excluding cable)
Unbalanced cable : F3.5 mm (4-pole) to F3.5 mm (3-pole) 2 m x 1
Includes conversion connector (F3.5 to F6.3 x 1)

Notes: 8010A

Studio Monitor

The 8010A squeezes true reference performance and extended frequency response into an extremely compact package.

Small size, huge performance

When studio space is limited or you record on the move, the 8010A is your reliable monitoring companion. Don't be fooled by its affordable price tag and modest dimensions, the 8010A is every bit a Genelec pro monitor: uncoloured, accurate and powerful.

Trust is everything

A combination of enclosure, driver and electronic design gives the 8010A extremely neutral characteristics and the ability to adapt to your space via simple rear panel room compensation switches. So whether you're in a bedroom studio, hotel room or OB van, you can always trust what you're hearing.

System Specifications

Frequency Response: 74 Hz - 20 kHz (+/- 2.5 dB)
Low cutoff -6dB: 67 Hz
High cutoff -6dB: 25 kHz
Peak SPL =105 dB

Maximum peak acoustic output per pair on top of console, at 1 m distance with music material.

Short term max SPL =96 dB

Max. short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz, at 1m distance.

Long term max SPL =91 dB

Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit) @ 1m.

Self-generated noise: =5 dB SPL
Self generated noise level in free field at 1m on axis (A-weighted)

Weight: 1.5 kg (3.3 lb)

Dimensions
Height: 181 mm (7 1/8 in)
Height with Iso-Pod: 195 mm (7 5/8 in)
Width: 121 mm (4 3/4 in)
Depth: 115 mm (4 1/2 in)

Enclosure material: Die cast aluminium

Enclosure type: Reflex port

Drivers:

(Bass)
Driver type: Cone
Diameter: 76 mm (3 in)

(Treble)

Driver type: Metal dome
Diameter: 19 mm (3/4 in)

Harmonic distortion:
70...400 Hz =3 %
> 400 Hz =0.5 %

Amplifiers

8010A bass amplifier: 25 W Class D
8010A treble amplifier: 25 W Class D

Mains voltage: 100-240 VAC 50/60Hz

ISS Active =0.5 W
Idle =5 W
Full output: 30 W

Signal processing section

Connectors
Input: XLR female, 7 kOhm.

Crossover

Bass/Treble: 3000 Hz

Package contains:
1 x 8010A monitor
1 x mains cable 1,8 m
1 x operating manual
1 x IsoPod kit

Notes: Sunset

Classic overdrive sound, x2.

Sunset gives you the best of the best classic overdrive circuits, custom voiced for instantly gratifying control over a huge range of sought-after tones. Strymon studied six circuit types found in many truly timeless and iconic overdrive pedals, and put their takes on all six of them into a single two-channel unit.

Overview

Two pedals at once.

Sunset is really two customisable overdrive pedals, independently selectable and flexibly routable, designed and voiced for complementary tones when stacked. Six distinct circuits each feel and react differently in your hands, two at once, all in one convenient package. Push your amp any way you want, from transparent "more amp" to heavy saturated fuzz, and all the best places in between.

Holy Grail tone, minus the quest.

We are all familiar with the endless search for the ultimate overdrive pedal and the perfect tone. Strymon did the critical listening and custom voicing to design each side of Sunset with just one tone knob, so you can quickly dial in the sound you want. The knob ranges for each circuit type are custom calibrated to provide maximal usable control. Strymon applied the same design philosophy and care to the stacking options, ensuring each combination interacts optimally and sounds great, so a huge range of classic overdrive tones are instantly achievable.

Optimized stacking.

Since the time when overdrives were created to simply push an amp in order to achieve an overdriven sound even at sane volume levels, players have evolved to want more layered, multistage tonalities. Stacking gives you more flexibility and tone range on the floor. You can find an overdrive that sounds good on its own, then run it through a second drive to add new dimensions to your tone. Sunset allows you to use any of its six overdrive circuits on their own, or route the Channel A drive circuit through Channel B, or Channel B through Channel A, or use two circuits in parallel. When stacking overdrive pedals, some combinations work especially well together. Sunset eliminates the guesswork. Routing options have been chosen deliberately to present the best-sounding combinations of drive circuits.

Digital or analogue? Strymon chose both.

Sunset's input features an ultra low noise, discrete, class-A JFET circuit providing up to 20dB of pure analogue gain. With Strymon's hybrid approach you get the best of both analogue and digital worlds: The JFET stage provides exceptional touch sensitivity and dynamic interaction with your guitar, while the incredibly powerful SHARC DSP facilitates the great level of detailed complexity and responsiveness you'll want to hear.

Channel A overdrive circuits

The Ge overdrive combines the softer response of germanium diodes with a parallel path that blends in the dry signal as the Drive is lowered. At higher gains the lower-midrange frequencies are emphasized to create a tight, thick response. This overdrive really fattens up single coil pickups, and responds with a bold push when paired with humbuckers.

The Texas overdrive employs a single stage soft-clipper configuration that is filtered before and after the gain stage to create a smooth and dynamic overdrive. The original signal dynamics are retained as the gain is increased - perfect for playing the blues or just fattening up your sound with a signature midrange bump.

Channel B overdrive circuits

The 2 stage overdrive combines a soft-clipping stage followed by a hard-clipping stage, creating a complex overdrive with a wide range of gain. Its EQ structure preserves the low end while adding some muscle to push your amp. This overdrive can easily take you from lightly clipped to beefy saturation.

The Hard overdrive uses a single-stage hard- clipping circuit that has a ton of available gain, approaching fuzz territory with the Drive knob maxed. At lower gains, mildly clipped transparent tones are achieved with this versatile drive. The wide-ranging Tone knob lets you shape the top end from smooth to buzzy.

Channel A boost circuit

The Treble type is a treble booster that removes the low frequencies as the Tone knob is turned up - great for tightening up an overdriven amp, or driving another gain pedal that's a bit looser on the low end. Turning the Tone knob down brings in the low end, making for a versatile all- around boost.

Channel B boost circuit

The JFET type is a clean boost that subtly

beefs up your signal with the dynamics and responsiveness created from the JFET front end. As you turn up the drive, the signal gets rounded and warmer. The is a great option when your amp just "needs a little extra."

Ins, Outs, Switches

High impedance mono input
Mono output
Favorite Input to connect an external MiniSwitch to recall a Favorite preset
Expression pedal input allows the connection an expression pedal for simultaneous morphing control over multiple parameters (Expression mode), or logarithmic taper for smooth volume control (Volume mode)
MIDI accessible via Expression jack for remote parameter control and access to 300 preset locations

Audio Quality

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
Premium analog front end and output section
Super high performance SHARC DSP in a compact form factor
32-bit floating point processing

More

True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass
Strong and lightweight anodized red aluminum chassis
9V DC power supply included
Power requirements: maximum 9 volts DC center-negative, with a minimum of 250mA of current
4.5" deep (11.43 cm) x 4" wide (10.16 cm) x 2.4" tall (6.1 cm)
Designed and built in the USA

Notes: Never worry about power again. Zuma is the highest horsepower, most technologically advanced effects pedal power supply of its kind. Zuma offers nine high-current, individually isolated, ultra-low-noise outputs-each with its own dedicated regulator and custom transformer. Designed to meet the needs of today's players, each output provides a staggering 500mA of current.

Zuma's dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering result in a power supply that allows your pedals to achieve their highest possible dynamic range.

The all analog circuitry offers two stages of isolation. Each of the nine output channels is individually isolated from the 24V DC, and the 24V DC is isolated from the AC input power, eliminating ground loop and AC line noise issues. Zuma also provides dual power regulation: Wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions.

With automatic international power compatibility built-in, Zuma delivers an abundance of clean, rock-steady power to all your pedals, on any stage anywhere you play in the world.

Have a growing rig? Zuma is part of an expandable system. Add more outputs by connecting a Strymon Ojai (sold separately) with the 24V Out jack.

Many popular guitar pedals were originally designed to work with batteries. Since batteries are inherently very low noise and not susceptible to ground loops, these pedals often were not designed to be resistant to noise from power supplies. Stymon's ultra-low-noise design prevents power noise from bleeding into the audio signal, allowing your pedals to deliver the highest possible dynamic range.

Playing gigs all around the world? No need to purchase separate power supplies for your international tour. Zuma has automatic worldwide power compatibility built-in (when connected with the appropriate IEC cable). Whether you're on 120V, 240V, 100V, or any variation in between, Zuma will deliver clean, reliable power to your pedals, even if the venue has dirty power.
Do you have pedals that require 12V or 18V? Zuma has you covered. Two channels have selectable 9, 12, or 18V output voltages.

Some analog pedals designed for 9V operation may provide higher output and/or more clean headroom when run at higher voltages such as 12V or 18V. However, others will simply start smoking and melting, so please check with the manufacturer of your pedal before operating at a higher-than-standard voltage!

Don't let the blue chassis fool you: Zuma is green at heart. Significantly more efficient than linear power supplies, Zuma is able to deliver substantially more current while handling a much wider range of input voltages. Zuma's high efficiency design delivers high-current power distribution in a compact unit, for a small carbon footprint and a small pedalboard footprint.

Strymon has solved the switching power supply problem. With their dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering, we have designed a switching power supply that is actually quieter than linear units.

Notes: Phonkify X

Envelope Filter and Octave

Maximise your funk with the Tsakalis Audioworks Phonkify X pedal. A potent pairing of fabulous filters and outstanding octaves. Expanding on the esteemed original Phonkify, the Phonkify X turns up the funk-o-meter with three selectable flavours of envelope filter and three types of octave voicings. This makes the pedal not only perfect for juicing up your jams and dripping your tone in cosmic gravy, but also delivers filters and octave tones that go way beyond and into the spaces between. Featuring flexible momentary or latching operation for each effect, plus a dedicated toggle switch for selecting the order of the filter and octave, the Phonkify X is ready to pour on the funk gravy and turn up the stank factor!

Phonkify X's Filter section warps and wiggles your tone into a kaleidoscope of grooves.

Flip the dedicated toggle switch to find your filter flavour: Low Pass for warm, buttery tones, Band Pass for that snappy, in-your-face attitude or a cosmic combo of Low Pass-to-High Pass for sweeping, interstellar effects. Got an expression pedal? Slide it in and ride the funk wave with hands-free control over your freaky frequencies.

While the Octave section can make the floor rumble and shake! No matter if you're feeling that high-flying octave-up, a deep-diving octave-down or a spaced-out blend of both, hit that footswitch and squeeze out every last funky drop.

Need more juice? Crank the master volume to fine-tune your output, while the pedal's internal voltage doubling gives your tone headroom for days. True Bypass keeps your original signal pure when you step off the funk train.

The Phonkify X isn't just a pedal. It's a total vibe machine, a groove generator and a tone tailor for the funky-hearted. Whether you're laying down tight pocket grooves or blasting off into experimental soundscapes, the Phonkify X has the tools to elevate your sounds right into the stratosphere.

Notes: Excellent basic analogue synth with its own distinctive character. The UNVO-1 is a two-oscillator design with a 'strain' and filter circuit to sculpt your sound. Control via the knobby front panel for experimental tones and powerful bass sounds.

Supplier's Notes:
It is powered by a center negative DC 9V adapter or a single 9V battery.

It contains two VCOs (oscillators) with a wide range.

The SUB oscillator has a different frequency and waveform, and is input to the main, respectively. Each of them has a range switch, so it works like an LFO under the switch. The color of the range switch (white, black) corresponds to the color of the SUB.1 and SUB.2 on-off switches next to the FREQ knob of the main oscillator.

When the WAVE switch is turned on, the WAVE knob is activated, and the SUB OSCILLATOR.1 and 2 are shaken.

The main VCO×2 is mixed and fed into the strain + filter circuit. This special filter has a FREQ knob and a TUNE knob. The TUNE knob powerfully amplifies the input signal while also tracking specific pronunciations.

The filter is a circuit that has been fine-tuned so that it can very effectively enhance the bass and treble of this input signal.

Unlike other switches, the noise-on switch moves sideways, left (VCO.1), middle (OFF), and right (VCO.2). They are populated in VCO.1 and 2, respectively.

It is a noise machine that can output a very strong signal that generates a variety of noise sounds.

This analogue synth runs on DC9V negative center or a 9V battery.

The main 2 VCOs can receive 2 oscillators and noise generator inside and go to 2 different filters.

2 oscillators can be tuned with each two FREQ. knobs and controlled with the wave knob.

RED switch is for wave knob working.

Black and White for tone of oscillators

Notes: What does this do?

This is an analogue filter with a separate 3 channel mono mixer, and VCA combo. There is also an internal envelope generator with Decay. All this product needs is a VCO and a trigger signal to complete a mini voice.

The outputs on the filter are meant to be manually patched into one of the VCA audio inputs on the module to complete the mini voice. You can mix and match to create custom filter types.

The Feedback on the product 'Rez', is what makes this sound like an MS20 filter. There are diodes, used as a limiter, and also to wave shape when in self oscillation mode.

Features:

-2 audio inputs with 2 level control knobs.

-Bi-polar FM for the filter.

-Mod input with level knob for the filter.

-FCV Filter CV direct input for the filter.

All CV inputs for the Filter are 1V per octave, Exponential.

-REZ CV

-VOLT CUT output. +5v/5v output. Used to remote control another filter, with the master 'Cut' knob.

-Internal Envelope Generator, with Level Sends to VCA and Filter.

-Separate VCA circuit, with 3 channel mono mixer input.

-1 CV input for the VCA. 'VCV'.

-1 VCA output.

The filter will self oscillate into a sine wave and does track 1v per octave.

Width: 16HP

Current: +65mA,-65mA

PCB Stack: 1 Level, Skiff compatible.

Notes: SWEnigiser Proto VCF/A

Enigiser multimode filter and VCA in 12hp. Circuit based on originalEnigiser prototype kindly loaned by Anthony Linell of Northern Electronics.

VCF
Unique configuration with 3 x 4 filter modes
2x audio input with drive
2x cutoff CV attenuverter inputs
1x cutoff CV input, tunable to 1v/oct

VCF output normalized to VCA input.

VCA
1x audio input with gritty drive, normalized from VCF output
2x CV input. CV1 knob adds offset for drone etc.
CLIP switch for old/new revision Enigiser diode setting adjusting drive character.
+12V 22mA
-12V 22mA
Skiff friendly
Includes power cable, 4 screws+ plastic washers

Available in sand blasted silver and black panel versions.

Notes: The RC-500 is an essential partner for guitarists, singer/songwriters, multi-instrumentalists, and anyone who wants to take their looping to the next level. Craft real-time compositions with two loop tracks, mic and stereo instrument inputs, rhythms, and inspiring Loop FX, all backed by premium 32-bit audio quality. Store loops in onboard memories, and explore expanded operation with external controls and MIDI. Filled with next-generation Loop Station features, the RC-500 gives serious creators the tools they need to develop new ideas and deliver impactful performances that will leave audiences wanting more.

Super Sound Quality

Featuring best-in-class 32-bit AD/DA and 32-bit floating-point processing, the RC-500 captures your personal sound with full fidelity and keeps loops crystal clear, even with multiple overdubs. And with 13 hours of stereo recording time, there's plenty of space for extended creative journeys.

Connect, Loop, and Mix

With its versatile I/O and free-flowing interface, the RC-500 is ready to support all your musical visions. Connect mono/stereo instruments and pedal effects, plus a mic to the dedicated XLR input-complete with phantom power if needed. Use the two tracks independently for song-style composition, or together for rich multi-track textures. The LCD backlight changes colour to clearly show the current operation mode, while hands-on track faders and a mic level knob provide direct access to volume control as you loop.

Flexible Creative Control

Three onboard footswitches make it simple to control recording and playback, track switching, and more. For expanded operation, you can connect up to two external footswitches for direct control of many assignable functions, or an expression pedal for continuous adjustments. And for advanced rigs, the space-saving TRS MIDI I/O enables remote operation from MIDI switchers and foot controllers, plus MIDI sync with drum machines and DAWs.

Personalize Your Setup

The RC-500's I/O and footswitches are configured for basic operations by default, but they can be reassigned in a variety of ways to meet your custom needs. Route left/right input sources to separate tracks, or send guitar and vocals to independent outputs. Use the footswitches to turn effects on/off, start/stop rhythms, and more. Custom assignments are saved along with phrase memories, letting you instantly reconfigure the RC-500 for any application.

Energise Performances with Rhythms and Loop FX

Loaded with inspiring rhythms and evocative loop processing, the RC-500 is primed to bring groove and colour to all your looping adventures. Each of the 57 preset rhythms include A/B variations, while 16 different drum kits provide sounds to match any style. Designed for live performance, Loop FX like repeat, scatter, and more infuse your loops with instant sonic energy. There's a cool reverse function too, perfect for creating unique sonic flavours on demand.

Capture, Practice, and Perform

The RC-500's 99 phrase memories let you store loops as fast as you create them, complete with rhythm and kit selections, audio settings, and control assignments. Loop audio can be backed up to a computer via USB. And with WAV import via BOSS Tone Studio, the RC-500 becomes a central playback hub for lesson material, jam tracks, or backing music for your next gig.

Specifications

Sampling Frequency: 44.1 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Recording/Playback: Number of Track: 2, Data Format: WAV (44.1 kHz, 32-bit float, stereo), Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
Rhythm Type: 57 Patterns x 2 Variations
Rhythm Kit: 16 types
Effect: LOOP FX (only for loop tracks)
Type: BEAT REPEAT, BEAT SHIFT, BEAT SCATTER, VINYL FLICK, Reverb (only for rhythm part)
Memory: 99
Nominal Input Level: MIC IN:-40 dBu (variable), INST IN A/MONO B: -10 dBu
Maximum Input Level: MIC IN:+8 dBu, INST IN A/MONO, B: +8 dBu
Input Impedance: MIC IN: 4 k ohms, INST IN A/MONO, B: 1 M ohm
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +8 dBu
Output Impedance: OUTPUT A/MONO, B: 1 k ohm
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
Bypass: Buffered bypass
Controls: REC/PLAY switch, STOP switch, TRACK SELECT switch, MEMORY/VALUE knob, MIC LEVEL knob, TRACK 1 slider, TRACK 2 slider, TRACK 1 EDIT button, TRACK 2 EDIT button, RHYTHM TEMPO button, RHYTHM ON/OFF button, MEMORY button, MENU button, EXIT button, ENTER button, INPUT button
Display: Graphic LCD (96 x 32 dots, RGB backlit LCD)
Connectors: INST IN A/MONO, B jacks: 1/4-inch phone type, MIC IN jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max, OUTPUT A/MONO, B jacks: 1/4-inch phone type, CTL 1,2/EXP jack: 1/4-inch TRS phone type, USB port: USB micro B type, MIDI (IN, OUT) jacks: stereo miniature type, DC IN jack
Power Supply: Alkaline battery (AA, LR6) x 4, AC adapter (PSA-S series: sold separately)
Current Draw: 330 mA (with phantom power), 240 mA (without phantom power)
Expected battery life under continuous use: Alkaline: Approx. 3.5 hours (without phantom power), Approx. 2 hours (with phantom power)
*These figures will vary depending on the actual conditions of use.
Accessories: Owner's manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (AA, LR6) x 4, Rubber foot x 4
Options (sold separately) AC adaptor: PSA-S series
Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size & weight

Width: 170 mm / 6-3/4 inches
Depth: 138 mm / 5-7/16 inches
Height (including rubber foot): 62 mm / 2-1/2 inches
Weight (including battery): 950 g / 2.1 lb

Notes: ***B-STOCK: Box damaged, product in perfect working order***


DAP's entry-level club-style mixer offers a lot of bang for your buck. This four-channel design features three-band EQ, eight inputs and an assignable crossfader.

Supplier's Notes:
The DAP CORE Club is a 4-channel DJ mixer and can be considered the little brother of the DAP Core MIX-4 USB. It has 8 Line/MP3 inputs, a microphone input and Bluetooth playback module. Each channel has a volume fader, 3-band equalizer, gain and cue knob. The crossfader can be assigned to channel 1/2 or 3/4.

The CORE Club has an output with volume control for both master and booth. In addition, you can choose from three crossfader curves. VU indicators are provided for both the master output and for each channel separately to prevent clipping.

Bluetooth playback module & mic input
Talk over function
3 crossfader curves
VU channel indicators
8 line/MP3 inputs

Specifications

Inputs

Mono Inputs: 1
Mono Input Connector: 3-pin XLR, TRS balanced 6.3 mm
Stereo Inputs: 8
Stereo Input Connector: RCA

Outputs

Main Outputs: 1
Main Output Connector: RCA
Monitor Outputs: 1
Monitor Output Connector: RCA
Record Output: 1
Record Output Connector: RCA

Audio Specifications

THD Level: < 0.05 %
Signal-to-noise Ratio: > 80 dB
Crosstalk: 75 dBu
Signal-to-noise Ratio (Mic): > 85 dB
Signal-to-noise Ratio (Line): > 80 dB
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Phantom Power: No

Sound Editing:

Parametric Channel Equalizer: 3 Bands
Input Channel Equalizer Gain Range: 12 dB
Input Channel Fixed Frequencies: 100, 1.000, 10.000 Hz
Microphone Input Equalizer Gain Range: 12 dB
Parametric Microphone Equalizer: 2 Bands
Microphone Input Fixed Frequencies: 100, 10.000 Hz

Wireless Specifications

Bluetooth Audio Profile: A2DP
Bluetooth Range: 25 m

Product Properties

LED Indicators: BT Pairing, Input level, Output level, Power

Electrical Specifications and Connections

Power Supply: 240 V AC 50/60 Hz
Output voltage: 15 V AC
Power Consumption: 8.2 W
Power Connector In: Low Voltage DC plug

Mechanical Specifications

Fader Length: 60 mm
Height (mm): 84 mm
Width (mm): 292 mm
Length (mm): 356 mm
Flightcase Size: 14"
Housing: Metal
Colour: Black
Weight: 4.2 kg

Included Items

Included Accessories: Adapter

Notes: A fresh, original take on pitch shifting, the HammerOn generates hammer-on pitch shifts which alternate between two different intervals. Seven modes provide a range of effects, from simple hammer-ons to automatic techno guitar sequencing with trills.

Supplier's Notes:
Hands-free Hammer-Ons

Hammer-on notes in conjunction with your hands to create never-before-heard licks and riffs - the only limit is your imagination.

7 pedals in 1

Seven modes range from pitch jumps and harmony effects to pitch sequences and drop/capo tunings - HammerOn is like seven pedals in one.

Play the Impossible

Impossible Mode allows you to hammer-on pitch shifts that alternate between two selectable pitch amounts.

The DigiTech HammerOn is a versatile effects pedal with an amazing amount of flexibility and options to create and channel your musical ideas. Take the time to get to know the many options and see if it sparks new creative ideas.

The PITCH 1 footswitch is dedicated to always be a hammer-on selectable momentary pitch shift above or below what you are playing. PITCH 2 footswitch has 3 different modes of operation selectable using the MODE button. There is a button called DRY+ that can turn on the dry signal and a button called TRILL that can mimic rapid presses of the footswitches.

With all these options it's like having 7 pedals in one:

1. HAMMER-ON: An instantaneous momentary pitch shifter pedal
2. HAMMER-ON with TRILL: A rapid fire hammer-on action pedal
3. HARMONY-ON: An instantaneous harmony creation pedal
4. The IMPOSSIBLE Pedal: A dual alternating momentary pitch shift pedal
5. DROP/CAPO SEQUENCE: A multi-setting pitch transposition pedal
6. SEQUENCE with TRILL: An automatic guitar riff sequencer
7. SEQUENCE with DRY and TRILL: An automatic techno guitar sequencer

Specifications

Electronics
Sample Rate: 44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response: 20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1kHz; ref= 1 dBu w/ unity gain
A/D/A Conversion: 24-bit

Input / Output
Input Type: 1/4" Unbalanced TS
Max Input Level: +5 dBu
Input Impedance: 1MO
Output Type: 1/4" Unbalanced TS
Max Output Level: +10 dBu
Output Impedance: 1kO (Effect enabled or effect bypassed), True Bypass

Physical

Dimensions: 5.12"(13.00cm) x 3.57"(9.06cm) x 1.84"(4.67cm) (L x W x H)
Weight: 1.12 lbs. (508g)

Power

Power Consumption: 2.3 Watts (258 mA @ 9VDC) typical
Power Requirements: External Adapter (included), 9 VDC 1300 mA

Notes: ***B-STOCK: Product with some signs of usage but in perfect working order***


A fresh twist on a simple 303-style acid synth, featuring a triangle/sawtooth/square wave VCO, multi-mode resonant filter, simple AD envelope and a VCA which can be overdriven. Excellent value.

Supplier's Notes:
ADDAC started this module with the idea of developing a complex drum source however, somewhere along the process, it was clear how much better it performed as a synth voice and this lucky accident was embraced.

It features a VCO with a [FREQUENCY] and [FINE TUNE] knob plus a dedicated CV Input and Attenuator knob (tunable over 4 octaves).

The VCO waveform output is achieved by selecting either a Triangle or Saw through a switch. the selected waveform can then be mixed/balanced against the square wave. The resulting mix is then sent to the Filter.

The Filter features a [CUTOFF] and [RESO] resonance knob plus a Cutoff CV Input and Attenuverter knob.

A 3 position switch is used to select the filter type: Highpass, Bandpass or Lowpass.

The resulting output is then sent to the VCA.

The VCA features an Input with [INPUT GAIN] knob which at maximum can amplify the incoming signal by a factor of 2.

This is a very important control, it accepts any signal Trigger, Gate or CV. Whatever input is plugged in the signal is then fed through an AD with a very short attack and controllable decay through the [VCA DECAY] knob plus the CV Input and Attenuverter knob. The resulting slewed signal is then used to control the VCA gain.

This signal is also sent to the CV OUTPUT as well as the LED monitor.

The Accent input adds to the Input signal creating a different amplitude output.


The CV OUTPUT is normalled to the Frequency and Cutoff inputs.

Tech Specs:
9HP
4cm deep
80mA +12V
80mA -12V

The [INPUT GAIN] knob

Usually Attack/Decay envelopes have a maximum voltage of +5v, no matter if the input gate is +5v or above the AD will clip at +5v. In this case, this clipping method was not used, and instead ADDAC allowed the incoming voltage to determine the maximum AD voltage, meaning that if a +5v gate is present then the AD maximum voltage will be +5v but if a gate of +10v is sent then the AD maximum voltage will be +10v.
This also means that with higher input voltages the decay, although falling at the same speed, will be longer than with lower voltages as it has a longer range to go back to 0v.

As previously mentioned, The [INPUT GAIN] knob can amplify the incoming input by a factor of 2, allowing to use a standard +5v gate or envelope and being able to make the resultant AD go up to +10v.

The AD signal is responsible for opening the VCA. Up to +5v the VCA will open to unity gain above this value the VCA will start to amplify and eventually saturate and distort. This saturation will add harmonics to the signal which will change its gentle timbrical nature to a more unique and peculiar timbre that will make the module shine in Acid contexts.

Adding high levels of Resonance or even filter self oscillation in combination with high VCA saturation will create even more harmonics that ADDAC highly encourage the user to explore.

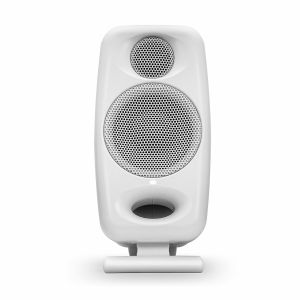

Notes: White version of the iLoud Micro Pro packs a serious punch for its size. Less than 21 cm tall but offering frequency response all the way down to 50 Hz, these might be the ideal monitors for those short on space.

Supplier's Notes:
The iLoud Micro Monitor Pro delivers sound much bigger than its looks suggest. Sold here as a single monitor, also available as a stereo pair with room correction mic. Seriously impressive performance from a tiny package.

Supplier's Notes:

Unparalleled sound quality wherever you want

The original iLoud Micro Monitor revolutionized the way professionals and audio enthusiasts experience sound in an ultra-portable and compact form factor. It became renowned for its exceptional sound quality and portability, making it a popular choice as an audio reference monitor for both pro-studios, home-recording artists, and mobile setups. Now the iLoud Micro Monitor PRO takes the incredible qualities of the classic Micro Monitor to a new level blending together studio-quality reference audio and a compact form factor, along with a new built-in state-of-the-art speaker correction technology, to deliver unparalleled sound quality wherever you want.

Precise and balanced audio reproduction across the whole frequency spectrum

The Micro Monitor PRO features a bi-amped design with a 3" paper woofer and a 0.75" textile dome tweeter, delivering precise and balanced audio reproduction across the frequency spectrum. This enables you to experience crystal-clear highs, rich midrange, and tight, defined bass that rival larger studio monitors.

Thanks to the new built-in state-of-the-art speaker correction technology, the Micro Monitor PRO provides accurate audio reproduction and a balanced and precise soundstage, regardless of the ambience, ensuring high-quality sound wherever you are.
With XLR and RCA line inputs, the Micro Monitor PRO seamlessly integrates into professional audio environments and consumer systems alike, making it suitable for on-the-go setups as well.

Quick and easy setup and room correction

The flip foot design allows for quick and easy setup of the speaker position to achieve the perfect sweet spot, whether you're in a studio, home office, or on the go. It provides optimal positioning and angling for your listening experience.

The internal power supply eliminates the need for external adapters, streamlining your setup.

With its compact size and lightweight design, the iLoud Micro Monitor Pro is the perfect companion for any environment, delivering unparalleled sound quality wherever you want it.

A full-blown studio at home or on-the-go

The iLoud Micro Monitor PRO comes with various free bonus contents.

Registering your iLoud Micro Monitor PRO unlocks powerful software tools, as well as exclusive discounts on other IK products.

Best in class audio reference for studio, home and on-the-go setups

Type: 2-Way bi-amped, digitally controlled compact studio monitor
LF driver: 3" composite cellulose fiber, custom-made mid-woofer
HF driver: 1" low-distortion silk-dome tweeter
Acoustic design: DSP-tuned bass reflex
Number of amps per speaker: 2
Amplifier type: High-efficiency Class-D
Total power: 50 W RMS
LF power: 30 W RMS
HF power: 20 W RMS
Crossover type: Digital, Linear Phase
Crossover frequency: 2.5 kHz
Frequency response: 50 Hz to 20 kHz i 2dB, 42 Hz to 22 kHz @ -10dB
Phase response: System remains coherent within +/- 30- from 500 Hz to 20 kHz
Sensitivity: -10 dBu signal generates 90 dB SPL @ 1 m
Continuous max SPL: 94 dB
Peak SPL: 107.3 dB
Peak SPL: 109.3 dB
Placement setup: Manual switches for LF Extension, LF trim, HF trim, Desk position

Fully automatic built-in digital calibration, and compatible with X-Monitor control software

LF extension switch: Sets -3 dB point of the frequency response at 50 or 80 Hz (LFE)
LF switch: Low shelf, +2 dB or -3 dB from 100 Hz down
HF switch: High shelf, +2 dB or -3 dB from 8 kHz up
Desk switch: -3 dB at 250 Hz and +4 dB at 1.2 kHz
Calibration: Fully automatic and built-in digital calibration
Full DSP control
Compatible with X-MONITOR macOS and Windows control software
Total Latency (TOF): 3.00 ms
Totally DSP controlled
1 x XLR balanced input, 1 x RCA unbalanced input, 1 x USB type-C, C8 power socket
Flip foot for quick and comfortable desktop setup
Internal PSU - 90 to 240 V AC, auto-ranging, 50 or 60 Hz, 1 A max
MIC input for ARC from XLR connector

Dimensions

Size: 208 mm/8.18" x 105 mm/4.13" x 153 mm/6.02"
Weight: 1.37 kg/3.02 lb (each)

Notes: ***B-STOCK: Box opened, product in perfect working order***


Huge power in a compact package with this upgraded 10-inch design from Alto's TrueSonic 4 range. Bluetooth connectivity and DSP give added control via the Alto app.

Supplier's Notes:

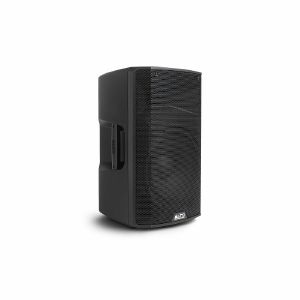

2000-watt 10-inch 2-way powered loudspeaker with Bluetooth, DSP & app control

TrueSonic TS4 from Alto Professional

Louder. Clearer. Smarter.

Where TS3 exceeded expectations, TS4 redefines them completely.

Building on the legacy of the best-selling TrueSonic speakers, the TS4 Series delivers increased power, clearer sound, and advanced Bluetooth functions including streaming, speaker linking, and App control.

Compact, lightweight, and designed for reliability, the new TS4 Series makes it simple to get great live sound at every event.

True Sonic Power

Whether you need a powerful vocal PA or club-shaking bass performance for a DJ set, TS4 speakers deliver loud, clear, room-filling sound for any application. With a 10-inch woofer, and a 1.4-inch compression driver, TS410 delivers 2000W of class-leading power and clarity in equal measure.

Free Alto App for remote configuration and control

Available free for both Android and iOS, the Alto App gives hands-on remote control over Bluetooth levels, Speaker Use Modes, Custom EQ and Sub Size selection. Further, True Wireless Stereo linking can be configured remotely via the app to save time during setup.

Built-In 3-channel mixer

Every TS4 features an integrated 3-channel mixer, with two Mic/Line input channels and a dedicated Bluetooth channel. The Mic/Line channels feature XLR/TRS combo jacks and can be used with microphones, instruments, and line-level signals without the need for additional hardware or adjustment. Just plug straight into the rear panel and you're up and running.

Simple Bluetooth Streaming & Speaker Linking

The ideal high-powered streaming solution, TS4's built-in Bluetooth connectivity makes it easy to pair your laptop, phone or tablet and get the music pumping in no time at all. With the True Wireless Stereo function you can stream Bluetooth audio to two TS4 speakers in perfect stereo without the need for any cables.

DSP Modes for the best sound in every application

TS4's three preset "Speaker Use" modes let you optimize the speaker for any application, so you'll get great sound every time at the touch of a button. For even more control over your sound, you can configure a Custom EQ within the Alto App and remote adjust the settings from any listening point in the venue. You can even save your favourite Custom EQ setting direct to the TS4 for easy recall whenever you need it.


Versatile and Reliable

From the high-quality drivers to the fanless class D amplifiers, every aspect of the TS4 Series has been designed for superb reliability, whether used for mobile gigs and performances or fixed installation.

Each speaker features a lightweight, sleek, black box design that can be used as the application demands - freestanding, as a wedge monitor, pole-mounted or suspended via the integrated suspension points.

Level up your live sound. Choose Alto Professional's TS4 Series.

Applications

Solo performers
Musicians and Bands
Mobile DJs
Gymnasiums, fitness centers, and dance studios
Houses of worship
Theatres
Bars, restaurants, clubs
Special events, presentations, and wedding

Specifications

Output Power: 2000W
Drivers Low-Frequency: 10.0" driver, 2.0" (50 mm) high-temperature voice coil. 1 x 650 W RMS @ 2 ?.
High Frequency: 1.0" exit ceramic driver with 1.4" (35 mm) coil. 1 x 350 W @ 4 ?.
Crossover Frequency: 2 kHz
Maximum SPL: 130 dB (peak), 127 dB (continuous) (dB-SPL @ 1 m)
Frequency Response: 57 Hz - 20 kHz (+/-3 dB)
Frequency Range: 48 Hz - 20 kHz (-10 dB)
Horn Coverage: 90- horizontal x 60- vertical (nominal)
Connectors: (2) XLR+1/4" (6.35 mm) TRS combo inputs (Balanced) (1) XLR output (Link) (1) IEC power cable input
Input Impedance Line: 10 K? balanced, 20 K? unbalanced, Mic: 1.2K
Line Gain/Volume Control Range: -? to 0 dB, +4 dBu nominal, +10 dBu for max output
Mic/Inst. Gain/Volume Control Range: -? to +50 dB
USB Charging Port: 5V 2.1A
Controls: Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button
Indicators: (1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green)
Power Connection: IEC
Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz
Consumption: 900W
Fuse: 100-120V T10AL AC250V; 220-240V T5AL AC250V
Protection: Electronic clip, thermal, and transducer overdrive protection
Enclosure: Injected Moulded Enclosure and Perforated Metal Grill
Mounting/Installation: Standard 36 mm pole socket, flown application with integral M10 suspension points, or in a wedge monitor position
Operating Temperature: -10-C to 45-C (14-F to 113-F)
Dimensions (height x width x depth): 21.1" x 12.6" x 12.5" / 536 x 320 x 317 mm
Weight: 26.0 lbs. / 11.8 kg

Notes: Sometimes pedals can change. Parts drift, pots break, transistors go bad. They go to new homes; they get neglected and resold. Sometimes people get in there and try to revive them to their original state and sometimes they just throw whatever is laying around inside and hope it does the trick. In this case, EQD are pretty sure all the above happened to the fuzz pedal that made its way to James Murphy and ended up finding a forever home with LCD Soundsystem.

Chelsea really does have something special. It's heavy without being too heavy, clean but not too clean. A simple set of controls yet it has an expansive array of tones that makes it very versatile on a wide variety of instruments, has clarity when you need it and can blur all discernable lines when you don't. It still retains the familiar foundation of the classic fuzz it was intended to be, but something special happened to it over the years and it has very much grown into its own thing

Notes: ***B-STOCK: Box opened, product in perfect working order***


Introducing Catacombs - a pedal that eliminates the compromise altogether. It packs 11 of the most popular delay and reverb sounds into one intuitive, powerful package. Whether you're after a trusty digital delay and a plate reverb or a musical shimmer and a spaced out echo - Wampler have you covered!

The team at Wampler have worked for a long time on ensuring Catacombs will become an indispensable part of your rig. You can run one of six delay and one of five reverb programs together simultaneously. Each program offers tap-tempo control and can be saved into one of the pedal's eight onboard preset locations for instant recall. Delays and reverbs can be run in Mono, Stereo, in parallel or in series. It's like having a studio's worth of delay and reverb effects right at your feet.

But it doesn't end there - the pedal also comes with a complete software version as a plugin for your DAW in AAX, AU, and VST3 format for both Mac and PC. The Catacombs plugin is FREE to all customers that register their Warranty online (plugin suite is $49.99 if purchased separately).

Legendary Delays

With six delay programs, you can feel the warmth and depth of analogue delays (ANLG), the harmonic nuances of a Bucket Brigade Device delay (BBD), or the nostalgic modulated vibe of classic artisanal tape and mechanical delays (TAPE). Feeling adventurous? The other-worldly Echo-Space Delay (SPC) awaits. The favourite Wampler Faux Tape Echo (FTE) and an accurate recreation of the classic 2290 digital delay (DIGI) also feature.

Iconic Reverbs

The Catacombs houses five finely tuned reverb programs. With just a twist of a knob, you'll discover expansive halls (HALL), a warm vintage plate (PLT), and that classic spring reverb (SPR) with plenty of "drip." The shimmer reverb (SHMR) allows a whole new layer of sonic texture, especially when paired with an expression pedal, and the intimate ambiance of the ROOM setting creates that perfect studio reverb.

Stompbox-like Control

Like the Terraform and Metaverse before it, the Catacombs is designed to be as quick to dial in as possible. Wampler replaced confusing menus and fiddly touch screens with clearly marked knobs you can adjust on the fly. Controls for Time, Feedback, Modulation, and Level (with Alt functions for each effect type) put all the essential tools right at your fingertips. Each setting offers tap-tempo control and can be easily saved into one of the pedal's eight front panel preset locations for instant recall. It's like having a studio's worth of delay effects right at your feet.

Digital Power with an Analogue Soul

The Catacombs uses a high-performance DSP engine to bring each effect to life with authentic character and gives you eight front panel preset locations where you can save and instantly recall your favourite settings. If you're looking to expand even further, you can access up to 128 presets with full MIDI control, it has configurable mono and stereo routing, a parallel or series switch, and an assignable expression pedal input to control any parameter (or multiple parameters).

Notes: ***B-STOCK: Box opened, product in perfect working order***


The usual solid MIDI Fighter build quality and LED feedback combine with rotary encoders and push-button options in the Twister. Configure it for your chosen software and get creative.

*** Midi Fighter Utility Update- 2.90 (July 2024) ***

A new version of the Midi Fighter Utility is now available! DJ Tech Tools focused this release on implementing some community feedback and fixing the connectivity issues that disabled online firmware updates in the past. Be aware that since 2.85 and previous releases can't go online you won't be notified via the app that an update is available. Future firmware and utility updates will work fine moving forward.

In order to use this software plug in your Midi Fighter directly to your computer via USB (DO NOT USE A USB HUB) and follow the onscreen instructions in the utility. You'll be prompted to update your firmware as new firmware updates are available. If no new firmware updates are available, it's time to use!

Release Notes (2.90)

Fixed server connectivity issues
Fixed factory firmware flashing (Windows)
Fixed invisible options in drop down menus
Replaced Checkboxes with toggle switches
Fixed naming inconsistencies between "Midifighter" and "Midi Fighter"
Fixed model and firmware text scaling (Windows)
Improved text scaling for better visibility on large screens
General design update for an improve experience in low light
Increased log window width for improved readability
Updated app icon
Updated flashing status icons
Updated Midi Fighter 3D and 64 layout graphics

Supplier's Notes:

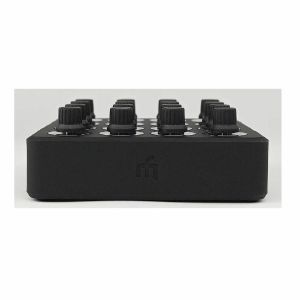

The most playable knob controller around.

Each knob doubles as a super powerful button. Turn the encoders to control a parameter in any software and twist their built in buttons to quickly reset the knobs or turn effects on and off. This means each knob is like 3 knobs.

The heart of the Twister are the 16 "Endless Encoders". These are very powerful knobs that don't have a start or ending point. Instead the LED rings show you the position of the knob. This means that the controller and the software are always in sync, even when changing banks, racks or songs on the fly.

The Twister allows for deep customization of every knob across all 4 banks with 5 killer features not found on any other controller. Change LED color, transform an encoder into a DJ filter, enable fine midi control, toggle a parameter on/off, or setup a "shift" knob so pressing a push-encoder activates control of a secondary function

The Midi Fighter twister was designed with producers in mind. We need compact, reliable controllers that are easy to map to our DAW's. The endless encoders respond to the software so everything is always in sync, even when playing back recorded automation.

Combine The Twisters powerful knobs with a DAW template so that every time inspiration strikes, a powerful studio environment is there to support you. This is how the pro's do it - why wouldn't you?

The knobs not only control your typical volume, pan and FX send controls but they also enable a host of quick access to deeper control - only available on the twister. For example, push the encoder to send out a fine resolution range and dial in the exact EQ setting you want. Release and return to normal range control.

You need to be able to react to the dancefloor. Having a dedicated controller is just like being a practiced instrumentalist. Once you have a idea, you can just make it happen as soon the inspiration hits.

*** Firmware update June 2023 ***

If you just bought your Midi Fighter Twister or haven't used the utility in a while chances are you might need to update it's firmware with the latest and greatest. This is a fairly straightforward process as long as you take some extra precautions.

1. Download and install the MF Utility if you don't have it already on your computer (PC/Mac).

2. After you check that any other MIDI related applications (Ableton, Traktor, etc) are closed connect your Twister directly to your computer and open the MF Utility. DO NOT USE A USB HUB

3. Click on "File>Export Settings" and select a destination, this will back up your Twister's settings if you have customized your Twister beforehand and make sure you export it outside of the "Midi Fighter Utility" folder since your OS might lock this location and prevent the MFS file from being generated successfully. If you just got your Twister you can skip this step.

4. If a new firmware is available for your device you should see a message in the utility as soon as your device is detected.

5. Click on the orange UPDATE FIRMWARE button and accept the pop up message warning you not to use a USB hub.

6. Once this process finishes your device will reboot and the MF Utility will now show it has successfully updated the firmware!

Notes: The LedPressor is a full stereo Diode-based compressor module.
Its unique core adds character and color to any signal passed through it.
The LedPressor can be used as a normal compressor with low input levels, but as the input volume increases and the "nuke" LED lights up, it enters a new territory that combines compressor and overdrive, creating a dynamic overdrive effect.

Get it pumping with the Side Chain
The module features an external sidechain input that accepts audio and CV signals. Only the sidechain signal passes through a high pass filter, which gives the user greater control over the sound shape. The audio signal itself is not affected by the filter.
Parallel compression
The module also includes a mix knob that can be controlled with a dedicated mix CV input, allowing for greater flexibility when blending dry and wet signals. Additionally, it features a momentary bypass button to easily adjust the levels of dry and wet signals.
Feed-Back Or Feed-Forward - it's your choice
The module can be configured with a feed-back or feed-forward topologies with a jumper in the back.
Reverse polarity protection
The module have proper reverse current and over current protection in its power input stage to protect the module in case it was connected the wrong way or connected to a faulty power supply.
Dimensions
Width
: 12HP
Depth
: 34mm
Current Draw
+12V
: 20mA
-12V
: 15mA

Notes: EGL-1 is a desktop analogue synthesiser that is ideal for a variety of duties. The unit's sub-oscillator can be configured to determine the emitted waveform and decays when the Push switch is pressed. There are four LFOs routed to the primary VCO for bountiful modulation capabilities. The VCO itself is routed through a boost circuit for a some extra flair that's sure to punish listeners in all the right ways.

EGL-1 Features

VCO routed through boost circuit
4 LFOs provide ample modulation possibilities
Integrated sub-oscillator
Push switch causes the sub-oscillator to decay
Two types of modulation can be applied to the MAIN VCO (oscillator).

The bottom stage mixes four LFOs and allows you to adjust the input level to the MAIN VCO with the level.

The middle stage allows you to input a WAVE to the SUB OSC (another oscillator) with adjustable rise and fall of the oscillator, which can then be fed into the MAIN VCO.

The push-button in the top right-hand corner rapidly decays the power of the SUB OSC as long as it is pressed. While it decays, it has an effect on the sound of the MAIN VCO.

The MAIN VCO output also has an output circuit to make the sound more powerful.

The EGL-1 operates from a 9V centre-minus or battery. Neither is included.

Notes: The SetonixSynth SkyWave is an all-analogue voltage controlled oscillator capable of producing many different timbres and unique harmonic behaviours, thanks to an original step-based control scheme which allows the user to dial in completely different wave-shapes and levels for successive oscillator cycles.

This complex VCO uses an internal feedback loop with the clock output of the oscillator triggering a step sequencer which in turn cycles through settings at the frequency of the core oscillator, thus changing the shape and level of the waveform output on a per-cycle basis while also staying in tune and tracking pitch like a typical VCO.

Notes: The Larva is a 6-stage analog phaser with a built-in preamp and morphing capabilities. It offers two phaser settings, letting you easily switch between different sounds or morph between them for unique transitions. Whether used as a classic phaser, a vibe pedal, or just a preamp, the Larva delivers versatility and creative possibilities, always with the Beetronics unique signature.

The interface is intuitive and simple, yet the pedal can produce a huge amount of sounds and movements unique to this phaser. A bar of LEDs tracks the ramp movement, showing if you're in phase one or two, while the bypass LED doubles as a meter to monitor preamp distortion.

As our first phaser, the Larva brings together a large swathe of creative options with a streamlined, user-friendly design-modulation sweetness with a touch of gain.

Notes: Great value from this pro quality PA speaker, offering powerful, clear sound for larger venues, outdoor settings and small festivals. Bluetooth connectivity offers convenience and ease of use.

Supplier's Notes:
The TX415 is the most powerful unit in the TX Series and there is very little that this speaker can't do. Naturally, it makes easy work out of projecting compelling and pristine sound into large venues of all varieties as well as outdoor event spaces and festival grounds. However, this speaker is just as much about precision and detail as it is about sheer sonic force. The TX415 was tuned and designed in the United States and is optimized for top-of-the-line frequency response. Musicians, DJs, and performers of all kinds can rest assured that your audio will be delivered with pristine clarity, whether it's being played at full blast or at more intimate volumes. This capable speaker is easy to set up and simple to operate, requiring little to no previous knowledge of sound equipment to get up and running.

Thanks to Bluetooth connectivity, the Alto Professional TX Series ensures that users can get their PA system up and running completely cable free. This feature is perfect for any application that requires two simultaneous sources of audio, such as a microphone and background music running at the same timeia wedding MC announcing the bride and groom's first dance over music, a fitness instructor leading a spin class while energetic tunes pump in the background, a busker playing a long to a backing track, etc... In addition, the TX Series' powerful Bluetooth™ True Wireless Stereo (TWS) connectivity allows users to run two units in conjunction with one another without having to purchase any extraneous equipment or cables.

Thanks to an entirely metal grille and sturdy enclosure, you can be sure that these speakers and subwoofers can handle whatever unexpected twists and turns that may lie ahead. As if that weren't enough, users can expect all of this durability with the added bonus of tremendous portability. Not only are these units equipped with ergonomic handles but they are conveniently lightweight, making setup and transport easier than ever.

The TX415 provides solid and reliable performance in just about any situation. Whether it is mounted on a pole or being used as a floor wedge, this powerhouse of a PA Speaker is optimized to deliver rich and crisp sound in any configuration. In addition, the back panel of the TX415 is outfitted with simple, easy to use parameters that give users control over EQ without weighing them down with a confusing array of knobs and sliders.

Notes: Compact, portable sound reinforcement courtesy of Alto's reliable TX series. Suitable for indoor and outdoor use, the TX412 is user friendly and delivers loud, clear sound with the option to link multiple speakers for stereo use.

Supplier's Notes:
The Alto Professional TX412 is an all-purpose solution for any performer or business owner looking to bring serious sonic power to any large space or outdoor area without breaking the bank. Tuned and designed in the United States, this unit punches far above its price point-the TX412 is optimized to deliver sound that is lush with harmonic clarity and detail, even when utilizing all 700W of sheer sonic force that this unit is capable of. Thanks to a set of simple controls, the TX412 is highly intuitive and easy to operate. This powered speaker allows users fine tune their speaker's output regardless of their technical know-how or experience.

Thanks to Bluetooth™ connectivity, the Alto Professional TX Series ensures that users can get their PA system up and running completely cable free. This feature is perfect for any application that requires two simultaneous sources of audio, such as a microphone and background music running at the same time-a wedding MC announcing the bride and groom's first dance over music, a fitness instructor leading a spin class while energetic tunes pump in the background, a busker playing a long to a backing track, etc. In addition, the TX Series' powerful Bluetooth True Wireless Stereo (TWS) connectivity allows users to run two units in conjunction with one another without having to purchase any extraneous equipment or cables.

Thanks to an entirely metal grille and sturdy enclosure, you can be sure that these speakers and subwoofers can handle whatever unexpected twists and turns that may lie ahead. As if that weren't enough, users can expect all of this durability with the added bonus of tremendous portability. Not only are these units equipped with ergonomic handles, but they are conveniently lightweight, making setup and transport easier than ever.

The TX412 provides solid and reliable performance in just about any situation. Whether it is mounted on a pole or being used as a floor wedge, this powerhouse of a PA Speaker is optimized to deliver rich and crisp sound in any configuration. In addition, the back panel of the TX412 is outfitted with simple, easy to use parameters that give users control over EQ without weighing them down with a confusing array of knobs and sliders.

Notes: No-nonsense analogue business here from JMT. Square wave VCO and sub-oscillators can be morphed and wave folded to create unique timbres.

Supplier's Notes:
The JMT Synth EWG is a desktop analog synthesiser with a wide-ranging VCO and two reconfigurable sub-oscillators that emit square waves, ideal for thick bass tones. Two adjacent knobs can control the pulse of the square waves, allowing for a wide range of tones and timbres. Two reduce knobs govern the leve of each sub-oscillator, allowing the user to blend the tones to their taste. The EWG-1 is powered by a DC9V center negative adapter or a single 9V battery.

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***

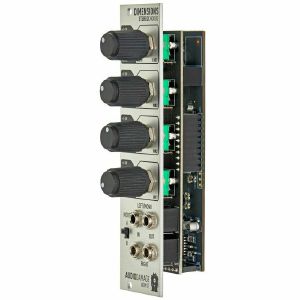

Dimensions is a true stereo chorus effect for the Eurorack modular system featuring two algorithms. The first is a direct port of our Fluid chorus plug-in, and the second is taken from the unit's namesake. With automatic routing based upon what you plug in the I/O, Dimensions can do mono->mono, mono->stereo, and true stereo chorus duties.

Dimensions' Mode A operation is a ludicrously thick chorus. Most chorus effects have either a single delay line or a pair. Dimensions has six of them, each with its own modulation scheme. The Mode B operation changes the routing to match the vintage rack unit, but keeps the controls available. This results in a subtly different, but equally thick and appealing, effect.

Notes: Compact acid sound with flexible application possibilities.

Inspired by the look of the classic TB-303, the mother of all bass synthesizers, the DT-303 from Dtronics offers a distinctive and original design.

It is designed to fit perfectly next to an original TB-303 or a clone.

Three adjustable blends with subtle frequency spectrum variations allow distortion levels from very subtle to total distortion. The filter can be used to suppress high frequencies and the volume control can be used to adjust the output level to your own needs.

The three modes, Classic, Turbo and O Drive, can be quickly changed using three buttons, while the bypass knob allows you to quickly return to the original sound. The positioning of the connections (Line In, Line Out, Power) on the back prevents a tangled mess of cables on the instruments.

DT-303 not only works in combination with TB-303 and RE-303, but also with other synthesizers and drum machines. The robust metal housing, its low weight and its compact size make it easy to transport and flexible to use.

Review: ***B-STOCK: Box damaged, product in perfect working order***


American blues-slanted rock band the Black Crowes put out their second album The Southern Harmony and Musical Companion back in May 1992. It was the first time Marc Ford had featured on lead guitar in place of Jeff Cease who was sacked the year before. It also marked the first time Eddie Harsch joined on keys and set a record at the time for being the first album to feature four rock number ones, and the album itself also climbed to the top spot in the Billboard 200 album chart. Its mix of blues and Southern styles often sees the album being included in lists of the best rock albums of all time.

Notes: The First Aid Kit is here to be your first choice, regardless of whether you're picking out your first utility module, building a minimal system or expanding a large system, by offering a powerhouse toolbox built on the principle of "everything you need, nothing you don't."

Offering ten functions in just 8hp, you can feel assured that you are no longer likely to run into dead ends while patching, because you need just one more utility - no need to buy lots of specialized utility units either, which can be both costly and space ineffecient, as you get all in one with the First Aid Kit.

Functions include:

5v DC source
Buffered multiple
LED voltage indicator
Summing 3-to-1 mixer
Signal inverter
Half-wave rectifier
Full-wave rectifier
Gate-to-trigger generator
Attenuverter
Bipolar and unipolar 8v offset generator
Functions can be used independently of each other, and the unit can be patched with itself for even more functions. Enjoy a toolbox that will solve nearly any problem you're facing, all in a compact-yet-comfortable 8hp.

The First Aid Kit replaces lots of other individual modules, and gives both newcomers an excellent starting point for what can feel like boring but necessary purchases, while also offering excellent utility to both large and small systems.

The First Aid Kit: don't get caught without one when you need it most.
