Notes: ADSR is a four stage linear envelope with two expressive ranges. Each stage can be modified independently allowing for the creation of complex, multi-segment envelopes. Great for modulating filters, VCAs, and oscillators.

Notes: ***B-STOCK: Box damaged, product unused & in perfect condition***


The 2hp VCA is a dual, linear VCA. It uses the renowned 2164 SSM architecture, giving it extremely low distortion and high quality audio outputs. With a CV input attenuator, and DC-coupled inputs this is your new go-to module for voltage controlled amplification of audio or CV.

Notes: ***B-STOCK: Box opened, product in perfect working order***

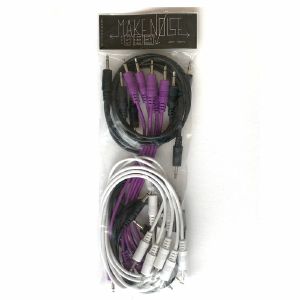

Save space in your rack with stackable cables.

These are the newer shorter stackable Eurorack Patch Cables. Patching is more stable and makes it easier to get a lid on that performance case.

Each end of the cable has a male and female jack. They come in sets of 5 cables.

Available in 6in (15cm), 12in (30cm), 18in (45cm), 24in (60cm).

Notes: ***B-STOCK: Box opened, product in perfect working order***


Save space in your rack with stackable cables.

These are the newer shorter stackable Eurorack Patch Cables. Patching is more stable and makes it easier to get a lid on that performance case.

Each end of the cable has a male and female jack. They come in sets of 5 cables.

Available in 6in (15cm), 12in (30cm), 18in (45cm), 24in (60cm).

Notes: The mmMidi is a simple & compact MIDI interface for your Eurorack synthesiser. It translates two independent channels of MIDI note, velocity and gate information to corresponding control voltage signals via either a classic MIDI DIN type connection or as a driverless USB MIDI device.

The mmMidi also converts MIDI Clock to analogue x24 fixed clock and run outputs (i.e DIN Sync). The optional mmT expander provides a third MIDI channel of 8 key mapped gate outputs.

Requiring minimal configuration and a pain free set up, the mmMidi makes it easy to sync Pam's clock to your DAW, control multiple synth voices, and trigger drum or sample modules with the optional mmT expander. The new USB-C connection makes it easy to drive your modular not just from your computer but also via your tablet, phone or any USB MIDI Host.

(Note: New 2025 mkII version adds USB-C functionality.)

Technical Specifications

Power: +12V 50mA / -12V 0mA
Size: 4HP
Depth: 38mm
MIDI response latency: 200-400 uSec
Resolution: Factory calibrated 12 bit 0-8V CV outputs. +5V gates

Notes: The 'Stereo Sum' is a unity gain summing mixer that features four stereo input pairs summed as pairs to two independent mix outs or all as a single combined mix. It is a useful utility for efficiently combining outputs of multiple stereo sources, such as the MEGA-TANG and Jumble Henge mixers or multiple MFX returns. The inputs accept stereo or mono signals (via normalisation) which can be audio or CV (module is DC coupled) and the top mixer's outputs are normalised to the bottom mixer section meaning if the upper output is left unpatched the two upper inputs will be added to the lower output.

Stereo input pairs

Stereo inputs. Can be used with audio or CV (inputs are DC coupled).

Left ins normalised to Right for mono signals.

Stereo mix output 1

Stereo mix output. Normalised to bottom mixer section if ouput is left unpatched.

Stereo input pairs

Stereo inputs. Can be used with audio or CV (inputs are DC coupled).
Left ins normalised to Right for mono signals.

Stereo mix output 2

Final stereo mix output.

Technical specifications

Power: +12V 8ma / -12V 8ma
Size: 4HP
Depth: 32mm

Notes: ***B-STOCK: Box opened, product in perfect working order***


Arturia's new KeyLab Essential 3 offers a new level of accessible, enjoyable, and creative music making, redefining the essence of a modern universal keyboard controller.

From its refreshing new design, to its vastly upgraded creative workflow, to an expanded software package, it promises to shake up the affordable controller market by empowering modern musicians and sound explorers looking to expand their setup without breaking the bank.

Main selling points

Fit for any style and any setup

For DAW producers, musicians with hybrid setups, or performers using hardware; enhance any creative setup or musical style with MIDI out & USB power, deep DAW compatibility, and premium software.

The new standard for affordable keyboard controllers

A keyboard controller that doesn't need tons of controls, menu diving, or complex configuration to operate. KeyLab Essential 3 looks modern, feels great, and removes creative barriers for next-level music making.

Directly-linked with Arturia's industry-leading software ranges

Many musicians and producers will be familiar with Arturia's award-winning software; KeyLab Essential 3 is part of the same range, seamlessly integrating with Analog Lab V, Pigments, and V Collection.

New Features:
New creative features: Scale Mode, Chord Mode, and Arpeggiator, making composition, songwriting, and beat-making more intuitive than ever.
Custom DAW integration: KeyLab Essential 3 features custom scripts for deeper control over DAWs, including Ableton Live Logic Pro X, FL Studio, and more.
More versatile presets: The 2000 presets included with Analog Lab V are no longer limited to vintage sounds; users can enjoy unique hybrids, modern synths, orchestral sounds, and more.
Easier controls & interface: RGB-backlit pads with velocity and pressure sensitivity, contextual button, and a bright new 2.5" LCD screen for real-time feedback.
Expanded software package for beginners & pros: Now includes Analog Lab V, 2 pianos (UVI Model D, NI's The Gentleman), plus subscriptions to Loopcloud and Melodics.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Limited-edition orange version of the superb Hydrasynth Explorer. A smaller, more affordable version of the Hydrasynth Keyboard. Advanced wavetable synthesis with 8-voice polyphony, hands-on control and an excellent keybed with polyphonic aftertouch.

Supplier's Notes:
The HYDRASYNTH EXPLORER is the ultimate in power and portability, combining the powerful Hydrasynth sound engine with battery-powered operation and the new, mid-sized Polytouch polyphonic aftertouch keybed. The user interface is designed with the utmost attention to detail, making sound creation a breeze. This is the ultimate, portable companion for any setup, and anywhere else a smaller footprint is needed.

With an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutants, and 2 filters that can be configured in series or parallel, the tone generating capabilities are unmatched.

As for the performance capabilities, the Hydrasynth Explorer has the proprietary 37-note mid-sized Polytouch keybed with polyphonic aftertouch. This provides a level of expressive, per-note control found only in certain vintage synths.

Polytouch Keybed

The perennial pursuit of musical instrument manufacturers is to find better ways for musicians to express themselves. Options have been limited for keyboard players; ASM had to settle for a velocity-only approach to emphasize one note over another. Pressure-sensitive keyboards could only change all of the notes at the same time. Not anymore!

Enter ASM, with patented Polytouch technology. The semi-weighted keybed on the Hydrasynth Explorer provides fully polyphonic aftertouch, as well as Note On / Note Off velocity sensitivity and the monophonic aftertouch found on other keybeds. Finally, variations in key pressure can affect notes individually. It feels great, too: the 37-note Polytouch keybed on the Explorer features high quality, mid-sized keys, and you will feel right at home, right away. The revolutionary Hydrasynth Explorer Polytouch keyboard helps you be more in touch with the music you are making. Now every note you play can ebb and flow like the tide.

Battery-powered operation

The Hydrasynth Explorer is highly portable! In addition to its compact size, it can be powered by 8 AA batteries for hours of music-making anywhere you want to go.

Oscillators
The tone generation capability is the heart of any synthesizer, and the 3 Hydrasynth oscillators are alive with potential. Each of the oscillators lets you choose from a selection of 219 single-cycle waveforms. And on top of that, two of the oscillators have powerful wavemorphing capabilities. Wavemorphing is a feature usually found on synths with preset wavetables. But creating user wavetables on those products is arduous or downright impossible. Unlike most wavetable synths, the oscillators 1 & 2 have an easy-to-use WAVELIST mode. This mode lets you select any 8 waves from the diverse collection of 219 waves, arrange them in the order you want, and then morph from one wave to another. This can be done automatically with any modulation source, such as an LFO or an envelope, or manually with a physical control such as polyphonic aftertouch or a Macro. And now in version 2.0 you can choose the bit depth of each oscillator, which puts those sought-after vintage or grungy sounds at your fingertips.

Mutants
Oscillators 1 & 2 are routed into ASM's MUTANTS. The Mutants allow you to modulate, bend and sculpt the sound in new (and old) ways.

Each Mutant lets you choose from the following processes:
FM-Linear: This is for making classic FM sounds. Choose multiple FM sources, including external inputs.
WavStack™: Creates 5 copies of the input source and allows you to set a detune amount.
Osc Sync: This gives you those classic hard sync sounds. Try hard-syncing a morphing wavetable for some fun.
Pulse Width Modulation (PW-Orig): Performs the classic pulse width modulation on any waveform.
PW-Squeeze: Compresses the centre section of the waveform, for a unique type of PWM.
PW-ASM: Divides the incoming wave into 8 slices and lets you set the amount of FM that is applied to each segment. This is FM unleashed.
Harmonic Sweep: This will sweep the harmonics of the input source.
PhazDiff: Generates the difference of the incoming wave and a version that is inverted and phase-shifted.

The Mutants can also generate their own waveforms in both FM and Sync modes, so you don't have use another oscillator. Of course, the routing is flexible so you can choose the other oscillators as mod sources if you like.

Mixer / Filter Routing
The 3 Oscillators are fed into a mixer along with the Noise generator and Ring Modulator. The mixer gives you independent control over the levels and stereo positions of those 5 sources. After this you are able to choose how much signal from each source is routed to filters 1 and 2. The filters can be routed in parallel or series for ultimate flexibility. Who knew that a simple mixer could be so powerful?

Filters
If oscillators and tone generators are the heart of a synthesizer, the filters are the soul. The soul of a Hydrasynth is a complex thing; it can claw or caress, scream or soothe, mangle or melt. It has been known to speak. The multi-faceted Hydrasynth filters are right in the thick of it. Filter 1 has 16 different models ranging from 1 to 8 poles, many with high-, band-, and low pass options. There is also a flexible vocal filter with formant control. Even if Filter 1 were the only filter the Hydrasynth had, it would take a lifetime to exhaust the possibilities. But it is not alone. Filter 2 is a 12dB per octave state-variable filter, which means it can sweep continuously from either low pass > bandpass > high pass or low pass > notch > high pass. It is similar to the classic SEM filter in many ways.
These two formidable filters can be configured in series or parallel. This means the one can feed and be sculpted by the other (series), or they can complement one another (parallel). With careful use of source panning in the Mixer module, the left and right outputs can be completely different or rich in unified complexity.

LFO's
5 Low-Frequency Oscillators
Much like ASM's sound engine, the LFOs are not ordinary by any means.
The Hydrasynth LFOs feature a STEP mode that lets you create patterns with up to 64 steps. Having 5 mini step sequencers gives you an amazing number of possibilities for further shaping your sound.
Of course, there are also 10 standard waveforms available, including Sample and Hold, Noise, and Random.
Each LFO has delay, fade in, 3 triggering modes, smoothing, start phase, BPM sync, and a One-Shot mode so that they can act as envelopes.
The version 2.0 LFOs have some exciting new features, including a Step option for the One-Shot mode that allows the Step wave to advance by one step per trigger.
And LFOs now can be quantized to create stepped values. It's like bit reduction for your LFOs.
Wait...LFOs can be envelopes?! Can envelopes be LFOs? Glad you asked...

Envelopes
5 DAHDSR Envelopes
An advanced sound engine needs plenty of modulation sources. The 6-stage envelopes feature Delay, Attack, Hold, Decay, Sustain, and Release stages.
The durations of the ADR stages can be set to seconds or subdivisions of the tempo, giving you envelopes that play in sync to your song.
In fact, you can also loop the envelopes, which turns them into LFOs that can be shaped by any source in the modulation matrix.
Each envelope can be triggered by up to four different sources, and there's a Tap Trigger option too.
And now the envelopes can be quantized to different step levels as of version 2.0. Bit reduction strikes again!

Modulation Matrix
The modulation capabilities on the Hydrasynth are endless. With 32 user-definable Modulation matrix slots, there are plenty of ways to use the 35 modulation sources and 191 modulation destinations. Almost everything in the synth engine can be a modulation destination, including the effects and arpeggiator. The modulation routes themselves can also become modulation destinations, and can be targeted by the Macros too. Modulation sources & destinations include the CV Mod Out jacks as well as all 128 MIDI CCs. There are some hard-wired modulation routes located in other modules too. This means you don't have to burn up one of the 32 mod routes in the Modulation matrix to do certain basic functions.

Arpeggiator
The arpeggiator has all the standard arpeggio directions plus a few twists (up, down, and/or sideways, sort of). There's also a built-in phrase mode, and version 2.0 adds new features like Step Offset and increases the range to 6 octaves. Parameters like RATCHET and CHANCE will generate other semi-random rhythmic patterns to add life and spontaneity to your performance.
You can also modulate most of the parameters in the arpeggiator. Imagine using LFOs, Envelopes, Polyphonic Aftertouch or the Ribbon controller to modify your arpeggios in real time! It boggles the mind.

Notes: Quad Attenuator/Inverter, Splitter, and Offset Generator

Scale your audio or CV sources and route them to various destinations with this versatile utility. It consists of four identical unity gain amplifiers. Each amplifier can multiply an incoming signal by values ranging from 0 to 1 (for attenuation) or from 0 to -1 (for inverting attenuation). The input of each channel is normalled to the input of the next channel, allowing for easy signal routing from one input to the subsequent ones.

The first channel is normalled to 10V, enabling the module to function as an offset generator when no input is connected.

Features

Inversion switch per channel.
Precise zero at the left side of the pots.
Four level LEDs indicate output level and polarity.
Cascaded input topology

Specs

Current needs: +12V: 60mA, -12: 50mA, 5v:0
Width: 4 HP
Depth: Assembled version 25 mm
Depth: DIY version 35 mm
Designed, kits prepared and modules assembled in Barcelona.

Notes: Combine up to four audio and or CV sources into one output, with independent manual level control.

It can be used as a four-channel mixer or as two separate two-channel mixers, depending on the connection.

If a cable is connected to the Master output but not to the 1+2 output, all channels will be summed at the Master output. If both the Master and 1+2 outputs are connected, the Master will output the mix of channels 3 and 4, while the 1+2 output will provide the mix of channels 1 and 2.

Each pair of channels has an LED indicator that shows the presence of a signal.

Notes: BOSS's iconic DD-3 Digital Delay has been a pedalboard staple since 1986, loved everywhere for its great sound and simple operation. With the DD-3T, we've updated the classic stomp with enhanced functionality while fully retaining the original's sound and control layout. It's now possible to tap in delay tempos using the onboard switch or an external one, with your choice of three beat subdivisions. And the direct output jack has been moved next to the main output, providing easier connectivity for wet/dry setups.

In continuous production for over three decades, the DD-3 has been the go-to delay stomp for countless players. Based on the DD-2-the world's first digital delay pedal from 1983-the DD-3 is revered for its warm, round delay tone and simple controls that let you dial in sounds fast. The DD-3T's sound circuitry and controls are identical to the DD-3, delivering every drop of that classic vibe you know and love.

A key addition the DD-3T brings is tap tempo, an essential feature for creating the rhythmic delay effects at the heart of many guitar styles. In delay mode, hold the pedal switch for two seconds to toggle between bypass and tap operation. And for on-demand tap control, simply connect an external footswitch. When the DD-3T receives tap input, up to 800 ms of delay time is available, and the Mode knob sets the tap subdivision (quarter-note triplet, dotted-eighth note, or quarter note).

The DD-3T features a direct output jack like the DD-3, but it's been moved next to the main output jack to make connections easier. Plugging a cable into the direct out converts the main out to delay only, allowing you to send wet and dry signals to different amps for wide, immersive sounds. And if your amp or switcher has a parallel effects loop, just connect a dummy plug to the direct out to mute the dry sound for effect-only blending.

The original DD-3 (and DD-2 before) included a forward-thinking Hold function, which allowed you to capture a sound up to 800 ms long, play it continuously, and jam over the top. Many years later, BOSS further developed this creative concept with the successful Loop Station products, which helped spawn the new musical style of live looping. The DD-3T includes the same Hold function as the DD-3, but it's been renamed "Short Loop" to reflect today's common usage.

Specifications

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: MODE knob, TIME knob, FEEDBACK knob, E.LEVEL(Effect Level) knob, Pedal switch
Indicator: CHECK indicator (Used for indication of check battery)

Connectors:
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
TEMPO jack: 1/4-inch phone type
DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
Current Draw: 70 mA

Expected battery life under continuous use: Alkaline: Approx. 5 hours
*These figures will vary depending on the actual conditions of use.

Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

Alkaline battery (9 V, 6LR61)

Options (sold separately)
AC adaptor: PSA series
Footswitch: FS-5U, FS-6, FS-7

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 420 g / 15 oz

Notes: Powerful GX-100 tone tools in a compact guitar/bass processor with a color touch display, multi-function footswitches, and a built-in expression pedal.

Players everywhere love the GX-100 for its streamlined design, free-flowing interface, and high-quality tones. Armed with the core GX-100 engine, the compact GX-10 brings you the same inspiring experience in an even more portable footprint.

You get loads of AIRD amps and effects for covering every style, plus speedy sound building with the intuitive colour touch display and panel knobs. Adding in multi-mode footswitches, an integrated expression pedal, and USB audio connectivity, the GX-10 seamlessly transitions from nightly stage performing to desktop recording, song creation, and daily practice sessions.

Compact amp/effects processor for guitar and bass

The same sound engine and colour touch display as the GX-100 in a portable, travel-ready design
Exceptional audio quality with 24-bit AD and 32-bit DA conversion, 32-bit floating-point processing, and 48 kHz sampling rate
Authentic tube amplifier tone and touch response with AIRD technology
32 amplifier types and 170 BOSS effects
Ultra-flexible amp/effect routing up to 15 assignable blocks
Wide selection of onboard speaker types and support for loading WAV speaker IRs
Streamlined modern design with a rugged metal chassis
Three footswitches with flexible control modes
Onboard expression pedal with toe switch
Connect up to two footswitches or an expression pedal for expanded control
Send/return loop for external pedals
Record and play tracks in music production software on a computer or mobile device* via a USB-C
Edit sounds from your computer with BOSS Tone Studio for macOS and Windows
Download and share Livesets at BOSS Tone Exchange (compatible with GX-100 Livesets)
Optional Bluetooth Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or
Android mobile device
*Compatibility with all third-party devices and software is not guaranteed.

Weights & measures
Product
300 (W) x 183 (D) x 74 (H) mm
11-13/16 (W) x 7-3/16 (D) x 2-15/16 (H) inches
2.2kg (4lb 14oz)

In the box
AC adaptor (PSB-1U + AC Cord Set)
Owner's manual
Leaflet "USING THE UNIT SAFELY"

2.2kg (4lb 14oz)

IN THE BOX
AC adaptor (PSB-1U + AC Cord Set)
Owner's manual
Leaflet "USING THE UNIT SAFELY"

Notes: The New Standard in Octave Pedals

Fusing classic BOSS octave tones with the latest tracking technologies, the BOSS OC-5 sets a new standard in octave pedal performance. Vintage mode provides a spot-on recreation of the legendary mono OC-2 from 1982, while Poly mode offers numerous enhancements for extended-range playing. And with the addition of an octave-up feature, a span of three octaves is now available for creative exploration. From fat, low mono sounds to octave-shifted chords and more, the OC-5 delivers the widest range, finest sound quality, and best playability in any octave stomp to date.

OC-5 Octave Sound Tryout

Get interactive with our custom TonePedia player and explore hundreds of sound variations. Select your instrument, tweak and choose pedal settings.

High-Octane Octave Performance

Powered by the latest real-time processing technologies from BOSS, the OC-5 provides exceptional sound and playability for the most expressive octave experience ever. A key feature is the newly developed tracking engine, which delivers clean, accurate performance with no latency. The OC-5 also offers wider range and greater polyphonic capabilities than previous OC models, covering all your octave needs in one high-performance pedal.

Classic Tones with Vintage Mode

Introduced in 1982, the OC-2 was the world's first modern octave pedal for guitar and bass. Still loved by players everywhere, the stomp's warm-yet-present tone sits perfectly in a mix, and its characteristic voice can be heard in many famous songs. The OC-5's Vintage mode brings you the OC-2's iconic mono sound, coupled with improved response thanks to the new tracking engine. Dedicated level controls are provided for -1 and -2 octave effects and the direct sound, giving you quick access to an endless variety of sub-octave colours.

Enhanced Poly Mode

The OC-5 also features an evolved version of the smart Poly mode first introduced with the OC-3 Super Octave, letting you play full chords with octave effects. The variable Range knob restricts the effect to the lower notes on your instrument, perfect for playing octave bass lines alongside normal chords and melodies in the higher registers. And with the new tracking refinements, it's even possible to isolate the octave effect to the bottom note in a chord-just turn the Range knob to the "Lowest" setting.

Extended Range with Octave Up

Another cool OC-5 enhancement is the new octave-up effect, which is available in both Vintage and Poly modes. Simply twist the dedicated +1 OCT knob to bring in the desired effect level. Use the octave-up effect on its own for faux 12-string sounds and unique solo tones, or blend it with the octave-down effects for extended chord voicings and super-fat leads.

Guitar/Bass Switch and Direct Out

The OC-5 lets you instantly optimize the performance of its tracking engine for either guitar or bass via a dedicated switch on the body of the pedal. And with the Direct Out jack, it's easy to route dry and effect sounds to different destinations, such as two stage amps or discrete channels on a mixer or audio interface.

Specifications

Nominal Input Level-20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:
Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob
Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors:
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22), AC adaptor (PSA series: sold separately)

Current Draw: 60 mA

Expected battery life under continuous use: Alkaline: Approx. 5 hours
*These figures will vary depending on the actual conditions of use.

Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Options (sold separately) AC adaptor: PSA series

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 440 g / 1 lb

Notes: The Tiptop Audio Buchla Model 296t is a 16 band spectral resonator & vocoder based on the original Buchla 296.

The 296 was first introduced in 1978 and very few were ever made. Making a module of such complexity at a time when electronic schematics were drawn with pencils, with 48 filters that were most likely hand-calculated is just incredible.

The 70's were a great era of exploration and proof of audio electronics scientific theories, but for Don Buchla it seems like it was always something beyond theory.

The 296 might at first look like an equalizer, but Don Buchla had totally different ideas for it. He managed to pack into it a 16-band analogue modular spectral processor, a cross-band vocoder, plus a massive amount of patch points to work with his synthesizer system.

Notes: ***B-STOCK: Box opened, product in perfect working order***


The Xkey sets you free.

Go where the music takes you. Meet the ultimate MIDI mobile keyboard.

Ultra Slim. Great Design.

Lighter than an iPad!

Xkey is made from rugged, brushed aluminium. The same material that is used in Macs.

It only weighs 600g (1.3 lbs) so you won't even know it's there. Pop it in your backpack, or use the optional Xkey carry case

Mac. PC. Android. iPhone/iPad.

Slip Xkey into your backpack or carry case and you're good to go.

Connect it to your favourite device, launch your favourite app ... and your recording studio is open for business.

Xkey is pro standard. But even if you're still learning to play the keyboard, you'll love the quality and features.

Plug & Play.

No drivers or external power supply required.

Simply plug Xkey into your device and play with the best apps.
Xkey is a fully compliant, USB MIDI controller (MIDI is the standard for professional quality music).

It's a high-quality musical instrument.

More octaves than a piano! And standard size keys.

Xkey has two octaves ... and a quick-touch button to instantly go 3×3 octaves higher or lower.

The keys are real size keys and press-volume sensitive. So you can play fortissimo or pianissimo.

Build emotion into your compositions!

Slim Design- Just over 1/2" high (16mm). Weighs 1.3lb (600g), Lighter than an iPad.

USB Powered- No battery needed. The Xkey is powered and upgradable via a single USB cable (provided).

Real Keys- 25 full size keys. Shut your eyes and you'll think you're playing a regular piano.

Easy to play with- The Xkey is simple yet powerful for advanced users.

100% MIDI- Use Xkey with your favorite music apps on your favorite devices. Works out of the box.

Polyphonic Aftertouch- Your pressure on the keys controls the effect individually. Professional studio standard feature.

Customizable- Download the free Xkey Plus application. Configure your keyboard how you like it.

Velocity Sensitive- Play loud with one hand, soft with the other. There's 128 levels of sensitivity.

Regular Updates- Benefit from upcoming new features. Upgrade your Xkey online!

Smart Buttons- Octave Change, Pitch Bend, Modulation, and Sustain function buttons.

Portable- Made for travellers and mobile users. Fit in any bag & case!

Aluminium Body- Robust, high quality construction. Looks great. Same finish as a MacBook.

Xkey

Controls
25 full-size keys (2 octaves).
100% MIDI compliant.
Velocity sensitive.
Polyphonic aftertouch.
Pressure sensitive Pitch bend and Modulation buttons, with continuous MIDI control data.
Octave +/- push buttons.
Sustain button.
USB Powered (no external power supply needed).
Firmware upgradable via USB.
Configurable via Xkey Plus free app for iOS, Mac OSX, and Windows.

Connectors
Micro USB connector (cable provided).
Activity indicator LED.

Dimensions
Width: 388 mm (15.27 in)
Height: 135 mm (5.31 in)
Depth: 16 mm (0.62 in)
Weight: only 600 g (1.32 lb): less than an iPad!

Power consumption
~ 125mW / 25mA

Included in Package
Xkey (25 keys)
Micro USB cable.
Quick Start Guide.

Notes: Light Edition - still made from super durable polycarbonate but reaching you at a more affordable price. Engineered in the UK specifically for the Arturia Keystep 37 Keyboard Controller. Custom moulded to fit the contours of the unit whilst leaving USB connections in place, the MPK Mini MK2 can sit ready for operation. Super durable polycarbonate shell protects delicate keys during transportation and slides straight into a flight case or bag for maximum protection. Don't go losing your keys.

Notes: The tools we use to compose and produce music are dear to our hearts.

The studio elements of dust, smoke and liquid have taken many a good synth down over the years. This is where Decksaver steps in. Precision trimmed for perfect fit whilst accommodating cables, your Reface can sit ready for operation.

Slides straight into a flight or soft case for maximum protection during transportation. Shields delicate keys, controls and internal components from damage in the studio, in transit and on stage.

Fits every model in the Reface range - YC, CP, CS & DX.

Notes: Standard Eurorack power cable.

Use the 10-16 variant for most modules. 16-16 is for modules that use the internal +5V rail.

Length: 25CM (9.8")

Notes: M3 is the original mounting screw as specified by Doepfer in the Eurorack specification. M3 screws are used in cases by Doepfer, TipTop, Intellijel and others.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Use familiar gestures to easily animate the sound of your favourite hardware and software synths.

Push your favourite synths further

Press Touche to activate a filter on your hardware synth or gently bow Touche's plate to add arpeggiator action to your favourite software synth. These are 2 examples of the many possibilities Touche can interact with your gear. This standalone MIDI controller simply translates your gestures into data (MIDI, CV or USB). Touche precisely allows you to modulate any sound, from the subtlest brush to the wildest strike.

Sturdy & precise

Touche boasts a solid monoblock design with few replaceable moving parts, equipped to translate anything from the softest touch to the roughest rhythms, with pinpoint precision.

Universally compatible

Touche is compatible with any software or hardware synthesizer thanks to its built-in CV, MIDI and USB outputs. Internal memory even lets you control hardware synths without a computer.

Ready to use

Touche can control all your favourite third-party software instruments too. Pre-made mappings for all best-selling VST instruments, as well as hardware instruments, are included.

Sounds included

Touche ships with UVI Workstation, a plug-in providing over 250 custom-designed instrument sounds. These sounds come pre-mapped with Touche so you can focus on producing.

A new, tactile playing experience

Touche bypasses the traditional limitations of most synths' and MIDI controllers' keybeds, seamlessly connecting your gestures to sound. Less programming, less automation, more creativity!

4 degrees of freedom

Each direction on the control surface affects different parameters. Combine movements for amazing effects.

Capturing precision

Touche captures your movements with pinpoint precision. Record incredible performances in real time.

Get percussive

Tap your melodies rhythmically, creating percussive tones unique to the Touche family.

Hands down

Discover new ways to articulate your sounds with your keyboard and Touche working in harmony.

A powerful companion software

Meet Lie, Touche SE's control centre and companion software. Lie allows you to:

Browse easily the included sound library (+250 presets)
Host any third party plug-in and map it to Touche and Touche SE
Create mappings for hardware gear in a blink (Touche only)
Adjust Touche's sensitivity to your taste

Rediscover your favourite hardware synths

Touche includes more than 250 hardware synthesizer mapping presets - providing instant, ready-mapped control of the factory presets included with most popular synthesizers.

Rediscover your favourite plugins

A beautifully engineered hardware instrument, able to translate anything from the softest touch to the roughest rhythms, with pinpoint precision.

Extraordinary sounds included

Touche comes with a professionally-designed sound library, so you can start exploring right after installation. Explore ripping basses, soaring leads, evocative pads and pounding percussion, all pre-mapped to take full advantage of the hardware.

Expand your soundscape with Touches expansions and instruments plugins

Need more sounds? Expansions and instrument plugins are an ideal playground for Touche. Discover a whole new universe of sounds and playing articulations, fully compatible with Touche and its software companion, Lie.

Touch plate

We are all different, and your Touche can be different too. You can fully perfect your Touche's response with adjustable controls, and you can even customise its appearance with our range of alternative touch plate finishes, available separately.

Cylinder

The cylinder is the heart of the Touche - it controls exactly how your Touche reacts to pressure. The 'Shore 40 Pink Cylinder' is the classic all-rounder and is included with Touche. It's suited for a wide range of gestures, soft or hard, progressive or percussive. But for those interested in a softer or harder response, we have a range of other cylinders to try.

No computer required

Touche can operate completely standalone, controlling MIDI and CV hardware without a computer connected. Pre-prepare your perfect control mappings and select and recall them live onstage - Touche is the perfect companion for adding expression to your live rig.

Touche

USB: USB Powered
MIDI in: 1/8" (3.5mm) jack socket
MIDI out: 1/8" (3.5mm) jack socket
CV: 4 x 1/8" (3.5mm), up to -10V to 10V
Axe: 4 axes with customizable sensitivity
Lie: Lie: macOS 10.11 and higher / Windows 10, VST / AU format, hosts VST instruments only
Dimensions: 9.7" x 3.9" x 2.4" / 246 x 100 x 62 mm

Box content:
Touche
1x USB Cable
2x MIDI break-out cable (jack to DIN)
1x Ground Loop Adapter

Notes: 3,5mm stereo jack male to 2 x 3,5mm mono jack female.

Length: 22cm

Colour: black

Notes: The current G module is an updated version of the now-discontinued 2016 G. Its functions are the same as the old one, but it features significant design upgrades that improve its usability: the selectors for the group output's behavior are now on the front panel, and the knob is now 12 mm in diameter, like the new SC and QSC.

The G (Group) is a stereo module that blends the signals coming from the channels linked to it (up to eight) and manages their signal routing.

The G "puts into practice" all the information defined by the channels' controls: volume, effect send volume, stereo panning.

It consists of three sections: the amplitude controls (white) and the two effect sends and returns (yellow and green).

A switch lets you define the group outputs' behavior: it can be either the sum of all the channels and their effect return or just the wet signal.

The first option is great for smaller setups, where you can use the group as your system's output without a master module.

Should you have a master, the second option allows for more advanced effects parallel processing or multitrack recording.

As of today, the Group is the only module that does not require power, as a Channel powers it through its IDC cable.

Ships with a 1-group-to-2-channels Link System.

Notes: What do you get when you combine voltage controlled distortion and one of the most infamous bassdrums? Hexinverter took one of the most revered bassdrum synthesis designs of all time - the TR-808 and completely redesigned it for use in a modular analogue synthesiser.

13HP
30mm deep
+55mA, -45mA
Eurorack format module

Notes: Your Palette case is the ideal solution for your space conscious and portable needs. At about the same size as a small laptop, your Palette fits comfortably on your desktop; in your backpack; at your favourite coffee shop; in your jam space; or pretty much anywhere else you might desire to play. Your imagination is the only limit. With 62hp of rack space, you can piece together powerful but focused mini systems and control surfaces. Intellijel's 1U row and built-in i/o ports add a ton of extra utility to bring the most out of your Eurorack modules. Truly a palette for the sonic artist.

Utilities panel:

- Dual 1:4 buffered multiple
- Two 1/4" balanced audio jacks that can be connected to the Stereo Line Out 1U, Pedal I/O 1U or Mixup
- 1/8" (6.35mm) MIDI Input that can be connected to uMIDI 1U
- USB port that connects to the uMIDI 1U and other future modules
- Rocker switch and barrel plug for power entry

Construction:

- Anodized aluminium
- Aluminium extruded rails with steel threaded inserts
- Rubber feet to protect your desktop
- Rear mounted power supply for maximum module depth

Includes:

- 40W Meanwell AC/DC adapter with right angled connector
- 3FT North American IEC power cable
- 1/8" (6.35mm) TRS to 5-Pin Din MIDI adapter

Notes: A visit to the Hainbach Studio Complex two years ago, led to a collaboration that would result in what is perhaps Joranalogue's finest design yet. United by a common passion for vintage test gear, the Joranalogue team joined forces with artist and YouTube sensation Hainbach.

Collide 4 builds upon on the lock-in amplifier concept, and brings it into the Eurorack world. These atomic age physics research instruments are known for their raw power when used in musical applications. Soon, any synthesist can experience this for themselves, at a fraction of the size and weight of a vintage unit, and with full voltage control.

The result is a wholly new kind of synth voice and audio processor, unlike any other. It's a perfect union of Hainbach's extensive experience in exploring the deepest musical realms contained within vintage test equipment, and profound knowledge of audio design and production.

'Quadrature spectral computer' is how you could describe this new kind of musical generator and processor. The sound? Quite simply: it's smashing!

Specs

Modern, fully analogue re-imagining of the lock-in amplifier concept, expanded to new heights.
Pingable variable bandwidth filter with self-oscillation capability.
Pre- and post-filter gain stages, for a total of up to 130 dB of amplification!
Through-zero sine/cosine quadrature oscillator.
Hilbert transform network for use as a frequency shifter.
Dual ring modulators with output lowpass filters.
Extensive output section, including magnitude and phase analogue computing outputs.
Unique X/Y quadrature topology, ideal for stereo use.
Handsome (and useful) signal level/overload LED indicator.
CV control over everything, with temperature compensation and excellent volt/octave pitch tracking.
20 HP, 30 mm deep. Over 600 components, yet a fraction of the weight and size of a vintage Model 124A lock-in amplifier unit.

Notes: The Attenuator Cable is a cable with one jack input socket on one side, an output socket on the other side and a slider in the middle that gives the user the opportunity to attenuate both CV and audio signals traveling between modules. You simply connect a 3,5mm patch cable to the input socket of the Attenuator Cable and connect the output jack plug to any input of your liking. You can use the slider in the middle of the cable to attenuate and adjust the signal, easy peasy! The cable design has been optimized to function with any CV or audio signal and with all known and widely available 3,5mm jack cables.

Notes: A pack of a smaller and bigger contact waterproof microphone with mono 3,5mm connectors, cable length 120cm.

Notes: Brilliant experimental box inspired by electroacoustic musicians including John Cage. Signal processing, mixing, sound generation and the ability to send voltages to physical devices like motors and buzzers. Super creative.

Supplier's notes:
The new KOMA Elektronik Field Kit is the perfect tool for everyone who would like to experiment with electro acoustic sound. Use everyday objects, amplify them and use them to make sound, like our heroes John Cage and David Tudor used to do!

The Field Kit is optimized to process signals from microphones, contact microphones, electromagnetic pickups and able to run DC motors and solenoids. On top of that it can receive radio signals and convert signals from switches and sensors into control voltage!

Let's get more detailed...

The Field Kit boasts 7 separate functional blocks all focussed on receiving or generating all types of signals. They are designed to operate together as a coherent electroacoustic workstation or alternatively together with other pieces of music electronics with the ability to use control voltage signals.

The Four Channel Mixer is the beating heart of the Field Kit, providing a fully functional mixer with individual Gain, Mix Level and Tone control over each channel and individual Master- and Aux sub-mixes.

The level of the Master and Aux Channels can be set with the Master Volume and Aux Volume controls and the channels being sent to the Aux sub-mix can be set with dedicated Aux Select-buttons. The Aux sub-mix is pre-fader.

The CV Radio is a CV-controllable radio receiver capable of receiving radio frequencies on AM/FM and SW bands. Additionally it provides the ability to catch electromagnetic waves for further processing inside the Field Kit. The frequency of the radio can be set with a dedicated multifunctional Search-control which acts both as a manual CV-source and as an input attenuator for a CV-signal.

The Envelope Follower in the Field Kit applies two functions to the waveform you send to the input: full-wave rectification (mirroring of negative portions of the waveform) and low-pass filtering (averaging). It can also be used for frequency doubling of a signal, which is a great tool to have in the electroacoustic domain.

The Low Frequency Oscillator generates periodically varying voltages to be used as control signals. The output waveform can be set with a three-position Waveform-control and gives out either a Square-, Triangle- or a mix of Square and Triangle waveforms.

A very cool function of the Field Kit is the DC Interface. You can use its output voltages to run little motors, fans, solenoids, buzzers and control them with control voltage signals. You can pick up the vibrations and electromagnetic waves with the contact microphones and electromagnetic pickup.

The Signal Interface is a nifty toolset to transform the raw signals of a wide variety of sensors and switches into signals that can be used with the Field Kit or other gear. This means you can trigger or control sound by light, heat, humidity, distance, speed, acceleration, proximity, pressure, force, level, all depending on what type of switch or sensor you are using! Ideal for sound installations!

Notes: Electromagnetic pickup for use with the Field Kit.

Use this to pick up electromagnetic signals from anything that has an electromagnetic field, like electronics devices, screens, power adapters, lamps, displays, phones, motors, laptops and so on.

There is a whole world of sound hidden all around us in those fields that you can make audible by placing this pickup next to the source.

Notes: It's all about the things you connect to the The Field Kit! To get you started, Koma Elektronik have decided to offer an Expansion Pack with a bunch of different sources that you can use and connect to create your own signature sounds.

The Expansion Pack contains:

- 2 x Contact Microphones: Use these contact microphones to pick up vibration or sound, they are an amazing versatile input source
- 1 x Electro-Magnetic Pickup: This guy is good at picking up changes in magnetic fields, you can use it to amplify a string like a guitar pickup or amplify a spinning motor
- 1 x Solenoid push-pull motor: Use the solenoid to hit things, together with the DC Interface the solenoid can make anything rhythmical and percussive
- 1 x DC motor: The Motor can be used to rotate things or as a noisy oscillator together with the Electro-Magnetic Pickup
- 1 x small speaker: Use the speaker to listen to the main mix or as a sound source and to feedback sounds
- 3 x patch cables Always handy to have around to patch up different parts of your Field Kit... and a bunch of little objects to play with (little springs, marbles)

The new KOMA Elektronik Field Kit is the perfect tool for everyone who would like to experiment with electro acoustic sound. Use everyday objects, amplify them and use them to make sound, like our heroes John Cage and David Tudor used to do!

The Field Kit is optimized to process signals from microphones, contact microphones, electromagnetic pickups and able to run DC motors and solenoids. On top of that it can receive radio signals and convert signals from switches and sensors into control voltage!

Notes: Use this panel to mount your Field Kit FX in your Eurorack System.

Please note: This only includes the Eurorack Panel, NOT the full Field Kit FX.

Notes: A simple and compact 1U module for hands-free control, the Kommander generates CV and gate signals based on your hand's proximity to the infrared sensors. Cheap, fun and effective.

Supplier's Notes
An infrared motion controller that makes controlling your modules intuitive and fun. The KMNDR measures the distance to other objects (e.g. your hand) and sends a CV and gate signal.

This will allow you to interact with your modular system in a fun and intuitive way, create complex synth sounds, trigger a drum machine and "play" your modules.

Just plug the KMNDR into your synthesizer and create! The KMNDR ships with a 10-pin power connector.

Meet the KMNDR: our new compact sibling of the renowned KOMMANDER. This infrared X-Y motion controller is about to revolutionize the way you interact with your modular synthesizer.

Designed to make module control both intuitive and enjoyable, the KMNDR transforms physical gestures into musical magic. By simply measuring the distance to objects like your hand, it sends out CV signals ranging from 0 to 10 volts, alongside a 10V gate output, enabling a tactile and expressive approach to music creation.

Whether you're looking to craft complex synth landscapes, trigger rhythms on a drum machine, or "play" your modules as if they were traditional instruments, the KMNDR is your gateway to a new realm of musical expression. Its plug-and-play functionality means you can seamlessly integrate it into your setup, opening up endless possibilities for innovation and performance.

The KMNDR is not just about functionality; it's about bringing fun back into music production. It ships ready-to-use with a 10-pin power connector, ensuring you can dive straight into creating the moment it arrives. Prepare to engage with your modular system like never before. With the KMNDR, your hands are not just making music; they're creating an experience. BOOM!

Dimensions: 8 HP, 23 mm deep
Module is a 1U tile in Intellijel format

Current Draw: 56 mA +12V, 2 mA -12V, 0 mA 5V

Notes: A lovely creative approach to generative synthesis. Dual voices with triangle/square wave oscillators, shift register and envelopes can be patched via banana cables to create unique grooves and drones.

Supplier's Notes:
Double Knot v3

The Double Knot v3 is a small generative synthesizer with two voices and corresponding sequencers. This instrument has a simple architecture which is capable of a wide variety of sounds, including rhythms and drum patterns or textural and grating noise sounds. The interface is made up of knobs, switches, and banana plugs for patching. The two voices of this device each consist of a triangle/square wave oscillator, a shift register sequencer, an enveloper, and a voltage controlled amplifier. A clock sets the tempo of the shift registers.

The voices of the Double Knot are pre-wired, in a linear chain of functional blocks. The patch points are available to route modulations, influencing the simple linear voices. The game of this device is to investigate the relationships between the elements of the synth using the knobs, switches and patch-points.

FAQ

How many banana cables do I need? and what length?

8 or 10 cables around 12" long is a great start.

Can I patch this with my other synth?

Only what is safe for this synth. The banana ports of this device can handle max +/- 8V at all inputs and outputs assuming at least a 1k output impedance in the other device. The response range of the voltage inputs is ~1.2v - 8V (range of a TL07x powered by 9V).

Is this synth good by itself, or does it rely on other devices to be useful?

Some good sounds can be had using this device and a handful of banana cables.

Notes: 10hp blank panel for modular synth system

Notes: 4hp blank panel for modular synth system

Notes: Pack of 5 x 6" patch cables for modular synths and synth modules

Notes: 6hp blank panel for modular synth system

Notes: 15 pack of purple 6", white 12", and black 24" patch cables for modular synths.

3.5mm mono jack connectors.

Notes: A spin-off from the brilliantly experimental Strega synth, the Bruxa module offers a different type of 'Time/Filter Experiment' designed to warp and twist sounds from other modules. Excellent creative stuff.

Supplier's Notes:
Check Make Noise's website for content and pictures!

The Bruxa music synthesiser module is an audio alchemical experiment. Spill your sound into time, and let it decay through the filters to hear the results.

Bruxa is a collaboration between Make Noise and Alessandro Cortini. Inspired by Cortini's music and sonic experimentations, Bruxa embodies the seen and unseen, the sign and magic, the alchemy of sound. It is a new evolution of Tony and Alessandro's original prototype circuits which eventually became the Strega's Time/Filter Experiment. It is a multi-tap delay line with over a dozen unique feedback paths and multiple filters within those feedback paths aligned to allow for accumulation of noise, saturation and signal degradation.

While Strega is a complete synthesiser in a tabletop form factor, Bruxa is a Eurorack module designed to be used as one part of a Eurorack modular synthesiser. You will discover a number of differences in layout, signals, and sound. Living inside the Eurorack modular system, Bruxa encourages you to patch your own sound and modulation sources, yielding results surprisingly distinct from Strega.

Echoverb signal processor which shares origins with Strega
Well tuned to work nicely in a Eurorack modular system
All analogue dry signal path blended with digital/ analogue hybrid signal processor
Analog CV inputs with wide range capable of audio rate modulation
Time control with massive, smoothly variable range
Linear FM input with attenuator allows for fluttering of Time
Absorb and Filter controls dramatically shape the echo tone and reflections
New unique CV outputs for use in self-patching or mutual patching with other modules
Pairs well with DPO, STO, MATHS, Prss Pnt, modDemix and more!

Specs:

Width: 18hp
Max Depth (incl. power cable): 48mm

Power:
140mA @ +12V
90mA @ -12V

Notes: The Dual Stereo Gate (DXG) music synthesizer module is a Dual Stereo Low Pass Gate and Mixer. It follows in the footsteps of the QMMG, Optomix, RxMx, DynaMix, and LxD. Unlike its predecessors, the DXG is specifically oriented around mixing stereo signals, making it an important addition to any system containing modules like XPO, QPAS, Morphagene, Mimeophon, and other stereo modules by Make Noise or others.

Unique to the DXG is a new low pass gate circuit that does not use vactrols. This circuit is 100% analogue and its response was arrived at after many months tailoring it to meet or exceed the expectations that have been set by all the vactrol low pass gates that Make Noise has created over the years.

In the past, Make Noise produced the Dynamix module and Dynamics circuit in the 0-COAST, both of which are vactrolless LPGs; however, the DXG is a completely new approach which better implements the gentle single pole filtering of a low pass gate, while also emulating the slow decay and memory of the vactrol based low pass gate. This new circuit makes possible the consistency of response necessary for versatile stereo use, while also keeping the module small and affordable so that it can be a key part of just about any modular system.

As on all of Make Noise's low pass gates, the DXG's Control parameter is used to set both the amplitude and the frequency content of the sound that passes through it. The control parameter tends to open faster than it closes, imparting a subtle decay phase onto any envelope shape that is used to modulate it.

Unlike previous low pass gates made by Make Noise, all the DXG's inputs and outputs are stereo. Each set of inputs is normalled so that the left input can be used for a mono signal, sending a copy to both left and right outputs. The Auxiliary inputs are also a stereo pair with mono normalization. These normalizations allow for the DXG to be used as a simple three channel stereo mixer, with one or two of the channels additionally being used for dynamics control and note event generation. The Aux inputs can be used to chain together larger decentralized mixes using additional DXG modules, or X-PAN, Optomix, modDemix etc.

Features

- Make Noise's first Stereo Low Pass Gate

- Vactrol-free design for classic Low Pass Gate sounds, but with the balance and consistency needed for true Stereo

- Fully Stereo i/o for easy integration into a Stereo-equipped modular synthesizer

- All Left inputs normalled for easy use with Mono signals

- STRIKE Input allows use of Gate signal to trigger Low Pass Gate circuit, creating "plucking" or "pinging" sound from any Gate

- Summing stage with Stereo AUXiliary IN allows for chaining of multiple units, creating larger mixes

- Part of a decentralized mix console integrated throughout the system along with X-PAN, Optomix, XOH, etc.

- Pairs well with XPO, QPAS, Morphagene, Mimeophon, Spectraphon etc.

Width: 8hp
Power:
74mA @ +12V
86mA @ -12V
Module Depth (incl power cable): 43mm

Notes: The Multiple is a simple but important module that allows for sending a signal to multiple destinations. Within the Make Noise system the Multiple may also be used for combining clock, gate and pulse signals together to create interesting timing sources (in other words, it acts as a Gate combiner aka logic OR circuit).

It has 9 inter-connected sockets that may be split into different group combinations depending upon how it is patched. The jacks circled in white will make or break the interconnects between the 3 groups of three, thus allowing for three 3-way, one 5-way/ one 3-way or one 7-way multiple.

The Multiple is passive, because the Make Noise system does not require Buffered Multiples since all critical control signals are already buffered in such a way as to provide a large fan-out capability.

Notes: 10 pin to 16 pin power cable for Make Noise synth modules

Notes: 16 pin to 16 pin power cable for Make Noise synth modules

Notes: Pressure Points is a controller module, an analog sequencer that is played by hand. Touching the gold plated copper wires (aka Touch Plates), you become part of the circuit, generating a gate signal (Gate OUT), a control signal proportional to the amount of pressure applied (Press OUT) and the 3 Tuned Voltages for the activated Stage.

Notes: The Morphagene music synthesizer module is a next generation tape and microsound music module that uses Reels, Splices and Genes to create new sounds from those that already exist. Search between the notes to find the unfound sounds.

A few of the Morphagene's most basic uses: Splice recorded audio and jumble it using ORGANIZE. Manipulate playback speed and direction with Vari-Speed. Granularize with Gene-Size and Slide. Layer or Stagger Genes using MORPH. Undertake iterative music processes by recording manipulations and overdubs into new Splices, like having two machines (one for Playback and modulations, one for Record). Process sound in real time using Time Lag Accumulation. Utilize envelope following CV OUT and EOSG Trigger to engage Morphagene in conversation with the rest of your modular system. Stretch and squash sound with Clock input.

Features
New revision Morphagene firmware MG204 adds great functionality.
Voltage control over all sound manipulation parameters
Stereo I/O with Input Gain Selection, works with line- or modular-level signals
Recording Reel can be up to 2 minutes 54 seconds long
Record/ create up to 99 Splices per Reel
SD Card stores multiple Reels
Sound On Sound allows for layering sounds
Playback and Recording independent, like having two machines
Vari-Speed range 12 semitones up and 26 down, over 3 octaves
24-bit codec, creates 48k 32bit WAV files
Back up Reels on computer with SD Card
Share and download Reels at freesound.org! [see how]
includes blank SD Card

Specifications
Width: 20hp
Max Depth
(incl. power cable): 45mm
Power:
165mA @ +12V
20mA @ -12V

Notes: Based on technology from the award-winning LVX and MercuryX pedals, the Enzo X is a superbly powerful six-voice modular synth, with polyphonic pitch detection and no special pickup needed on your guitar.

Supplier's Notes:
Combining 5 synth modes, Enzo X incorporates each of these into a modular system UI/architecture from both the award-winning LVX and MercuryX pedals.

In addition to being a 6-voice poly synth, Enzo X includes 3 reverbs which are adapted from Mercury X (Prism algorithm), 5 Drives (including Bitcrush), a full stereo 2.5 second Delay and 5 modulation types.

To make this complex system immediately intuitive to navigate, Meris again leveraged the simple and easy to use UI first developed for LVX.

Notes: The Michigan Synth Works SY-1 Drum synth is a full size, exact replica of the Pearl SY-1 Syncussion. Every detail has been replicated from the original board layouts to the mechanical construction. The assembled version has been modernized to use current manufacturing processes while still using the original board layouts and all parts have been carefully chosen to match the behaviour of the original. Case, boards, and I/O Boards are all interchangeable with the original Pearl device

The Syncussion:

The Syncussion is a 2 voice drum synthesizer with two oscillators per voice and six different modes. Five modes mix and modulate the oscillators plus a noise channel. Each voice has controls for TUNE, DECAY, SWEEP amount, SWEEP Speed, Sweep up/off/down, LFO amount, and LFO speed, LFO Shape (Tri or Square), and sample and hold

OSC Modes:

A: One oscillator sound, at this position the regular drum synthesizer sweep can be effected.

B. Sound of one oscillator adjusting the other osciIIator frequency; produces a metallic sound.

C. Sound of a mix of two oscillator outputs; sound is similar to that of a vibraphone.

D. Sound of mix of two oscillator outputs; produces a low to high sweep and is done by hitting pad softly or hard; there is no connection to SWEEP SPEED and SWEEP RANGE

E. Sound of one oscillator adjusting the other oscillator frequency with a mix of noise; produces a sound similar to hitting thin metal.

F. Sound of only noise

Triggering:

The SY-1 is designed to be triggered via drum triggers which output a very low pulse signal. Modern 5V trigger signals (v-trig) can be used, how it i recommended experimenting with simple audio samples or more dynamic triggers. One of the more interesting features of the Syncussion is the dynamic response to the drum triggers and just sending a straight pulse which maxes out the trigger inputs does not do the device justice.

Tuning:

The original SY-1 uses a tune pedal to adjust the pitch of both oscillators while playing. This functionality has been retained in the original configuration but is of limited use without the pedal. The expanded version DOES have per voice CV control (1v/Oct) as well as the MIDI.
The Michigan Synth Works SY-1 is available in 3 different versions:

Expanded I/O Configuration: The inputs and outputs use 1/4" Stereo to 1/4" (3 included) to greatly expand the capabilities of the device. The Mod input is open for user modification, factory mods will be available. Please contact for details.

Trig 1,2 In - Mod 1,2 In - Mute - Tune 1,2 CV in - Output 1, 2

The SY-1 ships with a metal base panel but the DIY wood case can be used instead. It is provided UNFINISHED and sold separately.

What's included:
SY-1 Synthesizer
Universal Power adapter (100-240V, 12V DC out, Tip Positive)
Expanded I/O: 3x 1.5m TRS 1/4" Phone to 2x TS 1/4" Phone

Notes: The Michigan Synth Works SY-1 Drum synth is a full size, exact replica of the Pearl SY-1 Syncussion. Every detail has been replicated from the original board layouts to the mechanical construction. The assembled version has been modernized to use current manufacturing processes while still using the original board layouts and all parts have been carefully chosen to match the behaviour of the original. Case, boards, and I/O Boards are all interchangeable with the original Pearl device

The Syncussion:

The Syncussion is a 2 voice drum synthesizer with two oscillators per voice and six different modes. Five modes mix and modulate the oscillators plus a noise channel. Each voice has controls for TUNE, DECAY, SWEEP amount, SWEEP Speed, Sweep up/off/down, LFO amount, and LFO speed, LFO Shape (Tri or Square), and sample and hold

OSC Modes:

A: One oscillator sound, at this position the regular drum synthesizer sweep can be effected.

B. Sound of one oscillator adjusting the other osciIIator frequency; produces a metallic sound.

C. Sound of a mix of two oscillator outputs; sound is similar to that of a vibraphone.

D. Sound of mix of two oscillator outputs; produces a low to high sweep and is done by hitting pad softly or hard; there is no connection to SWEEP SPEED and SWEEP RANGE

E. Sound of one oscillator adjusting the other oscillator frequency with a mix of noise; produces a sound similar to hitting thin metal.

F. Sound of only noise

Triggering:

The SY-1 is designed to be triggered via drum triggers which output a very low pulse signal. Modern 5V trigger signals (v-trig) can be used, how it i recommended experimenting with simple audio samples or more dynamic triggers. One of the more interesting features of the Syncussion is the dynamic response to the drum triggers and just sending a straight pulse which maxes out the trigger inputs does not do the device justice.

Tuning:

The original SY-1 uses a tune pedal to adjust the pitch of both oscillators while playing. This functionality has been retained in the original configuration but is of limited use without the pedal. The expanded version DOES have per voice CV control (1v/Oct) as well as the MIDI.

MIDI equipped I/O Configuration: This is the same as the expanded i/o configuration but adds MIDI in place of the MOD input. The MIDI responds to velocity to gate level and pitch for each channel. 2 TRS-TS and TRS MIDI cables are included

Trig 1,2 In - MIDI In - Mute - Tune 1,2 CV in - Output 1, 2

The SY-1 ships with a metal base panel but the DIY wood case can be used instead. It is provided UNFINISHED and sold separately.

What's included:
SY-1 Synthesizer
Universal Power adapter (100-240V, 12V DC out, Tip Positive)
MIDI I/O: 2x 1.5m TRS 1/4" Phone to 2x TS 1/4" Phone, 1x 1.5M 3.5mm TRS to MIDI, 1x TRS 3.5mm to 1/4" TRS Adapter

Notes: Xena is a rework of the legendary Mutable Instruments Ambika DIY synthesizer. Now fully machine assembled with an updated layout and an improved modern power supply.

Xena Features:

6 voices with individual outputs.
2 digital oscillators per voice, with 36 oscillator algorithms/wavetables.
1 sub-oscillator, also configurable as a transient generator.
Pre-filter overdrive and bit-crushing effect.
Analog 4-pole filter and VCA.
3 ADSR envelopes, 3 patch-level LFOs, 1 voice-level LFO.
Modulation matrix with 14 slots and 4 modulation modifiers.
1 arpeggiator, 1 note sequencer and 2 step sequencers per part.
Flexible mapping of the 6 voices. A single patch with 6 voice-polyphony, 6 independent mono parts, 2 layered patches with 3-voices polyphony, a 3-voice unison bass line on the lower half of the keyboard with a 3-voice unison lead on the upper half... all are possible!
MicroSD storage allows the storing of a life-long of patches, programs and multis, along with the history of editing operations for undo/redo.
Easy to change voice cards

Filter Options:

SMR Filter: This filter uses the same topology as the Shruthi SMR4mkII. It is a low pass 4 pole OTA-C filter. It is a smooth "Rolandish" type filter

Includes:

Xena Desktop Synth
12V DC universal (100-240V) Power Supply
Preformatted SD card

Notes: XVI-M MIDI Controller, 16 Faders, 16 programmable buttons, 14bit resolution

XVI-M Desktop is a 16 channel desktop MIDI control surface.

Features:

Long throw LED 60mm faders
USB MIDI, MIDI TRS#1 and MIDI TRS#2 outputs
USB Powered (USB C, Cable included). Stand alone adapter available but NOT included
14bit (MIDI Pitchbend) resolution faders. Can be set to any 7 bit CC or NRPN/RPN
Online parameter editor: https://misw.us/editor
Fader output can be routed to USB MIDI, TRS MIDI A or TRS B
3 color programmable button can be momentary, 1 state toggle, 2 state toggle, or 3 state toggle with each state sending a MIDI msg
Durable metal case
Includes:

XVI-M Control Surface
USB C to USB A cable (2m)
1.5m TRS A to MIDI DIN cable
