Back in stock: All genres

Notes: One of the original Technics-branded slipmat designs. This one has silver print on a black background.

Notes: ***B-STOCK: Printing error on faceplate, but product is in excellent condition and in perfect working order***


Synthstrom's flagship product, the mighty Deluge is a seriously versatile all-in-one synth/sampler/sequencer with a mixture of subtractive, wavetable and FM engines. A true powerhouse.

Supplier's Notes:
Powerful and robust synthesiser, sampler & sequencer in a portable package

Deluge is Synthstrom's flagship product. Three years in the making, it is an all-in-one, stand-alone, portable synthesizer, sequencer and sampler designed for the creation, performance and improvisation of electronic music.

Features

Synthesiser

Full-featured internal synthesizer engine (subtractive, wavetable and FM)
Polyphony limited only by CPU. Up to 64 synth voices may play simultaneously
Live adjustment of synth and effect parameters with two endless-turn encoders with LED level-meters
Easy buttons to select the functions these control
Parameter automation recording
Full MPE support for connected MIDI controllers. MPE expression can control most parameters
Arpeggiator
Dedicated volume and tempo knobs
LFOs and envelopes on each synth / sample. Highly customizable modulation matrix
Synthesizer engine features LPF / HPF, FM, portamento, oscillator sync, ring modulation, unison detune, and more
Four basic digital waveforms, two analog-modeled waveforms, or select any WAV file from SD card
12dB/oct and 24dB/oct filters, with optional filter drive mode
FX including delay, reverb, chorus, flanger, phaser, bitcrusher, sidechain effect, live stutter, and more
Keyboard mode, where the pads become a live instrument on a 2D grid
Preset or custom scales, or chromatic mode
Live processing of the audio input including polyphonic pitch shifting (according to sequenced notes), filters, and all FX

Sequencer

Piano-roll-style sequencing on 128 full RGB pads (16×8) with scrolling and zooming
Launch, mute and interact with tracks live
Arranger view, to sequence your instrument parts into a longer composition, and work with audio clips similarly to a DAW
Euclidean sequencing available, per row / sound.
Sequencing limited only by device RAM (over 2 million notes)
Resolution can be set as high as 6144th-notes
Simultaneously output separate sequences to all 16 MIDI channels, 2 CV / gate channels and 2 additional gate outputs, in addition to internal synthesizers / samples (limited only by CPU)
CC control and sequencing on all 16 MIDI channels
MPE support - can record and play back MPE data from external sources, as well as internal synthesizer MPE features
Probability and iteration based step / note conditions
Undo / redo note and parameter automation editing and recording. Number of undo steps limited only by RAM
Advanced syncing capabilities. Non-standard time signatures supported, polymetric
Adjustable swing
Horizontal pattern shift and note nudge, and note repeat
MIDI program change and bank select messages may be output

Sampler

Streams all samples directly from SD card, without limitations based on RAM size
Upto 90 unaffected sample voices may play simultaneously
Multisampling. Fast folder import with automatic pitch detection
Time-stretching and pitch-shifting
High quality sample interpolation and rate conversion via 16-point windowed sinc
Waveform view on main pads, with scrolling, zooming, and loop point editing
Same filters, modulation matrix and FX as synth engine
Resampling
Slicer feature for cutting a sample into evenly sized slices

Audio clips and looping

Live looping of audio and instrument / MIDI clips, including easy overdubbing / layering, and automatic tempo setting
Audio clip live looping includes option to record additional audio "margins" either side of loop (from before you even pressed record), to allow a brief crossfade to eliminate click at loop point

Connectivity

Two 14" line outputs, and 3.5mm headphone output
3.5mm mic input, 14" line input, and built-in microphone
2x CV outputs. 0 - 10V, individually configurable to between 0.01 and 2.00 volts per octave, or to hertz-per-volt
4x gate / trigger outputs individually configurable to v-trig or s-trig, with shared voltage switchable between 5V and 12V
Trigger clock output, configurable up to 192 PPQN
Trigger clock input, also with adjustable PPQN
MIDI input and output via hardware connectors or USB. Syncing via MIDI beat clock as leader or follower. Optimized for very low jitter
Powered via USB B (cable included) or 9 - 12V centre-negative (pedal-style) power supply (500mA) (not included)
Can host USB MIDI devices via B-to-B cable - up to 4 if using a USB hub. Only powers these devices when powered by 9 - 12V supply
User-upgradeable firmware - development is ongoing at Synthstrom Audible
Internal speaker
Rechargeable Li-ion battery (6+ hours of operation)
1 x SD slot (1x 32GB V10-speed SD card supplied)

Dimensions

Dimensions: 305mm x 208mm x 46mm (12 x 8.2 x 1.8 inches)
Weight: 1.5kg

Notes: The 2-row rack for AE modular is 16 units wide with 2 rows; the MASTER module consumes 2 units so you have 30U remaining for other modules.

Via a joint kit (not included) another case of this width (either one-row or two-row) can be attached at a free angle; the bus is connected via a short connector cable between both cases.

The sides are made of red acrylic, all other parts are of wood fibre board (MDF), black painted.

Dimensions: 41.3 x 21.7 x 4.5 cm (width x depth x height)

Notes: The 2OSC R2 is a dual 1V/octave oscillator module. Another successor of a classic AE module, the 2OSC/d. The 2OSC is a dual oscillator module, digitally based, with a great feature set:

Oscillator 1:

- Sawtooth
- Multi-Sawtooth, detuned
- Pulse Wave
- Triangle waveform with wavefolder
- Sinewave
- Suboscillator output
- Mix output (primary wave plus suboscillator)


Oscillator 2 , Noise:

This oscillator is focused on square waves; additionally to a pulse width controlled and CV-controllable square wave, it offers also a "synced square wave" (sounds really nasty!) and synced to oscillator 1. A separate suboscillator out is here available too. Additionally, a separate noise output is included, whose sound depends of the frequency setting of oscilaltor 2. The octave range switches are the same like in 2OSC/d. On top of the usual 1V/octave pitch control, the module can be controlled also via IMDI, the internal, patchable MIDI! Oscillators 1 and 2 are separate via different MIDI channels.

Notes: The ENVFOLLOWER/EXT.IN module brings external sound sources in your AE modular; it does this in different aspects:

The module has two mono audio inputs for external sources; one unbalanced for line level signals like audio players, tapes, portable recorders, and a balanced one for directly attaching microphones (dynamic and self powered condenser mics, but not phantom powered ones). This input signal is brought then to AE level.

Now, from the input signal an envelope is derived, giving the volume of the signal as CV which can control what you want, e.g. filter cutoff, pitch or what else is CV controllable within your AE system. The SMOOTH knob controls the shape of the envelope/suppression of the audio signal component.

Finally, the ENVFOLLOWER module provides a gate signal, indicating that the level of the audio input is above a certain level that can be set with the GATE THRES knob.

Notes: The FILTERBANK914 is designed after the famous Moog 914 Fixed Filterbank. It includes 12 bandpass filters with fixed center frequencies and additionally a lowpass- and a highpass filter. Control knobs for all the frequency bands allow individual mixing of the bands. This is especially useful for shaping the sound spectrum similar to acoustic instruments - they get their character by certain frequency peaks, so called "formants".

This module is different to (and not a good choice as) a multiband equalizer. The equalizer can increase/decrease certain bands in the range of e.g. -12...+12dB, with the signal unchanged with all controls in center position. In contrast, the FILTERBANK914 controls are attenuators over the full level, meaning the individual band is completely muted when the knob is turned completely counter-clockwise.

As a special feature, the module has separate outputs for "even" and "odd" bands, meaning that one output only contains the sum of half the bandpasses, the other one the remaining ones. This leads to some type of "pseudo stereo".

Notes: FMOS R2 is a FM oscillator, and the successor of the discontinued FMOS module with a lot of new features!

FMOS R2 is basically a 2-operator FM synthesis sound generator, with the classic parameters MULTIPLIER for the modulating operator and MOD DEPTH for controlling the amount of FMing of the carrier operator.

Beyond this basic functionality, FMOS R2 offers following extra features:

- Additionally to the basic sinewave operator waveform, FMOS R2 has five additional waveform combinations for the carrier/modulator waveform, resulting in a more rich overtone spectrum

- The FEEDBACK control adds feedback the carrier/modulator chain, adding more variety to the sound spectrum

- The modulator can optionally be set to fixed frequency, especially useful for synthesizing metallic, inharmonic sounds

- A sub-oscillator output provides a square wave one octave lower

- The MIX output provides a mix between the FM sound and the sub-oscillator.

- Pitch is either controlled by a 1V/octave CV or IMDI, the "modular MIDI" introduced by tangible waves

- Modulation depth can be modulated by CV

- All parameters can also be controlled via IMDI, with a number of MIDI controllers.

All this with a nice portion of 8-bit charm!

Notes: An Arduino-compatible granular sound player / multi purpose digital sound module.

This module is a development of ginkosynthese.com; Jan-Willem from Ginkosynthese gave Tangible Waves special permission to adapt his module for the AE format.

It's based on the Atmega 328 micro controller, well known as the core of the Arduino Uno, Nano and other boards, and can act as a granular sound player as well as different other functions depending on the firmware. It can be programmed directly by the Arduino IDE via the integrated USB socket on the front side of the module (USB cable is included!)

A lot of different codes are available on the Ginkosynthese website; they are a perfect starting point for your own experiments and exploring how digital sound processing works.

Starting in June 2020, the module contains an additional switch which configures the module for two basic modes: G is for the original Grains mode; M makes the module directly useable for the Mozzi Library, an excellent audio/synth library for Arduino compatible devices.

For info about Mozzi look here: https://sensorium.github.io/Mozzi/

Notes: The uDISTORTION creates diode based distortion in different modes and adjustable drive.

Please note: These micro modules need a carrier, like the uBASE module. The cannot be mounted directly into an AE case.

Notes: This module is best if you want a classic, analogue oscillator and prefer fully analogue sound generation. It offers:

- two CV inputs 1V/octave

- Modulation input with Level-knob, switchable to frequency or pulsewidth

- PWM input

- Coarse / Fine knob for frequency

- Pulsewidth knob for square wave

- Square / Triangle / Sawtooth output

The VCO R2 supersedes the VCO module which was part of the AE modular Kickstarter campaign in 2017; with the overall development of AE modular, the old one doesn't really meet the current quality level of AE any more. So Tangible Waves are happy to offer this completely redesigned module, that offers a really good volt/octave tracking over 5-6 octaves (using both CV inputs) and an amazing temperature stability.

Notes: ***B-STOCK: Box opened, product in perfect working order***


12-channel version of Tascam's modern take on the classic Portastudio concept. Digital recorder fused with analogue mixer and audio interface. Great one-box recording solution.

Supplier's notes:
Integrated production suite for music and multimedia creators, songwriters and performers.

Tascam Model 12 is a compact all-in-one integrated mixing and recording suite designed for music and multimedia creators, songwriters and performers. It consists of a 10-input mixer, a 12-track version of the highly acclaimed Tascam multi-track audio recorder, USB audio interface, MIDI connectivity, DAW control functions, and unique podcasting capability including mix-minus and smartphone input.

Combining the feel of an analogue user interface with the efficient workflow and pristine quality associated with digital recording and production, the compact and affordable Model 12 supports your creative process from start to finish.

Notes: Very cool DJ-Bag from Technics. The Technics bag is available in many fashionable colours and is provided with a stable plastic insert, which gives the bag a consistent shape and good protection.

The Technics DJ-Bag is available in many fashionable colours and features an extra large Technics logo on the front. This record bag offers enough space for about 60 vinyls or a lot of equipment and promises a great performance at the next event. A practical shoulder strap ensures a comfortable fit.

Technical Specifications

Length: 365 mm
Width: 180 mm
Height: 305 mm
Weight: 1,15 kg

Notes: ***B-STOCK: Box damaged, product unused & in perfect condition***

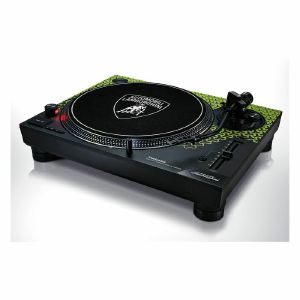

Limited-edition Lamborghini model of the superb SL-1200MK7. The unique SL-1200M7B model combines the Italian marque's legendary styling with the tried-and-tested performance of Technics.

Supplier's Notes:
Design Inspired by Lamborghini DNA

The functions of the SL-1200M7B are based on the SL-1200MK7/SL-1210MK7 models, while the design is inspired by Automobili Lamborghini's iconic Y-shape pattern. Orange, Green and Yellow are the colours of the SL-1200M7B, based on the most iconic liveries of the Italian automotive super sports cars brand. Automobili Lamborghini and Technics operate in completely different markets but share the same values with cutting-edge ideas and approaches: disruptive technological development, a corporate culture rooted in a spirit of uncompromising craftsmanship, and the pursuit of emotional sounds inspiring customers-with Automobili Lamborghini, the sound of its engines, and with Technics, the sound of its audio. The SL-1200M7B is the powerful result of the collaboration and innovative ideas of the two brands.

*Consumption and emission values of Revuelto: Fuel consumption combined: 11,86 l/100km; Power consumption combined: 10,1 kWh/100 Km; CO2-emissions combined: 276 g/km; Efficiency class combined: G; Fuel consumption with discharged battery combined: 17,8 l/100km; CO2 efficiency class with discharged battery: G; WLTP values

Exclusive Gifts

The SL-1200M7B comes with an original vinyl record containing the powerful V12-engine and driving sounds of six different Lamborghini super sports cars, a slipmat and two stickers with Automobili Lamborghini and Technics logos. The picture disc features a design inspired by the tires of one of the Lamborghini's latest models, the Revuelto. As you listen to the sounds of Lamborghini V12-engines, you can also enjoy the visual effect of the tire spinning on your turntable.

Coreless Direct Drive Motor Achieving Stable Rotation

The direct drive system uses a slow-turning motor to directly drive the platter. This system has various advantages. It offers high performance, such as rotation accuracy and powerful torque, does not require replacement of parts and maintains high reliability over a long period of time. On the other hand, the direct drive system was said to produce a rotation irregularity called cogging. For the SL-1210MK7, a new coreless direct drive motor was developed. This motor employs a coreless stator. The removal of the core (iron core) from the stator eliminated the root cause of cogging. Furthermore, the magnetic force of the rotor magnets was improved to the highest possible level, and the gap between the coreless stator and rotor magnets was optimised, thus achieving high-torque-performance equalling that of the SL-1210MK5. Boasting smooth rotation and powerful torque, this motor reproduces sound accurately and faithfully from the groove on an analogue record.

Diverse New Functions Adapt to Various Playing Styles

Torque / Brake Speed Adjustment

The newest digital motor control technology, accumulated through the development of Blu-ray disc products, is applied to improve adjustment by allowing the torque and brake speed to be adjusted individually in four steps.

The Pitch Control Function

The pitch control function allows fine adjustment of the rotation speed within i8% / i16%. It does this through digital control, from positional detection of the slider to rotational control of the motor, eliminating the unnecessary DA conversion. This greatly improves tracking performance to achieve accurate and stable pitch adjustment.

Reverse Play Function

The reverse play function, which brings forth new possibilities of creative performance, makes its first appearance in the SL-1210 Series. In addition to 33-1/3 rpm and 45 rpm, a rotation speed of 78 rpm is supported.

*The torque / brake speed adjustment, rotation speed switch, and reverse play can be adjusted by switches on the main unit.

High Sensitive Tonearm

The tonearm, which has continued to support the leading edge of the DJ scene for many years, inherits the highly reliable static-balance universal S-shape tonearm. Using high-precision bearings, it achieves a higher initial-motion sensitivity than the SL-1210MK6. This accurately tracks the groove on the phonorecord to assure excellent tracking performance with minimum stylus jumping even in harsh playing conditions such as scratching.

Stylus Illuminator Featuring a High-brightness and Long-life White LED

The stylus illuminator features a new push-type structure for intuitive operation, and employs a high-brightness and long-life white LED. The illumination area and intensity were reviewed to provide improved visibility of the stylus tip even in a dark environment.

Specifications

Technics for Automobili Lamborghini collaboration model

Coreless Direct-Drive Motor Achieving Stable Rotation

Diverse New Functions Adapt to Various Playing Styles

High Sensitive Tonearm

Stylus Illuminator Featuring a High-brightness and Long-life White LED

High-rigidity Cabinet and High-damping Insulator

Tech Specs

General

Power Supply: AC 120 V, 60 Hz
Power Consumption: 8 W Approx. 0.2 W (Standby)
Dimensions (W x H x D): 453 x 169 x 353 mm
Weight: Approx. 9.6 kg
Accessories: Turntable, Slipmat, Slipsheet, Dust cover, Technics sticker for limited edition, EP record adaptor, Balance weight, Head shell, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Control vinyl stickers, Owner's Manual

Terminals

Audio Output: PHONO (Pin Jack) x 1, EARTH TERMINAL x 1

Tonearm Section

Type: Universal Static Balance
Effective Length: 230 mm
Overhang: 15 mm
Tracking Error Angle: Within 2 degreees 32'?(at the outer groove of 30cm (12") record), Within 0 degrees 32'?(at the inner groove of 30cm (12") record)
Offset Angle: 22-
Arm-height Adjustment Range: 0 - 6 mm
Stylus Pressure Adjustment Range: 0 - 4 g (Direct Reading)
Head Shell Weight: Approx. 7.6 g
Applicable Cartridge Weight Range: 5.6 - 12.0 g (without auxiliary weight), 14.3 - 20.7 g (including head shell)

Turntable Section

Type: Direct Drive Manual Turntable
Turntable Speeds: 33-1/3, 45 rpm (with switch 78 rpm)
Starting Torque: 0.18 N*m / 1.8 kg*cm
Build-up Characteristics: 0.7 s. from standstill to 33 1/3 rpm
Wow And Flutter: 0.025% W.R.M.S.
Turntable Platter: Aluminum diecast
Diameter : 332 mm
Weight : Approx. 1.8 kg (Including slipmat and slipsheet)

Notes: The new PerFourMer is a real analog synthesizer, through its simple control surface and very flexible sound production it is able to offer a near inexhaustible variety of bass, lead, pad and effect sounds. Additionally, with its total of 6 filter inputs, the PerFourMer is also perfectly suited as a complex filter-bank. Even though the PerFourMer is not considered a modular system, it can still be described as a modular or at the very least a semi-modular. The basic concept is reminiscent of classics such as the Oberheim 4 Voice or the Korg Monopoly.

The PerFourMer is a 4 voice synthesizer, consisting of completely independent synthesizers, which can be adjusted and played independently from each other. These 4 synthesizer channels can be linked with each other and be played in 3 different operating modes.

Next to the already mentioned filter inputs, each channel has a single output, which can also be used as an insert for external effect devices, and make it possible to easily integrate the PerFourMer with already established equipment. It is also possible to transmit the unedited VCO signal. Additionally the opportunities of the PerFourMer can be expanded through internal patching between the channels, for example; you can route a VCO through multiple filters and VCAs, or use 2 channels to create 1 voice with 2 ADSR envelopes (1 for VCA and 1 for VCF). Use the PerFourMer as a filter-bank and the slope envelope can be doubled by interconnecting the filter in series. The PerFourMer is controlled via MIDI.

www.youtube.com/watch?v=UWFsfUa9pUk

Notes: Designed with the record collector and the DJ in mind, the Vinyl Styl Groove Record Carrying Case is built tough to protect your valuable vinyl records, providing ample every day protection with its reinforced metal corners, metal hinges and hardware.

The perfect companion to the Vinyl Styl Groove Portable Turntable, also produced in an elegant graphite design.

Notes: Protect the faders on your favorite modules while making them more comfortable to use at the same time!

Perfect size for modules like the WMD Performance Mixer, Malekko Voltage Block, STG Graphic Sequencer, TTSH, Roland JU-06, and more. Custom sized to fit faders snug and clear in color so you can still see the LED indicator. The WMD clear fader cap is a must have for any module with plastic faders.

Notes: The Recordcase Vinyl Stabilizer gets the most out of your record collection. The VS-10 is mounted on the middle of the turntable. Thanks to its high dead weight, it stabilizes the record and ensures a smoother run and an improvement in sound quality. The integrated spirit level allows the optimal alignment for the best run of the record.

No matter whether in loud environments where the bass vibrations interfere with the optimal reproduction of the record or at home to optimize the audio quality. The Disk Stabilizer is an indispensable tool for DJs and music enthusiasts and should not be missing in any setup.

Technical data
Weight: 290 gram
