Studio Equipment charts

Notes: Universal power supply for all Sonicware LIVEN devices:

9V - 2A - center plus polarity
EIAJ 3 connector (1.7×4.75×9.5mm)
incl. adapter set EU/US/UK/AU

Notes: The Decksaver cover for the Ableton Move is the ultimate accessory for protecting your gear while preserving its sleek aesthetic.

Precision-moulded from ultra-durable polycarbonate, this cover is designed to shield your Move from dust, spills, and accidental impact without compromising accessibility.

Whether you're transporting it to a gig, storing it in your studio, or simply keeping it safe between sessions, the low-profile design ensures a snug fit and hassle-free use.

Engineered with the same attention to detail as the Ableton Move itself, the Decksaver cover combines robust protection with a clear, professional finish that showcases your gear.

Dimensions

Weight: 0.38 kg
Length: 15.2 cm
Width: 31.9 cm
Height: 3.8 cm

Material: smoked polycarbonate

Notes: A super impressive offering from Xaoc, the Samarkanda is a quad delay module designed for hands-on, real-time performance. Dial in everything from loops to stereo delays, resonators, modulation effects and much more.

Supplier's Notes:
Xaoc Devices Samarkanda is a digital quad delay module with extensive patching capabilities and a lot of flexibility for signal mangling. It can be used as four entirely independent delays, a dual stereo delay, a complex/multi-tap or multi-channel delay, a quad/polyphonic resonator, dual chorus, dual flanger, reverb, looper (with sound on sound!), and granulator, or any combination of those. You can reverse the delayed signal, hold it, squeeze and stretch it beyond all recognition and still go back to the original piece of audio captured in the buffer! The internal lossless normalization (the signal doesn't leave the digital domain) combined with top-notch components (including 24-bit AKM converters and 32-bit internal processing) are responsible for high sound quality. Samarkanda has been conceived in the truly modular spirit. Not only can you control almost all its features remotely with CV/gates, but the external feedback path gives you the opportunity to process the delayed signal with other modules.

Samarkanda offers a wide range of delay times beginning at a mere 0.5ms and reaching up to 15 seconds per channel. That means that, by stacking its four channels, you can achieve up to one minute delay! There are two operating modes switchable individually for each channel. Analogue delivers pitch changes that resemble classic analogue tape and BBD delays. When you combine it with the looping Hold function, you can play Samarkanda with any 1V/octave CV source. By using the Sync function you can even loop single wave cycles. The Digital mode gives you a granular buffer-scrubbing effect (no pitch change) across the whole delay time range. You can seamlessly switch back and forth between modes without losing any information. You can use Samarkanda for multiple tasks at the same time - from four independent delay lines through any combination of channels processing the same signal up to a quad behemoth. You can also use the linking feature for ease of operation (the first channel in the chain acts as the main control source for the others).

As most settings operate on a per-channel basis, you can freely combine different features (such as analog/digital behaviour, delay time range, reverse and hold functions, etc.) in a configuration of your choosing. You can synchronize each of its channels separately to a different source, either via the Sync input, or by using the tap-tempo functionality (with multiplication and division galore). Should you ever get lost, the Purge button comes in handy when/if things start to spiral out of control!

Notes: Explore malleable sound. Mold, carve, bend.

The S-4 is a sculpting sampler designed to capture and transform sounds. Merging tape-era workflows with cutting-edge technology, the S-4 redefines sound mangling by providing a futuristic platform for crafting unique soundscapes and compositions, using samples and real-time audio processing.

S-4 is a tool made for sonic explorers. It has four parallel stereo tracks, each with an audio engine featuring a chain of audio devices including samplers, live granular processing, morphing resonators, and a range of audio effects. A novel modulation system allows anything and everything to be modulated with four modulators per track. Capture sounds on the fly with the onboard microphone and stereo line input, or load samples from the 4GB internal flash storage.

Use cases

The S-4 is a versatile powerhouse, capable of serving as an effects processor, transformative sound designer, tape machine, live looper, classic sample player, or textural synthesizer.

Tape machine

Capture your surroundings. Use S-4 as a transformative four-track tape machine.

Effect processor

Manipulate live audio, and add colour and textures to your beats, melodies, and sounds

Midi controlled sampler

Hook up a MIDI keyboard or sequencer and use S-4 as a powerful textural synthesizer and sample player.

Audio engine

Push the creative boundaries and transform audio into uncharted depths. S-4 has four parallel stereo tracks, each of which contains a chain of five audio devices tailored to cover specific sonic areas and applications. Create everything from glittering textures to broken soundscapes or evolving synth sounds.

Together, the devices form a playful toolbox for sculpting sample material and live audio.

Material

Stereo tape and sample players with live audio and looping capabilities.

Granular

Live granular processing with time-warping and pitch-shifting algorithms.

Filter

Morphing resonator: 48-band tuned filter bank with animation, tonal control, and classic filter functions.

Colour

Collection of destructive effects including bit crushing, drive, and compression.

Space

Combined reverb and delay with pitch-shifting and shimmer.

Modulation system

Animate and bring life to any parameter using the rich and unique modulation system. Each track has four configurable modulators that can be mapped to any parameter with unlimited mapping destinations. It is even possible to do cross-modulation between modulators. Choose between a range of different modulators from complex LFOs, and generative sequencers to envelopes.

Capture your surroundings

Utilize the built-in microphone to record sounds, sample and loop your external gear with the stereo line input, resample the internal tracks, or effortlessly load samples from the S-4's flash memory or an external drive.

Versatile powerhouse

The S-4 is designed with durable RGB buttons offering tactile feedback and a high-quality 3.5-inch LCD display ensuring all the visual feedback you need. It features USB connectivity for seamless connection to class-compliant devices and effortless file transfers to and from your laptop. Moreover, it can function as an audio interface when you require a simplified setup. You can also expand the number of inputs and outputs by connecting a class-compliant external USB interface.

Technical specifications

Audio engine features

4 parallel stereo audio tracks
Tape player with live looping capabilities
Polyphonic sample player
Live granular processing with time-warping and pitch-shifting algorithms
Morphing resonator (48-band filter bank)
Bit crushing, drive, and compression
Combined reverb and delay with pitch-shifting and shimmer

Modulation features

4 modulators per track
Modulate any parameter of the audio engine
Modulator types:
- Complex LFOs
- Generative sequencing tools
- Envelopes

Hardware

Quad-core 1.5 GHz processor
4 GB flash memory (sample pool)
24-bit / 48 kHz stereo audio in and out

I/O

2 line-inputs
2 line-outputs
Built-in microphone
Stereo headphone output
MIDI in/out
Analog sync in/out
USB-C

Miscellaneous

WiFi - Ableton Link
Class-compliant USB audio interface
Expandable number of inputs/outputs with class-compliant USB interfaces

User Interface

High-resolution LCD colour display, 3.5 inch
21 tactile RGB buttons
9 high-quality endless encoders

Physical

Matte black aluminium casing
Dimensions: 242 x 156 x 39 mm (9.5" x 6.1" x 1.5")
Weight: 820g (1.8 lbs)

Notes: 'Pamela's PRO Workout' is a compact programmable clocked modulation source for your Eurorack modular system. It provides 8 highly editable outputs producing various control voltage signals correlated and synced to a BPM based master clock.

Each output can provide everything from simple clocked triggers, complex rhythmic waveforms, quantised melodic patterns to random chaos with direct and assignable CV control over numerous parameters. These features together with a quick and easy to use interface provide almost limitless synced modulation possibilities in a tiny space.

Building on the original 'Pamela's Workout' & 'Pamela's NEW Workout' the evolved 'PRO' Pam maintains the precursor's form factor and intuitive workflow but improves and adds many new features with upgraded hardware, more CV inputs, a new full colour hi res display and rewritten software adding many new enhancements like micro grid timings and cross output modulations.

Through optional expander modules more CV input and outputs can be added with support for external non euro equipment through Midi and Din Sync outputs. Please enjoy your next generation PRO workout!

Size: 8HP
Power: +12v 60ma / -12v 10ma
Depth: 32mm (approx with power header)
Outputs: 0-5v buffered low impedance. 12 bit res. 3.8khz max update freq.
Inputs: CV 0v-5v / Clock, Run - rising edge 700mV min.

Notes: A typically clever approach to modulation from Make Noise, the MultiMod takes a control signal and modifies it into eight related outputs, adjustable by phase and timing. Hugely versatile.

Supplier's Notes:
With MultiMod...from one control signal, we create many.

In a modular synthesiser, it is easy to create complex results via complex means - patching an elaborate network of independent control signals, for example. This can be very powerful but also cumbersome to set up, and potentially difficult to control in a meaningful way. MultiMod represents a new approach: it takes a single control signal and copies it 8 times, not unlike a simple mult, except that it allows you to modify those copies by weighted adjustment of their relative phase and speed. The result is modulation that is related to the source, but not identical at each destination.

Phase sets the spacing of the signal copies in time, weighted by channel, with each progressive channel getting more out of phase from the original signal and from each other. Spread allows for varispeeding the copies by different amounts, with each getting progressively faster or slower than the original Signal. Time determines the range of time captured at the input and therefore also the depth of modulation across copies of the input signal when Phase and Spread are manipulated. MultiMod also includes Tempo, Hold, and Reset features, and a variety of Read Shapes for temporal rearrangement of input signals.

When the input is not patched, MultiMod generates an LFO that is copied eight times and manipulated in the same ways.

MultiMod is built with the latest DSP hardware which offers eight high resolution outputs, with signal input and output ranges approaching the upper limits of the analogue eurorack modular system. All I/O is capable of a 20V range at +/-10V, greatly exceeding the typical 0-5V CV input ranges on typical digital modules.

Specifications

Width: 10hp
Max depth (incl power cable): 39mm

Power:
195mA @+12V
10mA @-12V

Notes: The MCO MK II is a highly versatile digital VCO and voice module inspired by 90s/00s digital synths shrunk into just 6HP.

It offers a broad collection of unique, high-quality synth voices, each with extensive, customizable parameters. These parameters can be directly controlled or modulated through assignable internal and external sources. Certain per-voice parameters support audio-rate modulation, including FM, sync, and DSP. Each voice also supports up to four-voice chords, external-triggered envelopes, multiple LFOs, and dual audio outputs for comprehensive desktop like synth functionality.

Voices include a multi dimensional wavetable oscillator based on the original MCO, a complex additive synthesis engine, a multi mode 'JP' type digi-synth, a lush virtual analog implementation, a fully featured vocoder, a bass synth for both kicks and sub sonic tones and finally arebirth and porting of our discontinued SID GUTs chip voice.

Each voice includes factory presets as well as the ability to store and recall user presets. All state is preserved across power cycles.

The MCO is designed to be familiar, quick and easy to use with a high resolution colour display and a rich visual user interface.

A USB-C connection allows for easy firmware updates, user wavetables upload and device config backup and restore. Axon expander modules are also supported to increase CV control options.

Notes: The DigiTech FreqOut Natural Feedback Creator allows you to get sweet, natural feedback at any volume, with or without distortion. The FreqOut is perfect for situations where volume must be controlled like in the studio, with in ear monitors, or low-volume performance and practice. However, the FreqOut can also be used at gig volume to focus out-of-control feedback on a preferred harmonic at any stage position. The FreqOut uses a 9VDC power supply to easily integrate into your existing pedalboard.

General Specifications
ControlsFeedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A Conversion24-bit
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power Adapter (Sold Separately)PS0913DC-04 (US, JA, EU, AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output Type1/4" Unbalanced TS (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input Type1/4" Unbalanced TS (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)

Notes: High quality MIDI cables for connecting music controllers and devices together. Strong and flexible cable with low loss conductors and global shielding ensure a clean data stream. Terminated at each end with a 180- 5-pin DIN plug.

Notes: Your Teenage Engineering OP-1 or OP-XY is more than just a synth - it's an essential part of your creative process. Whether sculpting sounds, remixing beats, or pushing the boundaries of music-making, your OP deserves the best protection. That's where our Decksaver cover comes in.

Designed with the ultimate precision, this custom-molded polycarbonate cover fits seamlessly over your device, safeguarding it from dust, spills, and accidental knocks. Its ultra-durable yet lightweight design keeps your controller protected without adding bulk, making it ideal for both studio setups and on-the-go musicians.

With a Decksaver cover in place, buttons, knobs, and surfaces stays pristine, allowing you to focus on your craft without the worry of everyday wear and tear. The smoked transparent, low-profile design ensures your OP-XY retains its sleek aesthetics while remaining fully accessible when inspiration strikes.

Slip it into your backpack, gig bag and travel with confidence knowing your OP is safe from unexpected mishaps. Whether you're performing live, producing in the studio, or jamming at home, the Decksaver cover is the ultimate armor for your creativity.

Keep your OP protected. Keep your creativity flowing.

Notes: A High quality MIDI cable for connecting music controllers and devices together. Strong and flexible cable with low loss conductors and global shielding ensure a clean data stream. Terminated at each end with a 180 degree 5 pin DIN plug.

Notes: Sonicware's 'neo-hyperactive' drum machine takes a proudly digital approach to rhythm, offering some fascinating creative takes on synthesis and beat making. Create and perform with generative patterns and randomisation.

Supplier's Notes:
CyDrums | Expressive Drum Synthesiser

4D Drum Sound Evolution
22 Custom-Built Sound Structures
Versatile Effects & Flexible Routing
Powerful 8-Track Beat Making
Endless Creative Possibilities

Included:

- CyDrums unit
- 32GB SD card preloaded with many preset programs
- Power Supply Unit
- Warranty
*Batteries, USB cable and the other connection cables sold separately.

4D Drum Sound Evolution

Wavetable x Velocity & Pressure Modulation = 4D Drum Sounds That React, Transform, and Evolve

22 Custom-Built Sound Structures

22 Sound Structures Tailored to Each Instrument for Endless Sonic Possibilities

Versatile Effects & Flexible Routing

Two Insert Effects, Reverb, and Master Effects with Flexible Routing for Versatile Sound Processing

Powerful 8-Track Beat Making

Non-Stop, Intuitive Beat Making Powered by an 8-Track Drum Sequencer

Endless Creative Possibilities

Generative Patterns with Randomization and Probability, Plus Numerous Performance Features incl. VariSpeed and Snip Loop

Wavetable x Velocity & Pressure Modulation = 4D Drum Sounds That React, Transform, and Evolve

CyDrums offers 64 original wavetables, each comprising up to 256 single-cycle waveforms. With full control over start/end positions, playback directions with modes, speed, and curves, the sonic possibilities go far beyond imagination.

22 Sound Structures Tailored to Each Instrument for Endless Sonic Possibilities

CyDrums features 22 sound structures specifically tailored to each instrument, combining dual Wavetables, Noise, and Pulse sources to deliver sounds that range from classic drum machine tones to deep, innovative sonic exploration.
No need to start from scratch

CyDrums offers 520 ready-to-use preset sound patches, covering classic drum machine tones, synth bass, and FX.

Find them quickly with the tag search feature.

Two Insert Effects, Reverb, and Master Effects with Flexible Routing for Versatile Sound Processing

CyDrums delivers five versatile effect routing modes, allowing you to assign any track to specific effects via BUS Routing.

Non-Stop, Intuitive Beat Making Powered by an 8-Track Drum Sequencer

CyDrums boasts a powerful 8-track, 128-step sequencer based on the acclaimed workflow of the Lofi-12 XT. Unlock the freedom to experiment with odd time signatures and evolving polyrhythms.

Store up to 128 patterns per project, enabling you to create complex song arrangements or seamlessly switch patterns during live performances.

Generative Patterns with Randomization and Probability, Plus Numerous Performance Features incl. VariSpeed and Snip Loop

CyDrums empowers your creativity with powerful generative pattern tools.

Randomization lets you craft unique variations per track or control all parts in real time, while Probability allows you to set trigger chances from 25% to 100% for tracks or individual notes-sparking endless possibilities and new musical discoveries.

Seamless Integration with Your Setup

TRS analogue output, digital output via USB, MIDI in/out, and AudioSync for effortless DAW and hardware compatibility.

Compact, Battery-powered, and Built-in Speaker

CyDrums is designed for inspiration anywhere-from your living room to the outdoors.

- A single project contains:
128 patterns (incl. 32 preset patterns)
16 songs
Up to 256 projects can be stored.
- 1,024 sound patches (incl. 520 preset sounds)
- 256 effect patches
- 128 drum kits
- Polyphony: 1 voice per track + USB & External stereo audio
- Realtime non-quantize recording (with MicroTiming edit)
- Directly enter notes for each step when playback is on or off
- Duplicate to extend a sequence
- Copy and paste function for various parameters between tracks
- Parameter Lock function to record parameter settings for each step
- Drum roll with the D-pad
- Play chromatic/scales in Pad mode
- Enter longer notes (Tied notes)
- Diverse Mute features?
- Pattern BPM / Global BPM can be set
- Switching between half-speed and double-speed BPM
- Metronome and pre-count function

Hardware specifications

Pads: 15 velocity-sensitive pads with RGB LEDs

Controllers: Control knob x 5, Directional pad with 2 button controls

Display: 1.5 inch OLED display
Built-in Mic: Mono x1 (Omni-directional, 94dBSPL)

Built-in Speaker: Mono x1 (1.5W 4O)

Audio Inputs
INPUT L/Guitar (Switchable 10k and 1M impedance)
[LINE Gain] PAD: -20dB
[Hi-Z Gain] LOW: 0dB, NORMAL: +10dB, HI: +20dB
INPUT R/Dynamic Microphone
[LINE Gain] PAD: -20dB
[MIC Gain] LOW: 0dB, NORMAL: +28.8dB, HI: +50dB

Audio Outputs
STEREO LINE OUTPUTS (Max +6.5dBV)
*The above jacks are all balanced 1/4" TRS Jack Connectors
PHONES jack (stereo 3.5mm mini jack type)

USB port
micro USB Type-B
[USB Audio] USB 2.0 Full Speed, 48kHz-16bit Input: 2 channels, Output: 2 channels
[USB MIDI]
[Mass Storage Class] USB2.0 High Speed
*For iPhone, Apple Lightning to USB Camera Adapter required separately

MIDI ports
MIDI IN connector (5-Pin DIN type)
MIDI OUT connector (5-Pin DIN type)

Other connectors
SYNC IN jack (mono 3.5mm mini jack type)
SYNC OUT jack (mono 3.5mm mini jack type)
SD card slot (Standard size *Supports SDHC cards up to 32 GB)
DC IN connector

Bottom side hole
1/4-20UNC screw for tripod mount

Size and weight
Width: 147mm | approx. 5.8 inch
Depth: 175mm | approx. 7.8 inch
Height: 46mm | approx. 1.8 inch
Weight: 550g | approx.1 lbs 3.5 oz

Power supply
DC12V output AC adapter (500mA, Inner Diameter: 2.5mm, Outer Diameter: 5.5mm, Polarity: Center +)
Ni-MH AA SIZE Rechargeable Battery or Alkaline AA SIZE Dry Battery x 6
(Alkaline dry batteries life: approx. 4 hours)
*Batteries sold separately

Accessories

32GB SDHC card preloaded with many preset programs
Power Supply Unit
Warranty
*USB cable and the other connection cables sold separately

Notes: Balanced microphone/audio lead terminated at one end with an XLR socket and at the other end with an XLR plug.

Notes: iLok3- now available with USB-C connection.

With USB-C ports becoming increasingly commonplace, PACE have launched a USB-C version of the iLok3. Customers whose computer only has USB-C ports can use this iLok without an additional USB Type-A to USB Type-C adaptor.

This new version does not replace the USB-A iLok3 - both versions will be available.

Notes: Part of TipTop's exceptional series of Eurorack-format Buchla modules, the 264t provides four sample-and-hold circuits, plus a logic circuit designed to control polyphonic patches. Deceptively simple but surprisingly creative, like most Buchla modules.

Supplier's Notes:
Four independent sample-and-hold circuits, plus a specialized logic circuit for expediently implementing polyphonic patches.

Sample-and-hold's are essentially one-cell analog memories. They are useful for "remembering" the instantaneous value of a control voltage (a detected envelope, for example), for generating equally spaced steps from a constant slope input (as from a 281t envelope generator), and for converting any continuously changing voltage (a random voltage, for instance) into a series of discrete values.

The 264's sample-and-hold circuits have two operating modes: sample and track. In the sample mode, the value of the input is sampled and applied to the output whenever a pulse is received. The output remains at this value until the next pulse arrives. The track mode diers in that an input is applied to the output for the duration of the pulse. The output tracks the input until the end of the pulse and remains at a constant value until the next pulse.

To use the 264t as four independent channels set the separate/common switch to separate. A single CV can be set to all four channels by setting the operate/common to common and plug CV in the the back jack on the with right side.

The Model 264t includes a polyphonic adaptor, which performs the logic necessary to implement four-voice polyphony. Facilities are incorporated for fine tuning and f.m. modulating the oscillators; light emitters display the adaptor's operation.

Specifications:

Size: 18 HP - Depth: 45mm
Power: +12V 60mA / -12V 30mA

Notes: Another innovative groovebox from Polyend, the Synth allows you to sequence and perform up to three synths from eight different synth engines. Unique Smart Grid feature allows single-button chords and note followers.

Supplier's Notes:
Compact Design. Massive Sound. Unmatched Innovation.

Easily Play 3 Synths at Once

The power of three synth engines is at your fingertips, all running together seamlessly. Whether you're in the studio or performing live, you can juggle between different engines, adjust parameters on the fly, and layer effects with ease. The built-in sequencers, arpeggiators, and all new smart grid system keep everything flowing smoothly, letting you focus on creativity without interruption. With instantly recallable scenes, you can save and recall every detail of your setup.

Eight Synth Engines to Explore

Dive into a world of sound with eight distinct synth engines, each offering its own unique character. Whether you're drawn to the classic analogue warmth of FAT or the evolving textures of GRAIN, you'll find the sound to shape your creations exactly the way you want:

PHZ: A modern take on phase distortion synthesis with options for both retro and cutting-edge tones.
PMD: Physical modelling technology that simulates realistic instruments or creates entirely new sonic expressions.
GRAIN: A granular engine with two modes, burst and cloud, ideal for rhythmic textures or sweeping ambient layers.
WAVS: Morph between wavetables with intricate control over scanning and phase shifting to create evolving textures.
VAP: A dual-oscillator polysynth that draws inspiration from the classics, offering rich, lush pads and detailed soundscapes.
FAT: Massive sound with three oscillators and vintage ladder filters for deep basses and expressive leads.
ACD: The ultimate recreation of iconic vintage monophonic synths, but with increased customization.
WTFM: A unique FM synthesis engine that uses wavetable-based oscillators for complex sounds without the usual FM complications.

Three Customizable Effects

Take your sound to the next level with three onboard effects, each fully customizable to suit your style:

MOD: This versatile modulation engine can take you from subtle choruses to wild, feedback-heavy flanging.
DEL: Dual delay lines with five unique models, giving you the flexibility to sync with your track or create complex delay effects.
REV: Three reverb modes - Natural, Plate, and Warp - let you add anything from subtle space to massive, otherworldly reverbs.

Reimagined Rhythms

Unlock your full creative potential with three independent sequencers and arpeggiators. Control every aspect of your rhythm, from swing to groove, transposition, and more. Whether you're building tight, rhythmic patterns or sweeping melodies, this system adapts seamlessly to your music.

For Performers, Sound Designers, and Innovators Alike

Always Musical Smart Grid for Live Play

Stay in control even during the most chaotic performances. The customizable Smart Grid ensures every note and chord stays in the desired scale, while making live performances smoother and more intuitive.

Scenes on Demand

Imagine having every setting - from synth engines to sequences - saved in one easy-to-recall Scene file. Build entire live sets and instantly access them with a touch. Plus, share your unique setups with the community

Combo Knobs for Quick Tweaks

Create dramatic builds or subtle shifts with customizable combo knobs. Whether controlling one or all three synths at once, adding movement and dynamics to your sound has never been easier.

Polyphonic Aftertouch

Express every nuance of your performance with polyphonic aftertouch. Adjust multiple parameters with just the pressure of your fingers, allowing for truly expressive, dynamic control over your sounds.

A Dream for Sound Designers

Intuitive 3x3 Knob Matrix

Designed for hands-on control, the 3x3 knob matrix lets you quickly access and tweak key parameters. No need to dive into endless menus - everything you need is right in front of you, ready for real-time adjustments.

Real-Time Visual Feedback

Every adjustment you make is instantly reflected in the visual interface, giving you clear, real-time feedback on how your sound is evolving. Whether you're tweaking filters, modulating oscillators, or adjusting LFOs, you'll see the changes happen as you hear them.

Endless Customization

Expand your creative palette with SD and USB storage. Easily load new wavetables, presets, and entire setups, or share your creations with others. With endless possibilities, this synth is designed to grow with you

Notes: Excellent value from Arturia's hugely popular mini controller. 25-key design with pads, faders, rotary pots and transport controls for full hands-on playability of software synths and DAW features.

Supplier notes:
MiniLAB 3 is a compact MIDI keyboard & pad controller that lets users make music, right out the box. With a creative plug-and-play workflow, versatile assignable controls, 500 curated sounds from Analog Lab's massive library, and a bundle of world-class creative software, MiniLAB 3 is designed to finally help beginners and professionals to get truly immersed in their music creation flow, whatever their style.

Hands-on, easy to use

From the great-feeling keyboard to the smart DAW-integrated pads & faders, to the real-time mini display, every aspect of MiniLAB 3 is designed to be intuitive, expressive, and a joy to use - for beginners and pros alike.

Creative features

Enjoy a workflow that aids the creative process, with features like a built-in arpeggiator, Chord mode, custom DAW presets, and easy transposition. Making music has never been so accessible.

Portable, compatible design

MiniLAB 3 is built to fit seamlessly into any setup, from bedroom to stage, with its compact & lightweight design, deeper DAW integration, and MIDI out & USB-C connectivity.

Eco-Designed

MiniLAB 3 is built with longevity and sustainability in mind. A rugged road-ready design, 5-year warranty, minimum 50% recycled plastic construction, and 100% recycled packaging means this controller goes the distance.

Creative software included

On top of a world-class MIDI controller, users get a full package of premium music-making software, from an industry-standard DAW to well over 500 synth & keyboard presets.

Production-ready bundle

Everything that users need to start creating their own music. Explore premium tools like Ableton Live Lite, Analog Lab Intro, UVI Model D grand piano, and Native Instruments "The Gentleman upright piano; enjoy access to millions of royalty-free lifetime loops & samples with a Loopcloud 2 months subscription + 1 Welcome pack + 1 pack of your choice; get to grips with playing keyboard, finger drumming, DAW production, and even music theory with a Melodics "unlimited" trial subscription & bonus lessons.

What's fun to play with

MIDI Control Center

Use the Midi Control Center to customize your MiniLAB. You can change the Velocity curves (keyboard and pads), the Knobs acceleration, the Pedal input type and polarity, the Message types with their Min and Max values, the MIDI Channels, and much more. Shape the MiniLAB exactly the way you need it to be.

Switch MIDI Channel - Shift + a key with a number above it will change the MIDI Channel.

Hold a note - When engaged, every note played will be held. Playing new notes will replace the previously held notes.

Chord mode- Shift + Hold will activate "Chord mode". Then, just play one note and it will play the full chord with the pressed note as the root note. You can record a custom chord by keeping Shift + Hold pressed while entering up to 16 notes.

Transposition - Transpose the whole keyboard by octaves or semitones by pressing Oct or Shift + Oct.

Transport Control - While pressing Shift, you can use the corresponding pads to Play, Stop, Record, Loop, and tap the tempo.

Arpeggiator mode - Shift + Pad#1 engages/disengages the Arp. Long press Shift + Pad#1 to enter the Arp settings. Then use the 8 knobs or the main encoder to set the Arp as you please.

Hold + Chord + Arp - Can be activated at the same time, allowing you to keep the Arp running while tweaking the parameters of a preset.

Pad banks - Shift + Pad#2 toggles between Bank A and B).

Programs - Shift + Pad#3 cycle through the programs. Arturia and DAW programs will automatically connect to any Arturia Software or DAW if there is one open on the computer. You can create and add some User Programs to customize the MIDI CCs, notes, pad colours etc.

Arturia Program - use the main encoder to browse through presets. Press the Main encoder to select a Preset. Long Press the main encoder to like/unlike the Preset. Shift + Main encoder will browse through Types. Select one, and then browse through the filtered presets.

DAW Program - use the main encoder (turn or click), and "Shift + the main encoder" (Shift + Turn and Shift + Click) to access different features depending on the connected DAW.

Back Panel connectivity
USB-C = Connect to a computer or a power source
Control Input = you can set the pedal input to be Sustain, Expression or Footswitch.
MIDI Out = Send midi through MIDI Din port

Notes: *** Update February 2025- NKS Integration available with this product ***

Native Kontrol Standard (NKS) is a technical standard that connects plugins to hardware controllers with no setup required. The NKS ecosystem includes over 2,000 virtual instruments and plugin effects by over 250 acclaimed developers.

NKS enables users to load instruments and effects, tweak parameters, browse and manage presets with tangible controls, keeping creators' minds and hands on the music. No time is wasted creating, saving, and resetting controller parameter mappings.

Key features include:
Unified Control: NKS maps plugin parameters directly to hardware controls, allowing for hands-on adjustments without navigating computer menus.
Efficient Workflow: It streamlines browsing, loading, and editing presets, enabling producers to stay focused on creativity.
Broad Compatibility: Many third-party developers support NKS, offering a wide range of compatible sounds and effects.
For Our Products: This integration allows Akai and M-Audio compatible devices to fully utilize all NKS workflow features.

Here are some key points to take note of:

Current users will receive the software bundle once they register their device.

Both existing and new owners will receive the software bundle once their hardware is registered.


NKS Software Partnerships

For years, Native Instruments has partnered with world-class software manufacturers, including Arturia, Heavyocity, Korg, Output, Spitfire Audio, and many more, to bring thousands of instruments and effects plugins into the NKS ecosystem. Together with Native Instruments' own instruments and effects, this creates the most extensive database of any auto-mapped hardware controller ecosystem.

Until now, NKS hardware controllers were only available from Native Instruments, such as the Kontrol S-Series and Komplete Kontrol A-Series keyboard controllers.

NKS Hardware Partner Program [New]

At NAMM 2025, NI announced opening up NKS compatibility for third-party, non-NI hardware, allowing millions of performers and producers worldwide to enter the NKS ecosystem.


***

Compact but powerful all-rounder for control over software, plugins and hardware. Typical high-quality Akai build, with a combination of keys, pads, rotary controllers and transport controls for versatility.

Supplier's Notes:
37-key MPK Mini keyboard with advanced connections and controls

The MPK Mini keyboard line revolutionized portable music-making for producers and beat makers all over the world. The new MPK Mini Plus builds on that innovation by empowering musicians with full creative control that delivers ultimate feel and expression, along with next generation performance tools. Advanced connectivity easily and fully unites all your favourite studio devices for complete and expanded hardware integration in a compact 3-octave design.

Full Portable Creative Control

While maintaining its compact footprint, MPK Mini Plus offers extensive controls providing deep command over a wide range of features. 8 velocity-sensitive RGB-backlit MPC drum pads are the backbone for not only playing dynamic beats and programming drums, but for also assigning pro-gram changes and triggering additional CC parameters. Dial in effects with the 8 assignable 360-rotary knobs for every function including filters, automation, pan controls, and more. For the first time on any MPK Mini, enjoy dedicated Transport controls for total integration into your DAW. Eliminate needless back-and-forth from your QWERTY keyboard or mouse and stay engaged in the creative workflow with dedicated Play, Stop, Record, Loop, and Locator buttons.

Ultimate Feel and Expression

As with all MPK Mini controllers, performance starts with the keys. MPK Mini Plus features 37 keys with the Gen 2 Dynamic Keybed for expanded melodic and harmonic creation. 3 full octaves mean more room for two-handed chords, arpeggiation, and laying down solos or soundscapes. The Gen 2 Dynamic Keybed features incredibly playable keys with a wider velocity range, delivering a world-class level of note dynamics and response. With more keys, your music will need new ways to add feel and expression, so the MPK Mini Plus adds dedicated Pitch Bend and Modulation Wheel controllers to help all keyboard performances truly come alive. Alongside the iconic Joystick Controller, there's no shortage of tactile interaction for near limitless expression.

Advanced Connectivity and Standalone Operation

For those spontaneous creative moments or quick jams sessions, MPK Mini Plus can operate with standalone functionality. The new polyphonic Step Sequencer is convenient for capturing new ideas on the fly. Record notes and drum patterns simultaneously for some serious standalone music creation. Connect to any Class-Compliant USB or 5-pin MIDI device and use the CV/Gate connectors to plug into your rack and other modular synths. The MPK Mini Plus is versatile enough for the serious beginner looking to grow their creative space, and also for those seasoned pros who want to get the most out of their studio gear.

Includes MPC Beats DAW for Mac and PC

The bundled MPC Beats software DAW for Mac and PC offers the iconic MPC workflow right on a desktop or laptop computer, and also includes thousands of sounds, drum samples, loops, and plugin instruments to create your next hit song. With more keys on the 37-note Gen 2 Keybed, MPC plugin instruments like Electric and Tubesynth will come alive with extended sonic range. Set the MPK Mini Plus on a desktop and connect with standalone MPC devices to control Mellotron and Hype plugins.

Even with 3 octaves, MPK Mini Plus will fit in your gig bag to easily transport alongside everyday music production items. It's simple math; adding MPK Mini Plus to any workflow equals expressive creativity and intuitive control for modern music creation and beat making.

Connectors
USB Type-B port
(5) 1/4" (3.5mm) CV Outputs
(2) MIDI DIN In/Out Ports
(1) Sustain input
Power Via USB type-B (bus powered or connected to wall adapter).

Dimensions (width x depth x height)
17.76" x 7.08" x 2.04"
45.11 cm x 18.0 cm x 5.2 cm

Weight
2.78 lbs.
1.26 kg

Notes: The Befaco Synth Duster is a super soft brush to keep your modular synth and audio equipment far away from dust.

Notes: Updated version of Akai's excellent MPC One features increased storage, WiFi, Bluetooth and a striking new colour scheme. Full standalone beat creation masterpiece.

*** Introducing MPC Stems- March 2024 ***

Akai Professional now introduces the next chapter of sampling innovation and production powered by the groundbreaking MPC Stems bringing sampling into a new chapter.

With MPC Stems, you can access the raw building blocks of any sample or vinyl record, isolating the DNA of any record. Producers can now manipulate the Drums, Bass, Music, and Vocals, opening new creative possibilities.

Akai Professional introduces the ultimate creative workflow with Stems Separation seamlessly integrated into the leading MPC series, powered by MPC 2 Desktop Software.

With MPC Stems, producers and beat-makers can now unlock unmatched sampling creativity by easily isolating drums, bass, music, and vocals from any audio, vinyl recording, or sample revolutionizing the art of sampling.
Experience lightning-fast workflow with superior sound quality, keeping you inspired throughout the creative process.

Slice and isolate samples while maintaining chop regions across each of the four stem layers.

Take complete control with direct manipulation of stem layers from the pads, adjusting volume, pitch, pan, start, and end points with instant responsiveness.

MPC Stems requires MPC 2 Desktop Software running 2.14 or higher, compatible with MPC Live, MPC Live 2, MPC One, MPC One +, MPC X, MPC XSE, MPC Key 37, MPC Key 61, MPC Studio Mk 2 in Controller Mode.

Supplier's Notes:
MPC One +

Standalone MPC with 7" touchscreen / WiFi & Bluetooth

Supercharge your beats

Standalone supercharged

The new MPC One+ brings a jolt of energy to the standalone workflow to enhance creative speed and efficiency. With MPC One+, beatmakers producers to live performers can enjoy the creative journey like never before.

Pure standalone power in your hands

At the heart of MPC One+ is the powerful multi-core processor, the same featured in the flagship MPC X. This isn't a scaled down little brother, but a production unit built with the same DNA for high-level music creation. Instruments, audio, MIDI, and effects processing to bring the music to life. With an upgraded 16GB of internal storage, create and store more of your inspired moments right in MPC One+ for immediate access and recall.

Wireless for the future

New Wi-Fi and Bluetooth connectivity opens a new world of possibilities for your creative workflow. With Wi-Fi, you now have access to Ableton Link 3 to wirelessly connect and sync all your capable devices. Lock patterns and grooves for a mega creation without any cables or connections. Grab your Bluetooth enabled MIDI controller to lay down synths and melodies while your infectious rhythms have you vibing to the beat. Pair with a wireless QWERTY keyboard to search through folders and libraries accurately. With Wi-Fi and Bluetooth, your MPC One+ may be untethered but you are locked right into the music.

The centre of your creativity

MPC One+ is meant to be the focal point of your creative workspace. Whether you need compact, efficient beat-making or expanded interconnected production and composition, MPC One+ is versatile enough to accommodate any need. Connect your studio speakers to Stereo Outputs for accurate monitoring. A pair of Line Level Inputs are ready for keyboards, synths, instruments, hardware processors, and more. Expand your I/O with support for ClassCompliant Devices via a USB A host port. Connect your favorite plug-and-play USB MIDI Controllers, Audio Interface Devices, or removable storage drives, and take your production up another level with ease.

The workflow that sparks inspiration

MPC is the premier platform for all pattern-based music from EDM to Electro, Hip-Hop to House, and beyond. With 128 MIDI and 8 Audio Tracks per project, MPC One can capture any idea just as fast as you can think it. Browse thousands of MPC Plugin Instrument Presets to find that perfect sound to build melodies or shape harmonic phrases with massive sonics. Lay down serious drums and percussion with the signature MPC groove and precision. 16 Levels, Note Repeat, and Time Correct have defined the rhythmic feel for generations and continue to be the foundation for hit song after hit song. Use the pads in combination with Notes and Chords modes to unlock a completely new world of pad performance using the 16 velocity-sensitive RGB backlit pads.

One place for your sounds, samples, and songs

MPC One+ grows with you as you evolve on your music production journey. Update features, sounds, and samples wirelessly thanks to built-in Wi-Fi. When new MPC plugin instruments are available, you'll enjoy instant notifications as well as downloads and software authorizations right from your MPC One+. Browse and sync your curated Splice loops and samples and give your productions a breath of fresh inspiration whenever you need it. Keep all your sounds and instruments right within reach to instantly capture the most inspired moments anytime.

The next step of your MPC journey

MPC One+ is here for the producers and beatmakers ready to take the next step in the journey. Upgrade to MPC One+ from MPC Beats and load your old projects seamlessly on MPC One+. Your MPK mini or other class-compliant controller connects for powerful keyboard control of popular MPC plugin instruments like Hype, Mellotron, or Odyssey. For a limited time, receive a voucher for a free MPC Plugin instrument download from the MPC Store with the purchase and registration of a new MPC One+. MPC One+ has arrived and the musical possibilities ahead of you are endless with the power of its supercharged standalone workflow.

Technical Specifications

Pads
(16) velocity- and pressure-sensitive pads, RGB-backlit
(8) banks accessible via 4 Pad Bank buttons

Knobs
(4) 360- touch-sensitive Q-Link knobs for parameter adjustment
(1) data encoder for value adjustment and selection via push

Buttons
(31) dedicated-function buttons

Display
7.0" / 177 mm (diagonal)
5.9" x 3.7" / 151 x 94 mm (width x height)
Full-colour LED-backlit display with touch interface

Memory
Processor: Quad-core ARMr processor
RAM: 2 GB
Storage: 16 GB (over 7.8 GB available for user storage)

Power via power adapter (12 V, 3.0 A, center-positive, included)

Connections
(2) 1/4" (6.35 mm) TRS inputs (1 stereo pair)
(2) 1/4" (6.35 mm) TRS outputs (1 stereo pair)
(1) 1/8" (3.5 mm) stereo headphone output
(1) 5-pin MIDI inputs
(1) 5-pin MIDI output
(4) 4 TRS CV/Gate Jacks, 8 Outputs Total
(1) USB Type-A port
(1) USB Type-B port
(1) SD Card slot
(1) Power Adapter input

Dimensions (width x depth x height)
10.7" x 10.7" x 2.1"
272 x 272 x 53 mm

Weight
4.7 lbs / 2.1 kg

Notes: Part of Teenage Engineering's high-end Field series, the OP-XY is best seen as a pro groovebox, combining polyphonic synthesis, sampling and sequencing. More music-focussed than its OP-Z predecessor, the OP-XY represents a new flagship for TE.

Supplier's Notes:
No-compromise, dual-CPU boosted and fully rebuilt sequencer, sampler, and performance instrument, based on the much-loved workflow of the OP-Z. Now including built-in cv, effect sends, and a best-in-class DAC. with 8 individual instrument tracks and 8 auxiliary tracks for controlling any external synthesizer, modular or otherwise, and adding effects. It's probably the most complete, portable sequencer ever built. It's here. It's real. it's black.

And it's got so much more than you've wished for.

The exterior is all black, and matches the exact dimensions of OP-1 field. A distinct grayscale gradient is at its centre, making it clear that OP-XY is all about serious sequencing. Hands-on graphics on the high-resolution display are all grayscale, with a bright red to indicate recording and parameter locks. all vital keys have LEDs to stay in full control.

Experience the ultra fast sequencing workflow. Punch-in FX lets you add quick, rapid-firing, unique, live variations and adding individual step components creates an extra dimension and deep rhythmic patterns. randomize note timing, velocity and pitch, or use live automation to alter filters. Use brain to create chord progressions, generating tracks that reinvent themselves. Literally.

Run every track, independently, at different speeds and lengths to form powerful polyrhythms. create new sequences every time with step components, variations that can be added to any step on the sequencer, controlling everything from altering pitch to bending, skipping or even multiplying steps.

Main audio-out

Multi-out, featuring:
MIDI
CV/gate
Sync
Aux audio
MIDI IN
AUDIO IN
USB-C

The 2 Vrms main output drives any sound system, real loud. Keep everything locked in sync and sequenced with the multi-out and take control with MID IN. process and sample external audio with the audio-in. control, record and charge with the audio/midi host over USB-C, plus a complete wireless experience with midi over Bluetooth LE -keine bedingungen [no strings attached].

Compose your album, head off to the gig, plug and play immediately, then keep everything locked-in with all the I/O you could ask for. 16-hour, battery-powered freedom lets you perform for hours on-end. create, produce and perform anywhere. Mit allen bedingungen [all strings attached]

The bottom left side features a pressure sensitive pitchbend

Instrument tracks:

8 individually sequenceable instrument tracks
8 unique synth engines
3 samplers
independent send levels per track

Step components
14 unique step components for advanced step sequencing
Apply up to all 14 to every step screen
480 x 222px IPS TFT display

Patterns
9 patterns per track
up to 64 bars per pattern
spread across 4 pages
presets per pattern

Effects: reverb, delay, chorus, distortion, lo-fi, phaser

Hardware
Dual blackfin processing cores
Dual DDR memory
Triple-core dsp co-processor
2x controller MCU's for wireless & low power IO domain

Sensors: 6-axis IMU accelerometer

Microphone: immediate, high quality sampling with the built-in microphone.

Connectors: 3.5 mm stereo line-out with headset mic support
3.5 mm multi-out
3.5 mm midi in
3.5 mm stereo line-in

Tactile input
2 octave musical keyboard
68 ultra low profile mechanical buttons
Pressure sensitive pitch bend
4 x multi purpose grayscale encoders

USB
USB type C connector
USB MIDI host & device
USB audio host & device

Notes: - High-grade patch cable designed for modular units
- 3.5mm mono jack plugs
- Length: 30cm
- Black finish

Notes: A user-friendly approach to melody and harmony, the Exquis offers an alternative control method for those who want to break away from conventional keyboards. Compatible with MIDI or CV/gate.

Supplier's notes:
A controller, an app, an instrument.

The Exquis controller gives you immediate access to the rules of harmony to improvise with or without theoretical prerequisites, and offers you dimensions of expressiveness that you can quickly master. In combination with the Exquis app, a unique workflow opens up, allowing you to create an entire song in a few minutes: choose sounds, record loops, play the conductor and structure your songs in complete spontaneity.

Exquis offers an intuitive way to guide you on the right path, while allowing you to get out of it. No hassle: just choose a scale, and follow its luminous path to play in tune. Thanks to our default note layout, it's very easy to make chords; Exquis arranges notes that sound good together next to one another. You will be amazed at how harmony falls under your fingers.

Compared to a piano keyboard, on our note layout the semitones are also arranged horizontally, the harmonious (third) notes are always next to one another, and the intervals starting from any note are always the same. If you prefer, you can change the note layout, and soon even create your own tailored note layout using our editor.

On the default note layout, scales can be simply represented by a pair of light paths; whether you are a beginner, amateur or experienced musician, just follow the colors, with one or two hands, to stay in tune and improvise spontaneously. Explore many scales (major, minor, dorian, oriental...) and soon you will be able to create your own using our editor.

Our default note layout goes back to the basic logic of harmony, putting notes that sound good together (thirds) next to one another vertically. Each type of chord (major, minor, diminished, dominant etc) always forms a single and unique transposable form.

Inspired by the finesse of acoustic instruments, the keys of Exquis are both firm enough to play percussion and short notes with precision, and soft enough to modulate long notes with sensitivity. Tap, press, and tilt multiple keys independently using the MIDI Polyphonic Expression (MPE) protocol. The encoders (clickable, with infinite and smooth rotation and with a slight resistance) allow you to control the effects of a sound being played, as well as certain essential settings in the various menus.

In order to allow musicians to create new rhythms and moods, the application natively includes exclusive features. For example, we were inspired by the workshops of Jacob Collier and will soon allow the use of tuplets (particular divisions of beats such as 1/5 or 1/7), useful for creating grooves with a drunk effect.

The Exquis keyboard is a MIDI controller compatible with all software, MIDI synthesizers and modular synthesizers. The Exquis app, although optimized for the controller, is also compatible with all MIDI controllers, and like all MIDI controllers, the Exquis keyboard is compatible with most DAWs and plug-ins.

Dear users of modular synthesizers, Exquis connects directly to your favorite devices thanks to the CV outputs: GATE, PITCH and MOD. You can also connect Exquis to your MIDI synthesizers using the MIDI IN and OUT ports.

Notes: ETHER is a wide-band receiver that makes it possible to perceive the electromagnetic landscape around you.

ETHER is a kind of anti-radio. Instead of being tuned to a specific radio station, it receives all the interference and radiation that a traditional radio tries to eliminate in order to create a clean signal. It captures the radio waves as is from hertz to gigahertz because it doesn't contain the tuned input circuit that filters out all frequencies except the narrow band of a specific station. This allows ETHER to perceive the invisible electromagnetic landscape that humans created unintentionally, making possible live electromagnetic field listening and recording.

The design was inspired by the design for the very first radios (early 1900s) that had no tuning wheel. At this time there weren't many radio stations, and all of them used Morse code. It was possible to distinguish each transmitter by ear, as each one had its own specific timbre or voice.

ETHER is pocket-sized (103x58x17mm) and light-weight (73g with batteries). It consumes very little power and runs on two AAA batteries. How long it can run on two batteries is unclear,- but the battery life is more than 300 hours if you using alkaline or lithium batteries.

ETHER was intended to be a unique accessory for the conscious modern human. Special designed enclosures made in Europe were used, as well as high-quality PCB and furniture providing long life and high reliability. So with ETHER, you get both a unique sound experience and a cool-looking high-quality gizmo.

ETHER has both magnetic and electric components for sensing radiation. For the magnetic component, it has a built-in magnetic antenna, like the ones used in old long-wave radios. The antenna has maximum sensitivity on ETHER's axis. By changing the orientation, angle and position of ETHER, you will change the sound. For the electric component, it has antennas printed on the PCB and the special input pins placed on the anterior surface.

ETHER V2 has two external antenna pins. You can touch any conductive material or surface (including your body) with the pins and use objects or yourself as a big external antenna! Two pins are connected to different points of the circuit and interact differently with electromagnetic waves. Switching from one to another or using them both, you can change the sound. Far away from a city, we recommend trying to use a piece of wire 1-4 meters long connected to one of the pins for getting some interesting sound.

ETHER V2 has two wheels for sound control and the power switch. The upper wheel adjusts the amount of high-frequency amplification and regeneration. The lower wheel is the volume. By adjusting high-frequency gain you can focus ETHER on different dynamical levels of surround interferences getting the richest and interesting sound.

ETHER is not just an inductive sniffer like some projects you can easily find online. A simple low-frequency inductive sniffer will be silent in most places that are full of sounds in the video. Such devices need to be placed close to an emitting source and will not work on a street. All they contain is a coil and a low-frequency amplifier. In comparison, ETHER has a regenerative circuit and a demodulator, making it an actual radio wave receiver, not just an amplifier of low-frequency magnetic fields. However, ETHER can perceive the low-frequency magnetic fields as well. But, honestly, if your goal is to scan objects in close proximity (0-20 centimeters), a simple inductive sniffer will work cleaner and more focused due to its narrow band and lower sensitivity. ETHER was designed to be a part of your walks in the city and may even pick up sounds in a forest or at the seashore. Also, ETHER can perceive the electric component of the radiation as well, capturing radiation that is far above the audio range and is much more sensitive. Therefore, it has a significantly different design, functions and implementation than a simple inductive sniffer even if in some cases their functions can overlap.

ETHER is very sensitive to any kind of digital circuitry that's in close proximity, hence the lack of an SD-card recorder or something like that inside. You also have to make sure to keep other electronic devices that you carry (phone, laptop, recorder) at least 30cm/1ft away to avoid interference, but ETHER definitely works well when you walk around with a smartphone and laptop.

Notes: No oscillators, 8 voice polyphony.

The Steampipe is a true physical modelling synthesizer developed in close collaboration with Dutch company 112.dB.

The Steampipe has no conventional oscillators. Instead, it mimics the way sound is created in wind instruments and it is fine-tuned to create a wide range of sounds - everything from wind instruments to strings, pipe organs, crazy effects and beyond. The Steampipe has three major sections - STEAM, PIPE and REVERBERATOR.

The STEAM section can be compared to the lungs and mouth of a musician. The generator creates the flow of air or "steam", the envelope in this section determines the force with which it is blown out. DC/noise is the noise you get when blowing out. DC/Noise on the Steampipe can also be replaced with an external audio source.

The PIPE section can be compared to a flute. In the pipe, the tune is formed. Push (in feedback) bounces the steam like it does in a flute and generates the tone. The delay box subsection changes the flute's tuning and shape.

The REVERBERATOR adds space and ambience to the sound.

The Steampipe is optimized for performance with wind MIDI controllers and it works great with any MIDI keyboard. The overtones the Steampipe produces are very organic and rich and it comes with great-sounding presets. The Steampipe is rather versatile and allows for nuanced sonic exploration, conjuring sonic imagery ranging from from wisps of cloud to fairground band organs, then to industrial horns of the railroad and finally, to massive, otherworldly ambiences.

Notes: The lovable oddball of the Arturia range, this brilliant hybrid synth combines versatile wavetable and digital oscillators with analogue filters. Touch keyboard gives uniquely expressive control.

*** New firmware update (26th October 2021) *** Arturia are happy to announce another major new firmware update for MicroFreak, bringing massive new creative functionality for users free of charge.

Firmware V4.0 elevates this hybrid desktop synthesizer's status as a sound design powerhouse even further:
New WaveUser sound engine
Allows for user wavetables(!!)
64-new presets
Sequencer Unison & Chord Voices
Faster Oscillator Encoder Response
....and more!

This update, plus ALL the of previous updates (see Vocoder & Noise Engineering oscillators etc.) cement the MicroFreak as one of the most interesting, powerful and flexible synthesizers on the market, whilst maintaining excellent value for money.

Supplier's Notes:

A synthesizer like no other, MicroFreak is a peculiar, exceptional instrument that rewards the curious musician. It blends wavetable and digital oscillators with analogue filters. It features a unique poly-aftertouch flat keyboard. It adds controlled randomness to sequences. This isn't a revolution, it's a mutiny.

This out-there little music machine features a versatile digital oscillator so you can create rare and interesting sounds with ease. Modes like Texturer, KarplusStrong, Harmonic OSC, and Superwave give adventurous musicians the chance to explore totally new, unheard possibilities. Like having dozens of synths in just one instrument, both wild-eyed newcomers and seasoned professionals will fall in love with MicroFreak's flexible, powerful synth engine.

Physical modelling, wavetable synthesis, virtual analogue, there is nothing as complete and exciting as the MicroFreak oscillator on the market. It's hard to believe from such a small synth, but here it is, ready for you to explore. Excite your creativity and reward your curiosity with a large, diverse sound palette. MicroFreak features 11 awesome oscillators, 4 bespoke Arturia engines, and 7 modes from our friends at Mutable Instruments.

Inspired by the trailblazing 12-dB Oberheim SEM filter, you can make MicroFreak's filter scream or whisper to taste. The filter is state-variable, and can even auto-oscillate! You can use this is any way you like, from taking the edge of the razor-sharp wavetable sounds, or automating the cut-off by modulating it with keyboard pressure or the in-built sequencer.

Record up to four automations, edit notes per step or use the innovative Spice and Dice sequencer functions to find happy accidents. Add randomization to create evolving, original patterns, and virtually rewire and reconfigure its signal chain and controls with the 5x7 modulation matrix.

Notes: The brilliant Perkons drum machine comes to Eurorack. A single hybrid drum voice with digital sound engine and analogue filter/overdrive, the Perkons Voice is flexible and supremely powerful.

Supplier's Notes:
Erica Synths Perkons Voice is a eurorack incarnation of the percussion voices from the PERKONS HD-01 Drum machine. Like on the drum machine, the module has hybrid architecture, featuring a digital sound engine followed by an analogue multimode filter and overdrive. Users can select among 13 sound generation algorithms and save up to 99 presets that can be recalled easily. Tune and Patch CV inputs are configurable for various CV settings and are tuned to 1V/oct. Module also features a 4-voice poly overlap mode and samples on the "Rompler" engine can be easily replaced.

Specifications:

Audio output: 10Vptp
CV levels configurable: -5V - +5V
Power consumption: +59mA, -30mA
Module width: 14HP
Module depth: 35mm

Notes: Instant ambient bliss coupled with the powerful ambience processing is a brand-new Ensemble engine, capable of creating pads and soundscapes that follow your playing organically - so if you change pickups or play in a different place on the neck you get different results. It's unlike anything you've ever heard or played before, all wrapped in a smaller form factor that still manages to house full stereo I/O, TRS MIDI and USB-C connectors on the back panel. Prepare to be inspired!

Cloudburst's Ensemble switch reveals a whole new world of captivating sounds never previously heard from a reverb pedal. Use it subtly to add harmonically rich and otherworldly dimensions to your ambient reverb soundscapes, or use it liberally to hear a lush synthesized string section swell under your guitar playing. Ensemble reacts to your entire guitar signal in an organic and musical way, delivering a richly responsive and uniquely inspiring playing experience.

Cloudburst gives you multiple reverb experiences, with beautifully-tuned and natural small spaces at one end of the Decay knob and vast, expansive atmospheres at the other. As you turn the Decay control numerous internal parameters are automatically adjusted, allowing this ambient reverb pedal to produce outstanding studio-quality spaces of any size at the turn of a single knob.

All of the premium components, sound quality and road-worthiness you expect from a Strymon reverb pedal are here in Cloudburst's new compact format. Featuring unbeatable ease of use and some of the finest reverb sounds we've ever created, Cloudburst could easily be the only reverb pedal you need on your pedalboard.

Notes: - High-grade patch cable designed for modular units
- 3.5mm mono jack plugs
- Length: 200cm
- Green finish

Notes: When the classic MS-20 analog synthesizer appeared in 1978, it had a trusted partner in the SQ-10 step sequencer. Now, after thirty years, the MS-20 has been reborn as the MS-20 mini, and the SQ-10 has evolved into the more modern SQ-1.

The SQ-1 is a compact step sequencer with 2 x 8 steps. It's wealth of connection jacks allows it to be connected to the MS-20 and a variety of other synthesizers. Vintage analog synths or the latest compact synths can be controlled from this single unit. You can also switch between a variety of synthesizer modes and use the step buttons to create performances overflowing with spontaneity, just as when using a volca unit.

Liberate yourself from the numerically-bound parameter editing that's typical on a DAW; you'll enjoy truly musical inspiration as you train your ears and concentrate on what your fingertips are doing. Don't miss the experience of music that's driven by your instinct.

Rather than the commonly used V/Oct standard, the CV design of the MS-20 always used the Hz/V standard that provides excellent pitch stability limiting the step sequencers that are able to correctly control the MS-20. As a descendant of the SQ-10, the SQ-1 supports the Hz/V standard, enabling it to perfectly control the MS-20 or MS-20 mini. It goes without saying the V/Oct standard is also supported, and the voltage level of the CV output and polarity of the GATE output can be specified as appropriate for the device you've connected. This versatility will enable you to control a wide variety of other synthesizers as well.

As a connector, the SQ-1 provides two CV/GATE OUT channels, the standard MIDI OUT and USB MIDI, littleBits out (to connect to the littleBits synth kit by littleBits Electronics Inc.), plus the SYNC IN/OUT channel that allows you to connect to the volca series and monotribe. Compact and complete with all the functions you need, the SQ-1 is the ideal hardware sequencer.

The SQ-1 provides two channels (A and B) of 8-step sequencer that can operate consecutively, or be used in a variety of other modes. For example, you can run A and B following each other to function as a 16-step sequencer, ignore the order and make the steps play randomly, or use A and B to control different parameters as they run in parallel. From simple sequences to complex changes, you can choose from a variety of modes to suit your needs.

The 2 x 8 step buttons can be used in the usual way to turn notes on/off, but you can also use the MODE button to switch their function, opening up powerful possibilities such as letting you "perform" the sequence itself, as on a volca unit.

"Active Step" lets you skip steps mid-way through a sequence, and "Step Jump" lets you instantly play just the step that you press, producing irregular rhythms or effects that are reminiscent of short loops. "Slide" produces an effect in which steps are connected smoothly; using this to control a synth bass is an easy way for anyone to generate an acid sound.

Packed with carefully selected functionality, the SQ-1 features a compact and very sturdy sheet-metal body. Placed beside the MS-20 series, you'll notice a sense of solidity that gives the impression they were manufactured in the same era. The unit can operate on two AA batteries or on USB bus power.

Sequence step resolution is selectable as quarter notes, eighth notes, or 16th notes.

You can specify the way in which the step knobs control the pitch. The knob values can specify the pitch directly, or they can specify the closest note in a major, minor, or chromatic scale.

Notes: Freaky stereo digital delay from the Eurorack gods at Make Noise. Typically creative stuff, packed full of interesting features for creating complex echoes, modulating sounds and generating loops.

Supplier notes:
The Mimeophon music synthesiser module is a stereo, multi-zone colour audio repeater by Make Noise and soundhack, coded by Tom Erbe.

The Mimeophon (from Greek mimeo (repeat/copy) and phon (sound)) is a modern take on various historical sound copying, echo and repeating devices. It allows for Stereo modulations of Time, Space and Timbre of Mono or Stereo sound sources. The Mimeophon is capable of modulating and morphing time scales of repeated sound from micro-sound to note to phrase length while also colouring and spatializing the repeats.

Notes: The Samson S Patch Plus features high quality miniature toggle switches allowing each channel to be configured for either Normalled, Half-Normalled or Thru operation. The S-Patch Plus will provide reliable operation while maintaining a clean signal path with it's solid construction, 48 1/4" phone plugs on the front and 48 1/4" phone plugs on the rear.

You can instantly change any channels configuration without the need to remove the unit from the rack as the mini-toggle switches are conveniently located on the front panel. S-Patch Plus is one of the best entry level patch bays on the market. It helps you work cleaner and faster allowing you to focus on making a better production - a great value for money product for the small home studio owner.

Notes: Developed in conjunction with Dutch software masters 112dB, Erica's stereo reverb is the best of both worlds: deep DSP power with plenty of hands-on control. Designed for musicality, ideal for synths, drum machines and more.

Supplier's Notes:
A stereo reverb with a unique and musical algorithms developed by 112db, save/recall functions for all parameters, all in sleek aluminum case to aesthetically match our lineup of compact desktop units.

Erica Synths focused on the musical aspect of the effect - extremely long decay tails are possible without losing harmonic integrity and since multiple parameters can be adjusted at once, notes can be played individually and held in chords, pitch-shifted at a whim or used to create massive, ambient textures.

Notes: These cables are designed to interconnect pro audio gear with unbalanced mini phone jacks. They are ideal for use with modular synthesizers and sound modules.

- Nickel-plated plugs for rugged durability and efficient signal transfer
- Oxygen-Free Copper (OFC) conductors for enhanced signal clarity
- OFC spiral shields for effective EMI and RFI rejection and flexibility

Connectors: 3.5 mm TS to Same
Conductor: 26 AWG OFC
Shield: 85% OFC Spiral
Quantity: 8 pc

Notes: - High-grade patch cable designed for modular units
- 3.5mm mono jack plugs
- Length: 120cm
- Blue finish

Notes: Another intriguing experimental offering from Soma Labs. ROaT is a digital synth inspired by 80s video games. Four oscillators combine with a sequencer to create drones, soundscapes and glitchy loops.

Supplier's Notes:
Rumble of Ancient Times (RoAT) is an 8-bit noise synthesizer and sequencer inspired by the clever programming of the early PC era when an entire video game would fit on a floppy disk. RoAT is capable of a wide variety of sounds ranging from dense noise scapes to diverse glitching rhythmic patterns. The compact and portable instrument contains many elements that can be combined into surprising musical results.

The "heart" of the synthesizer contains 4 sound oscillators, each with a tunable waveform and an individual LFO, which can modulate the tone or volume of the oscillator. The modulated signal of each oscillator is mixed with other signals using 1,536 variations of complex summing algorithms that contain FM, ring modulation, bitwise logical operations and more.

The synth contains an 8-bit resonant lowpass filter with a distinct Lo-Fi character.
The built-in sequencer can be synced to an external device and also send clock out.
RoAT is battery powered and can work up to 130 hours on one set of AAA batteries.

Rumble of Ancient Times is built on a very simple 8-bit microcontroller similar to the ones used in the "brains" of old refrigerators and other simple electronic devices. Thanks to some very clever programming, it's also able to drive a very capable synth with many features!

In stark contrast to modern consumer electronics, this synth celebrates and emphasizes what can be achieved with efficiency of code and using chips considered obsolete by industry leaders. We live in an age where text editors can be 1GB or more and simple things like checking email require the latest OS and powerful processing, despite the core tasks being no different than 15 years ago with a fraction of the computational power.

So RoAT proposes a new kind of ecological thinking with the innovative use of chips that were developed and produced decades ago, instead of turning them into millions of tons of trash. We can still use technology that the industry forced us to consider obsolete, with the added benefit here of extremely low power consumption. It's an environmentally friendlier approach than galloping in the rush of planned obsolescence that damages our planet and wastes precious resources.

Rumble of Ancient Times was designed and programmed by Kakos Nonos, a new creative mind who joined the SOMA development team. His very unique style of building electronic musical instruments combines quality craftsmanship, advanced programming and a love for medieval acoustic instruments such as gusli, wheeled lyre and bagpipes.

Specifications:

Sync out voltage: 5 V
Minimum syn in voltage: 0.2 V
Current input: 20 mA
Maximum output voltage: 5 V
Audio output:3.5 mm jack
Sync out: 3.5 mm jack
Power Supply: 4*AAA battaries
Size: 122 x 136 x 40 mm
Weight (without batteries): 145 g

Notes: Keyboard meets sequencing in Arturia's all-round controller. USB, MIDI, CV and analogue clock compatibility make this 64-step polyphonic sequencer a true all-rounder. Great value.

Supplier's Notes:
KeyStep 37 goes beyond an easy-to-use 64-step sequencer, arpeggiator and MIDI keyboard. It's responsive, dynamic, expanded in every direction to encourage musical exploration - the controller that's built to help write music and also includes Ableton Live Lite, making it a complete music production starter kit, as well as appealing to veteran musicians. Like KeyStep and KeyStep Pro before it, KeyStep 37 offers unique features not found in any other product.

The familiar KeyStep formula, expanded. KeyStep 37 features a velocity-sensitive 37-note keybed, complete with aftertouch and RGB LED feedback, while remaining lightweight and compact.

At the center of the control panel, you'll find 4 new knobs with an LED screen, giving you instant access to inspiring new expressive tools and MIDI tweaking - total creative control.

The new controls unlock KeyStep 37's unique & enhanced Chord mode. Choose from 12 chord types, an array of strum effects, and spread the voices out into complex velocity-sensitive parts that respond like a stringed instrument.

Map out KeyStep 37's 3-octave keyboard range with a scale of your choice using Scale mode. Any key you play will automatically quantize to the nearest note in the chosen scale.

Tap into the inner workings of your MIDI hardware and software with assignable 16 MIDI CC pa-rameters across 4 switchable banks. Use the 4 new controls to tweak settings on the fly for dy-namic performances.

The core of your setup:

KeyStep 37 is designed to be put in control. An accessible interface, a compact design and com-prehensive connectivity make it the perfect centerpiece for your rig - whatever your needs.

Hook up your synth hardware with MIDI in/out. Control your favorite VST instruments with MIDI over USB. Use CV pitch, gate and mod connections for modular integration. Analog sync in/out keeps everything in time without hassle. The best bit? Use it all at the same time.

Included is a free copy of Ableton Live Lite, an accessible music-making suite for your Mac or PC. Register KeyStep 37 for your free download and get creative right out the box - let the music flow freely.

Notes: Korg's excellent FM synth offers a modern take on those classic 80s digital tones. Second-gen version doubles the number of voices to six, adds new MIDI features and extra effects.

Supplier's Notes:
The next-gen Volca FM is a powerful 6-voice, 6-Operator FM synthesizer with all 32 classic algorithms, a 16-step loop sequencer, effects and a powerful arpeggiator that perfectly reproduces the sound of the classic Yamaha DX7 and is completely compatible with SYS-EX patches for the DX7 as well.

Battery (included) or adapter (optional) operated with built-in speakers and a compact and light chassis, the Volca FM is the ultimate portable FM solution for all musicians.

This new generation - with double the voices of its predecessor, additional effects, expanded MIDI connectivity, and intuitive interface - is poised to bring unprecedented possibilities to your setup, and revolutionize your studio with new musical ideas.
With 6 voices (instead of the 3 of its predecessor) the new Volca FM brings a new world of harmonic possibilities to your production.

Now it is possible to play, sequence or arpeggiate complex chords with up to 6 voices in order to bring a unique flavour to your music production. No more running out of voices when sequencing melody, harmony and bass all in one device!

Moreover, the new Volca FM is now velocity sensitive via MIDI, which coupled with its 6 voice polyphony, provides a much more expressive and nuanced playing experience than ever before.

By popular request, Volca FM includes a lush Reverb effect in addition to the Chorus effect. Each of these two effects can be used and adjusted individually to add the finishing touch to any FM sound you are going for.

In addition to MIDI IN the new Volca FM also includes a MIDI OUT (IN/OUT 3.5 mm TRS), making it possible to use the intuitive Volca internal sequencer to control other devices through MIDI, making it the perfect addition to your standalone setup. Of course, it also works well with your DAW of choice thanks to note, control, and clock receipt via the MIDI IN.

The internal sequencer offers looping up to 16 steps, allowing you to record your performance on the touch panel keyboard as you play. Up to 16 sequence patterns can be stored in the internal memory.

Volca FM also incorporates a motion sequence function to record in real time all the subtle nuances of your playing and knob movements, letting you add time-varying change to the sound. This is a great way to polish your loops, and also lets you generate highly original live performances.
In order to spice things up, the new generation of Volca FM includes a brand new program randomizer, letting you find new inspiration through happy accidents and unexpected patches.

Of course, it still incorporates highly acclaimed functions such as the warp active step, pattern chain and an improved arpeggiator, making it easy to create crazy looping rhythms and patterns.

In addition to the active step function that lets you skip steps during a sequence, the volca fm provides new functions that enable you to generate more irregular rhythms. If the active step is fewer than 16 steps, you can use the warp active step function to compensate so you occupy the same playback time as 16 steps; then by synchronizing the playback with another volca series unit, you can deliberately skew the step timing to generate truly unconventional performances.

Specifications

Keyboard: Multi touch 27 key keypad
Synthesizer:
Type: FM synthesis
Maximum Polyphony: 6 voices
Structure: 6 operators, 32 algorithms
Number of Programs: 64
Edit parameters: Modulator (Attack, Decay), Carrier (Attack, Decay), LFO (Rate, P.Depth), Algrtm, Randomize Available to edit full parameters for each operator in Edit Mode
Controls: Transpose, Velocity, Octave, Arp (Type, Div), Chorus Level, Reverb Level
Arpeggiator Types: 9 (each 3 patterns of "Rise", "Fall", and "Random")
Voice Modes: Poly, Mono, Unison
Effect: Chorus, Reverb
Sequencer:
Number of Parts: 1
Number of Steps: 16
Number of Recording Patterns: 16
Controls: Motion Sequence, Active Step, Warp Active Step, Pattern Chain, Metronome
Audio Output: Headphones (3.5mm stereo mini jack)
Sync: Sync In (3.5mm monaural mini jack, Maximum input level: 20V), Sync Out (3.5mm monaural mini jack, Output level: 5V), When two units of Volca FM, available to export the sound programs and sequence data from a Volca FM to the other one
MIDI: IN/OUT - Note: 3.5mm stereo mini jack connector (type-A MIDI adaptor needed)
Available to convert and load SYS-EX/SYX files from Yamaha DX7
Power Supply: AA alkaline battery x 6 or AA nickel-metal hydride battery x 6, Or AC adapter (DC 9V) (optional)
Battery Life: Approximately 10 hours (using alkaline batteries)
Dimensions (W x D x H): 193 x 115 x 40 mm / 7.60" x 4.53" x 1.57"
Weight: 360 g / 12.70 oz. (Excluding batteries)
Included Items: AA alkaline battery x 6 (for verifying operation), Sync Cable, Edit Parameter List - Accessories: AC adapter (DC 9V) KA-350

Notes: A true MIDI powerhouse, based around a 128-pad matrix and 16-track MIDI sequencer with slick programming workflow and Ableton-style pattern mode for live performance.

*** Firmware update- February 2025 ***

HapaxOS2.10

Squarp are very pleased with this version, which is both creative and packed with new features, as well as numerous bug fixes that make HAPAX more stable than ever.

Up to 16 pattern per tracks
Arranger fonction
Mix / mute performance mode
Pattern follow actions
Midi import / export
Multi track recording
Track latency compensation
STEP-INPUT REC mode (SH101 style)

Supplier's Notes:
Professional standalone sequencer

Genuine centerpiece of a setup, it offers every tool needed to compose songs in the studio and perform them on stage. From vintage to modern synths, from modular systems to your favourite DAW, Hapax can sequence and synchronize all your gear, while bringing you carefully crafted tools, designed for maximizing creativity.

The midi powerhouse.

Up to a million notes and events

16 tracks per project, 8 patterns per track.

Thanks to its dual-processor architecture, Hapax can record and transform tremendous amounts of data in no time, without a hitch.

Express yourself.

MPE compatibility

Hapax is the first hardware sequencer that fully supports MIDI Polyphonic Expression. Record the finest gestures, slides and articulations of your playing, without compromising quality.

Around the clock performance.
Dual-project architecture



Hapax can handle two separate and independent projects, that can be played simultaneously. This lets you compose or load an entire project while the first one is already playing, enabling endless sets and seamless transitions.

Dawless is more.

Hapax offers broad connectivity options for perfect integration in any setup.

Adaptive workflow.
Several ways to write music
Writing a melody: use a polyphonic or MPE track and take advantage of the advanced step sequencer to quickly lay down notes or edit your live recording.

Composing a beat: control up to 8 different instruments with a single track. The drum sequencer is tailored for very easy rhythm writing and jamming.

Real-time midi effects.

Bring your synths to life

Hapax embeds multiple real-time, polyphonic, non-destructive midi effects, as well as project-wide assignable LFOs. Each parameter of these effects can be automated in the dedicated mode, and processed in the mod matrix, which provides even more ways of routing and modulating.

Powerful composition tools.

Algorithms

Powerful tools for offline note transformation and generation, right at your fingertips. Harmonically invert your motive, generate a controlled-random counter-melody, slowly ramp up the velocities, emphasize every fifth 8th note...

Hi-res recording

Hit the red button, and record from the encoders and 128 pads of Hapax, external midi instruments (included MPE controllers) or any incoming analogue signal, at a high resolution of 192 ppqn. Looper style recording, count-down and metronome options, punch-in mode, you'll certainly find the options that best suit your workflow.

Time elasticity

Each track has an elasticity value which changes its playback speed, expressed in percentage of BPM. Quickly double or halve the speed of a track, or create slightly shifted tracks that will slowly drift out of phase with each other.

Fluid editing

Using hardware should never get in the way of creative flow. The undo/redo button lets you go back in time as needed, thanks to its extensive history. Additionally, the snapshot function enables you to save the state of a pattern and recall it with a single press. Together with dedicated copy, paste and delete buttons, Hapax offers a complete toolbox for the prompt editing of your tracks.

Harmony, simplified

For fast and intuitive chord building, the chord live mode brings harmonic capabilities to anyone, with or without deep theoretical knowledge. With its colourful interface, the chord mode displays a synesthetic melding of hearing, vision and touch.

Simple by design.

Trimmed to perfection

Squarp designed Hapax from the ground up, deconstructing everything you thought you knew about sequencing- aiming for a high-end product, with dual arm processors for computation power and a rugged yet minimalist housing.

As music-making should remain an enjoyable process, dedicated buttons were over key combinations and imagined a clear-cut interface as well as a simple architecture. Squarp have striven to minimize the importance of screens for live performing, but the dual grayscale display helps keeping track of things in a studio context.

Hapaxos
Evolving firmware.
The Hapax Operating System has been written with extra care, prioritizing stable and fast operations. New features and parameters will be added regularly.

Specifications
Model name: Hapax
Hardware: 128 RGB MATRIX pads
52 clic pads
9 sturdy clickable encoders
2 OLED greyscale displays
SD card for saving projects
CPU: dual ARM design
RAM: 32MiB
Housing: machined aluminium 2mm
Housing (back): unibody ABS

Sequencer
Dual Sequencer (2 Projects)
16 tracks per project
8 patterns per track

Input
2× midi in (DIN + TRS)
2× CV in [-5V to +5V] (16bit)
Stereo pedal (footswitch)

Output
4× midi out (3× DIN + TRS)
4× CV out [-5V to +5V] (16bit)
4× GATE out [+5V]

Bidirectional I/O
USB Host (link a controller)
USB Device (link a computer)
Power supply: 15V, 1.2A, 18W (included)
Dimensions: 358 × 206 × 48 mm
Weight: 1.855 kg

Notes: The TipTop Audio Stackcables allow you to stack your cables to give you complex signal flows with greater visibility

Notes: Row Power is a clean, regulated, and protected power solution for Eurorack systems. Row Power 45 provides enough power for two to three typical Eurorack rows (typically up to about 312HP):
+12V @ 2.0A maximum, 1.5A recommended
-12V @ 1.4A maximum, 1.2A recommended
+5V @ 1.5A maximum, 1.2A recommended

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying bus cables or the Bus Stick. For custom power systems, the Row Power 45 has a set of easily soldered holes for using large gauge wire or MTA156 connectors to connect to distribution bus boards.

Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 45 can also be daisy-chained to 4ms Company's Pod enclosures. Each power supply is independently regulated and protected for ultra-low cross-talk between rows/pods.

The Row Power 45 is compatible with the 4ms Row Power Shield. This device (sold separately) attaches to the back of the Row Power 45 and monitors the amount of current being drawn, as well as the voltages of the power rails. The information is sent over Bluetooth to be displayed on a phone or tablet.

Electrical and Mechanical Specifications

Module Size:
4 HP Eurorack format module

Power Output:
Maximum average load under normal conditions: +12V @ 2.0A, -12V @ 1.4A, +5V @ 1.5A
Maximum average load under any condition: +12V @ 1.5A, -12V @ 1.2A, +5V @ 1.2A
Powered by laptop-style DC power supply: 2.1mm barrel, positive center, 15V-20V.

Included with the Row Power 45:
16-to-16 pin power cable
2 M3 Knurlie screws

Notes: Presenting the new CTRL CASE EP-133 K.O. II - the ideal safeguard for beat makers and producers on the move. Specifically crafted to hold the new Teenage Engineering EP-1330 K.O. II, this compact and lightweight case ensures your sampler is transported safely to your upcoming studio sessions. With a durable Durashock moulded EVA shell and high-density foam interior, it also boasts a mesh pocket for tidy storage of audio cables, spare batteries and more.

Crafted from 6 mm thick and rigid Durashock molded EVA foam and water rejecting polyester exterior shell
Sturdy zipper
Including mesh pocket for cable storage
Incl. removable egg-foam padding to protect knobs, faders and pads
Compatible with Decksaver cover

Fits:

Teenage Engineering EP-133 K.O. II

Specs

Outer measures: 29 x 23 x 6 cm
Inner measures: 25 x 18,5 x 3,5 cm
Weight: 0,3 kg

Colour: black

*** Please note: the Teenage Engineering EP-1330 K.O. II & accessories are not included, they are shown for demonstration purposes only. ***

Notes: The TipTop Audio Stackcables allow you to stack your cables to give you complex signal flows with greater visibility

Notes: 10-conductor ribbon cable with three 10-pin connectors and a 16-pin connector on one end (20" total length), for connecting more than 2 modules in a Pod.

Notes: Compact audio and MIDI interface from one of the longest-running and most trustworthy brands in the business. Simple 2x2 setup with clear sound. A great entry-level option for getting sounds in and out of your computer.

Supplier notes:
Equipped with the same ESS Sabre32 Ultra DAC Technology found in audio interfaces costing thousands, the M2 delivers an astonishing 120 dB Dynamic Range on its main outputs. ESS converters also drive the headphone output, which rivals dedicated headphone amplifiers costing hundreds. Ultra-clean preamp circuits produce a measured -129 dBu EIN on the mic inputs. Capture and monitor your audio with pristine clarity.

The M2 provides best-in-class speed for monitoring live inputs (mic, guitar or keyboard) through your computer, thanks to MOTU's expertly engineered USB drivers, which deliver class-leading, ultra-low 2.5 ms Round Trip Latency (at 96 kHz with a 32 sample buffer).

When recording and mixing, nothing is more critical than achieving optimum levels. The M2 is the only audio interface in its class with a full color LCD featuring clear, detailed level meters for all inputs and outputs. Enjoy professional-level volume control and feedback to get your sound just right.

The M2 driver provides convenient loopback channels to your host computer, so you can easily route computer output back to the computer, where you can mix it with live mics and/or guitar inputs from the M2 in your host software for live streaming or podcasting. Streaming and podcasting has never been easier and better-sounding!

Decades of award-winning product engineering for hit songs, mega tours, primetime shows and blockbuster movies goes into every MOTU audio interface.

Notes: - High-grade patch cable designed for modular units
- 3.5mm mono jack plugs
- Length: 80cm
- Red finish

Notes: The unwanted magnetic charge, which is generated on the recording and playback heads during use is removed by this electronic, demagnetising wand in an electronic manner.

Once used effectively, the sound is clear. Demagnetising takes only 3 to 5 seconds for each head.

Important! As a very strong magnetic field is generated by this accessory, do not use it if you have a pace-maker and do not use in the close vicinity of friends or family with a pace-maker.

*This product has a european-style 2-pin plug*

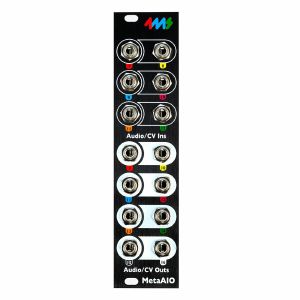

Notes: The MetaModule Audio Expander (MetaAIO) adds an additional 6 CV/Audio inputs and 8 CV/Audio outputs to your MetaModule patches, via a ribbon cable connected to the main MetaModule. The MetaAIO provides the same high-quality as the MetaModule's Audio/CV jacks (24-bit, 48kHz default, up to 96kHz).

Notes: The legendary Kaoss Pad returns as part of Korg's DIY Nu:Tekt range. Simple to build, easy to use and infinitely customisable for those who want to go deep. Great value.

Supplier's Notes:
Build your KAOSS

Discover the Nu:Tekt NTS-3 KAOSS Pad: the iconic KAOSS Pad reimagined in a build-it-yourself format. This compact, customizable DIY effects unit integrates Korg's legendary KAOSS touch interface with up to 4 simultaneous effects. It offers intuitive controls, extensive effect customization via logueSDK, and versatile connectivity. Perfect for dynamic performances, it's designed for musicians and DIY enthusiasts seeking to explore new sonic territories with ease and creativity.

Build-it-yourself creativity

The NTS-3 KAOSS Pad goes beyond the boundaries of conventional effects units. It's a playground for creativity, offering up to four simultaneous effects with extensive editing options. From essential filters and compressors to imaginative delays and reverbs, the NTS-3 KAOSS Pad opens up a universe of creative possibilities. The ability to work with individual effects or combine them seamlessly, along with the freedom to tweak each parameter, makes it a perfect tool for live performances and studio sessions alike.

Embracing the essence of KAOSS products, the NTS-3 KAOSS Pad features user-friendly controls and adaptable connectivity, packaged in a performance-ready design. The XY pad is at the heart of its interface, enabling dynamic control over effects, rhythm, and depth, enhancing your performance with a fresh, tactile approach.

Customise the KAOSS

The NTS-3 KAOSS Pad isn't just about sound; it's about making your mark. With an open development API and logueSDK, you can dive into creating unique effects, while the included Librarian application allows for easy management of your custom creations. The physical customization options, including reversible side panels and 3D schematics, mean you can even add a personal touch to your performance hardware.

Seamless integration and effortless DIY assembly
The Nu:Tekt NTS-3 KAOSS Pad is meticulously designed for straightforward integration into any musical setup, offering advanced connectivity with Sync IN/OUT and MIDI In/Out ports. But what truly sets it apart is its effortless DIY assembly process. Emphasizing the joy of building your own gear, the NTS-3 can be assembled quickly and safely, with no soldering required. This ease of assembly ensures that you can start exploring its vast sonic possibilities in less than 20 minutes, making it a delight for both seasoned musicians and DIY beginners.

Specifications

Effect: 35
Filter: 5
Modulation: 6
Delay: 4
Reverb: 5
Other: 5 (looper, grainshifter, vinyl break)
Mastering: 7
OSC: 3
Performance programs: 200 programs (more than 100 preload, 100 user programs)

Input/output jacks:

Headphone / AUDIO OUT jack (3.5 mm stereo mini-phone jack), AUDIO IN jack (3.5 mm stereo mini-phone jack), SYNC OUT jack (3.5 mm TRS mini-phone jack, 5V output level), SYNC IN jack (3.5 mm TRS mini-phone jack, 20V maximum input level), USB port (Type-C),

Power supply: USB bus power mode
Current consumption: 500 mA or less
Dimensions (W × D × H): 104 × 101 × 39 mm
Weight: 119 g/4.20 oz

Notes: The first release from Teenage Engineering's EP Series. Sample, program, sequence and produce in one compact, retro box. Bundled here with the extremely limited edition EP-133 KO II vinyl volume one.

Supplier's Notes:
Get ready for round 2

Meet the next evolution of the world's most sold sampler. based on the legendary PO-33 K.O!, the new EP-133 K.O. II adds more power, more sampling capabilities, a fully reworked sequencer and brand new punch-in 2.0™ effects. introducing a workflow that lets you go from idea to track faster than ever. it's pocket operators gone pro.

The champ is here

A versatile machine with an impressive set of features, K.O. II is the new champion in and outside the studio. unrivaled by anything in its class, this is the sampler you've always wanted at the incredible price of just $299

Record sounds around you, sample your voice, favorite synths, vinyl records or whatever audio that you've got on your phone.

Sequence your samples and loops. make use of the curated selection of drums, bass and keys that come pre-loaded on your K.O. II.

Tweak and automate things like filter, pitch and more... add stereo effects, compressor and next generation punch-in effects.

The sequencer engine of the K.O. II provides an intuitive, fast way of building up beats and variations using 4 groups x 12 patterns. like most DAWs, you can instantly swap patterns per group, experiment with different combos to find what beat and bass lines work together. the commit button helps you freeze a point in time and move on, adding a verse or a break. it all happens in real time while playing.

One-two punch

vintage style keys with a modern touch, combining tactility with pressure sensitivity.

EP-133 K.O. II vinyl

A 10" record full of sounds for your creative soul to digest. side a contains a mix to make you laugh or love. side b provides you with one-shots and other sounds ready for manipulation. a record to fit every musical preference imaginable. (Two-sided 10" vinyl, weight: 170 g | 6 oz, 45 rpm)
