Notes: A really clever take on looping, falling somewhere closer to granular synthesis depending on how you use it. Layer and repeat multiple sound sources to create textures, chords and unique timbres.

Supplier's Notes:
Endless Processor is a dual-channel infinite sound sustainer machine.

Put your favourite instruments, unique timbres, or field recordings - virtually any sound - and make it last forever.

It is not a looper in the usual sense - Endless Processor resynthesizes your sounds to create a perfect clickless stream while preserving the timbral and tonal character of the original.

Endless Processor always listens to audio input and keeps a most recent history. Experiment with sustaining little bits of a sample or make a massive wall of sound with the ability to select how much memorized audio to process.

Stack your sounds to create harmonies, textures, or drones with 5 layers per channel. Each layer can be re-processed or cleared while keeping other ones in place. Set fade-in and fade-out time to quickly or gradually introduce a new layer or remove the existing one.

Additional controls will help you to adjust or shape a channel volume (think built-in VCA).

Dimensions
16 HP
25 mm deep

Current Draw
125 mA +12V
10 mA -12V

Notes: Solist is not your average performance mixer and mute combination - far from it. Designed in collaboration with Bries, Solist contains four channels of soft vactrol muting, controlled by tactile and pleasantly clicky mechanical switches. Solist will help make your performances shine - but most importantly, the red solo switches allow you to override the current state of the mute switches, allowing for creative transitions between solo and mute states during your performance.

While the audio circuit is fully analogue, it is also entirely isolated from the digital circuit that controls the mutes. Running on a fast and reliable Raspberry Pi RP2040, you get all the benefits of digital control without the downsides of digital audio processing. Best of all, the mechanical state of the switches determine the state of the module, so even if you power cycle, you will return to your previous state.

The analogue mixer section can be used simultaneously with the individual outputs of the Solist, so for those who already have a mixer solution, the buffered individual outputs will bypass the mixer entirely. You may of course also use both simultaneously for exciting parallel processing opportunities.

Solist brings a whole new aspect of muting and soloing to your Eurorack performances, and with soft opening and closing vactrols, you'll never have to worry about clicks, truncated transients or actuation noise.

Notes: Aphelion packs a stereo distortion and low/high pass filter into a compact 8HP design, making it ideal for live performance setups. It features three unique stereo distortions in parallel with a continuous crossfade between them, controlled with the character knob or a cv input.

The first circuit is an overdrive that adds a lot of warmth and fattens up the sound without becoming too harsh.
The second one is a saturating wavefolder, that can add interesting extra harmonics depending on the waveform of the material.
The last distortion is inspired by the classic RAT guitar pedal. It adds an aggressive feel and grit to the sound.

A mix knob lets you blend the dry input signal with the distorted signal, before it hits the filter. Setting it fully dry bypasses the distortion effect.

If you need even more dirt, there's a handy +12dB gain switch, to really drive the inputs into overdrive. If you want to keep your low-end undistorted, you can switch on the Low-cut filter.

The non-resonant. This filter is also overdriven, adding some warm distortion and extra harmonics to the stereo filter combines a low pass and high pass stage, and uses an IC based on the classic SSM2040original signal, and limiting the output level. The cutoff knob has no effect in the centre, turning CCW creates a low pass and CW a high pass effect. It's possible to control the low and high pass filter cores independently using CV.

The filter bypass switch can be used for instant reintroduction of all frequencies into the mix upon release-a great tool for live performers.

Lastly the level knob can be used to attenuate the output.

Power: +12v - 100mA, -12v 80mA

Notes: ALM's first analogue oscillator is a typically smart design, featuring thru-zero FM, continuously morphing wave shapes, dual subs and voltage-controlled FM index.

Supplier's Notes:
The 'TAZM-O' is an analogue triangle core oscillator featuring through-zero frequency modulation and a collection of some of ALM's favourite features of classic oscillator designs.

It includes a continuous morphing wave/pulse width shape control inspired by the Serge NTO, dual SH-101 style varied pulse sub octave outputs, a voltage controlled FM Index typically found in larger complex oscillators, a built in output level VCA and voltage controlled octave transposition similar to the multipliers found on Akemie's Castle digital FM VCO.

Designed to act as the primary oscillator in your system the 'TAZM-O' offers a wide range of timbral and patch flexibility within a relatively compact 12HP size, making it the perfect fit for any modular system.

Continuous crossfading wave shape with direct and voltage control.
Through-zero FM input with direct and voltage controlled mod index.
Dedicated outputs for sine (or triangle), saw and square sub-1 & sub-2.
Primary output with level VCA.
V/Oct input with approx 8 octave range.
Octave transpose CV input ranging 3 octaves.
Hard Sync input.
LFO mode with bipoler LED indication.
Rear switches for selecting Sub-2 pulse width, and sine/triangle waves.
Skiff friendly with reverse power polarity protection.
Made in England.

Dimensions
12 HP
38 mm deep

Current Draw
70 mA +12V
60 mA -12V

Notes: The Octovert is a CV processor capable of scaling, inverting, and offsetting up to eight polyphonic signals. It can also be externally controlled via CV! Its most obvious applications include inverting envelopes, reversing the direction of CV, and scaling plus offsetting any CV source to precisely fine-tune the modulation sweet spot of the target module. With the added feature of external control, it takes things even further by modulating the modulation signal itself for even deeper modulation motion.

Size: 6HP - Depth: 40mm

Power: +12V 18mA / -12V 15mA

Notes: Rhythmi is a Eurorack drum sequencer that allows you to dial in your groove, and explore it by evolving the pattern and modulating the energy. It allows for rhythmic inspiration and creativity without the burden of step programming. The evolve parameter enables smooth transitions between related rhythms through the use of branches. New branches can be generated at the push of a button, loading up a whole new branch of related rhythms to explore. The Evolve parameter is the heart of Rhythmi, its inspiration, and defining feature. Allowing rhythms to shift, transform, and melt into one another.

The Clock Section provides internal or external clocking with division or multiplication. The Customize Section shapes individual drum elements through density and syncopation. The Global Section introduces macro-level control over the rhythm via the Energy, Evolve, Length and Swing parameters, dynamically shaping fills and variations. Rhythmi has a jumper cable connector on the back to pair up seamlessly with Beatsi, the drum voice it was designed alongside with.

Technical specs:

- Module Size: 3U X 14HP X 25 mm Deep.
- Current Draw: 120mA (170mA peak)@ 12V, 10mA@ -12V.

What's in the box:

1x Rhythmi module
1x User Manual
1x Power cable
4x Mounting screws

Notes: Alpha Duo is a stereo precision VCA with ring modulation, overdrive and distortion.

Alpha Duo's VCAs have three modes:

1) Two quadrant, for classic VCA behaviour
2) Four quadrant, where the VCA responds to both positive and negative Gain CVs. This creates a classic ring modulator.
3) In four quadrant separate (4S) mode, each of the two VCA channels is controlled by separate gain CVs, turning Alpha Duo into two independent VCA/ring modulators.

Alpha Duo also features three drive modes.

1) In Drive Mode zero the overdrive circuit is not active, giving a clean signal.
2) Drive Mode One is a tube style soft overdrive. Like a tube, the positive and negative parts of the waveform are distorted differently, producing a pleasing, warm fuzz.
3) Drive Mode Two is a harder clip - more like a transistor amplifier - for a harder edged distortion.

Alpha Duo's signal path is DC coupled, so it's great for processing CVs as well as audio.

Specifications:
Width: 10HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable
Power Requirements:
+12v: 200mA
-12v: 50mA
+5v: 0mA

Inputs:
Signal (Zero attenuation): +/-5v nominal, +/-12v max
GainCV [Zero attenuation]: +/-5v nominal
Pan CV [Zero attenuation]: +/-5v nominal

Outputs:
Dual/Stereo: +/-5v nominal, +/-11v max

Notes: Oscar DSF is a complex, stereo Voltage Controlled Oscillator, based on the mathematics of Discrete Summation Formulae.

The Discrete Summation Formula used in Oscar DSF produces sounds rich in harmonics (or 'partials') in a similar way to FM.

The mathematics of DSFs is more complex than FM, but the way that you, the user, get the sounds you want is usually simpler. The basic sound is controlled by just two, intuitive knobs (with CVs, of course).

Oscar DSF can sound like a traditional oscillator, and it can make the usual clangs and tings associated with FM oscillators. It can handle fat bass sounds, or evolving ambient drones.

Oscar DSF has two complete DSF based, complex oscillators, controlled by the same basic pitch CV, but with a pitch offset control which can detune one oscillator up to i1 octave.

The output of the each oscillator passes through another complex FM stage, which acts like a wave folder. Technically, it's actually an FM operator with the carrier frequency set to zero. It sounds great, whatever you call it.

The final piece of the signal chain is a simple VCA, allowing Oscar DSF to be used as a stand alone synth voice with the addition of an envelope generator, or some other source of modulation.

Specifications:

Width: 10HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable
Power Requirements:
+12v: 200mA
-12v: 50mA
+5v: 0mA

Inputs:

VPO (Zero attenuation): 1 volt per octave
PAR CV[Zero attenuation]: +/-5v nominal
FOLD CV [Zero attenuation]: +/-5v nominal
PAN CV [Zero attenuation]: +/-5v nominal

Outputs:
Dual/Stereo: +/-5v nominal, +/-11v max

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Manis Iteritas is a Eurorack 10HP voice based on the architecture of Basimilus Iteritas, but designed to be more gritty and aggressive. It accomplishes this by producing only sawtooth waves that are manipulated, modulated, and distorted through a rethought interface. Manis is suitable for leads, bass lines, drums, darkness, detuned madness, or pure mayhem.

Notes: 8-input, 8-output sequential/addressable switch with manual, trigger, and CV control, plus three grouping options, multiple switching directions, and randomization.

Vice Virga is an 8-input, 8-output sequential/addressable switch with a plethora of features and extensive patchability. Vice Virga can be configured as a single 8-channel switch, two 4-channel switches, or four 2-channel switches. Equal parts automated patch arranger and performance tool, Vice Virga has loads of switching control options. Whether you want to chain sequencers, swap outputs on an oscillator, remix a trigger pattern, or mix up every connection in a patch just to see what happens, Vice Virga can do it!

Features:

Size and power:
8HP Eurorack
+12v: 40mA
-12v: 20mA
Vice i from Latin for "alternately"

Virga i from Latin for "switch"

"Alternating Switch"

Notes: Ornament & Crime for 1U Intellijel format

This is functionally identical to the 3U version, just re-oriented to fit in 1U racks. Ornament & Crime is designed by mxmxmx.

The apps currently available in Ornament & Crime:

CopierMaschine is an enhanced version of the original quantising digital emulation of a four stage analogue shift register (ASR).

Harrington 1200 provides basic neo-Riemannian Tonnetz transformations of triadic chords, triggered by the digital (gate/trigger) inputs.

Automatonnetz combines Tonnetz transforms with a "vector" sequencer - it can be both a chord sequencer and a melody sequencer, but not of the usual kind.

Quantermain is a quad pitch quantiser for external voltages, with editable scales; it can do clocked (trigger-driven) quantising, or continuous quantising, with a latency of under 100 microseconds; it also features quad Turing Machines, May-Verhulst logistic maps or byte beats as optional, semi-random, internally generated CV sources.

Meta-Q is a dual-channel quantiser, similar to Quantermain, but also offering scale and note mask sequencing.

Quadraturia is a wavetable quadrature LFO, based on the "Easter egg" in the Mutable Instruments Frames module.

Low-rents is a dual Lorenz and Rossler (strange attractor) modulation generator, partially based on the "Easter egg" in the Mutable Instruments Streams module.

Piqued is a quad voltage-controlled envelope generator, based on envelope generator code from the Mutable Instruments Peaks module, but extending it with voltage control, additional envelope types, including re-triggering (looping) envelopes, additional segment shapes, adjustable trigger delays, and a unique Euclidean "trigger filter" which turns the app into a Euclidean rhythm generator which can output envelopes, not just gate or trigger pulses.

Sequins is a dual-channel step sequencer offering 4 "tracks" of up to 16 steps each; tracks can themselves be sequenced.

Dialectic Ping Pong is a quad bouncing ball envelope generator, based on a hidden mode of the Mutable Instruments Peaks module.

Viznutcracker, sweet! is a quad "byte beat" equation generator, which can be used as an audio source to generate curious but often interesting 8-bit noises and tunes, or which can be clocked by an external source to produce "byte beat" control voltage sequences. "Byte beats" were first described in 2011 by viznut (aka Ville-Matias Heikkila).

Acid Curds is both a chord quantiser (sometimes called a "harmonic quantiser" for external pitch voltages), and a chord progression sequencer.

References is an utility app that outputs specific reference voltages on each channel to help tune or calibrate VCOs and other modules. It also includes a high-precision frequency meter and note tuner, a high-precision BPM (beats per minute) tempo meter, and a closed-loop calibration mode.

Width: 30hp
12V: 85mA
-12V: 10mA

Notes: Roucha Legio is a 12 dB /octave state-variable stereo multimode filter available on the Legio DSP+oscillator platform.

Noise Engineering received tons of requests for NE filters over the years, and Roucha Legio is their first dedicated release. The filter features lowpass, bandpass, and highpass settings and tracks frequency via the dedicated encoder and extremely accurate 1v/8va CV input. Roucha Legio's CV-controlled resonance parameter can go from clean to acidy-squelchy for bassline joy. Add CV for filter sweeps that will knock your socks off. Of course, because it's a Noise Engineering module, there's a Fold knob. Add wavefolding to the signal chain before, after, or both before and after the filter.

Noise Engineering have made it easy to carry out dramatic buildups and cuts with Roucha Legio. Just tap the encoder to bypass; tap again to turn the filter on again. Want to automate it? Send a gate into the Bypass input. The filter will remain bypassed as long as a high gate is present.

Roucha Legio is also a DSP and oscillator platform: users can change the firmware on any Legio module, 100% free, to any other firmware in the Legio series.

Dimensions
6 HP
38 mm deep

Current Draw
140 mA +12V
22 mA -12V

Notes: Expander module for the Tetrapad, Intellijel's multi-dimensional performance touch controller. Adds huge functionality, allowing you to sequence parameters and create complex modulation.

Supllier notes:
Tete is the long awaited and highly anticipated expander for the Tetrapad.

Some of the key features:

Three primary modes: VOLTAGES, NOTES and COMBO.

VOLTAGES mode:

Up to 16 voltage storage locations (grid) with 8 voltages stored at each location.

You have the choice to record and playback your recall of these locations in a looper style (just play freely and spend arbitrary amount of time at any location) or as a clocked sequence (SH-101 style). Additionally you can traverse the matrix using the X and Y CV inputs to get Cartesian style sequencing.

There is also variable slew that allows you to morph/glide between the values.

NOTES mode:

You can create sequences or loops in chord, scales or keyboard mode. The isomorphic keyboard grid can vary from 4 notes to 12 notes max. There are real-time performance looping, transposition and inversion capabilities via the CV inputs and dedicated loop button. In sequencer mode each step can be a tie, rest, or gate with size 25/50/75%. Basically we have created a way to very quickly and intuitively make chord sequences that are very musical and easy to manipulate. It is difficult to summarize in words but we will be sure to create some videos to demonstrate how easy and fun this is to play with. It definitely represents something unique in the landscape of Eurorack sequencers.

COMBO mode:

In this mode you can loop record your performance on any combination of the following functions:

fader, bipolar fader, drum hit, switch or LFO. Kind of like Elektron style parameter locking but all of the motions is recorded continuously instead of just in slices. Instantly turn a simple patch into a highly animated and complex beast.

With all of the above mentioned loop recording modes you can very easily overdub since the Tetrapad detects pressure/pressing. In combo mode you can erase individual channels.

All modes allow for internal or external clocking and configurable syncing.

All of the modes have special XYZ CV modulation assignments and make use of the dedicated CV outputs.

For example, in Looper mode one of the CV outputs generates a continuous ramp that represents the position in the loop. This can be used with devices like the Planar 2 in Interpolation mode to sync the recorded patterns together no matter what tempo.

Notes: The Erica Synths Black Reverb is a versatile hi-fi stereo FX module with lots of unique features based on Erica Synths' custom DSP engine. The reverb sources are selectable Tape, BBD and "dirty BBD" digital; emulations with three modes, each - Room, Hall and Cathedral. Delicate room size control, feedback, feedback tone and stereo spin controls allow for designing extremely delicate reverberation effects. CV control over various parameters and the ability to save up to 10 presets will make this module an integral part of any performance rack.

Features:

Reverb based on Tape, BBD and digital delay lines
Three room sizes
Manual and triggered FREEZE with 1V/oct tracking
10 preset patches
CV control over size, feedback, tone, dry/wet mix and preset selection
Adjustable stereo spin

Specs:

Max audio input level before clipping 16Vptp
CV input range (full span) -5V - +5V
Sampling frequency 48kHz, 24bit
Audio codecs -108 dynamic range, -98dB THD+N
Power consumption 120mA@+12V, 39mA@-12V
Module width 12HP
Module depth 35mm

Notes: ***B-STOCK: Without original box, product in perfect working order***


Rene is the world's only Cartesian Sequencer for music synthesizers.

Named for the French philosopher & mathematician Rene Descartes, it uses his Cartesian coordinate system to unlock the analog step sequencer from the shackles of linearity.

Notes: Belgrad is an all-analogue voltage controlled filter module which - on par with our other modules - brings something new to the table. While it can be used as a traditional VCF for "academic" subtractive synthesis, we guarantee countless hours of exciting timbral explorations thanks to its unique character, flexibility, and features. The most prominent feature is that it offers a multitude of frequency responses with two resonant peaks.

- Eurorack synth compatible
- 14HP, skiff friendly
- Current draw: +45mA / -42mA
- Reverse power protection

Notes: SWEnigiser Proto VCF/A

Enigiser multimode filter and VCA in 12hp. Circuit based on originalEnigiser prototype kindly loaned by Anthony Linell of Northern Electronics.

VCF
Unique configuration with 3 x 4 filter modes
2x audio input with drive
2x cutoff CV attenuverter inputs
1x cutoff CV input, tunable to 1v/oct

VCF output normalized to VCA input.

VCA
1x audio input with gritty drive, normalized from VCF output
2x CV input. CV1 knob adds offset for drone etc.
CLIP switch for old/new revision Enigiser diode setting adjusting drive character.
+12V 22mA
-12V 22mA
Skiff friendly
Includes power cable, 4 screws+ plastic washers

Available in sand blasted silver and black panel versions.

Notes: Befaco's popular MIDI Thing interface module gets a major update, now with a screen, 12 assignable ports and much more. One of the best solutions for converting between MIDI and CV.

Supplier's Notes:
Mid Thing v2 is a flexible MIDI to CV converter. Allowing polyphonic notes handling, envelope and LFO generation as well as all available MIDI messages to be converted into CV.

This is a huge upgrade from the previous beloved MIDI Thing, which adds a screen for easy configuration, 12 assignable ports, TRS, USB Host and Device, MIDI merge OUT, a web configuration tool, and a VCV rack bridge counterpart.

Features

12 Configurable ports
TRS type A MIDI IN and OUT, USB host and device connectivity.
Configuration screen with intuitive menu diving.
Web configuration tool.

Specifications

Current Draw: +12V: 150mA, -12V: 5mA
Width: 6HP
Deepth: 30mm including power connector
Aluminium, heat-treated front panel.
Designed, kits prepared and assembled in Barcelona.

Notes: The successor to Dinky's Taiko, Tyso Daiko is a 12-bit dual digital drum voice, with built-in analogue tilt EQ and wavefolder, plus extensive CV control. Intuitive, powerful and versatile.

Supplier's Notes:
The 'Tyso Daiko' is a dual 12-bit digital wavetable drum voice with full voltage control and an analogue EQ output path.

The twin voices are independently triggered and output, but share pitch, envelope and other parameters of a swept wavetable oscillator. One voice is output through a voltage controlled analogue tilt EQ emphasising upper or lower frequencies.

The other voice is output through a digital wavefolder which adds increasing timbral complexity (to noise).

Both voices respond independently to an accent input and the first voice is able to be 'choked' . A surface control allows for fine control of additional transients from a click to a slow attack. Full voltage control including a V/Oct pitch input makes the Daiko an expressive and wide ranging drum module with extremely wide pallet of sounds with lots of modulation possibilities.

The Daiko succeeds the original Dinky with the same spirit but much improved control, new features and new wavetables.

Technical Specifications

Supply: +12V 70mA Max / -12v 35mA
Size: 14 HP
Depth: 32mm

Notes: OCTOPUS is a powerhouse ART controller that takes MIDI in via the USB or DIN connector and outputs 8 ART channels with 8 velocity CV plus 8 drum triggers. Together with the ART oscillators the OCTOPUS provide unprecedented simplicity connecting the modular to your computer sequencers, hardware midi sequencers and keyboards. Each ART channel can play polyphonic notes, monophonic notes or create multi-channel polyphony using an internal voice manager. All together OCTOPUS can play more voices and notes from a single controller than ever was possible in modular. Using ART high speed control signals OCTOPUS can maintain low jitter for tight timing.

Please note, OCTOPUS is not a 1V/Oct midi to CV and should not be confused as one.

Size: 18HP - Depth: 40mm / 1.5"
Power: +12V 140mA / -12V 100mA

Notes: A true legend of modular synthesis, Make Noise's Maths is arguably the definitive Eurorack function generator. Based on analogue computing circuits, Maths draws on Buchla-style techniques to offer countless ways of generating and processing modulation signals.

Supplier's Notes:
The MATHS music synthesizer module is an analogue computer designed for musical purposes. Amongst other things, it will allow you to:

Features

Generate a variety of linear, logarithmic, or exponential triggered or continuous functions

Integrate an incoming signal

With no signal applied, generate a variety of linear, logarithmic, or exponential functions

Add, subtract and OR up to 4 signals

Generate analogue signals from digital information (Gate / Clock)

Generate digital information (Gate / Clock) from analog signals

Delay digital (Gate / Clock) information

If the above list reads like science rather than music, here is the translation:

Voltage Controlled Envelope or LFO as slow as 25 minutes and as fast as 1khz

Apply Lag, Slew or Portamento to control voltages

Change the depth of modulation and modulate backwards!

Combine up to 4 control signals to create more complex modulations

Musical Events such as Ramping up or Down in Tempo, on command

Initiating Musical events upon sensing motion in the system

Musical note division and / or Flam

Perfect for modulating the DPO and just about anything else

Specifications
Width: 20hp
Max Depth
(incl. power cable): 32mm

Power:
60mA@ +12V
50mA @ -12V

Notes: The MATHS music synthesizer module is an analogue computer designed for musical purposes. Amongst other things, it will allow you to:

Features

Generate a variety of linear, logarithmic, or exponential triggered or continuous functions

Integrate an incoming signal

With no signal applied, generate a variety of linear, logarithmic, or exponential functions

Add, subtract and OR up to 4 signals

Generate analogue signals from digital information (Gate / Clock)

Generate digital information (Gate / Clock) from analogue signals

Delay digital (Gate / Clock) information

If the above list reads like science rather than music, here is the translation:

Voltage Controlled Envelope or LFO as slow as 25 minutes and as fast as 1khz

Apply Lag, Slew or Portamento to control voltages

Change the depth of modulation and modulate backwards!

Combine up to 4 control signals to create more complex modulations

Musical Events such as Ramping up or Down in Tempo, on command

Initiating Musical events upon sensing motion in the system

Musical note division and / or Flam

Perfect for modulating the DPO and just about anything else

Page for Classic version of MATHS

Specifications

Width: 20hp
Max Depth
(incl. power cable): 32mm
Power:
60mA@ +12V
50mA @ -12V

Notes: A handy combination of two of Serge's most recent designs:

The GATE (left side) is an enhanced redesign of the classic Serge Gates which can be used as a linear or exponential VCA or ring modulator or some interesting combination of these.

The VCFX 2023 is a newly designed Serge filter that is essentially a Bandpass, but also offers a Lowpass output.

Serge NEW GATES / VCFX 2023 for eurorack:

Designed by Serge Tcherepnin 2023
Eurorack format (3U), 18 hp
Power consumption: 24mA @ +12V, 24mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: Gorgeous stereo implementation of the classic frequency shifter sound, moving from tonal harmonics to atonal disharmony effortlessly. Separate outputs for down and up shifts, plus plenty of CV control.

Supplier's Notes:
Koszalin is a full stereo frequency shifter with two inputs and four outputs. If offers simultaneous exponential and linear through-zero control of the amount of frequency shift in 3 carefully scaled ranges (up to +/- 5kHz). Frequency shifting results in linear translation of signal spectrum producing all kinds of atonal sounds. It should not be confused with frequency scaling, also known as pitch shifting. Several stereo feedback topologies are offered with additional density control besides feedback depth, which results in spectacular stereo barberpole effects.

Through-zero modulation allows for using Koszalin's input as an FM operator. Koszalin is a digital module with a DSP behind an analog interface.

Main features:

full stereo frequency shifting
3 shift ranges: +/- 50Hz / 500Hz / 5kHz
exponential and linear through-zero inputs
internal feedback under voltage control.
10HP
12V: 140mA / -12V: 30mA

Notes: If we're honest we don't really understand fractals. Something to do with maths, apparently. But that doesn't really matter because we do understand this sequencer module, which is ideal for randomly twisting and morphing sequences.

Supplier notes:
Bloom is a fractal sequencer capable of generating infinitely evolving melodies with a host of musical features.

At its core is a powerful 32 step sequencer with two independent channels and an intuitive interface. What makes the Bloom come alive are its fractal algorithms which can transform existing sequences into powerful melodies, or even generate new patterns altogether. The base sequence is known as the Trunk and can be programmed by hand, or automatically generated with the Mutate function. Once a Trunk sequence is in place, fractal transformations are only a knob turn away by using the Branch and path controls. Each new Branch adds a complete variation to the base sequence and Path determines its passage through the set of recursively generated sub-sequences, offering a unique take on the melody with each turn of the knob.

Bring your sequencing to life with Bloom.

Notes: Another cracker from Xaoc, the Timiszoara is a take on digital multi-effects with stereo in and out, an intuitive interface and CV control of effect parameters. Big power with 176 factory programs.

Supplier's Notes:
Timiszoara is a stereo, Eurorack compatible, voltage-controlled multi-effect signal processor based on the popular Spin Semiconductor FV-1 DSP chip. It features a full stereo signal path with two adjustable audio inputs, two outputs, and a stereo voltage-controlled wet/dry mixer. In addition, there is a microSD memory card slot on the front panel that allows for loading factory and custom effects without any restrictions or copyright protection, which means you can use many effects available on the Internet and even create your own.

Effect programs are organized in banks of 8 and can be selected using a rotary encoder, as well as CV and trigger signals. Timiszoara features a crisp OLED screen that displays the program parameters and its name. It also facilitates navigating the list of banks. Up to three parameters per effect can be controlled from the front panel with illuminated slider potentiometers and dedicated CV inputs.

Xaoc Devices have prepared quite a few banks of algorithms (176 in total) that cover most effects needs: delays, reverbs, filters, modulation effects (such as choruses and flangers), pitch shifters, and, of course, shimmers (no multi-effects unit would be complete without its share of those). However, Xaoc Devices wanted to ensure that users had access to some more adventurous programs, so some special banks have been created to allow you to take a walk on the wild side.

For detailed description, please refer to the manual.

Technical details:

10hp, skiff friendly
Current draw: +120/-45 mA
Reverse power protection

Notes: The Garden Listener is a random control messages generator from biometric signals. It detects conductivity variations on living beings' surface and transforms them into MIDI notes, ranging from C-1 to C8, and CV signals (0 - 5V). Its behaviour can be tamed through the one-knob menu from which you can choose and modify:

probes' sensitivity (making it more or less sensitive to current variations);
scale (chromatic, major, minor, Indian and Arabic);
MIDI channel (from 1 up to 16);
LEDs' brightness.

Conductivity variations are detected by the Probes Input and converted into MIDI notes in real time according to the Main menu settings. Each MIDI note exits through the MIDI output, allowing you to take advantage of the sound of either any synthesizer equipped with a MIDI port or any VST in your DAW, and gets converted into an analogue signal.

Trigger and Gate are fired every time a new note is generated, their voltage output can be modified with the respective attenuator (0 - 5V).

All the MIDI notes are converted into variable voltages (0 - 5V) depending on their pitch and exit through the CV output (1V/oct).

The CV output behaviour can be modified via the Octave Selector which acts as a "CV equalizer" from which you can choose to generate CV only if the respective MIDI note lies within a certain octave range.

For once, leave those LFOs alone, and let any living conductive being modulate your signals.

The module comes with 3.5mm white probes and a set of snap-on adhesive reusable electrode pads. A MIDI-TRS type A adapter (not included) is required for the MIDI output.

The module requires calibration for a proper 1V/oct output.

Built Module, SMD pre-soldered
Width: 8HP
Max depth: 22.6mm
Current draw: +12V: 24mA, -12V: 20mA, +5V: 0mA
Panel material: 1.6mm FR4 black front panel with gold finish

Notes: Chimera is a granular synthesis module that specializes in drum sounds. It offers a wide range of detailed sample sources as well as its own synthesis engine. Firmware updates can be performed via USB.

The module features various samples called Surfaces. The samples are mainly metallic sounds:

Tambourine
Bells
Drill
Wrenches
Cartridge cases
Coins
Chains
Metal housings
Broken modular front panels

Chimera uses impulsive sounds with lots of detail and long decay times to create detailed shaker-like sounds. The granular synthesizer was developed around the samples here, this has the advantage that the percussion sounds sound so more natural.

Power consumption: 63mA at +12V and 17mA at -12V

Depth: 38mm

HP : 8

Notes: Four voice paraphonic

Ripsaw contains 4 voices that can each be individually controlled with 1 volt per octave pitch CV.

Seven oscillator spread

Each of Ripsaw's 4 voices contain 7 waveforms that can be detuned from eachother in pitch to create a lush swarm oscillator sound.

Wave morph

Ripsaw's oscillator waveforms morph smoothly from classic sawtooth to square for a hollow, haunting tone when spread detune is introduced.

Super sync

Ripsaw's shift parameter offsets the pitch of a hard sync oscillator for every one of the 28 waveforms to open up a whole new timbral dimension

Hex platform

Ripsaw is only the first firmware to be released on our new 6hp eurorack hardware platform called HEX. Other firmware options that generate and process sound will be available to download and try out free of charge.

Specifications:

6hp
25mm deep
42mA on +12V, 5mA on -12V, 0mA on +5V

Notes: Four-channel arpeggiator with customizable patterns and CV control

Opp Ned is a four-channel arpeggiator designed for creating patterns that can be modified with CV. Opp Ned ships with 12 of Nosie Engineering's favourite arps, including tetrads, major, pentatonic major, minor third, and pentatonic minor, but you can edit and save custom arpeggios to twelve memory slots. Recall your custom arpeggios manually or with CV using the Ptn input. If you ever want to restore the factory arps, just head to the Noise Engineering Customer Portal.

The transpose input makes it easy to combine Opp Ned with external sequencers, too!

Arps have never been easier than with Opp Ned.

Features

Size and Power
8HP Eurorack
+12v: 60mA
-12v: 10mA

Opp from Norwegian Opp for "Up"
Ned from Norwegian Ned "down"
"Ups and downs"

What's in the box

Module
Power cable

*** Noise Engineering no longer include screws with newly packaged modules. Bulk screws are available for purchase. ***

Notes: Any signal can be expressed in terms of a few parameters: frequency, phase, amplitude and timbre. It is through modulation of these aspects that synthesists create electronic sound. With Generate 3, it is now possible to create a signal and control all its parameters by through-zero modulation within a single 12 HP wide module.

Everything starts with the exceptionally precise triangle-core voltage controlled oscillator (VCO) at the module’s heart. Through-zero linear frequency modulation (FM) enables rich yet pitch-stable FM sounds, by allowing the oscillator to run backwards into ‘negative frequencies’.

The resultant triangle wave is then processed by the through-zero phase modulator, providing a total phase shift range of 900°. Phase modulation offers an interesting alternative for FM, as it enables deep FM-type tones without actually changing the oscillation frequency.

The timbre of a signal is determined by its harmonic content. This full set of harmonics can be grouped into three main parts: the fundamental, even and odd harmonics. Generate 3’s harmonics generator separates out these three timbral ‘channels’. By adjusting their relative amplitudes, a vast array of different waveforms can be created, including but not limited to the classic sine, saw and square waves.

While the amplitudes can be adjusted manually, each timbral channel supports through-zero amplitude modulation, also known as balanced or ring modulation. When audio-frequency modulation signals are applied, the harmonics become ‘split’, enriching the spectrum.

In addition to all the usual analogue synthesis techniques, the extensive set of modulation options makes Generate 3 especially suited for exploring multiphonic synthesis: a monophonic source creating a complex timbre, much like throat singing, yet by electronic means.

Notes: Mûmack is built from a temperature-stabilized analog source producing the three classic waveforms: triangle, saw, rectangle. This basic signal can be altered or enriched in several ways, which can be combined with each other, and associated with one VCA per mode.

Peak Compressor:
In the central position the signal is not modified. Turning the potentiometer to the right or to the left will compress the signal positively or negatively. It is this signal that will then feed Usual, Mûm and Hack. An LFO is dedicated to the compressor, controllable in speed and amplitude. A CV input with attenuator can also control the compressor.

USUAL:
The three waveforms are freely mixable, a CV input and a potentiometer can change the shape of the rectangle wave (PWM). The compressor intervening upstream, it can strongly influence the final form and the amplitude of USUAL. This produces complex analog waveforms, moving in time with the LFO or the CV input. The linear potentiometer makes it possible to mix the signal with the others, and to dose the volume of the direct output. The rotary potentiometer acts as an attenuator for the VCA input.

MÛM:
The Waveform potentiometer move the waveform of Mûm continuously from a attenuated triangle to a more pronounced triangle, then to a sinusoid and finally to a square wave. An LFO allows you to add a vibrato adjustable in speed and amplitude. The linear potentiometer makes it possible to mix the signal with the others, and to dose the volume of the direct output. The rotary potentiometer acts as an attenuator for the VCA input.

HACK:
Mûm's signal is taken up in a Wavefolder + compressor. Depending on the settings of the Peak compressor, and the three LFOs, we obtain complex, moving, organic waveforms. Again the linear potentiometer allows to mix the signal with the others, and to adjust the volume of the direct output. The rotary potentiometer acts as an attenuator for the VCA input.

ALL:
The three channel (Usual, Mûm, Hack) are mixed and brought together in a single output. The output volume is adjustable and a CV input with attenuator works like a VCA.

MIXER & VCA
The voltages produced by Mûmack, as is the case with many analog VCOs, can be high. The mixer allows them to be attenuated if necessary. Each of the three channels, and the product of the three, can be controlled by the VCA, with attenuator. The VCA is designed to add distortion at high values. The mixer is exponential for more subtle adjustments in low values.

Dimensions
30 HP
40 mm deep

Current Draw
155 mA +12V
155 mA -12V
0 mA 5V

Notes: Oscar Tria packs a lot of VCO into 10HP. There are three main modes described below.

Green Mode:

A 'traditional' stereo oscillator. In Green Mode you get the usual three waveforms - saw, triangle and square (with variable pulse width, of course) but you can continuously vary the waveform between the three. For instance, by turning the waveform knob to be just to the saw side of triangle, you get a sound very much like the Minimoog's 'shark tooth'. Green mode also gives you a square wave sub oscillator - one octave below the main oscillators - and a sub sub, two octaves below. Oscar Tria is stereo, of course, so you can detune one oscillator for a rich stereo image - or sum the two outputs to mono and you have two oscillators with two subs, for a BIG sound. Green mode also features through zero FM, and hard sync.

Yellow Mode:

Super-saw! And super-square! And super-triangle! With a sub (of course). Yellow mode allows you to control the number of oscillators making up the super-whatever, from one (not really super) to 24! Again, being stereo you get up to 12 oscillators in one channel and 12 in the other. Add the sub for a HUGE sound.

Orange Mode:

This is a chord engine, with 20 selectable chords. There are controls to select which chord you want and how many notes are played (over two octaves). CV control allows you to set pitch and chord independently, so you can set up a polyphonic sequence, for instance. Again, the output is stereo with detune control of one output.

Notes: Erica Synths Bassline is fully analogue synth voice module for ultimate basslines and leads.

It features AS3340 VCO with three waveforms, a filter inspired by Erica Synths Acidbox and unique features - transistor based suboscillator and two BBD lines that emulate VCO detune creating a sound of massive polysynth from one oscillator.

Accent provides more expression to the bassline, by adding volume and opening the VCF slightly.

Notes: Clever sequential signal processing from Joranalogue, capable of a range of functions including toggling signal muter/attenuator, clock divider, rotating shift register or programmable voltage bank.

Supplier's Notes:
Sequencers, sequential switches, counters, analogue shift registers... Modular synthesisers provide a wealth of creative sequential functions for controlling and processing signals. Choosing which of these to include in a system can be a bewildering task.

Except when you don't have to choose. Step 8 represents a new type of modular building block: a sequential tracking/sampling register, which can be configured to provide any of these functions, and many more.

At its heart lies an analogue 1-to-8 signal switch feeding an octet of high-stability track/sample-and-hold stages. Each of these has its own analogue output with an attenuation slider, in addition to a gate output. LEDs visualise the status of each stage in real time. The switch can be controlled sequentially using the built-in 8-step counter, or addressed directly by an analogue control voltage (CV).

Numerous advanced circuit techniques are used to avoid the issues that often plague analogue switching and memory modules. The result: totally transparent signal paths with low noise, distortion and voltage 'droop', yet high bandwidth and precision.

Add to this the ability to 'mute' the inactive stages, pause the counter, reset it, change its direction or even shift the stages on each step, and the possibilities quickly become near-endless. A scanning output takes things even further, particularly making sequencer or addressed voltage source use easy and intuitive.

For those who are feeling adventurous, there are always more applications to try: configurable voltage mapper, hocketing controller, clock divider, graphic waveshaper, multi-output analogue downsampler... Discover a new world of sequential synthesis with Step 8.

16 HP
+12: 110 mA, -12: 45 mA

Notes: Killer physical modelling module collab from two of the biggest names in their respective fields of hardware and software. Generates a huge range of percussion instruments plus synths and bass tones.

Supplier's notes:
Plonk uses a technique known as physical modelling to synthesize, with great realism, the way in which sound is produced by acoustic instruments. The Plonk module is, itself, focused primarily on creating percussive sounds - both pitched and un-pitched; natural and unnatural; acoustic-sounding or totally electronic.

Plonk does this by breaking sound creation into two distinct elements - the exciter and the resonator. The exciter is a mathematical model of the device used to strike a particular surface. Plonk, because it's percussion oriented, has two types of exciters: one modelled on a mallet, and the other providing a noise source. The resonator is a virtualization of the object being struck, which vibrates, resonates and creates the body of a sound. Plonk offers several types of resonators: beam; marimba; drumhead; membrane; plate; and string.

Plonk provides numerous parameters that let you shape, mould and design both the exciter and the resonator, thus enabling you to synthesize the sound of striking or scraping almost any type of object - real or imagined. In this way, Plonk can accurately model the sounds of kicks, snares, toms, cymbals, claps, tablas, congas and all manner of traditional percussion instruments. It can also model pitched percussive instruments, like vibes, marimbas, and even bass or guitar-like tones. Of course, it additionally excels at modelling instruments that heretofore never existed.

Best of all, the sounds created by Plonk are not static - any sound you design can respond dynamically to velocity, as well as four different modulation inputs. This means the sound of Plonk can change completely from note-to-note (or strike-to-strike). Because of this, Plonk is actually a duophonic (2-voice) module, which lets the sound of one note decay naturally when a second note (possibly employing an entirely different set of modelling values) is struck. Thus, hitting a new note does not choke the sound of the previously struck note (unless you want it to, of course)!

Plonk stores up to 128 patches in its internal memory, and ships with many presets programmed by professional sound designers and composers. You may overwrite these patches if you wish, and banks of patches may be transferred via MIDI System Exclusive over Plonk's built-in mini-USB port to facilitate offline storage by programs or websites that support this capability.

Plonk was developed in cooperation with Montreal-based Applied Acoustics Systems - physical modelling pioneers, and the creators of Tassman, Lounge Lizard, String Studio, Ultra Analog, Chromaphone and numerous other plugins. It is with great pleasure that Intellijel brings the potential of this physical modelling technology to a hands-on, CV-laden device capable of the sort of dynamic control and sonic exploration that modular synthesists demand.

Notes: Another banger from ALM. Based on the oscillators from the classic 1980s Casio CZ series, the Cizzle uses phase distortion synthesis for characterful, FM-adjacent synth tones.

Supplier's Notes:
The 'CIZZLE' is a dual digital 'phase distortion' VCO inspired by the classic Casio 'CZ' series synthesizers. It brings the specifics of 'CZ' style phase distortion (PD) synthesis into Eurorack with the inclusion of primary and secondary oscillator layering and detuning (with up to 8 voice chord generation), extended morphable PD wave generation algorithms, unique resonance wave generation, plus specific 'end of chain' ring modulation and noise modes that are key to the CZ sound.

The voices also feature built in VCAs and various modulation controls and inputs, a cv-able chord mode, tracking ability, triggered mode switching and can be output independently or mixed with stereo widening.

The 'CIZZLE' finally brings characteristic CZ style synthesis to Eurorack with a rich palette of sounds from mellow ambient tones, 90s Detroit Techno inspired chords, Reese style basses, and synth tones with unique faux resonance squelch.

Ideal For

Flexible and precise primary digital voice duties in a Eurorack system.
Creating basslines, rich chords, drones, morphing tones, percussive hits etc.
Unique digital squelch.

Tech Specs
Supply: +12V 65mA / -12V 25mA
Size: 16HP
Depth: 32mm

Notes: A typically comprehensive approach to noise sources from Befaco, featuring five different circuits plus two analogue multimode filters and plenty of CV controls for sculpting the output.

Supplier's Notes:
Noise plethora has three different noise generators:

The first two are identical and are composed of digital algorithms followed by a 12dB analog multimode filter.
Each program has two variables (Named X and Y) addressed by two manual controls and two associated control voltage INs.
Ships with an extensive (and expanding) algorithms library: textures, wave clusters, harsh noises, and glitches.

Generator C has three simultaneous outputs:

White. Flat Response Classic white noise.
Gritty. Granulous texture noise, with voltage-controlled grit quantity.
Filtered. Is the White or Gritty noise followed by a 24dB multimode VCF.

A total of 5 different noise sources in one module!

Dimensions:

14 HP
25 mm deep

Current Draw
110 mA +12V
67 mA -12V
0 mA 5V

Notes: Originally inspired by audience applause, hip-hop samples, and classic drum machines, Fracture is a multi-particle percussion synthesizer that applies concepts from classic analogue clap circuits to granular synthesis methods.

It all starts from proprietary micro-samples we recorded specifically for this purpose and ends with an engine built to suit these samples.
Unlike our other percussion module, Chimera, which uses impulse rich samples as it's tonal center, Fracture uses single impulse samples like claps, snaps, ping pong balls, opening a beer can, and many more. It then plays a group of similar samples back in a psuedo random order for unique hits. Density, Decay, and Tail affect tone and how "tight" your virtual clappers are to playing together.

Our goal was to design a clap percussion module covering the range from classic drum machine claps all the way to full audience applause. We ended up with a module that covers a huge range of timbres beyond claps. We hope this engine provides you with the tools to intuitively create wild percussion sounds that bring your system to life in a new way.

Features
Stereo output
Control over "how many people" and " how tight" they sound together
Built in Hall and Room reverb
Two Trigger inputs for different types of sounds
3 Filter types, 3 Envelope types
Free running, Voltage Controlled "applause" capability
CV over all parameters

Specifications:
Size: 8hp Depth: 38mm (with cables)
Power: +61mA, -17mA
All CV Inputs: 100k ohm impedance
CV inputs sum with knobs
Full sweep is 5V
Gate Inputs: 100k impedance 2V threshold Schmitt Trigger
Audio Outputs: 470 ohm impedance
20Vpp range
1ms latency max

Notes: A multi-VCA module on steroids, the Morph 4 is designed as a modulation hub for an entire Eurorack system, capable of working in coutnless different ways. Proper versatile business.

Supplier's Notes:
Modulation is the core concept of modular synthesis: parameters changing over time, adding movement and musical interest to what would otherwise be merely static sounds. Being able to control the amplitude of signals throughout a patch is therefore essential, and one can never have too many voltage controlled amplifiers (VCAs).

Designed as a fully-featured modulation hub for Eurorack synthesisers, Morph 4 takes the basic concept of the multi-VCA module to the next level.

Four linear amplitude modulators are controlled by a master 'morph' parameter. The response of each modulator to this parameter is completely variable, both manually and under voltage control, and can be overridden if desired. Each response is triangular, with the 'position' parameter setting the maximum point along the morph axis, while 'span' determines the width of the triangle's base.

In addition to separate signal inputs and outputs, a variety of combined outputs is available as well: A+B, C+D, add (unity gain) and averaging mixes, and instantaneous minimum and maximum. Input normalisation makes it easy to send the same signal to multiple modulators, while output and modulator response LEDs provide essential visual feedback.

The combination of master control, fully flexible modulators and multiple combined outputs creates a module truly embodying the spirit of 'patch programmable' modular synthesis. Use Morph 4 as a voltage controlled mixer, dual crossfader, dual panner, interpolating scanner, interpolating distributor, quad VCA, quadraphonic controller, slope modifier, rectifier, complex waveshaper or something in between any of those- the choice is yours.

Notes: The VCA Matrix from 4ms is a playable 4x4 matrix of 16 VCAs.

Four CV or audio inputs can be routed in any amount/combination to four outputs, using the 16 CV control jacks, Level knobs, and Mute buttons.

Notes: The Variable Q VCF (or VCFQ, for short) from Random Source is a skiff-friendly Eurorack adaptation of what is perhaps the most famous Serge filter. It is an effortlessly thick and colorful 12dB/oct multimode filter with ultra-smooth resonance that never ceases to amaze. Amazing tonal variety comes from combining outputs, automating resonance settings via CV, and adding grit using its adjustable-gain input.

Simple filtration is only one of the VCFQ's many uses, however. Its amazing trigger input turns rising-edge pulses into thick analog kicks and toms which roughly track notes thanks to a dedicated 1V/oct input. This module also becomes an ultra-powerful modulator in "Lo" mode, with decaying/syncable LFOs well within grasp using the trigger input, along with free-running oscillation when self-patched. When fed stepped sequences, sample and hold, or other LFOs, the VCFQ can even function as an effective slew limiter. And that's not all: for those lucky enough to own two VCFQs, dual-peak resonance and an ultra-thick 24dB/oct low-pass mode offer some of the most rewarding synth sounds in existence. In short, adding a VCFQ to one's Eurorack system is always worthwhile.

Features

Analog multimode filter designed in collaboration with Serge Tcherepnin
Automatic Gain Compensation and Variable Gain audio inputs
Trigger input
1V/oct and attenuverted frequency CV inputs
Attenuated Q CV input
Low Pass, Hi Pass, Bandpass, and Notch outputs
Hi/Lo range switch
This is the skiff-friendly, SMD version of the Random*Source VCFQ

Under licence from Serge Tcherepnin
Designed for High-end VCAs (THAT2180)
No matching of transistors required
No wiring needed

Dimensions
14 HP
26 mm deep

Current Draw
52 mA +12V
52 mA -12V

Notes: This new device is a powerful new CV controlled effects unit for your electronic music setup and pairs extremely well with the KOMA Field Kit.

- Looper
- Frequency Shifter
- Sample Rate Reducer/Bitcrusher
- Digital Delay
- Analogue Spring Reverb
- 4 Channel VCA Mixer
- 4 Step Mini Sequencer
- Envelope Generator

All of this, combined with the new 4 Channel CV Interface which allows you to route four CV signals throughout the device, means an incredible control over sound and timbre and a great addition to your mobile performance rig.

The Field Kit FX is built up from 7 separate functional blocks all focused on mangling and changing incoming audio and CV signals. They are designed to operate together as a coherent addition to our Field Kit Electroacoustic Workstation or alternatively together with other pieces of music electronics with the ability to use control voltage signals.

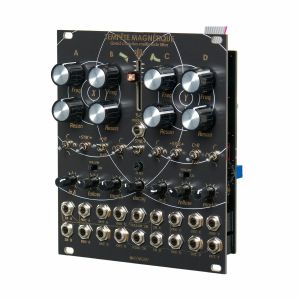

Notes: The Tempete Magnetique is a fully analogue complex filter/synthesizer module designed as an evolution of the Fluctuation Magnetique. More than an mk2, eowaves designed it to encourage you to play with one of the most interesting things in modular synthesis: diverting the primary use of a module to create unexpected and new sounds (aka this is not just a filter).

The circuits feature high-pass, band-pass and low-pass modes with a slope of -12 dB per octave. Routing options allow serial or parallel operation. Level potentiometers at the input stages make it possible to generate asymmetrical distortion. By connecting several of the VCFs in series, users can create filter types with a slope of up to -48 dB per octave. For modulations, there are several CV inputs.
The basic character of the Tempete Magnetique is gentle and very musical. However, with high input level settings, it is also possible to achieve beefy, rather rough results. The circuits can't self-oscillate, unless the user patches a feedback loop. Parallel routing allows, in combination with a VCO, VCA and some modulators, lively, very expressive basses, leads and pads. Atmospheric stereo processing and vocal sounds are other areas of expertise.

The pairs sections, of course, can filter an incoming signal, But can be transformed to synthesis voice, percussion engine (exited by the ping input) and way more.

Applications:

Four independents or linkable multi-modes 12 db filter
Envelope follower who can act as end decay envelope sensible to the velocity - Cross modulation engine who modulate both pair of filters
Ping input
Outputs with phase correction to be fed to inputs

Technical details

22hp
Skiff friendly
Reverse power protection

Notes: Very nice little physical modelling voice, serving up to eight notes of polyphony via stereo outputs. Plucked strings, tuned percussion, an excellent prepared piano mode and more.

Supplier notes:
Surface is a multi-timbral physical modeling voice. Its output ranges from plucked strings and marimbas, all the way to FM drums.

Each model features stereo outputs and up to eight unique voices that can be active at a time.

Notes: This is an exact hardware replica of the Mutable Instruments Blades module.

This model uses the original "hard-to-find" opamps, but After Later have substituted V2164M with AS2164D. All of After Later's products use AS2164D and there should be no measurable change in behaviour.

Notes: Another clever one from Knobula, this chord-based sequencer/arpeggiator adds versatile harmonic options to your creative process. Pair it with the Poly Cinematic module for best results.

Supplier's Notes:
Generate extraordinary chords without using a keyboard.

Chord Pilot introduces a whole new take on the task of chord creation and performance offering 192 chord memories, a strummer, an arpeggiator and an 8 step chord progression sequencer, all in one compact 12hp package.

Knobula have thrown away the music theory rule book and instead offer a module that encourages the curious mind to discover alternative musical pathways, whether for generative patches or for EDM riffs.

To generate a new chord, Chord Pilot uses a series of controls that alter the width and spread of 'fingers' over a virtual keyboard before conforming them into a variety of musical moods from the pure and harmonious to the terrifying and cacaphonic.

Like all Knobula products, Chord Pilot has been designed primarily with performance in mind, to inpsire by experimentation, to lose yourself in the moment, and to occassionaly generate impossibly hard to play super chords.

With the ability to store and transfer chords in sets of eight, Chord Pilot makes a great companion module for Poly Cinematic, but it is equally at home serving any poly synth with a midi input.

Discover Chord Pilot, your guide, navigator and explorer to a whole new universe of musical harmony, and beyond.
