Effects pedals

Notes: One Small Stomp For Man - One Giant Leap For Chorus, Delays & Reverbs

The Zoom MS-70CDR+: Your New Modulation Station

The MS-70CDR+ gives musicians 149 spatial effects ranging from lush choruses to crystal-clear delays to atmospheric reverbs. This single stompbox can shape your tone and provide endless depth and textures.

A Deep Dive into Chorus, Delays, Reverbs & More

Chorus - 43 different chorus and modulation effects that add depth and motion to your sound including phasing, flanging, tremolo, vibrato, detuning, and pitch shifting.

Delays - Featuring 29 mono and stereo delays, with delay times of up to 4 seconds. Everything from reverse and multi-tap to pitch-shifted and self-oscillating delays.

Reverbs - 33 sophisticated studio-quality effects. From spring and plate reverbs to giant hall and arena reverbs.

Dynamics / Filters - Round out your sound with 44 dynamics and filters such as EQ's, compression, noise reduction, and special effects.

Expanded Controls

The MS-70CDR+ offers expansive parameters for each effect, allowing you to dive deep into tweaking your tone.

Define Your Sound
Use a singular effect or up to 6 simultaneously to create unique tones. Save your creations in one of the 100 patch slots or use the 80 preset patches as inspiration to get you started.

Next Generation Circuitry

Newly designed analogue circuits provide more fidelity for improved sound quality. The flat phase response provides sharp attacks and clean low end.

Everything's Better in Stereo.

The MS-70CDR+ has stereo input jacks that accept signals from passive and active guitars, as well as line-level devices such as synthesizers. Its dual line-level output jacks enable you to record and perform with the MS-70CDR+'s 58 stereo effects.

Soundscapes Are Key

For musicians looking to add lush layers to their synths or keyboards, the MS-70CDR+ provides high-quality effects that are perfect for adding atmosphere and character to your sound.

Change Patches With MIDI

With USB MIDI, you can connect the MS-70CDR+ to other MIDI gear to remotely trigger patch changes.

Enhanced Navigation

Cross Key Switches

The Cross Key switches allow you to instantly switch between effects and patches with a tap of your foot.

Control Knobs

Adjusting and tweaking parameters for each effect can be done with the four encoder knobs.

Colour Coded LCD Screen

The LCD backlight changes colour to make it easier to distinguish each category of effects while scrolling.

Sturdy Build

The MS-70CDR+ is built around a metal frame designed to withstand the rigors of live performances.

Power Options

The MS-70CDR+ runs on 2 AA batteries, USB power or AC power.

Tune-Up

The onboard chromatic tuner uses the colour backlight to give visual feedback to help you tune quickly and accurately. It supports all standard guitar tunings as well as open & drop tunings.

Handy Guitar Lab

With a growing library of patches and effects, guitarists can continue to expand their sound with the Handy Guitar Lab for MS-70CDR+ app for iOS. *Coming Soon to the App Store.

Technical Specifications

Maximum number of simultaneous effects: 6 effects
User patch memories: 100
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit 128× oversampling
D/A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
Frequency response: 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kO load)
Display: 160×128 dot-matrix LCD

Inputs L/R
Standard mono phone jacks
Rated input level: -20 dBu
Input impedance (line): 470 kO
Input S/N: 122 dB

Outputs L/R
Standard mono phone jacks
Maximum output level: +7.2 dBu (when output impedance 10 kO or higher)
Noise floor (residual noise) L/R: -100 dBu

Power
AC adapter: 9V DC 500mA centre negative (ZOOM AD-16 optional)
2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
Estimated operation time using batteries
These values are approximate. Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
Alkaline batteries: about 7 hours (about 5 hours using stereo input)
NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input)
Lithium batteries: about 14 hours (about 10 hours using stereo input)

USB Port:
USB 2.0 Type-C / Supported cable type: Type-C
Handy Guitar Lab: USB 1.1 Full Speed
Use a USB cable that supports data transfer. USB bus power is supported.

Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
Weight: 368 g (excluding batteries) / 415 g (including batteries)
Note: 0 dBu = 0.775 V

Notes: ***B-STOCK: Box opened, product in perfect working order***


Introducing Catacombs - a pedal that eliminates the compromise altogether. It packs 11 of the most popular delay and reverb sounds into one intuitive, powerful package. Whether you're after a trusty digital delay and a plate reverb or a musical shimmer and a spaced out echo - Wampler have you covered!

The team at Wampler have worked for a long time on ensuring Catacombs will become an indispensable part of your rig. You can run one of six delay and one of five reverb programs together simultaneously. Each program offers tap-tempo control and can be saved into one of the pedal's eight onboard preset locations for instant recall. Delays and reverbs can be run in Mono, Stereo, in parallel or in series. It's like having a studio's worth of delay and reverb effects right at your feet.

But it doesn't end there - the pedal also comes with a complete software version as a plugin for your DAW in AAX, AU, and VST3 format for both Mac and PC. The Catacombs plugin is FREE to all customers that register their Warranty online (plugin suite is $49.99 if purchased separately).

Legendary Delays

With six delay programs, you can feel the warmth and depth of analogue delays (ANLG), the harmonic nuances of a Bucket Brigade Device delay (BBD), or the nostalgic modulated vibe of classic artisanal tape and mechanical delays (TAPE). Feeling adventurous? The other-worldly Echo-Space Delay (SPC) awaits. The favourite Wampler Faux Tape Echo (FTE) and an accurate recreation of the classic 2290 digital delay (DIGI) also feature.

Iconic Reverbs

The Catacombs houses five finely tuned reverb programs. With just a twist of a knob, you'll discover expansive halls (HALL), a warm vintage plate (PLT), and that classic spring reverb (SPR) with plenty of "drip." The shimmer reverb (SHMR) allows a whole new layer of sonic texture, especially when paired with an expression pedal, and the intimate ambiance of the ROOM setting creates that perfect studio reverb.

Stompbox-like Control

Like the Terraform and Metaverse before it, the Catacombs is designed to be as quick to dial in as possible. Wampler replaced confusing menus and fiddly touch screens with clearly marked knobs you can adjust on the fly. Controls for Time, Feedback, Modulation, and Level (with Alt functions for each effect type) put all the essential tools right at your fingertips. Each setting offers tap-tempo control and can be easily saved into one of the pedal's eight front panel preset locations for instant recall. It's like having a studio's worth of delay effects right at your feet.

Digital Power with an Analogue Soul

The Catacombs uses a high-performance DSP engine to bring each effect to life with authentic character and gives you eight front panel preset locations where you can save and instantly recall your favourite settings. If you're looking to expand even further, you can access up to 128 presets with full MIDI control, it has configurable mono and stereo routing, a parallel or series switch, and an assignable expression pedal input to control any parameter (or multiple parameters).

Notes: Introducing Catacombs - a pedal that eliminates the compromise altogether. It packs 11 of the most popular delay and reverb sounds into one intuitive, powerful package. Whether you're after a trusty digital delay and a plate reverb or a musical shimmer and a spaced out echo - Wampler have you covered!

The team at Wampler have worked for a long time on ensuring Catacombs will become an indispensable part of your rig. You can run one of six delay and one of five reverb programs together simultaneously. Each program offers tap-tempo control and can be saved into one of the pedal's eight onboard preset locations for instant recall. Delays and reverbs can be run in Mono, Stereo, in parallel or in series. It's like having a studio's worth of delay and reverb effects right at your feet.

But it doesn't end there - the pedal also comes with a complete software version as a plugin for your DAW in AAX, AU, and VST3 format for both Mac and PC. The Catacombs plugin is FREE to all customers that register their Warranty online (plugin suite is $49.99 if purchased separately).

Legendary Delays

With six delay programs, you can feel the warmth and depth of analogue delays (ANLG), the harmonic nuances of a Bucket Brigade Device delay (BBD), or the nostalgic modulated vibe of classic artisanal tape and mechanical delays (TAPE). Feeling adventurous? The other-worldly Echo-Space Delay (SPC) awaits. The favourite Wampler Faux Tape Echo (FTE) and an accurate recreation of the classic 2290 digital delay (DIGI) also feature.

Iconic Reverbs

The Catacombs houses five finely tuned reverb programs. With just a twist of a knob, you'll discover expansive halls (HALL), a warm vintage plate (PLT), and that classic spring reverb (SPR) with plenty of "drip." The shimmer reverb (SHMR) allows a whole new layer of sonic texture, especially when paired with an expression pedal, and the intimate ambiance of the ROOM setting creates that perfect studio reverb.

Stompbox-like Control

Like the Terraform and Metaverse before it, the Catacombs is designed to be as quick to dial in as possible. Wampler replaced confusing menus and fiddly touch screens with clearly marked knobs you can adjust on the fly. Controls for Time, Feedback, Modulation, and Level (with Alt functions for each effect type) put all the essential tools right at your fingertips. Each setting offers tap-tempo control and can be easily saved into one of the pedal's eight front panel preset locations for instant recall. It's like having a studio's worth of delay effects right at your feet.

Digital Power with an Analogue Soul

The Catacombs uses a high-performance DSP engine to bring each effect to life with authentic character and gives you eight front panel preset locations where you can save and instantly recall your favourite settings. If you're looking to expand even further, you can access up to 128 presets with full MIDI control, it has configurable mono and stereo routing, a parallel or series switch, and an assignable expression pedal input to control any parameter (or multiple parameters).

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Like the Iguana that's malleable to its environment, blending into its surroundings for harmonious balance or standing out with vibrant confidence, the Polychrome Flanger is a uniquely colourful tool for adding modulated textures to songs.

The Polychrome Flanger is a true bypass, all analogue Flanger pulling in familiar layout controls from the Julia and Lillian.
Dial in a wealth of colourful flange with the D-F-V blend knob and the shape and voice switches.
The Shape Switch lets you select from sine, triangle, or random LFO wave to modulate the delay line

The Voice Switch lets you select between two voices for the flanging effect.
In the down position, the flanger is more traditional and full frequency.
In the up position, you get a more complex and notched flange effect with less low end.

Like the other members of the Walrus Audio modulation family, the Polychrome has a blend knob. The D-F-V (Dry, Flange, Vibrato) knob lets you blend the dry and delayed signal from full dry at minimum (no effect), to traditional flange at noon to full pitch vibrato at maximum. Don't sleep on the vibrato sounds in the Polychrome.
Set the D-F-V knob to maximum, feedback to a minimum, and the voice switch up for some unique pitch vibrato.

Top mounted input, output, and power jacks as well as soft switch relay bypassing make the Polychrome fit well on your board and ensure smooth operation for years to come.

Specs
The Polychrome comes in a flat black enclosure with purple, yellow, coral, green and white ink, featuring original artwork by David Huttner.
Power supply not included.

Dimensions and power consumption:
0.25kg
6,6 x 12,2 x 5,6 cm (W x D x H)
50 mA

In the box:

Walrus Audio Polychrome
Manual
Sticker
Guitar pick
Pouch

Notes: The Qi Etherealizer (pronounced "chee ethereal-izer"), a collaborative creation with Yvette Young, is a multi-effects pedal that combines Chorus, Delay, Granular effects, and, of course, Reverb, into a creative playground for atmospheric exploration.

Known for her innovative and explorative fingerstyle playing technique, love of guitar pedals, and leadership of the math rock band Covet, the Qi reflects her approach to creating lush, evolving soundscapes. Named after the vital life energy that flows through all living things, the Qi is designed to deliver rich textures, expansive atmospheres, and dynamic layers. By blending Yvette's artistic vision with cutting-edge design, the Qi opens the door to immersive, otherworldly sounds.

The Qi allows you to mix and match the chorus, delay, and grain and run in series or parallel to create your own inspiring universe of possibility in a stereo field. With the ability to save presets and bypass the chorus, delay, and grain controls, you can quickly and instantly change settings by simultaneously pressing the Bypass and Freeze stomp switches. Go from a traditional chorus with a little bit of delay, or go all in and let the Qi take over with unexplainable washes of glitchy and lush ambiance. Whatever your style is, the Qi will give it a new life.

The Qi is the first creation to emerge from Walrus' groundbreaking proprietary digital processing platform, MDSP. Designed in-house by their talented engineering team, MDSP sets a new benchmark for high-fidelity audio and innovative design, delivering decades of inspiration to creators seeking practical yet forward-thinking gear.

At the core of MDSP is the powerful ARM-based Cortex M7 processor, renowned as the highest-performing processor in its class. With a proven history in high-level electronics, the Cortex M7 has been meticulously tailored for advanced audio algorithm processing in the MDSP platform. This unique system integrates a microcontroller and a DSP into a single compact unit, enabling a smaller, modular design that can seamlessly adapt to a wide range of pedal formats.

This modular and "mini" approach empowers Walrus Audio to push the boundaries of audio processing. The enhanced capabilities of Walrus's MDSP allow for the development and execution of more sophisticated algorithms than ever before, delivering unparalleled creative possibilities for musicians and audio professionals alike.

The MDSP platform also boasts a superior audio codec, supporting faster sample rates, increased bit depth, greater headroom, and an exceptional signal-to-noise ratio. These enhancements ensure outstanding audio performance, setting a new standard in digital signal processing for the music industry.

The introduction of MDSP reflects Walrus Audio's commitment to providing creators with cutting-edge tools that inspire innovation and creativity.

Global Controls


Space Knob: Space adds a delightfully charming reverb to your affected signal. Use this knob to modify the mix and decay of the reverb. Go from smaller room sounds to a huge, diffused ambient reverb at maximum settings. It's lush and complimentary, and adding it in with the other effects will put you squarely in dreamscape territory.


Tone Knob: The Tone parameter controls the cutoff of a synth-style resonant low pass filter, allowing you to shape the tone of the effect output.


Series and Parallel: In series, effects will feed into each other in the order of Chorus > Delay > Grain > Output.


In parallel, all of the effect outputs on Chorus, Delay, and Grain are summed together and do not feed into each other. The top row of knobs will act as level controls, and the user can control the level of each effect.


The Mix/Dry parameter controls the mix of wet and dry signal in series mode and dry level in parallel mode.

Grain Controls


The featured Grain effect features two 'flavours' of operation:


Grain Cloud: This mode triggers small samples (grains) randomly from your playing, which gives you unpredictable, yet charming glitchy texture for your sound. The X knob controls the length of time between grains, so you can go from dense clusters to sparse accents.


Phrase Sample: This mode triggers grains rhythmically from your playing. Initial peaks in your playing are detected and grains are played back starting at these peaks, creating a rhythmic and intentional effect. The X knob controls the tempo at which the samples will be played back. Turning the X knob to the minimum position will sync the Phrase Sample time to the Delay time so that repeated grains are in time with the Delay repeats.


The Grain effect also features 5 playback modes that dictate different ways the grain samples are projected.


x1: Normal
x2: Double-speed and +1 octave
x.5: Half-speed and -1 octave
REV: Reverse playback
RNDM: Randomized combination of the previous four modes.


Delay Controls

The delay effect is a full, clean digital delay that offers repeats for up to two seconds. Use the time knob to control the time between delays as well as the feedback knob to control the amount of delays. The TAP/OSC switch on the bottom right of the pedal can also be used to control the delay effect via tap tempo, or when held down will ramp up the feedback and cause the delay to oscillate.

Subdivisions

Delay trails can be projected in three subdivision modes:

Quarter Note
Dotted Eighth Note
Eighth Note

Chorus Controls

The Chorus effect offers two modes:
Tri Chorus: A multi-dimensional chorus favourite. Lush, complex, modulated sounds combining three voices for a full, vibrant sound.

Stereo Chorus: This mode is a classic chorus effect but with the modulation of the chorus being offset 180 degrees to the right channel to achieve the stereo width effect.


Other Features

Three on-board presets (red, green, blue) plus a live mode (white).
TRS MIDI 1/8" in and thru ports for MIDI control.
USB-C port included for future firmware updates.
Momentary Grain Freeze
Momentary Grain + Max Reverb Freeze

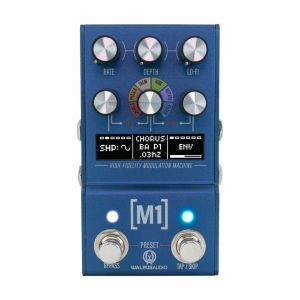

Notes: The M1 MKII is a stereo, all-in-one modulation pedal featuring six studio-grade programs based on fan-favourite modulation tones: Chorus, Phaser, Tremolo, Vibrato, Rotary, and Filter. A sound explorer's delight, the M1 features a dedicated lo-fi knob allowing you to mix various lo-fi parameters to every program. From the swirling, lush sounds of the 80's to more subtle applications that give your tone a distinct flair, this is a hallmark for all kinds of modulation fans, offering limitless creative potential.


Program Controls
Each program can be fully customized to your taste and playing style with the left encoder knob for features like effect type, BPM, wave shape, and more. Refer to the manual for program-specific features.

Programs
Chorus - From subtle chorus to vibrant and lush tri-chorus that will instantly teleport you to the 80s. Type I is a traditional chorus great for tight smooth chorus tones. Type II finds its roots in the classic tri-chorus effect running three chorus units in parallel for a lush multi-dimensional chorus. Type III transforms into a sweeping, vintage-style flanger, a welcome addition for modulation fans.

Phaser - Classic 70s phaser sounds we all know and love, with added features that you wouldn't expect. Similar to the Lillian, Type I is a 2-stage Phaser that produces a single notch to the classic mild phaser. Type II is a 4-stage model producing 2 notches for a stronger effect. Type III is a phaser modelled after the unique tuning and LFO shape found in a Uni-Vibe.

Tremolo - This program emulates a tremolo with three algorithms containing all the bells, whistles, and stereo spread options. Type I is excellent for traditional sounds similar to optical and bias tremolos that raise and lower the entire frequency range - similar to the Monument in standard mode. Type II is a warm and cozy harmonic tremolo - similar to the Monument in harmonic mode. This unique sound is formed by raising and lowering your high and low frequencies opposite each other. Type III offers several predefined patterns for rhythmic sequenced pulsing tremolo.

Vibrato - Make good parts great with detuned, warbly, and vintage sounds that harken back to the 60s. Type I "Traditional" focuses on standard vibrato sounds. Old record players inspire Type II "Vinyl" with classic RPMs on the rate knob and some noise character you'd find in your dad's old dusty Foreigner LPs. The rate knob can select 33rpm, 45rpm, and 78rpm speeds in this mode. Type III "Tape" is our take on the wow and flutter pitch characters found in old tape players. Warm and charming with a hint of nostalgia.

Rotary - Because you can't fit a Leslie speaker on your pedalboard, Type I aims for that traditional watery sound of a well-oiled Leslie speaker. Type II only spins the horn but still plays the sound out of the drum. Type III only spins the drum but still plays sound from the horn. Further fine-tune the drum sounds by experimenting with mic distance in the program controls.

Filter - Add tone-shaping movement to your signal with different modulated filters. Type I is a lowpass filter good for modulated darker tones. Type II is a highpass filter used to creatively modulate your low frequencies. Type III is a bandpass filter forming a sliding "window" of frequencies.

Resonance, envelope speed, and release can all be adjusted on Filter mode, the result being dynamic sweeping sounds and an expressive touch, commonly heard in blues or funk. This program can be easily run as an Envelope Follower type filter.

Lo-Fi Controls:
The M1 Features 6 Lo-Fi-type global controls to make your High-Fidelity modulation machine sound...not so High-Fidelity. Using the Right encoder knob, take your signal back in time and degrade it to sound like tech of yesteryear then use the Lo-Fi knob to adjust in the overall mix.

Env: Envelope allows you to dynamically open the tone based on how hard you play.
Drive: Drive offers a crunchy analogue-style drive to be added to your signal simulating the warm sound of overdriven analogue circuitry.
Space: Space allows you to add some reverb to your modulation chain. Turn to minimum to disengage and turn up to increase mix and decay.
Age: Age engages a complex set of filters used to simulate the limited bandwidth of vintage audio players and recording equipment. From modern, full-frequency at minimum to subtle low-fidelity tones in lower positions and old, thin AM radio sounds in higher positions.
Noise: Noise adds lo-fi analogue inspired noise to your signal.
Warble: Warble manipulates the main LFO wave shape causing it to deform making interesting and less predictable modulation.

Presets
The M1 can save up to 128 onboard presets, which can be held in a preset bank made accessible by tapping down on the bottom left and bottom middle knobs simultaneously. Presets 0-9 are divided into Banks A, B, and C. Select a bank while in the preset menu. Bank A will cycle through presets 0-2, Bank B will cycle through presets 3-5, and Bank C will cycle through presets 6-9. Presets 10-128 can be accessed through manual selection or MIDI.

Notes: The Voyager MKII is a mid-focused overdrive/preamp that contains all the mythical magic from the original Voyager and adds a wealth of features not seen before in a Klon-style pedal.

From its lowest to highest settings, the Voyager provides a uniquely superb amount of clarity to any playing style. At lower gain settings, it brightens the signal and adds clarity to each note. With the gain turned up, the Voyager transforms into a thick overdrive, providing depth to chorded playing while retaining the clarity needed to break through solos.

The Voyager MKII breaks out of the traditional Centaur three-knob topography by adding a foot-switchable parametric mid-frequency EQ with a boost/cut range of +/-12dB. The Freq (Frequency) knob then controls the centre frequency of where the Mid knob is set, giving a range of 250Hz-2kHz. Great for accommodating any guitar and pickup combination and tailoring your tone to your own style of playing.

Further customize the Voyager's sound with the five-way rotary switch:
1. Classic 1N34A Germanium Diodes (most compressed). This is the original Voyager sound.
2. Classic 1N34A Germanium Diodes with bass boost (trust us).
3. Symmetric Silicon Diodes (more open and dynamic).
4. Asymmetric Silicon Diodes (least compressed, open & driven).
5. Asymmetric Silicon Diodes with bass boost (least compressed, open & driven with a bass boost.)

Think of each position as a different "flavour" of the pedal. Fine-tune each of these modes with the Mid/Freq EQ for a near-infinite supply of gain options.

Notes: The Voyager MKII is a mid-focused overdrive/preamp that contains all the mythical magic from the original Voyager and adds a wealth of features not seen before in a Klon-style pedal.

From its lowest to highest settings, the Voyager provides a uniquely superb amount of clarity to any playing style. At lower gain settings, it brightens the signal and adds clarity to each note. With the gain turned up, the Voyager transforms into a thick overdrive, providing depth to chorded playing while retaining the clarity needed to break through solos.

The Voyager MKII breaks out of the traditional Centaur three-knob topography by adding a foot-switchable parametric mid-frequency EQ with a boost/cut range of +/-12dB. The Freq (Frequency) knob then controls the centre frequency of where the Mid knob is set, giving a range of 250Hz-2kHz. Great for accommodating any guitar and pickup combination and tailoring your tone to your own style of playing.

Further customize the Voyager's sound with the five-way rotary switch:
1. Classic 1N34A Germanium Diodes (most compressed). This is the original Voyager sound.
2. Classic 1N34A Germanium Diodes with bass boost (trust us).
3. Symmetric Silicon Diodes (more open and dynamic).
4. Asymmetric Silicon Diodes (least compressed, open & driven).
5. Asymmetric Silicon Diodes with bass boost (least compressed, open & driven with a bass boost.)

Think of each position as a different "flavour" of the pedal. Fine-tune each of these modes with the Mid/Freq EQ for a near-infinite supply of gain options.

Notes: The [ACS1] is an amplifier and speaker cab simulator delivering the sound and feel of world-class amplifiers, complimentary speaker cabinet IRs created by Tone Factor and York Audio, and controllable room size. With the ACS1, players have expansive options to deliver their tone on stage, in the studio, or practicing at home. Simple controls, stereo in and out, onboard presets, and MIDI support make the ACS1 an essential tool in a guitarist's arsenal. Players can also load in their own IRs and update firmware.

The ACS1 contains six amplifier models based on fan-favourite amps, each with its place in music history, and twelve cab IRs (Impulse Responses) designed by world-class designers to give you the best tonal representation possible. The stock IRs for the Fullerton, London, and Dartford amp models were custom engineered by David Hislop and Kenyon Reed at Tone Factor, while the stock IRs for the Red, Citrus, and Tread amp models were designed by Justin York at York Audio.

Amplifiers

The ACS1 can mix and match stereo amp and cab combinations. Want to run an AC30-style amp on the left and an Orange-style amp on the right? Or perhaps a 5150 flavoured amp in both channels but with two different cabs for a wider stereo sound? When running the ACS1 in stereo, one amp can be used through both channels, or these combinations can be run independently left and right if you choose, leading to powerful, unique amp tones. Simply press down on the Middle encoder to choose individual settings for L, R, or L+R combined. Amps can be mixed and matched with no phase/polarity issues as well.

Onboard models include:

Three Vintage Amp Models

Fullerton - Inspired by the classically bright and clear Fenderr Deluxe Reverb. Crisp clean tones with loads of headroom that players have come to love over the years.
London - Inspired by a 1962 Marshallr Bluesbreaker with a harmonically rich, valve-driven breakup. Articulate and sensitive response.
Dartford - Inspired by the legendary jangly high-end tones from a 1960s Voxr AC30 with all the bite and chime from the British Invasion.

Three High Gain Amp Models

Red: Inspired by the distinctively raw and punchy Peaveyr 5150, producing heavy, aggressive modern metal and hard rock sounds. Powerful and saturated with a tight low end, strong midrange, and a bright, cutting high end.
Citrus: Inspired by the warm, rich, and harmonically complex Oranger Rockerverb. Classic British gain with a creamy midrange and punchy lows. Maintains clarity and definition across its entire tonal spectrum, even at high-gain settings.
Tread: Inspired by the world-famous Mesa Boogier Dual Rectifier with massive amounts of in-your-face gain. Versatile enough to be favoured by guitarists in genres from hard rock, punk, metal, and more, Tread offers up plenty of saturation that's heavy and ready to cut through the mix.

Cabinet IRs

The ACS1 includes six IRs custom-engineered by David Hislop and Kenyon Reed at Tone Factor and six by Justin York of York Audio. Each IR has been created with vintage and modern amps to deliver the best tonal representation possible.

Additional ACS1 Settings/Features:

Primary Controls

Volume, gain, and room make up the top three knobs. Volume and gain work together, as gain is increased and made louder, volume can be turned down to compensate.

Room The ACS1 has three different types of reverb effects:

Room - Simulates the size of the room that your amp and cabinet are in. At zero, it would resemble tracking your amp in an isolated environment with no reverb. At max would emulate a natural-sounding, large studio environment.

Hall - Simulates the acoustics of a large, live sound space.

Spring - Simulates spring reverb tanks found in tube amps.

Increase the room size or amount of reverb by adjusting the Room knob. The further clockwise you go, the bigger the room. Decay control can be adjusted for room in the Global Sound menu.

Bass/Mid/Treble EQ

Bass, mid, and treble control are adjustable on the home screen with the use of the encoder knobs. The left knob controls bass, the middle is mids, and the right is treble. This simple EQ control has clear visual feedback and can be used to adjust levels on the L, R, and L+R channels.

Noise Gate

A noise gate can be applied and adjusted within the navigation menu, which can be especially helpful when playing with the high-gain amp models.

Amp EQ

Presence and resonance controls are available within Amp EQ Settings in the menu, giving you even more control of your amp tone.

(Access the settings for noise gate, Amp EQ, and more by clicking the bottom left and middle encoder knobs simultaneously).

Bypass IRs or Amps

Cab IRs as well as amp models can both be bypassed with the ACS1, making it more flexible for ampless rigs that still have physical cabs, and vice versa.

Notes: The Qi Etherealizer (pronounced "chee ethereal-izer"), a collaborative creation with Yvette Young, is a multi-effects pedal that combines Chorus, Delay, Granular effects, and, of course, Reverb, into a creative playground for atmospheric exploration.

Known for her innovative and explorative fingerstyle playing technique, love of guitar pedals, and leadership of the math rock band Covet, the Qi reflects her approach to creating lush, evolving soundscapes. Named after the vital life energy that flows through all living things, the Qi is designed to deliver rich textures, expansive atmospheres, and dynamic layers. By blending Yvette's artistic vision with cutting-edge design, the Qi opens the door to immersive, otherworldly sounds.

The Qi allows you to mix and match the chorus, delay, and grain and run in series or parallel to create your own inspiring universe of possibility in a stereo field. With the ability to save presets and bypass the chorus, delay, and grain controls, you can quickly and instantly change settings by simultaneously pressing the Bypass and Freeze stomp switches. Go from a traditional chorus with a little bit of delay, or go all in and let the Qi take over with unexplainable washes of glitchy and lush ambiance. Whatever your style is, the Qi will give it a new life.

The Qi is the first creation to emerge from Walrus' groundbreaking proprietary digital processing platform, MDSP. Designed in-house by their talented engineering team, MDSP sets a new benchmark for high-fidelity audio and innovative design, delivering decades of inspiration to creators seeking practical yet forward-thinking gear.

At the core of MDSP is the powerful ARM-based Cortex M7 processor, renowned as the highest-performing processor in its class. With a proven history in high-level electronics, the Cortex M7 has been meticulously tailored for advanced audio algorithm processing in the MDSP platform. This unique system integrates a microcontroller and a DSP into a single compact unit, enabling a smaller, modular design that can seamlessly adapt to a wide range of pedal formats.

This modular and "mini" approach empowers Walrus Audio to push the boundaries of audio processing. The enhanced capabilities of Walrus's MDSP allow for the development and execution of more sophisticated algorithms than ever before, delivering unparalleled creative possibilities for musicians and audio professionals alike.

The MDSP platform also boasts a superior audio codec, supporting faster sample rates, increased bit depth, greater headroom, and an exceptional signal-to-noise ratio. These enhancements ensure outstanding audio performance, setting a new standard in digital signal processing for the music industry.

The introduction of MDSP reflects Walrus Audio's commitment to providing creators with cutting-edge tools that inspire innovation and creativity.

Global Controls


Space Knob: Space adds a delightfully charming reverb to your affected signal. Use this knob to modify the mix and decay of the reverb. Go from smaller room sounds to a huge, diffused ambient reverb at maximum settings. It's lush and complimentary, and adding it in with the other effects will put you squarely in dreamscape territory.


Tone Knob: The Tone parameter controls the cutoff of a synth-style resonant low pass filter, allowing you to shape the tone of the effect output.


Series and Parallel: In series, effects will feed into each other in the order of Chorus > Delay > Grain > Output.


In parallel, all of the effect outputs on Chorus, Delay, and Grain are summed together and do not feed into each other. The top row of knobs will act as level controls, and the user can control the level of each effect.


The Mix/Dry parameter controls the mix of wet and dry signal in series mode and dry level in parallel mode.

Grain Controls


The featured Grain effect features two 'flavours' of operation:


Grain Cloud: This mode triggers small samples (grains) randomly from your playing, which gives you unpredictable, yet charming glitchy texture for your sound. The X knob controls the length of time between grains, so you can go from dense clusters to sparse accents.


Phrase Sample: This mode triggers grains rhythmically from your playing. Initial peaks in your playing are detected and grains are played back starting at these peaks, creating a rhythmic and intentional effect. The X knob controls the tempo at which the samples will be played back. Turning the X knob to the minimum position will sync the Phrase Sample time to the Delay time so that repeated grains are in time with the Delay repeats.


The Grain effect also features 5 playback modes that dictate different ways the grain samples are projected.


x1: Normal
x2: Double-speed and +1 octave
x.5: Half-speed and -1 octave
REV: Reverse playback
RNDM: Randomized combination of the previous four modes.


Delay Controls

The delay effect is a full, clean digital delay that offers repeats for up to two seconds. Use the time knob to control the time between delays as well as the feedback knob to control the amount of delays. The TAP/OSC switch on the bottom right of the pedal can also be used to control the delay effect via tap tempo, or when held down will ramp up the feedback and cause the delay to oscillate.

Subdivisions

Delay trails can be projected in three subdivision modes:

Quarter Note
Dotted Eighth Note
Eighth Note

Chorus Controls

The Chorus effect offers two modes:
Tri Chorus: A multi-dimensional chorus favourite. Lush, complex, modulated sounds combining three voices for a full, vibrant sound.

Stereo Chorus: This mode is a classic chorus effect but with the modulation of the chorus being offset 180 degrees to the right channel to achieve the stereo width effect.


Other Features

Three on-board presets (red, green, blue) plus a live mode (white).
TRS MIDI 1/8" in and thru ports for MIDI control.
USB-C port included for future firmware updates.
Momentary Grain Freeze
Momentary Grain + Max Reverb Freeze

Notes: The D1 MKII is a feature-packed, high-fidelity all-in-one delay pedal with six algorithms for players to choose from: Digital, Mod, Vintage, Dual, Reverse, and Grain. The D1 can create inspirational delay trails ranging from dreamlike and bizarre, to rhythmic and clear, to warm and analogue sounding.

Program Controls:
Each program can be fully customized to your taste and playing style with the left encoder knob, which controls six parameters on all programs of the D1: Depth, Rate, Shape, Age, Tone, and Spread.

The Right encoder knob adjusts BPM, Swell, and Tap Division. BPM can also be set via the tap tempo switch or MIDI. Some programs will have additional options. See the manual for details.

Programs:
Digital - The Digital delay program offers a clean and crystal-clear delay that is perfect for rhythmic guitar parts where ultra-defined echoes are desired.

Mod - The Mod delay program has unique modulation LFOs applied to random repeats and run at multiple rates to create unpredictable pitch modulation. This results in unique sounding repeats perfect for warping minds and scattering trains of thought.

Vintage - The Vintage program allows for analogue tape delay-inspired tones to be achieved with complex filtering applied to the repeats. Use the tone knob at low settings for darker filtering and at higher settings to roll off the low end.

Dual - The Dual program employs two delays, one in each channel and both with different repeat subdivisions. The user has complete control over these subdivisions for both the L and the R channel, and can also choose to run their channel feedback in parallel, ping pong, or series. This effect can leave some jaw dropping trails, especially in stereo.

Reverse - The Reverse program reads the delay memory backward creating a unique delay repeat character known as a reverse delay. Select whether your repeats stay always reversed, or follow an analogue reverse feedback system where the repeats flip flop.

Grain - The Grain program can be as smooth, choppy, glitchy, or flowy as you want it to be, and for users who may want to try their hand at experimenting a little, this will be the perfect program for them to explore. The grain trails can be adjusted to short staccato sounding glitches, or opened up for full immersion. It's a whole new world, but the player is still firmly in control.

Presets:
The D1 can save up to 128 onboard presets, which can be held in a preset bank made accessible by tapping down on the bottom left and bottom middle knobs simultaneously. Presets 0-9 are divided into Banks A, B, and C. Select a bank while in the preset menu. Bank A will cycle through presets 0-2, Bank B will cycle through presets 3-5, and Bank C will cycle through presets 6-9. Presets 10-128 can be accessed through manual selection or MIDI.

Notes: The R1 MKII is an extremely powerful and versatile multi-function reverb that can go from intimate, small-room type subtle reverbs to huge, experimental euphoria. With six distinct programs based on fan-favourite reverb sounds that have been built from the ground up, players of all styles and genres will be able to find eternal inspiration with the R1.

Program Controls

Each program can be fully customized to your taste and playing style with the left encoder knob for features like modulation rate, ducking, and more. Refer to the manual for program specific features.

The R1 MKII includes a unique Ducking/Swelling control that modifies the reverb's behavior. Higher settings increase the swelling effect, making it more prominent, while lower settings enhance the ducking effect, helping to maintain a clear and focused mix.

The Right encoder knob adjusts parameters like reverb EQ and room size. See the manual for details.

Programs:
Spring: The Spring program emulates an excited spring reverb commonly found in tube amps with loads of transducing drip. Easily go from subtle to full-on surf rock. Experiment with the decay knob to get more than average amounts of reverb not found in traditional amp spring reverb tanks.
Hall: The Hall program provides the acoustics of large live sound spaces like concert halls to arenas. Longer decays result in a massive wash of ambiance.
Plate: The Plate program emulates a smooth analogue plate reverb with nice even diffusion for the classic plate sound that you know and love.
BFR: BFR is a no holds barred, big, f____, reverb. This is more than a giant arena reverb. It's a hall-esque reverb with rich and lush decay in a vast cavern filled with choirs of angels.
Refract: The RFRCT program allows for lovely, charming, and glitch-like textures hovering over a controllable amount of diffusion. The Rate controls on RFRCT set how often new grains trigger, while Depth controls the amount of modulation applied to the grains. The Time control sets the delay time of the grains, and the size control sets the size of the grains being pulled from the buffer. The diffuse control allows you to take the grains from super dry and stuttery to washed out in a reverb mix.
Air: The Air program offers a larger diffused reverb with a shimmer, as well as a distinct clarity to its decay. Adjust the shimmer control to really lean into that high-octave sound that ambient style artists have come to love over the decades. Explore slow-building complimentary sounds that don't get in the way of your playing.

Presets
The R1 can save up to 128 onboard presets, which can be held in a preset bank made accessible by tapping down on the bottom left and bottom middle knobs simultaneously. Presets 0-9 are divided into Banks A, B, and C. Select a bank while in the preset menu. Bank A will cycle through presets 0-2, Bank B will cycle through presets 3-5, and Bank C will cycle through presets 6-9. Presets 10-128 can be accessed through manual selection or MIDI.

Notes: Sync all your time-based devices, seamlessly move through preset setlists, and simplify tempo matching with the Canvas Clock! Designed for any kind of rig you throw at it and deeply customizable, users can put their full trust in the Clock to be an all-in-one tempo solution for their board.

The Canvas Clock can interface to any device in your rig that accepts clock signal, whether MIDI, (via the 1/8 in or 5-pin MIDI ports) or analogue (via the 1/4 in jacks). Clock will send time signals for both MIDI and analogue devices, and will continue to do so as you move through your song list or manually adjust the tempo. As you edit, save, and recall songs in real-time or via the online editor at walrusaudio.io, Clock will send your specific settings for whichever song you are currently on out to all of the time-based devices you are connected to.

Customize your Clock

The four 1/4" in jacks aren't just for sending tempo. They can each be assigned one of four functions:

Tempo Out - Connect to any pedal or device that accepts external tap inputs or analogue time controls (ex: Walrus' Arp-87 Delay or Monument Tremolo). Canvas Clock can send analogue clock and MIDI clock at the same time. No more relying on your feet to keep perfect time.

CV (Control Voltage) Out - Control any device that accepts CV. Good for Analog Synths, Drum Machines, or similar devices.

Switch Input - Each jack can be configured to receive input from two external footswitch controls. The switches are connected to the Tip (left) and Ring (right) of the associated 1/4 in jack. These can be assigned to many functions available on the pedal with the ability to add more options via a software update.
Expression In - Connect an expression pedal, and use it to send a MIDI CC message out to a pedal connected to the Clock. The "Toe Down" and "Heel Down" values can be adjusted to fine-tune the controlled parameter range. Use this to adjust the mix of a reverb or the depth of a tremolo (via MIDI out).

Footswitches

Footswitches for the Clock are customizable. Eliminate the "bending over between songs to make adjustments portion of a set" by assigning one of the onboard functions to the A and/or B switches:

-Advance to the next song
-Go back to the previous song
-Advance to the next setlist
-Go back to the previous setlist
-Toggle the metronome start and stop
-Global tap tempo

Sync

The "Sync" jack found on top of the pedal can be set in two ways:
-Input - Great for accepting BPM from an external source.
-Output - Great for syncing external devices, such as a Eurorack device, a Roland Volca Synth, and many other devices.
Some external devices send/receive clock signals that are "double" the standard timing signals, so Walrus included the option to send/receive a 1x or 2x signal, depending on the specific device's needs. Users can also determine the subdivision of the BPM to send out.

Metronome


If active, the Clock metronome can be heard via the MET OUT port at the top of the pedal. This signal can be sent to a front of house console for live gigs or a monitor for practicing. Metronome type, volume, and accent note controls can all be edited in the Metronome Menu.

Songs

There are 128 "Song" slots available to users in the Canvas Clock. You can think of each song as an editable preset where you can adjust the song name, meter, BPM, MIDI Macros, and metronome start or stop. Once your song is edited to your liking, every time it is recalled it will operate just the way you set it!

Setlists

Keeping your songs organized is crucial for live sets, which is why with the Clock, songs can be grouped together and navigated through easily using the Setlist feature. Once you access setlist settings, you can select songs from your master song list to curate and reorder in the way you'd want them for a gig or practice. Once your setlist is saved and active, going through the setlist in real-time will recall these songs and all their settings in the order you curated them for that setlist.

MIDI Macros

For the MIDI-minded players who may want further control over their rig, there are standard MIDI commands that can be triggered when you recall songs with the Clock. MIDI Macros allow users to create one or a series of MIDI CC or PC messages that get sent out of the Canvas Clock when a specific song is recalled. Users have 128 adjustable Macros with 15 messages per MIDI Macro, which can be useful in further dictating how you want your MIDI devices to behave during certain songs, (ex: bypassing some pedals but engaging others).

Walrusaudio.io

While you can edit and customize your Canvas Clock settings using the menu on the pedal, users can also connect the pedal to a computer via the USB-C port and customize their Clock with the Canvas Clock Editor web-app. Quickly and easily set up songs, edit your Setlists, edit MIDI Macros, and more. Firmware updates will also be available via this site as well.

Specs

Power:
9VDC, 300mA,
Center-Negative, 2.1mm center pin OR Powered via USB-C
The use of an isolated power supply is recommended for powering all Walrus Audio Pedals. Daisy chain power supplies are not recommended. Power supply not included.
Computer Connectivity: Requires Chrome web browser on either Windows or Mac OS. Visit walrusaudio.io to use the Canvas editor and get firmware updates when available.
Enclosure: 2.3" x 2.96" x 4.84" including jacks & knobs

Hardware

Preset/Menu Encoder and Switch
Tempo/Save Encoder and Switch
Footswitch A
Footswitch B
1/4" Jack 1 (TS or TRS)
1/4" Jack 2 (TS or TRS)
1/4" Jack 3 (TS or TRS)
1/4" Jack 4 (TS or TRS)
MIDI In/Out (5-pin DIN)
MIDI In/Out (1/8th" TRS cable)
Sync (1/8th" TRS cable)
Met Out (1/8th" TRS cable - not intended to drive headphones, please plug into high impedance input)
USB-C

Notes: Phonkify X

Envelope Filter and Octave

Maximise your funk with the Tsakalis Audioworks Phonkify X pedal. A potent pairing of fabulous filters and outstanding octaves. Expanding on the esteemed original Phonkify, the Phonkify X turns up the funk-o-meter with three selectable flavours of envelope filter and three types of octave voicings. This makes the pedal not only perfect for juicing up your jams and dripping your tone in cosmic gravy, but also delivers filters and octave tones that go way beyond and into the spaces between. Featuring flexible momentary or latching operation for each effect, plus a dedicated toggle switch for selecting the order of the filter and octave, the Phonkify X is ready to pour on the funk gravy and turn up the stank factor!

Phonkify X's Filter section warps and wiggles your tone into a kaleidoscope of grooves.

Flip the dedicated toggle switch to find your filter flavour: Low Pass for warm, buttery tones, Band Pass for that snappy, in-your-face attitude or a cosmic combo of Low Pass-to-High Pass for sweeping, interstellar effects. Got an expression pedal? Slide it in and ride the funk wave with hands-free control over your freaky frequencies.

While the Octave section can make the floor rumble and shake! No matter if you're feeling that high-flying octave-up, a deep-diving octave-down or a spaced-out blend of both, hit that footswitch and squeeze out every last funky drop.

Need more juice? Crank the master volume to fine-tune your output, while the pedal's internal voltage doubling gives your tone headroom for days. True Bypass keeps your original signal pure when you step off the funk train.

The Phonkify X isn't just a pedal. It's a total vibe machine, a groove generator and a tone tailor for the funky-hearted. Whether you're laying down tight pocket grooves or blasting off into experimental soundscapes, the Phonkify X has the tools to elevate your sounds right into the stratosphere.

Notes: Instant ambient bliss coupled with the powerful ambience processing is a brand-new Ensemble engine, capable of creating pads and soundscapes that follow your playing organically - so if you change pickups or play in a different place on the neck you get different results. It's unlike anything you've ever heard or played before, all wrapped in a smaller form factor that still manages to house full stereo I/O, TRS MIDI and USB-C connectors on the back panel. Prepare to be inspired!

Cloudburst's Ensemble switch reveals a whole new world of captivating sounds never previously heard from a reverb pedal. Use it subtly to add harmonically rich and otherworldly dimensions to your ambient reverb soundscapes, or use it liberally to hear a lush synthesized string section swell under your guitar playing. Ensemble reacts to your entire guitar signal in an organic and musical way, delivering a richly responsive and uniquely inspiring playing experience.

Cloudburst gives you multiple reverb experiences, with beautifully-tuned and natural small spaces at one end of the Decay knob and vast, expansive atmospheres at the other. As you turn the Decay control numerous internal parameters are automatically adjusted, allowing this ambient reverb pedal to produce outstanding studio-quality spaces of any size at the turn of a single knob.

All of the premium components, sound quality and road-worthiness you expect from a Strymon reverb pedal are here in Cloudburst's new compact format. Featuring unbeatable ease of use and some of the finest reverb sounds we've ever created, Cloudburst could easily be the only reverb pedal you need on your pedalboard.

Notes: A warm grittiness to the warble, a rippling, wooshing, bubbling irregularity to the modulation and a dynamic response to your picking are all hallmarks of the true vibe experience. Thicker and chewier than any chorus, earthier than any phaser and uniquely magical in front of a driven amp, the perfect vibe pedal moves you to dig in and play without inhibition. This feeling has been difficult to find outside of large and expensive fully-analog boutique units, but the search for that elusive experience is now over.

UltraViolet's simple and responsive controls provide a wider range of sounds than traditional vibe pedals. In addition to the familiar Chorus (50% wet) and Vibrato (100% wet) settings, there is a new Blend setting (30% wet) for an inspiring variety of more subtle effects. A Bias switch gives you three distinct flavors of sweep shape and tone emphasis, allowing for tons of sonic variation. At slow speeds, the intensity range has been expanded beyond that of traditional vibe circuits to push even further into warmly undulating sonic territory.

For UltraViolet's new vibe algorithm, all the elements of the classic optical vibe circuit (and their interdependencies) have been meticulously recreated for a dynamic playing response. From the effects of bias, speed and LFO waveshape on the pulsing of the lamp, to the response of the light-dependent resistors that set the center frequencies of the staggered phasing filters, the entire system has been duplicated and carefully tuned to produce the very best sounds a vibe pedal can offer.

TRS stereo input and output in a dual mono configuration means you can place UltraViolet at any point in your pedal chain with no impact on your stereo image.

Full MIDI implementation with 300 available preset locations ensures that UltraViolet is ready for your MIDI rig. In addition to TRS MIDI, there is a USB-C jack for controlling the pedal via MIDI from a computer or for performing firmware updates. For hands-free control without MIDI you can connect an expression pedal for control over any combination of knobs in any direction (Expression pedal controls Speed by default.) Or attach an optional external switch for tap tempo or favorite recall.

Finally, a high-impedance, ultra-low noise discrete Class A JFET stereo input preamp provides exceptional touch sensitivity, dynamics and feeliall in a rugged and elegantly compact form factor.

Notes: Add warm dimensionality and luscious tape saturation to your signal. Teleport the tones of yesteryear to your board. Effortlessly create a huge range of beautiful, distinctive, and enveloping vintage sounds. From the inherent warmth and luscious tape saturation to the forgotten art of how these machines were manipulated, Deco brings this original inspiration back, giving you these vintage tape effects from the earliest recording studios, right on your pedalboard.

Deco's Tape Saturation smooths out your sound with familiar and delicious tape compression and saturation, while fattening your tone with subtle tape-driven transparent overdrive.The Doubletracker provides the power to shift your sound in many ways, easily allowing you to achieve syrupy slapback tape echoes, psychedelic tape flanging, and gorgeous tape chorusing sounds.
Our second generation Deco gives you the same gorgeous reel-to-reel tape sounds from our original, while adding several significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio.

Full MIDI implementation means you can control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via Deco's EXP/MIDI jack or USB-C connection. Lag Deck delay time can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset. 300 MIDI preset locations are available for loading and saving your favorite settings.

Deco now comes with an all-new cassette tape voicing that employs an auto level control (ALC) process common to many high-end cassette tape recorders, resulting in a compressed, fat tone. In addition, a new dedicated Tone knob lets you adjust the tone of the Tape Saturation exactly to your liking, from dark to bright.

A premium analog JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard.

Features

High impedance ultra low-noise discrete Class A JFET TRS stereo input.

Low impedance independent TS stereo outputs.

Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection.

USB jack for controlling via MIDI from a computer or for performing firmware updates.

Dedicated tap tempo & On/Off footswitches

Premium JFET analog front end

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality

520MHz ARM Superscalar processor

32-bit floating point processing

20Hz to 20kHz frequency response

Audio Input Impedance: 1M Ohm

Audio Output Impedance: 100 Ohm

Strong and lightweight anodized dark gray aluminum chassis

9V DC power supply included

Power requirements: maximum 9 volts DC center-negative, with a minimum of 300mA of current

Dimensions: 4.5" deep x 4" wide x 1.75" tall (11.4 cm deep x 10.2 cm wide x 4.4 cm tall)

Designed and built in the USA

Notes: Discover your amp's potential

Riverside's cascading gain stages create harmonically rich tones that are immensely musical and natural-from silky clean overdrive to colossal distortion, and all points between. The analogue JFET front-end ensures that Riverside responds to your guitar with uncompromised dynamics and feel. The precision crafted DSP generates dynamic complexity and pleasing harmonics at every stage, letting your amp shine at any gain level. Riverside takes your amp to places you never knew it could go.

Overview

Infinite sweet spot

Riverside's continuously variable circuit tuning dynamically tweaks multiple parameters under the hood so that the sweet spot follows you at any gain setting. As you turn the Drive knob, Riverside makes continuous adjustments, tuning the circuit for optimum tone. This results in an incredibly versatile drive pedal that is equally capable of providing sparking cleans, mild overdrives, high-gain leads, and heavy saturated distortions.

Flexibility to adapt to any amp

Your amp choice has a large influence on the sound of any drive pedal connected to it. Riverside's musical 3-band EQ, with independent Bass, Middle and Treble knobs, is designed to complement your amp's tone with the flexibility needed to dial in your sound effectively and efficiently. The three-position Presence switch tailors the highest frequencies, allowing Riverside to integrate perfectly with any amp or setup, no matter how dark or bright.

Digital or analogue? Strymon choose both

The first stage of Riverside's custom multistage drive topology is an all-analogue, ultra low noise, discrete, class-A JFET circuit. This gain stage is digitally controlled to maximize headroom while adding as much as 20dB of pure analogue gain, with tight integration to the subsequent DSP gain stages. With Strymon's hybrid approach you get the best of both analogue and digital worlds: The JFET stage provides exceptional touch sensitivity and dynamic interaction with your guitar, while the incredibly powerful SHARC DSP facilitates the great level of detailed complexity and responsiveness you'll want to hear.

Tone Adjustment and Shaping

Drive adjusts the amount of gain applied to the signal. Employs continuously variable circuit tuning which adjusts many parameters as you turn the knob.

Level controls the output volume level when the effect is engaged.

Gain toggles between low or high gain channels.

Low sets a gain structure allowing for a wide range of low to medium gain sounds. At high Drive settings the sound is heavily overdriven, and slightly 'loose' like a dimed vintage amp.

High increases the gain throughout the signal path and tightens things up. Stays relatively clean at low Drive settings, shifting to heavy saturated distortion at maximum.

Push toggles between flat or enhanced midrange frequencies.

Norm can be used for cleaner, more transparent tones.

Mid adds a mid-band EQ push just after the analogue front-end gain. This pushes the subsequent drive stages harder, tightening up the response. Perfect for fat drive tones, or pushing a distorted or on- the-edge amp into further breakup.

Bass is an active shelving/parametric low frequency control. The control is post-drive, shaping your drive tones before they reach your amp.
Middle is a parametric mid boost/cut control with optimized frequency centre. The control is post-drive, shaping your drive tones before they reach your amp.

Treble is a wide-ranging high frequency active shelf control. The control is post-drive, shaping your drive tones before they reach your amp.

Rear Panel

Presence is a three position switch that tailors the highest frequencies of the output signal.

Minus (-) provides clarity with a controlled top end that works well with many amps that have a brighter voice.

Enhanced (centre) extends the top end to allow for more sizzle on high gain tones. Useful if you want enhanced detail in the uppermost frequencies.

Plus (+) delivers extended high end detail to the darkest amps, and is also useful when plugging directly into a power amp.

In is a high impedance mono input. Plug your instrument in here.

Out is a mono signal output. Connect to your amp, other pedals, mixing board, etc.

Boost allows use of an external switch to toggle up to +6dB of post boost on/off. Or connect to the EXP input of another Strymon pedal and simultaneously engage the Favorite settings on both pedals with Riverside's Favorite switch.

Expression Pedal Input provides continuous expression pedal control over any or all of the knobs, in any direction, with your foot. Or can be used in Volume Mode to control the volume level of the effect.
Power - Plug your power supply in here. Maximum 9 volts DC centre-negative, with a minimum of 250mA of current. Standard 5.5mm x 2.1mm barrel connection.

Secondary Functions

Press and hold ON footswitch to enter Secondary Function mode. Release the footswitch, then turn the desired knob to adjust the parameter.

Optional variable-threshold Noise Reduction tames hum, buzz, and system noise when you're not playing. A downward expander with advanced signal detection techniques creates a seamless transition to noise reduced silence with all types of input signal dynamics.

Boost Level sets up to +6dB of available boost when using an external Boost footswitch.

Ins, Outs, Switches

High impedance mono input
Mono output
Favorite footswitch to save a favorite setting
Favorite Input to connect an external MiniSwitch to recall a Favorite preset
Expression pedal input allows the connection an expression pedal for simultaneous morphing control over multiple parameters (Expression mode), or logarithmic taper for smooth volume control (Volume mode)
MIDI accessible via Expression jack for remote parameter control and access to 300 preset locations
Boost pedal input allows connection of an external footswitch for up to +6dB of analog boost, or to toggle the Favorite preset on other Strymon pedals (Favorite Out mode)

Analogue Quality

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
Premium analog front end and output section
Super high performance SHARC DSP in a compact form factor
32-bit floating point processing

More

True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass
Strong and lightweight anodized gold aluminum chassis
9V DC power supply included
Power requirements: maximum 9 volts DC center-negative, with a minimum of 250mA of current
4.5" deep (11.43 cm) x 4" wide (10.16 cm) x 2.4" tall (6.1 cm)
Designed and built in the USA

Notes: In designing the Ola dBucket Chorus and Vibrato, Strymon started with the dBucket building blocks and used them to craft a beautiful and versatile modulation effect. Keeping in line with the same philosophy as the Brigadier delay, the high performance DSP is entirely dedicated to and focused on providing the most lush and organic chorus and vibrato sounds available. Strymon also drew influence from some of their favorite vintage chorus effects and a certain little blue box vibrato with a strong cult following. On top of that they threw in true bypass, a favorite preset, stereo input and output, and a super high quality analog front end and output section.

Features

Hand crafted dBucket algorithm for highly accurate reproduction of every stage of an analog bucket brigade chip. Built on the dBucket building blocks developed for our Brigadier delay.

Super low noise, high performance A/D and D/A converters w/ 110dB signal to noise

High performance DSP stuffed into a compact form factor

3 modulation types (chorus, muti-mode chorus, vibrato)

3 dynamic modes (normal, ramp, envelope)

Controllable ramp speed | envelope sensitivity

Global tone control for the overall color of your modulation

Mix control for dialing in various modulation intensities

TRUE BYPASS (electromechanical relay switching)

Stereo input and output

Favorite footswitch for saving your favorite setting

Powered with a standard 9V center negative DC supply. Compatible with all major DC supply brands. Current consumption 200mA - (250mA recommended supply)

Premium analogue front end and output section

No-nonsense user interface

Strong and lightweight blue anodized aluminum chassis

Crafted with love in the USA

Notes: Iridium

Leave Your Amp At Home.

Nothing reveals the true nature of your guitar and your playing like a world-class tube amp driving a perfectly matched speaker cabinet in a great sounding room. Now there is a pedal that truly delivers that sound and feel, with simple controls for effortlessly dialling in the perfect amp tone when going direct. Discover inspiring tube amp responsiveness, unprecedented impulse response speaker cabinet realism, and controllable natural sounding room ambience.

Iridium gives you three iconic amplifiers, with a total of nine impulse response speaker cabinets that complement the tonality of the amp. Skip the hassle of lugging around or miking amps. Place Iridium on your pedalboard and send gorgeous stereo amplifier tones, stunningly realistic cabs, and lush room ambience direct to a recording interface or PA system. With Iridium, it's a snap to dial in a direct tone that will truly inspire and sound great whether you are monitoring through in-ears, floor wedges, reference monitors, or studio headphones.

Three Iconic Amplifiers

The Matrix Modeling process captures all the subtleties and unique tonal qualities of each amplifier. Strymon have taken three iconic tube amps with distinct characters and mathematically modelled every aspect of their circuitry with absolute precision to deliver the response, feel, and inspiring experience of playing through the original amps at their best. Taking the process a step further, Strymon have hot-rodded each amp to provide an extended range of tonal options beyond what was available from the original designs.

Nine Stereo IR Cabinets

Iridium's speaker cabinets offer a level of realism and responsiveness unprecedented in outboard effects. Iridium delivers full stereo 24bit 96kHz resolution for the entire 500 milliseconds of its speaker cabinet impulse responses. Until now, IRs of this resolution have only been available for use within studio recording software. Iridium's breakthrough technology means you can use the very best impulse responses available, bringing maximum realism to your pedalboard.

Adjustable Room Ambience

Iridium's hybrid room reverb combines a 256 millisecond stereo impulse response with Strymon's reverb tank algorithm for extended decay. This combination places your amp and cab in a natural sounding room (small, medium, or large), creating a space for your amp to open up and breathe.

Round Amp - Based on* a Fender Deluxe Reverb

The Deluxe is one of the most recorded amps in history for good reason. This amp is clean, bright, and mid-scooped, with plenty of headroom. At higher Drive settings it delivers an overdriven sound unique to its architecture. Strymon chose the Deluxe's Normal channel for its round tone that plays well with pedals. While preserving access to all the tones originally available with this channel, our model gives you something extra: a midrange control. With the midrange at noon, you get the original fixed-resistor value and standard tonal characteristics of the Deluxe. Turn down the midrange for a more scooped sound, or turn it up for tweed-era tones.

Chime Amp - Based on* the Brilliant channel of a Vox AC30

The amp that defined the guitar sound of the British Invasion. Our model of the AC30 Brilliant channel (Top Boost) is jangly, bright, and chimey, providing air for subtle passages with a light touch, and bite when you want to dig in. For this amp, the Middle knob acts a Tone Cut knob, providing high-end roll-off just before the power tubes, per the original AC30 design. In addition to the full available gain of the original amp, toward the top end of the Drive knob's range of travel, Strymon have added a frequency-shaped front end boost to tighten the low end while driving the amp further into saturation.

Punch Amp - Based on* a Marshall Plexi (Super Lead model number 1959)

This powerful amp is meatier, with higher gain than the other two amps, and has a powerful midrange response. This amp features a buttery, smooth overdrive. At higher Drive settings it will deliver all the high gain distortion and growl this amp is known for, and then some. Setting the Drive control at around 2 o'clock gets you the maximum gain the original Plexi design allowed. Beyond that, our model has some additional gain on tap, giving you access to custom hot-rodded Plexi high gain tones.

*All product names are trademarks of their respective owners, which are in no way associated or affiliated with Strymon. These product names, descriptions and images are provided for the sole purpose of identifying the specific products that were studied during Strymon's sound design process. Fender and Deluxe Reverb are registered trademarks of Fender Musical Instruments Corporation. Vox is a registered trademark of Vox R&D Limited. Marshall is a registered trademark of Marshall Amplification Plc.

A Carefully Curated Cab Collection.

Iridium comes pre-loaded with a carefully curated collection of premium cabinet impulse responses from OwnHammer, Celestion, cabIR and ValhallaIR.

Round A - Deluxe Reverb 1×12" by OwnHammer
Impulse captures a vintage Fender Deluxe Reverb open back 1×12" combo loaded with a 1978 Fender CTS ceramic 12" speaker.

Round B - Blues Junior 1×12" by CabIR
Impulse captures a 1×12" Blues Junior cabinet, loaded with a Jensen C12N speaker.

Round C - Vibrolux 2×10" by cabIR
Impulse captures a Fender Vibrolux from 1965 with 2×10" Jensen C10NS speakers from 1965.

Chime A - AC30 2×12" Alnico by OwnHammer
Impulse captures a Vox AC30/6 open back fawn 2×12" combo with 2001 Celestion T0530 Blue AlNiCo speakers.

Chime B - 1×12" Alnico by Celestion
Impulse captures Celestion Blue Alnico speaker in a closed back 1×12" cab.

Chime C - Mesa 4×12" by ValhallaIR
Impulse captures a 4×12" Mesa Boogie "Halfback", which is loaded (open back) with two Black Shadow MC-90 speakers from CelestionTM and two Black Shadow EVM12-L from ElectroVoice.

Punch A - GNR 4×12" by OwnHammer
Impulse captures a 1971 Marshall 1960B "basketweave" 4×12" cabinet.

Punch B - 2×12" Vintage 30 by Celestion
Impulse captures a Celestion Vintage 30 in an open back 2×12" cab.

Punch C - Marshall 8×12" Alnico by cabIR
Impulse captures a re-issue of the 1965 Marshall 8×12" full stack cabinet, loaded with Celestion T652 AlNiCo speakers.

Load Your Own Impulses.

It's easy to replace the pre-installed IRs with custom IRs from your own collection by using Strymon Impulse Manager software.

Stereo Output
Operates at instrument and Line Level input sources
Discrete transistor headphone amplifier
Expression pedal input provides seamless morphing between knob positions (Expression mode), or smooth pre/post volume control with logarithmic taper (Volume mode)
USB jack for connecting to Strymon Impulse Manager software
to add and edit your own speaker cabinet IRs
Compatible with Strymon MultiSwitch Plus for remote selection of up to 4 presets
Full featured MIDI control accessible via EXP Jack for remote parameter control and access to 300 preset locations (requires Strymon MIDI EXP cable or MIDI to TRS interface)

Audio Quality

Ultra-low noise, high performance 24-bit 96kHz A/D and D/A
converters provide uncompromising audio quality
Super high performance SHARC and ARM co-processors
32-bit floating point processing

More

Transparent Analogue Buffered Bypass
Strong and lightweight anodized black aluminum chassis
9V DC power supply included
Power requirements: maximum 9 volts DC center-negative, with a minimum of 500mA of current
4.5" deep (11.43 cm) x 4" wide (10.16 cm) x 2.4" tall (6.1 cm)
Designed and built in the USA

Notes: The pedal that revolutionized compact reverb pedals has evolved. Plug into blueSky for the most lush, majestic reverbs imaginable. Transform a single note or chord into vast sonic atmospheres with impossibly gorgeous, incredibly long reverb tails. Hear the inspiring splash of an upgraded spring algorithm dripping with vintage vibe. Lose track of time and space as you interact with deep and expansive new Shimmer sounds never heard anywhere before. Whether you're a classic spring reverb fan, a studio rack aficionado, or an ambient soundscape creator searching for new sonic textures, the sounds you are looking for are here.

BlueSky provides three different reverb types: plate, room, and spring, and each type can produce everything from stunning realism to expanded sounds far beyond what would be physically possible, while always remaining musical and beautiful. Intuitive and powerful tone shaping controls allow you to easily dial in an endless variety of inspiring sounds. And with ultra low noise, high performance 24-bit 96kHz A/D and D/A converters and a 20Hz to 20kHz frequency response, blueSky is equally at home on top of a studio console or in front of a tube amp.

Our second generation blueSky offers true studio quality reverbs in a compact pedal, and adds significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio. A dedicated Shimmer knob and new Shimmer behaviors yield an inspiring variety of immersive new sounds. A new Mod switch allows you to select the modulation depth for each reverb type. A beautiful new Spring algorithm creates extraordinary vintage spring reverb sounds, as well as expanded spring textures and hauntingly unique interactions with an octave-down Shimmer. A premium analog JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. In addition, you can now control blueSky with an expression pedal or MultiSwitch Plus.

All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard. Full MIDI implementation allows you to control just about every knob, switch, and setting remotely via the EXP/MIDI jack or USB. And you can save and recall all the new sounds you create via 300 onboard MIDI preset locations.

Notes: Strymon's Big Sky reverb moves to the next level with the MX evolution, featuring more versatile editing options, two simultaneous reverb machines, full MIDI control and brand new algorithms.

Supplier's Notes:
In BigSky MX, raw computational power meets innovative design and consummate sonic craftsmanship to give you positively sublime reverbs with stunning new levels of richness and complexity.

BigSky MX features seven brand-new algorithms in addition to significant enhancements to the other classics. Dual reverbs can be routed in Series, Parallel or Split modes, and individually panned per engine. Access full IR editing functionality, as well as custom long captures of classic studio gear. Unlock massive width and presence with full stereo I/O featuring Strymon's discrete Class A JFET input preamps. Create lush pads to play over, or infinitely sustain any notes played for unique atmospheric effects. Change presets and control parameters with MIDI via USB-C, TRS, or DIN connections. Adjust controls on the fly via an expression pedal. All this and more in an elegant, easy-to-use pedal.

BigSky MX features a staggering amount of computing power - it uses a high performance tri-core 800 MHz ARM processor - all dedicated to producing truly breathtaking reverbs. Strymon's new reverb algorithms were meticulously created by hand, and then a state-of-the-art gradient descent optimization algorithm was used to dial out any undesirable ringing or artifacts. This type of neural fine-tuning is based upon the same techniques that have enabled the recent AI revolution, and the result is springs that drip and splash, physical spaces you can really feel yourself in, and the sweetest possible musical response to every note you play.

BigSky MX allows you to use two reverbs at once, for powerful sound sculpting and expansive reverb sounds that evolve organically over time. You can switch between reverb engines with a single button press while editing, and easily see the Series, Parallel or Split audio routing state clearly displayed onscreen.

For a more interactive experience, you can dedicate a footswitch to control each reverb's on/off state if you desire.

BigSky MX features seven brand new reverb algorithms built from the ground up, plus new features and enhancements for the classic BigSky algorithms. Impulse and Chamber were created specifically for BigSky MX, and Spring, Plate, Hall, Room and Shimmer boast entirely new handcrafted algorithms while still giving you access to the original BigSky voices for each one.

BigSky MX gives you powerful editing tools to intuitively manipulate impulse responses in real time. Set decay envelopes, gate the reverb tail, reverse the entire IR, resample on the fly to shorten or stretch the impulse, and create infinitely sustaining granular pads at the press of the Infinite footswitch. Any compatible audio file can be loaded, allowing you to use convolution reverbs for everything from hyper-realistic spaces to wacky experimentation.

BigSky MX comes preloaded with 22 unique stereo impulse responses, including a collection of our very own meticulous captures of legendary analog studio gear that are addictively inspiring.

Notes: The legendary Strymon deliver quality goods once again with this analogue-inspired stereo delay. Single head sound gives a classic 60s vibe with modulation and subtle imperfections.

Supplier's Notes:
Experience the dreamy sound of a classic '60s tape echo complete with the harmonic richness of the accompanying tube preamp. Enjoy organic and ethereal modulation produced by countless subtle mechanical imperfections, and easily dial in anything from warm slapback to expansive echo feedback beds with a strikingly gorgeous stereo image. With beautifully-tuned low frequency response, lush tape saturation and sublime echo decay, EC-1 provides all the best of what a tube driven tape echo can deliver.

EC-1 offers impressive power and flexibility in a small and elegant form factor: Selectable tube-modeled preamp voices. Artifact-free tap tempo. Discrete stereo operation for independent processing of the left and right stereo inputs. Straightforward controls and expression pedal capability. High-impedance, ultra-low noise discrete Class A JFET stereo input preamp for exceptional touch sensitivity, dynamics and feel. MIDI control of tempo, patch save/recall and more. Premium components, rugged construction and a USB jack for performing firmware updates or controlling the pedal from a computer.

Featuring meticulous tube modeling techniques, EC-1 offers a choice of two authentically reproduced preamp circuits that lend a subtle vintage character to your input signal. One is based on the classic EP-2 tube preamp and features an enhanced high-end shelf perfect for brightening up darker humbuckers. The other preamp option (the default setting) produces a warm, balanced response based on the modded preamp circuit in the EP-2 unit that we studied during the development of EC-1. This option adds a pleasing sense of heft, especially to single-coils. Both preamp choices offer an optional boost of up to +6dB, or the preamp can be bypassed for an unprocessed dry signal if desired.

Strymon's unique dTape technology was first developed for El Capistan, and they have expanded on it to reproduce all the inspiring nuances weencountered while studying a recently-acquired tube Echoplex that was in uncommonly superb condition. Our dTape system allows precise replication of every aspect of every tape echo we've studied, and in EC1 this includes the effect of the moving head, the tape condition, the bias setting, the mechanical effects of motors, capstan slippage and all the irregularities that add up to create the unmistakable, inspiring sound of vintage tape echo repeats.

Whether you want the cleanest repeats, subtle fattening or even downright dirty echos, you can instantly dial in the desired amount of tape saturation with the flip of a switch. Providing pleasing tonal shifts from thinner to fatter, EC-1's three-way Record Level toggle switch selects the gain of the signal fed into the virtual record head. Choose the low position for unity gain with optimized bias for the cleanest repeats, medium for a 6dB input signal boost with increased bias for slightly saturated repeats, or high for a 12dB input signal boost with further increased bias for heavily saturated repeats. This control also gives you a fast and easy way to match EC-1's response to your input signal level to obtain the desired sound from any pickup type or pedalboard configuration.

For EC-1, fluctuations from motors and mechanical components were thoroughly studied to accurately capture their imperfections. At the lower end of the Mechanics control's range only slower motor-related wow and flutter are present, but at around one o'clock these fluctuations are reduced in favor of faster disturbances from crinkle, splices, and capstan slippage which accurately replicate the sound of our golden EP-2 unit.This setting can create uniquely reverberant and three-dimensionalechos that spread across the stereo spectrum. The slower fluctuations are mixed back in more prominently as you approach the maximum Mechanics setting, and the unique combination of multiple imperfections create truly gorgeous, organic stereo modulation effects unlike anything you've ever heard.

The frequency characteristics of tape echo repeats are determined in part by the bandwidth of the actual tape stock, so older tapes will have a lower bandwidth with a warmer top end. EC-1 allows you to faithfully reproduce these characteristics by turning up the Tape Age knob for warmer repeats, or turning it toward minimum for the full-bandwidth sound of fresh tape.

EC-1 is designed to allow high levels of repeats that are truly lush but that don't spiral into uncontrollable feedback. That wide sweet spot on the edge of runaway feedback can create intriguing sound beds under your lead or rhythm playing. Of course if you want to crank the Repeats control to maximum and play with the unique pitch effects that only a sliding record head tape echo can produce, those effects are all precisely replicated in sound and response.

Notes: Mobius gives you twelve legendary, versatile, and inspirational modulation machines, all in an easy-to-use package. Go from lush, mouthwatering, vintage chorus sounds all the way to syrupy psychedelic phasers. Get classic, pulsating tremolos all the way to warbling crushed bits. Mobius opens up the history books of music and provides new sounds and inspiration for all of your musical ideas.

Utilizing an insanely powerful SHARC DSP, every drop of power is harnessed. Top it all off with 200 presets, full MIDI implementation and a unique Pre/Post Mode and you're on your way to modulation ecstasy.

Notes: DIG unearths the true soul of digital delay and doubles it; two simultaneous, integrated delays with captivating rack delay voicings from the 1980s and today, for incredible expressive potential. Rack-mount digital delays of the '80s ushered in a new era of audio effects. The innovative electronic designs generated the cleanest delays that had yet been heard, but also created their own special and intriguing sonic characteristics. Thirty-plus years later, these sounds remain as distinctive and inspiring as ever.

Strymon's thorough investigation of digital delay technology reveals the unique personalities that these delays possess. Delve into DIG's three digital delay voicings: the early '80s adaptive delta modulation mode, the mid-'80s 12 bit pulse code modulation mode, and the modern high-resolution 24/96 mode. The second generation DIG keeps the same distinctive rack-mount digital delay tones from Strymon's original and adds significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio.

Full MIDI implementation means you can control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via DIG's EXP/MIDI jack or USB-C connection. Delay time can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset. 300 MIDI preset locations are available for loading and saving your favorite settings.

A premium analog JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard.

The powerful tone knob control sets the feedback filter response for tailoring the sound of your echoes. Fast and intuitive to use, it is actually two filters on one control: Turn left for high cut and right for low cut, or set at 12 o'clock for a flat response.

Notes: Plug in, play a note or chord, and you feel it: All the warm, saturated, distinctive qualities and subtle nuances of vintage tape echo combine to instantly create an unmistakable atmosphere. Everything from classic slapback echoes to psychedelic space explorations have stunning richness and depth, responding to each note and knob turn in a musically inspiring way.

El Capistan provides three different tape machine types in one pedal, each with three unique modes and extensive control over tape quality, machine health and tone shaping. Styrmon's meticulously handcrafted dTape technology and powerful ARM DSP give you a range of tape experiences that would be unattainable with a single traditional tape machine. Plus you get sound on sound looping, all without the headaches of tape machine maintenance and repair.

The second generation El Capistan keeps the same rich magnetic tape echo tones from our original and adds significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio. Full MIDI implementation means you can control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via El Capistan's EXP/MIDI jack or USB-C connection. Delay time can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset. 300 MIDI preset locations are available for loading and saving your favorite settings.

A premium analogue JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard.

Some classic tape echo machines included small integrated spring reverb tanks tuned for limited bandwidth. For El Capistan, we captured this vintage vibe while creating a spring reverb algorithm with a gorgeous, gentle character that stands on its own, in addition to enhancing delayed signals.

Notes: Your Dream Tone Starts Here.

Start your signal chain with the best possible version of your guitar tone. Treat your guitar signal to true studio quality analogue compression with two distinct voices for smooth transparency or vintage squeeze. Hit the Boost switch to add clean boost or soft-clipped dirty boost, with the EQ curve of your choice. Mix in some dry signal for natural attack even with extreme compression settings. Feel the perfectly tailored dynamic response, feeding your amp and effects just what they need to sound their best.

Your Everything Upgrade.

From pickups, tubes, capacitors, to speaker cabinets-the aspects of a rig that can be upgraded or changed are nearly endless. Plug in Compadre and you may find you already have everything you need for the tone you've been seeking.

Bring out your amp's character in ways you never thought possible. Compadre's Class A JFET input circuit, studio quality analogue compression, and musically voiced analogue boost circuits all work together to make your amp sound like it was just modified by a world-class boutique amp designer.

Super Flexible, Super Easy.

Compadre gives you everything you need to shape your front end tone, and nothing to slow you down. Auto makeup gain and auto threshold mean that all you have to do is turn up the Compression knob to dial in the desired amount. Compadre's wide variety of tone shaping features are all designed to easily sound great across a wide variety of settings.

Two Distinct Analogue Compression Circuits.

Choose between two compression circuits, each with its own unique character. Studio mode gives you the smooth, beautifully transparent compression typically found in the best vintage studio rack units. For a harder compression effect typical of classic guitar pedals, Compadre's Squeeze mode is designed to deliver heavy compression with maximum sustain.

Boost the Sweet Spot, Clean or Dirty.

Compadre gives you two distinct analogue boost circuits: a clean boost, and a dirty boost that introduces soft clipping, characteristic of an overdrive pedal. The selectable boost EQ ensures the perfect compliment to any guitar and amp combination. Add sparkle and shine with a treble boost, fatten your tone with the midrange boost, or level up the full frequency range with flat mode.

Extended Control.

Connect an expression pedal to add premium VCA-based volume control. Add an optional MiniSwitch or MultiSwitch Plus to store and recall your favourite settings. Integrate Compadre into a MIDI pedalboard using the MIDI EXP Cable and access up to 300 preset locations.

Vintage Inspiration, Modern Execution.

The Compadre design project started with a study of some of the finest analogue compressors ever created, inspiring and guiding the circuit design process. Utilizing a VCA in the compression circuits allowed Strymon to carefully tune the exact response and dynamics that were desired for each voicing.

For Studio mode, the goal was to achieve the musical and transparent sound found within Strymon's favourite studio rack units and the best vintage studio console bus compression. Careful tuning of the detection circuit provided Strymon with exacting control over decay, especially important for Squeeze mode. With ample sustain on tap, Strymon paid special attention to creating a completely smooth decay, with no unwanted pumping artifacts.

Notes: Way Back Machine

Step on Zelzah, play one chord, and you're instantly taken back to a world of classic phaser tones as they were always meant to sound, perfectly voiced, with tons of vibe. Vintage 4-stage and 6-stage phasing with controls that allow seamless transitions to vibrato, gorgeous flanging and chorus, and new sounds never heard before-all instantly musical with great tone all the way across every dial.

Two Effects At Once.

Zelzah is actually two different phasers, side by side in one pedal. Zelzah's 4-stage side gives you a wide array of classic tones ranging from phasing to vibrato and more, while the 6-stage side provides phasing, flanging, chorus, and all points in between. Dial in a chorus on one side and barber pole phaser on other, or a phaser on one side and tremolo on the other. Use the two sides independently or together in a variety of configurations. Zelzah may become the only modulation pedal you keep on your board.

Choose Your 4-Stage Phaser Sweep

Classic Sweep

The first Sweep mode is labelled "Classic" because this is the classic four stage phaser sweep we all know. In this Sweep mode, a single LFO with a warped triangle shape creates that familiar vintage sound.

Barber Sweep

Similar to the visual effect of a barber pole, the Barber sweep is a continuously rising or falling effect that is traditionally done with frequency shifters. In Zelzah, Strymon have used an arrangement of synchronized four stage phasers to produce the effect while maintaining the four stage sound.

Envelope Phaser

Set the Sweep switch to Env and you've got a whole new pedal under your feet. Now the phaser responds to your picking like an envelope filter/auto-wah would, with the phaser sweep being dynamically controlled by your input signal, creating harmonically complex and very funky sounds.

Six Stage Voice: Groundbreaking New Phaser Algorithm

The Voice knob on the six stage side simultaneously controls over 30 different parameters, all working in harmony for an inspiring musical experience.

Not only do you get thick, juicy, phasing with pure vintage vibe, but as you turn the Voice knob clockwise, the groundbreaking new modified all-pass structure expands the time response of the cascading all-pass filters seamlessly and continuously, adding spaciousness and airiness to the sound.

Explore a range of fresh musical tones that are not a mix of phasing and flanging, but actually something entirely new. Turn the Voice knob to the right for luxurious true flanger effects, and continue to the far end of the range for lush vintage chorus sounds. There are inspiring musical sounds at every point along the dial, and so many ways to make a sound that is truly yours.

Notes: The magical combination of tremolo and reverb is the earliest example of a perfect guitar effects marriage. First pioneered within historic amplifiers of the 1960s, this harmonious coexistence has made its way onto countless records and performances i from early surf, swampy bayou blues, spaghetti westerns and film noir soundtracks, to modern day indie rock. As music moves forward, guitarists continue rediscovering the inspiration provided by this perfect pair.

Flint is a studio-class effects pedal that delivers this classic combination. Strymon have carefully studied their favorite classic tremolo and reverb circuits, examined the sonic complexities and faithfully accounted for every detail in our hand-crafted algorithms. Flint is essentially two pedals in one, with tremolo on one half and reverb on the other.

On the tremolo side of the pedal you can choose between the sonically complex '61 Harmonic Tremolo, the swampy and sultry '63 Power Tube Tremolo, and the sharp and balanced '65 Photocell Tremolo. On the reverb side you can select the classic '60s Spring Tank Reverb, the inventive '70s Electronic Plate Reverb, or the nostalgic '80s Hall Rack Reverb. With nine parameters to tweak, you get extensive control over the tremolo and reverb characteristics. Go from splashy, pulsing twang, to throbbing, swampy blues, all the way to ambient, trembling, and serene reverberated pads. Couple that with true bypass, and a premium quality analog front end and output section, and you have the history of tremolo and reverb in a pedalboard friendly format
.
The second generation Flint gives you the same gorgeous tremolo and reverb sounds from the original and adds significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio. Full MIDI implementation means you can control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via Flint's EXP/MIDI jack or USB-C connection.Tremolo speed can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset. 300 MIDI preset locations are available for loading and saving your favorite settings.

A premium analog JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard.

Love slow tremolo? The Speed knob range has been expanded to slow the tremolo down to nearly 1Hz at its minimum setting. On the reverb side, pre-delay time is now adjustable.

Notes: NightSky is a reverberant synthesis workstation and a powerful, hands on experimental sound design platform. Giving you real time continuous control of reverb pitch/processing rate/core size, harmonics, and even a synth-like resonant filter with multiple modulation waveshapes, plus a step sequencer with variable glide.

Deep and powerful sound manipulation with instant response knob- tweaking and no menu diving set a new standard in experimental reverb sound design. NightSky achieves some of it's most mind bending sounds by using a Variable Process Rate for it's reverb core, allowing you to simultaneously change the size of the reverb as well as the pitch. This pitch change can be completely smooth, or quantized to a variety of musical scales, it can also be sequenced.

Use Shimmer to shift the harmonic structure by selectable musical intervals. Add Glimmer to dynamically enhance the harmonic spectrum. Turn up Drive to generate saturated overdriven harmonics. Then sculpt the resulting signal with NightSky's synth-like variable-resonance low pass filter.

Features

Three selectable reverb types offer a wide variety of ambient textures

MOD section with various waveforms to modulate the reverb or tone filters

TONE section to sculpt the high and low EQ of the reverb

VOICE section to enhance the aural spectrum of the reverb

Adjustable SHIMMER for adding pitch shifting of up to +/- 1 octave to the reverb

GLIMMER dynamically enhances high or low frequency harmonics for synth-like textures

Pre or Post DRIVE to add saturated overdriven harmonics to the reverb

Adjustable reverb core size to increase or decrease the space for reflections

Independent REVERB and DRY level controls

Step sequencer for programming rhythmic pitch variations of the reverb

Access to 16 presets from the front panel and 300 presets via MIDI

High impedance ultra low-noise discrete Class A JFET preamp stereo inputs

Low impedance stereo outputs

Input Level switch allows for both instrument and line level signals

On, Favorite, and Infinite footswitches

Expression pedal input allows the connection of an expression pedal, MultiSwitch Plus, or 1/4" to MIDI cable

Full featured MIDI in/out supporting MIDI CCs, program changes, MIDI clock sync and more

USB jack for controlling via MIDI from a computer or for performing firmware updates

Analog dry path for a zero latency dry signal that is never converted to digital

Premium JFET analog front end

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality

Super high performance SHARC DSP

32-bit floating point processing

20Hz to 20kHz frequency response

Audio Input Impedance: 1M Ohm

Audio Output Impedance: 100 Ohm

True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass

Strong and lightweight anodized dark blue aluminum chassis

9V DC power supply included

Power requirements: maximum 9 volts DC center-negative, with a minimum of 300mA of current

Dimensions:

4.5" deep x 7" wide x 1.75" tall

114.3 mm deep x 177.3 mm wide x 44.5 mm tall

Designed and built in the USA

Notes: Sunset

Classic overdrive sound, x2.

Sunset gives you the best of the best classic overdrive circuits, custom voiced for instantly gratifying control over a huge range of sought-after tones. Strymon studied six circuit types found in many truly timeless and iconic overdrive pedals, and put their takes on all six of them into a single two-channel unit.

Overview

Two pedals at once.

Sunset is really two customisable overdrive pedals, independently selectable and flexibly routable, designed and voiced for complementary tones when stacked. Six distinct circuits each feel and react differently in your hands, two at once, all in one convenient package. Push your amp any way you want, from transparent "more amp" to heavy saturated fuzz, and all the best places in between.

Holy Grail tone, minus the quest.

We are all familiar with the endless search for the ultimate overdrive pedal and the perfect tone. Strymon did the critical listening and custom voicing to design each side of Sunset with just one tone knob, so you can quickly dial in the sound you want. The knob ranges for each circuit type are custom calibrated to provide maximal usable control. Strymon applied the same design philosophy and care to the stacking options, ensuring each combination interacts optimally and sounds great, so a huge range of classic overdrive tones are instantly achievable.

Optimized stacking.

Since the time when overdrives were created to simply push an amp in order to achieve an overdriven sound even at sane volume levels, players have evolved to want more layered, multistage tonalities. Stacking gives you more flexibility and tone range on the floor. You can find an overdrive that sounds good on its own, then run it through a second drive to add new dimensions to your tone. Sunset allows you to use any of its six overdrive circuits on their own, or route the Channel A drive circuit through Channel B, or Channel B through Channel A, or use two circuits in parallel. When stacking overdrive pedals, some combinations work especially well together. Sunset eliminates the guesswork. Routing options have been chosen deliberately to present the best-sounding combinations of drive circuits.

Digital or analogue? Strymon chose both.

Sunset's input features an ultra low noise, discrete, class-A JFET circuit providing up to 20dB of pure analogue gain. With Strymon's hybrid approach you get the best of both analogue and digital worlds: The JFET stage provides exceptional touch sensitivity and dynamic interaction with your guitar, while the incredibly powerful SHARC DSP facilitates the great level of detailed complexity and responsiveness you'll want to hear.

Channel A overdrive circuits

The Ge overdrive combines the softer response of germanium diodes with a parallel path that blends in the dry signal as the Drive is lowered. At higher gains the lower-midrange frequencies are emphasized to create a tight, thick response. This overdrive really fattens up single coil pickups, and responds with a bold push when paired with humbuckers.

The Texas overdrive employs a single stage soft-clipper configuration that is filtered before and after the gain stage to create a smooth and dynamic overdrive. The original signal dynamics are retained as the gain is increased - perfect for playing the blues or just fattening up your sound with a signature midrange bump.

Channel B overdrive circuits

The 2 stage overdrive combines a soft-clipping stage followed by a hard-clipping stage, creating a complex overdrive with a wide range of gain. Its EQ structure preserves the low end while adding some muscle to push your amp. This overdrive can easily take you from lightly clipped to beefy saturation.

The Hard overdrive uses a single-stage hard- clipping circuit that has a ton of available gain, approaching fuzz territory with the Drive knob maxed. At lower gains, mildly clipped transparent tones are achieved with this versatile drive. The wide-ranging Tone knob lets you shape the top end from smooth to buzzy.

Channel A boost circuit

The Treble type is a treble booster that removes the low frequencies as the Tone knob is turned up - great for tightening up an overdriven amp, or driving another gain pedal that's a bit looser on the low end. Turning the Tone knob down brings in the low end, making for a versatile all- around boost.

Channel B boost circuit

The JFET type is a clean boost that subtly

beefs up your signal with the dynamics and responsiveness created from the JFET front end. As you turn up the drive, the signal gets rounded and warmer. The is a great option when your amp just "needs a little extra."

Ins, Outs, Switches

High impedance mono input
Mono output
Favorite Input to connect an external MiniSwitch to recall a Favorite preset
Expression pedal input allows the connection an expression pedal for simultaneous morphing control over multiple parameters (Expression mode), or logarithmic taper for smooth volume control (Volume mode)
MIDI accessible via Expression jack for remote parameter control and access to 300 preset locations

Audio Quality

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
Premium analog front end and output section
Super high performance SHARC DSP in a compact form factor
32-bit floating point processing

More

True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass
Strong and lightweight anodized red aluminum chassis
9V DC power supply included
Power requirements: maximum 9 volts DC center-negative, with a minimum of 250mA of current
4.5" deep (11.43 cm) x 4" wide (10.16 cm) x 2.4" tall (6.1 cm)
Designed and built in the USA

Notes: TimeLine provides you with twelve different delay machines, each with extensive control over sonic character and feel. Tweak to your hearts content and save up to 200 presets of your favorite sounds. Go from crisp and clear, studio-quality digital delays all the way to the saturated and fluctuating sounds of tape delay machines.

Get warm and fuzzy analogue style repeats all the way to shimmery, sparkling, and crystalline ice delays. Top it all off with full MIDI implementation and a routable, 30-second stereo looper and you're on your way to delay bliss.

12 Different Delay Machines. TimeLine provides twelve studio-class, fully tweakable, and completely adjustable delay machines

Features

Hand crafted rotary algorithms faithfully deliver the signature, three-dimensional rotating speaker experience

Extensive control over rotating speaker mechanics and configuration

Four rotary adjustment and tone shaping knobs:

Fast Rotor Speed, Preamp Drive, Mic Distance, Horn Level.

Four "hidden" knobs for extensive tone tweaking:

Slow Rotor Speed, Cab Direction, Acceleration Time, +/- 6dB Boost/Cut.

Instantly alternate between a fast and slow rotor speed with the Fast/Slow footswitch

Selectable Cab Filter allows for an optimal experience in front of guitar amplifiers and full range systems

Stereo output, high impedance mono input

Expression pedal input with selectable control over any knob parameter

Connect our optional Favorite switch to save a favorite preset or use as an external speed switch

Fast/Slow and Bypass footswitches

Press and hold Fast/Slow footswitch for Rotary Brake

Selectable Bi-Amp mode splits bass rotor and treble horn signals to separate outputs

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters

110dB typical signal to noise

Premium analogue front end and output section

Super high performance DSP in a compact form factor

32-bit floating point processing

True Bypass (electromechanical relay switching)

Powered with a standard 9V center negative DC supply. 250mA minimum

Strong and lightweight mahogany anodized aluminum chassis

Crafted with love in the USA

Notes: With the Orbit dBucket Flanger, Strymon have painstakingly recreated every aspect of some of the greatest vintage analog flangers. To go beyond that, they have also added features such as through zero flanging to take you where few have ever ventured before. Their high performance DSP is dedicated entirely to doing one thing and one thing only, delivering the ultimate flanger. Add true bypass, extensive expression pedal control, a favorite preset, super high quality analog front end and output sections, low power consumption and you'll never want to let go of your Orbit.

Features

Hand crafted dBucket algorithm for highly accurate reproduction of every stage of an analog bucket brigade chip. Built on the dBucket building blocks developed for our Brigadier delay.

Super low noise, high performance A/D and D/A converters w/ 110dB signal to noise

High performance DSP stuffed into a compact form factor

3 LFO types (log, lin, through zero)

3 Feedback types (positive, negative, pos/neg)

TRUE BYPASS (electromechanical relay switching)

Stereo output

Expression pedal input with selectable control over any knob parameter

Favorite footswitch for saving your favorite setting

Powered with a standard 9V center negative DC supply. Compatible with all major DC supply brands. Current consumption 200mA - (250mA recommended supply)

Premium analog front end and output section

No-nonsense user interface

Strong and lightweight purple anodized aluminum chassis

Crafted with love in the USA

Notes: Inspired by modular synthesis, the C4 Synth is a unique pedal which allows you to play synth tones via bass or guitar. Edit using the Neuro Desktop Editor and then get freaky with a wide range of synth sounds.

Supplier's notes:
The C4 Synth unites all the sound creation tools of a classic Eurorack modular synthesizer and packages them in a compact and easy-to-use effects pedal for guitar or bass. Out of the box the C4 offers six dynamic synth tones that range from vintage analogue to the thoroughly modern. It is essentially a modular synth in a small pedal with unprecedented tracking abilities, lightning-fast response, and countless sound options. With the addition of the Neuro Desktop Editor (a free download for Mac and Windows machines) and Mobile App. (for iPhone and Android) it's easy to browse from the ever-growing library of highly-inspired presets created by the Source Audio crew and the expanding community of C4 enthusiasts.

Neuro Editor Features

Connect the C4 Synth to the Neuro Desktop Editor (a free download for Mac or Windows computers) or the Neuro Mobile App (free for iPhone and Android) and explore the power of effect downloading, customization, and sharing that comes with every One Series pedal.

Growing Library of Published Presets: For quick and easy access to a world of great tones, try sampling sounds from a vast collection of published presets created by the Source Audio team and the ever-growing C4 Neuro Community.

Unprecedented Sound Sculpting Options: The Neuro Desktop offers maximum sound exploration possibilities. Use Neuro's modular synthesizer inspired editor to create custom C4 Synth presets that can be burned directly to the pedal, saved to a private cloud based library or published and shared the entire Neuro Community.

Four Independent Voices: Mix together any of the C4's four independent Voices. Assign any of the Voices to an oscillator wave shape, monophonic or polyphonic pitch shifter, intelligent harmonizer, sequencers, or dry signal to distortion, tremolo, and filter effects.

Three Types of Oscillators: Mix and match any of the C4's three oscillator wave shapes for pure synthesizer tones. Choose from sine, square, and saw shaped oscillators.

Eleven Envelope Followers: Select from a comprehensive collection of envelope followers with adjustable attack/decay as well as ADSR triggering envelopes.

25 Filter Effects: Choose from a huge collection of filters, controllable with an envelope follower or independently modulating LFOs.

14 Different LFO Wave Shapes: Use LFO (Low Frequency Oscillators) to control the modulation of filter, vibrato, or tremolo effects. Choose from eight different LFO wave shapes, including sine, square, sample and hold, saw tooth, and more.

Two Programmable 16-Step Sequencers: Run two simultaneous sequencer patterns. Choose from several preprogrammed sequencer patterns or create custom patterns.

USB Connection - Use the pedal's mini USB port to connect the C4 to the Neuro Desktop Editor, which can be used to edit presets or download the latest pedal firmware.

USB to Mobile App Connectivity - Connect the Mobile App to your C4 Synth via the USB port on the top of the pedal and enjoy two-way communication between the pedal and your Neuro Mobile App. This means you can see all of your C4 preset settings on the App. in real time. (Lightening to mini Type B USB cable for iPhone) (Type-C to mini Type B USB cable for Android).

MIDI features

The C4 Synth responds to MIDI Program Change (PC) and Continuous Controller (CC) messages via its mini USB port. The USB port handles communication between the C4 and digital audio workstations (DAW) on Mac and Windows machines as well as external MIDI controllers with USB host support (we recommend the DMC.micro from Disaster Area Designs)

Preset Saving - Save up to 128 effect presets.

MIDI Mapping - Use the Neuro Desktop Editor to easily map MIDI Continuous Controller (CC) messages to a comprehensive list of parameters.

Preset Recall - Use MIDI CC numbers 103 & 104 to recall any of the C4's 128 MIDI accessible presets.

MIDI Clock - Sync the C4's LFO rate with external MIDI clock messages.

The Neuro Hub - Connect the C4 to the Neuro Hub and use MIDI CC messages to control parameters or recall presets.

Note: As of Hub fw 1.18 and C4 fw 1.14, the C4 can now be added to scenes, is visible through the Hub, and can be controlled by PC messages, giving you the full access to 128 preset slots.

Specifications

Includes 9v DC power supply (300mA / Negative Tip)
Includes 1/8" to 1/4" cable for Neuro Mobile App connection.
Power Consumption - 165mA
USB port - Connects to Mac or Windows PC for firmware updates and the forthcoming in-depth effects editing software.
Brushed anodized aluminum housing.
Dimensions: L: 4.5 in./11.4cm x W: 2.75 in./7cm x H: 2 in./5.1cm (including knobs)

Notes: The ARTIFAKT Lo-fi Elements is the first pedal of its kind - a comprehensive collection of all the hazy, scratchy, wobbly, and broken tones that epitomize the term 'lo-fi'.

Like a mega-delay or mega-reverb, Artifakt is a "one-stop shop" for all the most sought-after lo-fi effects including old vinyl replications, tape modulation and saturation, bit crushing, sample rate reduction, dark reverb and echo, filtering, compression, glitch, and more.

Source Audio has dedicated much of the past three years to meticulously honing each of these sounds as well as engineering an entirely new hardware design with an easyto-use interface that places the pedal's full capabilities at your fingertips.

Navigating through the seven positions of Artifakt's effect selector knob unleashes a symphony of sonic transformations, each akin to engaging a new pedal with its own unique brand of lo-fi.

The first effect on the dial is Radio, tune into its crackling nostalgic tones where static frequency filtering and noise generation evoke the charm of a vintage radio struggling to dial in a signal.

The Tape engine conjures the sound of vintage tape machines by blending subtle compression, overdrive, tape flutter, and pitch modulation to invoke effects like slapback, chorus, doubling, and tape saturation.

uVerb is a primitive reverb effect with bouncing echoes similar to the reverb on 8-bit gaming systems.

The Crush effect voyages the realm of bit-depth quantizing and sample rate reduction, all finely sculpted with the resonance of a MoogTM-style ladder filter.

Ladder, inspired by the revered R-2R ladder filter, offers both envelope and LFO modulation control for classic and dramatic filter sweep effects.

Vinyl faithfully emulates the crackle and pop of vintage records, from pristine 180-gram vinyl to well-loved gramophone platters.

Glitch adds an unpredictable edge, capturing fragments of your performance and hurling them back at random speeds and pitches.

Pairing the Artifakt Lo-fi Elements with Source Audio's completely reimagined and reengineered Neuro 3.0 software elevates an already great pedal to new heights. Access free, stage-ready presets from Neuro's expanding library of factory and Neuro Community presets.

Explore Neuro's extensive editing capabilities to blend and experiment with the various lo-fi elements mentioned earlier-it's a limitless effects palette for crafting unique lo-fi sounds. Artifakt also boasts stereo inputs and outputs, full MIDI control via the 3.5mm TRS in and thru jacks, dual footswitches, 128 presets, and more.

Notes: Harvezi Hazze is a versatile and unique distortion pedal with a wide tonal palette.

The heart of Harvezi Hazze is a waveshaper designed around a unijunction transistor, a relic from the early days of the semiconductor industry unearthed from the e-waste bins of flea markets in Tbilisi, Georgia.

The unique properties of the unijunction transistor allow one simple component to replace a number of very complex devices: depending on the operating mode, we can get a distortion, a limiter, a waveshaper and a generator - with a smooth transition between them. Experiments have shown that this transistor is an excellent basis for a distortion stompbox.

The name translates from Georgian as "a fault on the transmission line" or "signal jamming", and both the semantic and phonetic natures of it unequivocally imply what to expect - an impediment to the input signal, ranging from pleasant harmonic distortions to complete obliteration. The signal chain of the unit consists of an optical compressor with fixed parameters; a dual-mode distorting amplifier with either softer or harsher clipping; a waveshaper built around a unijunction transistor; and a tone stack section trying to tame all this mess.

Signal Chain:

Input -> Compressor -> Distorting amplifier -> Waveshaper -> Tone stack -> Output

Controls:

Gain - controls the output amplitude of the signal in the distorting amplifier section. Depending on the position of the switch, the distortion introduced by this section is soft (switch in the left position) or more aggressive with an abundance of high harmonics (middle position).

Spoil and Spread - control the operation of the unijunction transistor (waveshaper section). Spoil sets the point on the amplitude axis at which the wave will fold, and Spread sets the amplitude of the folding. The sonic meaning of these knobs can be described as follows: the higher the Spread value, the more severe the distortion will be, and Spoil changes timbre and response threshold. By adjusting Spoil you can achieve various gating and cutoff effects. At low Spread values, distortion sounds are mixed into the clean sound.

Tone - adjusts the brightness of the sound; the higher the value, the more high harmonics are present in the signal.

The switch regulates either the distortion mode in the amplifier section (left and center positions), or it turns on the total feedback mode (right position), when the values of all knobs begin to influence each other and effects occur such as resonance at certain frequencies and self-oscillation.

Level - controls the output volume of the signal.

The footswitch routes the signal through the effect circuitry or from input to output directly (true bypass).

The array of switches on the side of the unit gives a few more tonal options:

TONE STACK - routes the signal through the tone stack section (Tone knob).

BASS BOOST - enhances bass frequencies.

TONE MODE - changes the behaviour of the Tone knob (tilt or lowpass).

NOTCH FREQ - changes the central frequency of the filter.

HIGH CUT - attenuates high frequencies.

COMPRESSOR - routes the signal through the compressor.

The lower position of the switch enables the function.

Examples:

Compression:

Switch in the central position, Spoil, Spread, Gain - min, Tone - 12 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Soft clipping:

Switch in the left position, Spoil, Spread - min, Tone - 12 o'clock, Gain - 2 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - on, HIGH CUT - off, COMPRESSOR - on.

Distortion:

Switch in the middle, Spoil, Spread - min, Tone - 1 o'clock, Gain - max.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - off.

Fuzz:

Switch in the left position, Spoil - 1 o'clock, Spread - max, Tone - 11 o'clock, Gain - 10 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - on, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Black:

Switch in the left position, Spoil - 12 o'clock, Spread - 1 o'clock, Tone - 3 o'clock, Gain - 3 o'clock.

TONE STACK - on. BASS BOOST - off, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - off.

Feedback:

Switch in the right position, Spoil - 11 o'clock, Spread - 4 o'clock, Tone - 2 o'clock, Gain - 9 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Technical specifications:

Input - 1/4-inch/6,35mm mono jack.

Input impedance - 750 kOhm.

Output - 1/4-inch/6,35mm mono jack.

Output impedance - 100 Ohm

True bypass.

Power - DC 9V, 50mA, DC jack 2.1mm, centre negative.

Notes: Proudly billed as the first fully programmable drum machine in a pedal format, the Step is designed to accompany other instruments. Four-track, 16-step sequencer with 300 Beat presets and 500 kits.

Supplier's Notes:
Step Modern Drum Machine

Step is the first fully programmable drum machine in pedal format. It's an instrument, a co-writer, an accompaniment at a live performance, or a bandmate in an empty studio. Designed with the flexibility to instantly start a unique song but with deep customization options to quickly create fresh beats. Step is for everyone - everyone that isn't afraid to experiment, take chances, try something new, and create original music.

4 Customizable Drum Tracks

Step is a 4 track drum machine with a complete interface. Easily control all parameters for each of the 16 steps on the face of the pedal, no computer editor needed.

Mix & Match

How about an electronic snare with a jazzy kick? With Step, with a twist of a knob, you can create your sound pack by combining sounds from different Kits.

Instant Drum Beat Generator

Tap in the tempo, turn the Beat and Kit knobs to find your groove and play! There are 300 rhythms and 500 kits - it gives tons of combinations.

Modern Sound

With over 2000 samples, from the sounds of classic analogue machines to acoustic drums, anyone can find the sound they want. And, if you're going to create your kits, you can easily do it, too.

Per-Step Control
Customize over 15 parameters for each track's drum sound on a per-step basis. Switch up hi-hat velocity, add reverb to a final crash or throw in a 10% chance for a drum roll.

A Thousand Songs

Create and play complete 16-part songs, easily put together by quick-copying patterns, selecting new beats or making your own. Then make a playlist and go live!

Stomp-In FX

Use the FX stomp-switch to punch in customized effects from delays, reverbs, loopers, rearrangers and more. Every pattern in your song can have a different stomp-in effect.

Expansive Connectivity

Step has all the connectivity you need, stereo input and output, MIDI in and out, expression pedal input, and micro SD card storage with USB-C connectivity.

Nerdy on Demand

Need polymetric or polyrhythmic beats? Or maybe some generative drums? Step offers per-track swing, speed and length, step probability, randomized note playback, and more. You don't have to get nerdy with Step, but you can!

Instant Inspiration

From musicians wanting to quickly play along with a drum kit to deep divers looking to create more than traditional drum beats, Step is for everyone. Either create songs instantly by selecting from 500 preset rhythms and 200 drum kits or use the interface to create completely customized beats anywhere. Loop 16 steps and jam or combine patterns into a 16 pattern song.
A Complete Instrument

Step is a fully customizable drum machine, with features designed to make original drum tracks you want to play along with. All Step's parameters can be controlled directly on the pedal with a straightforward, intuitive user interface. Create complex and evolving patterns using probability, a dynamic drummer by switching up the velocity on eat hit, a sloppy drummer with the humanize, chance and micro-move features, or a perfect robotic machine.

Performance Ready

As a live companion Step can't be beat. With the ability to stomp-in effects and change songs or patterns via the dedicated stomp-switches, Step is a one stomp solution for all your performance needs.

Smash the FX stomp-switch and create interesting transitions or emphasize a solo. Freely assign over 50 effects in 8 different categories to the FX stompswitch, from repeaters and rearrangers to delays and reverbs.

For even more live control, assign the expression pedal to parameters including tempo or volume.

In Sync

Step is the perfect bandmate, keeping everything in sync. Use Step's MIDI input and output to stay in time with your delay, start playback at the same time as a looper, and more.

Keep your devices in sync too. Step's sequences are also compatible with Play and Play+. Create and exchange patterns between grooveboxes and the pedal, in both directions.

Tech specs

Ins & Outs

Stereo/Mono In: jack 6.3 mm
L-Out/MONO: jack 6.3 mm
R-Out: jack 6.3 mm
Expression Pedal
MIDI In: mini-jack 3.5 mm
MIDI Out: mini-jack 3.5 mm
USB-C
Power: 9-18 V DC / min. 500 mA (power adapter not included)

Physical Dimensions

Height: 2.24 inches (5.7 cm) - with knobs
Width: 7.09 inches (18.0 cm)
Depth: 4.72 inches (12.0 cm)
Weight: 2.05 pounds (0.930 kg)

Notes: Limited black edition of the excellent stereo Dark Star pedal, offering premium reverb with beautifully creative pitch shifting, filtering and bit crushing options. Superb value for money.

Supplier's Notes:
Dark Star Stereo Flagship Reverb Pedal

The continued pull, the drift unabated, the controlled wash of gravity and the chaotic meander of its combined uncertainties. In fact, the original and highly loved Dark Star is a pedal that historically was OBNE's most popular reverb. People bonded with its warmth and aliasing, its long trails and the way it encouraged you to turn the mix fully up. Now, it's in with the new. Dark Star Stereo expands on the promise of ambient reverb and is a pitch shifting, bit crushing, filtered reverb pedal with just about every feature you could ask for. One massive stereo voice, with a wide suite of controls that likes to go anywhere in your signal chain - all that's left is for you to decide just how dark you must go.

Reviving the magic of the long-trail lo-fi reverb algorithm that made Dark Star a breakout hit years ago, Old Blood Noise Endeavors announces a new Dark Star for a new era, with a drastically expanded feature set and improved signal quality that is sure to draw in old fans and new. New features like Stereo Input and Output, on-board Presets, Trails, Expression control over all parameters and MIDI control, of both Parameters and Presets, all help to give more versatility to this device than ever before. Beyond that, the new Dark Star does away with the three-mode toggle, instead creating a single mode combining all the Pitch-Shifting, Bit-Crushing, delayed goodness of the original. Access your favourite sounds as well as new combinations, with new shapers like Filter, Multiply, Volume and Stereo-Spread.

Notes: Black Fountain Stereo Characterful Delay Building on the inimitable Black Fountain, a pedal that put OBNE on the map and for many a favourite always-on device, Black Fountain Stereo is much more than just turning things from mono into stereo. It truly expands Old Blood Noise Endeavors' highly regarded 'oil-can delay' pedal right into a multi-tool.

With a wider control set that's complete with added sonic options, a lower noise floor, dual delay lines that play together in a multitude of ways, presets, MIDI and expression control over everything, Black Fountain Stereo combines a sonic powerhouse of creative delay tones and into a pedalboard friendly package.

Black Fountain Stereo emulates the sound of a spinning oil-can delay. This is a warm, modulated and a little gritty type of tone that's perfect for chorusing, doubling, slap back and long rhythmic delays alike. You choose the amount and rate of modulation, the tone and grit of the core voice, the two delay times and their feedback. Plus, to top it off the mono/stereo voicing of it all can be set exactly as you like and everything can be saved into presets, for easy recall.

The Rate and Depth controls sets the amount of modulation and speed, Tone shapes the warmth of the repeats, while Grit sets the amount of drive in the repeats. To help maintain the clarity of your tone or for more special effects, you can set the mix of volume of either the Dry and/or Wet levels. Space defines the mono delay mode or stereo width and adds diffusion past the noon position.

Separate controls are available for setting the Left and Right Delay Time as well as being able to choose between six subdivisions for each side when holding the Tap footswitch. That little Tap switch (surprise) helps you set the delay repeats in time with your tempo, while holding it down will give for infinite feedback. Optionally, it can also be used as a preset switcher.

Product Height (cm): 6.9
Product Width (cm): 10.8
Product Depth (cm): 12.6
Product Weight (kg): 0.454

Box Height (cm): 7.06
Box Width (cm): 11.43
Box Depth: 12.7cm
Boxed Weight (kg): 0.596kg

Notes: Black Fountain Stereo Characterful Delay Building on the inimitable Black Fountain, a pedal that put OBNE on the map and for many a favourite always-on device, Black Fountain Stereo is much more than just turning things from mono into stereo. It truly expands Old Blood Noise Endeavors' highly regarded 'oil-can delay' pedal right into a multi-tool.

With a wider control set that's complete with added sonic options, a lower noise floor, dual delay lines that play together in a multitude of ways, presets, MIDI and expression control over everything, Black Fountain Stereo combines a sonic powerhouse of creative delay tones and into a pedalboard friendly package.

Black Fountain Stereo emulates the sound of a spinning oil-can delay. This is a warm, modulated and a little gritty type of tone that's perfect for chorusing, doubling, slap back and long rhythmic delays alike. You choose the amount and rate of modulation, the tone and grit of the core voice, the two delay times and their feedback. Plus, to top it off the mono/stereo voicing of it all can be set exactly as you like and everything can be saved into presets, for easy recall.

The Rate and Depth controls sets the amount of modulation and speed, Tone shapes the warmth of the repeats, while Grit sets the amount of drive in the repeats. To help maintain the clarity of your tone or for more special effects, you can set the mix of volume of either the Dry and/or Wet levels. Space defines the mono delay mode or stereo width and adds diffusion past the noon position.

Separate controls are available for setting the Left and Right Delay Time as well as being able to choose between six subdivisions for each side when holding the Tap footswitch. That little Tap switch (surprise) helps you set the delay repeats in time with your tempo, while holding it down will give for infinite feedback. Optionally, it can also be used as a preset switcher.

Product Height (cm): 6.9
Product Width (cm): 10.8
Product Depth (cm): 12.6
Product Weight (kg): 0.454

Box Height (cm): 7.06
Box Width (cm): 11.43
Box Depth: 12.7cm
Boxed Weight (kg): 0.596kg

Notes: Dark Star Stereo Flagship Reverb Pedal

The continued pull, the drift unabated, the controlled wash of gravity and the chaotic meander of its combined uncertainties. In fact, the original and highly loved Dark Star is a pedal that historically was OBNE's most popular reverb. People bonded with its warmth and aliasing, its long trails and the way it encouraged you to turn the mix fully up. Now, it's in with the new. Dark Star Stereo expands on the promise of ambient reverb and is a pitch shifting, bit crushing, filtered reverb pedal with just about every feature you could ask for. One massive stereo voice, with a wide suite of controls that likes to go anywhere in your signal chain - all that's left is for you to decide just how dark you must go.

Reviving the magic of the long-trail lo-fi reverb algorithm that made Dark Star a breakout hit years ago, Old Blood Noise Endeavors announces a new Dark Star for a new era, with a drastically expanded feature set and improved signal quality that is sure to draw in old fans and new. New features like Stereo Input and Output, on-board Presets, Trails, Expression control over all parameters and MIDI control, of both Parameters and Presets, all help to give more versatility to this device than ever before. Beyond that, the new Dark Star does away with the three-mode toggle, instead creating a single mode combining all the Pitch-Shifting, Bit-Crushing, delayed goodness of the original. Access your favourite sounds as well as new combinations, with new shapers like Filter, Multiply, Volume and Stereo-Spread.

Notes: Expanding on the concept of our Expression Ramper, Old Blood Noise Endeavors present the Expression Ramper X3, an expression movement shaper capable of manipulating three expression jacks simultaneously with copious control. This utility device brings new sounds out of your old favourites, reinvigorating the sonic possibilities of your collection.

A Ramper is a device that creates motion on your expression-enabled devices. You choose point A, point B, and the way it moves between. It's utilitarian, but opens up a number of sounds from your existing pedals.

The Expression Ramper X3's allows you to set the shape of the LFO (the thing that determines the expression motion). There are three standard shapes (Triangle, Square and One Shot), and three random variations of those shapes. To access the alternative shapes, simply hold down the tap button while switching the Shape toggle.

Triangle, for a linear motion between A and B, starting and ending at A and hitting B at halfway on the LFO cycle.

Alternate shape: repeatedly moves to a random spot between A and B in a linear fashion.

Square, to snap between A and B, spending half of the LFO cycle in each position.

Alternate shape: immediately moves to a new random spot between A and B at the start of each cycle.

1 SHOT, to move linearly either from A to B or B to A (depending on the starting point) and then stop.

Alternate shape: each press of the footswitch snaps to a new random spot between A and B.

The device's Footswitches set things in motion. A stomp of the footswitches will initiate motion according to the shape and LFO speed you've set, and another stomp will stop that motion. By holding a footswitch, you can momentarily stop or start the movement, and then revert to where you were before when that footswitch is let go. Most of the time, when not in motion, a Ramper will be in the A position, unless using one of the 1 Shot modes or currently setting the B position. To know where your Ramper is, use your ears as an auditory guide and the two LEDs as a visual guide.

Expression Ramper X3 is more than three Rampers in one box, there are a plethora of additional controls to tempo sync multiple Rampers.

The SYNC toggles on Rampers II and III determine whether they are synced to Ramper I. ALL syncs everything about the Ramper: the output of the completely synced Ramper will match Ramper I's output exactly. RATE syncs only the rate of the Ramper: A, B, Shape, and motion settings stay independent, but the rate is tempo synced. In this setting, changing the Rate knob assigns subdivisions: 1/4, 1/2, 1x, 2x, 3x, and 4x speeds are all available. OFF deactivates any syncing, so the Ramper can act fully independently.

Ramper I (the green one) has a TAP button. This can be used to tap in the desired LFO speed. It begins syncing at two taps, but multiple taps in a row at similar BPMs will average out to increase accuracy. Note: the slowest possible tap tempo is 30 BPM, so taps outside of this range will be disregarded.

Ramper I also has external control via the jack. It can be used in three different ways, configurable via the internal dipswitch. It can be configured for TRS Expression input, External Tap Tempo with a footswitch, like our 'Scooch' Tap Tempo device using a TS cable and tap away. Or for External Tap Tempo using a pulse, turn 1 off, 2 off, 3 off. This is optimized to sync tempo across two ERX3s by plugging into the second ERX3's Tap Out jack, but will also work with other external pulse sources.

There is also a TAP OUT jack on the side of Triple Ramper. This continually outputs 3.3V pulses based on Ramper 1's tempo. In this way, you can sync external units (like another Expression Ramper X3) to Ramper 1.

Happy Ramping!

Notes: SCOOCH Tap Tempo is an external tap tempo footswitch designed for use with the Old Blodd NoiseExpression Ramper X3, Whitecap, and Blackcap.

Simply plug SCOOCH into the Tap In/Ext Tap jack with a TS cable and start tapping in your desired tempo!

The pedal you plug SCOOCH into will handle the rest.

SCOOCH Tap Tempo can be used with a wide variety of other devices as well, for Tap Tempo, Remote Switching, or other purposes: anything expecting a momentary, normally open footswitch signal through a TS cable (connecting Tip to Sleeve when pressed) will be compatible.

Notes: MG-101 is a complete guitarist's tone companion in a compact yet versatile floor unit. Hiding inside the minimalist housing is a full suite of amplifier tones and a huge palette of guitar and bass effects across 10 distinct audio processing blocks. Amp modelling is based on TSAC-HD White Box Amp Modeling Technology, which delivers high definition analogue circuit simulation for pro quality guitar tones, with speaker cabinet emulation processed via an impulse response (IR) loader with 25 internal models and 12 additional user slots for importing your own files. A built-in expression pedal covers wah and swell effects amongst other possibilities. All settings can be edited onboard with parameters shown on the full colour display or via USB using the downloadable PC/Mac Quicktone software and then stored into one of 36 internal memory locations for recalling at will. In addition to the internal metronome, the built-in Jam function has a fully featured drum machine and 30 second stereo (60s mono) phrase looper. To integrate with a DAW studio suite, the USB also functions as a high quality audio interface, completing the studio-ready guitar rig. The main output can deliver stereo or mono audio directly to a PA or to guitar amplifiers, with a separate TRRS minijack output for headphones or 2-way connection to a smart phone for live streaming. Without breaking the bank, you can have world-class amp modelling and effects with all the essential tools a recording and gigging guitarist needs in a portable and convenient package.

Power supply: 9Vdc DC5521 pin-negative (power adaptor included)
Current consumption: <250mA
Inputs: 6.3mm jack (guitar), 3.5mm jack (aux input)
USB port: USB-C audio interface and PC/Mac editing
Sampling format: 48kHz, 32-bit
Frequency response: 20Hz - 20kHz (+/-1dB)
Output: 6.3mm stereo jack line out (to amp or mixer)
Headphone connector:3.5mm jack (TRRS for smartphone livestreaming)
Input impedance: Guitar 470k Ohms, Aux 25k Ohms
Dynamic range: 104dB
Output impedance: 1k Ohm
Dimensions: 289 x 160 x 71mm
Weight: 920g

In the Box:

MG-202 multi-effect pedal
9Vdc 500mA power adaptor
USB cable
User manual
Warranty card

Notes: The Reissue series 63 Diamond pedal offers players a range of overdrive that emulates the sound of a classic British 30-watt class-A valve amplifier, much-revered by guitarists since 1959 for its tonally rich clean and crunchy overdrive sound. The styling of the 63 Overdrive is a nod towards the cabinet that stood behind the bands of the British blues invasion and rock bands of the 1970's through to present day guitar bands. Volume and Master controls let you dial in the drive, with a tone Cut control just like the real amplifier. A Top boost switch introduces additional bite and was a later addition to the design in 1963, which is where this pedal gets its name. Invoking 60's British cool in a single pedal was never this easy before.

Batteries: 9V PP3 (supplied)
Power supply: Optional 9Vdc 300mA regulated (not supplied)
Controls: Volume, Master, Cut, Top Boost & foot switch
Input impedance: 1M Ohms
Output impedance: 10k Ohms
Dimensions: 121 x 77 x 48mm
Weight: 230g

In the Box

63 Diamond overdrive pedal
9V PP3 battery

Notes: Best known for Eurorack synth modules, Noise Engineering's Batverb builds on the brand's extensive experience, offering a performance-focused take on echoes, dynamics and tone.

Supplier's Notes:
Batverb is the stereo reverb that dreams are made of. Taking inspiration from Noise Engineering's famed tail-generating synth modules, Batverb brings reverberation and delay to a whole new level with extensive control of timbre, echoes, and dynamics.

Start by setting a predelay time and adjusting Regen to taste: this will set the length of the tail, from a short slapback-style echo to an infinite wall of reverberation. Add in some chaotic suboctaves with Doom, or some haunting overtones with Shimmer - or both at the same time. If you need to carve the range for your reverb, Batverb has low and high damping settings for the reverb tank. Batverb even has settings for saturation that can be applied to only the reverberant signal, or to the whole output.

Batverb is easy to balance with the rest of the effects in your chain, thanks to its onboard dry/wet Blend control, as well as input and output gain parameters. It also features a unique Duck switch that allows the reverb to duck out of the way of an input signal, or match the dynamics of your playing, similar to a gated reverb.

Batverb was designed to integrate perfectly into your performances. The left switch mutes the input to the reverb and sets the feedback to maximum, creating a wall of sound as long as it's held down. The expression input can also be routed to any parameter on the pedal. Plus, if you're a fan of MIDI, Batverb can store and recall 16 different presets and recall them in response to program change messages.

Batverb is an advanced pedal with state-of-the-art features, but it's incredibly easy to use and immediately fun to play.

Notes: Digital fuzz/overdrive pedal designed to provide a vast array of overdriven tonalities from traditional to futuristic.

Noise Engineering's Dystorpia digital overdrive/fuzz pedal is designed to give a vast array of tonalities from traditional to futuristic. Inspired by the innovative synthesizer company's Eurorack line, Dystorpia is not based on any pedal on your board. Dystorpia excels in creating ripping and gritty tones not found via traditional distortion, fuzz, and overdrive pedals.

Dystorpia features multiple distortion types that work well together for a unique sound. Fold flips soundwaves at a threshold, creating grit and gnarl. It interacts with Pura, a multi-band full-wave rectifier that adds a harmonic buzzy fuzz. The Tone and MidBand parameters work together for exquisite control over tone, from bassy to high to scoop. Add an expression pedal or control voltage in for emotive control over the voicing.

If you're looking for more low end, turn the DOOM switch up to add a lower octave or to emphasize the lower octave for a blown sub effect. Dystorpia also features a dynamics control that can enable an envelope that shapes the output to match the input allowing playing dynamics to make it through the distortion. Dystorpia also has an optional smart Noise Gate that lowers the output level when there is no input.

Use Freeze to loop a sound. Tap the button once to latch or hold down for momentary-like effects.

From subtle overdriven tones to harsh and chaotic mangling, each knob is optimized to allow for maximum exploration and dynamic interaction with the other parameters to access a huge spectrum of possibilities.

Tech Specs:

Input/Output: 1/4" Mono
Power: 9V DC Center Negative, 2.1mm connector
Current Draw: 250mA
Expression: 1/4" TRS Expression

Notes: DEL-mini

Compact Stereo Delay Pedal

The diminutive, yet feature packed, Nobels DEL-mini delay pedal combines an outstanding selection of delay tones in a budget-friendly and space-saving enclosure.

While Nobels has a heritage of past delay units, this newly engineered pedal offers maximum versatility in a super compact package.

Providing an expertly curated selection of timeless delay effects with either a mono or spacious stereo image, DEL-mini delivers a wealth of sonic possibilities, far beyond its modest size and is an excellent addition to any size of setup.

Featuring three carefully crafted delay flavours, Tape (up to 553 ms), Analog (up to 402 ms) and Digital (up to 1000 ms), all three modes all faithfully capture the iconic delay tones that have shaped music across genres, past and present. Each mode is simply selected by the pedal's convenient mode switch right on the face of the pedal.

Adding to its flexibility, the DEL-mini features full tap tempo functionality, but in a single switch design. Simply holding the footswitch for approximately two seconds enters the pedal into "Tap Tempo Mode", following which the pedal will respond to rhythmic tapping instantly. Further defying expectations based on its compact appearance, there are dedicated toggles for selection between mono and stereo (TRS) operation as well as true or buffered bypass modes, making the pedal suitable for almost any musical situation, anywhere, any time.

As with all other current Nobels pedals, the DEL-mini features 4 integrated Mounty-P Mounting Plates for safe and secure attachment to pedalboards. With its full metal enclosure and Glow in the Dark pointer knobs, the DEL-mini is a pint-sized powerhouse that's built for performance!

Product Height (cm): 5.100
Product Width (cm): 4.850
Product Depth (cm): 9.370
Product Weight (kg): 0.210

Box Height (cm): 6.540
Box Width (cm): 7.000
Box Depth (cm): 12.100
Boxed Weight (kg): 0.301

Notes: For over 30 years, the Nobels ODR-1 overdrive pedal has become a renowned classic and has developed cult-like status among guitarists worldwide. Seen as an indispensable staple in many professional setups, the pedal has become an industry standard that is widely imitated, but seldom surpassed.

The new Nobels ODR-mini2 is the next stage in the evolution of the legendary ODR-1's little brother, the ODR-mini. Due to popular demand, this diminutive powerhouse now features a very useful bass cut feature as an external control. Added to this, the upgraded full metal housing, along with the integrated Mounty-P Mounting Plates, completes the worthwhile upgrades for this compact dynamo.

For extended ease of use, the internal Bass Cut feature originally included in the ODR-1BC is now available as an external variable control right on the face of the pedal. This allows for complete optimisation of the pedal's bass response on the fly, at the simple turn of a knob. The flexibility of this new additional control compliments Nobels' unique and renowned SPECTRUM tone control, which alters the proportion of both the low-mid and high frequencies simultaneously. At midday, the frequencies remain almost untouched. However, moving from the minimum to maximum positions will deliver variations in frequency response that are suitable for a wealth of musical tastes and styles.

With its newly designed and upgraded full metal enclosure, the ODR-mini2 is capable of operating at either standard 9V or 18V for increased dynamic headroom. Along with all other Nobels pedals, the ODR-mini2 now also features 4 integrated Mounty-P Mounting Plates for safe and secure attachment to pedalboards.Upgrade your overdrive experience and become a part of the new ODR generation!

Notes: In 2025, MOOER has announced that it will be set to release its latest multi-effects pedal, the GS1000 Intelligent Amp Profiling Processor, an augmented intelligent amp profiling processor. Built on MOOER's advanced third-generation digital platform, the GS1000 introduces groundbreaking MNRS 2.0 technology, allowing guitarists around the world to emulate their favorite gear with immense precision -specifically, for distortion pedals, preamps, amplifier heads, and cabinets.

With this innovation, guitarists can fully capture the essence of their favorite guitar gear without owning the physical hardware, enabling them to carry their favorite tones wherever they go. Users are even able to use third-party IRs for cabinets of their choice, further enhancing the flexibility of this feature.

It's unforgettable how much MOOER's multi-effects pedals have impressed audiences so far, primarily thanks to their robust tone libraries. However, even still, the GS1000 continues to build upon this with storage for up to 120 sampling profiles, along with continued integration with the MOOER Cloud app. Essentially, this cloud integration facilitates infinite upload and download possibilities, giving users access to a global community of shared tones, widely expanding the number of accessible tones. More still, the GS1000's previously mentioned third-party IR cabinet simulations support up to 2048 sample points, guaranteeing studio-grade tonal accuracy across the board.

Even more impressive for the price is how the GS1000 inherits the dual-chain effects architecture that made previous MOOER gear so versatile, making it suitable for highly complex usage scenarios. With over 350 factory effects models and a Sub-Patch preset grouping mode, the GS1000 makes it far simpler for users to make seamless transitions between tones, all while maintaining effect tails to guarantee seamless transitions. Additionally, the reintroduction of the innovative AI-driven EQ Master builds upon MOOER devices' previous capabilities, using intelligent adjustments in real-time to match the musical style of players to tones, while still allowing manual tweaks for precise control.

Impressively, the GS1000 also comes packed with a Groove Station module, consisting of a combination of drum machine and looper features - including 56 high-quality drum kits! It offers a 480-second phrase looper with infinite overdubs, automated detection, and synchronization capabilities, resulting in an intuitive platform for solo jamming, composition, and live loop-based performance. Overall, the Groove Station acts as an all-in-one suite for creating full arrangements, without having to depend on additional backing tracks or bandmates.

Visually and functionally, the GS1000 really stands out thanks to its sleek visual design and enhanced user experience. For example, it features a convenient 5-inch high-resolution touch screen, which is also paired with ambient lighting to add a visually stunning element to the pedal. As a result, the GS1000 is not only designed for convenient touch-based control but also as a standout centerpiece in any guitar rig.

In addition to this touchscreen control system, the GS1000 also provides expanded connectivity options, improving upon the already impressive flexibility of past pedals. Most notably, it supports connectivity with the MOOER F4 wireless footswitch, as well as the ability to control presets via external MIDI devices.

As is expected from MOOER these days, the GS1000 also excels when it comes to routing opportunities, going above and beyond the typical stereo 14" inputs and outputs that would be expected from other brands. Yes, it still includes such staples, but it also includes an XLR microphone input, alongside balanced TRS outputs for long-distance signal clarity. The configurable serial/parallel stereo effects loop enables seamless integration of external effects, and the addition of Bluetooth audio input and MIDI compatibility broadens its wide range of use cases for live and practice-based applications.

Furthermore, the pedal also serves as a professional audio solution thanks to its low-latency 2-in/2-out ASIO USB sound card. Supporting up to 192kHz sampling rates, the GS1000 makes recording and live streaming effortless, as it can easily be used with software DAWs, MOOER's editing software, as well as the USB-based MIDI control.

The GS1000 will be available in two versions - the standard white edition, which is powered by mains power, and the GS1000 Li version, which introduces a 7.4V 4750mAh lithium battery, chargeable through its power port. With this upgrade, users can enjoy up to six hours of continuous power-free playtime, making it ideal for practicing, busking, and generally performing on the go.

Overall, for fans of MOOER's previous amp simulation offerings, the GS1000 represents a natural evolution, building on everything that made its predecessors great while introducing cutting-edge features and expanded capabilities. Most importantly, MOOER has promised to continuously update its MOOER 4.0 tonal algorithms on the MOOER Cloud in line with the release, keeping things fresh for the company's dedicated user base.
