Notes: Another iconic Buchla module gets the Eurorack reissue treatment courtesy of TipTop. The 242t is the brand's unique voltage-controlled clock and trigger module, generating pulses based on a 4x12 matrix.

Supplier's Notes:
The Buchla and Tiptop Audio 242t Programmable Pulser is a reissue of the time-event-based generator from the 1970s 200 series. At its center is the Pulser, a voltage-controlled clock oscillator with a wide frequency range, extending up to audio frequencies, numerous outputs, and start/stop controls. The Pulser drives a programmable matrix with three rows of up to 12 stages: (A), (B), and (C). Stages are activated using the X/Y coordinate controls, and the total number of stages can be set using the (n) row. Clock and Reset inputs allow the 242t to sync with other devices, while the Reset input can also be used to control the number of stages with external pulses.

Notes: A typically clever approach to modulation from Make Noise, the MultiMod takes a control signal and modifies it into eight related outputs, adjustable by phase and timing. Hugely versatile.

Supplier's Notes:
With MultiMod...from one control signal, we create many.

In a modular synthesiser, it is easy to create complex results via complex means - patching an elaborate network of independent control signals, for example. This can be very powerful but also cumbersome to set up, and potentially difficult to control in a meaningful way. MultiMod represents a new approach: it takes a single control signal and copies it 8 times, not unlike a simple mult, except that it allows you to modify those copies by weighted adjustment of their relative phase and speed. The result is modulation that is related to the source, but not identical at each destination.

Phase sets the spacing of the signal copies in time, weighted by channel, with each progressive channel getting more out of phase from the original signal and from each other. Spread allows for varispeeding the copies by different amounts, with each getting progressively faster or slower than the original Signal. Time determines the range of time captured at the input and therefore also the depth of modulation across copies of the input signal when Phase and Spread are manipulated. MultiMod also includes Tempo, Hold, and Reset features, and a variety of Read Shapes for temporal rearrangement of input signals.

When the input is not patched, MultiMod generates an LFO that is copied eight times and manipulated in the same ways.

MultiMod is built with the latest DSP hardware which offers eight high resolution outputs, with signal input and output ranges approaching the upper limits of the analogue eurorack modular system. All I/O is capable of a 20V range at +/-10V, greatly exceeding the typical 0-5V CV input ranges on typical digital modules.

Specifications

Width: 10hp
Max depth (incl power cable): 39mm

Power:
195mA @+12V
10mA @-12V

Notes: Tiptop's reissues of iconic Buchla modules continue with the 285 frequency shifter. Edgy, twangy harmonic modulation with ring mod options and stereo operation via sum and difference outputs.

Supplier's Notes:
The 285t combines two sets of functions: the top section features a frequency shifter, while the lower section includes both balanced modulation and classic ring modulation, all with voltage control. The frequency shifter can shift incoming audio using either its internal oscillator or external audio. Both SUM and Difference outputs are available simultaneously for analogue stereo widening effects and more.

As Tiptop Audio continues its aural odyssey of preserving and transforming the hallmark engineering prowess of Don Buchla's namesake synthesizer modules, the 285t brings a constellation of blistering sonic-contouring tools to your Eurorack array. Like its predecessor, the Tiptop Audio Buchla 285t is a menagerie of modulation madness, offering variable degrees of ring, frequency, and amplitude styles of modulation. Plus, its dyad of modulation sub-modules operates independently, with dedicated audio and CV I/O for each, functionally giving you the sum of performance possibilities you'd get with two modules, all in one instrument. Suffice it to say: Sweetwater's synthesists commend Tiptop Audio on capturing the electric magic of Don Buchla's imaginative engineering while transposing it for the world of Eurorack to experience. For a constellation of timbral sculpting and summitting heretofore unknown peaks of daring synthesis exploration, the Tiptop Audio Buchla 285t Frequency Shifter module is your key. Discover what awaits at the fringes of Eurorack possibility!

Note: This module is not compatible with Buchla system voltages. CV signals require a distinct connectivity configurations. Please contact your Sweetwater Sales Engineer with any questions or concerns regarding compatibility or use in your Eurorack case.

Type: Frequency Shifter
Depth: 1.77" (45mm)
HP Size: 18HP
Power Usage: +12V/70mA, -12V/40mA
Power Supply: Requires Eurorack Case and Power Supply
Manufacturer Part Number: 285t

Notes: The MCO MK II is a highly versatile digital VCO and voice module inspired by 90s/00s digital synths shrunk into just 6HP.

It offers a broad collection of unique, high-quality synth voices, each with extensive, customizable parameters. These parameters can be directly controlled or modulated through assignable internal and external sources. Certain per-voice parameters support audio-rate modulation, including FM, sync, and DSP. Each voice also supports up to four-voice chords, external-triggered envelopes, multiple LFOs, and dual audio outputs for comprehensive desktop like synth functionality.

Voices include a multi dimensional wavetable oscillator based on the original MCO, a complex additive synthesis engine, a multi mode 'JP' type digi-synth, a lush virtual analog implementation, a fully featured vocoder, a bass synth for both kicks and sub sonic tones and finally arebirth and porting of our discontinued SID GUTs chip voice.

Each voice includes factory presets as well as the ability to store and recall user presets. All state is preserved across power cycles.

The MCO is designed to be familiar, quick and easy to use with a high resolution colour display and a rich visual user interface.

A USB-C connection allows for easy firmware updates, user wavetables upload and device config backup and restore. Axon expander modules are also supported to increase CV control options.

Notes: The brilliant Perkons drum machine comes to Eurorack. A single hybrid drum voice with digital sound engine and analogue filter/overdrive, the Perkons Voice is flexible and supremely powerful.

Supplier's Notes:
Erica Synths Perkons Voice is a eurorack incarnation of the percussion voices from the PERKONS HD-01 Drum machine. Like on the drum machine, the module has hybrid architecture, featuring a digital sound engine followed by an analogue multimode filter and overdrive. Users can select among 13 sound generation algorithms and save up to 99 presets that can be recalled easily. Tune and Patch CV inputs are configurable for various CV settings and are tuned to 1V/oct. Module also features a 4-voice poly overlap mode and samples on the "Rompler" engine can be easily replaced.

Specifications:

Audio output: 10Vptp
CV levels configurable: -5V - +5V
Power consumption: +59mA, -30mA
Module width: 14HP
Module depth: 35mm

Notes: A super impressive offering from Xaoc, the Samarkanda is a quad delay module designed for hands-on, real-time performance. Dial in everything from loops to stereo delays, resonators, modulation effects and much more.

Supplier's Notes:
Xaoc Devices Samarkanda is a digital quad delay module with extensive patching capabilities and a lot of flexibility for signal mangling. It can be used as four entirely independent delays, a dual stereo delay, a complex/multi-tap or multi-channel delay, a quad/polyphonic resonator, dual chorus, dual flanger, reverb, looper (with sound on sound!), and granulator, or any combination of those. You can reverse the delayed signal, hold it, squeeze and stretch it beyond all recognition and still go back to the original piece of audio captured in the buffer! The internal lossless normalization (the signal doesn't leave the digital domain) combined with top-notch components (including 24-bit AKM converters and 32-bit internal processing) are responsible for high sound quality. Samarkanda has been conceived in the truly modular spirit. Not only can you control almost all its features remotely with CV/gates, but the external feedback path gives you the opportunity to process the delayed signal with other modules.

Samarkanda offers a wide range of delay times beginning at a mere 0.5ms and reaching up to 15 seconds per channel. That means that, by stacking its four channels, you can achieve up to one minute delay! There are two operating modes switchable individually for each channel. Analogue delivers pitch changes that resemble classic analogue tape and BBD delays. When you combine it with the looping Hold function, you can play Samarkanda with any 1V/octave CV source. By using the Sync function you can even loop single wave cycles. The Digital mode gives you a granular buffer-scrubbing effect (no pitch change) across the whole delay time range. You can seamlessly switch back and forth between modes without losing any information. You can use Samarkanda for multiple tasks at the same time - from four independent delay lines through any combination of channels processing the same signal up to a quad behemoth. You can also use the linking feature for ease of operation (the first channel in the chain acts as the main control source for the others).

As most settings operate on a per-channel basis, you can freely combine different features (such as analog/digital behaviour, delay time range, reverse and hold functions, etc.) in a configuration of your choosing. You can synchronize each of its channels separately to a different source, either via the Sync input, or by using the tap-tempo functionality (with multiplication and division galore). Should you ever get lost, the Purge button comes in handy when/if things start to spiral out of control!

Notes: Meet Stardust, a cosmic tape looper.

The foundation of Stardust is a stereo looper with all the essential controls to record and manipulate sound, while supporting click-less looping transitions, an ultra-low noise floor, and high-fidelity audio hardware. However, getting the perfect loop is only half of the equation, Stardust also focuses on the texture and vibe of your recordings. Dial in a classic tape machine style warmth with wow & flutter/tape hiss controls, or take Stardust to new horizons with DSP effects. And, much like the tape-machines it takes it's inspiration from, Stardust can splice and rearrange its loops at the twist of a knob.

With an impressive set of front panel controls, the ability to save, recall, or export recordings, load samples via an included USB flash drive, and a host of configurable settings via our web editor Narwhal, Stardust is a comprehensive looper device.

Power Consumption: +12V=201mA, -12V=13mA, +5V=0mA

Notes: A visit to the Hainbach Studio Complex two years ago, led to a collaboration that would result in what is perhaps Joranalogue's finest design yet. United by a common passion for vintage test gear, the Joranalogue team joined forces with artist and YouTube sensation Hainbach.

Collide 4 builds upon on the lock-in amplifier concept, and brings it into the Eurorack world. These atomic age physics research instruments are known for their raw power when used in musical applications. Soon, any synthesist can experience this for themselves, at a fraction of the size and weight of a vintage unit, and with full voltage control.

The result is a wholly new kind of synth voice and audio processor, unlike any other. It's a perfect union of Hainbach's extensive experience in exploring the deepest musical realms contained within vintage test equipment, and profound knowledge of audio design and production.

'Quadrature spectral computer' is how you could describe this new kind of musical generator and processor. The sound? Quite simply: it's smashing!

Specs

Modern, fully analogue re-imagining of the lock-in amplifier concept, expanded to new heights.
Pingable variable bandwidth filter with self-oscillation capability.
Pre- and post-filter gain stages, for a total of up to 130 dB of amplification!
Through-zero sine/cosine quadrature oscillator.
Hilbert transform network for use as a frequency shifter.
Dual ring modulators with output lowpass filters.
Extensive output section, including magnitude and phase analogue computing outputs.
Unique X/Y quadrature topology, ideal for stereo use.
Handsome (and useful) signal level/overload LED indicator.
CV control over everything, with temperature compensation and excellent volt/octave pitch tracking.
20 HP, 30 mm deep. Over 600 components, yet a fraction of the weight and size of a vintage Model 124A lock-in amplifier unit.

Notes: A rock-solid all-rounder of a VCO, the Cycle 5 is a triangle-core oscillator with morphable wave shapes as well as conventional sine, triangle, saw and pulse outputs. Switchable octaves and 5th transposition make the module even more user friendly.

Supplier's Notes:
A small Eurorack oscillator that packs a punch: that's the best way to summarise Cycle 5.

At its heart lies a refined high-stability triangle core voltage controlled oscillator (VCO), with performance matching or exceeding that of much bigger and costly oscillator modules.

Instead of a coarse frequency knob, a 7-position octave switch is provided. This in combination with a perfect fifth transposition switch and factory pitch tuning, makes Cycle 5 an exceptionally straightforward and musical VCO to use: simply centre the fine tune knob, and the module will be instantly tuned to reference C.

Meanwhile, its dual precision volt per octave inputs add a great deal of versatility. For example, one could be used for pitch sequencing and the other as a generic exponential FM input, or both sequenced together for transposition effectsithe dual inputs serving as a built-in precision adder.

Sporting all the classic waveforms, ranging from sine wave, triangle, saw and square/saw, as well as a hard sync input and low frequency oscillator (LFO) mode, Cycle 5 makes for a real workhorse VCO. The novel trigonometric waveshaper results in a very clean sine wave, ideal for sub bass duty.

Cycle 5's highlight however, is its vari-wave feature. By adjusting the vari-wave knob, the waveform on the matching output will smoothly morph from sine, to triangle, saw, square and finally a very narrow pulse. The vari-wave parameter can be CV controlled, up to audio frequencies for some intense timbres.

Equally at home as a modest modulation companion to big VCOs, as being in the spotlight in miniature or polyphonic systems, Cycle 5 might just be the most multi-talented tiny analogue oscillator yet.

6 HP | +12: 75 mA, -12: 70 mA

Notes: Great value from Xaoc's pingable dual VCA, capable of creating organic, acoustic-style decay curves which replicate the dynamics of real-life instruments. Ideal for processing audio as well as CV.

Supplier's Notes:
Xaoc Devices Lublin is a high-quality dual VCA module with exponential CV inputs. On top of that, its two identical channels feature additional inputs for pinging. These inputs use an elaborate analogue circuit to model the dynamic behaviour of vactrols, allowing you to trigger a carefully crafted gain response that mimics the natural decay of plucked and struck acoustic instruments. Unlike lowpass gate modules though, Lublin reduces gain while retaining the full frequency bandwidth, so it is perfect for harmonically rich signals, like our Odessa additive VCO. The vactrol-like behaviour is just a starting point as the envelope may be varied within a wide range using a switch (natural, shortened and prolonged response) and a potentiometer, so you are not stuck with one decay characteristic. Therefore, you can use it not only to create bongos, but also for fat compressed kicks! The built-in gain control circuit (saturating CV instead of the audio signal) prevents distortion from excessive amplification. Lublin is DC-coupled, so you can use it to process CV as well as audio signals.

Width 6HP, Depth 33mm (including cable bracket)
40mA/-20mA

Notes: Part of TipTop's exceptional series of Eurorack-format Buchla modules, the 264t provides four sample-and-hold circuits, plus a logic circuit designed to control polyphonic patches. Deceptively simple but surprisingly creative, like most Buchla modules.

Supplier's Notes:
Four independent sample-and-hold circuits, plus a specialized logic circuit for expediently implementing polyphonic patches.

Sample-and-hold's are essentially one-cell analog memories. They are useful for "remembering" the instantaneous value of a control voltage (a detected envelope, for example), for generating equally spaced steps from a constant slope input (as from a 281t envelope generator), and for converting any continuously changing voltage (a random voltage, for instance) into a series of discrete values.

The 264's sample-and-hold circuits have two operating modes: sample and track. In the sample mode, the value of the input is sampled and applied to the output whenever a pulse is received. The output remains at this value until the next pulse arrives. The track mode diers in that an input is applied to the output for the duration of the pulse. The output tracks the input until the end of the pulse and remains at a constant value until the next pulse.

To use the 264t as four independent channels set the separate/common switch to separate. A single CV can be set to all four channels by setting the operate/common to common and plug CV in the the back jack on the with right side.

The Model 264t includes a polyphonic adaptor, which performs the logic necessary to implement four-voice polyphony. Facilities are incorporated for fine tuning and f.m. modulating the oscillators; light emitters display the adaptor's operation.

Specifications:

Size: 18 HP - Depth: 45mm
Power: +12V 60mA / -12V 30mA

Notes: The Stereo I/O 1U is an all-in-one audio input/output module designed to bridge the gap between your Eurorack system and line-level devices. Whether you want to process external audio with your modules, monitor your patch with headphones, or connect your system to mixers or interfaces with line level - Stereo I/O 1U has got you covered.

Audio I/O allows you to effectively interface your Eurorack modular system to the balanced line-level world (+4 dBu). You can send and return to rack mount/desktop fx units, patch to external line-level instruments like synths and drum machines, interface to a DAW and much more.

The rear-mounted 3-pin CHAIN IN connector allows you to sum (in parallel) other audio sources to go from Eurorack level to the BAL LINE OUTPUTS. This could be from modules like the Mixup 3U, Xfade 1U, Stereo Mix 1U, and XY I/O 1U. You could also use this to connect with the 3-pin headers on the Palette and 7U cases audio i/o boards.

The rear-mounted 3-pin CHAIN OUT connector allows you to directly connect the level-shifted BAL LINE IN to the inputs of other compatible devices such as the Mixup 3U, Outs 3U, Stereo Mix 1U, XY IO 1U, and Headphones v2 1U. You could also connect the to the TRS jacks of the Palette and 7U cases audio i/o boards.

Dual Balanced ins and outs for the studio or the road. Interface your rack with the balanced line level world; send and return to pedals or desktop FX units; patch in and out of your DAW, external synths, drum machines and other line-level instruments.

A space-friendly, feature-rich, highly flexible solution for all your stereo line level input and output needs. Includes a dedicated headphone jack/volume and a clever cue bus for monitoring signals outside of the main output or to add a 2nd source to the main outputs.

Notes: The MetaModule Audio Expander (MetaAIO) adds an additional 6 CV/Audio inputs and 8 CV/Audio outputs to your MetaModule patches, via a ribbon cable connected to the main MetaModule. The MetaAIO provides the same high-quality as the MetaModule's Audio/CV jacks (24-bit, 48kHz default, up to 96kHz).

Notes: Dive into the world of subtle tone modulation with the revolutionary 2HP Eurorack compatible Slew Limiter. This compact but powerful module is the secret weapon in your synth setup to create smooth transitions between your sounds, giving you the opportunity to expand your musical expression in a unique way.

With its slim design of only 2HP, the Slew Limiter fits seamlessly into any Eurorack system without taking up valuable space.

Create smooth transitions between notes or modulate CV signals to create organic, vibrant effects such as portamento/glide, or complex modulated patches.

Adjustable rise and fall times give you complete control over the speed of signal changes, from instant jumps to smooth, slow transitions. Versatile uses: Whether for smoothing control voltages, creating legato effects for monophonic melodies or for creative sound design - this slew limiter is a true all-rounder.

Thanks to its clean layout and simple controls, you can make the settings you want instantly, making it ideal for live performances and studio sessions.

CV control via rise/fall

A unique feature is the ability to control rise and fall times via external CV signals, allowing you to dynamically react to your performance or patch.

Shape Control

The Shape slider allows you to fine-tune transitions over a wide area. Whether it's a slow exponential increase, linear transitions, or a subtle adjustment through the logarithmic characteristic, it's all at the service of the music

Notes: The aux mix 1U is a 3-channel stereo mixer module with a stereo auxiliary send bus. The routing options on this mixer module make using aux mix 1U for send FX, parallel processing, feedback mixing, and more possible. It is designed for audio signals only (not for mixing CV). It is AC-coupled, and uses audio-grade, logarithmic attenuators for a smooth, even response across the entire volume range.

Each channel has a dedicated pair of inputs for stereo audio sources. The left channel inputs are normalled to the right for mono audio sources. All three channels feature a precise level attenuator, a mute switch, and an LED input activity level indicator. The three stereo channels are mixed and summed to the main outputs, where they can be patched out to a wider Eurorack system or external pro-audio equipment. The output stage features soft-clipping diodes for smoother saturation when signal levels are very high.

In addition to the main mix controls, channels 1 & 2 also feature an aux level attenuator with a pre/post switch. These can be used to create an independent aux mix which is routed to another pair of outputs, separate from the main mix. The aux output stage also features the same soft-clipping diodes as the main output. aux mix 1U has four 3-pin connectors on the rear side for directly routing audio between other Intellijel cases & modules - without the need for patching cables. Connections include aux in, aux out, chain in & chain out. This also allows you to chain multiple aux mix 1U modules together to form even bigger mix chains.

Notes: The Morphor Sequencer - Quad Gate/CV is a versatile tool for both live Eurorack performances and songwriting. This module can be configured as a 2-, 3-, or 4-track sequencer, depending on the selected output configuration. With flexible track configurations and intuitive real-time step editing, this sequencer offers a handy approach to sequencing in modular systems being only 4 HP wide.

Whether you're controlling gates, CVs, or a combination of both, this module adapts to your creative needs with ease. Key features include up to 4 independent tracks, each capable of holding up to 16 pages containing up to 16 steps. Users can configure tracks as gate, CV, or combined gate/CV tracks, and even set up triad chords. The module supports customizable step lengths, glide times, individual track playback orders and reset behaviors making it ideal for creative sequences.

This module can operate as a standalone unit using its internal clock or be easily synchronized with an external clock source for integrated use within a larger system. The clock and reset jacks can function as both inputs or outputs, allowing flexible configuration to match your setup.

For expanded setups, multiple Morphor Sequencer modules can be daisy-chained via the bus connection on the back, ensuring that clock and reset signals are shared seamlessly across all connected modules. This makes it easy to sync multiple sequencers for complex, multi-track performances or compositions.

Specifications

Panel width: 22 HP
Panel height: 1 U
Module depth: 33 mm
Dimensions: 39.65 x 111.4 x 33 mm
Mass: 56 g
Power Socket: 16-pin

Current draw:
12 V: 95 mA
-12 V: 11 mA
+5 V: 123 mA

Notes: FM Radio in 1U format.

Use it as a crazy oscillator, infinite sample generator or just listen to the news during your office break.

Use the Chaos Input (CV) to automate to scan the FM band for radio signals and use the radio as a creative tool.

Width: 8HP
Height: 1U
Depth: 23mm
Current Draw: -12V: 2mA +12V: 56mA

Notes: The WT-QUAD-LFO module consists of four individual, digital, wavetable based low frequency oscillators (LFO) with an easy and intuitive featuring a 1.8" OLED color display. The module can be updated easily by inserting a flash drive with the firmware files in the USB port on the front panel.

The oscillators and their respective controls, inputs and outputs are organized in four channels. The frequency of each oscillator can be linearly or exponentially (1V/Oct.) controlled through the voltage applied to the corresponding CV input.

Each LFO channel can output one of the predefined waveforms (including sawtooth, ramp, square, sine, triangle), morph between two different waveforms or generate a random waveform. It can be externally reset through the sync input.

Each trigger output can be set to output a specific phase of the corresponding waveform.

The module offers cross frequency modulation (FM) and internal sync between LFO channels. It features also phase distortion and phase spreading of the outputs, including a classical quadrature mode (90- phase spread). Frequency relationships between the four LFOs can also be set.

Hardware

4x CV inputs -5 V to +5 V
4x Sync inputs 0 V to 5 V, active low or active high
4x Clock inputs 0 V to 5 V, active low or active high
4x LFO outputs -5 V to +5 V
4x Trigger outputs 0 V to 10 V, active low or active high
1.8" OLED Display with 160 x 128 pixel
4x push encoder
USB port for firmware update
Size: 14HP
WT-QUAD LFO - Features list:

Wavetable based, 4 channel LFO
Default waveforms: SAW, SQUARE, SINE TRIANGLE
Random waveform generation
Custom wavetables can be loaded using USB flash drive
LFO output: offset and attenuation programmable
LFO Frequency range from 0,0032 Hz to 4 kHz
Frequency free (Hz) or quantized (note)
Presets can be selected through CV input
LFO channel can be internally synced and cross modulated
Single shot modus

Notes: Enter a galaxy of rich and vibrant delays. The Dreadbox Nostalgia 3 Stage Delay is a superb effect module that can give you amazing results in moments. Delay is a true staple in the effects world and it can take your modular music to the next level via just a few cables.

The Dreadbox Nostalgia 3 Stage Delay is ideal for a range of modular music styles, from ambient to acid house. This 10HP module fits snugly in your system and has enough CV control to keep even the most avid patcher satisfied.

117 mA +12V
25 mA -12V
35 mm deep
10HP

Notes: A simple and compact 1U module for hands-free control, the Kommander generates CV and gate signals based on your hand's proximity to the infrared sensors. Cheap, fun and effective.

Supplier's Notes
An infrared motion controller that makes controlling your modules intuitive and fun. The KMNDR measures the distance to other objects (e.g. your hand) and sends a CV and gate signal.

This will allow you to interact with your modular system in a fun and intuitive way, create complex synth sounds, trigger a drum machine and "play" your modules.

Just plug the KMNDR into your synthesizer and create! The KMNDR ships with a 10-pin power connector.

Meet the KMNDR: our new compact sibling of the renowned KOMMANDER. This infrared X-Y motion controller is about to revolutionize the way you interact with your modular synthesizer.

Designed to make module control both intuitive and enjoyable, the KMNDR transforms physical gestures into musical magic. By simply measuring the distance to objects like your hand, it sends out CV signals ranging from 0 to 10 volts, alongside a 10V gate output, enabling a tactile and expressive approach to music creation.

Whether you're looking to craft complex synth landscapes, trigger rhythms on a drum machine, or "play" your modules as if they were traditional instruments, the KMNDR is your gateway to a new realm of musical expression. Its plug-and-play functionality means you can seamlessly integrate it into your setup, opening up endless possibilities for innovation and performance.

The KMNDR is not just about functionality; it's about bringing fun back into music production. It ships ready-to-use with a 10-pin power connector, ensuring you can dive straight into creating the moment it arrives. Prepare to engage with your modular system like never before. With the KMNDR, your hands are not just making music; they're creating an experience. BOOM!

Dimensions: 8 HP, 23 mm deep
Module is a 1U tile in Intellijel format

Current Draw: 56 mA +12V, 2 mA -12V, 0 mA 5V

Notes: The Dystopia is ideal for complex patches where sound can be used to thicken the sound or filter out frequencies. It features a noise generator which can provide white, white to pink, white to blue, scatter, digital, pitch types of noise. The digital noise is brilliant as it can be used as a random gate generator. The bit crusher stage can range from one second up to 8kHz - meaning you can obtain really thick distortions - ideal for a range of styles of music. You can reference all the signals through the four LEDs too - which help you determine the level at which the module is pumping out the noise sources.

Noise Generator (white, white to pink, white to blue, scatter, digital, pitch)
Bit Crusher with range from 1sec up to 8kHz
Digital Noise can also be used as a Random Gate Generator
Dual Filter (parallel) 12dB Low Pass and High Pass Filter
When you insert a signal to the External In, the Internal Noise generator is cancelled and the External Signal is in process
LED indicator for all controls to illustrate the current CV Sum

56 mA +12V
67 mA -12V
35 mm deep
10HP

Notes: Discover the new dimension of your sound design with the ultra-compact 2HP wide ADSR Envelope Generator in Eurorack format. This precise tool is specially designed for synth enthusiasts who don't want to miss out on professional dynamic control in their Eurorack system. Despite its small size, this ADSR generator offers a plethora of features that will take your soundscapes to the next level.

Compact design

With a width of only 2HP, this envelope generator fits seamlessly into any Eurorack setup without wasting valuable space.

Customise your sounds with full ADSR control - Attack, Decay, Sustain and Release can be intuitively adjusted to bring your sounds to life

There is also a built-in LED display that gives you real-time visual feedback on the current phase of the envelope. This way, you always have an overview of the dynamic progression of your sounds.

With the ability to choose between three timebase settings (S, M, and L), you can flexibly adjust the envelope time base to suit your musical needs. From fast, crisp pulses to long-drawn-out, atmospheric evolutions, expand your expressive possibilities.

Manual Trigger

A special highlight is the manual trigger button. This allows you to trigger the envelope independently of external signal sources, ideal for spontaneous performances or experimenting with new sound ideas.

Dimensions
2 HP
42 mm deep

Current Draw
15 mA +12V
5 mA -12V
0 mA 5V

Notes: MEGA-TANG Expander MT-EX1 is a new expander module for the MEGA-TANG mixer.

The MT-EX1 adds 4 additional inputs. It also adds a mono line level input with level and send controls, two extra fixed inputs each with send controls and a fixed stereo input. Note the MEGA-TANG only supports a single expander at any time.

Technical Specs

Size: 4HP
Depth: 32mm (approx)

Notes: Welcome to the Rosci soundscape. Rosci is a digital VCO that generates random waveforms to create unique, rich, and full sounds. You are able to control how complex the sound is-add harmonics and have a completely unique shape generate using the generate button/trigger. BUT, it can also be tuned to output basic waveforms (sine, square, sawtooth) if you so desire.

Tunable parameters breakdown:

COMPLEXITY: Essentially a generation of unique timbre.
ROUNDNESS: Set the basic shape of your waveform. Go from from sharp to soft sound, similar to filtering.
HARMONICS: Add up to 6 harmonies to your sound. The choir's here.
FORMANTS: Accentuate certain overtones in your sound (like a voice singing "ooo", "ahh", "eee").
DETUNE: Add a classic 'detune' with a changing phase wave for extra wide sound.

How does it work?

It is a pipeline of algorithms, which generates and modifies a waveform starting from top to bottom. Rosci works on a principle of key points: the generate button generates key point location and amplitudes to be passed down the pipeline.

Tunable parameters:

Beginning with complexity, you set the number of key points (even numbers only to create a waveform). Lowest complexity sets two points, and highest complexity sets up to 20 points. The number of key points will vary with each waveform generated. From there, the roundness sets the type of interpolation of the key points, from square to sine. Adjusting the harmonics creates copies of the waveform and adds them to the original waveform at double, triple, ... up to 6x the base frequency. Formants maintains the frequency of the wave, but squishes it so there is 'empty space' in between (this is also called pulsar synthesis). Finally, detune copies the waveform and 'detunes it' by increasing the frequency ever so slightly. And there you have it: a unique Rosci soundscape :)

Technical specs:

Module Size: 3U X 6HP X 25 mm Deep.
Current Draw: 160mA@ 12V, 20mA@ -12V.

What's in the box:

1x Rosci module
1x User Manual
1x Power cable
2x Mounting screws

Notes: The Endorphin.es 1U Cockpit X Black is a newly designed 6-channel stereo mixer with transparent VCAs, featuring four inputs on the front and two auxiliary inputs on the rear. Sidechain ducking makes it easy to get a great balanced sound, just input the trigger of your sound and you are good to go.

The perfect mixer for summing signals in your system while patching, or even as an end-of-chain mixer to go into your interface, mixer... whatever you fancy.

Power consumption: 55mA at +12V and 35mA at -12V

Depth: 30 mm

24 HP

Notes: The uFM is an oscillator module, that is focused on FM synthesis.

It's basically a two-operator FM synthesis, but with extended functionality: The operator waveforms can be either sine waves (classic FM), or four other different combinations of non-sinewave waveforms, that produce a much broader palette of sounds beyond the classic sinewave based FM synthesis.

The MOD DPT knob controls the modulation depth; in combination with a button press also the multiplier of the modulating operator can be defined.

Both parameters can be controlled also by CV and also via IMDI by MIDI controllers. The pitch can be controlled via 1V/octave CV or also via IMDI e.g. from a DAW

(For IMDI, see IMDI HEART for more info).

Additional to the normal audio output a suboctave output with a squarewave is provided, and a third output with the mix of the primary oscillator signal and the suboctave.

Quite a lot for such a tiny module, right?

Please note: These micro module needs a carrier, like the uBASE module. The cannot be mounted directly into an AE case.

Notes: A typically well thought-out approach to matrix mixing from ADDAC, the 814 is a stereo, expandable 6x6 design with separate control and in/out modules. Suitable for line/synth level audio or CV.

Supplier's Notes:
Introducing ADDAC's take on matrix mixers, a 6x6 stereo matrix easily expandable to larger configurations.

Matrix mixers may need some time to get used to, but they are very much self-explanatory, each knob controls the volume of a matrix point routing the respective input to the desired output. The flexibility of a matrix mixer is far superior to a standard mixer, the possibility to route any input to any single or multiple outputs allow for very complex chains, combining parallel and series processing while easily reconfigurable without any extra patching.

All Inputs Left channels are normalled to the Right Inputs.

Blank areas on the left and bottom edges of the panel allow for the user to write all the inputs and outputs sources that each channel is connected to.

Different coloured knobs for faster visual recalling: Black for A,C,E Outputs Dark Red for B,D,F Outputs Cream knobs for potential feedback diagonal: 1A, 2B, 3C, 4D, 5E, 6F.

DC coupled circuitry, can be used to mix both audio or cv signals.

Jumpers on the back of both modules allow the user to set each channel independently to Line or Synth Level, making it easier to integrate with external sources, sound processors or guitar pedals.

Internal connections

The control and input modules are connected via a large 34 wire ribbon cable, only the control module needs to be connected to the Busboard.
Extra IDC sockets are used for connecting larger configurations like 12x12 or 18x18.
Other configurations are also possible: 6x12, 12x6, 12x12, etc...
Up to 12x12 all ribbon cables are provided, for larger matrixes custom ones will be necessary, contact us directly if planning to go BIG.

Potentiometers

Although ADDAC System are using Thonk's Tall Trimmer Topper for Knobs all potentiometers used have metal shaft and are not plastic trimmer potentiometers.

Tech Specs: 25HP + 8HP (33HP total, 4.5cm deep, 140mA +12V, 140mA -12V

Notes: A spectral processing playground.

Bandit is a fun combination of band-pass filters, VCAs, and routing options.

It serves multiple functions including equalizer, crossover, multiband VCA, 4 band spectral mixer, and spectral external FX insert point.

It allows you to:

Cut or emphasise different frequency bands of a signal, acting as a voltage-controlled equalizer/isolator.
Split a sound into four different frequency bands for external processing, and if needed, insert them back
Mix four different signals with predefined tone placement in the mix.
Create four different sounds from one sound source by modulating the volume with four different envelopes.
Create evolving timbres by modulating one or more frequency bands using LFOs or audio-rate modulation.

Specs

Current needs: +12V: 80mA, -12: 70mA, 5v:0
Width: 8 HP
Depth: 30mm (including power connector)

Notes: THE SBG-PRO supports mono, stereo, balanced, and unbalanced input and output via 6.35mm jacks with level matching controls with clipping indication. The module features both direct and voltagecontrolled equal power crossfading between wet and dry sources.

Additionally, an expression input, along with the included 'floating ring' cable and conditioned output, ensures safe, voltage-limited CV control of external devices from your modular system.

The module extends its sibling, the original S.B.G, by adding full size stereo balanced jack connections and voltage control focusing more on connectivity with not just pedals but also pro audio equipment including rack effects, 500 Series modules and mixing consoles.

Notes: Part of Knobula's excellent polyphonic Eurorack range, the Monumatic is an eight-voice poly/monophonic synth module with 16 oscillator modes, covering everything from virtual analogue to cutting-edge tone generation algorithms.

Supplier's Notes:
Monumatic is a fully polyphonic 8-voice synthesiser and a monophonic synthesiser packed into a compact 12HP module.

It features16 selectable oscillator modes to provide a diverse range of both classic and futuristic tone generation using exclusively virtual analog algorithms. These include; Roland super-saw, Polymoog vox humana, Casio phase distortion, Solina string synth, percussive drawbar organs , "noisy cassette" strings, pulse width modulation and some gnarly asymmetric sync oscillators, all modelled without samples and each one of these customisable using the Detune control and each providing the foundation for further signal processing though the filter and effects sections.

6 powerful filter types are provided, including a vocal vowel filter, a 24db/oct Butterworth low pass filter, a dual peak notch filter and a phase shifter, each of which features an overdrive setting.

Like its sibling module Poly Cinematic, Monumatic is designed to be simple to use yet versatile, offering minimal controls to access a wealth of sounds, avoiding the need to scroll through 1000s of complex presets.

Monumatic supports full analog control of every parameter, with two instantly assignable CV inputs, as well as dedicated CV inputs for Gate, V/Oct and Filter cutoff, with additional digital control using comprehensive Midi CC and MPE implementation. An altogether unparalleled potential for expansion and integration into the eurorack universe.

As well as full midi capability, the 8 built-in chord presets can be custom programmed to provide polyphonic stabs and pads and using a single CV/Gate input, arpeggios can be layered polyphonically or "plucked" using long release times. The mono/poly function allows the Monumatic to switch between a fully capable poly synth or a mono synth at the touch of a button.

In polyphonic mode Monumatic introduces an advanced micro-tuning system to modular synthesis, it can replicate the organic drift of vintage analogue oscillators or it can apply realtime tuning temperaments to enhance harmonic authenticity using 'just' intonation, this parameter can even be assigned to CV control.

Notes: LFO utility in 1U format, small and straight forward.

Select between 3 different wave forms, chose a frequency between 0.03Hz to 36Hz and start modulating!

A Jumper in the back allow you to change the range.

WAVE >>> Chose a waveform for the oscillator. Select between square, triangle or a mixture of both.

SPEED >>> Set the frequency of the oscillator.

OUTPUT >>> The LFO output

Dimensions: 8 HP, 23 mm deep, module is a 1U tile in Intellijel format

Current Draw: 56 mA +12V, 2 mA -12V

Notes: The mmMidi is a simple & compact MIDI interface for your Eurorack synthesiser. It translates two independent channels of MIDI note, velocity and gate information to corresponding control voltage signals via either a classic MIDI DIN type connection or as a driverless USB MIDI device.

The mmMidi also converts MIDI Clock to analogue x24 fixed clock and run outputs (i.e DIN Sync). The optional mmT expander provides a third MIDI channel of 8 key mapped gate outputs.

Requiring minimal configuration and a pain free set up, the mmMidi makes it easy to sync Pam's clock to your DAW, control multiple synth voices, and trigger drum or sample modules with the optional mmT expander. The new USB-C connection makes it easy to drive your modular not just from your computer but also via your tablet, phone or any USB MIDI Host.

(Note: New 2025 mkII version adds USB-C functionality.)

Technical Specifications

Power: +12V 50mA / -12V 0mA
Size: 4HP
Depth: 38mm
MIDI response latency: 200-400 uSec
Resolution: Factory calibrated 12 bit 0-8V CV outputs. +5V gates

Notes: Packed with powerful features while maintaining intuitive playability, Strymon's Magneto module is a stereo multi-head tape delay that also functions as a looper, phrase sampler, vintage spring reverb unit, phase-aligned clock multiplier, chaotic oscillator, zero latency sub-oscillator and more, with extensive CV I/O.

Turn simple monophonic signals into complex orchestrations. Create new oscillator tones using self-oscillation. Add rich stereo dimension to your sound, and enjoy the inherent warmth and sweet, subtle distortion characteristics of magnetic tape. Magneto transforms even the smallest rack into a fully expressive, immersive instrument.

To capture the full experience and complexity of a vintage tape echo machine, every last tape system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic tape when driven hard, to hands-on real-time controls for tape age, tape crinkle, and mechanical wow and flutter, Magneto delivers a rich multi-head delay experience that adds life and vibe to your sound.

Every function, control, gain stage, and signal path component in Magneto works together to respond musically and smoothly, even during the wildest live modular improvisations. All this is combined with a luxurious spring reverb to take the sound of your modular setup to a new level, and your sonic explorations into far-out territories.

Not only does Magneto deliver the warm, luscious delay signals that tape delays are known for, it is also capable of a high degree of saturation. Turn up the Record Level knob to send a hot signal to the record head for any amount of tape saturation you desire. Turn up the Tape Age control for warmer repeats. Add some truly beautiful Spring Reverb. Magneto adds organic heart and soul to the sound of your modular.

The effect of the Low Cut and Tape Age knobs are explored, followed by the mechanical 'deterioration' of the machine with the Crinkle and Wow and Flutter controls. The Speed knob is put to use for sonic enhancement.

In a typical digital effect the dry signal gets converted to digital, causing conversion noise and latency. Signals are often attenuated before combining digital dry and wet, with makeup gain amplifying the conversion noise. To avoid this scenario, Strymon have equipped Magneto with a completely analog dry path. Why go to all this trouble? Because the improvements in dynamic range and reduction in noise are so dramatic.

Strymon have outfitted Magneto with the powerful Analog Devices SHARC ADSP-21369 processor, which provides a 366 MHz core instruction rate, and an incredible 2.4 Gigaflops of peak performance. Thanks to this high-powered technology platform within Magneto, we had the freedom to craft our processor-intense tape echo algorithms without compromise.

Notes: A handy combination of two of Serge's most recent designs:

The GATE (left side) is an enhanced redesign of the classic Serge Gates which can be used as a linear or exponential VCA or ring modulator or some interesting combination of these.

The VCFX 2023 is a newly designed Serge filter that is essentially a Bandpass, but also offers a Lowpass output.

Serge NEW GATES / VCFX 2023 for eurorack:

Designed by Serge Tcherepnin 2023
Eurorack format (3U), 18 hp
Power consumption: 24mA @ +12V, 24mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: A powerful utility module:

The 2+2 Mixer (left side) is a combo of two DC coupled 2-channel mixers with a sum out. For audio or CV purposes.

The Dual VCA is the audiophile and distortion friedly VCA taken from the Stereo Mixer. It has a special exponential response that imitates the behavior of the early Serge VCAs and allows massive amplification and overdrive. Beware - the resulting signal can get very high amplitudes (up to 16Vpp) and allows squaring of a sine or triangle wave.

Serge 2+2 Mixer / Dual VCA for eurorack:

Designed for audio performance
Eurorack format (3U), 18 hp
Power consumption: 55mA @ +12V, 50mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: Tap into the fascinating world of random modulation and creative signal processing with our innovative 2HP Eurorack compatible Dual Sample and Hold module. This compact but powerful tool is a must-have for anyone who wants to enrich their soundscapes with unique, unpredictable textures and sequences. Perfect for experimental musicians, modular synth enthusiasts, and creative sound designers.

Space-saving design

With its narrow 2HP width, the Dual Sample and Hold module fits seamlessly into any Eurorack system without compromising on functionality.

Dual operation

Two independent sample and hold channels give you double the creativity. Use them for stereo effects, parallel modulation sources, or complementary CV sequences to add a new dimension to your sounds.

Standardized inputs

A special feature of this module is the normalization of the "in" and "trigger" inputs of the second channel to the first. This means that the second channel will automatically pick up the signals from the first channel if no separate inputs are connected. This intelligent linkage allows you to create complex, interconnected modulations with just one input signal.

Flexibility of use

Whether you want to create random melodies, rhythmic variations, or dynamic soundscapes, this module gives you the flexibility you need. Experiment with different input signals and triggers to achieve surprising and inspiring results.

Intuitive operation

Despite its sophisticated functionality, the Dual Sample and Hold module is intuitive to use. It is therefore suitable for beginners in the world of modular synthesizers as well as for experienced users who want to expand their sound palette.

Dimensions
2 HP
39 mm deep

Current Draw
15 mA +12V
15 mA -12V
0 mA 5V

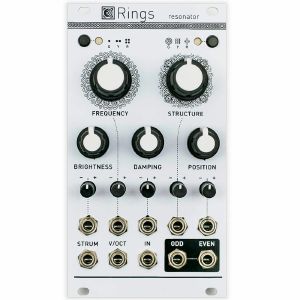

Notes: Rings is a resonator, the essential ingredient at the heart of several physical modeling synthesis techniques. The resonator transforms an external, unpitched excitation audio signal into a full-bodied pitched sound. Rings is the bar, the tube or the bunch of strings you cause to vibrate with a bursty external signal.

Any signal can be fed into the resonator, including envelope clicks, trigger signals, noise bursts, even tonal sounds. It also contains a special "polyphonic mode", where four notes can ring together at the same time. Although it is not truly polyphonic, it adds density and chordal characters to the sounds output. For those wanting the functions of Elements without the losing HP real-estate, Rings is exactly the solution.

Three families of vibrating structures are simulated by the module, with CV control over their parameters:

Strings, membranes and tubes as modelled by Elements' resonator section (modal synthesis).

Strings coupled together and vibrating in sympathy, with controllable intervals between them.

Strings with a variable amount of inharmonicity.

Rings can be configured so that each new note is played on its own virtual string, while the previously played note(s) still decay. This unique take on polyphony allows the module to play strummed chords.

Controls

Number of strings/structures (1, 2 or 4).
Synthesis model (modal, sympathetic strings, string).
Main frequency (quantized in semitones).
Structure. With the modal and string models, controls the inharmonicity of the spectrum (which directly impacts the perceived "material"). With the sympathetic strings model, controls the intervals between strings.
Brightness. Specifies the brightness and richness of the spectrum.
Damping. Controls the damping rate of the sound, from 100ms to 10s.
Position. Specifies at which point the structure is excited.

Inputs and Outputs

Frequency, structure, brightness, damping and position modulation CV inputs with attenuverter (-8V to +8V).

"Strum" trigger input to indicate when a new polyphony voice needs to be allocated. Normalized to an edge detector detecting changes on the main V/Oct input, or sharp transients on the audio input. Detection threshold at 0.6V.

1 V/Oct frequency input (-1V to +5V).

Resonator audio input, normalized to a filtered pulse/noise burst triggered by the "Strum" input (for stand-alone use). Modular level, up to 16Vpp.

Two audio outputs, splitting the signal into even/odd partials in monophonic operation, or even/odd notes in polyphonic operation.

Specifications

Module width: 14HP
Module depth: 25mm
Current draw: 120mA @ +12V, 5mA @ -12V

Notes: MEGA-TANG Expander MT-EX2 is a new expander module for the MEGA-TANG mixer.

The MT-EX2 adds an extra effects send/return for all channels. It also adds an extra send and return to your MEGA-TANG. Note the MEGA-TANG only supports a single expander at any time.

Technical Specs

Size: 4HP
Depth: 32mm (approx)

Notes: Add-on for the Krait module.

Ewa was created as a lovely partner for the Krait module, a syncable 3-channel modulation source. Paired with Ewa, Krait will get new useful abilities, such as 3 freely routable cv inputs, endless encoder for smooth editing without value jumps, dedicated clock menu button and clock and reset outputs.

Each CV input can be used to record external cv source in Record mode. Beside that you can route any input to any parameter of the LFO and Random too. With Ewa now it is easy to modulate LFO rate or Random slew for example. CV inputs are bipolar and react to the signals between -5 +5 voltages.

Additionally a dedicated clock menu button and clock output can make Krait as a clock source for other modules in your system that need sync.

Technical details

4 hp

20 mA +12V

12mA -12V

0 mA 5V

42 mm deep

CV input voltage ranges: +5-5v, 0v+5v

To use Ewa, you need to install firmware 2.0 on Krait.

Notes: Beatsi is Omni-Tone's love letter to modular drums! Inspired by classic modular drum synthesis which uses the fundamental building blocks, Beatsi's timbres were created using the same methods, only digitally. Beatsi is not a sample player or a physical modeller, and it's meant to be that way.

Beatsi's interface allows for control over individual piece Timbre, Pitch, Decay, and Level. The timbres are organized into 3 kits: an orange (acoustic) kit, a blue (low-fi) kit, and a green (alien) kit. Within these kits the timbres blend smoothly into one another allowing for seamless modulation. Beatsi has two CV modulation inputs which are assignable to any and all parameters with individual attenuversion. Beatsi may be small, but it packs a serious punch.

Technical specs:

- Module Size: 3U X 8HP X 25 mm Deep.
- Current Draw: 160mA (180mA peak)@ 12V, 10mA@ -12V.

What's in the box:

1x Beatsi module
1x User Manual
1x Power cable
1x Jumper cable
4x Mounting screws

Notes: Module A-188-9 is a so-called high speed VCO that tracks perfectly to the 1V/oct scale in the frequency range of about 15kHz ... 500 kHz. The main application is the exact drive of BBD modules (A-188-1/2) to generate sounds realized by means of the so-called Karplus-Strong synthesis. But even in cooperation with other modules featuring high speed inputs (e.g. digital noise, delay, frequency divider) the A-188-9 makes sense. In principle the module is made of a precision audio VCO followed by a PLL (phase locked loop) unit that multiplies the frequency of the audio VCO by 32. Thus the module can be used also as an audio VCO as it features the standard waveforms sawtooth, triangle and rectangle with adjustable pulse width.

Controls:
Frq: frequency control (coarse)
CV: attenuator for the frequency control input CV
Fine: frequency control (fine), small control without knob
PW: pulsewidth control for the rectangle output of the audio VCO, in HSVCO mode this control has to be in the range marked "HSVO", small control without knob

Sockets:
1V: frequency control input 1V/oct scale
CV: frequency control input with attenuator CV
socket with rectangle symbol: rectangle output of the audio VCO, the pulse width of this output is adjusted by means of the control PW, output level ~ 7Vpp (~ -3.5V/+3.5V)
socket with sawtooth symbol: sawtooth output of the audio VCO, output level ~ 7Vpp (~ -3.5V ... +3.5V)
socket with triangle symbol: triangle output of the audio VCO, output level ~ 7Vpp (~ -3.5V ... +3.5V)
socket with inverted comb symbol: high speed VCO output, waveform rectangle, output level ~ 5Vpp (~ -2.5V/+2.5V)

Switches:
Range
upper position: audio VCO mode (frequency range of the audio VCO about 15 Hz to 6 kHz, the high speed output is not usable in this mode! )
lower position: High Speed VCO mode (frequency range of the high-speed output about 15 kHz ... 500 kHz, frequency range of the audio VCO about 500 Hz ... 15 kHz), in this mode the audio VCO and the high speed VCO can be used simultaneously

Slew
upper position: medium slew time
centre position: short slew time
lower position: long slew time
Technical Note regarding the Slew parameter:

Besides the audio VCO the module contains a so-called PLL circuit (Phase Locked Loop) and a 1:32 frequency divider. A slew limiter is part of the PLL. It defines how fast the frequency of the PLL follows the frequency of the VCO. The PLL cannot follow the VCO without any delay. Rather one has to find a compromise between the residual ripple of the PLL frequency and the frequency follow rate. That is the job of the slew limiter (works in principle like a glide or portamento unit). For this the module is equipped with a 3-position switch that is used to switch the slew time in 3 ranges. When mostly higher frequencies are used ((~ 100kHz ... 500 kHz) a short slew time can be chosen. When also lower frequencies are required (< 100kHz) a longer slew time may be used to reduce the residual frequency ripple. More details about the working principle of a PLL can be found in the information about module A-196. Module A-188-9 is in principle an A-196 combined with an audio VCO and a 1:32 frequency divider.

Width: 4HP / 20.0 mm
Depth: 45 mm (measured from the rear side of the front panel)
Current: +30 mA (+12V) / -15 mA (-12V)

Notes: What do you get when you combine voltage controlled distortion and one of the most infamous bassdrums? Hexinverter took one of the most revered bassdrum synthesis designs of all time - the TR-808 and completely redesigned it for use in a modular analogue synthesiser.

13HP
30mm deep
+55mA, -45mA
Eurorack format module

Notes: Clock generation meets waveform manipulation in this analogue harmonic oscillator. Combine with the Tobinski sequencer and/or interpolating scanner modules for the best creative results.

Supplier's Notes:
The Harmonic Timing Generator is a versatile Eurorack module that combines advanced clock generation with harmonic waveform manipulation. Combined with the Tobinski Sequencer, the module is a great tool for rhythmic and sonic creativity in the modular system.

As a reference clock generator, the Harmonic Timing Generator produces a base frequency with analogue multipliers (x1 to x8) to generate complex timing signals. Three selectors provide manual or voltage-controlled frequency switching, offering flexibility for intricate sequencing patterns. An LFO mode enables slower clocking rates, ideal for driving sequencers or generating modulation sources.

When used with the Interpolating Scanner, the sawtooth outputs of the Harmonic Timing Generator are transformed into sine waves. This allows the module to function as a harmonic oscillator at audio rates or as a versatile modulation source in LFO mode. Its dual functionality ensures that it can adapt to a wide range of patching needs, from rhythm generation to rich harmonic exploration.

The Harmonic Timing Generator is a versatile and creative tool, offering rhythmic and harmonic possibilities that complement any modular synthesizer setup. Its integration with other Tobinski modules ensures a cohesive and expansive sonic palette.

Power consumption: 235mA at +12V and 176mA at -12V and 20mA at +5V

Depth: 27mm

18 HP

Notes: Expand the connectivity options in your Eurorack system with the versatile 2HP Eurorack compatible Passive Multiple. This compact module is an indispensable helper when it comes to efficiently distributing signals within your modular setup. With its intelligent design and two normalized channels, it offers a flexible solution for a wide range of patch requirements.

Space-saving design

With its slim design of only 2HP, the Passive Multiple fits seamlessly into any Eurorack system without taking up much space.

Flexible Signal Distribution

Thanks to the two normalised channels, this module can be used either as a 2x 1->3 multiple for distributing a signal to up to three targets, or as a 1x 1->6 multiple to send a signal to up to six targets. This flexibility makes it a true all-rounder for your patch environment.

Optimized for gate and trigger

The module is specially designed for the distribution of gates and triggers. It allows you to route a signal unchanged to multiple outputs, which is ideal for complex signal paths.

Limited CV signal suitability

Although the passive multiple can also be used for CV signals, it is only suitable to a limited extent due to its passive design. For precise voltage distribution, especially with pitch CV, we recommend using a buffered multiple to avoid signal loss and inaccuracies.

Dimensions
2 HP
14 mm deep

Current Draw
Module does not draw current

Notes: The Subharmonic Oscillator is one of Serge's latest inventions and also one of his most extraordinary designs. 7 accurate analogue VCOs tied at the waist- in unison, yet their frequencies can open up like a fan, creating complex clusters. Each voice generates a pulse wave. It is temperature compensated and follows exceptional 1V/Octave tracking.

In addition, each voice provides (voltage controlled) pulse width modulation or subharmonic division as well as an individual output. The precision of these voices in combination with a global Spread control and various FM inputs opens up an enormous sonic range from massive unisono sounds to dissonant, orchestra-style textures.

The ODD and EVEN outputs enable the use as a stereo oscillator.

MEDUSA for eurorack:

Original Serge 2023 design
100% analogue
Eurorack format (3U), 42 hp
Power consumption: 220mA @ +12V, 200mA @ -12V
Skiff-friendly: < 25mm (1")

Notes: Expand the sound of your modular rack with incredibly lush, ethereal reverbs. Enhance signals with gorgeous chorus, flanging, and modulated delays. Create uniquely expressive synth voices with Karplus-Strong string synthesis. StarLab is a single module that will completely transform your modular rack.

The seemingly simple idea of allowing the pre-delay signal to be fed directly to the module's output led to the development of rich sounding delay, chorus, and flanger effects, all of which can be used together with or independent of the reverb.

While experimenting with short delay times using feedback and filtering, Strymon began finding very musical and expressive Karplus-Strong string synthesis sounds, and realized that StarLab could move beyond signal processing and become a truly unique voice module as well. All this ultimately resulted in the creation of a module that is equal parts reverb, delay/ modulation, and playable instrument.

From patch creation to live performance, StarLab's powerful features are easily accessible at the turn of a knob or the touch of a button. With no menus to wade through, StarLab's interface is designed for intuitive hands-on sonic exploration, while every function and control works together to respond musically and smoothly.

From perfectly voiced room ambience to vast, immersive, nearly infinite decays, StarLab offers the pinnacle of premium reverb sounds with unparalleled depth and spaciousness. Add musical intervals to the reverb signal with Shimmer, and enhance the harmonic spectrum with Glimmer, while enjoying real-time control over the size/pitch of the reverb process.

StarLab has vastly expanded what reverb pre-delay can do by allowing you to bus the pre-delay signal to the output while making the pre-delay time a modulation target. This results in the ability to create rich choruses, sweeping flanger effects, and beautiful modulated delays, while also processing signal through the reverb.

In addition to input signal processing, StarLab is a powerful Karplus-Strong string synthesis voice module that allows freely alternating bowing and plucking as well as dynamic string damping. This results in an astoundingly expressive and lifelike instrument with a unique voice all its own, which can be enhanced and expanded by the full range of StarLab's reverb capabilities.

Notes: Expand the capabilities of your Eurorack system with the 2HP Eurorack compatible Single Buffered Multiple. This compact but powerful module is the perfect solution to multiply and distribute your signals without losing quality. It is specially designed for synth lovers who want to optimize their signal chain and shape their soundscapes with precision.

Ultra-compact design

With a width of only 2HP, this module fits seamlessly into any Eurorack setup, maximizing the space available for further creative expansion.

Seven outputs

Equipped with seven outputs, our Single Buffered Multiple allows simultaneous signal distribution to multiple modules. Perfect for complex patches where you want to send a signal to different destinations.

Buffered Outputs

The buffered outputs ensure that signal integrity is maintained even when distributed across multiple modules. Enjoy precise control and stability in your signal chain without sacrificing signal quality.

LED indicator for positive input signals

A special feature is the integrated LED, which lights up as soon as a positive input signal is detected. This visual feedback is not only convenient, but also makes it easier to troubleshoot complex patches and improve the user experience.

Optimal flexibility

Whether you want to route audio signals, control voltages or triggers, our Single Buffered Multiple offers the flexibility you need to meet your creative needs.

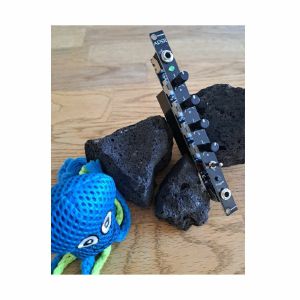

Notes: Quad Attenuator/Inverter, Splitter, and Offset Generator

Scale your audio or CV sources and route them to various destinations with this versatile utility. It consists of four identical unity gain amplifiers. Each amplifier can multiply an incoming signal by values ranging from 0 to 1 (for attenuation) or from 0 to -1 (for inverting attenuation). The input of each channel is normalled to the input of the next channel, allowing for easy signal routing from one input to the subsequent ones.

The first channel is normalled to 10V, enabling the module to function as an offset generator when no input is connected.

Features

Inversion switch per channel.
Precise zero at the left side of the pots.
Four level LEDs indicate output level and polarity.
Cascaded input topology

Specs

Current needs: +12V: 60mA, -12: 50mA, 5v:0
Width: 4 HP
Depth: Assembled version 25 mm
Depth: DIY version 35 mm
Designed, kits prepared and modules assembled in Barcelona.

Notes: Legendary Vermona drum synthesis circuits get reimagined for Eurorack. The Bass/Drum reworks the kick and 'drum' circuits from the DRM-1 for extra modular flexibility, maintaining the powerful analogue sound.

Supplier's Notes:
With BASS|DRUM, Vermona have transferred the sonic foundation of the DRM1's KICK and DRUM instrument channels to the Eurorack format. They reworked the existing circuitry in key areas to optimize it for the modular context. The result is an Eurorack sound generator that clearly reveals its origins and at the same time surpasses them many times over.

The modulation possibilities of BASS|DRUM offer enormous flexibility. Many parameters like the pitch of the oscillator, the decay time and the integrated wave shaper can be controlled by external voltages. For example, you can create rhythmically alternating long and short or low and high kicks or tonal variations by modulating the waveform.

Use the DYNAMIC input to control the amount of force your trigger source applies to the internal circuitry of BASS|DRUM. This not only changes the volume, but also many different nuances of the sound.

Bass or drum? BASS|DRUM can do both, without compromise. If you need drum sounds that follow the tuning of your music, you'll find what you're looking for here. At the same time, the module serves as a full-featured audio oscillator that can be used to create bass lines or melodies.

From deep, powerful bass drums, toms and tom-toms to high-frequency pings and percussive chirps - no problem with BASS|DRUM! In combination with other modulation sources, this spectrum can be extended infinitely. The module is also an excellent oscillator for anything other than classic analog drum sounds.

Notes: Multi-operator phase-modulation platform oscillator ideal for lovers of drone

Toros Iteritas Alia is a multi-operator, three-algorithm phase-modulation oscillator. Taking inspiration from Nosie Engineering's favourite things about FM synthesizers and doing away with complicated interfaces and mysterious controls, Toros prioritizes immediacy and, of course, epic sounds.

The unique Blendex controls allow the user to route each oscillator to be a PM for the next oscillator in the algorithm or direct to the output. Fine-tune the output for your needs with the frequency controls that constrain the range to span a minor third, an octave, or two octaves. Dial in and morph between anything from dark and noisy to tonal to sub-shaking sounds with ease with the completely CV-able interface.

Designed with drones in mind, Toros is the perfect tool for long, evolving textures and dark drones - or big, clangorous tones if that suits your patch better.

Toros Iteritas Alia is available on Noise Engineering's 10HP Alia oscillator platform. Buy an Alia module and use the included USB cable to connect to the Firmware Swap app and check out any other Alia firmware, free of charge, any time. More info can be found on the World of Alia page here.

Hotswappable overlays are coming in January, so you can easily panel your module to match your firmware, no assembly required.

Size and Power
10HP Eurorack
+12v:100mA
-12v: 15mA
Toros - perforated lizard - from Latin Torosaurus "foundation" with suffix -lus "small"

Iteritas - repetitiousness - from Latin itero "repeat" with suffix -tas "state of being"

Alia - supreme, from Latin alia

"Lizards reign supreme, as always"

What's in the box?

Module
Power cable
Micro USB cable

Noise Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase.
