New releases today: Studio Equipment

Notes: Control Forge's core functionality is drawn from the E-mu Morpheus's insanely powerful (but hard to program on a two-line display) Function Generators. But now expanded into a supremely flexible modulation source encompassing elaborate one-shot contours, evolving cyclical patterns and sequences of arbitrary length and complexity.

At its most basic, it's an 8-segment function generator with variable time and target voltage level for each segment. Each segment's level can be defined either absolutely or relative to the ending level of the previous stage and can optionally be quantized to the nearest 1/12 volt, additionally, each segment's level may have a user defined range of randomness of either linear or gaussian distribution.

'Tempo Mode' lets you specify each segment's length in musical note values relative to a tempo set in BPM. The time scale may be modulated under CV control or manually via the encoder during runtime.

There are 67 different transition shapes between segments (indicated graphically on the display during selection), from linear and exponential shapes to various flavours of random, chaotic, and many more that don't lend themselves to one-word descriptions, including the ability to pass CVs directly through to the output for individual segments. Also included are 'DC' shapes that allow the module to be used as a sequencer with all of the module's available programmability. When combined with the Preset Sequencer described below, sequences can be hundreds of steps long and modified in real time manually or by CVs.

Each segment may optionally have a conditional jump mode that results in a jump to another selected stage if a particular condition is met. e.g. a CV being above or below the selected conditional value, the presence or lack of a gate or logic high at their respective inputs, rising or falling edges at the inputs, etc. So, in addition to one-shot shapes, extremely elaborate cyclical patterns can be programmed that evolve based on the various conditional inputs.

Control Forge's AutoChain functionality allows the creation of two very specific kinds of multi-preset patterns: A multi-preset retriggerable pattern (like a long syncable LFO), and a multi-preset 'envelope-like' pattern with retriggerability, an optional sustain section, and a 'release' section that's jumped to on gate fall. Two independent triggers can be programmed to fire in response to a variety of events and can be used to affect either CONTROL FORGE itself or external modules.

500 presets can be saved and recalled. a preset sequencer allows stepping through up to 200 user-defined series of presets under trigger, clock or manual control. This allows contours and sequences of almost unlimited length and complexity. All presets and sequences can be transferred to any number of Satellite modules, which can then operate as stand-alone modulation sources, completely independent of the Control Forge.

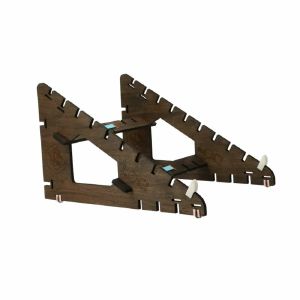

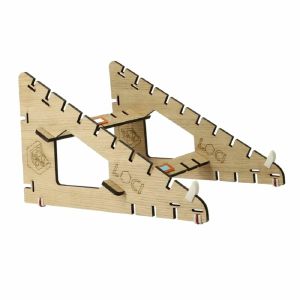

Notes: The LOCI Classic 2.0 is a clean, compact stand designed for most synthesizers and desktop gear. Its single-tier design offers simplicity without sacrificing flexibility - just flip the stand to switch between a 30 or 60 degree angle, depending on your preferred playing or viewing position. Whether you're working in a compact studio or performing live, the Classic 2.0 delivers a stable, ergonomic solution with a tool-free setup, flat-pack portability, and a premium finish in oak or walnut veneer. It's also fully compatible with other LOCI components, allowing your setup to grow with your needs.

The Classic 2.0 is designed to offer a clean and adaptable platform for your most-used gear. Whether you're dialing in sounds in the studio or performing live, the angled options help improve ergonomics and visibility while maintaining a strong, stable base.

As a core part of the LOCI ecosystem, the Classic 2.0 is not only a stand-alone solution-it can also be combined with XL, Mini, or other LOCI components for multi-tiered setups. Whether you're just starting out or fine-tuning a pro-level rig, the Classic 2.0 is a dependable foundation built to grow with your workflow.

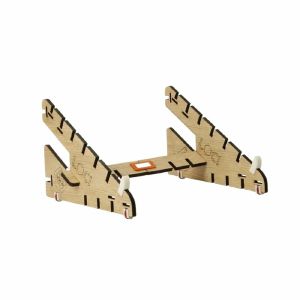

Notes: The LOCI Classic 2.0 is a clean, compact stand designed for most synthesizers and desktop gear. Its single-tier design offers simplicity without sacrificing flexibility - just flip the stand to switch between a 30 or 60 degree angle, depending on your preferred playing or viewing position. Whether you're working in a compact studio or performing live, the Classic 2.0 delivers a stable, ergonomic solution with a tool-free setup, flat-pack portability, and a premium finish in oak or walnut veneer. It's also fully compatible with other LOCI components, allowing your setup to grow with your needs.

The Classic 2.0 is designed to offer a clean and adaptable platform for your most-used gear. Whether you're dialing in sounds in the studio or performing live, the angled options help improve ergonomics and visibility while maintaining a strong, stable base.

As a core part of the LOCI ecosystem, the Classic 2.0 is not only a stand-alone solution-it can also be combined with XL, Mini, or other LOCI components for multi-tiered setups. Whether you're just starting out or fine-tuning a pro-level rig, the Classic 2.0 is a dependable foundation built to grow with your workflow.

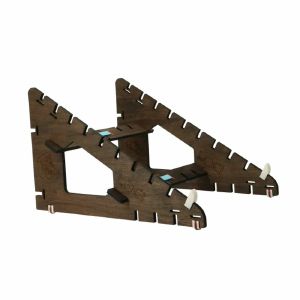

Notes: The LOCI Dinky 2.0 interlocking stand is a compact, versatile stand built for modern creators working with small or mobile studio setups. A scaled-down version of the Classic 2.0, it maintains the same high-quality build and flexible modular design. Use it in tight spaces - like mobile rigs, small studios, or live setups - without sacrificing stability or workflow. It supports synths, drum machines, grooveboxes, and MIDI controllers with up to 25 full-sized keys.

The dual-angle design allows you to flip the stand for a 30- or 60- working angle to suit your setup. Each piece is precision laser-cut from 6mm oak or walnut veneer for strength, durability, and a refined look. The natural wood finish blends beautifully with any studio or creative workspace.The Dinky 2.0 assembles tool-free and snaps together in seconds - no screws, bolts, or tools needed.

As part of the LOCI modular range, it pairs seamlessly with stands like the XL and Mini for custom setups. Combine stands to build multi-tier rigs, or use the Dinky solo for a clean, minimal layout. It's lightweight, flat-packable, and easy to transport between sessions or gigs. Non-slip bands are included to keep your gear secure while performing or producing.Whether recording, performing, or organizing, the Dinky 2.0 adapts to your workflow with ease.

Notes: The LOCI Dinky 2.0 interlocking stand is a compact, versatile stand built for modern creators working with small or mobile studio setups. A scaled-down version of the Classic 2.0, it maintains the same high-quality build and flexible modular design. Use it in tight spaces - like mobile rigs, small studios, or live setups - without sacrificing stability or workflow. It supports synths, drum machines, grooveboxes, and MIDI controllers with up to 25 full-sized keys.

The dual-angle design allows you to flip the stand for a 30- or 60- working angle to suit your setup. Each piece is precision laser-cut from 6mm oak or walnut veneer for strength, durability, and a refined look. The natural wood finish blends beautifully with any studio or creative workspace.The Dinky 2.0 assembles tool-free and snaps together in seconds - no screws, bolts, or tools needed.

As part of the LOCI modular range, it pairs seamlessly with stands like the XL and Mini for custom setups. Combine stands to build multi-tier rigs, or use the Dinky solo for a clean, minimal layout. It's lightweight, flat-packable, and easy to transport between sessions or gigs. Non-slip bands are included to keep your gear secure while performing or producing.Whether recording, performing, or organizing, the Dinky 2.0 adapts to your workflow with ease.

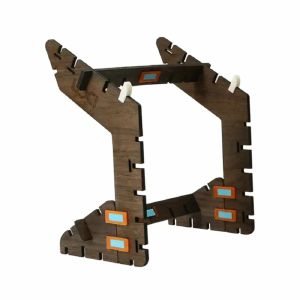

Notes: The Doubl2 2.0 interlocking stand by LOCI is a sleek and adaptable solution tailored for modern creators. Designed with simplicity and versatility in mind, it offers a 2-tier angled setup that's ideal for streamlined studio and performance environments. Whether you're a synth lover, DJ, or producer, the Doubl2 helps you keep your gear organized while saving space. Use the two interlocking stands together for a tiered arrangement, flip them for alternative angles, or separate them for dual single-tier stands. Perfect for everything from synths and samplers to laptops and controllers.

The Doubl2 2.0 was built for convenience without compromising on strength. It assembles in moments - no tools needed - and holds your gear with confidence. With its solid 6mm oak veneer construction and precision laser cuts, it delivers a professional, sturdy platform for your essential equipment.

As part of the LOCI ecosystem, the Doubl2 is fully compatible with other interlocking stands, allowing you to build and reshape your setup as your needs evolve. Whether you're performing live, reorganizing your home studio, or just keeping things neat, the Doubl2 2.0 brings function and flexibility in a beautifully minimal form.

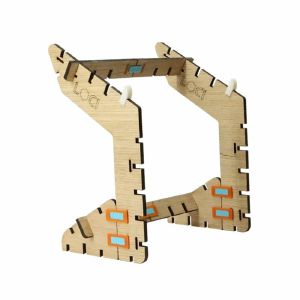

Notes: The Doubl2 2.0 interlocking stand by LOCI is a sleek and adaptable solution tailored for modern creators. Designed with simplicity and versatility in mind, it offers a 2-tier angled setup that's ideal for streamlined studio and performance environments. Whether you're a synth lover, DJ, or producer, the Doubl2 helps you keep your gear organized while saving space. Use the two interlocking stands together for a tiered arrangement, flip them for alternative angles, or separate them for dual single-tier stands. Perfect for everything from synths and samplers to laptops and controllers.

The Doubl2 2.0 was built for convenience without compromising on strength. It assembles in moments - no tools needed - and holds your gear with confidence. With its solid 6mm oak veneer construction and precision laser cuts, it delivers a professional, sturdy platform for your essential equipment.

As part of the LOCI ecosystem, the Doubl2 is fully compatible with other interlocking stands, allowing you to build and reshape your setup as your needs evolve. Whether you're performing live, reorganizing your home studio, or just keeping things neat, the Doubl2 2.0 brings function and flexibility in a beautifully minimal form.

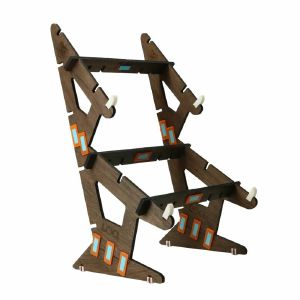

Notes: The XL 2.0 interlocking stand by LOCI is a bold and versatile addition designed for creators who need more space, height, and flexibility. Designed to attach seamlessly to the Classic 2.0 or Dinky 2.0 stands, it transforms your setup into a dynamic, multi-tiered workstation. Whether you're managing a growing gear collection or refining your ergonomic layout, the XL adapts effortlessly. Best of all, it can be separated into two independent stands for maximum versatility - making it perfect for everything from drum machines and mixers to laptops and synths.

The XL 2.0 interlocking stand was designed to expand your creative space without adding clutter. It assembles in seconds and provides a sturdy, elevated platform for your essential gear. Whether integrated into a larger stand or used on its own, the 6mm oak or walnut veneer construction ensures durability and professional aesthetics.

As a key piece of the modular LOCI ecosystem, the XL 2.0 stand gives you the freedom to evolve your workspace as your gear and workflow change. Attach it to a Classic 2.0 or Dinky 2.0 for an extended setup, or use it solo as needed. With its thoughtful design and 30-day money-back guarantee, the XL stand delivers serious adaptability in a sleek, minimal form.

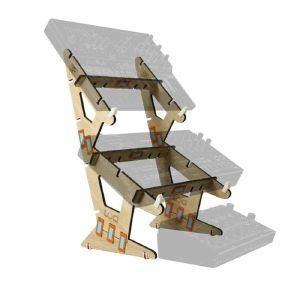

Notes: The XL 2.0 interlocking stand by LOCI is a bold and versatile addition designed for creators who need more space, height, and flexibility. Designed to attach seamlessly to the Classic 2.0 or Dinky 2.0 stands, it transforms your setup into a dynamic, multi-tiered workstation. Whether you're managing a growing gear collection or refining your ergonomic layout, the XL adapts effortlessly. Best of all, it can be separated into two independent stands for maximum versatility - making it perfect for everything from drum machines and mixers to laptops and synths.

The XL 2.0 interlocking stand was designed to expand your creative space without adding clutter. It assembles in seconds and provides a sturdy, elevated platform for your essential gear. Whether integrated into a larger stand or used on its own, the 6mm oak or walnut veneer construction ensures durability and professional aesthetics.

As a key piece of the modular LOCI ecosystem, the XL 2.0 stand gives you the freedom to evolve your workspace as your gear and workflow change. Attach it to a Classic 2.0 or Dinky 2.0 for an extended setup, or use it solo as needed. With its thoughtful design and 30-day money-back guarantee, the XL stand delivers serious adaptability in a sleek, minimal form.

Notes: Pods are a perfect way to get started in Eurorack, or add more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. The power supply can handle up to 2.0A of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods sized at 64hp and below are also available unpowered)

Each Pod104X typically will house up to 13 modules, but more can be accommodated using a multi-power cable accessory.

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Pods can even daisy-chain with the 4ms Row Power system, making them a convenient outboard skiff. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Notes: Noise Engineering is excited to announce a limited-edition BIA. Same great Basimilus Iteritas Alia (with all the perks of an Alia!), spiffy new outfit.

The panel features black ink overprinted on a black powder-coated aluminum panel. These panels will not be sold separately.

Universal drum synthesizer with roots in the analogue world on a swappable 10HP oscillator platform

Basimilus Iteritas Alia is a parameterized digital drum voice with its roots in the analog world. At its heart, the BIA is a simple six-oscillator additive and FM synthesizer with waveform, harmonic spread, and envelope controls. An adjustable noise oscillator and an extreme take on a wavefolder round out its synthesis abilities. Its straightforward controls make sound design fun and performable: create sub-shaking kicks, snares, hats, and unique drum hits with just a few tweaks.

BIA is a classic percussion module but you'll be blown away by how much more it can do. Use it for leads, basslines, or build a whole drum kit with some external CV. Plus, the envelope output means you can use the BIA for shaping and modulating other parts of your patch.

Basimilus Iteritas Alia is available on our 10HP Alia oscillator platform. Buy an Alia module and use the included USB cable to connect to the Firmware Swap app and check out any other Alia firmware, free of charge, any time. More info can be found on the World of Alia page here. Hotswappable overlays are also available so you can easily panel your module to match your firmware, no assembly required.

Basimilus Iteritas Alia is the successor to the Basimilus Iteritas Alter. It was developed to sound nearly identical, with added features and new firmware-swapping capabilities.

Size and Power
10HP Eurorack
+12v:100mA
-12v: 15mA
Basimilus - small foundation - from Latin basos "foundation" with suffix -lus "small"

Iteritas - repetitiousness - from Latin itero "repeat" with suffix -tas "state of being"

Alia - another, other from Latin alia "other", also marine animals, or salty from Greek "halia"

"more small salty foundation of repetitiousness"

Notes: Here to stay

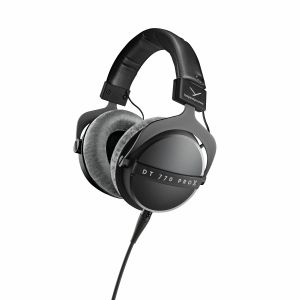

A classic, reimagined: The DT 770 PRO X combines the legendary sound signature of the DT 770 PRO with cutting-edge technology like the STELLAR.45 driver and detachable cable. Made in Germany - for uncompromising studio sound and maximum flexibility.

Legendary sound signature

Building on the legacy of the DT 770 PRO, the DT 770 PRO X delivers its iconic sonic character - rich bass, crisp highs, and outstanding dynamics. Its closed-back, over-ear design makes it perfect for both recording and monitoring - sound that inspires.

Stellar.45 - High-fidelity sound on all devices

Whether in the studio, on the go, or on a laptop - the STELLAR.45 driver (5-40,000 Hz) delivers precision audio every time. A neodymium magnet and finely wound copper coil ensure clean, undistorted sound. With just 48 ohms, it's optimized even for mobile use.

Maximum flexibility - detachable cable

The DT 770 PRO X features a detachable cable with a locking mini-XLR connector for stability. With a 3.5 mm jack and included adapter, you can easily connect to almost any device.
The most comfortable 770 ever

Soft velour ear pads and a redesigned headband with a fontanelle recess ensure lasting comfort. The sturdy spring steel frame guarantees a secure fit.

Professional quality made in Germany

Designed and manufactured in Germany, with durable metal components, a sustainable build, and replaceable parts - built for years of studio use.

Notes: Add new tonal dimensions to your Eurorack setup with the ultra-compact Slimline Ring Modulator. At just 2HP, this module delivers classic modulation effects with precise control - ideal for experimental sound shaping, percussive textures, or metallic overtones.

Space-saving format

With a width of only 2HP, this ring modulator is perfect for compact systems without sacrificing sonic versatility.

Separate Signal and Carrier Input

The module offers two independent inputs for the modulation signal and carrier signal - the basis for the characteristic amplitude modulation effects of the ring modulator.

Level control for both inputs

Built-in level controls allow you to precisely control the signal strength of the input and carrier to make a targeted impact on the sound, from subtle modulations to harsh, complex sonic textures.

Whether for refining sound sources or for radical transformations, the Slimline Ring Modulator is a versatile tool for those who want to add characteristic, modulated timbres to their Eurorack system.

Content:

Module
Bus cable 16-pin > 10-pin, 30cm
2x Screw M2.5x9 Phillips
2x Screw M3x9 Phillips

Notes: Affordable entry-level handheld recorder from one of the most reliable brands in the game. Simple, straightforward two-channel design with built-in microphones for stereo recording and USB audio interface.

Supplier's notes:
DR-07XP

2-Channel 32-Bit Float Handheld Recorder With USB-C Interface and Adjustable Mics

Pro-Quality Portable Recording, Simplified

The TASCAM DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound. With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.

Capture Pro-Level Recordings Every Time

With its 32-bit float recording mode, the DR-07XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording - and you'll never need to worry about setting input levels.

Adjustable Stereo Condenser Microphones

The DR-07XP features unidirectional stereo condenser microphones with adjustable A/B or X/Y configurations, allowing you to capture incredibly vivid stereo recordings in any setting.

Simplicity in Your Palm

With the DR-07XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.

Your Portable Recording Studio

The DR-07XP isn't only a powerful portable recorder - it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.

Ideal for Musicians

The DR-07XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.

On Location

With its compact size, the DR-07XP can travel anywhere for exceptional field recording. Choose from three different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-07XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.

Record Anything, Anywhere

From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-07XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.

Features

2-channel portable handheld audio recorder with microSDXC card storage
32-bit float recording mode ensures low-noise, distortion-free recordings
Stereo AB/XY condenser microphones handle loud environments and sources (up to 125dB SPL)
2-in/2-out USB-C audio interface for recording directly to your computer
Up to 17.5 hours operation with 2 x AA alkaline batteries
Recording modes include 32-bit float/24-bit/16-bit, 96kHz/48kHz/44.1kHz
microSDXC (up to 512GB) cards can be used as recording media
USB Type-C port
Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
Long recordings as MP3 files possible
Various recording function (Auto rec, Self timer, Pre rec)
Overdubbing function
Limiter and Peak reduction
Three low-cut filter levels (40/80/120Hz)
Auto Tone output for use with DSLR camera
Reverb effect for vocal and instrument resonance
Mark function
128×64 pixel graphic LCD with backlight
Tripod mounting point attaches to any standard tripod
Stereo mini line output and headphone output
Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
Playlist function
Built-in monaural speaker makes it easy to check your recordings
Chromatic tuner for tuning musical instruments before recording

* WS-11 Windscreen sold separately
* SD card not included



Recorder specifications

Recording media/file systems: microSD cards, microSDHC cards, microSDXC cards (up to 512 GB)
Recording/playback formats

WAV (BWF)
Sampling frequency: 44.1 kHz, 48 kHz, 96 kHz
Quantization bit depth: 16-bit / 24-bit / 32-bit float

MP3
Sampling frequency: 32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
Quantization bit depth: 24-bit / 32-bit float
Maximum number of input channels: 2
Maximum number of recordable tracks: 2

Analogue audio input/output ratings
MIC/EXT IN jack (can provide plug-in power)

Connector: 3.5mm (1/8") stereo mini jack

Input Impedance: 18 kO or more (when plug-in power is turned off)
2 kO or more (when plug-in power is turned on)
Nominal input level: - 20 dBV
Maximum input level : -4 dBV
PHONES/LINE OUT jack

Connector: 3.5mm (1/8") stereo mini jack
Output impedance: 12 O
Nominal output level : - 14 dBV (10kO loaded)
Maximum output level: +2 dBV (10kO loaded)
Maximum output: 20 mW + 20 mW (32 ? load)
Working impedance: 16 - 250O

Built-in Speaker

Output: 0.3W (monaural)

USB
Connector: USB Type-C
Format:USB 2.0 High Speed Mass Storage Class
USB 1.1 Full Speed Audio Class

USB Audio

Sampling rate : 44.1 / 48 kHz
Quantization bit depth: 24-bit
Number of inputs: 2 channels (output from this unit)
Number of outputs: 2 channels (input to this unit)

General

Power 2AA batteries (alkaline or NiMH)
USB bus power (5V/0.5A) from a computer, etc.
TASCAM PS-P520U AC adapter (sold separately)
Power consumption: 1.7 W (maximum)

Weight: 184 g / 0.406 lb (including batteries)
136 g / 0.30 lb (not including batteries)
Operating temperature range: 0 - 40 -C / 32 - 104 -F

Dimensions
Mic closed: 68 x 159.6 x 27.0 mm
2.68 x 6.28 x 1.06 inch
Mic opened: 90.3 x 159.6 x 27.0 mm
3.56 x 6.28 x 1.06 inch

Included items:
DR-07XP x1
Safety guide (including warranty) x1
TASCAM ID registration guide x1
*Note:0 dBV=1 Vrms, 0 dBu=0.775 Vrms

Notes: Patterns is a 4 channe modular sequencer designed for deep flexibility and hands on performance.

Each channel supports up to 64 steps, with essential creative tools like randomisation, probability, gate length control, swing, clock divisions, and more, giving you everything you need to build evolving, dynamic rhythms.

Its 4×4 grid layout makes programming intuitive and performance friendly, letting you quickly visualize your sequences and punch in steps with ease.

But the real power of Patterns lies in its dedicated Pattern button, your instant gateway to 16 different pattern slots. Switch between them on the fly, program your custom pattern chains, or use CV to jump between patterns and create unexpected breaks, fills, and experimental grooves.

Whether you're building complex arrangements or just jamming, Patterns gives you the immediacy and depth to stay in the flow.

Notes: The concept for Diamond Pedals' Boost/EQ began in the early 2000s, with a request for a 'compression-less' version of the famed Diamond Compressor - combining a clean boost circuit with the Compressor's Tilt EQ.

Nearly 20 years after the resulting original pedal's launch, we've re-imagined this idea on the same platform as the Comp/EQ. Introducing the next-generation Diamond Boost/EQ. This versatile, low-noise pedal delivers a punchy, dynamic sound that's ideal for any set-up

Taking the lively, high-fidelity gain stages of the Comp/EQ, the Boost/EQ offers plenty of punch while maintaining clarity and transparency. While the Tilt and Mid controls give you complete freedom to sculpt your tone. Need more sparkle? Dial it in with the Tilt knob. Looking for a midrange boost to cut through your solos? The Mid control has you covered. Want to make your Marshall tone a bit more Fenderesque? It's all possible with Diamond's Boost/EQ.

In addition, the Boost/EQ features a second mode that provides a low-gain overdrive - transparent, yet full of character. This makes the Boost/EQ the ultimate Swiss Army knife for your pedalboard, combining clean boost, tone shaping and overdrive, into one powerful and versatile pedal.

The Boost/EO offers 2 distinct modes of operation. The first is a clean boost mode designed to increase the output of your signal enabling you to beef-up low-output pickups, drive tube amps and dirt pedals for increased sustain and saturation or simply have your solos jump out in the mix.

Set to the OD mode, the gain structure of the pedal is modified and soft clipping diodes are added to the circuit. This provides smooth, transparent, musical distortion that ranges from just a touch of hair and harmonic overtones, to a nice low to mid gain overdrive. Depending on where your Boost/EO is placed in your signal chain, it will either deliver an increase in volume or distortion/saturation. Place it at the end of your pedal chain or in an amp's series FX loop for a volume boost. Put it in front of your drives and fuzzes for more gain and distortion.

Notes: The One to Four Splitter allows the user to take one input and send it through four buffered outputs for unlimited creative potential. Use it to run out to four amps to play in quadraphonic sound and blow people's minds. Send a clean signal to your DAW and another through your normal signal chain to have a clean back up while recording. Run 2 parallel stereo signal paths! Use the One to Four splitter together with the Four to One Mixer and create wild parallel signal chains! Use the Buffer/Splitter and run 2 x One to Four Splitters to have 8 parallel paths!

This device features a unity gain buffer on each output for maximum punch and clarity. These buffered outputs have a flat frequency response with a high 1 Mohm input impedance and a low 100 ohm output impedance. This means that your signal won't lose any quality and will sound just like you intended. Even long cable runs will be no match for the One to Four Splitter.

Dimensions

4.75 x 2.5 x 1.5 in. (120 × 63 × 38 mm)

Current Draw

15 mA

Input Impedance

1 MO

Output Impedance

100 O

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. EQD always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Notes: The latest in 1010's innovative range of compact devices, the Bento is a fresh take on sampling and sequencing, offering an alternative to conventional options such as Akai's MPC series. Pure standalone creative flow.

Supplier's notes:
Sample Every Flavour

Bento is a portable, all-in-one sampling production lab that brings together flexible sequencing, expressive performance tools, and pro-level connectivity-perfect as the centrepiece of your desktop or mobile rig. Whether you're looping on the go, launching clips live, or sequencing your entire synth setup, Bento gives you the tools to shape your sound from idea to performance.

With pristine 24-bit sound quality, a bright 7" touchscreen, 16 responsive pads, and deep control over samples, MIDI, and effects, Bento offers a fast, fluid workflow in a compact and portable form. Sequence one-shots, build multi-sample instruments, and chop loops using Bento's flexible tracks, scene-based sequencing, and expansive modulation and FX engine.

Designed to replace laptops, simplify cabling, and integrate seamlessly with your gear, Bento features multiple stereo inputs and outputs, USB-C host and device ports, dual TRS MIDI I/O, and a built-in battery for up to 3 hours of mobile creativity.

Recording Capabilities

Capture loops quickly with the option to synchronize the start and stop times to the clock
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Store recorded samples as WAV files on the micro SD card

What's included

bento - sampling production lab
MicroSD card with over 160 patches and over 200 wav files
USB C power cord
USB C power and data splitter
Type B TRS MIDI To MIDI 5 Pin DIN adapter
QR Code with link to the Quick Start Guide

Technical Specs

8 tracks with multiple patch types-sample banks, multisamples, slicers, granular, loops, and external MIDI
16 pressure- and velocity-sensitive pads
7" diagonal touch screen
8 context-sensitive endless encoders
3 stereo inputs, 3 stereo outputs, 1 stereo headphone out
2 TRS MIDI inputs & 2 TRS MIDI outputs (Type A & B)
USB-C host and device ports
Internal battery with 3 hours in low power mode
Includes 155 Patches and over 5000 sample files
Expandable via microSD card
24-bit ADC/DAC
MIDI sequencing, modulation, and CC control support
Compatible with 100 x 100 VESA mounts
Product dimensions: 8" x 8.5" x 2", 2 lb (20.4 x 21.8 x 5.1 cm, 936 grams)
Package dimensions: 10.25" x 8.5" x 2.75", 2.7 lb. ( 26 x 21.6 x 7 cm, 1.2 kg)

Notes: Another banger from Cre8's range of Eurorack-compatible standalone desktop modules, the Assembler is a synth-focussed mixer designed to bring everything together, whether that be other Cre8 instruments or third-party hardware.

Supplier's notes:
Introducing Assembler, a synth-focused audio mixer meticulously engineered to deliver unmatched vintage mixing console sound and intuitive, hands-on control. Developed in partnership with the renowned Pittsburgh Modular Synthesizers team, Assembler builds on the rich history and sonic warmth of classic analogue audio mixers while embracing a modern workflow designed specifically for contemporary electronic artists.

The idea behind Assembler was not only to provide a super flexible tool for mixing live or in the studio, but also to provide a sound sculpting tool that could add depth, complexity, and with its special Pittsburgh-designed circuits, help you even to sound better!

Inspired by the sound of iconic analogue consoles that shaped decades of music production, Assembler captures the essence of vintage mixers famed for their warmth, character, and dynamic response through tonal shaping and analog tape saturation emulation. These custom circuits, meticulously engineered for Assembler by Pittsburgh Modular utilize signal contouring and soft compression to unify the overall mix. This process emulates the signal chain cherished in vintage recordings, adding the warmth, cohesion, and character that other mixers often lack. The result is a better sounding modern electronic music mixer.

Assembler's ten audio inputs are split into three distinct mixer channel types to seamlessly integrate with various audio scenarios and workflows, however all ten channels have several features in common. Each input includes a powerful preamp capable of up to 20x gain boost, ideal for boosting line level signals, subtle clarity enhancement, or aggressive signal saturation. Three assignable aux sends add flexible audio processing options to each channel. Three segment LED meters, independent headphone Cue, and channel Mutes allow for precise and comprehensive monitoring. Channel 1 and 2 add extensive tonal control with vintage-inspired high and low EQ knobs, each offering -15 dB of boost or cut while all six mono inputs include a dedicated pan control. Two sets of stereo inputs take advantage of the powerful preamps and assignable aux sends to work with both Eurorack and line level signals. This allows for seamless integration of a wide variety of electronic instruments.

The Assembler offers significant flexibility with its three assignable aux send channels, allowing effortless integration of external effects like reverbs and delays or functioning as sub-mix channels. Specifically, two stereo returns and one mono return, each with independent gain adjustments (up to 2.7x gain), enable both creative experimentation and professional-grade signal blending.

Assembler prioritizes ease of use with its intuitive one-knob-per-function design. Every feature, EQ adjustment, auxiliary routing, panning, or level setting, is immediately accessible, providing a seamless, frustration-free mixing experience. Users new to audio mixers will appreciate its straightforward operation, while seasoned artists will instantly feel at home with familiar analogue mixer functionalities clearly laid out.

Equally adept at managing both line-level instruments and modular signals, Assembler effortlessly integrates into any studio or live performance setup. A dedicated headphone output with a separate cue mix ensures detailed and reliable monitoring in live situations, enabling performers to preview and adjust their sounds confidently.

Assembler purposefully eliminates extraneous features found in many modern modular mixers, focusing solely on superior audio quality, intuitive user experience, and robust reliability. The result is a professional-quality audio mixer that offers an exceptional analog sound experience at a significantly accessible price point compared to competing products.

Assembler continues this tradition by seamlessly blending revered analogue sound processing with modern modular flexibility, and it will also self-oscillate for all the noise artists, if that is important.

Notes: Exceptional value here. Cre8's analogue drum machine is based on Pittsburgh Modular audio circuits, offering true old-school-inspired drum synthesis and hands-on control at an excellent price.

Supplier's notes:
Introducing Boom Chick, a revolutionary analogue drum machine built on the warmth and character of Pittsburgh Modular's newly designed analog drum circuits. These powerful, expressive percussion voices are paired with an advanced sequencer designed for intuitive creativity and deep rhythmic exploration. Inspired by the hands-on performability of iconic analog drum machines, Boom Chick redefines analogue percussion with exceptional flexibility and sonic precision, tailored for modern musicians and producers.

Compact yet incredibly powerful, the Boom Chick ensures frustration-free jamming and tweaking through its intuitive knob-per-function layout and straightforward interface conventions. It's hands-on, immediate, and built for musicians who want a drum machine that feels alive. Turn up the dirt, push the limits, and make some serious noise.

Created by the Pittsburgh Modular Synthesizers team, Boom Chick features five meticulously crafted drum voices, each designed for maximum flexibility and expressiveness. The sounds are raw, dynamic, and laser sharp, built to drive and slice through any mix. The electricity creating the analog sounds is directly shaped using the knob-per-function interface. No menus, no hassle, just pure, tactile beat-making analogue magic at your fingertips. By focusing on creative, new analogue designs, Pittsburgh Modular ensured that Boom Chick doesn't just mimic the past, but kick starts a new future of analogue beats.

Every voice has been meticulously engineered for maximum sonic impact, making Boom Chick a true drum synthesizer, not just a drum machine. Starting with a massive bottom end, the Kick drum sculpts a specialized sine-wave oscillator using gritty overdrive, pitch manipulation, and a precise, percussive envelope allowing you to dial in everything from low and long or clean and punchy rhythms to aggressive, overdriven beats. The Snare drum showcases the power of modern analog with powerful snare hits that can mimic a physical snare drum or venture into creative new territories. Drum channels 1 and 2 offer even deeper sound-design possibilities. By utilizing two oscillators, wave shaping, frequency modulation, and noise you can generate everything from subtle nuanced percussion to wild, expressive sonic textures. Toms, claps, snares, kicks, cymbals, rim shots, cowbells, congas, claves, space sounds, and outer space sounds can all be dialed in and reimagined. Hats utilize a custom oscillator noise matrix to create crisp, bright metallic tones ideal for intricate rhythmic patterns.

Boom Chick's sequencer is designed to offer profound depth while maintaining intuitive simplicity. It features two powerful modes: Step Mode, for meticulous programming of each drum step, and Live Mode, allowing real-time rhythm creation and expressive performance. Tools such as Step Shift enable quick and precise timing adjustments for intricate rhythmic patterns, while Step Roll and Chance introduce engaging complexity and variation. Timing functions like Humanize, Swing, and Quantize provide refined control over groove and rhythm, allowing for perfectly locked or naturally loose-feeling sequences. Swing adds groove by shifting even steps slightly behind the beat, while Humanize introduces subtle timing variations to simulate natural playing styles. With up to 64-step sequences and polyrhythm capabilities, Boom Chick encourages experimentation by removing the boundaries to live performance and making beats.

At the heart of Boom Chick is a 6-track sequencer that gives you deep rhythmic control while staying easy to use. With design inspiration taken from Pittsburgh's Voltage Research Lab 2, Boom Chick's sequencer will take you from quick jams to mind-bending polyrhythms. This sequencer is not only designed to keep up with you, but also propel you to new territory.

Boom Chick is modular-friendly, MIDI-capable, and performance-ready. This makes it a perfect addition to any studio or live rig. Individual trigger inputs and individual drum outs allow each drum to be sent to a mixer or DAW separately for external processing or recording. MIDI in and out to send and receive clock, trigger drums, or sequence external percussion. Analog clock in and out allows Boom Chick to easily integrate with Eurorack setups and other gear. Separate Line and Headphone outputs make personal jams, recording, or live performances easy.
