The tiny but mighty Eurorack power supply. Winterbloom's love letter to DIYers is perfect for custom cases.

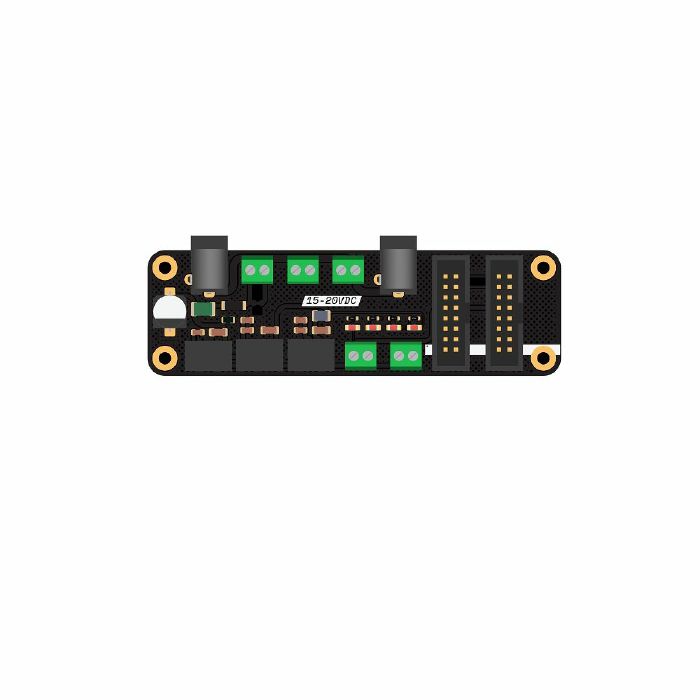

Micronova is a miniature 100x30mm power supply with a big soul. It can provide up to 18W of power for your modules and multiple units can be easily daisy chained to power larger systems.

Despite being adorably small, Micronova provides lots of flexibility for custom case builds. It can be powered through an attached DC barrel jack, screw terminals, or through an optional front entry panel.

Micronova is equipped with two Eurorack power headers that can be expanded using a busboard or flying bus cable.

Micronova also has critical safety features including reverse polarity protection, a resettable polyfuse, and over-current shutdown.

A suitable AC-DC power adapter is required.

A tiny 100mm x 30mm board with M3 mounting holes
Provides +12V @ 1A, -12V @ 300mA, and +5V @ 500mA
Includes two 16-pin Eurorack power headers
Requires a 15V to 20V center positive DC power supply
Multiple units can be daisy chained
Reverse-polarity, over-current, and over-temperature protection
