***B-STOCK: Item refurbished, repaired and in perfect working order.***

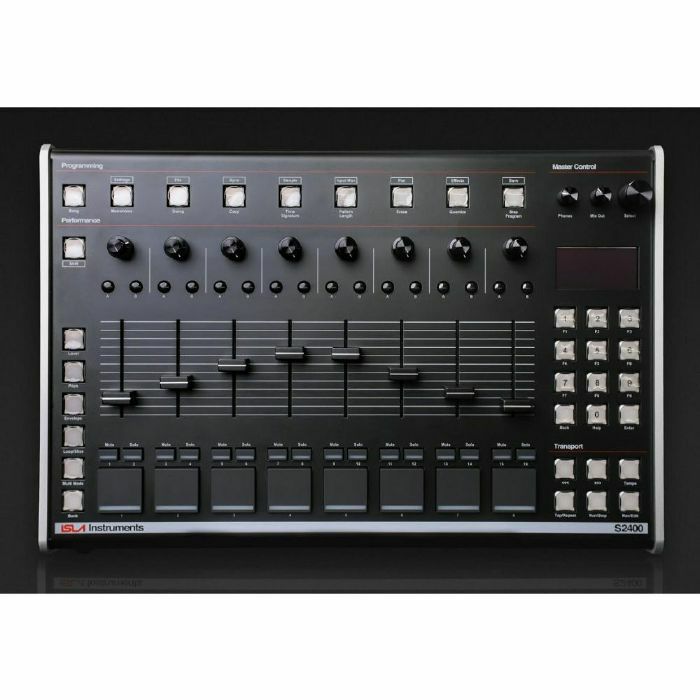

Combining vintage sound with modern features, the S2400 draws heavily on the iconic Emu SP1200 to create a new instrument with a distinctive character. One of the best samplers money can buy.

Supplier's Notes:
A legend, reborn.

The S2400 is nothing short of a passion project. Along with a small team of talented Software Engineers, CAD Engineers and revered artists, Isla Instruments have developed a future classic.

The S2400 is a passion project - to recreate the sound of one of the world's most iconic sampling drum machines, and bring it up-to-date with modern features. The result is the very best of old school and new school technology coming together.

Brad has been obsessed with drum machines for many years - owning, repairing, restoring, modifying countless makes and models (see his HR-16 mods on YouTube).

Staying true to form in both sonic characteristics and design aesthetic were the main drivers in the realisation of this project, while bringing the hardware into the 21st Century and keeping the same 'instant gratification' and intuitiveness of its spiritual pre-predecessor at heart.

A machine built for the now and the future.

S2400 Specifications

Sampler / Audio:
16-Bit 48Khz 'Hi-Fi' Sampling / Playback Engine
12-Bit 26Khz 'Classic' Sampling / Playback Engine
Engine type assignable to each of the 32 sample slots
Sample up to 21.5 minutes per slot (Classic / Mono),
5.5 minutes (Hi-Fi / Stereo)
Simultaneous (Full Duplex) playback and record with 8 channel LiveLooping functionality.
On-screen waveform display (slice audio, set loop-points with ease)
128 MB of built-in factory drum kits (from some of our featured beta team)
Independent Headphone output for monitoring (effectively 2 extra channels)
DSP based LP / HP Filtering per track (more FX planned for future)

Sequencer:
Multiple sequence entry methods: Live recording, Step Sequence, Piano Roll GUI, TR x0x Style
32 Stereo Audio Tracks w / 16 Voice polyphony
32 MIDI Tracks (for sequencing external equipment)
96 PPQN Clock
Per track quantization and swing (including classic mode)
Patterns are up to 100 measures, any time signature
All parameters (level, pitch, envelope, filters) configurable per pattern step
Song mode

Hardware

Bright 128 × 64 pixel OLED display (viewable from any angle)
Ultra High quality Grayhill Optical Data Entry Encoder
8 x 60mm Professional Dual Rail Faders
8 x Dual 'concentric' Pro-Audio rotary pots
Broadcast Equipment grade A / V backlit pushbutton switches
Tactile silicone pads backlit with RGB LEDs
SD Card storage (up to 1TB currently tested)
Classic (OG) input and output analogue filtering circuitry.

I / O

MIDI In / Out / Thru (Standard 5-pin DIN)
2 × 1 / 4" Stereo Mix Out jacks (psuedo balanced)
8 × 1 / 4" Individual audio out jacks (psuedo balanced)
4 × 1 / 4" External input jacks (with adjustable pre-amp modes)
2 × Stereo RCA Line / Phono Inputs (with dual phono pre-amps)
Hi-speed USB 2.0 device port. (USB Audio / MIDI)
USB Host port (connect external USB peripherals, MIDI controllers etc).
3.5mm Clock / trigger in and out jacks (to sync / trigger vintage equipment or modular synths)
Universal Voltage100-250V AC Mains powered.

Physical

Rock Solid 16Ga Cold Rolled Steel enclosure with 6mm Anodised aluminium sidewalls.
Aluminium knobs
Dimensions: (Including knobs, jacks, feet)
Imperial: W18" x D12" x H5" (back) 3" (front)
Metric: W460mm x D310mm x H130mm (back) 80mm (front)
Weight: approximately 13lbs / 6Kgs (metric)

*** Please note: This product does not come with the three-pin PSU kettle leads required, please purchase separately. ***
