***B-STOCK: Product with some signs of usage but in perfect working order***

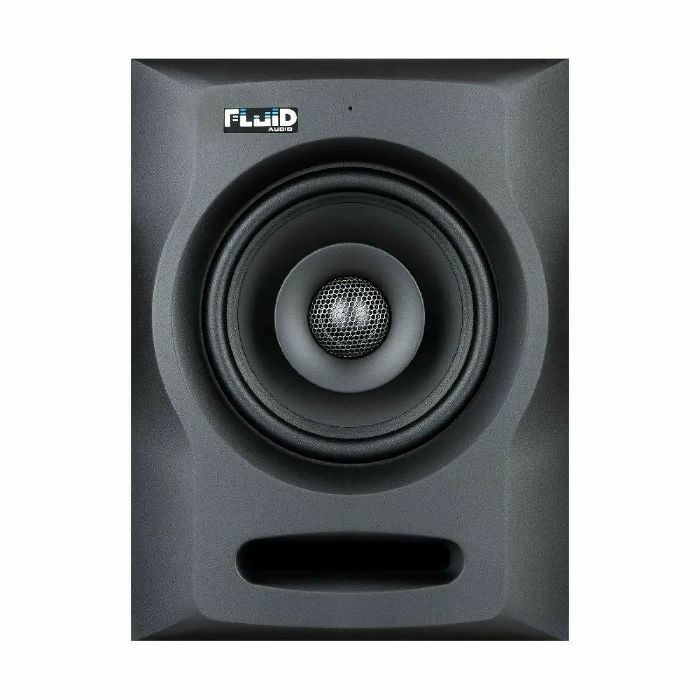

Introducing our new FX50 coaxial studio monitors.
Keeping true to the original keyhole design, the FX enclosure has been updated with a complex radius front baffle, which not only looks pretty cool, it improves cabinet defraction.
(CEILING AND WALL MOUNTABLE FOR DOLBY ATMOS SETUP)

Coaxial driver
Mounted in the center of the woofer is a 30mm silk dome tweeter in a coaxial configuration. Using this technology (unique in its price range) makes it a point source device, meaning that all the sound emanates from a single point not points that are 10" apart. This is crucial for improving off-axis response, but also allows for a more compact footprint cabinet.
Other benefits using coaxial studio monitors are sound clartiy and imaging.

Boundary compensation DIP switches
Sometimes the spaces where we mix aren't the most forgiving acoustically (especially if you're in a home studio).
The FX series monitors come equipped with boundary control EQ switches, that allow you to compensate for spaces that may not have been tuned or just need to be adjusted due to their proximity to the wall behind them. There is also a guide conveniently printed on the rear panel to show how the DIP switches work, and a more detailed explanation in the user guide.

Class D and DSP powered
The FX50 is a Class-D bi-amplified studio monitor.Class-D benefits are clean, reliable power, more headroom, less power consumption and heat.
We have a standalone powerful DSP integration. The digitally controlled crossover makes each speaker more consistent.
The new FX series is truly a 21st Century reference monitor at home in any recording studio.

LED indicator on front baffle
The illuminated LED on the front panel is not only a status indicator, displaying whether the FX monitor is on, off or in standby, but also acts as an alignment beacon which allows you to properly align your speakers to your ear level.

Is This The Most Cost Effective Dolby Atmos Speaker Solution?
Read what Pro Tools Expert think about the FX50 as your next rear or height channels. For larger rooms we would recommend using our FX80 studio monitor.

A Coaxial Monitor for the 21st Century
The Fluid Audio Coaxial speaker design is notably different from traditional coaxial designs. Coaxial studio monitors in the 50's and 60's placed the high frequency driver behind the woofer, porting the high frequency through the woofer's voice coil opening. This design effectively used the woofer's cone as the wave guide, or horn. Since the woofer's cone is constantly moving (sometimes dramatically as it plays bass frequencies), there is a significant amount of Intermodulation distortion and audible smearing that happens as the high frequency radiates off the woofer's cone.

The coaxial design of the Fluid Audio FX series places the high frequency device in front of the woofer, secured to a fixed post. The tweeter is mounted in a hard plastic wave guide that allows the high frequencies to flow uninterrupted, so there is no audio smearing from the woofer's movements. By using the on-board DSP, 48 and 36db per octave Linkwitz-Riley slopes not only perfectly blend the low and high frequencies, but are also used to filter out acoustic anomalies inherent in coax designs (as the tweeter does not have a full size baffle to radiate from.) In addition to these unique benefits, users get all the other known benefits of a coaxial driver Symmetrical off-axis response (which creates a bigger, more even and consistent sweet spot) and that of being a point source device, which allows better phase coherence between drivers resulting in extremely realistic imaging. Whether upright or laid on its side, the Fluid Coaxial design will perform identically making studio positioning easier and more user friendly.

Specification
5" paper cone woofer
1" silk dome tweeter
Frequency response: 49Hz 22KHz (+ / - 3db)
Crossover frequency: 2.9KHz
Low-frequency amplifier power: 50 watts
High-frequency amplifier power: 40 watts
Signal-to-noise: 89dB (typical A-weighted)
Polarity: Positive signal at + input produces outward LF one displacement
Input impedance: 20 k ohms balanced, 10 k ohms unbalanced
Max SPL : 102 dB Max SPL
Power: 100V 240V~50 / 60 Hz
Protection: RF interference, output current limiting, over temperature, turn-on / off transient, subsonic filter, external mains fuse
Cabinet: Vinyl-laminated MDF
Size (single monitor): 9.2" x 6.9" x 9.1" , 234mm x 176mm x 230mm
Weight (each): 8.37 lbs / 3,8 kg
