Sonicware

Notes: Sonicware's 'neo-hyperactive' drum machine takes a proudly digital approach to rhythm, offering some fascinating creative takes on synthesis and beat making. Create and perform with generative patterns and randomisation.

Supplier's Notes:
CyDrums | Expressive Drum Synthesiser

4D Drum Sound Evolution
22 Custom-Built Sound Structures
Versatile Effects & Flexible Routing
Powerful 8-Track Beat Making
Endless Creative Possibilities

Included:

- CyDrums unit
- 32GB SD card preloaded with many preset programs
- Power Supply Unit
- Warranty
*Batteries, USB cable and the other connection cables sold separately.

4D Drum Sound Evolution

Wavetable x Velocity & Pressure Modulation = 4D Drum Sounds That React, Transform, and Evolve

22 Custom-Built Sound Structures

22 Sound Structures Tailored to Each Instrument for Endless Sonic Possibilities

Versatile Effects & Flexible Routing

Two Insert Effects, Reverb, and Master Effects with Flexible Routing for Versatile Sound Processing

Powerful 8-Track Beat Making

Non-Stop, Intuitive Beat Making Powered by an 8-Track Drum Sequencer

Endless Creative Possibilities

Generative Patterns with Randomization and Probability, Plus Numerous Performance Features incl. VariSpeed and Snip Loop

Wavetable x Velocity & Pressure Modulation = 4D Drum Sounds That React, Transform, and Evolve

CyDrums offers 64 original wavetables, each comprising up to 256 single-cycle waveforms. With full control over start/end positions, playback directions with modes, speed, and curves, the sonic possibilities go far beyond imagination.

22 Sound Structures Tailored to Each Instrument for Endless Sonic Possibilities

CyDrums features 22 sound structures specifically tailored to each instrument, combining dual Wavetables, Noise, and Pulse sources to deliver sounds that range from classic drum machine tones to deep, innovative sonic exploration.
No need to start from scratch

CyDrums offers 520 ready-to-use preset sound patches, covering classic drum machine tones, synth bass, and FX.

Find them quickly with the tag search feature.

Two Insert Effects, Reverb, and Master Effects with Flexible Routing for Versatile Sound Processing

CyDrums delivers five versatile effect routing modes, allowing you to assign any track to specific effects via BUS Routing.

Non-Stop, Intuitive Beat Making Powered by an 8-Track Drum Sequencer

CyDrums boasts a powerful 8-track, 128-step sequencer based on the acclaimed workflow of the Lofi-12 XT. Unlock the freedom to experiment with odd time signatures and evolving polyrhythms.

Store up to 128 patterns per project, enabling you to create complex song arrangements or seamlessly switch patterns during live performances.

Generative Patterns with Randomization and Probability, Plus Numerous Performance Features incl. VariSpeed and Snip Loop

CyDrums empowers your creativity with powerful generative pattern tools.

Randomization lets you craft unique variations per track or control all parts in real time, while Probability allows you to set trigger chances from 25% to 100% for tracks or individual notes-sparking endless possibilities and new musical discoveries.

Seamless Integration with Your Setup

TRS analogue output, digital output via USB, MIDI in/out, and AudioSync for effortless DAW and hardware compatibility.

Compact, Battery-powered, and Built-in Speaker

CyDrums is designed for inspiration anywhere-from your living room to the outdoors.

- A single project contains:
128 patterns (incl. 32 preset patterns)
16 songs
Up to 256 projects can be stored.
- 1,024 sound patches (incl. 520 preset sounds)
- 256 effect patches
- 128 drum kits
- Polyphony: 1 voice per track + USB & External stereo audio
- Realtime non-quantize recording (with MicroTiming edit)
- Directly enter notes for each step when playback is on or off
- Duplicate to extend a sequence
- Copy and paste function for various parameters between tracks
- Parameter Lock function to record parameter settings for each step
- Drum roll with the D-pad
- Play chromatic/scales in Pad mode
- Enter longer notes (Tied notes)
- Diverse Mute features?
- Pattern BPM / Global BPM can be set
- Switching between half-speed and double-speed BPM
- Metronome and pre-count function

Hardware specifications

Pads: 15 velocity-sensitive pads with RGB LEDs

Controllers: Control knob x 5, Directional pad with 2 button controls

Display: 1.5 inch OLED display
Built-in Mic: Mono x1 (Omni-directional, 94dBSPL)

Built-in Speaker: Mono x1 (1.5W 4O)

Audio Inputs
INPUT L/Guitar (Switchable 10k and 1M impedance)
[LINE Gain] PAD: -20dB
[Hi-Z Gain] LOW: 0dB, NORMAL: +10dB, HI: +20dB
INPUT R/Dynamic Microphone
[LINE Gain] PAD: -20dB
[MIC Gain] LOW: 0dB, NORMAL: +28.8dB, HI: +50dB

Audio Outputs
STEREO LINE OUTPUTS (Max +6.5dBV)
*The above jacks are all balanced 1/4" TRS Jack Connectors
PHONES jack (stereo 3.5mm mini jack type)

USB port
micro USB Type-B
[USB Audio] USB 2.0 Full Speed, 48kHz-16bit Input: 2 channels, Output: 2 channels
[USB MIDI]
[Mass Storage Class] USB2.0 High Speed
*For iPhone, Apple Lightning to USB Camera Adapter required separately

MIDI ports
MIDI IN connector (5-Pin DIN type)
MIDI OUT connector (5-Pin DIN type)

Other connectors
SYNC IN jack (mono 3.5mm mini jack type)
SYNC OUT jack (mono 3.5mm mini jack type)
SD card slot (Standard size *Supports SDHC cards up to 32 GB)
DC IN connector

Bottom side hole
1/4-20UNC screw for tripod mount

Size and weight
Width: 147mm | approx. 5.8 inch
Depth: 175mm | approx. 7.8 inch
Height: 46mm | approx. 1.8 inch
Weight: 550g | approx.1 lbs 3.5 oz

Power supply
DC12V output AC adapter (500mA, Inner Diameter: 2.5mm, Outer Diameter: 5.5mm, Polarity: Center +)
Ni-MH AA SIZE Rechargeable Battery or Alkaline AA SIZE Dry Battery x 6
(Alkaline dry batteries life: approx. 4 hours)
*Batteries sold separately

Accessories

32GB SDHC card preloaded with many preset programs
Power Supply Unit
Warranty
*USB cable and the other connection cables sold separately

Notes: *** As of November 2024, Firmware 1.1 has been installed, including effects such as 4-Pole Filter, Trim Filter, Ambient Hall, Ambient Infinity and Ambient Room ***

17 Distinctive Synth Engines-Unlike Anything You've Ever Heard
The ELZ_1 play's synth engines are built from scratch using 32-bit floating point math. From hard low-bit textures to organic FM tones to granular synthesis, the ELZ_1 play offers unique synth engines unlike any other synthesizer.

LOW-BIT OSC: 2 ~ 8 bit variable low-bit oscillator. Sine, square, triangle and sawtooth waves.
STANDARD OSC: 32-bit floating-point processing high resolution oscillator. Sine, square, triangle and sawtooth waves.
CUSTOM OSC: Choose 2 waveforms / period of cycles.
DNA EXPLORER: Extract and generate waveform DNA from audio.
SiGRINDER: Granular synthesizer engine.
MASKED NOISE: Noise oscillator.
SAND FLUTE: Extract and generate tone from noise.
8BIT WAVE MEMORY: Editing your own waveform.
8BIT WAV MEM (MORPH): Morphing 3 waveforms.
8BIT WAV MEM (FM MODE): 2 operators, 8bit FM mode.
8BIT WAV MEM (WARP): Generates an intermediate waveform by crossfading two waveforms.
8BIT WAV MEM (ADSAR): Waveforms change according to envelope.
8BIT WAV MEM (TIME): 3 waveforms change in the orders.
FM SYNTH: 4 operators with 31 algorithms, 32-bit floating point processing.
ZTRINGS: Physical Modelling Strings engine.
SUPER OSC: Super synth engine with 5 detunable sub-oscillators.
STK DRUMMER: Drum machine engine equipped with 5 types of drum kits. (SmplTrek .stk file compatible)

28 Effects to Elevate Your Sound-From Soothing to Striking
Unlock a world of sound by combining 3 insert effects from 18 types and 1 master effect from 10 types, including Shimmer Reverb.
Insert effects: overdrive, distortion, fuzz, crusher, chorus, stereo chorus, flanger, phaser, tremolo, vibrato, ring modulator, auto wah, delay, reverse delay, ping pong delay, auto pan, tape echo & reverb, 4 pole filter, trim filter.

Master effects: hall, room, plate, arena, tunnel, infinity, custom reverb, crusher, ambient room, ambient hall, ambient inf, vinyl simulator & cassette tape simulator.

Flexible 4-Track Looper-Layer, Loop, and Remix with Ease
The newly developed 4-track looper allows easy recording, playback, and overdubbing by simply pressing the track buttons. You can record not only ELZ_1 play performances, but also LINE input and USB audio input.

Instrument Redefined - Velocity-enabled keyboard, Built-in Stereo Speakers and More:
To make it a musical instrument that is pleasant and expressive to play, the keyboard has been improved to support velocity on all keys, and high-quality loud stereo speakers are built into the side panels. It is also equipped with an SD card slot, USB-C, and DIN-MIDI jacks for flexible handling of audio and MIDI.

Notes: All black version of Sonicware's excellent digital synth. The ELZ_1 Play features an impressive 17 different digital synth engines, including low-bit retro sounds and the unique DNA Explorer.

*** As of November 2024, Firmware 1.1 has been installed, including effects such as 4-Pole Filter, Trim Filter, Ambient Hall, Ambient Infinity and Ambient Room ***

Supplier's Notes:
17 Distinctive Synth Engines-Unlike Anything You've Ever Heard
The ELZ_1 play's synth engines are built from scratch using 32-bit floating point math. From hard low-bit textures to organic FM tones to granular synthesis, the ELZ_1 play offers unique synth engines unlike any other synthesizer.

LOW-BIT OSC: 2 ~ 8 bit variable low-bit oscillator. Sine, square, triangle and sawtooth waves.
STANDARD OSC: 32-bit floating-point processing high resolution oscillator. Sine, square, triangle and sawtooth waves.
CUSTOM OSC: Choose 2 waveforms / period of cycles.
DNA EXPLORER: Extract and generate waveform DNA from audio.
SiGRINDER: Granular synthesizer engine.
MASKED NOISE: Noise oscillator.
SAND FLUTE: Extract and generate tone from noise.
8BIT WAVE MEMORY: Editing your own waveform.
8BIT WAV MEM (MORPH): Morphing 3 waveforms.
8BIT WAV MEM (FM MODE): 2 operators, 8bit FM mode.
8BIT WAV MEM (WARP): Generates an intermediate waveform by crossfading two waveforms.
8BIT WAV MEM (ADSAR): Waveforms change according to envelope.
8BIT WAV MEM (TIME): 3 waveforms change in the orders.
FM SYNTH: 4 operators with 31 algorithms, 32-bit floating point processing.
ZTRINGS: Physical Modelling Strings engine.
SUPER OSC: Super synth engine with 5 detunable sub-oscillators.
STK DRUMMER: Drum machine engine equipped with 5 types of drum kits. (SmplTrek .stk file compatible)

28 Effects to Elevate Your Sound-From Soothing to Striking
Unlock a world of sound by combining 3 insert effects from 18 types and 1 master effect from 10 types, including Shimmer Reverb.
Insert effects: overdrive, distortion, fuzz, crusher, chorus, stereo chorus, flanger, phaser, tremolo, vibrato, ring modulator, auto wah, delay, reverse delay, ping pong delay, auto pan, tape echo & reverb, 4 pole filter, trim filter.

Master effects: hall, room, plate, arena, tunnel, infinity, custom reverb, crusher, ambient room, ambient hall, ambient inf, vinyl simulator & cassette tape simulator.

Flexible 4-Track Looper-Layer, Loop, and Remix with Ease
The newly developed 4-track looper allows easy recording, playback, and overdubbing by simply pressing the track buttons. You can record not only ELZ_1 play performances, but also LINE input and USB audio input.

Instrument Redefined - Velocity-enabled keyboard, Built-in Stereo Speakers and More:
To make it a musical instrument that is pleasant and expressive to play, the keyboard has been improved to support velocity on all keys, and high-quality loud stereo speakers are built into the side panels. It is also equipped with an SD card slot, USB-C, and DIN-MIDI jacks for flexible handling of audio and MIDI.

Notes: *** B-STOCK: Box opened, but product is in excellent condition and in perfect working order ***


*** As of November 2024, Firmware 1.1 has been installed, including effects such as 4-Pole Filter, Trim Filter, Ambient Hall, Ambient Infinity and Ambient Room ***

17 Distinctive Synth Engines-Unlike Anything You've Ever Heard
The ELZ_1 play's synth engines are built from scratch using 32-bit floating point math. From hard low-bit textures to organic FM tones to granular synthesis, the ELZ_1 play offers unique synth engines unlike any other synthesizer.

LOW-BIT OSC: 2 ~ 8 bit variable low-bit oscillator. Sine, square, triangle and sawtooth waves.
STANDARD OSC: 32-bit floating-point processing high resolution oscillator. Sine, square, triangle and sawtooth waves.
CUSTOM OSC: Choose 2 waveforms / period of cycles.
DNA EXPLORER: Extract and generate waveform DNA from audio.
SiGRINDER: Granular synthesizer engine.
MASKED NOISE: Noise oscillator.
SAND FLUTE: Extract and generate tone from noise.
8BIT WAVE MEMORY: Editing your own waveform.
8BIT WAV MEM (MORPH): Morphing 3 waveforms.
8BIT WAV MEM (FM MODE): 2 operators, 8bit FM mode.
8BIT WAV MEM (WARP): Generates an intermediate waveform by crossfading two waveforms.
8BIT WAV MEM (ADSAR): Waveforms change according to envelope.
8BIT WAV MEM (TIME): 3 waveforms change in the orders.
FM SYNTH: 4 operators with 31 algorithms, 32-bit floating point processing.
ZTRINGS: Physical Modelling Strings engine.
SUPER OSC: Super synth engine with 5 detunable sub-oscillators.
STK DRUMMER: Drum machine engine equipped with 5 types of drum kits. (SmplTrek .stk file compatible)

28 Effects to Elevate Your Sound-From Soothing to Striking
Unlock a world of sound by combining 3 insert effects from 18 types and 1 master effect from 10 types, including Shimmer Reverb.
Insert effects: overdrive, distortion, fuzz, crusher, chorus, stereo chorus, flanger, phaser, tremolo, vibrato, ring modulator, auto wah, delay, reverse delay, ping pong delay, auto pan, tape echo & reverb, 4 pole filter, trim filter.

Master effects: hall, room, plate, arena, tunnel, infinity, custom reverb, crusher, ambient room, ambient hall, ambient inf, vinyl simulator & cassette tape simulator.

Flexible 4-Track Looper-Layer, Loop, and Remix with Ease
The newly developed 4-track looper allows easy recording, playback, and overdubbing by simply pressing the track buttons. You can record not only ELZ_1 play performances, but also LINE input and USB audio input.

Instrument Redefined - Velocity-enabled keyboard, Built-in Stereo Speakers and More:
To make it a musical instrument that is pleasant and expressive to play, the keyboard has been improved to support velocity on all keys, and high-quality loud stereo speakers are built into the side panels. It is also equipped with an SD card slot, USB-C, and DIN-MIDI jacks for flexible handling of audio and MIDI.

Notes: Part of Sonicware's Liven groovebox series, the 8bit Warps draws on retro 80s chiptune vibes to create a mini instrument with huge character and surprising range.

*** Update: New features of the version 3.0 firmware September 2023 ***

Added 6 effect types:
- Distortion
- Phaser
- Tremolo
- Ring Modulator
- Auto Wah
- Reverse Delay

Added the Sound Locking features

A sequence can be duplicated to double the length

Looping of chain playback is now possible

New preset 29 drum sounds that can be easily made drum patterns with the sound locking feature

And several bug fixes and improvements

Supplier's Notes:
The LIVEN 8bit warps combines an 8-bit waveform memory synthesizer with a step sequencer.

Carefully selected preset waveforms and editable user waveforms along with high-quality filters and effects can be used freely to create a wide spectrum of sounds. The LIVEN 8bit warps can generate classic retro game sounds of course, but its unique 8-bit sound can also be used in a range of music genres, including EDM, hip-hop, techno and rock.

Powerful functions for live electronic music performance include 16 physical control knobs, parameter locking for each sequencer step, a looper, and SYNC IN/OUT and MIDI IN/OUT connectors to make synchronized performance with other equipment easy.

All these powerful functions are in a device that weighs only 790 g. Play it anywhere at any time.

Size : 11.7 inch (W) x 6.92 inch (D) x 1.89 inch (H), 297mm (W) x 176mm (D) x 48mm (H)

Weight : 1.74lb., 790g

Accessories: Warranty

Power supply: AA batteries x 6, or 9V DC output AC adapter (1A or higher, EIAJ3 standard inner diameter 1.7mm outer diameter 4.75mm, center +)

Notes: Part of Sonicware's excellent Liven series, the Bass & Beats packs a powerful wavetable synth engine designed for dance music. Presets are classified by genre, making it quick to nail sounds.

Supplier's Notes:
Unleash this wavetable engine to create thick basslines that fit into all genres.

Combine wavetable modulation and our rich resonant filter to create satisfying growls and wobbles.

The bass synth engine includes:
- Two independent Wavetable oscillators with the 64 available wavetables.
- One sub-oscillator
- One noise generator which can create 16 different noise types.

Add even more flavor to your basslines with the built-in LFO, envelope generator, unison control, multi-mode filter, and distortion effects.
A Library of Rhythm Sounds Specialized for Electronic Dance Music

The Liven Bass & Beats is loaded with 350 high-quality rhythm sounds carefully selected for modern and timeless compositions.
The library of drum sounds also include risers and tension releases SFX which are useful tools when transitioning to new sections of your compositions.

Hit the Ground Running With 64 Bass Patches That Cover All Genres

The LIVEN Bass & Beats includes 64 bass presets including battle tested favorites such as the Reese Bass, Future Bounce Bass, Wobble Bass, Growl Bass, Neuro Bass, Deep House Bass, Acid Bass, 808 Sub Bass, and more.
Use these presets to quickly dial in the vibe of a specific genre.

Ready-To-Go Preset Drum Kits

The drum sounds are organized into well balanced kits for specific genres such as: DUBSTEP, HOUSE, HIPHOP, TRAP, TECHNO, EDM, R&B, DOWNTEMPO, CHILL TRANCE, DRUM'N'BASS, JUNGLE, FUTURE BASS, ELECTRO, ELECTRONICA, IDM, DISCO, BREAK BEATS, etc.

You can also mix and match sounds from the drum library to create your own custom kits. Side-Chain Compressor

The LIVEN Bass and Beats has built-in sidechain compression function that ducks the volume of the bass and the line-in audio. The amount of this effect is variable so you can dial it in to taste or turn it off when it is not needed.

Two Performance Knobs Can Be Mapped to Many Parameters at Once

Two ASSIGN knobs are provided for complex multi-parameter control.

Similar to the Turnado1 VST plugin, our "ASSIGN" knobs allow you to map many parameters to a single knob to create powerful effects which transform or mangle your sound with a single twist.

All preset patches include these "ASSIGN" knobs pre-programmed and ready for sonic exploration.

The "ASSIGN" knobs can also be parameter locked to create automated changes to multiple parameters over time.

Quick Muting and Un-Muting for Each Drum Sound

Each rhythm track consists of 16 individual drum sounds. Each sound can be individually muted and unmuted with a single button press. This allows users to introduce drum elements on-the-fly to build energy and create unique breakdowns.

Dedicated Mixer Controls

Dedicated controls for balancing the levels of you drums, bass, and line input. These knobs can be used to create an overall volume balance, or they can be used to create drops and breakdowns during live performances.

Advanced Bass Shaping Tools

The DIMENSION knob increases the stereo width of the bass synth without losing clarity or richness.

The M.Gun effect uses a rapid tremolo to add glitchy grit.

Explore Beyond the Preset Sounds With the Bass Engine Edit Mode Overlay

Build your own bass sounds from scratch or modify the presets.

Every parameter of the bass engine is accessible when the edit mode active.

Slip on the overlay and enter a whole new world of bass sound design.

Synth Engine Basic Configuration

2x Wavetable OSC: Each of the wavetable oscillators can assigned one of the 64 wavetables.

SUB OSC: The sub-oscillator provides solid, foundational bass support.

It can generate sine, triangle, sawtooth, square, LOG, and random waveforms.

NOISE Generator: The noise generator can generate 16 different types of noise, including both white and pink noise. It is a powerful tool for aggressive and industrial tones.

Deep Modulation

Almost all of the internal parameters of this device can be targets for modulation. The LFO, Envelope Generator, and ASSIGN knobs provide a wide range of ways to modulate every aspect of your sound.

For example, the LFO could modulate the settings of the Envelope Generator which is simultaneously modulating the Bass engine's wavetable position.

Notes: *** New features in version 2.0 ***

The new features expand its capabilities meaning it's easier to use whilst making it a more flexible music production tool.

Resampling

Patterns and tracks can be resampled by internally recording the audio output into a new sample. Real-time resampling of your keyboard playing is also possible.

Chopping

Two new voice modes called 'Drum' and 'Chop' auto-slice samples easily with the newly developed Downbeat Divider*. Sliced sections of a sample are then spread across the keyboard making finger drumming possible.

Remix Effect

A beat repeater effect 'R.MIX', added to the master effect options, makes glitchy real-time performances possible.

The new features are designed to work well with each other so you can easily create drum tracks with auto-slicing and record lively performances that are not constrained by the grid of the internal step sequencer.You can also resample samples and tracks for infinite effects processing.

A quirky take on sampling from this 12-bit groovebox inspired by classic 12-bit samplers like the Akai MPC60. Gritty, distinctive sound and some nice sequencing options.

Supplier's Notes:
Retro sampling engine with 12bit Sampler mode

The LIVEN Lofi-12 has a 16bit - 12kHz/24kHz sampling engine with the 12bit Sampler mode that will turn any sound into a pleasing lo-fi sound.

Like the many legendary samplers that were released in the late 80s, this is a genuine low-bit and low sampling frequency sound that cannot be obtained authentically with bit crusher effects and other modern sound degrading tools.

Up to 4 seconds mono sampling per sample slot (2 seconds mono sampling at the 24kHz mode). Start and end point trimming, pitch adjustment, reverse playback, sustain loop, filtering and LFO modulation are all possible.

Easily play samples chromatically across the keyboard

Sounds sampled by the LIVEN Lofi-12 are automatically assigned to the keyboard and can be played easily at different pitches.

The well-known vintage sampler technique of sampling a 33 RPM vinyl at 45 RPM then slowing it down created the gritty, lo-fi sound that is often heard in '90s hip-hop.
The LIVEN Lofi-12 makes it easy to recreate that sound!

80 carefully selected lo-fi preset sounds are included.

Powerful 4-track sequencer with parameter and sound locking
The LIVEN Lofi-12 is equipped with the powerful 4-track step sequencer that has earned the LIVEN XFM a solid reputation.

You can easily create a 4-part song by selecting a sampled sound for each track, and with the Sound Lock function, you can easily switch sampled sounds for each phrase or sequencer step, allowing you to use an almost infinite combination of sounds within a single song.

Sequence up to 64 steps per pattern.

Save up to 64 patterns.

Sub-divide the tempo down to 32nd notes.

Program notes step by step or record them in real time. Additionally, you can also input notes to specific steps while the sequencer is playing to add variation.

The Parameter Lock function allows you to record knob changes into your patterns. This can be recorded live, or programmed in step by step.

The Sound Lock function allows you to record selected sound changes into your patterns. You can use an almost infinite combination of sounds within a single song.

Laid-back knob for creating drunk beats
The Laid-back knob on the LIVEN Lofi-12 allows you to delay the start of the selected sampled sound.

For example, you can slightly delay the snare drum sound in your drum pattern, or use the Parameter Lock function to shift the sound timing later for each step individually.

11 types of Effects each track and 8 types of Master Effect
The LIVEN Lofi-12 features independent effects on all four tracks.
You can select from 11 types of effects from the LIVEN series, and the effect parameters can be automated in steps using the Parameter Lock function.

In addition, 6 types of high-quality Reverbs + Cassette Tape Simulator and Vinyl Simulator are included as the master effect.
The send amount can be adjusted for each track for mixing.

Specifications

Sampler
16bit - 12kHz or 24kHz (switchable) linear PCM sampling (mono)
12bit Sampler mode
Sampling up to 4 seconds per sample (12kHz) or 2 seconds per sample (24kHz)
Auto start sampling function with the input level (input level can be set)
Start/end point, attack, release, pitch, and level adjustment
Reverse playback
Sustain loop settings
Maximum polyphony: 10 voices
128 sample memory slots (16 x 8 banks)
Import and export of a slot or banks of samples (via MIDI)
*Import of audio files from PC/Mac is not supported.


10-note polyphonic mode
Mono mode with adjustable glide time
Legato mode with adjustable glide time
Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

Filter
Low Pass
High Pass
Band Pass
Each track has its own filter and envelope

LFO
Each track has one LFO which can affect both pitch and filter cutoff with separate adjustable levels
Adjustable LFO Shapes
Adjustable start time delay for each LFO

Sweep
Sweep with adjustable speed, range, and curve

Effects

Track effects

One effect per track
Chorus
Flanger
Tremolo
Delay
Distortion
Bit Crusher
Low Pass Filter
High Pass Filter
Isolator
Tilt EQ
Compressor

Master effects

Reverb send amount can be set independently for each track
Hall Reverb
Room Reverb
Arena Reverb
Plate Reverb
Tunnel Reverb
Infinity Reverb
Cassette Tape Simulator
Vinyl Simulator

Sequencer

4 tracks
Up to 64 steps per pattern
64 patterns
Step length can be set from 1/1 to 1/32
Real-time recording
Directly enter notes for each step when playback is on or off
Enter longer notes (Tied notes)
Metronome and pre-count function
Step copy and paste function
Track copy and paste function
Transpose function
Swing function
Pattern BPM / Global BPM can be set
Pattern chain function

Notes: Part of Sonicware's excellent Liven series of compact groove boxes, the Mega Synthesis draws on the unique sound of the Sega Mega Drive/Genesis games console to create characterful 80s/90s synths.

Supplier's Notes:
Revive the SONIC sensation of the golden era!

Create Diverse Game Music with a Sophisticated 6-Track Sequencer and 10 Types of Effects

You too must have fallen under the spell of the extraordinary visuals and sounds of the groundbreaking 16-bit video game console that once dominated the world! It was powered by the iconic "YM2612" sound chip, a legacy that endures even today.

The MEGA SYNTHESIS has resurrected the sound engine of this chip. Sonicware have faithfully recreated the 4-operator FM sound module, the 8-bit PCM sound module, and the "SN76489" PSG (Programmable Sound Generator) sound module used by the original console.

4-operator & 8-algorithm FM sound module with precise sound editing in Edit Mode - Including extra features like fine-tuning operator ratios, which was impossible at the time.

PSG (Programmable Sound Generator) sound module - Synthesize basic waveforms and white noise to recreate iconic retro-game-sounds.

And the 8-bit PCM sound part of YM2612 - Recreate the sound of PCM playback controlled by the Z80 microprocessor used at the time.

Sampling capabilities (8-bit - 12kHz: up to 8 seconds / 24kHz: 4 seconds / 48kHz: 2 seconds, 96 stored samples)

Legacy Mode to faithfully replicate the sound of the era

This feature simulates the characteristically grungy sounding quirks of the YM2612 sound and can be turned on/off for each track.

In the FM tracks, you can separately configure FILTER [frequency response simulation] and LADDER [replication of the unique 9-bit DAC]. And the PCM track can also be played back in 4BIT, allowing you to create the sound to your preferences.

Create Diverse Game Music with a Sophisticated 6-Track Sequencer and 10 Types of Effects

Creating game music is a breeze with this intuitive sequencer, featuring a straightforward 6-track layout comprising 3 FM synthesis tracks, 2 PSG synthesis tracks, and 1 PCM sample track. woo
Specifications

Synthesiser


FM sound module [Tracks 1, 2, 3]
- 4 operators - 8 algorithms
- Maximum polyphony: 6 voices
- Sound editing in FM Edit mode

- Polyphonic mode
- Mono mode with adjustable glide time
- Legato mode with adjustable glide time
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

PSG sound module [Tracks 4, 5]

- 11 types
Square wave
Noise (Low/Mid/High) -> Square wave
Pulse Wave
Noise (Low/Mid/High) -> Pulse Wave
Noise (Low/Mid/High)
- Maximum polyphony: 4 voices

- Polyphonic mode
- Mono mode with adjustable glide time
- Legato mode with adjustable glide time
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

PCM sound module [Track 6]

- 8bit - 12/24/48kHz (switchable) linear PCM sampling (mono)
- Up to 8 seconds of sampling per sample (12kHz), 4 seconds (24kHz) or 2 seconds (48kHz)
- Auto start sampling function with the input level (input level can be set)
- Auto-slice function (equal division by number of slices or length of one slice)
- Maximum polyphony: 3 voices (1 voice in One-shot mode)?- 96 sample memory slots (16 x 6 banks)
- Import and export of a slot or banks of samples (via MIDI)
*Import of audio files from PC/Mac is not supported.

- Drum mode (Drum kit performance)
- One-shot mode (Sample playback or chromatic performance)

- Sweep with adjustable speed, range, and curve
- Switchable between sweep envelope and LFO

[Effects]

Effect send amount can be set independently for each track

- Send Delay
- Insert Delay
- Reverb
- Crusher
- Distortion
- Compressor
- Low pass filter
- High pass filter
- Isolator
- Remix Performance effect

[Sequencer]

- 6 tracks
- Up to 128 steps per pattern
- 128 patterns
- Step length can be set from 1/1 to 1/32
- Real-time recording
- Directly enter notes for each step when playback is on or off
- Enter longer notes (Tied notes)
- Metronome and pre-count function
- Step copy and paste function
- Track copy and paste function
- Duplicate to extend a sequence
- Transpose function
- Swing function
- Pattern BPM / Global BPM can be set
- Pattern chain function (Loop playback possible)
- Track level and pan can be set independently
- Parameter Lock function to record parameter settings for each step
- Sound Lock function to record sound settings for each step
- Note playback probability can be set from 25 to 100% for each step
- RANDOM function to play back steps in random order
- STUTTER function to play back only the step being pressed

[MIDI]

- Notes, control changes, clock input/output
- Import and export user data
- Firmware update via Sysex

[Unit]


27 keys (with a hold function)

- 15 physical control knobs
- Optional LATCH function prevents jumps in value when knob position and parameter values do not match.
- One physical encoder for fine adjustments.
- LCD dot indicates when a parameter value matches the saved value, or when the value has been changed.

Notes: Perfect fit for all LIVEN models

Rigid molded case that provides excellent protection (1680D nylon exterior)

Separate compartment for accessories such as the PSU and cables (incl. a movable divider)

Compact and lightweight

Exterior dimensions: W 16.74 inches (425 mm) x D 8.67 inches (220 mm) x H 2.56 inches (65 mm)

Weight: 1.23lbs (554g)

Notes: Universal power supply for all Sonicware LIVEN devices:

9V - 2A - center plus polarity
EIAJ 3 connector (1.7×4.75×9.5mm)
incl. adapter set EU/US/UK/AU

Notes: Part of Sonicware's Liven groovebox series, this time focussing on granular synthesis and effects processing. 128-step sequencer and shimmer reverb allow you to create grooves.

Supplier's Notes:
Sample, slice, transform and reconstruct audio to synthesize completely new sounds

The LIVEN Texture Lab offers a wide variety of sound textures ranging from beautifully lush ambient pads to chaotically aggressive experimental noise that will take you to new sonic frontiers.

The Texture Lab uses a granular processor that slices sounds into grains ranging from 2 ms to 1 second in length, then transforms and reconstructs them in a variety of ways, including manipulating grain shape, density, time warp, spatial position, and playback method to create entirely new sounds.

Granular synthesis parameters are easily accessed from 10 knobs and are designed for intuitive control

Granular synthesizer with granular effects processor mode

The LIVEN Texture Lab is a 4-voice polyphonic synthesizer that can record 32 samples of up to 6 seconds, generate grains from any part of a sample, and synthesize them using two modulations sources, an envelope generator, and process the sound through different filter types.

The Texture Lab can also be used as an effects processor for real-time granular processing of stereo signals from the line input. It is also possible to freeze the flowing sounds for 6 seconds to add granulated sound effects.

Shimmer reverb for fantastical and majestic sounding spaces

The LIVEN Texture Lab features six high-quality stereo reverb types. All reverb types have a shimmer parameter that allows you to layer reverb on top of reverb in octaves to create fantastical and majestic sounding spaces.

128-step sequencer with parameter locking

The LIVEN Texture Lab is equipped with a high-performance 128-step sequencer that has earned the LIVEN series a solid reputation. In addition to recording notes, it can also record changes in granular processing parameters over time.

You can record knob operations in real time or directly record parameters to specific steps allowing for more complex sound textures.

Specifications

[Granular processor]

Synthesizer mode
- Sampling up to 6 seconds per sample (16bit - 32kHz mono, Start/end point adjustment)
- Auto start sampling function with the input level (input level can be set)
- Internal resampling function
- 32 sample memory slots

Effects processor mode
- Real-time processing of stereo signals from the line inputs
- Freeze function


- Pitch: Pitch of the sample (i2 octaves)
- Position, Length/FB: The sample range for generating grains (with random position function)
- Speed, Direction: Playback speed, scan direction, and playback direction of the grains.
- Size, Shape: Size and shape of the grains (with random function)
- Timing, Jitter: Interval of generating grains (with our original LUSH setting)
- Density: Number of the grains (up to 64 grains in legato mode)
- Diffusion: Diffusion width of the grains
- Blend: Balance between the sample and the granular sound mix
- Modulation 1: LFO assignable to various parameters (with wave shape selection, start fade-in time, retrigger, and tempo sync)
- Modulation 2: LFO assignable to various parameters (with wave shape selection, retrigger, and tempo sync)


- Attack
- Release


- Low Pass
- High Pass
- Band Pass

Reverb effects
6 high-quality reverbs with Shimmer reverb parameters
- Hall
- Room
- Arena
- Plate
- Tunnel
- Infinity


- 4-note polyphonic mode (Up to 16 grains per voice, internal sequencer records up to 3 voices of polyphony)
- Mono mode (Up to 32 grains, adjustable glide time)
- Legato mode (Up to 64 grains, adjustable glide time)
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

[Sequencer]
- 1 track
- Up to 128 steps per pattern
- 128 patterns
- Step length can be set from 1/1 to 1/32
- Real-time recording
- Directly enter notes for each step when sequencer is on or off
- Enter longer notes (Tied notes)
- Metronome and pre-count function
- Undo/Redo function
- Transpose function
- Swing function
- Pattern BPM / Global BPM can be set
- Pattern chain function
- Parameter Lock function to record parameter settings for each step
- RANDOM function to play back steps in random order
- STUTTER function to play back only the step being pressed

[MIDI]
- Notes, control changes, clock input/output
- IMPORT/EXPORT of user data (Including samples) via Sysex
- Firmware update via Sysex

[Unit]

27 keys (with a hold function)


- 15 physical control knobs
- Optional LATCH function prevents jumps in value when knob position and parameter values do not match.
- One physical encoder for fine adjustments.
- LCD dot indicates when a parameter value matches the saved value, or when the value has been changed.

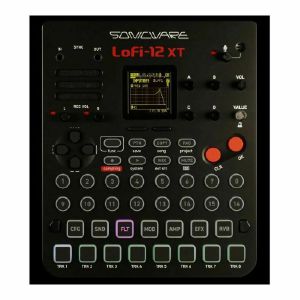

Notes: Black version of this vintage-inspired 12-bit sampler from Sonicware. Inspired by 80s sampling workstations, and including over 2,500 samples to get you started, the Lofi-12 is a creative powerhouse.

Supplier's Notes:
Key Features

1) 12/24kHz Early-Digital Sound Sampling

Experience true 12kHz/24kHz sampling combined with the 12-bit Sampler mode, which transforms any sound into a pleasant Early-Digital sound, much like the legendary 12-bit samplers of yesteryear.

Each sample can be up to 40 seconds in length, and you can store as many samples as your SD card capacity allows. From these, you can load up to 256 samples (64MB) into a single project, seamlessly switching between samples during playback.

Samples can also be played using PAD mode, utilizing all 15 pads as a keyboard for chromatic/scale play. You can also chop samples to create and play individual slices within a single track.

2) Intuitive & Non-stop Beat Making

The powerful 8-track sequencer supports un-quantized recording and non-stop editing, allowing you to create tracks and beats in real-time as you hit the pads.

With parameter locking, dynamic parameter recording is a breeze - simply press the REC button and tweak the knobs. You can also input exact values directly using the step buttons.

Using the D-pad Roll, you can choose between 7 re-trigger divisions from 8th to 64th notes, while controlling velocity by a pad pressure.

A single project consists of 128 patterns and 16 songs. It can be used not only for song production, but also for long live performances by connecting songs with non-stop editing and various MUTE modes.?

3) Powerful Signal Processing & Extensive Sample Libraries

Simultaneously utilize 8 track effects, delay, reverb, and master compressor to craft diverse sounds.

Track effects can be selected from 22 effect types, and the master compressor can be side-chained. (Can be switched to the master filter for performance.)

The included SD card contains 2,500+ samples from legendary drum machines like TR-808/909, LM-1, linndrum, DMX, Drumulator, SP-12, Drumtraks and TOM*, to ready-to-use the Early-Digital Sound samples.

4) Effortless Background Mix-Tape Recording

The Mix-Tape recording feature continuously captures all your performances in the background up to three hours.

Recording quality can be selected from six levels, from the lo-fi recording quality of a micro-cassette tape to high quality recording at 48 kHz-16 bit, the same recording quality as DAT.

Whether you're mixing down tracks, recording live performances in their entirety, or extracting choice beats and phrases from your daily jams, you will have a continually expanding resource of your sounds and music at your fingertips.

5) Versatile Connectivity with Other Devices

Import and export audio files via USB or SD card. The Lofi-12XT's unique file convert feature ensures typical audio files with differing sampling bit/rates are transformed into the signature Lofi-12 Sounds.

Connect a wide variety of audio sources, from dynamic microphones, electric guitars/bass, synthesizers, and even USB audio sources from PC/Mac or Smartphones.

With TRS analogue inputs and outputs, digital outputs via USB, and tempo sync through MIDI or audio sync, the Lofi-12XT seamlessly integrates with DAWs and various other devices.

Specifications

Sampler: 12kHz/24kHz-16bit (mono) with 12bit mode
Recording time per sample: Up to 40 seconds
Max. number of samples: Up to SD card limit (Up to 64MB - 256 samples can be loaded into each project)
Sample editing: Realtime
Sample slicing: User slice markers
Slice choke groups: Yes
Sample file import: Yes (USB and SD card)
Amplitude modulation: ASR/AR envelope
Filter modulation: ASR/AR envelope
Pitch envelope: Sweep envelope
LFOs: 2 per track
Polyphony: 20 voices internal + USB & External audio
Number of tracks: 8
Track types: 1 (various voice modes)
Sequencer: 128 patterns- 16 songs x 256 projects
Note(Step) length: 1/1 to 1/64
Steps per pattern: 128
Non-Quantize recording: Yes (with MicroTiming edit)
Parameter lock recording: Yes
Drum roll/Note repeat: Yes
Effects: 26 types
Simultaneous effects: 11 (1 FX per track + 2 send FX + 1 master FX)
Background mix-tape recording: Yes
Pads/Keys: 15 velocity-sensitive pads with RGB LEDs
Display: 1.5" OLED
Built in mic: Yes
Audio inputs: 6.35mm TRS, USB audio
Audio input types: Line In, Dynamic Mic, Guitar
Audio outputs: 6.35mm
Headphones: 3.5mm
Midi connectivity: DIN MIDI + USB MIDI

Hardware specifications

Pads: 15 velocity-sensitive pads with RGB LEDs

Controllers: Control knob x 5, Directional pad with 2 button controls 1.5 inch OLED display
Mono x 1 (Omni-directional, 94dBSPL)
Display: 1.5 inch OLED display
Built-in Mic: Mono x1 (omnidirectional, 94dBSPL)
Built-in Speaker: Mono x 1 (1.5W 402)

Audio Inputs

INPUT L / Guitar (Switchable 10k and 1MQ impedance)
[LINE Gain] PAD: -20dB
[Hi-Z Gain] LOW: 0dB, NORMAL: +10dB, HI: +20dB
INPUT R / Dynamic Microphone
[LINE Gain] PAD: -20dB
[MIC Gain] LOW: 0dB, NORMAL: +28.8dB, HI: +50dB

Audio Outputs

STEREO LINE OUTPUTS (Max +6.5dBV)
*The above jacks are all balanced 1/4" TRS Jack Connectors
PHONES jack (stereo 3.5mm mini jack type)

USB port: micro USB Type-B

MIDI ports
[USB Audio] USB 2.0 Full Speed, 48kHz-16bit
Input: 2 channels
Output: 2 channels
[USB MIDI]
[Mass Storage Class] USB2.0 High Speed
*For iPhone, Apple Lightning to USB Camera Adapter required separately MIDI IN connector (5-Pin DIN type)

MIDI ports
MIDI IN connector (5-pin DIN type)
MIDI OUT connector (5-Pin DIN type)

Other connectors
SYNC IN jack (mono 3.5mm mini jack type)
SYNC OUT jack (mono 3.5mm mini jack type)
SD card slot (Standard size *Supports SDHC cards up to 32 GB)
DC IN connector

Bottom side hole: 1/4-20UNC screw for tripod mount

Size and weight
Width: 147mm | approx. 5.8 inch
Depth: 175mm | approx. 7.8 inch
Height: 46mm | approx. 1.8 inch
Weight: 550g | approx.1 lbs 3.5 oz

Power supply

DC12V output AC adapter (500mA, Inner Diameter: 2.5mm, Outer Diameter: 5.5mm, Polarity: Center +)
Ni-MH AA SIZE Rechargeable Battery or Alkaline AA SIZE Dry Battery x 6
(Alkaline dry batteries life: approx. 4 hours)
*Batteries sold separately

Accessories
32GB SDHC card incl. 2,500+ samples
Power Supply Unit: Warranty
*USB cable and the other connection cables sold separately

Notes: *** Version 1.3 features enhancesd drum tracks. ***

Portable hand-held sampler with serious power, originally launched on Kickstarter and now in production. One-touch sampling via a range of inputs, internal sequencer, built-in effects and resampling.

Supplier's Notes:
Easy Sampling

You can easily sample any sounds with the built-in microphone, your microphone or electric guitar connected to the input, or even a USB-connected smartphone or PC/Mac.

You can even sample applying an insert effect. For example, your electric guitar can be added to Distortion or your vocal to Compressor.

Sampled sounds can be quickly assigned to pads with auto-slicing, and can also be edited manually in detail by viewing the waveform display.

Sampled sounds can also be easily matched to the tempo and key of your song.

You can also resample a sequenced phrase of sampled sounds including applied effects.

Flexible Song-making

Each song project has 16 sequential parts called "Scenes". Each Scene has 10 sequencer tracks which can behave in different ways, as described below:

- Loop Track: Sequencer for a looping sample
- Shots Track: Sequencer for a single one-shot sample
- Drum Track: Step sequencer for drums
- Instrument Track: Piano roll type sequencer for musical instruments
- MIDI Track: Piano roll type sequencer for external MIDI equipment

Three additional Global Audio Tracks are available for longer recordings like vocals and external instruments. These tracks can record multiple takes which can be spliced into a final perfect version. Traditional "punch-in" style recording is also supported.

Easily structure a full song by sequencing scenes and setting how many times they repeat before moving to the next scene. You can set the order of scenes via a copy function.

A song can be mixed down through a mastering effect, and be exported to a single audio file or individual audio files (stem files) for each track.

Effortless Music Streaming

You can stream your music in perfect quality with a single USB cable, without any driver installation or troublesome menu settings.

You can livestream your voice and performance in real time while playing along with your song. And they can be controlled with crossfading and mixing with effects.

Massive Sample Libraries

More than 500 high-quality sample sounds are available (for download), so you can start creating a songs right away, even if it's your first time.

Samples you record are stored to the SD card. In Crad Reader mode you can download your recordings, or import new samples from your PC/Mac.

36 types of internal DSP effects can be used as the insert, send, and master effects.

Versatile Connectivity

The SmplTrek can connect to a wide range of audio sources such as, dynamic microphones, electric guitars/bass, synthesizers, and even USB audio sources from PC/MACs or smartphones.

The SmplTrek can output audio via two analog outputs, or digitally via USB for live streaming and direct DAW recording.

It can also synchronize its tempo with other devices using MIDI or audio sync.

Maximum Polyphony:
35 voices
+ LOOP track + SHOT track + DRUM track + INST track: 30 voices
+ GLOBAL audio track: 3 voices (3 mono tracks)
+ USB audio track: 1 voice
+ External source: 1 voice
(DRUM track and INST track have a maximum of 8 voices each track. MIDI track can also output up to 8 notes each track.)

Sampling/Recording:
48kHz-16bit linear
Sampling Time: Maximum sampling time (size) for a single sample is approximately 180 minutes in stereo (2 GB).
Recordable Data: Depend on SD card *SD card sold separately
Data Format: WAV
Resampling, auto-slicing, time-stretching, pitch-changing functions
*SmplITrek requires an SD card for sampling. Supported SD cards are SDHC cards up to 32 GB. (SDXC cards are not supported.)

Sequencer:
Each song project has 16 scenes
1 scene contains 10 sequencer tracks and 3 additional audio tracks
Track Type
Loop Track: Sequencer for a looping sample (Max 10 tracks/project)
Shots Track: Sequencer for a single one-shot sample (Max 10 tracks/project)
Drum Track: Step sequencer for drums (Max 1 track/project)
Instrument Track: Piano roll style sequencer for musical instruments (Max 3 tracks/project)
MIDI Track: Piano roll style sequencer for external MIDI equipment. (Max
10 tracks/project)
Max. number of bars: 128 bars in Scene
Note Length: 1/1~1/32
Various copy functions
Transpose function
Real-time and non-real-time recording
Metronome, pre-count function

Effects: 36 types (Insert, Send, Master Effects)
Pads: 15 velocity-sensitive pads with RGB LEDs
Controllers: Control knob x 5, Directional pad with 2 button controls
Display: 1.5 inch OLED display
Built-in Mic: Mono x 1 (Omni-directional, 94dBSPL)
Built-in Speaker: Mono x 1 (1.5W 4 O)

Connectors:

INPUT L / Guitar (Switchable 10kQ and 1MQ impedance) / Dynamic Mic
[LINE Gain] PAD: -20dB
[Hi-Z Gain] LOW: 0dB, NORMAL: +10dB, HI: +20dB
[MIC Gain] LOW: 0dB, NORMAL: +10dB
INPUT R / Dynamic Microphone
[LINE Gain] PAD: -20dB
[MIC Gain] LOW: 0dB, NORMAL: +28.8dB, HI: +50dB
STEREO LINE OUTPUTS (Max +6.5dBV)
*The above jacks are all balanced 1/4" TRS Jack Connectors
PHONES jack (stereo 3.5mm mini jack type)
USB port (micro USB Type-B)
[USB Audio] USB 2.0 Full Speed, 48kHz-16bit
Input: 2 channels, Output: 2 channels
[USB MIDI]
[Mass Storage Class] USB2.0 High Speed
*For iPhone, Apple Lightning to USB Camera Adapter required separately
MIDI IN connector (5-Pin DIN type)
MIDI OUT connector (5-Pin DIN type)
AUDIO SYNC IN jack (mono 3.5mm mini jack type)
AUDIO SYNC OUT jack (mono 3.5mm mini jack type)
SD card slot
DC IN connector

Power Supply:
DC12V output AC adapter (500mA, Inner Diameter: 2.1mm, Outer Diameter: 5.5mm, Polarity: Centre +)
Ni-MH AA SIZE Rechargeable Battery or Alkaline AA SIZE Dry Battery x 6
(Alkaline dry batteries life: approx. 4 hours)
*Batteries sold separately

Accessories:
AC Adaptor
Warranty
*SD card, USB cable and the other connection cables sold separately

Size and weight

Width: 147mm | approx. 5.8 inch
Depth: 175mm | approx. 7.8 inch
Height: 46mm | approx. 1.8 inch
Weight: 550g | approx.1 lbs 3.5 oz
