Notes: 2xSAM is 4 HP Dual Stereo Attenuator-Mixer

Several 2xSAMs can be chained together or with other HN stereo modules via sockets on the back side.

2xSAM's total mix stereo output can be internally sent to the Isolator, PanMix Jr, 3xStereo Mixer, or can be received from OUT, PanMix, PanMix Jr, 3xStereo Mixer, or another 2xSAM.

If jumpers are not installed (placed on one pin only by default) the max gain is 1x. When the jumper is properly placed on both pins - the gain is 5x. There are four inputs thus four jumpers. Each jumper is relevant to its channel.

27 mA +12V
27 mA - 12V
35 mm Depth
4 HP wide

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
24HP wide

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
24HP wide

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer.

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
6 HP wide

Notes: 3xMIA is a 6-channel attenuverting mixer/offset/scale/polarizer

3 blocks of 2-channel attenuverting mixers, using dual concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

80 mA +12V
80 mA -12V
35 mm Depth
6 HP wide

Notes: 3xVCA offers three high class amplifier circuits with linear characteristic. Thanks to AC / DC compatibility, a very low noise floor and basically no distortion, the module is not only a great partner for control voltages, but audio material as well. Besides a signal input and output, each VCA has its own CV input. The dual potentiometers regulate levels and bipolar CV attenuation values of all amplifiers. Using these rather unusual, yet very practical components, it was possible to equip the 3x VCA with a front panel that is only 6 HP wide. Switches allow the user to feed the results of one amplifier to the output of the next amplifier, so we can get 1+2, 2+3, and 1+2+3 outputs mix. Two-colored LEDs visualize CV and output signals.

60 mA +12V
60 mA -12V
35 mm Depth

Notes: 3xVCA ofers three high class amplifier circuits with linear characteristic. Thanks to AC / DC compatibility, a very low noise floor and basically no distortion, the module is not only a great partner for control voltages, but audio material as well. Besides a signal input and output, each VCA has its own CV input. The dual potentiometers regulate levels and bipolar CV attenuation values of all amplifiers. Using these rather unusual, yet very practical components, it was possible to equip the 3x VCA with a front panel that is only 6 HP wide. Switches allow the user to feed the results of one amplifier to the output of the next amplifier, so we can get 1+2, 2+3, and 1+2+3 outputs mix. Two-colored LEDs visualize CV and output signals.

60 mA +12V
60 mA -12V
35 mm Depth

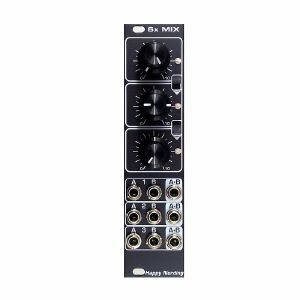

Notes: 6xMIX is a six channel audio (AC coupled ) mixer, channels arranged in three groups with separate outputs having led indicators. Each group can be switched to mix with the subsequent group, allowing for 2-2-2, 4-2, 6 mix configurations. The module can also be used to mix two stereo channels plus separate group of two mono channels. Perfect audio performance with the lowest noise and distortion amounts.

The inner knobs control the A inputs, while the outer knobs control the B inputs.

Dimensions
6 HP
35 mm deep

Current draw
50 mA +12V
50 mA -12V

Notes: 6xMIX is a six channel audio (AC coupled ) mixer, channels arranged in three groups with separate outputs having led indicators. Each group can be switched to mix with the subsequent group, allowing for 2-2-2, 4-2, 6 mix configurations. The module can also be used to mix two stereo channels plus separate group of two mono channels. Perfect audio performance with the lowest noise and distortion amounts.

The inner knobs control the A inputs, while the outer knobs control the B inputs.

50 mA +12V
50 mA -12V
35 mm Depth
6 HP wide

Notes: ADSR (Attack-Decay-Sustain-Release) is a module designed to generate a voltage, which acts as the envelope with the adjustable stages. This envelope, generated in response to the incoming gate signal or manually pushed button, can then be used to shape the sound amplitude via VCA, modulate filter's cutoff frequency or any other parameters expecting CV control.
It features exponential Attack, Decay and Release stages, switch to select fast/slow operation mode, push button with led indicator to manually activate the envelope.

Notes: Dual xFade is a compact voltage controlled crossfader suitable for both audio and CVs. Smaller knobs set manual crossfade between A<>B, and bigger knobs are CV attenuverters. LEDs show the adjusted positive and negative CV sides for easy monitoring.

Upper inputs (section 1) are normalled to lower inputs (section 2). Thus the same signal pair A&B can be differently crossfaded in both sections.

The switch clones section's 1 controls to the section 2, which is useful to make stereo Dry/Wet adjustment or stereo VCA.

This module can be used as:

two independent crossfades

two independent VCAs

stereo crossfade or Dry/Wet control

stereo VCA

panner

Four jumpers on the back can give optional 5x amplification for each A or B input. Sot it is easy to crossfade modular level with linear level from pedals. Installed jumpers give 1x amplification, removing jumpers gives 5x amplification.

Output 1 is mixed with output 2 if left unconnected.

Notes: 1U version of Happy Nerding's effects module, offering a total of 32 effects, with user-storable presets and CV control. Great value in a convenient package.

Supplier's Notes:
32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analogue Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long .wav file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 2000 Hz or brought up to 48 kHz.

Dimensions

24 HP
40 mm deep
Module is a 1U tile in Intellijel format

Current Draw

80 mA +12V
30 mA -12V

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other user selected Happy Nerding effects in any order. Also the possibility to run freely available third party effects will be added too.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz.

80 mA +12V
30 mA -12V
45 mm deep

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz.

80 mA +12V
30 mA -12V
45 mm deep

Notes: Upgraded Pro version of the outstanding FX Aid multi-effects module. 200 onboard stereo effects, customisable via an online app, with added CV inputs and even more physical controls. Superb.

Supplier's Notes:
FX AID Pro:

OLED screen shows current effect's number, name and its three parameters

200 onboard effects which can be arranged in any order via the online editor https://fxaid.app/pro

Instant switching of the effects or seek then activate option

Stereo input level control

SRR input can also be routed to parameters 1-3 or effect selection

Advanced internal lfo which can be routed to the Sample Rate, parameters 1-3 or effect selection

Manual control of the Sample Rate with one click for default position

10 user storable presets with handy indicator lines for each stored parameter

Screensaver with 1, 10, 30, 60 minutes options

Easy update by playing wav file, level indicator for proper volumes matching

Notes: FX AID Pro:

OLED screen shows current effect's number, name and its three parameters

200 onboard effects which can be arranged in any order via the online editor https://fxaid.app/pro

Instant switching of the effects or seek then activate option

Stereo input level control

SRR input can also be routed to parameters 1-3 or effect selection

Advanced internal lfo which can be routed to the Sample Rate, parameters 1-3 or effect selection

Manual control of the Sample Rate with one click for default position

10 user storable presets with handy indicator lines for each stored parameter

Screensaver with 1, 10, 30, 60 minutes options

Easy update by playing wav file, level indicator for proper volumes matching

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Separate modulation inputs for all three effect parameters plus Sample Rate Reducer (SRR) input - changes internal clock. Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to SRR input.

Reflashing mode: hold both buttons for 10 sec.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

By default it runs on 32.77 kHz and, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz via SRR input.

80 mA +12V
30 mA -12V
45 mm deep

Notes: HN VCF is a state variable filter having 12 db Low Pass, 12 dB High Pass, 6 dB Band Pass plus 18 db Low Pass marked as "LP!", because it has extra drive. All three parameters: "Freq", "Resonance" and "Drive" have dual knobs with outer knobs controlling bipolar CV amount. These affected CVs are then shown by the relative green/blue LEDs.

The possibility to have CV over "Resonance" and "Drives" makes it a very capable 6 HP filter.

"LP!" output has 6 dB steeper slope (18 dB) compared to ordinary 12 dB "LP" output. Plus it has much more drive.

Dimensions
6 HP
35 mm deep

Current Draw
55 mA +12V
65 mA -12V

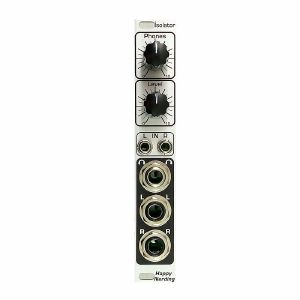

Notes: Isolator is your 4 HP solution for galvanic isolation between its inputs and 1/4 TRS balanced outputs, interfacing your Eurorack modular system without electric connection with the external equipment, which prevents possible ground loop issues.

If no signal is plugged to the right input, then the left input will be sent to both Left and Right outputs. "Level" knob adjusts output level for Left and Right channels, Phones knob sets the level for the headphones output.

Specs

50 mA +12V
50 mA -12V
45 mm Depth
4 HP wide

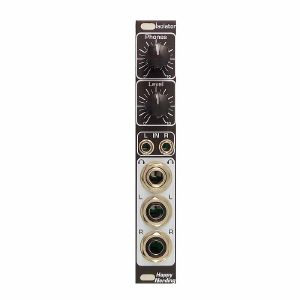

Notes: Isolator is your 4 HP solution for galvanic isolation between its inputs and 1/4 TRS balanced outputs, interfacing your Eurorack modular system without electric connection with the external equipment, which prevents possible ground loop issues.

If no signal is plugged to the right input, then the left input will be sent to both Left and Right outputs. "Level" knob adjusts output level for Left and Right channels, Phones knob sets the level for the headphones output.

Specs

50 mA +12V
50 mA -12V
45 mm Depth
4 HP wide

Notes: LED Meter is a handy utility module designed to show audio levels. Three colour versions are available:

green colour with yellow-red peak segments.
all blue colour
all yellow colour

There are total 30 led segments, each one roughly corresponds to 1 dB of level, so it is 30 dB of measurement level available with this module.
The module has an input for the signal to be displayed, and its buffered copy is sent to the output for further processing, so no external splitter is needed.
Two trimmers are accessible via holes on the front panel: left trimmer adjusts brightness and right trimmer is used for the level adjustment. So the module can represent full scale signals ranging from 1 V to 12 V.
There is operation mode jumper on the back side. When the jumper is installed - bipolar operation is active, and when the jumper is removed - ordinary audio meter is active.

Dimensions
4 HP
40 mm deep

Current Draw
150 mA +12V
20 mA -12V

Notes: LED Meter is a handy utility module designed to show audio levels. Three color versions are available:

- green colour with yellow-red peak segments.
- all blue colour
- all yellow colour

There are total 30 led segments, each one roughly corresponds to 1 dB of level, so it is 30 dB of measurement level available with this module.
The module has an input for the signal to be displayed, and its buffered copy is sent to the output for further processing, so no external splitter is needed.
Two trimmers are accessible via holes on the front panel: left trimmer adjusts brightness and right trimmer is used for the level adjustment. So the module can represent full scale signals ranging from 1 V to 12 V.
There is operation mode jumper on the back side. When the jumper is installed - bipolar operation is active, and when the jumper is removed - ordinary audio meter is active.

Dimensions
4 HP
40 mm deep

Current Draw
150 mA +12V
20 mA -12V

Notes: MMM VCF (M**g Multi Mode Voltage Controlled Filter) is a dual VCF having common controls for both parts. Thus, it can be used as a stereo filter, or patched with different combinations of the available inputs/outputs. And all this functionality is packed in the compact 8 hp wide module.

MMM VCF has the famous transistor ladder core introduced by Bob Moog, but also features the added Band Pass and High Pass modes, not available in the original design. Those extra modes greatly widen the possible spectral modification of the input sound.

The module was carefully designed to have vanishingly small noise and bleed.

Specifications

FREQ: 20 Hz - 22 kHz - manual frequency range
RES: 35 Hz - 22 kHz - self oscillation range
FM: 0 - 7,5 V will modulate the whole hearing range at max settings
LP: 24 db/oct Low Pass output
BP: 12 db/oct Band Pass output
HP: 12 db/oct High Pass output
Output impedance: 1 kOhm
Module depth: 4 cm
Width: 8 HP
Power consumption: +42 mA / -40 mA at +/-12 Vdc

Notes: MMM VCF (M**g Multi Mode Voltage Controlled Filter) is a dual VCF having common controls for both parts. Thus, it can be used as a stereo filter or patched with different combinations of the available inputs/outputs. And all this functionality is packed in the compact 8 hp wide module.

MMM VCF has the famous transistor ladder core introduced by Bob Moog, but also features the added Band Pass and High Pass modes, not available in the original design. Those extra modes greatly widen the possible spectral modification of the input sound.

The module was carefully designed to have vanishingly small noise and bleed.

Specifications

FREQ: 20 Hz ... 22 kHz - manual frequency range
RES: 35 Hz ... 22 kHz - self oscillation range
FM: 0 ... 7,5 V will modulate the whole hearing range at max settings
LP: 24 db/oct Low Pass output
BP: 12 db/oct Band Pass output
HP: 12 db/oct High Pass output
Outputs impedance: 1 kOhm
Module depth: 4 cm
Width: 8 HP
Power consumption: +42 mA / -40 mA at +/-12 Vdc

Notes: Super Sawtor is the module designed to produce unison like waveforms from the incoming signal. The best results are achieved using sawtooth, triangle or sine waveforms as an input signal. Unison spread has been tuned to give almost the same type of harmonics smearing as the famous Roland JP80X0 Supersaw oscillator. Thus feeding the Super Sawtor with a sawtooth waveform will result in a typical Supersaw output.

Though having some common features with sawtooth animators, Super Sawtor gives that vivid tension of the Supersaw waveform, which is different to imitation of the multiple oscillators sound most sawtooth animators capable of doing. The main difference is in the approach used: sawtooth animators tend to recreate continuously moving phase shift of the slightly detuned / drifting oscillators; super Sawtor in its turn creates additional pitched shifted harmonics to the input signal, which gives a different sonic character compared to sawtooth animators.

It is also should be mentioned that Super Sawtor is a completely analogue circuit free of aliasing.

No external modulation sources are required for proper operation of the module. However the user can add changes and modulation to the manually set "Spread" amount by using "Cv" input and adjusting "Cv" knob to the desired degree.

Specifications:
Input level: -5v... + 5v (can also accept inputs ranging from [-2.5v... +2.5v] To [-15v...+15v] Using onboard trimmers)
Output level: averages around -5v ... + 5v
Output impedance: 1 kohm
Module depth: 3 cm or 1,5"
Power consumption: +85 /-85 ma at +/-15 VDC through dotcom standard 6 pin mta-100 connector for dotcom format
+45 /-45 ma at +/-15 VDC through MOTM standard 4 pin mta-156 connector
+45 /-45 ma at +/-12 VDC through euro standard 10 pin connector
4HP

Notes: Super Sawtor is the module designed to produce unison like waveforms from the incoming signal. The best results are achieved using sawtooth, triangle or sine waveforms as an input signal. Unison spread has been tuned to give almost the same type of harmonics smearing as the famous Roland JP80X0 Supersaw oscillator. Thus feeding the Super Sawtor with a sawtooth waveform will result in a typical Supersaw output.

Though having some common features with sawtooth animators, Super Sawtor gives that vivid tension of the Supersaw waveform, which is different to imitation of the multiple oscillators sound most sawtooth animators capable of doing. The main difference is in the approach used: sawtooth animators tend to recreate continuously moving phase shift of the slightly detuned / drifting oscillators; super Sawtor in its turn creates additional pitched shifted harmonics to the input signal, which gives a different sonic character compared to sawtooth animators.

It is also should be mentioned that Super Sawtor is a completely analogue circuit free of aliasing.

No external modulation sources are required for proper operation of the module. However the user can add changes and modulation to the manually set "Spread" amount by using "Cv" input and adjusting "Cv" knob to the desired degree.

Specifications:
Input level: -5v... + 5v (can also accept inputs ranging from [-2.5v... +2.5v] To [-15v...+15v] Using onboard trimmers)
Output level: averages around -5v ... + 5v
Output impedance: 1 kohm
Module depth: 3 cm or 1,5"
Power consumption: +85 /-85 ma at +/-15 VDC through dotcom standard 6 pin mta-100 connector for dotcom format
+45 /-45 ma at +/-15 VDC through MOTM standard 4 pin mta-156 connector
+45 /-45 ma at +/-12 VDC through euro standard 10 pin connector
4HP

Notes: TriTone is a three section EQ plus saturator. Inner knobs control frequency and outer knobs control +- gain. All these sections Hi Shelf, Band Pass and Low Shelf are having + 20 db of gain and 30 db of reduction. Each section can work independently or they can be serially connected by the switches. Middle input in each section accepts CV for its frequency, so all three sections can be individually FMed by the external CVs.

If the inputs are fed with the modular level signals (+- 5V), then there is little room for "plus" EQ gains before saturation starts. In this case the input level should be attenuated first, if saturation is not desired and much "plus" gain is needed. Otherwise saturation drastically enriches the tone and the module works like very flexible overdrive FX.

When the switches are set to upper positions, then all three sections work independently. With the maximum gain reduction (CCW position) of the upper section (Hi Shelf) it becomes a useful kind of Low Pass filter. On the contrary - maximum gain reductions of the lower section (Low Shelf) makes it a High Pass filter.

Please note the internal routing done by the switches: the output of the uppers section is added to the input of the subsequent lower section. If nothing is connection to this lower sections' input, then only the upper section's output is processed. This makes it a 3 band EQ with the switches set to lower position. Having separated inputs opens up more possibilities over ordinary EQs.

6 HP, 45 mm deep
55 mA +12V
65 mA -12V

Notes: TriTone is a three section EQ plus saturator. Inner knobs control frequency and outer knobs control +- gain. All these sections Hi Shelf, Band Pass and Low Shelf are having + 20 db of gain and 30 db of reduction. Each section can work independently or they can be serially connected by the switches. Middle input in each section accepts CV for its frequency, so all three sections can be individually FMed by the external CVs.

If the inputs are fed with the modular level signals (+- 5V), then there is little room for "plus" EQ gains before saturation starts. In this case the input level should be attenuated first, if saturation is not desired and much "plus" gain is needed. Otherwise saturation drastically enriches the tone and the module works like very flexible overdrive FX.

When the switches are set to upper positions, then all three sections work independently. With the maximum gain reduction (CCW position) of the upper section (Hi Shelf) it becomes a useful kind of Low Pass filter. On the contrary - maximum gain reductions of the lower section (Low Shelf) makes it a High Pass filter.

Please note the internal routing done by the switches: the output of the uppers section is added to the input of the subsequent lower section. If nothing is connection to this lower sections' input, then only the upper section's output is processed. This makes it a 3 band EQ with the switches set to lower position. Having separated inputs opens up more possibilities over ordinary EQs.

6 HP, 45 mm deep
55 mA +12V
65 mA -12V
