Portable audio recorders | Handheld recorders

Notes: ***B-STOCK: Box opened, product in perfect working order***


More affordable than the flagship X8 but still offering exceptional sound quality, the X6 is a handheld recorder for every purpose, with built-in mics or XLR inputs, 96-kHz/32-bit resolution and smartphone-style touchscreen control.

Supplier's Notes:
Advanced recording technology, yet simple to use!

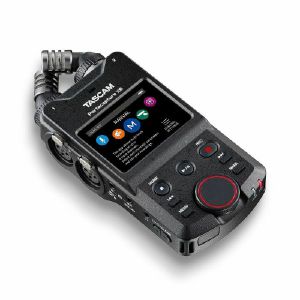

Capturing high-resolution audio is easy with the Portacapture X6. The intuitive app-like operation on its large colour touchscreen makes it easy to record or sweeten up your audio in post-processing. Record using the two built-in microphones or plug in your own mics to its two XLR inputs. The recording quality on the Portacapture X6 will be your secret advantage. Its 96-kHz/32-bit floating-point recording technology means that you can capture audio softer or louder than ideal, assuring that you will never miss that moment.

Six different recording apps to choose from

Manual: This is the main app for multi-track recording of up to six audio sources and a stereo mix (2-mix).
Voice: This recording app is ideal for capturing interviews, dictation and meetings.
Podcast: Use this for podcast creation with up to four people.
Music: Choose this app for capturing instrumental and vocal performances.
Field: Ideal for recording nature sounds outdoors.
ASMR: The screen visual effect changes in response to the input sound.

App-like operation
Quickly access your settings and adjustments on the Portacapture X6's large (2.4-inch) colour touchscreen. With the easy-to-navigate interface and helpful tools, you are just a few taps from the perfect setting for your needs. Use the Launcher to select from podcast, music, interviews, field recording and real 6-track recording. Start fast, start right and get exactly what you need.

Audio for video production

When shooting a video, you want to be able to focus on your video production and not worry about your audio. The Portacapture X6 was built with video production in mind. The workflow, presets and user settings save you countless steps. The X6 has your back with its 96 kHz/32-bit float recording technology. Not only does this mean you will have the highest quality audio, but you will have a dynamic range that allows you to overcome those less-than-ideal realities that can often occur on a shoot.

The X6 even gives you a timecode sync option* via Bluetooth (with optional AK-BT1) allowing you to align your audio with your video, even when you have no audio on your camera. Upgrade your audio and reduce your worries with your own Portacapture X6.

Record your way

The Portacapture X6 is ready to record with a few quick taps. The internal high-quality stereo microphones can instantly be rotated from A-B to a true X-Y mic pattern to allow for dialogue or spatial music recording. Have your own mics? Use those thanks to the two included XLR inputs which can also handle line level sources.

The mic preamplifiers are Tascam HDDA (High Definition Discrete Architecture) - providing ultra-low noise and clean transparent audio based on more than 50 years of Tascam know-how.

Record six tracks (four individual track plus stereo mix) simultaneously and even use the X6 as your 6-in/2-out USB audio interface to connect to your computer.

Capture every bit

It would be great if every time you need to capture audio, everything is perfect. Not too loud, not too soft. Of course that is not the reality for most of us. Sometimes a voice or sound will be really soft and in other cases it is blasting. Even in these extremes, you are expected to capture the sound and deliver well-finished audio.

The 32-bit floating point recording technology in the Portacapture X6 gives you a much lower floor and higher ceiling for sound material. The result is that your recording can capture everything from the quietest rustle to the loudest spectacle.

Control the recorder from your phone (with optional Bluetooth adapter)

In those cases where you want to put your audio recorder in one place and operate it from another, the X6 has you covered. With the AK-BT1 Bluetooth adapter (sold separately) and the free Portacapture Control app, it's easy to remote control your X6 wirelessly from your smartphone or tablet.

Imagine the possibilities!

Ready-to-publish audio anywhere

With the Portacapture X6, your audio is ready to share. Built-in signal processing, including a compressor, limiter, high-pass filter, EQ and reverb, adds that studio polish.

Whether you need to tame the wind when recording outside or want to add the ambiance of reverb to your vocals, the X6 has you covered. From smoothing out your input to preventing extreme peaks or eliminating plosives in dialogue, you can count on the Portacapture X6.

Specifications

Recorder specifications

Recording media: microSD card (64 MB - 2 GB), microSDHC card (4-32 GB), microSDXC card (48-512 GB)
Recording/playback formats: WAV (BWF): 44.1/48/96 kHz, 16/24 bit or 32 bit float, MP3: 44.1/48kHz, 128/192/256/320 kbit/s
Input channels: 4 (maximum)
Recording tracks: 6 (4 tracks + stereo mix)

Analogue audio inputs

Mic inputs 3-4 (balanced): XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD), 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
(phantom power over XLR only)
Input impedance: +/-2.2 kO
Maximum input level: +2 dBu
Minimum input level: -75 dBu
Line inputs 3-4: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD), 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Input impedance: +/-9 kO
Maximum input level: +24 dBu
Minimum input level: -53 dBu
MIC/EXT IN (unbalanced): 3.5-mm mini jack (supports plug-in power)
Input impedance: 10 kO (plug-in power off), 1.8 kO (plug-in power on)
Maximum input level: 0 dBV
Minimum input level: -67 dBV

Analogue audio outputs

Line output (LINE OUT, unbalanced): 3.5-mm stereo mini jack
Output impedance: 200 O
Nominal output level: -14 dBV
Maximum output level: +6 dBV
Headphones output: 3.5-mm stereo mini jack
Maximum output: 45 mW + 45 mW (THD+N: =0.1%, 32 O load)
Built-in speaker: 0.4 W (mono)

Control inputs/outputs

USB port: USB Type-C connector
Format: USB 2.0 High Speed mass storage class
Bluetooth device connector: For Bluetooth adapter (AK-BT1) only

Audio performance

Equivalent input noise (EIN, mic inputs 3-4) =-125 dBu
Frequency response (inputs 3-4 to PCM data): Fs 48 kHz: 20 Hz - 20 kHz, +0/-0.3 dB (JEITA), Fs 96 kHz: 20 Hz - 40 kHz, +0/-0.7 dB (JEITA)

Dynamic range (20 kHz SPCL LPF, A-weighted, Field app)
Inputs 3-4 to PCM data: -112 dB (48/96 kHz)

S/N ratio (20 kHz SPCL LPF, A-weighted)
Inputs 3-4 : 112 dB (48/96 kHz)
MIC/EXT IN: 103 dB (48 kHz), 105 dB (96 kHz)
Total harmonic distortion ratio (THD+N, 1 kHz sine wave, -5 dBFS at input, GAIN at minimum, 20 kHz SPCL LPF)
Inputs 3-4 (LINE IN) to PCM data: 0.008 %
Inputs 3-4 (MIC IN) to PCM data: 0.006 %

Power supply and other specifications

Power supply: 4 AA batteries (alkaline, Ni-MH or lithium-ion)
USB bus power from a computer
AC adapter (TASCAM PS-P520U, sold separately)
Power consumption 7.5 W (maximum)
Display: 2.4-inch full-colour LCD touchscreen
Dimensions (W × H × D): 75 mm × 174 mm × 37 mm (excluding protrusions)
Weight: 365 g (with batteries) / 265 g (without batteries)
Operating temperature range: 0-40 -C

Notes: DR-05XP

2-Channel 32-Bit Float Portable Handheld Recorder With USB-C Interface

Pro-Quality Portable Recording, Simplified

The TASCAM DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels. With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time.

Capture Pro-Level Recordings Every Time

With its 32-bit float recording mode, the DR-05XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording - and you'll never need to worry about setting input levels.

Built-in Condenser Microphones

The DR-05XP features omnidirectional condenser microphones that can withstand high sound pressure levels (up to 125dB SPL), reducing the risk of mic distortion even in loud environments.

Simplicity in Your Palm

With the DR-05XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.

Your Portable Recording Studio

The DR-05XP isn't only a powerful portable recorder - it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.

Ideal for Musicians

The DR-05XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.

On Location

With its compact size, the DR-05XP can travel anywhere for exceptional field recording. Choose from three different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-05XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.

Record Anything, Anywhere

From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-05XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.

Key Features
2-channel portable handheld audio recorder with microSDXC card storage
32-bit float recording mode ensures low-noise, distortion-free recordings
Omnidirectional condenser microphones handle loud environments and sources (up to 125dB SPL)
2-in/2-out USB-C audio interface for recording directly to your computer
Up to 17.5 hours of operation with 2 x AA alkaline batteries
Recording modes include 32-bit float/24-bit/16-bit, 96kHz/48kHz/44.1kHz
microSDXC (up to 512GB) cards can be used as recording media
USB Type-C port
Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
Long recordings as MP3 files possible
Various recording function (Auto rec, Self timer, Pre rec)
Overdubbing function
Limiter and Peak reduction
Three low-cut filter levels (40/80/120Hz)
Auto Tone output for use with DSLR camera
Reverb effect for vocal and instrument resonance
Mark function
128×64 pixel graphic LCD with backlight
Tripod mounting point attaches to any standard tripod
Stereo mini line output and headphone output
Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
Playlist function
Built-in monaural speaker makes it easy to check your recordings
Chromatic tuner for tuning musical instruments before recording

Recorder specifications
Recording media/file systems: microSD cards, microSDHC cards, microSDXC cards (up to 512 GB)
Recording/playback formats
WAV (BWF)
Sampling frequency: 44.1 kHz, 48 kHz, 96 kHz
Quantization bit depth: 16-bit / 24-bit / 32-bit float
MP3
Sampling frequency: 32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
Quantization bit depth: 24-bit / 32-bit float
Maximum number of input channels: 2
Maximum number of recordable tracks: 2

Analog audio input/output ratings
MIC/EXT IN jack (can provide plug-in power)

Connector: 3.5mm (1/8") stereo mini jack
Input Impedance: 18 kO or more (when plug-in power is turned off)
2 kO or more (when plug-in power is turned on)

Nominal input level: - 20 dBV
Maximum input level : -4 dBV

PHONES/LINE OUT jack

Connector: 3.5mm (1/8") stereo mini jack
Output impedance: 12 O
Nominal output level: -14 dBV (10kO loaded)
Maximum output level: +2 dBV (10kO loaded)
Maximum output: 20 mW + 20 mW (32 O load)
Working impedance: 16 - 250O

Built-in Speaker
Output: 0.3W (monaural)

USB
Connector: USB Type-C
Format: USB 2.0 High Speed Mass Storage Class
USB 1.1 Full Speed Audio Class

USB Audio
Sampling rate: 44.1 / 48 kHz
Quantization bit depth: 24-bit
Number of inputs: 2 channels (output from this unit)
Number of outputs: 2 channels (input to this unit)

General

Power
2AA batteries (alkaline or NiMH)
USB bus power (5V/0.5A) from a computer, etc.
TASCAM PS-P520U AC adapter (sold separately)

Power consumption: 1.7 W (maximum)

Weight: 174 g / 0.384 lb (including batteries)
126 g / 0.278 lb (not including batteries)
Operating temperature range: 0 - 40 -C / 32 - 104 -F

Dimensions:
60.5 x 142.3 x 27 mm
2.39 x 5.61 x1.07 inch
(W x H x D, including protrusions)

Included items:

DR-05XP x1
Safety guide (including warranty) x1
TASCAM ID registration guide x1

* WS-11 Windscreen sold separately
* SD card not included

*Note:0 dBV=1 Vrms, 0 dBu=0.775 Vrms

Notes: The H2essential is the only Handy Recorder with three internal microphones. With the ability to select different mic patterns, it gives creators more options than ever before. With two cardioid mics facing front and rear and a bi-directional mic facing side to side, the H2essential allows you to choose the perfect pick-up pattern for every recording.

Set your pickup pattern to 90O or 120O stereo, or choose mono for a hyper directional pickup, reducing background noise. Then choose to record from the front, rear, or activate both sides for surround sound pickup. Record in 32-bit float up to 96kHz ensuring high-quality audio without ever having to set gain.

When connected to a PC, Mac, iOS, or Android device using the USB-C port, the H2essential can be used as a USB microphone while simultaneously recording to the SD card. Connect the H2essential to your mobile device via USB and record professional audio directly onto your phone's video. Perfect for video podcasts and live streams.

Record in MS Raw and adjust the width of the stereo image in post production. This is helpful when you want to control ambient noise. The H2essential has advanced features such as a low cut filter, pre-record, auto record, and playback speed adjustment.

Using the BTA-1* Bluetooth Adapter, pair one or more H2essentials with your iOS device to remotely hit record and sync timecode. The H2essential is designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.

The specially designed windscreen for the H2essential provides wind protection when recording outdoors. The custom fit gives access to controls while the windscreen is attached. The 3.5mm input can accommodate audio players, keyboards, and lav mics with plug-in power. You can record with the front mic and the 3.5mm input simultaneously.

Use the mixer to easily adjust each track's audio level. The color LCD screen makes it easy to navigate through the H2essential's simple interface.The real-time waveform display lets you see your audio as it records.

Use the 3.5mm headphone output for headphones or connect directly to a camera. The onboard speaker allows you to listen to your recordings for quick reference as well as utilize the Accessibility functions. The H2essential supports SDXC cards up to 1TB.

The H2essential has a dedicated Marker button to instantly set reference points while recording. The H2essential can be powered by two AA batteries or via the USB-C port. This includes bus-power as well as external USB battery pa

Notes: Exceptional value from one of Zoom's entry-level recorders. Quick and easy to set up and use, the H1essential offers excellent stereo sound quality. Records to microSD card, with option to transfer files via USB.

Supplier's Notes:
Zoom H1essential - 32-Bit Float Recording for All

The World's Easiest Recorder, Just Got Easier

With the push of a button the H1essential captures perfect audio for musicians, podcasters, filmmakers, and content creators. Simply hit record and discover the power of 32-bit float.

32-Bit Float Magic

With 32-bit float recording, you never have to adjust levels. The H1essential captures every nuance of your sound ensuring high-quality audio with every take

The First Handy Recorders with Accessibility

The Essential Series was designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.

Loud and Clear

The onboard X/Y microphones capture clean audio up to 120 dB SPL, equivalent to the sound of a high-performance engine.

The Perfect Practice Companion for Musicians

Musicians can use the H1essential to record every rehearsal, a great way to improve your playing. Features like overdubbing and playback-speed-adjustment are great for writing and practicing.

Sound Makes the Scene

The H1essential is great for filmmakers. Record and send audio directly to your camera or use it to record sound effects to complete your scene.

For Storytellers

Podcasters can mount the H1essential on a tripod for sit down conversations or use 'mono mode' for on-the-go interviews.

Big Features, Small Package

The H1essential has advanced features such as overdubbing, pre-record, auto record, and playback speed adjustment.

Features

32-bit float recording: perfect audio with no need to set gain
120 dB SPL 90 degree XY Mics
Records up to 96kHZ sample rate
New OLED Display
Overdubbing, auto record, pre-record and timer functions
USB Microphone Function
Audio guidance function for the blind and visually impaired
10 hours of battery life on 2 AAA Batteries or USB-C Bus power

Specs

Inputs

Built-in mic: 90 degree XY stereo format
Directionality: Unidirectional
Sensitivity: -37 dB/1 Pa at 1 kHz
Maximum sound pressure input: 120 dB SPL

MIC/LINE IN jack

Connector: Stereo mini jack
Input impedance: 2 kO or more
Plug-in power: 2.5 V

Built-in mic
90 degree XY stereo format
Directionality: Unidirectional

Outputs

PHONE / LINE OUT jack
Connector: Stereo mini jack
Maximum output level: 20 mW + 20 mW(into 32O load)
Output impedance: 10 O or less
Built-in speaker Type: 20 x 30mm oval dynamic speaker
Practical maximum output: 250mW

Recorder
Recording formats:
WAV
44.1/48/96 kHz, 32-bit Float
Stereo / Mono
BWF and iXML formats supported

Recording media
4-32GB cards compatible with the microSDHC specification
64GB-1TB cards compatible with the microSDXC specification

Display
OLED: 128 x 64

USB
Connector: USB Type-C (Use a USB cable that supports data transfer.)
USB Mic: USB 2.0 High Speed
48 kHz, 24-bit
File transfer: USB 2.0 High Speed

Power

2 AAA batteries Alkaline, Lithium, or Rechargeable NiMH
AC adapter: ZOOM AD-17: DC 5 V/1 A
USB bus power is supported.

Estimated continuous operation time using batteries

Alkaline batteries: About 10 hours
NiMH batteries (800 mAh): About 9 hours
Lithium batteries: About 18 hours
Stereo recording, 48kHz/32-bit float, no headphones, Power Save 1min
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.

Power consumption: 5 W maximum
Dimensions: 53.9 mm (W) × 136.6 mm (D) × 29.0 mm (H)
Weight (including batteries): 92 g
Note: 0 dBu = 0.775 Vrms
