Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


The Skorn da Bask table top module is the same module as the eurorack version but in a hammond 1590BB enclosure and aluminium panel, it can be powered thru a 2,1mm negative pin power jack, compatible with Boss and Ibanez standard power supplies.

Thanks to their routing options, the VCOs can not only be used to generate audio signals, but for modulating the VCF's cutoff frequency as well. Besides processing internally produced saw tooth waves, the filter is also usable for editing sound coming from other modules. Typical Touell Skouarn, the Skorn da Bask distorts like hell. Primary application: The creation of dirty, experimental sound structures and abstract rhythms.

The front panel of Skorn da Bask shows three areas highlighted in red. These zones contain the connectors and control elements for the oscillators. Each VCO comes equipped with a pitch CV input, a tune potentiometer and two switches for defining the routing as well as the frequency range used. In detail, the oscillators can be connected to the audio or CV input of the filter. Thanks to their range switches, each VCO is able to work with audio or low frequency rates. The pitch input does not follow the standard 1v per octave.

After all, Skorn da Bask is not an ordinary oscillator module, but an experimental sound generator.

The low pass filter features a slope of 24 dB per octave. A potentiometer named FreqaNs regulates the circuit's cutoff parameter, Dasson sets the resonance. For processing external signals, there is an audio input. As long as a cable is plugged into this socket, the VCOs are disconnected from the filter's audio path. Third-company modules, like an envelope or LFO, can influence the VCF's frequency via a CV input. For damping modulation signals coming from the oscillators, there is an attenuator knob. The audio output is equipped with a level potentiometer. High settings lead to juicy overdrive effects.

Notes: ***B-STOCK: Box opened, product in perfect working order***

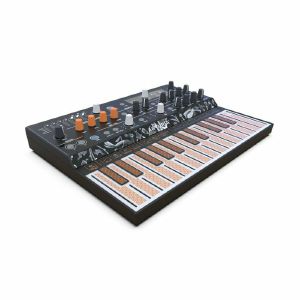

The lovable oddball of the Arturia range, this brilliant hybrid synth combines versatile wavetable and digital oscillators with analogue filters. Touch keyboard gives uniquely expressive control.

*** New firmware update (26th October 2021) *** Arturia are happy to announce another major new firmware update for MicroFreak, bringing massive new creative functionality for users free of charge.

Firmware V4.0 elevates this hybrid desktop synthesizer's status as a sound design powerhouse even further:
New WaveUser sound engine
Allows for user wavetables(!!)
64-new presets
Sequencer Unison & Chord Voices
Faster Oscillator Encoder Response
....and more!

This update, plus ALL the of previous updates (see Vocoder & Noise Engineering oscillators etc.) cement the MicroFreak as one of the most interesting, powerful and flexible synthesizers on the market, whilst maintaining excellent value for money.

Supplier's Notes:

A synthesizer like no other, MicroFreak is a peculiar, exceptional instrument that rewards the curious musician. It blends wavetable and digital oscillators with analogue filters. It features a unique poly-aftertouch flat keyboard. It adds controlled randomness to sequences. This isn't a revolution, it's a mutiny.

This out-there little music machine features a versatile digital oscillator so you can create rare and interesting sounds with ease. Modes like Texturer, KarplusStrong, Harmonic OSC, and Superwave give adventurous musicians the chance to explore totally new, unheard possibilities. Like having dozens of synths in just one instrument, both wild-eyed newcomers and seasoned professionals will fall in love with MicroFreak's flexible, powerful synth engine.

Physical modelling, wavetable synthesis, virtual analogue, there is nothing as complete and exciting as the MicroFreak oscillator on the market. It's hard to believe from such a small synth, but here it is, ready for you to explore. Excite your creativity and reward your curiosity with a large, diverse sound palette. MicroFreak features 11 awesome oscillators, 4 bespoke Arturia engines, and 7 modes from our friends at Mutable Instruments.

Inspired by the trailblazing 12-dB Oberheim SEM filter, you can make MicroFreak's filter scream or whisper to taste. The filter is state-variable, and can even auto-oscillate! You can use this is any way you like, from taking the edge of the razor-sharp wavetable sounds, or automating the cut-off by modulating it with keyboard pressure or the in-built sequencer.

Record up to four automations, edit notes per step or use the innovative Spice and Dice sequencer functions to find happy accidents. Add randomization to create evolving, original patterns, and virtually rewire and reconfigure its signal chain and controls with the 5x7 modulation matrix.

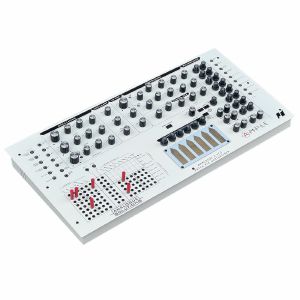

Notes: Like a greatest hits of recent Analogue Solutions synths, the Ample combines sound elements from the Fusebox with jack patch points, a patch pin matrix, plus sequencer and CV touch pads from the Generator, creating something new and unique.

Supplier's Notes:
Ample combines the best elements of several of Analogue Solutions' recent products.

The sound elements of Fusebox
Jack patch points of Concussor Eurorack
Patch pin matrix of Vostok
Echo from Dr Strangelove
Sequencer and CV touch pads of Generator

It shares all this yet still has its own sound!

Ample can be as complex or as simple as you want it to be

This synth has been given a large and diverse number of controls, that along side the patch sockets, will give even the best and experienced synthesist endless possibilities.

This synth presents the controls in a user friendly and familiar synth layout that, together with this manual and other resources, enable even the new guy to get great sounds.

Synth - Percussion - Audio Processor

Ample is a compact analogue synthesizer. Analogue - as in really analogue. Aside from the MIDI chip (which has to be digital), everything else is totally analogue using real transistors and op-amps. There are no CPU stabilised and quantised circuits, no DCOs, no digital LFOs and no digital EGs, as found on other so called analogue synths. The circuitry is based on designs dating back to the mid-1970s. So Ample has a genuine old sound.

Circuits included

3x Analogue Oscillators

There are three analogue VCOs - each providing a wealth of features and modulation choices. VCO3 can easily be utilised as a LFO.

2x Analogue Low Frequency Oscillator

LFO2(/Sync) has a triangle wave output. VCO3 can be used as an LFO and has Saw, Triangle and Square wave modulation signals.

Analogue Filter

Ample uses a four pole 24bB per octave low pass filter.

Analogue Amplifier

The VCA can be set to THRU so it is always 'open'. This allows Ample to be used as an effects processor.

2x Analogue Envelopes

There are two EGs - each having full control over ATTACK, DECAY, SUSTAIN, and RELEASE.

Modulation

Great thought has been placed into modulation route choices, allowing a wide range of sounds to be produced, including percussion and 'modular' sounds further extended by patching with the jack sockets and pin matrix.

MIDI

MIDI is intentionally kept simple - so you can concentrate on making new sounds and making music - not getting tied up with SYSEX programming.

You get the all important control over filter cut-off using MIDI Velocity.

Patchable External CV Control Sockets

Ample has many input and output audio and CV sockets - to allow the synth to be effectively re-wired to make new sounds.

The sockets also enable it to be easily used with Eurorack and other modular systems. They can be patched together.

Sequencer

Ample has a vintage style 16 step sequencer.

Touch Keys

There are 6 touch keys that each output a set voltage. Use this to play the pitch or as modulation signals. A great tool for inspiration!

Pin Matrix

A neat way to patch the synth.

Echo

Nice lo-fi echo / delay.

Notes: Moog enter a fresh chapter with a huge new synth. Full-on eight-voice bi-timbral analogue goodness, featuring selected highlights of Moog's iconic synth circuits from over the decades. Classic Moog sound, updated and bigger than ever.

Supplier's Notes:
Meet Muse, an eight-voice analogue bi-timbral polyphonic synthesiser - the culmination of over 5 years of dreams, design, and passion. Muse is an intuitive and powerful instrument built on the rich history of Moog that simultaneously gazes boldly into the future. This studio or performance centrepiece is driven by eight analogue voices, each with two VCOs, modulation VCO, dual VCFs, and a stereo VCA - all with that recognizable, kinetic analogue quality.

Muse represents a melting pot of classic Moog designs paired with forward-thinking controls in one complete instrument. Moog have selected the very best of vintage Moog circuits to create Muse - inspired by Moog Voyager oscillators, MF-102 Ring Modulator, CP3 Mixer, 902 VCA module, and a 904a Filter.

With 16 banks of 16 patches, you'll encounter beautiful pads, organic FM plucks, attention-grabbing leads, subterranean basses, stage-oriented key splits, as well as 2 banks reserved for your own sonic discoveries. Explore and express yourself endlessly with cutting-edge digital controls for powerful modulation capabilities, dedicated macro control, customizable envelopes, and multiple flexible LFOs. Shaping sound with Muse is a pleasure - the synthesizer and synthesist grow as one as the adventure continues for years to come.

Muse was created for, and by, modern musicians, producers, and sound designers who appreciate performance-oriented controls, intuitive knob per function layout, and "More" menus for every module. Built for stage and studio with a 61-key Fatar keyboard with velocity and channel aftertouch, a left-hand controller with pitch and mod wheels, and a programmable Macro knob makes the experience of interacting with Muse inspiring, intriguing, and innately playable.

A hypnotic stereo Diffusion Delay processor was inspired by golden era vintage digital rack delays with a unique and powerful set of diffusion, multi-tap, and filter behaviours. Craft complex echoes and diffused tonal smears that add dimension and depth to any patch.

In addition to Muse's creative immediacy, the powerful arpeggiator invites you to generate melodic ideas with compelling patterns and rhythms. With Muse's deep sequencer, you'll unravel unique patterns and gestures - further develop these discoveries with parameter recording, generative/probabilistic functions, and detailed editing of every note in the sequence - Moog Muse is a limitless canvas of musical exploration.

Moog Muse Specs:
Synthesiser type - Polyphonic, Bi-timbral Analog Synthesizer
Sound engine - Analogue
Polyphony - 8 Voices
Keybed - 61 full-size semi-weighted Fatar keybed with Velocity and channel Aftertouch
Controllers - Pitch Wheel, Modulation Wheel, Macro Knob, Keyboard Octave switch, Hold switch, Sustain Pedal input, Expression Pedal input - all pedal functions are assignable
Panel controls - 44 knobs, 16 sliders, 129 buttons - OLED screen
Analogue voltage-controlled oscillators - (x2) Selectable Triangle/Sawtooth mix, variable width Pulse wave, Octave (16', 8', 4', 2'), Frequency (+/- 7 Semitones), Wave Mix (blends Triangle/Sawtooth with variable Pulse wave), FM routing and amount, Hard sync
Analogue ring modulator - Ring modulation between Oscillators 1 and 2
Analogue voltage-controlled modulation oscillator - Selectable waveform (Sine, Sawtooth, Reverse Sawtooth, Square, Noise), Audio range toggle switch, Keyboard tracking, Keyboard reset, Unipolar switch, Pitch Modulation routing and amount, Filter Modulation routing and amount, Pulse Width Modulation routing and amount, VCA Modulation amount, Panning switch
Analogue noise generator - White noise
Analogue voltage-controlled mixer - Independent level control for OSC 1, OSC 2, RING, MOD OSC, and NOISE. Overall OVERLOAD control
Analogue voltage-controlled filters - (x2) Moog transistor ladder filters (1 with highpass/lowpass modes), Cutoff Frequency, Resonance, KB Tracking Amount, Envelope Amount, Linked Operation, Routing (Series, Parallel, Stereo)
Envelopes - (x2) Attack, Decay, Sustain, Release, variable curves per stage, Multi-trig, Loop, Velocity
Analogue voltage-controlled amplifier - Volume per Timbre, Pan position per Timbre, Pan Spread per timbre
Diffusion Delay™ - Configurable stereo signal processor, Delay Time Left, Delay Time Right, Feedback, Character, Mix, analogue bypass switches (to maintain 100% analogue signal path)
Output section - Master Volume, Headphones Volume, Low Cut EQ
LFO - (x2) Rate, Amplitude, Waveform selection (Triangle, Sawtooth, Square, Sample-and-Hold, User customizable), Keyboard Reset
Pitch LFO - Rate, Ramp Down through Triangle to Ramp Up Shape control, One-Shot Envelope toggle, Keyboard Reset, Pitch Modulation routing and amount
Glide - Selectable glide type (LCR, LCT, EXP), Glide amount
Clock - Clock rate, Tap Tempo
Arpeggiator - Per-timbre with Clock Division, Octave range, Pattern, Direction, Gate time, Rhythmic programming, etc.
Sequencer - 64-step sequencer with Clock Division, Transport controls, Sequence chaining, Step editing, Modulation capabilities, and memory capacity of 16 banks of 16 sequences
Programmer - Browser via OLED screen with 16 banks of 16 patches, Mod Map, Arpeggiator settings, Sequencer with per-step settings, Global settings, etc.
Voice control - Mono or poly voice count per timbre, Unison/Mono, Detune, Timbre editing, Voice stealing configuration
Chord memory - Chord memory with per-key functionality
MOD MAP - 16 modulation slots per timbre per patch with controllers and mathematical transform functions

Rear panel

Audio outputs - Main Left, Main Right (14" TRS)
Headphones - Stereo 1/4" (located on the front edge of the Left Hand Controller)
Pedal inputs - Sustain, Expression (1/4" TRS; Configurable through Mod Map or for use as 1/4" TS CV inputs)
Control voltage inputs - CV IN 1, CV IN 2 (1/8" TS)
Control voltage outputs - CV OUT 1, CV OUT 2 (1/8" TS)
Analogue clock input - CLOCK IN (1/8" TS)
Analogue clock output - CLOCK OUT (1/8" TS)
MIDI - 5 Pin DIN MIDI IN, OUT, THRU; MIDI over USB
USB B - USB-B connector for interfacing with a computer or other host MIDI device
USB A (HOST) - USB-A connector for connecting to other instruments with Muse as the MIDI host

Power
Style IEC Cable
Input: 100 - 240VAC; 50 Hz - 60 Hz

In the box

Moog Muse 8-Voice Polyphonic Analog Synthesizer
IEC Cable
Quick Start Guide
Registration Card
Safety & Warranty Manual

Weights & dimensions

Product Only
Weight: 14.55 (kg), 32 (lbs)
Dimensions (W x D x H): 99 x 42 x 11 (cm), 39 x 17 x 4.5 (inches)
Product In Box
Weight 18.92 (kg), 43.92 (lbs)
Dimensions (W x D x H): 116.7 x 55.2 x 24.7 (cm), 45.96 x 21.72 x 9.72 (inches)

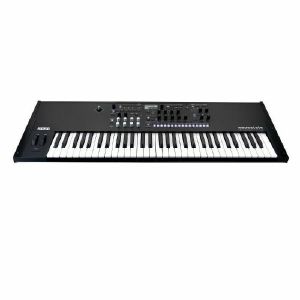

Notes: Second-generation version of Korg's superb ModWave synth, building on the legacy of the iconic Wavestation with 60-voice polyphony, Kaoss Physics and Motion Sequencing 2.0.

Supplier's Notes:
Modwave is a synthesis powerhouse with distinctive wavetable timbres, Kaoss Physics, and Motion Sequencing 2.0. The new Modwave mkII provides an astonishing 60 voices of polyphony almost double that of the original Modwave. All LFOs have been updated with options for free running, delayed start, and retriggering, and a pre/post switch for reverb sends has been added, alongside new modulation sources, and more.

Modern monster synth

In 1985, Korg introduced the DW-8000 - a synth which combined digital wavetables with rich analogue filters to give users sounds which were impossible to create with analogue oscillators.

Modwave builds on the DW legacy, transforming it into a modern monster synth, featuring incredibly deep wavetable oscillators, gorgeous filters, wildly flexible modulation, unmatched polyphony, comprehensive pattern sequencing, and immediately satisfying hands-on control to deliver unique, powerful, and easily customizable sounds and phrases.

Over 200 factory wavetables each contain up to 64 waveforms. 30+ Modifiers can be used to change their basic character, and 13 Morph Types to process them in real-time. Using the unique, realtime A/B Blend, it's possible to create new hybrids from any two wavetables.

Expanded possibilities

Modwave can be expanded by importing new wavetables using the free Editor/Librarian software. There are many free and commercial wavetable libraries in the standard Serum format, or you can create your own using the free, cross-platform WaveEdit software (available in a custom version for the Modwave). Wavetables can be layered with samples from the built-in, multi-gigabyte PCM library, or import your own 4 GB of samples using the Sample Builder software.

Each Program has two full-featured wavetable oscillators, plus a sub oscillator/noise generator and any of a dozen stereo filter types, including the aggressive MS-20, sweet Polysix, and the newly enhanced Multi Filter. Animate almost any parameter using the massively flexible modulation system, with four triggerable envelopes, five LFOs, dual mod processors and two key-track generators-plus multi-lane Motion Sequencing and Kaoss Physics.

Even with all that synthesis power, playing up to four simultaneous wavetables per voice in a single Program, the Modwave mkII achieves 60-voice polyphony, incredible for a wavetable synth. Layer two Programs together for double the possibilities.

KAOSS in motion

Modwave introduced two unique new tools for creating dynamic motion: Kaoss Physics and Motion Sequencing 2.0. KaossPhysics combines an x/y Kaoss pad with modulatable game physics to create a responsive, interactive controller that is extraordinarily powerful.

Motion Sequencing 2.0 brings the organic, continuously evolving patterns of the Wavestate Wave Sequencing 2.0 into the world of motion sequencing, including multiple lanes and real-time recording to help you create complex and evolving phrases that other step sequencers cannot.

Modwave's evolved wavetable synthesis delivers its own brand of completely unique sounds and a knob-per-function layout that makes customizing those sounds fast and easy. There are hundreds of preset sounds empowered by this new architecture, organised by front-panel category buttons, and all instantly customizable via the four Mod Knobs. Modwave'sdistinctive wavetable timbres start with aggressive basses & leads, and lush ambient pads which will add a new dimension to your tracks. But that is just the beginning.

Those who want to dig deeper will find an endless source of discovery; with the Modwave's unique synth architecture, you'll be finding new things for a long, long time. Save as many of your sounds as you like; there's room for thousands more. You can also load your own samples, import wavetables in standard formats, and create your own wavetables using the free WaveEditsoftware.

KAOSS Physics

Kaoss Physics models a ball rolling on a surface and bouncing off walls. The surface can tilt in any direction, and a bump with variable height/depth and location attracts or repels the ball. Adjustable friction slows the ball's travel, and adjustable time controls the speed of the entire model. All of these characteristics are modulatable, so you can change them in real-time!

Start the ball by flicking a finger on the x/y pad, or launch the ball automatically using another modulation source. You can even directly control the ball by holding your finger on the pad. The position of the ball produces eight modulation signals, which can be used to control any modulation destination: the X and Y locations, the distance from the centre, the angle relative to the X axis, and separate signals for +/- X and +/- Y.

Walls can slow down the ball, as if they were padded, or accelerate the ball, like bumpers in a pinball machine. The walls can also be removed entirely, so that the surface wraps around to the opposite edges like a vintage arcade game.
The modelled environment can create specific modulation effects. For instance, use a centered bump with negative height so that the modulation values always eventually return to 0. Or, position a bump with positive height on a side or a corner, to push modulation values away from that zone.

The result is an interactive controller that amplifies your physical gestures, transforming them into complex musical results.

Motion Sequencing 2.0

Motion Sequencing 2.0 is evolved from the Wavestate's Wave Sequencing 2.0. Timing, Pitch, Shape, and four sets of Step Sequence values are separated into "Lanes," each with their own loop start and loop end, adding a deeper, more customizable level of phrase and modulation recording.

Every time the sequence moves forward, the individual Lanes are combined to create the output. For instance, a step sequence value may be matched with a different duration, pitch, and shape every time that it plays. You can modulate each Lane's loop points separately for every note, using velocity, LFOs, envelopes, Mod Knobs, or other controllers. Each note in a chord can be playing something different!

Lanes can also randomize the step order every time they play. Finally, individual steps can be randomly skipped, with a modulatable probability from 0 to 100%. The result is organic, ever-changing sounds that respond to your control. The dual onboard arpeggiators can interact with Motion Sequences for even more possibilities.

Wavetables

Wavetables are sets of single-cycle digital waveforms, arranged in a specific order. The wavetable's "position" determines which waveform is played. Moving the position with an envelope, LFO, or other modulation source creates subtle or dramatic changes in timbre. Some wavetable systems switch abruptly from one waveform to another; others crossfade smoothly between them. Modwave can do either one.

Modifers

Use over 30 Modifiers to alter the character of any wavetable at load time. For instance, isolate the odd or even harmonics, add weight through anti-aliased quantization or saturation, or revisit the gritty character of old-school wavetable synths with the Vintage 8 & 12 options.

Morph

The 13 Morph Types let you stretch, squeeze, reflect, and otherwise alter the wavetables in real-time, changing their timbre andiwhen modulatedicreating additional motion in the sound. Sync creates classic swept-sync timbres, using only a single oscillator. Three special Morph TypesiFM, AM, and Ring Modimodulate Osc 2 with Osc 1, and the last two even apply to samples.

A/B Blend

Using the unique A/B mode, oscillators can blend any two wavetables with phase-synchronous precisionidifferent from simply layering voicesiopening up a dimension of intermediate waveforms. Add body to otherwise "thin" waveforms, for instance, or a touch of sizzle to a mellow timbre. Even fade between two different "modifier" versions of the same wavetable. A/B Blend can be modulated in real-time, of course.

Or, step outside the box with Korg's unique Multi Filter, which creates modulatable blends of multiple modes simultaneously - now with presets on a front panel knob, for easier exploration of its many possibilities.

An arsenal of effects

Modwave's superb effects deliver production-ready sounds. Each Layer has three dedicated effects, plus a send to the Performance's master reverb, followed by a master parametric EQ. Along with standards such as compressors, EQs, choruses, flangers, phasers, and stereo delays, you'll find distinctive processors such as the Wave Shaper, Talking Modulator, Reverse Delay, Multiband Mod Delay, and Overb (from the OASYS and Kronos), plus modeled effects including VOX guitar amps, VOX wah, multi-head tape echo, and a collection of classic guitar pedals.

Notes: *** As of November 2024, Firmware 1.1 has been installed, including effects such as 4-Pole Filter, Trim Filter, Ambient Hall, Ambient Infinity and Ambient Room ***

17 Distinctive Synth Engines-Unlike Anything You've Ever Heard
The ELZ_1 play's synth engines are built from scratch using 32-bit floating point math. From hard low-bit textures to organic FM tones to granular synthesis, the ELZ_1 play offers unique synth engines unlike any other synthesizer.

LOW-BIT OSC: 2 ~ 8 bit variable low-bit oscillator. Sine, square, triangle and sawtooth waves.
STANDARD OSC: 32-bit floating-point processing high resolution oscillator. Sine, square, triangle and sawtooth waves.
CUSTOM OSC: Choose 2 waveforms / period of cycles.
DNA EXPLORER: Extract and generate waveform DNA from audio.
SiGRINDER: Granular synthesizer engine.
MASKED NOISE: Noise oscillator.
SAND FLUTE: Extract and generate tone from noise.
8BIT WAVE MEMORY: Editing your own waveform.
8BIT WAV MEM (MORPH): Morphing 3 waveforms.
8BIT WAV MEM (FM MODE): 2 operators, 8bit FM mode.
8BIT WAV MEM (WARP): Generates an intermediate waveform by crossfading two waveforms.
8BIT WAV MEM (ADSAR): Waveforms change according to envelope.
8BIT WAV MEM (TIME): 3 waveforms change in the orders.
FM SYNTH: 4 operators with 31 algorithms, 32-bit floating point processing.
ZTRINGS: Physical Modelling Strings engine.
SUPER OSC: Super synth engine with 5 detunable sub-oscillators.
STK DRUMMER: Drum machine engine equipped with 5 types of drum kits. (SmplTrek .stk file compatible)

28 Effects to Elevate Your Sound-From Soothing to Striking
Unlock a world of sound by combining 3 insert effects from 18 types and 1 master effect from 10 types, including Shimmer Reverb.
Insert effects: overdrive, distortion, fuzz, crusher, chorus, stereo chorus, flanger, phaser, tremolo, vibrato, ring modulator, auto wah, delay, reverse delay, ping pong delay, auto pan, tape echo & reverb, 4 pole filter, trim filter.

Master effects: hall, room, plate, arena, tunnel, infinity, custom reverb, crusher, ambient room, ambient hall, ambient inf, vinyl simulator & cassette tape simulator.

Flexible 4-Track Looper-Layer, Loop, and Remix with Ease
The newly developed 4-track looper allows easy recording, playback, and overdubbing by simply pressing the track buttons. You can record not only ELZ_1 play performances, but also LINE input and USB audio input.

Instrument Redefined - Velocity-enabled keyboard, Built-in Stereo Speakers and More:
To make it a musical instrument that is pleasant and expressive to play, the keyboard has been improved to support velocity on all keys, and high-quality loud stereo speakers are built into the side panels. It is also equipped with an SD card slot, USB-C, and DIN-MIDI jacks for flexible handling of audio and MIDI.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Unassuming looks conceal the excellent EaganMatrix sound engine, offering USB-powered synth creativity perfectly matched to Haken's own Warbl Wind Controller but also compatible with MIDI and MPE.

Supplier's Notes:
EaganMatrix Micro

The power of EaganMatrix Sound Technology in Haken's smallest product ever! The EaganMatrix Micro is a full-featured EaganMatrix sound engine in a small self-contained form factor, and is powered and controlled via USB.

The EaganMatrix Micro provides a truly versatile framework for both studio and live performance, with a robust implementation of MPE and MPE+ Midi.

The EaganMatrix Micro is a perfect companion to the amazing Warbl Wind Controller.

The fingering holes on the Warbl are not just switches. You can hear that the pitch starts off a bit as the finger gets close to the hole (like it would on an acoustic wind instrument) and hits the final pitch once the hole is covered. It's a subtle effect but important. The following video shows 15 Presets from the Micro's demo assortment that Edmund Eagan skillfully customized to take advantage of the Warbl's specific sensing technology. In the future there may be demo assortments customized for the sensing technologies of other devices.

Hundreds of System Presets are included with the EaganMatrix Micro. An external cross-platform (Mac and PC) Haken Editor may be connected to modify and customize the supplied EaganMatrix System Presets, or create completely new presets from scratch.

The EaganMatrix Sound Technology, originally created for the highly sensitive Continuum, is now available to you in this compact form factor.

EaganMatrix Micro Connections
1. USB Power and Midi (shown connected).
2. Foot Pedal or Haken Audio CVC communication.
3. Stereo Audio Out.

Haken Audio's EaganMatrix Micro offers:
Polyphony: Nominal 1-3, Maximum 8
Stereo Audio Output: 3.5 mm TRS
EXT Connection: 3.5 mm TRS

Can be used as a pedal input (Yamaha FC3A with HOSA MHE-100.5 is recommended),
or it can be configured for a Control Voltage Converter.

Seven Segment Display: Preset navigation and settings
USB Power: 500 mA (190 mA average actual usage), via Mini USB connector
USB Midi: via Mini USB connector (USB-A to Mini USB cable included with purchase)
Allows bidirectional MPE and MPE+ connection to other devices; allows connection to the Haken Editor for editing and archiving EaganMatrix presets
Dimensions: 11.3 x 5.8 x 1.9 cm (4.4 x 2.3 x 0.75 inches)
Weight: 0.075 kg (2.6 oz)

Notes: ***B-STOCK: Box opened, product in perfect working order***


Hands-on hardware synth goodness in a boutique desktop format, feauting an eight-voice digital supersaw engine and four-pole filter. Built-in delay, reverb, chorus and freeze effects can be used to process external signals.

Supplier's Notes:
Design philosophy

Knob-For-Knob Functionality:

Artium Instruments are committed to knob-for-knob functionality. Every feature of The Swarm is directly mapped to a knob, button, switch, or jack, ensuring effortless control. There's no need for menu-diving or complicated sequences of button presses to access features; everything is conveniently accessible at your fingertips.

Curated, Onboard Effects:

With over a decade of experience in the effects industry, Artium have carefully curated a selection of effects that seamlessly complement the synth core. Unique to The Swarm is its capability to use the onboard effects with other equipment, allowing you to route external audio through the inputs on the back.

Plug and Play Functionality:

The Swarm utilizes a USB-C MIDI host for simplicity and ease of use. Most modern class-compliant MIDI controllers with USB functionality should plug in and work immediately with zero setup. Additionally, The Swarm provides power to your controller, streamlining your setup process. For older controllers that only have DIN connections, a USB to DIN converter can be used to ensure compatibility. (These converters typically cost $10-20)

Quality Craftsmanship, Intentional Design:

Artium have invested considerable thought into crafting the overall feel of the instrument. From the layout of the knobs to the choice of colours, artwork, and the weight of the enclosure, every detail has been considered. These details matter because the connection a user forms with a piece of gear is almost as crucial in the creative process as the sounds it produces. A lot of love and passion has been poured into every aspect of The Swarm, from its sonic capabilities to its design aesthetics.

Open Source Platform:

Artium desktop synths use an open source platform known as Axoloti or Ksoloti for development and implementation of its products.

Synth core

Oscillator:

The Swarm features a SuperSaw oscillator with 8-note polyphony. This oscillator is composed of seven individual saw waves stacked on top of each other. The magic unfolds when you detune the waveforms by applying a frequency offset, resulting in one of the most massive synth sounds available.

Control Modes:

The Swarm employs this massive sound through two distinct control modes: Polyphonic Mode and Arpeggiator Mode. In Polyphonic Mode, you can play up to eight notes simultaneously, exploring the full range of polyphony. Arpeggiator Mode offers a comprehensive monophonic arpeggiator, automatically sequencing held notes in a variety of patterns, enhancing your creative possibilities.

More Features & Controls:

To shape the sound further The Swarm has a 4 Pole Low Pass Filter with a subtle resonance as well as a simple attack and release envelope.

Onboard effects

All onboard effects can be used with other music equipment. Simply plug an external audio source into the rear input jacks, and The Swarm will seamlessly mix the external audio with its synth core, allowing for simultaneous processing of both signals.

Freeze:

By pressing the touchpad on the right, The Swarm records a 1000ms sample of the current audio. It then layers, and smears the sample, creating an infinite drone frozen in time-a perfect foundation for layering additional notes. The freeze effect facilitates overdubbing, and pressing the touchpad with the freeze knob at its minimum setting erases the memory, allowing the device to capture a fresh sample.

Delay:

The Swarm's delay is a digital delay with a subtle touch of warmth. The delay length synchronizes with the arpeggiator clock, which can be adjusted manually using the clock knob or via the tap tempo touchpad on the left. Additionally, the delay features a multiplier knob, offering a range of unique subdivisions that complement the synced arpeggiator, including quarter notes, dotted eighths, eighths, and triplets.

Reverb:

The reverb effect in The Swarm strives to enhance the natural body and ambience of the synth core without overshadowing it. Its stereo reverb algorithm is controlled by a single knob, which adjusts both the mix and decay simultaneously. This versatile control allows you to seamlessly transition from realistic room or hall effects to expansive cathedral-like soundscapes, offering a wide range of atmospheric possibilities.

Chorus:

The SuperSaw oscillator practically demands to be paired with a chorus effect. The Swarm employs a stereo 4-voice chorus effect alongside a gradually shifting LFO, aiming to craft dimensionality without becoming nauseating.

Controls

Synth core:

Detune - Detunes SuperSaw oscillator
Filter - Cutoff frequency of the filter
Attack - Rising edge of envelope
Release - Falling edge of envelope

Arpeggiator:

"ARP" Toggle - Activates Arpeggiator Mode
"HOLD" Toggle - Stores all notes played in memory
Direction - Selects the direction of arpeggiator (UP, DOWN, SEESAW, RANDOM, ORDER PLAYED)
Octaves - Selects the number of octaves played by the arpeggiator
Clock - Speed of the arpeggiator and delay clock
Clock Toggle - Switches between manual clock knob and tap tempo.
Tap Tempo (Yellow Pad) - Tap tempo for arpeggiator and delay clock

Effects:

Freeze (Yellow Pad) - Press to record. Pressing with Freeze Knob at minimum will erase sample
Freeze (Knob) - Sets the level of the frozen, infinite drone
D.Level - Delay signal level
D.Feedback - Number of delay repeats
D.Multiplier - Sets delay multiplier (quarter note, dotted eighth, eighth, triplets)
Reverb - Mix and Decay of reverb increase simultaneously
Chorus - Sets chorus level

Rear panel

Out(L) - Left Output (stereo headphone jack/TRS when Out(R) is unconnected)
Out(R) - Right Output
In(L) - Audio input to send external audio through onboard effects (If source is Mono, use In(L))
In(R) - Audio input to send external audio through onboard
Oct+: Shifts the entire synth up one octave for every press
Oct-: Shifts the entire synth down one octave for every press
MIDI HOST INPUT - Provides power and communication with your USB Midi Controller
USB POWER SUPPLY - USB-C plug to power synth

Notes: ***B-STOCK: Box damaged, product in perfect working order***


Another innovative groovebox from Polyend, the Synth allows you to sequence and perform up to three synths from eight different synth engines. Unique Smart Grid feature allows single-button chords and note followers.

Supplier's Notes:
Compact Design. Massive Sound. Unmatched Innovation.

Easily Play 3 Synths at Once

The power of three synth engines is at your fingertips, all running together seamlessly. Whether you're in the studio or performing live, you can juggle between different engines, adjust parameters on the fly, and layer effects with ease. The built-in sequencers, arpeggiators, and all new smart grid system keep everything flowing smoothly, letting you focus on creativity without interruption. With instantly recallable scenes, you can save and recall every detail of your setup.

Eight Synth Engines to Explore

Dive into a world of sound with eight distinct synth engines, each offering its own unique character. Whether you're drawn to the classic analogue warmth of FAT or the evolving textures of GRAIN, you'll find the sound to shape your creations exactly the way you want:

PHZ: A modern take on phase distortion synthesis with options for both retro and cutting-edge tones.
PMD: Physical modelling technology that simulates realistic instruments or creates entirely new sonic expressions.
GRAIN: A granular engine with two modes, burst and cloud, ideal for rhythmic textures or sweeping ambient layers.
WAVS: Morph between wavetables with intricate control over scanning and phase shifting to create evolving textures.
VAP: A dual-oscillator polysynth that draws inspiration from the classics, offering rich, lush pads and detailed soundscapes.
FAT: Massive sound with three oscillators and vintage ladder filters for deep basses and expressive leads.
ACD: The ultimate recreation of iconic vintage monophonic synths, but with increased customization.
WTFM: A unique FM synthesis engine that uses wavetable-based oscillators for complex sounds without the usual FM complications.

Three Customizable Effects

Take your sound to the next level with three onboard effects, each fully customizable to suit your style:

MOD: This versatile modulation engine can take you from subtle choruses to wild, feedback-heavy flanging.
DEL: Dual delay lines with five unique models, giving you the flexibility to sync with your track or create complex delay effects.
REV: Three reverb modes - Natural, Plate, and Warp - let you add anything from subtle space to massive, otherworldly reverbs.

Reimagined Rhythms

Unlock your full creative potential with three independent sequencers and arpeggiators. Control every aspect of your rhythm, from swing to groove, transposition, and more. Whether you're building tight, rhythmic patterns or sweeping melodies, this system adapts seamlessly to your music.

For Performers, Sound Designers, and Innovators Alike

Always Musical Smart Grid for Live Play

Stay in control even during the most chaotic performances. The customizable Smart Grid ensures every note and chord stays in the desired scale, while making live performances smoother and more intuitive.

Scenes on Demand

Imagine having every setting - from synth engines to sequences - saved in one easy-to-recall Scene file. Build entire live sets and instantly access them with a touch. Plus, share your unique setups with the community

Combo Knobs for Quick Tweaks

Create dramatic builds or subtle shifts with customizable combo knobs. Whether controlling one or all three synths at once, adding movement and dynamics to your sound has never been easier.

Polyphonic Aftertouch

Express every nuance of your performance with polyphonic aftertouch. Adjust multiple parameters with just the pressure of your fingers, allowing for truly expressive, dynamic control over your sounds.

A Dream for Sound Designers

Intuitive 3x3 Knob Matrix

Designed for hands-on control, the 3x3 knob matrix lets you quickly access and tweak key parameters. No need to dive into endless menus - everything you need is right in front of you, ready for real-time adjustments.

Real-Time Visual Feedback

Every adjustment you make is instantly reflected in the visual interface, giving you clear, real-time feedback on how your sound is evolving. Whether you're tweaking filters, modulating oscillators, or adjusting LFOs, you'll see the changes happen as you hear them.

Endless Customization

Expand your creative palette with SD and USB storage. Easily load new wavetables, presets, and entire setups, or share your creations with others. With endless possibilities, this synth is designed to grow with you

Notes: Combining analogue-style sound with digital convenience, the KingKorg Neo is a proper all-rounder for both recording and live performance. Features modelled emulations of classic Korg synth features.

Supplier's Notes:
The KingKORG NEO: a virtual analogue synthesiser that stands out with its analogue-like layout and intuitive, flexible editing. This compact powerhouse features 37 full-size keys and a versatile vocoder, making it perfect for both studio and stage. With our cutting-edge XMT sound engine, it delivers a wide range of classic and futuristic sounds. Designed for the contemporary musician, the KingKORG NEO is the ultimate tool for exploring new soundscapes and pushing musical expression.

KingKORG NEO features our XMT virtual analogue sound engine. XMT stands for eXpanded Modelling Technology and was created to offer an expansive array of sounds while ensuring simplicity in operation.

Gone are the days of laborious oscillator adjustments for sound crafting. The KingKORG NEO streamlines this process with pre-set algorithms. These carefully designed combinations of different oscillator types and quantities empower you to quickly shape rich, stage-ready tones with ease.

Embracing the demand for diverse tonal capabilities, the KingKORG NEO comes loaded with a wide range of oscillator algorithms. From the classic sawtooth and square waves to the more intricate noise patterns typical of analogue synthesizers, and extending to PCM/DWGS, this synthesiser is equipped to cater to an extensive variety of musical needs and preferences.

Crafting character with iconic modelled filters

In the heart of the KingKORG NEO lies its meticulously designed filter section, a cornerstone in defining the synthesiser's unique sonic character. Korg have infused KingKORG NEO with a diverse range of filters, each adding a distinct flavour to your sound creations, an aspect where analogue modelling truly shines.

The KingKORG NEO's filter collection is a treasure trove for sound designers. It encompasses a wide array of essential analogue modelling filter types, enabling you to sculpt sounds with precision and ease. But there's more. Korg have painstakingly modelled filters that echo the iconic analogue monophonic synths of the '70s - the go-to for punchy leads and deep basses. Korg have also captured the essence of polyphonic synths from the vibrant new wave era of the '80s, and the legendary filters from Korg's own MS-20 analogue synth.

One of the most captivating features of these filters is their ability to self-oscillate when you dial up the resonance - a hallmark of classic analogue synthesis. This capability opens up a world of sonic possibilities, from creating ethereal textures to crafting powerful, resonant tones.

Vocoder wizardry

KingKORG NEO synth comes equipped with a balanced XLR input on its front panel, and includes a rugged, high-quality microphone. This setup invites you to dive into the world of vocoding instantly.

At the core of the KingKORG NEO's vocoder is a sophisticated 16-band filter, rivalling dedicated vocoder machines. This powerful feature allows you to craft classic vocoder tones, but that's just the beginning. By shifting the filter frequency with the formant shift function and finely adjusting the level and pan of each band, you open the doors to an array of unique and original sounds. Whether you're aiming for vintage charm or contemporary edge, this vocoder adapts effortlessly to any genre or style.

But there's more - the KingKORG NEO redefines flexibility. Timbre B can ingeniously be used as a modulator, providing an alternative to the traditional microphone input. This allows the vocoder effect to be seamlessly blended with the synth sound, paving the way for limitless sonic exploration.

Moreover, each of the three oscillators, A and B timbres, can be individually selected as a source for the microphone input. This unique feature enables you to synthesize a rich mix of voice and instrument, creating a fusion of timbres that's both innovative and captivating.

Masterful effects

The KingKORG NEO elevates your sound with three master effect slots, each offering six distinct effect types.

The PRE FX slot brings the grit and edge of effects like distortion and amp simulator. MOD FX infuses your tracks with the classic charm of phaser, chorus, and tremolo. For creating expansive atmospheres, the REV/DELAY slot offers ambient effects including hall reverb and modulation delay. Adjusting and selecting these effects is straightforward, thanks to dedicated dials on the front panel for each slot, complemented by FX control knobs for detailed fine-tuning.

Virtual patching

Embrace the spirit of classic synthesisers like the MS-20 with the KingKORG NEO's innovative Virtual Patch system. This intuitive feature brings the flexibility of physically patching synthesizers into the digital age. With six Virtual Patch assignments available for each timbre, you can virtually connect control signals like EG, LFO, or joystick movements to key sound parameters, including pitch and cutoff. This seamless integration allows for intricate modulation and a deeper exploration into sound-shaping, giving your music a new dimension of sonic creativity.

A universe of inspiration

KingKORG NEO's extensive library of 200 stage-ready preset programs is created for the modern music maker. These presets span across eight categories like SYNTH, LEAD, and BASS and offer an intuitive gateway to finding the perfect sound for any scenario.

Step up with arpeggiation

The KingKORG NEO comes equipped with a versatile step arpeggiator, a tool that breathes life into your performances by automatically generating arpeggio phrases based on the chords you play. Tailor your sound even further by selecting from six different arpeggio types. You can specify the duration, interval, and on/off status of each step, opening up a vast array of rhythmic possibilities.

Specifications

Keyboard: 37 keys (velocity and release-velocity sensitive)
Sound generating system: XMT (eXpanded Modeling Technology)
Maximum Polyphony: 24 voices
Timbres: Max. 2 timbres (Layer / Split)

Oscillator
Structure: 3 oscillators (choose from analog, noise, DWGS, PCM, and MIC IN types)
Number of types: 138 types (32 analog and noise, 40 DWGS, 65 PCM, 1 MIC IN

Filter
Structure: 1 filter (choose from LPF, HPF, BPF)
Number of types: 18 types (7 LPF, 5 HPF, 6 BPF)

Modulation
Structure: EG 2 units, LFO 2 units
Routing: Virtual patches 6 set

Effect
Sections: Program effects x 3 (PRE FX, MOD FX, REV/DELAY) + EQ (2Band)

Types:
PRE FX: 6 types (DISTORTION, DECIMATOR, RING MOD, GT.AMP, EP.AMP, TONE)
MOD FX: 6 types (FLANGER, CHORUS, U-VIBE, TREMOLO, PHASER, ROTARY) REV/DELAY: 6 types (HALL, ROOM, PLATE, TAPE ECHO, MOD DELAY, BPM DELAY)

Vocoder: 16-band vocoder, formant shift function, formant hold function
Arpeggiator: Up to 8 steps (number of steps can be changed), 6 types (UP/DOWN/ALT1/ALT2/RANDOM/ TRIGGER)

Programs
Number of programs: 300 programs (200 preset / 100 user)
Number of categories: 8 categories

Displays
Main: 16 x 2 character OLED display
OSCILLATOR, FILTER: 128 x 64 pixel OLED display

Audio

Mic input
Connector: XLR type (balanced)
L/MONO,R output
Connectors: 6.3mm TS phone jacks (Unbalanced)

Headphone output
Connector: 6.3mm (1/4") stereo phone jack
DAMPER (half-damper not supported)
SWITCH/PEDAL
MIDI IN/OUT
USB B connector

Power Supply: AC adapter jack (DC12V)
Power consumption: 9W
Dimensions (W x D x H)@ 565 x 338 x 92 mm / 22.24" x 13.31 " x 3.62
Weight: 3.1kg / 6.83 lbs.
Included items: AC Adapter, Vocoder mic (+ windscreen)
Accessories (sold separately): XVP-20: Expression/volume pedal, EXP-2: Foot controller, DS-1H: Damper pedal, PS-1, PS-3: Pedal switch

Notes: A legendary past, a powerful future.

microKORG is one of the world's most successful synths, having helped to shape music production for more than twenty years. Merging the essence of what made the original a global success with an array of powerful new features, the microKORG 2 once again redefines the landscape of music creation. It maintains the essence that has made its predecessor a mainstay in studios and on stages while introducing innovative, contemporary elements that resonate with today's musicians. The microKORG 2 is not just a new instrument; it's a new chapter in synth history.

Seamlessly sculpt your sound with refined controls

Dive into the microKORG 2 and discover how easy and intuitive creating the perfect sound can be. Korg have equipped it with five dynamic knobs, each one a gateway to fine-tuning your sound across any musical genre with speed and precision. Whether you're crafting lush pads or searing leads, the expanded bank selection puts every era of music right at your fingertips.

The centrepiece of the microKORG 2 is its stunning 2.8-inch colour display. It's not just about looks; this display makes tweaking your sound a visually immersive experience. Watch parameters come to life with animated effects, giving you instant visual feedback as you shape your sound. And for those who love to see music as well as hear it, a quick tap switches you to an oscilloscope view, literally showing you how your soundwaves evolve and change.

Korg have packed the microKORG 2 with the latest tech, but don't worry, it's all about enhancing your experience, not complicating it. Whether you're a synth veteran or just starting, you'll find its interface welcoming, straightforward, and comprehensive, letting you dive deep into sound creation without getting lost in the technicalities. It's all about keeping the joy in music making - and the microKORG 2 does just that.

Crafting vocal perfection: the new vocal processor

The original microKORG is renowned for making complex vocal synthesis accessible and fun. Known as the synthesiser with its own mic, it has been the choice for producing unique robotic voices for over two decades - a feat typically reserved for specialized equipment. The true magic of the microKORG has always been in its ability to simplify complex sound engineering. Taking a leap forward, Korg have outfitted the microKORG 2 with a new vocal processor that goes well beyond the beloved classic vocoder effects. Korg are introducing advanced vocal processing technology at your fingertips, including hard-tune pitch correction for creating smooth and polished vocal tracks. Additionally, the new harmonizer feature allows you to layer and pitch-shift your vocals, enriching your music with depth and complexity.
As for effects, the microKORG 2 offers a rich array of options. Layer your vocals with immersive reverb, crisp delay, and a diverse range of sonic textures to fully realise your creative vision. The iconic gooseneck mic, now featuring a stylish metallic neck, is the perfect complement to this powerful vocal processor. Whether you're aiming for rich harmonies or contemporary auto-tuned effects, the microKORG 2's vocal processor is a versatile tool for unleashing your vocal creativity.

Master live performances with loop recording and arpeggiator

Discover a new level of musical creativity with microKORG 2's loop recorder. This feature brings a familiar yet powerful tool for modern musicians into the microKORG world. Ideal for crafting layered backing tracks, the loop recorder allows you to loop segments of music and overlay your own performance, enhancing your creative expression in real-time. While loop recorders are well-known in the music world, their integration into the microKORG 2 opens up new avenues for experimentation and performance, perfectly complementing the synthesiser's robust capabilities.

The loop recorder is designed for simplicity and ease of use, featuring three simple buttons: record, play/stop, and undo/redo. The user interface is streamlined for immediate understanding and use- long-pressing the buttons reveals recording and playback settings, ensuring you're always in control and can focus on your performance.

The microKORG 2 also includes an arpeggiator, perfect for adding rhythmic complexity to your compositions. Activate it with a simple press of one of the eight program number buttons, and watch as it infuses your music with intricate patterns and textures. The combination of the loop recorder and arpeggiator opens up a world of possibilities, allowing you to craft a performance that is truly and uniquely yours.

Explore sounds across the ages

Discover microKORG 2's rich tapestry of sounds, where you get to play with a whole new range of tones. It's all about choice here - the new program selector is your gateway to genres far and wide. Fancy a bit of retro?

Specifications

Keyboard: 37 keys (velocity sensitive mini keys)

Synthesiser
Sound Engine: Analogue modelling synthesis system
Number of Timbers: Max. 2 (when Dual)
Maximum number of voices: Single 8 voices, Dual 4 voices

Vocal Processor
Maximum Polyphony: Vocoder 8 voices, Hard Tune 4 voices, Harmonizer 4 voices, Hard Tune & Harmonizer 2 voices

Effect types: Modulation, Delay, Reverb, Equalizer
Arpeggiator: 10 types, step arpeggiator function
Programs 256 programs (4 Banks x 8 Categories x 8 Programs)
Display: 2.8-inch IPS LCD display
Inputs/Outputs: OUTPUT - L/MONO, R terminals: 6.3mm TS phone jack, unbalanced
HEADPHONES jack: 6.3mm stereo phone jack, unbalanced
MIC IN - CONDENSER: +5V 3.5mm TRS mini phone jack, unbalanced
MIC IN - DYNAMIC: 6.3mm TS phone jack, unbalanced
AUX IN: 3.5mm mini stereo phone jack, unbalanced
DAMPER/SWITCH: 6.3 mm phone jack
MIDI IN,OUT
USB Type C

Power supply: 9V DC (AC adapter), six AA batteries (alkaline or NiMH)
Battery life: Approximately. 4 hours or more (when using alkaline batteries)
Dimensions (W x D x H) 542 x 238 x 65 mm
Weight: 2.1 kg (without batteries and microphone)
Included items Condenser microphone, AC adapter (DC 9V)

Notes: A legendary past, a powerful future.

microKORG is one of the world's most successful synths, having helped to shape music production for more than twenty years. Merging the essence of what made the original a global success with an array of powerful new features, the microKORG 2 once again redefines the landscape of music creation. It maintains the essence that has made its predecessor a mainstay in studios and on stages while introducing innovative, contemporary elements that resonate with today's musicians. The microKORG 2 is not just a new instrument; it's a new chapter in synth history.

Seamlessly sculpt your sound with refined controls

Dive into the microKORG 2 and discover how easy and intuitive creating the perfect sound can be. Korg have equipped it with five dynamic knobs, each one a gateway to fine-tuning your sound across any musical genre with speed and precision. Whether you're crafting lush pads or searing leads, the expanded bank selection puts every era of music right at your fingertips.

The centrepiece of the microKORG 2 is its stunning 2.8-inch colour display. It's not just about looks; this display makes tweaking your sound a visually immersive experience. Watch parameters come to life with animated effects, giving you instant visual feedback as you shape your sound. And for those who love to see music as well as hear it, a quick tap switches you to an oscilloscope view, literally showing you how your soundwaves evolve and change.

Korg have packed the microKORG 2 with the latest tech, but don't worry, it's all about enhancing your experience, not complicating it. Whether you're a synth veteran or just starting, you'll find its interface welcoming, straightforward, and comprehensive, letting you dive deep into sound creation without getting lost in the technicalities. It's all about keeping the joy in music making - and the microKORG 2 does just that.

Crafting vocal perfection: the new vocal processor

The original microKORG is renowned for making complex vocal synthesis accessible and fun. Known as the synthesiser with its own mic, it has been the choice for producing unique robotic voices for over two decades - a feat typically reserved for specialized equipment. The true magic of the microKORG has always been in its ability to simplify complex sound engineering. Taking a leap forward, Korg have outfitted the microKORG 2 with a new vocal processor that goes well beyond the beloved classic vocoder effects. Korg are introducing advanced vocal processing technology at your fingertips, including hard-tune pitch correction for creating smooth and polished vocal tracks. Additionally, the new harmonizer feature allows you to layer and pitch-shift your vocals, enriching your music with depth and complexity.
As for effects, the microKORG 2 offers a rich array of options. Layer your vocals with immersive reverb, crisp delay, and a diverse range of sonic textures to fully realise your creative vision. The iconic gooseneck mic, now featuring a stylish metallic neck, is the perfect complement to this powerful vocal processor. Whether you're aiming for rich harmonies or contemporary auto-tuned effects, the microKORG 2's vocal processor is a versatile tool for unleashing your vocal creativity.

Master live performances with loop recording and arpeggiator

Discover a new level of musical creativity with microKORG 2's loop recorder. This feature brings a familiar yet powerful tool for modern musicians into the microKORG world. Ideal for crafting layered backing tracks, the loop recorder allows you to loop segments of music and overlay your own performance, enhancing your creative expression in real-time. While loop recorders are well-known in the music world, their integration into the microKORG 2 opens up new avenues for experimentation and performance, perfectly complementing the synthesiser's robust capabilities.

The loop recorder is designed for simplicity and ease of use, featuring three simple buttons: record, play/stop, and undo/redo. The user interface is streamlined for immediate understanding and use- long-pressing the buttons reveals recording and playback settings, ensuring you're always in control and can focus on your performance.

The microKORG 2 also includes an arpeggiator, perfect for adding rhythmic complexity to your compositions. Activate it with a simple press of one of the eight program number buttons, and watch as it infuses your music with intricate patterns and textures. The combination of the loop recorder and arpeggiator opens up a world of possibilities, allowing you to craft a performance that is truly and uniquely yours.

Explore sounds across the ages

Discover microKORG 2's rich tapestry of sounds, where you get to play with a whole new range of tones. It's all about choice here - the new program selector is your gateway to genres far and wide. Fancy a bit of retro?

Specifications

Keyboard: 37 keys (velocity sensitive mini keys)

Synthesiser
Sound Engine: Analogue modelling synthesis system
Number of Timbers: Max. 2 (when Dual)
Maximum number of voices: Single 8 voices, Dual 4 voices

Vocal Processor
Maximum Polyphony: Vocoder 8 voices, Hard Tune 4 voices, Harmonizer 4 voices, Hard Tune & Harmonizer 2 voices

Effect types: Modulation, Delay, Reverb, Equalizer
Arpeggiator: 10 types, step arpeggiator function
Programs 256 programs (4 Banks x 8 Categories x 8 Programs)
Display: 2.8-inch IPS LCD display
Inputs/Outputs: OUTPUT - L/MONO, R terminals: 6.3mm TS phone jack, unbalanced
HEADPHONES jack: 6.3mm stereo phone jack, unbalanced
MIC IN - CONDENSER: +5V 3.5mm TRS mini phone jack, unbalanced
MIC IN - DYNAMIC: 6.3mm TS phone jack, unbalanced
AUX IN: 3.5mm mini stereo phone jack, unbalanced
DAMPER/SWITCH: 6.3 mm phone jack
MIDI IN,OUT
USB Type C

Power supply: 9V DC (AC adapter), six AA batteries (alkaline or NiMH)
Battery life: Approximately. 4 hours or more (when using alkaline batteries)
Dimensions (W x D x H) 542 x 238 x 65 mm
Weight: 2.1 kg (without batteries and microphone)
Included items Condenser microphone, AC adapter (DC 9V)

Notes: The legendary MicroKorg gets a major overhaul, bringing this iconic instrument right up to date. Eight voices of powerful, punchy and inspiring virtual analogue sound. A superb all-rounder, suitable for all styles of music.

Supplier's Notes:
A legendary past, a powerful future.

microKORG is one of the world's most successful synths, having helped to shape music production for more than twenty years. Merging the essence of what made the original a global success with an array of powerful new features, the microKORG 2 once again redefines the landscape of music creation. It maintains the essence that has made its predecessor a mainstay in studios and on stages while introducing innovative, contemporary elements that resonate with today's musicians. The microKORG 2 is not just a new instrument; it's a new chapter in synth history.

Seamlessly sculpt your sound with refined controls

Dive into the microKORG 2 and discover how easy and intuitive creating the perfect sound can be. Korg have equipped it with five dynamic knobs, each one a gateway to fine-tuning your sound across any musical genre with speed and precision. Whether you're crafting lush pads or searing leads, the expanded bank selection puts every era of music right at your fingertips.

The centrepiece of the microKORG 2 is its stunning 2.8-inch colour display. It's not just about looks; this display makes tweaking your sound a visually immersive experience. Watch parameters come to life with animated effects, giving you instant visual feedback as you shape your sound. And for those who love to see music as well as hear it, a quick tap switches you to an oscilloscope view, literally showing you how your soundwaves evolve and change.

Korg have packed the microKORG 2 with the latest tech, but don't worry, it's all about enhancing your experience, not complicating it. Whether you're a synth veteran or just starting, you'll find its interface welcoming, straightforward, and comprehensive, letting you dive deep into sound creation without getting lost in the technicalities. It's all about keeping the joy in music making - and the microKORG 2 does just that.

Crafting vocal perfection: the new vocal processor

The original microKORG is renowned for making complex vocal synthesis accessible and fun. Known as the synthesiser with its own mic, it has been the choice for producing unique robotic voices for over two decades - a feat typically reserved for specialized equipment. The true magic of the microKORG has always been in its ability to simplify complex sound engineering. Taking a leap forward, Korg have outfitted the microKORG 2 with a new vocal processor that goes well beyond the beloved classic vocoder effects. Korg are introducing advanced vocal processing technology at your fingertips, including hard-tune pitch correction for creating smooth and polished vocal tracks. Additionally, the new harmonizer feature allows you to layer and pitch-shift your vocals, enriching your music with depth and complexity.
As for effects, the microKORG 2 offers a rich array of options. Layer your vocals with immersive reverb, crisp delay, and a diverse range of sonic textures to fully realise your creative vision. The iconic gooseneck mic, now featuring a stylish metallic neck, is the perfect complement to this powerful vocal processor. Whether you're aiming for rich harmonies or contemporary auto-tuned effects, the microKORG 2's vocal processor is a versatile tool for unleashing your vocal creativity.

Master live performances with loop recording and arpeggiator

Discover a new level of musical creativity with microKORG 2's loop recorder. This feature brings a familiar yet powerful tool for modern musicians into the microKORG world. Ideal for crafting layered backing tracks, the loop recorder allows you to loop segments of music and overlay your own performance, enhancing your creative expression in real-time. While loop recorders are well-known in the music world, their integration into the microKORG 2 opens up new avenues for experimentation and performance, perfectly complementing the synthesiser's robust capabilities.

The loop recorder is designed for simplicity and ease of use, featuring three simple buttons: record, play/stop, and undo/redo. The user interface is streamlined for immediate understanding and use- long-pressing the buttons reveals recording and playback settings, ensuring you're always in control and can focus on your performance.

The microKORG 2 also includes an arpeggiator, perfect for adding rhythmic complexity to your compositions. Activate it with a simple press of one of the eight program number buttons, and watch as it infuses your music with intricate patterns and textures. The combination of the loop recorder and arpeggiator opens up a world of possibilities, allowing you to craft a performance that is truly and uniquely yours.

Explore sounds across the ages

Discover microKORG 2's rich tapestry of sounds, where you get to play with a whole new range of tones. It's all about choice here - the new program selector is your gateway to genres far and wide. Fancy a bit of retro?

Specifications

Keyboard: 37 keys (velocity sensitive mini keys)

Synthesiser
Sound Engine: Analogue modelling synthesis system
Number of Timbers: Max. 2 (when Dual)
Maximum number of voices: Single 8 voices, Dual 4 voices

Vocal Processor
Maximum Polyphony: Vocoder 8 voices, Hard Tune 4 voices, Harmonizer 4 voices, Hard Tune & Harmonizer 2 voices

Effect types: Modulation, Delay, Reverb, Equalizer
Arpeggiator: 10 types, step arpeggiator function
Programs 256 programs (4 Banks x 8 Categories x 8 Programs)
Display: 2.8-inch IPS LCD display
Inputs/Outputs: OUTPUT - L/MONO, R terminals: 6.3mm TS phone jack, unbalanced
HEADPHONES jack: 6.3mm stereo phone jack, unbalanced
MIC IN - CONDENSER: +5V 3.5mm TRS mini phone jack, unbalanced
MIC IN - DYNAMIC: 6.3mm TS phone jack, unbalanced
AUX IN: 3.5mm mini stereo phone jack, unbalanced
DAMPER/SWITCH: 6.3 mm phone jack
MIDI IN,OUT
USB Type C

Power supply: 9V DC (AC adapter), six AA batteries (alkaline or NiMH)
Battery life: Approximately. 4 hours or more (when using alkaline batteries)
Dimensions (W x D x H) 542 x 238 x 65 mm
Weight: 2.1 kg (without batteries and microphone)
Included items Condenser microphone, AC adapter (DC 9V)

Notes: Module version of Korg's superb Modwave MkII features the same powerful wavetable synth engine in a compact package. Stereo 60-voice polyphony, deep programming options and excellent hands-on control.

Supplier's Notes:
All the features of the Modwave MkII in a compact 4U 19" desktop/rackmount package. Modwave builds on the legacy of Korg's DW-8000 and transforms it into a modern monster synth, featuring incredibly deep wavetable oscillators, gorgeous filters, wildly flexible modulation, unmatched polyphony, comprehensive pattern sequencing, and immediately satisfying hands-on control to deliver unique, powerful, and easily customizable sounds and phrases.

Like Modwave MkII, the Modwave Module provides an astonishing 60 stereo voices of polyphony - almost double the original Modwave's 32, and an unprecedented number for a wavetable synth at any price. The new 4U rack-mount enclosure has the same controls as the keyboard models, yet is easily transportable and fits neatly into any studio or desktop production system.

Responding to user requests, Korg have updated all LFOs with options for free running, delayed start, and retriggering. Korg have also added a pre/post switch for reverb sends, new modulation sources, and more.

The Modwave Module is fully compatible with the sounds and samples of the original Modwave, Modwave Mk II, and Modwave Native software, as well as many third-party libraries. MIDI 2.0 Property Exchange and Polyphonic Aftertouch Support

With the latest software updates, all models of Modwave, hardware and software, now support MIDI 2.0 Property Exchange and easy access to Polyphonic Aftertouch - making them excellent companions to the Korg Keystage controller.

Rack-Mount and Desktop

The Modwave Module is cleverly designed for both desktop and rack-mount use. The panel is redesigned to fit into a standard 19" width, and the rear jack panel is recessed to allow easy access to cables even with gear mounted directly above. With desktop setups, brackets offer a choice of panel angles: flatter for performing standing up, or more upright for working while seated in your studio.

Specifications

Maximum Polyphony: 60 stereo voices
Dimensions (W x D x H): 483 x 172 x 107 mm / 19.02 x 6.77 x 4.21 inch
Weight: 1.7 kg / 3.75 lbs.
Accessories: AC adapter
Sound generating system: modwave synthesis engine

Modulation

Controllers: Mod Wheel, Pitch Wheel, Kaoss Physics, 4x Mod Knobs

Other Sources

4x Envelopes, 5x LFOs, 2x Mod Processors, 2x Key Track, Seq Lanes A-D, Step Pulse, Tempo, Program/Performance Note Count, Program/Performance Voice Count, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate, Gate+Damper, Note-On Trigger, Note-On Trigger+Damper, Note Number, Aftertouch and Poly Aftertouch (external MIDI only), MIDI CCs +/-, MIDI CCs +

Destinations: Most parameters can be modulated, including parameters of individual Motion Sequence Steps: Depending on Motion Sequence length, there can be more than 1,000 potential modulation targets per Program.

Effects

Pre FX: Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper

Mod FX: Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah

Delay: L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo

Master Reverb: Early Reflections, Overb

Master EQ: 4-band parametric EQ

General

Inputs/outputs: Headphone (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3mm TRS phone jacks), DAMPER (6.3 mm phone jack, half-damper not supported), MIDI IN and OUT connectors, USB B port
Power supply: AC adapter (DC12V, 2500mA)
Power consumption: 5 W

Notes: Second-gen version of the excellent Opsix features major updates including 64-voice polyphony and an improved interface. Same powerful six-operator FM synth engine.

Supplier's Notes:
A Full-Spectrum Sound Experience

Opsix mk II is a digital synth like no other. Based on the sound engine of the original Opsix, the number of simultaneous voices and voicings has been expanded to an astounding 64 voices. The result is superior performance and precise control.

The Opsix Operator Mixer simplified FM synthesis for the first time, making it not just comprehensible but also controllable. With the addition of extra synthesis capabilities and programming, it offered a more efficient workflow and an even richer sound.

And, it is fully compatible with the sounds and samples from both the original opsix and the opsix Native software, including numerous high-quality libraries.

Evolved to an astounding 64 voices

The Opsix mk II has 64 voices, twice as many as the original 32 voices, allowing users to enjoy tone editing without having to worry about the number of simultaneous voices. In addition, the operator-mixer section, the most distinctive feature of this product, has been accented with a new image colour, green.

Get Illuminated with the Operator Mixer

At the heart of every sound is Opsix mk II's Operator Mixer - a simple set of six faders and knobs that invite exploration. Each part lights up red to indicate carriers or blue for modulators. Manipulating them opens up new sound-shaping possibilities to breathe fresh life into your musical ideas. This straightforward, hands-on workflow is part of what makes Opsix mk II so unique, just like the sounds it offers.

Direct Hands-On Control

Whether you're tweaking a preset or building a patch from the ground up, the six data entry knobs on the right give you quick access to the parameters you need and seamlessly sync with the large OLED display, giving you a clear, focused direction to your workflow. Coupled with the mixer, it makes creating fresh sounds super easy and, most importantly, fun!

Select from a full range of analogue-style filters, from the radical Korg MS-20 low-pass/high-pass filter to the powerful yet smooth KORG Polysix low-pass filter that gives your sound a vintage feel. There are also two or four-pole low-pass, high-pass, band-pass, and band-reject filters with resonance.

There's even a built-in spectrum analyser and oscilloscope that gives you visual feedback via the screen on the music you're making.

Six in One Synthesis

The core of Opsix mk II is nothing short of exponential. Since waveforms can be arranged and modulated in nearly infinite ways, Opsix mk II can easily do the sonic work that is similar to numerous types of synthesis:

Subtractive

Removing parts of the sound to get the sound you want; the most widely-used synthesis. Opsix mk II uses up to six envelopes and multi-modelled filters to achieve many cutting-edge and classical analogue synthesis tones.

Semi-Modular

Rerouting signal paths to change the sound. A spin through the Algorithm section will dramatically reshape the sound by changing how the signal routing between the operators work together, and no patch cables are needed. Analog-style controls and plenty of stackable waveforms take you from digital to analogue-sounding in no time. Enjoy deep basses, crisp leads, thick pad sounds, fuzzy brass tones, and so much more.

Analogue (Modeling)

Analogue-style controls and plenty of stackable waveforms take you from digital to analogue-sounding in no time. Enjoy deep basses, crisp leads, thick pad sounds, fuzzy brass tones, and so much more.

Waveshaping

Adding intentional distortion to the waveforms to achieve aggressive overtones that are either harmonic or inharmonic. This will help you achieve gritty, bitey tones dripping with character.

Additive

Stacking waveforms and blending their harmonics is key to an expansive range of harmonious, dissonant, and tension-driven sounds. With six operators available, the complete FM experience is possible, including the ability to go back in time for classic sounds you have heard throughout recording history.

Classic FM

Last but certainly not least, Opsix's highly flexible and powerful architecture starts with true six-Operator FM. As a result, it easily delivers signature sounds you have surely heard on thousands of hits from the '80s on through today, and with far more polyphony than other standalone FM synths available today.

With all of these ways to realize and explore sounds, Opsix mk II is uniquely suited as a "future-modern-classic" synth!

Altered Reality

What started as a legacy synthesis has evolved into something completely different. Opsix mk II is FM-based, but the similarities to the classic synthesis end there. The Altered FM architecture delivers sounds across a vast spectrum, far wider than any single synthesis has been able to cover before, thanks to new sound components; new waveforms, filters, shaping, effects, LFOs, envelopes, modulations, and more, all translating to its broad assortment of sounds.

Powerful Effects Processing

Opsix mk II provides three blocks of 30 types of high-definition effects that you can use together to enhance your sounds even further. There's everything from a great mix of usable standard effects like chorus, phaser, delay, and compressor to some world-class shimmering reverbs that will elevate your sound to the next level.

Specifications

Keyboard: 37 keys (velocity and release-velocity sensitive)
Sound generating system: Altered FM sound generator
Maximum Polyphony: 64 voices (varies depending on the setting)
Structure: 6 operators, 1 filter, 3 EGs, 3 LFOs, 3 effects, step sequencer, arpeggiator
Algorithm: 40 presets + user algorithm (unique to each program)
Operator: 6 modes (FM, Ring Mod., Filter, Filter FM, Wave Folder, Effect)
Oscillator waveform: 23 waveforms (Sine, Sine 12bit, Sine 8bit, Triangle, Saw, Saw HD, Square, Square HD, Additive Saw3, Additive Sqr3, Additive Tri3, Additive 12345, Additive 1+2, Additive 1+3, Additive 1+4, Additive 1+5, Additive 1+6, Additive 1+7, Additive 1+8, Noise S/H, Noise White, Noise Pink, Noise Blue)
Filter: 11 types (LPF 12, LPF 24, LPF MS-20, LPF POLY6, HPF 12, HPF 24, HPF MS-20, BPF 6, BPF 12, BRF 6, BRF 12)
EG: ADSR
LFO: 23 waveforms (Triangle, Saw Down, Saw Up, Square, Sine, Sample&Hold, Guitar, Exp. Triangle, Exp. Saw Down, Exp. Saw Up, Step4 Triangle, Step6 Triangle, Step4 Saw Down, Step6 Saw Down, StepRnd:Time, StepRnd:Lvl&Time, StepRnd:Level, Random:Time, Random:Lvl&Time, Triangle + , Saw Down + , Saw Up + , Square +)
V.Patch: 12 routings
Effect: 30 types (Chorus, Unison Ensemble, Phaser, Phaser (BPM) , Auto Pan, Auto Pan (BPM), Flanger, Flanger (BPM) , Rotary Speaker, Auto Wah, Exciter, Enhancer, LFO Filter, 3-Band EQ, Distortion, Guitar Amp, Decimator, Grain Shifter, Master Limiter, Compressor, Delay, Delay (BPM) , Autopan Dly, Autopan Dly (BPM), Tape Echo, Tape Echo (BPM) , Early Reflection, Reverb, Shimmer Reverb, Spring Reverb)
Sequencer: Step Sequencer (up to 16 steps, up to 6 notes per step), Motion Sequencer (up to 6 lanes)
Arpeggiator: 7 patterns (MANUAL, UP, DOWN, ALT1, ALT2, RANDOM, TRIGGER)
Number of programs: 500 (350 preset programs and 150 user programs as the factory-set default)
Favourite: 64 (16 Slots × 4 Banks)
Controllers: MODULATION wheel, PITCH wheel, RATIO OP 1-6 knobs, LEVEL OP 1-6 sliders, DATA ENTRY A-F knobs
Inputs/outputs: Headphone (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks), DAMPER (6.3 mm phone jack, half-damper not supported), MIDI IN and OUT connectors, USB B port
Power supply: AC adapter (DC12V)
Power consumption: 5 W
Dimensions (W × D × H): 565 × 338 × 90 mm / 22.24" × 13.31" × 3.54"
Weight: 2.9 kg / 6.93 lbs.
Included items: AC adapter
Accessories (sold separately): DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Premium version of the excellent Opsix, Korg's contemporary take on FM synthesis. Full 61-note natural-touch keybed with aftertouch, 80-voice stereo polyphony and full metal construction.

Supplier's Notes:
The Ultimate Union of Power and Performance

opsix SE is a digital synth like no other. With a premium all-metal design, 61-keys, and aftertouch, it unlocks a new world of sonic capabilities. Building on the expansive sound engine in the original opsix, opsix SE enhances it with increased polyphony and voicing, resulting in a synthesizer created for superior performance and precise control.

The opsix Operator Mixer simplified FM synthesis for the first time, making it not just comprehensible but also controllable. With the addition of extra synthesis capabilities and programming, it offered a more efficient workflow and an even richer sound.

The opsix SE takes this even further. It is equipped with Korg's premium 61-key natural-touch keyboard, complete with aftertouch, delivering the exceptional tactile experience expected from Korg's flagship workstations. With a sleek, robust metal body, it's built for both the intensity of live gigs and the precision of studio sessions. The metallic knobs are optimally weighted for effortless adjustments. Underneath its exterior, the opsix SE boasts an incredible capacity of 80 stereo voices of polyphony.

The opsix SE arrives preloaded with hundreds of sounds enhanced for aftertouch control. Moreover, it is fully compatible with the sounds and samples from both the original opsix and the opsix Native software, including numerous high-quality libraries.

Build to play

opsix SE was born out of the desire to play this incredible synth with both hands. Equipped with KORG's premium 61-note natural-touch keyboard, the opsix SE offers the same outstanding tactile response as KORG's top-tier workstations. Aftertouch puts unparalleled control of all the exceptional opsix sounds at your fingertips. Of course, we've modernized the factory Performances for aftertouch and introduced some fresh ones to the mix as well. In fact, most of the opsix SE programs have been revised to make full use of aftertouch, extended keyboard, and polyphony.

Premium metal design

The opsix SE showcases a notable upgrade in aesthetics. A slim body, specifically designed for this instrument, features a striking brown painted aluminium control panel, paying homage to vintage machines. Together with the vivid, illuminating LEDs, it brings a vibrant energy to any stage performance. The side panels, painted in a sleek black metal, amplify the overall aesthetics for a luxurious finish.

Exclusive hard case included

The opsix SE ships in a dedicated hard case, including space for cables and a sustain pedal. Your instrument can travel protected, whether you're carrying it to a rehearsal downtown or packing it up for a tour.

Get Illuminated with the Operator Mixer

At the heart of every sound is opsix SE's Operator Mixer - a simple set of six faders and knobs that invite exploration. Each part lights up red to indicate carriers or blue for modulators. Manipulating them opens up new sound-shaping possibilities to breathe fresh life into your musical ideas. This straightforward, hands-on workflow is part of what makes opsix SE so unique, just like the sounds it offers.

Direct Hands-On Control

Whether you're tweaking a preset or building a patch from the ground up, the six data entry knobs on the right give you quick access to the parameters you need and seamlessly sync with the large OLED display, giving you a clear, focused direction to your workflow. Coupled with the mixer, it makes creating fresh sounds super easy and, most importantly, fun!

Select from a full range of analogue-style filters, from the radical Korg MS-20 low-pass/high-pass filter to the powerful yet smooth KORG Polysix low-pass filter that gives your sound a vintage feel. There are also two or four-pole low-pass, high-pass, band-pass, and band-reject filters with resonance.

There's even a built-in spectrum analyser and oscilloscope that gives you visual feedback via the screen on the music you're making.

Six in One Synthesis

The core of opsix is nothing short of exponential. Since waveforms can be arranged and modulated in nearly infinite ways, opsix can easily do the sonic work that is similar to numerous types of synthesis:

Subtractive

Removing parts of the sound to get the sound you want; the most widely-used synthesis. opsix uses up to six envelopes and multi-modeled filters to achieve many cutting-edge and classical analog synthesis tones.


Semi-Modular
Rerouting signal paths to change the sound. A spin through the Alogorithm section will dramatically reshape the sound by changing how the signal routing between the operators work together, and no patch cables are needed.


Analog (Modelling)
Analog-style controls and plenty of stackable waveforms take you from digital to analogue-sounding in no time. Enjoy deep basses, crisp leads, thick pad sounds, fuzzy brass tones, and so much more.


Waveshaping

Adding intentional distortion to the waveforms to achieve aggressive overtones that are either harmonic or inharmonic. This will help you achieve gritty, bitey tones dripping with character.


Additive

Stacking waveforms and blending their harmonics is key to an expansive range of harmonious, dissonant, and tension-driven sounds. With six operators available, the complete FM experience is possible, including the ability to go back in time for classic sounds you have heard throughout recording history.


Classic FM

Last but certainly not least, opsix's highly flexible and powerful architecture starts with true six-Operator FM. As a result, it easily delivers signature sounds you have surely heard on thousands of hits from the '80s on through today, and with far more polyphony than other standalone FM synths available today.

With all of these ways to realize and explore sounds, opsix SE is uniquely suited as a "future-modern-classic" synth!

Altered Reality

opsix SE is FM-based, but the similarities to the classic synthesis end there. The Altered FM architecture delivers sounds across a vast spectrum, far wider than any single synthesis has been able to cover before, thanks to new sound components; new waveforms, filters, shaping, effects, LFOs, envelopes, modulations, and more, all translating to its broad assortment of sounds.

Powerful Effects Processing

opsix SE provides three blocks of 30 types of high-definition effects that you can use together to enhance your sounds even further. There's everything from a great mix of usable standard effects like chorus, phaser, delay, and compressor to some world-class shimmering reverbs that will elevate your sound to the next level.

Automatable 16-step sequencer

opsix SE features an incredible step sequencer that rivals groove boxes for flexibility and power. Press the PLAY button on any sound and experience the complexity of the sequences! Every Program has its unique sequence stored with it, or create your very own.

You can record up to six notes per step and edit each note's velocity, gate time, and playback timing. Create long phrases or make subtle shifts in timing to emulate strums or drum rolls, something that's not possible on a typical 16-step sequencer. The motion sequencer of the opsix SE also lets you record changes of up to six parameters, creating smooth motion changes in sound within a phrase or building rhythms that change dramatically with each step.

Notes: The JMT RVO-3 is an analog noise synthesiser featuring 2 oscillators. 1 main oscillators with 1 sub oscillators paired to it. Each of the oscillators features their own frequency controls, and sync switches for each of the oscillators pairings allowing a wide range of textures. It has a main VCO with a frequency control knob and a push button allowing a short envelope to control the frequency. Additionally, controls for the waveshapes and stability of the VCO and sub frequency VCO allow for further manipulation of timbre.

Notes: The NOSC-12, from JMT Synth, is a 12 oscillator drone synthesiser, six main oscillators with six sub oscillators. There are frequency controls for each of the oscillators, including the sub oscillators, which also include sync switches for each of the oscillator pairs. Each of the oscillators are mixed together to a 1/4" output jack.

NOSC-12 Features

12 Oscillator Drone Synth
12 Suboscillators, one per Osc
Volume Controls for each OSC
Sync switches for each OSC.

Notes: The TVCO-2 is an analogue synth that is powered by a single DC9V~DC12V or 9V battery.

By touching the five sensors directly connected to the circuit of the analogue synth oscillator with your fingertips, the tone of the oscillator peculiar to thick analog synths changes in various ways.

Since it responds delicately, the tone changes depending on whether you touch it strongly or touch the sensor with or without touching it, and whether you touch two, three, or a combination.

The top two sensors are connected to the MAIN VCO and the SUB VCO for input to the VCF, so you can use this sensor to change the VCF (filter) with touch sense to create more complex tones.

The bottom three sensors are connected to the circuit of the MAIN VCO. This sensor can make a noisy change directly to the main sound output oscillator, and the way it changes changes with a combination of touches, such as touching it at the same time in combination with the touch of the SUB VCO.

With a simple structure of 2 VCOs and 1 VCF (band-pass and low-pass switchable), you can intuitively operate this equipment to create your own sounds.

The MAIN VCO and VCF have CV IN. By attaching a 3.5mm conversion jack, you can connect from sequencers, analog synths, and modular synths CV OUT for a wider variety of expressions.

Compared to cable patches and switches, subtle changes can be made instantly at the fingertips, so it is a model that can be controlled more sensitively.

This analogue synth runs on DC9V negative center or a 9V battery.

The main VCO can be controlled with FREQ. knob and 3 touch sennsors.

Sub VCO has two touch sensors and effects to main VCO and VCF as CV.

CV INs can recieve CV OUT of other instruments,sequencer, LFO, etc..

Notes: Process and generate synth sounds with the unique Magnetar distortion synth, based around distortion and fuzz circuits in series. Adjustable feedback and LFO modulation give super distinctive tones.

Supplier's Notes:
Magnetar is a dual distortion synthesizer featuring distortion, fuzz (connected in series), equalization/feedback, delay, and LFO. However, the capabilities of this synth go far beyond a simple sound processor. It can generate incredible sounds without any input, simply by tweaking the controls to create unpredictable sounds, perfect for drone, ambient, noise, and more. You can see it in action in the video. It's highly recommended to read the manual carefully, as the synth is very sensitive to input level changes. The level pots not only control the levels but also produce unique textures and intriguing sound variations.

Signal Chain: IN + DISTORTION + FUZZ + DELAY + OUT EQ + FB LFO MAGNETAR

Controls:

Distortion Module: (From left to right and top to bottom) In
Input level to the distortion Dist 1
Distortion level Hue
Distortion tone (the associated switch changes the tone) Tone
Equalisation In
Input jack Mod
LFO frequency (modulates GIG) Level
LFO level (modulates GIG) Takes DC 28V Feedback
From the distortion module Out - Output NXPTD
Feedback delay D/W
Delay effect level On/Off switch BP
Unit bypass

Fuzz Module: Level
Input level (linked to the distortion input) Gain
Gain Dist 2
Fuzz distortion level Fog
Changes the fuzz tone

Notes: Really nice boutique analogue synth from JMT, based around a main oscillator with three sub signals, a frequency-synced resonant filter, noise source and three-speed random trigger.

Supplier's Notes:
DNVO-1 is a handmade, compact analog synthesizer from JMT Synth Its primary oscillator can be synced with three sub oscillators, each with a different range, as well as a noise source and wave generator. The latter source can be manipulated with the 3-speed random trigger for effective fluctuations within a single performance. The primary VCO is routed through a self-oscillating filter, which can sync with the VCO's frequency.

Notes: Quirky synth fun from JMT, the NDE-1 is based around two oscillators, sample and hold, noise generator and a four-pole low-pass filter. Generate random tones, control via a sequencer or process external audio.

Supplier's Notes:
This model consists of two VCOs (oscillators), SAMPLE & HOLD, noise generator, low-pass filter, LFO, VCA, and envelope generator to create a powerful sound.

By itself, a wide range of sounds can be created, including random and regular intermittent sounds, mute timing, and fine-tuning of levels.

If you input sounds from other equipment through the A IN, you can apply a variety of filters, LFOs that oscillate the filters, and mutes to the input sounds in parallel with the built-in oscillator.

The variable range is wide enough to produce a variety of sounds. The filter is a 4-pole filter that works very smoothly, and external audio can be input via A IN.

You can also use it with a sequencer to create even more sounds.

CV INPUTs can accept - + 9V. Do not exceed this voltage.

The adapter is not included.

Please use centre negative 9V POWER SUPPLY or A 9V battery.

Notes: ***B-STOCK: Box opened, missing a nut on left output, otherwise in perfect working condition***


Blue version of the Bree6, GS Music's fully analogue six-voice synth module. Huge sonic power from the classic single-oscillator design, brought up to date with modern touches like balanced stereo outputs and USB control.

Supplier's Notes:
The Bree6 is a polyphonic analog synthesizer that features a fully analog sound generation. It offers six voices of polyphony, each equipped with a single voltagecontrolled oscillator (VCO), and a sub oscillator. The signal path includes a mixer, a 4-pole low-pass voltage-controlled ladder filter (VCF), and a voltage-controlled amplifier (VCA). The control signals are digitally generated, incorporating one low-frequency oscillator (LFO) and two ADSR-type envelope generators. Additionally, the Bree6 integrates an effects processor with chorus and delay.


The Bree6 interface is engineered for straightforward and intuitive use, featuring one knob per function and ensuring ease of access to its robust features, including MIDI connections, USB, balanced stereo audio outputs, headphone output, and CV inputs.

The signal path in the Bree6 is entirely analog, including a single VCO per voice, a sub oscillator, a mixer, a 4-pole low-pass ladder VCF, and a VCA. The control voltages are digitally generated, comprising one LFO and two ADSR-type envelope generators. It also features a stereo digital effects processor with Delay and Chorus.

The Bree6 features a single VCO plus a sub oscillator per voice. The oscillator includes sawtooth and pulse waveforms, with pulse width modulation control that can be modulated by the LFO. The oscillator tuning can be adjusted, and modulation can be applied from the LFO. The sub oscillator generates a square wave one octave below the main oscillator.

The Bree6's filter is a 4-pole ladder-type low-pass filter with resonance control. It can be modulated by EG1, with velocity affecting the modulation depth, and can also be modulated by the LFO. It can also be controlled by the modulation wheel and aftertouch.

The synthesizer offers a stereo ensemble type chorus effect. It simulates a string or vocal ensemble using multiple delay lines modulated by their dedicated LFOs. The stereo delay can reach a maximum delay time of up to 1 second.

The Bree6 contains one LFO with selectable waveforms (triangle, ramp up, ramp down, square, and random with sample and hold). The LFO's frequency can be set from 0.1Hz to 100Hz, and modulation can be applied to the VCO, VCF, and VCA.

There are two ADSR-type envelope generators in the Bree6, designed for precise control over the dynamics of both the filter and the amplifier.

The synthesizer supports MIDI Polyphonic Expression (MPE), facilitating detailed performance dynamics when used with compatible MPE controllers. The Bree6 has been carefully tested with Osmose, Linnstrument and Geoshred.

Notes: ***B-STOCK: Product with some signs of usage but in perfect working order***


The electribe has been reborn including KORG's latest technology distilled from popular products such as the KingKORG, kaossilator, kaoss pad, and taktile. The 200 preset patterns cover House and Techno as well as cutting-edge dance music genres such as Trap and EDM. Another major evolution of the new electribe is support for polyphonic playback, which is indispensable for musical styles that involve complex chord progressions such as House music.

Using the 16 pads placed on the front of the unit, you can create patterns intuitively while actually hearing and seeing the sounds. You can use the pads as a keyboard to realtime-record phrases, and also perform step recording by entering the pitch and rhythmic value one note at a time. The patterns you create can be used in alternate forms as you perform by taking advantage of the "step jump" feature inherited from the volca series, or by changing the "last step" to vary the length of each part.

There's also a "motion sequence" function that lets you record knob and button operations and use them in the pattern that you create. Either drums or synths can now be assigned to each of the 16 parts (i.e., the 16 pads). For example you could create complex rhythms by assigning drums to all of the 16 parts.

Familiar from the kaossilator is the "touch scale" function that lets anyone perform without wrong notes, just by moving a finger across the touch pad. The trigger pads that were popular on the taktile are also provided, making it easy for anyone to create phrases intuitively. The trigger pads can also be used for drum input. Settings allow you to switch velocity on/off.

For the electribe, KORG designed a synth engine that gives you the maximum sound-creating freedom and the fastest sound production. The 409 oscillator waveforms include analog modeling and PCM. The analog modeling synth engine provides a broad variety ranging from simple basic waveforms to complex combinations such as dual, unison, sync, ring modulation, and cross modulation. The PCM sound engine provides mainly rhythm sounds, but also covers multisamples for keyboard. (collaborations with Sample Magic, Loopmasters, Prime Loops are included)

The filters at the heart of the sound-shaping capabilities are inherited directly from the KingKORG, and they use filter algorithms that simulate standard synthesizers so that you can get "the sound" which was used in famous songs, just by selecting the appropriate filter type.

You can also apply filters to drums to create rhythm tracks that are rich in tonal variation. Modulation can make sound-creation more complicated, but we've made it easy by condensing it down to three parameters: simply select a template that specifies an effect and its target, and then adjust the speed and depth of the effect to suit your taste.

The new electribe provides effects such as compression and overdrive for each part, giving you uncompromising control over the nuances of individual sounds that differ subtly between genres. The groove function can be specified for each part, letting you apply a groove to your phrase simply by selecting a template.

The master effects can be controlled from the touch pad just like on the kaoss pad, and they include not only spatial-type effects that shape the overall acoustics but they also include effects that apply aggressively musical transformations such as the "Vinyl Break" effect inherited from the Kaoss pad series, and the newly developed "Seq Reverse" and "Odd Stepper" that change the playback order of the sequencer. These are also extremely effective for live performance. Insert effects can be assigned for individual parts, opening up even more complex sound-design possibilities. There's also a "pattern set" function which lets you switch patterns by pressing trigger pads, and an "event recording" function that records that performance. In addition to MIDI IN/OUT, "Sync IN/OUT" is also provided, allowing synchronized performances with the volca series, monotribe, or MS-20 mini. The unit can run on six AA batteries, so you can easily take it along with you and perform anywhere, providing on-the-go inspiration your musical ideas.

Notes: It starts with a dream

We are all fans of synthesizers, their vintage sound, classic and modern at the same time, their ability to mix several timbres. We love the musical journey that transports us while listening to each new presets.

We also like guitar and bass. Standing or sitting, in your studio or on stage, playing on guitar or bass is this tremendous energy, this way in which the intensity of the playing is in total connection with the music you want to create. A sweet ballad, a melodious arpeggio, a hell of a bass line, a stratospheric lead, an awesome riff.

What if we could express all that but with a great synth sound?

The dream came true, and even more!

A modern synth played like a guitar or a bass

Elyra is played with the typical gestures of playing guitar and bass and all the energy that comes from it. You play with your whole body.

There are two strumming aera for strings, one dedicated to back and forth and another dedicated to bass and arpeggios.

Elyra is designed to be played by both right-handed and left-handed people.

You can also play it placed on a table or on your knees like a groove box.

A powerful and unique composition tool

With up to 16 voices polyphony, spread across 16 instruments/layers and with is powerful sequencer, Elyra is more than a groovebox, it is a composition tool.
You can have one instrument with 16 voices or 16 instruments with one voice and everything in between.

Because Elyra is battery powered, you can carry it anywhere with you and play for several hours.

You can play and sequence all your other instruments via MIDI port.

A sound engine is made for this instrument by Kodamo.

At the core of Elyra there is a powerful and beautiful sound engine created for by Kodamo.

It is a virtual analogue engine based on subtractive synthesis with just enough FM synthesis to offer a vast sound territory.

It has many parameters to sculpt and create a unique sound.

Electronics and wood

Elyra is made of electronics and wood.

The electronic parts are designed in France and comply with environmental standards and in particular RoHS.

The body of the instrument is made of wood. It is cut and assembled in France. The wood is only chosen from sustainable or recycled sources.

Elyra is built to last.

Raised touch buttons

All Elyra buttons are touch sensitive pads made up of a slightly raised area allowing the user to feel physical feedback.

This is capacitive sensor technology which offers an extremely fast response time of 2 ms.

There are 5 distinct areas on the main panel:

the fretboard composed of 4 * 12 pads
the strumming area separated into two types, A and B
two assignable sliders
an OLED screen with its wheel and its 8 contextual buttons

Guitar/bass mode

At first you need a double trig to play a note in Guitar or Bass mode: the hand on the fretboard selects the note to be played, and the other hand uses one of the two strumming areas.

Each one of the four strings has its own two strumming areas.

The strumming area A, is made of a long and very thin relief pad. It is ideal for playing back and forth on one or more strings.

The strumming area B, is a double pad surrounded by holes in the main layer, it allows both bass type playing and is ideal for playing arpeggios.

Elyra retains the essential subtleties of guitar playing, when a note has just been played you can also, like in guitar, slide to another note, or do a Pull-off or a Hammer-on without using the strumming area again.

You can use the slider with your thumb to bend the notes.

Elyra can be tuned according to your needs. there are basic tunings, like the first 4 strings of a guitar E, A, D, G, or any open tuning, or like a Ukulele.

You choose the root notes of each string, and the choice is specific to each track in one project.

Specifications

Fretboard: 12*4 capacitive pads (2ms latency)
Sound Engine: Virtual analogue + FM
Polyphony: 16 voices shared by all tracks
Multitimbrality: up to 16 instruments/layers
Presets: 256 factory presets
1024 user presets
16 presets per project
Oscillators: 15 waveforms including sine, triangle, saw, pulse and noise
Pitch envelope
Amp envelope ADSR + delay
FM: envelope modulator (osc 2) + feedback level
Filter: filter type : HPF, LPF
Filter slope: 2 poles -12dB/oct, 4 poles -24d B/Oct
Envelope ADSR
LFO: 2 LFOs, 5 waveform, speed depth, delay, retrig position, sync to BPM
Effects: 3 master effects with individual send by tracks
Effect 1: distortion/overdrive
Effect 2: bitcruch or chorus
Effect 3: stereo delay or reverb
Sequencer: a pattern = up to 256 steps per track, 128 patterns per project
max 999 project by SD card
Power Supply: 5v USB bus power supply
Memory: SD card

Size and Weight

Width: 435 mm - 17 - 1/8 inches
Depth: 170 mm - 6 - 11/16 inches
Height: 40 mm - 1 - 37/64 inches
Weight: 1.2 kg / 2 lbs 12,3 oz

Notes: A hardware take on the bytebeat genre, in which simple computer code generates music. Hands-on touchpads allow you to modulate the code behind the sound, creating constantly evolving tones.

Supplier's Notes:
Honey is a palm-sized, touch-based noise instrument based on the bytebeat principle. It runs on a single AAA battery and emits sound through a speaker. It doesn't have an audio jack. It creates dynamic sounds by manipulating variables and mathematical operations through touch.

The internal dynamic equations consist of five variables and four operations, with six possible operators for each operation. They are constantly changing and forming new equations, creating chaotic randomness.

If the unit does not respond correctly, the battery needs to be replaced.

Powered by one AAA battery

Notes: Reissued version of one of Dreadbox's back catalogue synths, the Erebus is a paraphonic design with two VCOs, a characterful low-pass filter, built-in delay and updated snappy envelopes.

Supplier's Notes:
Dreadbox's most unique sounding analogue synthesizer is finally back, warmer and snappier than ever!

All you synth lovers, the time has come to dive into the Erebus...

All Analogue Paraphonic Synthesizer
Faithful Reproduction of the Erebus V1
2 Oscillators with 2 Waveforms each
Separate Glide controls and Hard Sync function
2-pole Low Pass pre-fed Filter
1 ADSR envelope and a AR Amp Envelope
Snappier than the V1

OTA VCA
Lo-Fi Delay effect
Wide Range LFO
15 patch points for an astonishing and spectacular modular experience
Compact, USB powered, Eurorack Format (42HP)

Ethereal & Dreamy

Warm sounding Oscillators
Classic Dreadbox Filter
Snappy Envelope Generators
Lo-Fi Delay effect to expand your sound
CV outputs: Envelope, LFO, Mod Wheel, Gate, CV1, CV2
CV inputs: Osc1, Osc2, Echo, Cutoff, CV, Gate, LFO Rate, PW, VCA

Specifications & Connections

USB powered (1.5 Watts)
50 Playing hours with 20,000mA portable power bank
MIDI IN via DIN5
14 MONO TS Jack Out

Dimensions: 21.5 x 13 x 6.5 cm
Weight: 1 kg

Requirements:

USB-A Adapter (5v) with 1000mA or more
MIDI device or keyboard that is equipped with DIN5 midi output
Monitor, Amp or Headphones

Included in the box:

Erebus Eurorack module
42 HP case
1x DIN5 to 3.5mm adapter
1x Ribbon cable

Notes: The excellent Bullfrog synth gets a new bigger brother in the form of the XL, an expanded and enhanced version of this collaborative analogue instrument, featuring built-in speakers, oscilloscope and plenty of new synth options.

Supplier's Notes:
Bullfrog invites you to unlock your musicality while combining the thrill of electronic music production with a comprehensive learning experience. Bullfrog XL is designed specifically for teachers to use in front of the classroom and it expands the concept of the regular Bullfrog by inflating its size by a factor of 3 (literally!). With its expanded size and built-in oscilloscope, Bullfrog XL isn't just for classrooms but will be a great addition to any studio.

Features

Fully analogue design
Highly accurate voltage controlled oscillator (VCO) that tracks great over 8 octaves
Manually adjustable and voltage controlled waveshapes - sine-shark fin and pulse wave with pulse width modulation (PWM)
Zener diode-based noise generator
Resonant lowpass voltage controlled filter (VCF)
Voltage controlled amplifier (VCA) with adjustable offset
Delay effect with adjustable delay time and feedback amount
Two looping attack-sustain-release envelope generators (EG)
Sample & Hold circuit with an individual clock
Attenuverter
Slew processor with adjustable slew time
Two buffered splitter circuits
Two channel oscilloscope
6.3 mm jack sockets
Manual gate button
Gate and Trigger out
Voice card slot
Built in speakers
DIN5 MIDI input
USB connector
Keyhole slots on the rear panel
Dimensions (mm): 820x505x65 (250 with the side panels)
Mass: 8.3 kg

What's included:

BULLFROG XL synthesizer with side panels
Universal 12VDC wall wart adapter with the power cable
User manual
12 1/4" patch cables
Sequencer, Sampler/Looper, Acid Bassline, Hi-pass filter, LFO and Electric Organ Voice cards
3 DIY voice cards

Created by Erica Synths & Richie Hawtin, Bullfrog is an educational electronic music instrument designed to captivate and inspire both youth and professionals alike. Bullfrog invites you to unlock musicality while combining the thrill of electronic music production with a comprehensive learning experience.

In order to provide a well-rounded understanding of the functionality of this synthesizer and sound synthesis in general, a comprehensive user manual is created to accompany the learning process.

Notes: Gorgeous experimental system based around Make Noise's brilliant Maths, Morphagene, QPAS and Mimeophon modules. Capture and process sounds in stereo and warp them into new dimensions.

Supplier's Notes:
The Tape & Microsound Music Machine music synthesizer is a small stereo system devoted to capturing external sounds and sculpting them into new ones. The Morphagene operates as a recorder that also allows the artist to mulch, layer and rearrange the sound and manipulate the speed and direction of playback. The Mimeophon repeats sounds and subjects them to further manipulation, and when combined with the Quad Peak Animation System (QPAS), incredible stereo sculpting of the spectrum. The Wogglebug and MATHS work to animate these effects, and the XOH provides a final stereo mix and line level or headphone outputs for monitoring and/or performance.

Notes: Top-of-the-range take on the powerful Wavestate synth concept, based on wave sequencing with 120-note stereo polyphony, natural-touch 61-note keybed and aftertouch.

Supplier's Notes:
Wavestate SE is the powerful evolution of Korg's legendary Wavestation, taking Wave Sequencing to a new level. Designed in California and built in Japan, Wavestate SE includes a premium 61-note keyboard with aftertouch, in an all-metal chassis.

Built for a new era of musicians, composers, and producers, Wavestate SE features hundreds of dynamic sounds, extensive hands-on control and 120 notes of stereo polyphony to inspire new levels of creativity.

A sonic evolution

Wavestate SE is the powerful evolution of Korg's legendary Wavestation, taking Wave Sequencing to a new level. Designed in California and built in Japan, Wavestate SE includes a premium 61-note keyboard with aftertouch, in an all-metal chassis. Built for a new era of musicians, composers, and producers, Wavestate SE features hundreds of dynamic sounds, extensive hands-on control and 120 notes (stereo) of polyphony to inspire new levels of creativity.

Premium, expressive touch

Featuring a 61-key natural-touch keyboard, Wavestate SE feels incredible to play. The inclusion of aftertouch gives fingertip control of the unique constantly changing sound. All factory presets have been meticulously programmed to take full advantage of this expressive control.

Beauty meets brawn

Wavestate SE's all-metal design is as hard-wearing as it is beautiful - with a matte-black aluminium panel complimented perfectly by glossblack stainless-steel sides. The premium finish continues to the controls themselves, where metal-plated knobs are perfectly weighted and add a luxurious touch.

Easily expressive. Exceptionally deep.

The Wavestate SE puts filters, envelopes, LFOs, effects and more at your fingertips with dedicated front-panel controls. Eight programmable Mod knobs are customised to bring out the most in every sound, for real-time performance and also when saving results as new patches. Pitch bend and modulation wheels, and the unique Vector Joystick, give you instant access to multiple dimensions of real-time expression. Digging deeper, almost all front-panel knobs, and most on-screen parameters, can be modulated. You can even modulate settings for individual Wave Sequence steps! Mod Processors let you transform modulation signals using quantization, smoothing, curvature, and more.

Gigabytes of samples

Totalling in the gigabytes, Wavestate SE's sample library is vast. At a thousand times larger than that of the original Wavestation, the amount of great-sounding raw material for Wave Sequences is astounding.

Three of the key sound designers from the original Wavestation, John Bowen, John "Skippy" Lehmkuhl (Plugin Guru), and Peter "Ski" Schwartz, joined Belgian artist Airwave and the renowned Korg voicing team to create the incredible Wavestate SE sound library.

Powerful effects

An arsenal of superb effects ensures Wavestate SE delivers production-ready sounds. Each performance has a master reverb and parametric EQ while each layer has three dedicated effects. Alongside compressors, EQs, choruses, flangers, phasers, and stereo delays, you'll find distinctive processors such as the Wave Shaper, Talking Modulator, Reverse Delay, Multiband Mod Delay, and Overb, plus modelled effects including Vox guitar amps and wah pedal, multi-head tape echo, and a collection of other classic guitar pedals.

Multiply by four

Take all that power, and quadruple it! You can layer up to four Programs together in a Performance-each with their own effects and arpeggiator. The Vector Envelope and Joystick mix the individual voices of the four layers, and can also modulate any other parameters. This sheer sonic power is further enhanced with 120 notes (stereo) of polyphony. Set Lists offer effortless organisation of your Performances, and deliver instant access at the gig or in rehearsal. And thanks to Smooth Sound Transitions, previously-played voices and effects continue to ring out naturally, even when a new sound has been selected.

Deep connectivity

Connect to recording or monitoring systems with balanced stereo outputs, and a stereo headphone output is provided for private playing or onstage cueing. Din-style MIDI jacks ensure connection to other MIDI-equipped instruments and audio gear. The Wavestate SE supports class-compliant USB MIDI connections to Windows and Mac computers, and the Wavestate SE Editor/Librarian and Sample Builder programs are available as free downloads from Korg.

Wave Sequencing 2.0

The original Wavestation gave each step of a wave sequence a duration, a sample and a pitch. This created ear-catching repetitive patterns, giving rise to entirely new approaches to sound design. But what if the sounds could evolve in organic and unexpected ways, instead of just repeating? Wave Sequencing 2.0 separates the timing, the sequence of samples, and the melody, so that each can be manipulated independently. It also adds new characteristics, including shapes, gate times, and step sequencer values. Each of these is a "Lane", and each Lane can have a different number of steps, start, end and loop points. Every time the sequence moves forward, the individual Lanes combine to create the output. For instance, a sample may be matched with a different duration, pitch, shape, gate length, and step sequence value every time that it plays. You can modulate each Lane's start, end, and loop points separately for every note, using velocity, LFOs, envelopes, Mod Knobs, or other controllers. Each note in a chord can be playing something different! Lanes can also randomise the step order every time they play, with real-time control over the range of included steps, and individual steps can be randomly skipped (with a modulatable probability from 0 to 100%). The result is organic, ever-changing sounds that respond to your control. The four onboard arpeggiators can interact with Wave Sequences for even more possibilities.

Ultimate protection

Whether travelling to a studio or setting out on a world tour, ensure your Wavestate SE arrives safely with the included hard case. The custom design even provides space for cables and pedals.

Specifications

Keyboard: 61 keys (Natural touch keyboard with velocity and release-velocity
sensitive, aftertouch)
Sound generation: Wave Sequencing 2.0
Polyphony: 120 stereo voices
Sounds: 261 Performances, 799 Programs, and 1,042 Wave Sequences. Storage for tens of thousands of user Performances
Performance: 4 Layers, Reverb, EQ; all edits are stored in the Performance, DAW-style (saving as separate Programs, Wave Sequences etc. is supported but not required)
Layer: Program, Arpeggiator, Key and Velocity Zones
Program: Wave Sequence, Filter, Amp, Pre FX, Mod FX, Delay
Filters: 2-pole LPF, 2-pole HPF, 2-pole BPF, 2-pole Band Reject, 4-pole LPF, 4-pole HPF, 4-pole BPF, 4-pole Band Reject, Multi Filter, MS-20 LPF, MS-20 HPF, Polysix
Controllers: Mod Wheel, Pitch Wheel, Vector Joystick X/Y, 8x
Program/Performance Mod Knobs

Inputs/outputs: Headphone (6.3 mm stereo phone jack) OUTPUT L/MONO and R (impedance balanced 6.3 mm TRS phone jacks)
DAMPER (6.3 mm phone jack)
MIDI IN and OUT connectors
USB B port

Power supply: AC adapter (DC12V, 2500mA)
Consumption: 5W
Dimensions: 1,014 x 344 x 108 mm
Weight: 8.6 kg

Included items

AC adapter, hard case
