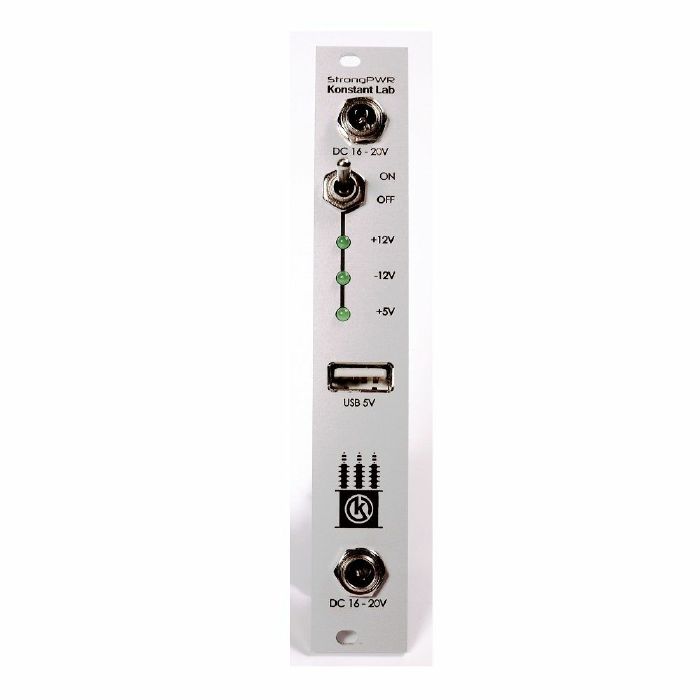

Konstant Lab StrongPWR Power Supply Module
StrongPWR - Micro and powerful 4TE, 45W supply by Konstant Lab
The StrongPWR is Konstant Labs' 4 HP power supply module. It is a powerful, low noise, high efficiency, and low profile power supply solution for 6U / 114HP eurorack modular synths.
The StrongPWR is Konstant Labs' power supply module. At just 4 HP - it is a powerful, low noise, high efficiency, and low weight power supply solution for 6U / 114HP eurorack modular synthesizers. If you need to supply a lot of modules within one system this is the choice. If you'd need more power, you can use two StrongPWR modules together, connected via a chain power cable in conjunction with only one power brick. Front panel contains a conveniently placed USB connector which enables you to charge your smartphone, tablet, lamp, or external sequencer. The module also contains two input connectors. One for connecting your power brick and second for daisy-chaining with a second StrongPWR module. You can use only one power brick for two StrongPWR modules at any given time. It is recommended you use Meanwell GSM60A18-P1J DC Power Brick for one StrongPWR PSU and GST120A20-P1M for two StrongPWR PSU.
Designed, manufactured, and assembled by hand at Konstant Lab - Slovakia / EU.
Ouptut power: 45W
Width: 4HP
Output voltages:
+12V / 2A
-12V / 1.2A
+5V / 1.5A
Output stability: + / -1% for 0-100% load
Input: 18V (16-20V)
Depth: 32mm
Output connectors: 2x 16 pin IDC for flat cable, USB for +5V
Input connectors: 5,5 x 2.1 DC input (centre positive)
Other: 70um cooper thickness on PCB
Input filter on each regulator for minimal output noise and interferences
LEDs indicate present and drop of output voltage
CNC milled aluminium panel with laser engraved graphics
Accessories: 2 pcs ribbon flat cable (20cm), 2 pcs screw with plastic washer
The StrongPWR is Konstant Labs' 4 HP power supply module. It is a powerful, low noise, high efficiency, and low profile power supply solution for 6U / 114HP eurorack modular synths.
The StrongPWR is Konstant Labs' power supply module. At just 4 HP - it is a powerful, low noise, high efficiency, and low weight power supply solution for 6U / 114HP eurorack modular synthesizers. If you need to supply a lot of modules within one system this is the choice. If you'd need more power, you can use two StrongPWR modules together, connected via a chain power cable in conjunction with only one power brick. Front panel contains a conveniently placed USB connector which enables you to charge your smartphone, tablet, lamp, or external sequencer. The module also contains two input connectors. One for connecting your power brick and second for daisy-chaining with a second StrongPWR module. You can use only one power brick for two StrongPWR modules at any given time. It is recommended you use Meanwell GSM60A18-P1J DC Power Brick for one StrongPWR PSU and GST120A20-P1M for two StrongPWR PSU.
Designed, manufactured, and assembled by hand at Konstant Lab - Slovakia / EU.
Ouptut power: 45W
Width: 4HP
Output voltages:
+12V / 2A
-12V / 1.2A
+5V / 1.5A
Output stability: + / -1% for 0-100% load
Input: 18V (16-20V)
Depth: 32mm
Output connectors: 2x 16 pin IDC for flat cable, USB for +5V
Input connectors: 5,5 x 2.1 DC input (centre positive)
Other: 70um cooper thickness on PCB
Input filter on each regulator for minimal output noise and interferences
LEDs indicate present and drop of output voltage
CNC milled aluminium panel with laser engraved graphics
Accessories: 2 pcs ribbon flat cable (20cm), 2 pcs screw with plastic washer
