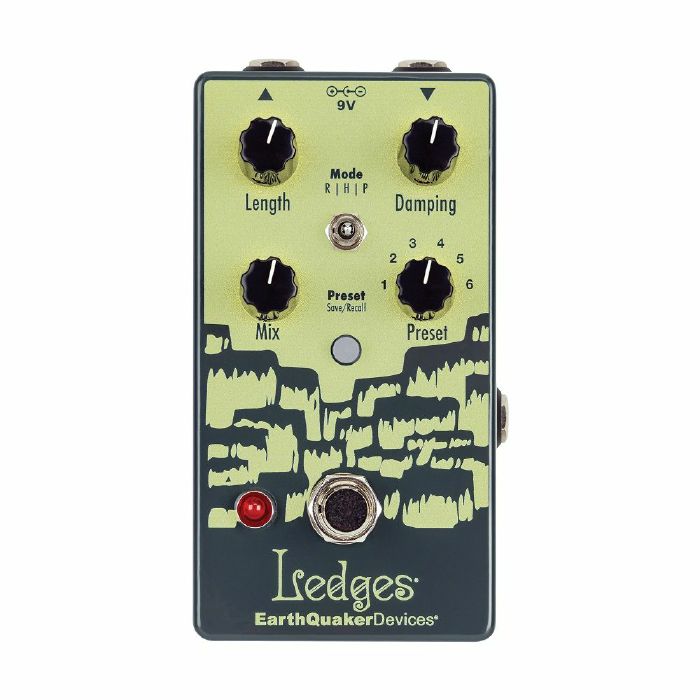

Ledges is a three-mode reverb with the ability to save and recall six presets and user-assignable expression control with loads of customizable options. From classic, standard reverb tones to undiscovered sonic reaches, it's everything you've ever wanted and needed out of a reverb.

The three switchable modes each deliver a unique blend of reverb, but are connected through a spectrum where the Room (R) reverb's longest setting is the Hall (H) reverb's shortest setting, the Hall reverb's longest setting is the Plate's (P) shortest setting, and the Plate's longest setting just keeps on going. The Room setting at its shortest achieves a small, boxy room sound that gradually gets bigger as you turn it up. As you increase the Hall setting, it morphs into a Cathedrals-style reverb that becomes really big, boomy and echoey with distant reflections. Turn up the Plate setting to get bouncy reflections that recycle and reverberate forever.

Ledges can go from an '80s slapback reverb mix to a bigger room spring reverb with the twist of the dials. The Mix knob lets you control how much your signal is affected, while the Length knob controls the size of the reverb. The Damping knob subtly mutes the high-frequency reflections of the reverb, which you'll hear clearly by adjusting your gain.

In addition to all of the features, there are six Presets available. Simply select a number with the switchable knob and then engage the Save on the center button and dial in your perfect sound. A quick Recall on the same button and you have all of your personalized reverb sounds with a single tap. You can assign an expression pedal to each of the three controls and then save it all in the presets.

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 80 mA
Input Impedance: 1M O
Output Impedance: 100 O
TRS expression pedal wiring:
Tip: Wiper
Ring: +3.3V
Sleeve: Ground

Flexi-Switchr Technology

This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Ledges is buffered bypass with tails. Power is required to pass signal.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. It is always recommend you use pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
