Notes: The latest EarthQuaker Device actually is the same as the latest Death By Audio device - the TIME SHADOWS II - Subharmonic Multi-Delay Resonator. This new pedal is a joint collaboration that brings their sonic soundscape trips to your melted mind.

With the switch to the left Time Shadow's controls are completely the brainchild of EarthQuaker Devices resident genius Jamie Stillman. Flip the switch to the right, and you enter the head of the madman Oliver Ackermann from Death By Audio barely clutching to reality. Place the switch in the middle and enter a whole new realm of pitch warping delays brought to you by a telepathic mind-meld with a 5th dimensional dream being.

All three sounds are wildly different from each other and yet share a perfectly designed harmony to be completely complementary and suitable for every style and genre of music.

The EarthQuaker Devices side transforms whatever you play into the sound of a jazz space bazooka! It's a pitch morphed fuzz delay filter with so much attitude that you are actually intimidated. It takes the input signal, blows it out with power of digital distortion, blends it with a polyphonic sub octave, feeds it into a delay, then spits it out into a highly resonant envelope controlled lowpass filter.

The Death By Audio side is a multi-delay filter remorphinator that goes from icy shimmers to cosmic space caves of bouncing repeats.

The middle position is an energy beam that brings your earthly transmissions repetitively closer to the heavens while simultaneously diving deep into the hells.

In addition to all this madness we also bring you a user assignable expression jack and 6 preset slots to save and recall your favourite settings!

With these three unearthly delights, you should have everything you need to break brains and destroy monotony!

Notes: The EarthQuaker Devices A/B Box is a simple tiny tool that lets you choose between two of pretty much anything. Because of its completely passive design, there is no circuitry between the input and outputs which means it can be used in both directions. Use it to switch between two amps, switch between two channels on a multi-channel amp, use it as tuner out/mute switch, run a dry path and a wet path or even switch between two instruments!

The time to passively choose is now!

Notes: Giant ambience from this cleverly designed reverb pedal. Straightforward, intuitive approach with a clever 'drag' control to spread out and separate the individual digital delay lines.

Supplier notes:
The Afterneath sounds a lot like it looks - a wizard bursting forth from ethereal cave and ready for the ambient battle.

Once inside the cave, a reflection of light from an unknown source catches your eye, and you notice a bizarre sheen on the walls of the cave. You timidly inch closer to the walls of the cave. Placing your hand gently on the cavern wall, you feel the rock move. The cave is alive! Alarmed, you emit a loud gasp, which reverberates throughout the subterranean landscape. Upon further listening, it appears as though the reverberations of your voice are in fact a swarm of short digital delays which may be used to create wild and cavernous reverbs, or scattered, short, rhythmic delays with bizarre characteristics.

Take a moment to consider your Intelligence and Wisdom scores, as well as your spell inventory before proceeding further. You have seven spells at your disposal.

Will you cast "Length," which controls the decay length of the reverb?
What about "Diffuse," which adjusts the spread of the reverb? With your wand (or just the knob) turned counterclockwise, the reverb is sharper with more attack, resulting in a stuttering sputter of individual early reflections. Clockwise casts a washy, more ambient-sounding hex.

Overwhelmed by fear, you hastily cast "Dampen!" As you shout the incantation, you notice that a counterclockwise variation of this spell results in brighter tones, while as you rotate your wand clockwise; you hear darker tones with a mellower top-end. It's almost as if your magic changes the hardness of the cavern walls, and thus the tonal characteristics of the reverb!

Elsewhere in your book of magic is "Drag," which separates the individual digital delay lines, literally dragging them through the very fabric of time and space towards an unknown event horizon from which they may never return. Clockwise "Drag" positions will gather the delay lines close together for a more reverb-like effect. Turn the "Drag" counterclockwise, and the delay lines will begin to pull apart for a scattered ping-pong delay effect.

The Drag can be put under voltage or expression control using the "EXP" jack located on the side and operates in 9 different modes which are selected by the small "Mode" control. These modes are: Unquantized, Unquantized with slew, Unquantized volt/octave,
Chromatic scale, Major scale, Minor scale, Pentatonic scale, Octaves & fifths and Octaves. These modes drastically change the way the Drag control functions, especially while using an expression control or CV.

The "Reflect" alters the depth of the cave, and with it the regeneration of the reverb. This acts as a feedback control and will self-oscillate if cast by a high-level user. Turn clockwise for more wash and echoes, counterclockwise for less.

Finally, the "Mix" alters the alchemical balance between the input signal and the effect. The Afterneath does not go fully wet but does lower the level of the input signal as you raise this control to create the appearance of a fully wet reverb.

Modes
The Modes control changes the way the Drag control functions. The LED will change colors indicating which mode you are in.

1. Unquantized: Smooth, unquantized response over the operating range

2. Unquantized with Slew: Smooth, unquantized response over the entire operating range, but with a musical slew that is reminiscent of turning the varispeed knob on a vintage British tape delay. The "Drag" will lag behind the knob or cv changes, but then quickly catch up.

3. Unquantized Volt/Octave: Smooth and unquantized, yet scaled to align with the 1v/octave curve to allow melodic modulation of audio in the buffer, or control the frequency of self-oscillation like a voltage controlled oscillator.?

4. Chromatic Scale: Quantized 1v/octave to the chromatic scale?

5. Minor Scale: Quantized 1v/octave to the minor scale?

6. Major Scale (Lydian): Quantized 1v/octave to the major scale (Lydian)?

7. Pentatonic Scale: Quantized 1v/octave to the pentatonic scale?

8. Octaves & Fifths: Quantized 1v/octave to omit all but octaves and fifths?

9. Octaves: Quantized 1v/octave to omit all but octaves

Specifications:

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw: 100 mA

Input Impedance: 1 MO

Output Impedance: 500 O

Notes: The Arrows is an all-discrete tone sculpting preamp booster. It was designed with the intention of adding an additional channel of gain to all your dirt pedals as well as brightening up neck pickups. It boosts midrange, tightens up the low end and makes the top end shine while adding some push to drive your dirt into blooming sustain with excellent harmonics. Its simple interface is no nonsense; a single control that will either boost or cut your signal. Use the Arrows to remove the muck from bass heavy fuzz pedals, push light overdrives into higher gains than you thought possible or even on its own to make your signal really pop with more pizazz. All analog, true bypass and handmade one at a time in the weird pit of Akron, Ohio.

Level: Adjusts Arrows output level. Clockwise is loud, counterclockwise is quiet.

This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

This device can be powered by a 9v battery or a standard 9-volt DC power supply with a 2.1mm negative center barrel. Pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies are generally receommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw: 8 mA
Input Impedance: 10 MO
Output Impedance: <10 kO

Notes: The Avalanche Run is a dreamy stereosonic exploratory multi-tool that includes up to 2 seconds of delay time, reverse delay, tap tempo with subdivision control, switchable true bypass or buffered bypass with 5 different tail lengths (including a sound-on-sound style lo-fi looping mode) and an assignable expression control that maps the expression jack to a control of your choice, including the toggle! The delay section allows tweaking from tape emulation to bucket brigade styles with a twist of the wide-range Tone control. The cavernous, plate-style reverb has just a touch of modulation similar to the one found in our precious Dispatch Master only more lush with an adjustable Decay. Otherworldly reverse delay and dynamic swelling reverb settings are accessible through a 3-way toggle switch. And that's just the beginning...

1. Time: This controls the delay time and goes from 0ms to just under 2000ms.

2. Repeats: Controls the regeneration of the delay, from zero repeats to near infinite.

3. Tone: Controls the tone for the delay line only. Roll off highs to the left, roll off lows to the right and get a flat response in the middle.

4. Mix: The is the volume control for the delay line. This blends in the wet with dry until 1 o'clock, 1 o'clock to 3 o'clock boosts the wet signal over the dry and 3 o'clock up brings down dry until it is fully wet when all the way up.

5. Expression Jack Assign Switch: Use this switch to map the expression jack to one of the assigned controls.

Decay: Controls the reverb decay length

R Mix: Controls the reverb mix

Time: This takes over for the delay time control and is DRASTICALLY different than the interface control. Using the expression pedal to control the time will give you all kinds of wild effects that can not be achieved by turning the knob.

Repeats: Controls the delay repeats

D Mix: Controls the delay mix

Toggle: This takes over for the toggle switch and will cross fade from forward delay in heel down position to reverse delay in toe down position.

6. Ratio Selector Switch: Selects delay subdivisions when time is set by the "Tap" switch.

1/1: Quarter Note

3/4: Dotted 8th

2/3: Quarter Note Triplet

1/2: 8th Note

1/3: 8th Note Triplet

1/4: 16th Note

7. Decay: Controls the decay length of the reverb, short decay counterclockwise, long cavernous decay clockwise.

8. Toggle Switch (Mode Selector)

Normal: This is the standard delay and reverb mode

Reverse: This is reverse delay mode with standard reverb

Swell: This is the volume swell mode

9. Mix: This is the volume control for the reverb. Blends in the wet with dry until 1 O'clock, 1 O'clock to 3 O'clock boosts the wet signal over the dry and 3 O'clock up brings down dry until it is fully wet when all the way up.

The expression jack is located on the west side of the pedal. It is a TRS jack with the tip acting as the wiper.

Using a Moog expression pedal, with the output adjustment knob all the way up, is recommended. Any other expression pedal is not guaranteed to work with the Avalanche Run.

This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

For best results, please use the included 9v center-negative 1-amp DC power supply.

Dimensions: 4.65 x 4.15 x 2.25 in. (118 x 105 x 57 mm) with knobs
Current Draw: 410 mA
Input Impedance: 1 MO
Output Impedance: 100 O

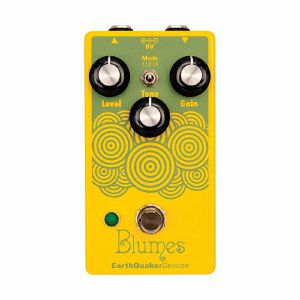

Notes: The Blumes is an overdrive based on the Plumes circuit that is ideal for bass players and all purveyors of low-end. While embodying the key characteristics and features of the Plumes, EQD went ahead and modified this circuit with double the gain and a deeper bass response to retain all the low end.

At lower gain settings, you'll get all of the crunchy tone you love about the original, but once you get above noon on the Gain control, that's where the similarities stop.

This all-analogue tri-mode overdrive with soft clipping carries the torch of the classic screamer circuit but has a voice all its own. And thanks to its +/- power supply it utilizes bipolar power, which gives you more dynamics, clarity, and all the headroom you could ever desire. The end result is a more three-dimensional tone with added clarity that really pushes a nice tube amp over the edge.

And much like the Plumes, this pedal offers three different clipping options for your desired low end face melting needs.

The Blumes features EarthQuaker Devices relay-based "soft touch" Flexi-Switch Technology for both momentary and latching footswitch operation as well as a very low 25mA current draw.

Each and every Blumes is built one-at-a-time by delightful little hands in Akron, Ohio; the charred, black heart in the heart of it all...

Notes: A buffer is an important tool to combat tone loss with long cable runs or in signal chains running lots of true bypass pedals. With its high 1 M ohm input impedance and low 100 ohm output impedance, the EarthQuaker Devices Buffer/Preamp will restore your tonal integrity, to give you back the clear and dynamic signal you deserve and your amp craves.

Want more? Not only will Buffer/Preamp restore high end loss, this device has a little trick up its sleeve that will also give your low end a subtle, yet powerful, little kick for some added dimension. While it is commonplace to add a buffer at the beginning of the signal chain, we find this to best at the end for optimum results. That said, it'll work great anywhere you decide to place it. For best results, make sure the EarthQuaker Devices Buffer/Preamp is placed AFTER any fuzz pedals that typically like to see the guitar at their input.

Notes: Sometimes pedals can change. Parts drift, pots break, transistors go bad. They go to new homes; they get neglected and resold. Sometimes people get in there and try to revive them to their original state and sometimes they just throw whatever is laying around inside and hope it does the trick. In this case, EQD are pretty sure all the above happened to the fuzz pedal that made its way to James Murphy and ended up finding a forever home with LCD Soundsystem.

Chelsea really does have something special. It's heavy without being too heavy, clean but not too clean. A simple set of controls yet it has an expansive array of tones that makes it very versatile on a wide variety of instruments, has clarity when you need it and can blur all discernable lines when you don't. It still retains the familiar foundation of the classic fuzz it was intended to be, but something special happened to it over the years and it has very much grown into its own thing

Notes: The Data Corrupter is a monophonic analog harmonizing PLL with modulation. It takes your input signal and brutally amplifies it into a crushing square wave fuzz tone that is then multiplied, divided and modulated to create a wild, yet repeatable, three-voice guitar synthesizer.

The Master Oscillator is the central nervous system at the heart of the Data Corrupter's cyberpunk hive mind. It feeds your input to the signal harvester in its original octave (Unison), one octave down (-1) or two octaves down (-2) for maximum compatibility with your preferred instrument and frequency register. Once you've chosen your input octave, then the Data Corrupter will perform its calculations and spit out an analog synthesized frequency, which can be pitch-bent for portamento or vibrato sounds by the Frequency Modulator! From there, you can blend in one of eight Subharmonic intervals up to three octaves below the input and mix in a square wave fuzz tone for maximum data corruption.

The Master Oscillator (1) is the central nervous system at the heart of the Data Corrupter's cyberpunk hive mind. The three-position switch on the Master Oscillator control panel labeled Root (2) feeds your input to the signal harvester in its original octave (Unison), one octave down (-1) or two octaves down (-2). Use the Master Oscillator's Root Switch to fine tune the Data Corrupter's tracking response for maximum compatibility with your preferred instrument and frequency register. Once you've chosen your input octave, the Data Corrupter will perform its calculations and spit out a synthesized frequency, the octave and/or interval of which may be selected via the Master Oscillator's eight-position rotary switch.

The Voice Mixer's Oscillator Control (3) adjusts the Master Oscillator blend.

The Frequency Modulator (4) applies pitch-bend modulation to the Master Oscillator. In Glide mode, you'll hear a smooth portamento as each note slides into the next. In Vibrato mode the pitch modulates up and down for a retro sci-fi laser effect.

The Subharmonic (5) assimilates the input signal into one of eight lower octave programs between one and three octaves below the original. For a more stable lower octave, set the Subharmonic's Root Switch to the Unison position, which divides the Square Wave input signal, and removes the Frequency Modulator from the Subharmonic signal path.

To unleash the cracked machine lurking within the mainframe, set the Subharmonic Root Switch to Oscillator and try not to look away as the sonic malware you just installed mangles your input signal into the sum and difference of both the Master Oscillator and Subharmonic with the Frequency Modulator applied to the upper and lower octaves.

If you think you're brave enough, set the Subharmonic Root Switch to Oscillator and try experimenting with different Master Oscillator and Subharmonic programs to wind up the doomsday clock and inch ever closer to the Singularity. Adjust the Voice Mixer's Subharmonic Control to set the lower octave volume.

Finally, (or is it?) the Square (6) control located top-left on the Voice Mixer blends in a fuzzed-out square-wave take of your input in its original octave.

The heart of this pedal is based around a CMOS Phase Locked Loop (PLL) IC. In a nutshell, the PLL takes your input signal and compares its phase and frequency against an oscillator, generates an output proportional to their difference then feeds it back to the oscillator. This then causes the oscillator to lock onto the input signal and generate a synthesized frequency. Pretty cool, right? This synthesized frequency is referred to as the Master Oscillator on the Data Corrupter.

This device takes its inspiration from the Electrax Synthax and the "Basic Frequency Synthesizer" by Ray Marston. Neither of these were really intended to be guitar effect pedals and a lot of work went into creating the Data Corrupter to provide excellent tracking and long sustain. We think you'll find it more expressive and accurate than pretty much any other PLL based effect pedal around.

This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Dimensions: 5.65 x 4.75 x 2.25 in. (144 x 121 x 57 mm) with knobs

Notes: The Dispatch Master is a hi-fi digital Delay & Reverb Device that combines independent delay and reverb effects into one space-saving enclosure, so you can keep deep ambient echoes (or just a quick slapback) on speed-dial.

The best-selling EarthQuaker Devices pedal just got better with new Flexi-Switchr Technology. Want to dip into ambient delay and reverb sounds for just one note? Press and hold the footswitch for as long as you use the effect, release it when you're finished, and resume your regularly scheduled dry sound. To use the Dispatch Master as a normal effects pedal, press the switch once to activate and again to bypass.

To Use Both Effects at the Same Time, Simply Adjust all Controls to Taste:

The Mix (1) control is a wet/dry blend that adjusts the overall level of the affected signal.

Time (2) sets the delay time from 0ms to 1500ms (1.5 seconds).

Reverb (3) controls the amount of reverb. Counterclockwise is less reverb, clockwise is more reverb.

Repeats (4) controls the regeneration of the delay signal. When the Repeats control is set to maximum, you'll get infinite repeats without runaway self-oscillation, which makes it great for creating drones, dialing in the ultimate post-rock guitar sound without feedback, or just having fun.

To Use the Dispatch Master as a Delay Only:

Turn the Reverb control all the way down.

Adjust the Time, Repeats, and Mix controls to taste:

To Use the Dispatch Master as a Reverb Only:

Turn the Time and Repeats controls all the way down

Adjust the Reverb and Mix controls to taste

THIS IS IMPORTANT! In Reverb-only mode, the Repeats control has a secondary function. It can be used to adjust the decay, depth, and tonal quality of the reverb! Turn it up for more dynamics and a thicker tone.

This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. Do not run at higher voltages!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 78 mA
Input Impedance: 1 MO
Output Impedance: <1 kO

Notes: The EarthQuaker Devices Flexi Loops is a dual effects loop featuring our world renowned Flexi-Switch Technologyr!

Using an effect loop switcher on your pedalboard allows you to easily remove all your effects from the signal path creating a path of least resistance, to help maintain full tonal integrity when they aren't in use. Flexi Loops allows you to create two distinct loops of effects and then introduce or remove them all on the fly with ease and with its dual silent relay-based and true bypass switching, the pedal allows you to simultaneously use momentary and latching style switching.

Flexi Loops allows you to create two distinct loops of effects and then introduce or remove them all on the fly with ease and with dual silent relay-based true bypass switches, the pedal allows you to simultaneously use momentary and latching style switching.

Using high quality, soft touch momentary switches for durability and quick action to ensure a lifetime of switching enjoyment, Flexi Loops is entirely passive and there is no circuitry in the signal path. However, it will require power for the relays to pass signal. For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass. While for momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

But you aren't just limited to using the Flexi Loops as a loop switcher either! You can use one channel as a tuner out/mute or even a plain old mute. Use the sends to run out to different sources and easily select between them. The Flexi Loops uses high quality, soft touch momentary switches for durability and quick action to ensure a lifetime of switching enjoyment. This device is entirely passive and there is no circuitry in the signal path, but it will require power for the relays to pass signal.

Powered by a regular 9 V DC PSU (centre -, 2.1 mm, ~25 mA current draw - not supplied)

Notes: EarthQuaker Devices is proud to introduce you to your new best bud, Gary. This little big guy was dreamt up by the one and only Lee Kiernan from the crushing and most necessary band, Idles!

Gary started as a simple request to create a compact version of the now discontinued Gray Channel, which was a mainstay on Lee's board and a big part of his main drive tone. This was all fine and good, and sounded quite sick, but it was worth and exploring his dark side a little more, Gary after dark, Saturday night Gary. So, he was sat down and began the trek of figuring old Gare-Bear out once and for all. The result is a real exercise in light and dark; smooth to shredded and everything in between.

Gary's right brain consists of a dynamic and destructive fuzz that is both domineering and interactive. It is a ripping fuzz tone with an envelope-controlled variable pulse width and enough volume to blow everything up. This nasty little fuzz turns the signal into a square wave and allows you to dynamically adjust the duty cycle with pick attack. Yes! Controls the sensitivity of the envelope. When this is all the way down you will get an unadulterated thick and heavy square wave fuzz tone that will sustain for days and go dead quiet when you stop playing. As you increase the Yes! control, the envelope becomes more interactive, and the pulse width narrows the harder you hit it. As the pulse width narrows, the tone becomes more nasal and biting until it gets so narrow that Gary goes to his dark place and disappears completely. In other words, with higher sensitivity settings, the sound will disappear entirely and come cruising back to Gary's big guy tone. With proper playing dynamics, this creates a very cool effect that can sound like an exploding amp coming in and out of life, blown through a phase shifter.

This effect can also be controlled with an expression pedal for manual operation or for finding just the right pulse width to cut through the mix for a set-and-forget operation. When using an expression pedal, Yes! operates in conjunction with the expression pedal to set the peak of the sweep. Set Yes! to the desired stopping point and express yourself as you please without worry of taking Gary over the edge!

Oosh acts as the master volume for Gary's nasty side. There is an insane amount of volume on tap so use this control wisely!

Gary's left brain displays his softer side. This is a simple and natural sounding overdrive that keeps your tone lively and drives your amp crazy. This side is based on the green channel of the Gray Channel, which is Earthquaker's take on the classic little yellow overdrive that started it all. Lee used this pedal with the clipping switch permanently set to the middle position, which removes all the diodes from the circuit, producing a full-bodied, cutting opamp distortion with plenty of volume on tap. Earthquaker have reproduced that tone here with exacting precision. Go sets the opamp drive and can range from a simple full-range clean boost all the way up to a smooth and natural distortion. In conjunction with That's It, which is the master volume for the drive side, you can use Gary's softer side as a clean boost to push your amp into overdrive or turn up Go and use all of Gary's internal magic to create the finely tuned dirt you desire.

Gary's signal path is fuzz into overdrive for total tonal integrity and cannot be changed. This is where Gary put his foot down.

Each and every Gary was softly brought to life by the delicate hands of EarthQuaker Devices in the elegantly unrefined canal-front city of Akron, Ohio USA.

Notes: Grand Orbiter is a 4 stage OTA-based phaser with a diverse feature set that can go from stationary and resonant to slow and mellow and on through fast and swirly. It has three way toggle switch to select between the ranges of modulation. The master Rate control fine tunes the speed of the LFO in each of these modes and the flashing red LED acts as a visual indicator, even when the effect is in bypass mode. The Depth control blends the shifted signal in with the dry signal and controls the intensity of the effect. The Sweep control governs the peak frequency of the phased signal's tone, turned full clockwise the sweep is lively and intense, whereas turning counter clockwise yields a darker, more laid back peak. The Resonance provides a wide range of control over regeneration and at higher settings adds a more pronounced and resonant tone. You can also use the Grand Orbiter as a true pitch vibrato with the "Phase/Vibrato" switch. When in "Vibrato" mode, the dry signal is removed and the Depth controls acts as a volume control. This pedal is 100% analog, true bypass and built by entirely by hand in beachy Akron, Ohio.

1. Sweep: Controls the frequency peak of the sweep. Higher peak clockwise, lower peak counter clockwise.

2. Rate 1,2,3: Changes the range of the speed control. Rate 1 is slow mode, Rate 2 is LFO kill to use the Orbiter as a fixed resonant filter, Rate 3 is fast mode.

3. Rate: Controls the speed of the LFO. Faster clockwise, slower counterclockwise.

4. Depth: Controls the amount of phase effect mixed with dry signal. Clockwise for more intense phasing, counterclockwise for less. In "Vibrato" mode, this acts as a volume control.

5. Phase/Vibrato: Cuts the dry signal to create a vibe/vibrato effect depending on the setting of the other controls. Vibrato is created by turning the resonance down low.

6. Resonance: Controls the regeneration of the phased signal. More resonant clockwise, more subtle counterclockwise.

Tech Specs:

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedal-specific transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 15 mA
Input Impedance: 1 MO
Output Impedance: <1 kO

Notes: Hizumitas was designed for the one and only Wata from the legendary experimental band Boris, one of the heaviest bands ever to come out of Japan. The trio of guitar sorceress Wata, drummer and vocalist Atsuo, and double-neck bassist, guitarist and vocalist Takeshi has almost 100 releases filled with genre and brain-melting music.

In their nearly three decades together, Boris has infused doom, hardcore, thrash, noise-core, ambient, free improv, drone, psychedelia, and more into their extensive discography. Boris is also known for their unique collaborations with mutually adventurous artists, including American Doom mongers Sunn O))), noise legends Merzbow, Keiji Haino, and Ian Astbury of The Cult.

Wata, always seen and heard on stage wielding her black Les Paul Custom, mixes killer riffs with searing, fluid, or jaggedly melodic leads and controlled walls of feedback, often with help from an EBow. It's a connection of chaos and melody that has enchanted Boris fans worldwide and influenced many bands that have followed in their considerable wake. Simply stated, no other band sounds like Boris, and no other guitarist rocks like Wata.

But with EQD's Hizumitas fuzz on your pedalboard, you can carve out your own singular, mega-heavy tone.

Hizumitas is a faithful recreation of Wata's go-to distortion pedal, the Elk BM Sustainar. The Elk is a Japanese variant of the very well-known "Triangle" BMP. The designers at EQD tried several vintage BMP's during development, found that each pedal was wildly different and realized that to truly capture the magic they needed the original. Wata graciously sent her beloved pedal halfway around the world, and EQD discovered that it had something special the others didn't have: heavy saturation with a gritty edge and massive bottom while maintaining a clear and dynamic tone with enough mids and top end to cut through any sludge. The studious wizards at EQD have built all of those characteristics into the Hizumitas.

Notes: Ledges is a three-mode reverb with the ability to save and recall six presets and user-assignable expression control with loads of customizable options. From classic, standard reverb tones to undiscovered sonic reaches, it's everything you've ever wanted and needed out of a reverb.

The three switchable modes each deliver a unique blend of reverb, but are connected through a spectrum where the Room (R) reverb's longest setting is the Hall (H) reverb's shortest setting, the Hall reverb's longest setting is the Plate's (P) shortest setting, and the Plate's longest setting just keeps on going. The Room setting at its shortest achieves a small, boxy room sound that gradually gets bigger as you turn it up. As you increase the Hall setting, it morphs into a Cathedrals-style reverb that becomes really big, boomy and echoey with distant reflections. Turn up the Plate setting to get bouncy reflections that recycle and reverberate forever.

Ledges can go from an '80s slapback reverb mix to a bigger room spring reverb with the twist of the dials. The Mix knob lets you control how much your signal is affected, while the Length knob controls the size of the reverb. The Damping knob subtly mutes the high-frequency reflections of the reverb, which you'll hear clearly by adjusting your gain.

In addition to all of the features, there are six Presets available. Simply select a number with the switchable knob and then engage the Save on the center button and dial in your perfect sound. A quick Recall on the same button and you have all of your personalized reverb sounds with a single tap. You can assign an expression pedal to each of the three controls and then save it all in the presets.

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 80 mA
Input Impedance: 1M O
Output Impedance: 100 O
TRS expression pedal wiring:
Tip: Wiper
Ring: +3.3V
Sleeve: Ground

Flexi-Switchr Technology

This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Ledges is buffered bypass with tails. Power is required to pass signal.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. It is always recommend you use pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

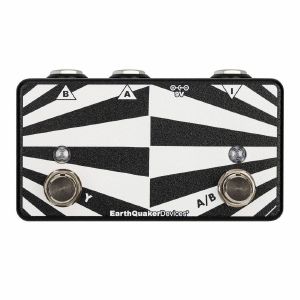

Notes: The EarthQuaker Devices Passive ABY box is the perfect solution if you can't decide when and where you would like your signal to go. In its most basic form, this passive little box is commonly used to run a single input out to two destinations and lets you choose between using either individually or both at the same time.

The most common problem an ABY is used to solve, is one input being sent to out to two amplifiers, but it doesn't have to stop there! Because of its completely passive circuitry, Passive ABY can also be used in reverse to choose between two inputs to a single output. Use it to simultaneously run two different instruments to one source input. An oboe and a bass, a keyboard and a harmonica, a lute and a modular synth... you know, whatever!

This compact little device has a small footprint, won't take up much real estate on your board and is built using high quality parts that will withstand years of use and keep going.

Notes: Plumesr is a unique, all-analog approach to a classic tube-like overdrive circuit offering 3 different clipping voices, loads of headroom and almost three-dimensional clarity that will push your amp over the edge. The reimagined tone control is finely tuned to sculpt low end, clear top end, and focus midrange with blooming sustain.

Controls:
1. Level: This controls the output volume.

2. Gain: This controls the amount of drive.

3. Tone: More bass to the left, more middles in the middle and more treble to the right.

4. Clipping Modes (3-Way Toggle):

1. Symmetrical LED clipping - More Crunch and Compression.

2. No clipping - Wide open OpAmp drive for clean boost.

3. Asymmetrical silicon diode clipping - More transparency with a loose feel.

Tech Specs:
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies are always recommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 25 mA
Input Impedance: 10 MO
Output Impedance: 100 O

Notes: Pyramids is a Stereo Flanging Device with five presets, eight flanger modes, tap tempo, tap subdivision, a multifunction Modify control, positive and negative Feedback, and a variable Mix control, which is something you don't see on a flanger every day.

Built upon the same proprietary DSP architecture as the Avalanche Run™, Pyramids delivers convincing jet-engine roar, authentic through-zero tape-style warble, infinite barber pole sweeps, flexible I/O routing, and the ability to re-trigger the LFO cycle via footswitch opens up a fourth dimension of rhythmic possibilities that's sure to tickle your third ear.

Controls:
1. Manual: Controls the delay time of the modulated signal. Manual can also be controlled via expression pedal.

2. Rate: Controls the speed of the LFO as well as the rise time in Trigger Up mode and fall time in Trigger Down mode. The Rate control has three ranges of operation: Slow, Normal and Fast. These modes are selected by the Rate & Tap toggle switch.

3. Width: Controls the frequency range of the LFO sweep. You might also think of it as a depth control for the LFO.

4. Mix: This is the volume control for the modulated signal. The modulated signal gets louder when you turn it clockwise and quieter when you turn it counterclockwise.

5. Activate Footswitch: The activate switch features our Flexi-Switch technology! This relay-based true-bypass switch allows for momentary or latching operation.

6. Feedback: Regeneration control for the modulated signal.

7. Rate & Tap Toggle Switch: Normal (center position) is 1:1. The tempo you tap in is the tempo Pyramids will spit out. When set to Slow (left position), the tempo you tap is divided for a slower sweep. When set to Fast (right position), the tempo you tap is multiplied and delivers a faster sweep.

8. Modify: The behavior of this control depends upon which mode you're using:

Classic: Tone control for the modulated signal. Clockwise cuts the low end and allows the high frequencies to pass through. Counterclockwise cuts the high end and allows bass frequencies to pass through.

Through-Zero: Delay time for the unmodulated dry signal. This controls where in the LFO cycle the through-zero point occurs, which is where you'll hear the most drastic cancellation.

Barber Pole Up: Tone control for the modulated signal. Clockwise from center is a high pass filter. Counterclockwise from center is a low pass filter.

Barber Pole Down: Tone control for the modulated signal. Clockwise from center is a high pass filter. Counterclockwise from center is a low pass filter.

Trigger Up: Sensitivity control for the sweep. This controls how quickly the re-triggering reacts to your pick attack.

Trigger Down: Sensitivity control for the sweep. This controls how quickly the re-triggering reacts to your pick attack.

Step: Adjusts the glide between steps. Low Modify settings produce sharp, stair-stepped transitions between steps. Higher Modify settings introduce a smoother glissando effect.

Random: Adjusts the glide between steps. Low Modify settings produce sharp, stair-stepped transitions between steps. Higher Modify settings introduce a smoother glissando effect.

9. Tap / Trigger Footswitch: In Classic, Through-Zero, Barber Pole Up, Barber Pole Down, Step, and Random modes, this footswitch is a tap tempo control. In Trigger Up and Trigger Down modes, this footswitch triggers the effect whenever it is pressed.

10. Presets Rotary Switch: Selects between Live mode and one of five presets. Pyramids comes with our favorites programmed in, but you're allowed to re-write them if you want. We don't mind.

11. Mode Rotary Switch: Selects between Pyramids' eight flanger modes

Tech Specs:
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

For best results, please use the included 9v center-negative 1-amp DC power supply.

To use with multiple output transformer-balanced isolated pedal-specific power supplies, Pyramids' may be powered from two outlets combined using a current-doubling cable. DO NOT USE A VOLTAGE-DOUBLING CABLE BECAUSE THAT WILL SEND 18V TO PYRAMIDS AND FRY IT LIKE AN OVEREASY EGG AT A GREAZY SPOON DINER.

Dimensions: 4.65 x 4.15 x 2.25 in. (118 x 105 x 57 mm) with knobs
Current Draw: 460 mA
Input Impedance: 1 MO
Output Impedance: 100 O

Notes: Welcome to the Rainbow Machine, in all its synthetic glory! This one is for experimenters, adventurists, and noisemakers. Totally not for purists and/or tone hounds. There are no natural sounds that come from this box. It takes modern DSP and uses it as a tool of future past to create real-time pitch shifting using digital oscillators.

Controls:
The Rainbow Machine has been completely re-imagineered from the pixie dust-covered ground up to be more versatile, twice as loud as the original, with an extended delay time, deeper chorus tones, silent flexiswitch footswitches on both the Activate (1) and Magic (2) functions, and most of all, more Magic.

The Rainbow Machine is built around a DSP pitch warping engine that's designed to be slightly imperfect; colored with digital remnants of the cosmic dust we've picked up across the multiverse. That is to say it's a cold digital beast made to pretend it has feelings.

The Pitch (3) control adjusts the frequency of the polyphonic pitch-warped harmony from a fourth below your input, to a third above, and every atonal pitch in-between. Noon is the unison position. Pitch may also be controlled via expression pedal. Use the Primary (4) function control to adjust the volume of the polyphonic harmony.

[Pro Tip: With the Pitch control set to noon, the Rainbow Machine acts as a chorus. Use the Primary control to adjust the wet signal volume and select the delay time with the Tracking control. The tracking improves as this control is increased, so turn it up for tighter tracking with a shorter delay time or turn it down for longer delays and more ambience.]

The Tracking (5) control adjusts the lag time between the wet and dry signals. Tone (6) rolls off some treble for a darker, vintage sound. Clockwise Tone settings are bright, counterclockwise is dark.

The Secondary (7) control adds an octave of the Primary harmony. When the Pitch control is above noon, Secondary adds an octave above the harmony. When the Pitch control is below noon, the Secondary control will add one octave below the harmony. With the Pitch set to noon, the Secondary control adds an additional chorus voice for modulated, triple-tracked tones. Use this control to blend in faux-shimmer sounds or a low-frequency rumble. It's up to you. From there, it's only a matter of how weird you wanna get.

And you can choose how weird you get with the Magic (8) control. This is a regeneration control that creates aliasing (among other things) by feeding the Primary and Secondary signals back on themselves and each other, and a bunch of other stuff no one understands.

With the Magic engaged and the control set low, you can squeeze a few extra repeats out of whatever setting you happen to be using. As you increase the Magic control, you'll start noticing increased ambience, resonant, edge-of-oscillation pitch-shifting delays, chorus, metallic digi-flanging, ascending (or descending) pixie trails, controllable self-oscillation, squalls of synthetic noise, whale song, and finally, distortion. It'll take you way beyond and open up your third eye, trust us. In conjunction with the Tracking control, the Magic creates wild pitch take offs and descends, chaos chorusing, shrieks, groans, gurgles, wizard-blessed wizardry, signal transformation, imminent destruction, and other general mayhem.

Maybe you only wanna get weird for a second? Okay, with the Rainbow Machine engaged, hold down the Magic footswitch, get weird, and then let go to return to your boring, old Magic-less guitar tone. Or, press the switch like normal, and the Magic remains engaged until you press the switch again. Ditto for the Activate switch. Press and hold to use the Rainbow Machine as a momentary effect, then let go to bypass; or feel free to press the switch like normal and use the Rainbow Machine like you would any other effects pedal.

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.65 x 3.65 x 2.25 in. (118 x 93 x 57 mm) with knobs
Current Draw: 68 mA
Input Impedance: 1 MO
Output Impedance: <1 kO

Notes: Are you tired of trying to fit all of your favourite delays onto your already overflowing pedalboard? Did you constantly have trouble choosing just one pedal to serve as the catalyst of your echo-centric musings? Had you wished that a pedal company would give you more bang for your buck by merging multiple classic delay effects into one simple little box?

Well hold on to your whammy bar, because your problems are solved now that you've found the new Silos Multi-Generational Time Reflection Device! EQD have taken a digital delay, an analogue delay, and a tape delay and merged them all together as one pedal with six presets, a tap-tempo, and user assignable expression control.

It all started when EQD founder Jamie Stillman was admiring his three favourite delay pedals from his personal collection and began ruminating on their vast differences. This sparked an ambitious foray into uncharted territory in finding a way to assemble them all together as one uncomplicated unit. After months of tinkering, his mission was accomplished and the Silos was born. With just four knobs, one three-way switch, one Save/Recall button, and two footswitches, he made the impossible possible and now your guitar playing shall reap the rewards!

Each of the three modes offers up to one second of delay time which allows it to be a longer delay than EQD's other delay pedals. From noon and back is 500 milliseconds to zero, which has its own character. From 500 milliseconds to one second of delay time, it's an entirely different beast. Dial them in for shorter delay times where they really excel and add loads of atmosphere and vibes. Push them further for rhythmic delays that are perfect for strumming and adding extra ambiance for your riffs. And the tap tempo is truly precise and responsive so you can lock in your rate quickly within the first revolutions.

Notes: EarthQuaker Devices proudly present to you the new and improved Spatial Delivery V3 Envelope Filter!

EarthQuaker Devices took the already cosmic, original Spatial Delivery and added six available preset slots for you to store your preferred settings - whether they be dissonant sweeps, rhythmic auto wah frequencies, oscillating robot gibberish or honestly whatever filtered frequency fun you want.

Even the expression jack assignment can be saved and recalled in any of the slots so that the signature sounds you dial in are readily available with a quick tap of the switch.

Save your settings confidently on the go thanks to the two modes indicated by the LED Save/Recall switch. Green means you're in Live Mode so what you see is what you get; current control settings will be what you hear. Red means you are in Preset Mode, where your selected pre-saved setting will be what's taking the journey through your amp.

You didn't think this pedal could get any better, and then, bam!

And of course, for all of you Spatial Delivery diehards, all the familiar features of the original are still in place. This baby has three modes with the switchable Up Sweep, Down Sweep, and Sample and Hold functions, along with Range, Resonance and Filter controls.

Get some wild filter sweeps with the Up and Down modes and adjust the Range to control the sensitivity and reaction time of the envelope, which alters the width of the frequency sweep. The higher the Range and harder the attack equals a faster reaction time and higher frequency sweep and vice versa. But again, you're a smart player, you get this stuff.

In the Sample and Hold mode, the filter is controlled by random voltage and the Range controls the speed. The filter can be crossfaded between high pass (counterclockwise), band pass (center) and low pass (clockwise) for a wide variety of voices. The Resonance control goes from zero to the brink of oscillation and adds more body and ring to the filter voice.

Due to its envelope control, it is recommend that you place the Spatial Delivery first in your signal chain, however, experimenting with pairing and signal chain placement can take the potential of the Spatial Delivery even further. How far will you take it? Only time will tell.

Each Spatial Delivery pedal is handmade in Akron, Ohio, USA and is hand delivered... espatially for you.

Notes: EarthQuaker Devices Special Cranker

An Overdrive you can trust

The Special Cranker is an all-discrete analogue distortion enhancement device designed to give your signal some extra grit and boost without drastically altering your tone and retaining all of the natural nuances and character of your amp. Think of it as sticking an extra preamp tube in your amplifier for more saturation. Single notes will blossom and bloom with rich harmonics and singing sustain with responsive, tube-like sag. Power chords will sound thicker and crunchier, a little more ragged around the edges. Complex chords will remain distinct and complex, as the Special Cranker is designed to preserve your tone's integrity without muddying up the low-end or smearing the midrange.

The Special Cranker picks up where the beloved Speaker Cranker left off. It has the same spongy, dynamic, and touch-sensitive character of the original but with more gain, double the output volume (now with a user-friendly Level control), an added Tone control to shape your signal, and a diode selector switch featuring the original asymmetrical Silicon diodes as well as a hot, new Germanium diode option.

The More control goes from nearly clean to a medium gain overdrive when at maximum. This control adjusts the bias of the transistor, so you may hear a little noise as you turn the control. Don't freak out; it's totally fine. The gain characteristics are dependent on which diodes are chosen. When the Germanium diodes are selected, the Special Cranker delivers a softer, more rounded response with tamed highs and lower output, while the Silicon diodes add a brighter, more modern edge and higher output. Both are exceptionally responsive to playing dynamics and have excellent clarity. The Tone control gives the user full command over treble frequencies, cutting the highs when counter-clockwise and adding a slight high-frequency boost when turned clockwise. The Level control adjusts the output from nothing to nearly double at maximum.

Tech Specs:

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 15 mA
Input Impedance: 5M P
Output Impedance: <25 kO

Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power:

This device should be powered a standard 9-volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise.

The Special Cranker can be safely operated from 9-18 volts.

Notes: The Wave Transformer is a complex single oscillator with 7 audio outputs. Its method of wave shaping differs from other complex oscillators in that it is not based upon classic wave folding such as is common in West Coast synthesis, or filtration such as is common in East Coast synthesis.

This analogue, vintage-voiced, voltage-controlled oscillator features over 8 octaves of accurate pitch tracking. Its 7 simultaneous wave outputs include a unique Complex output. This strange and novel output varies between a simple waveform (triangle, unless you patch a signal into the Shape Insert jack) and a complex transformation of the harmonic structure of the original waveform. It contains a unique mixture of the fundamental frequency, odd order harmonics, even order harmonics and subharmonics. The Sub Octave panel control will determine whether the sub harmonics are derived from one octave down, two octaves down, or are muted altogether. It will vary from a simple waveform to a silhouette of your cat watching you as you react to a "present" that it left for you on the counter. No, seriously.

The module's Transform control morphs from a basic waveform through many strange iterations into a complex, gnarled mass of audio mutations at the Complex output using an asymmetrical multi differential audio transmutation circuit. You can yield countless variations on these permutations by combining this novel circuit with Hard Sync, Soft Sync, Linear FM and Exponential FM.

Additionally, you can mute the source waveform to use the circuit as a harmonic gate/VCA, rendering the Wave Transformer a voice unto itself.

If that is not enough, there is a Shape Insert that allows you to transform external oscillations and modular-level audio sources.

Notes: This compact Boost & EQ device is based around the tone-shaping options available in old audiophile-grade stereo preamps, making it a great addition to your pedalboard, no matter what instrument you play.

So what does that mean, exactly? It means that you'll hear full frequency response from your Tone Job everywhere you plug it in - guitar, bass, drum machine, synthesizers, steel drums, harpsichord, kazoo, car stereo, or wherever!

The Tone Job has active EQ controls for Bass, Mid and Treble, with up to 20 dB of cut or boost, which is handy for pairing up with other pedals in your chain to breathe new life into old dirt. Unlike boring old graphic EQs, the Tone Job's EQ controls are interactive, so you can experiment with different settings to alter the response and overall feel of the device, getting your tone out of the lunchroom and back on the clock.

Place the Tone Job at the beginning of your chain to alter the overall character of your guitar, or use it at the end to boost output at the end of a long cable run and fine-tune your tone. The Level control on the Tone Job can boost your signal up to 5x the original input level, so you'll always be heard, and makes for a fantastic solo and/or clean boost!

Controls:
1. Level: Post EQ volume control. Can boost the signal up to 5x the input. Unity is around 10 o'clock.

2. Treble: The center position is flat and marked with a center detent in the potentiometer. All settings above this point boost the treble and all settings below cut treble.

3. Bass: The center position is flat and marked with a center detent in the potentiometer. All settings above this point boost the bass and all settings below cut bass.

4. Middle: The center position is flat and marked with a center detent in the potentiometer. All settings above this point boost the middle and all settings below cut middle.

Tech Specs:
Switching
This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

Power
This device takes a standard 9-18 volt DC power supply with a 2.1mm negative center barrel. Pedals will make extra noise if there is ripple or unclean power. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 21 mA
Input Impedance: 1 MO
Output Impedance: <1 kO

Notes: EarthQuaker Devices White Light

Limited Edition Reissue Overdrive - limited to 2,000 units worldwide.

The White Light is a hard clipping, vintage-voiced overdrive that takes its cues from the vintage dirt pedals that defined the sounds of heavy rock. Think OD250 or Distortion+ without being overly derivative, a new voice to an olde sound if you will. The White Light gives you total control over the feel and voice of the dirt along with a modern presence that is highly responsive to your playing. You'll find that it is much more dynamic, open and harmonically rich than these classic overdrives it shares its lineage with. This classic EQD overdrive has been updated with a new enclosure, top-mounted jacks and Flexi-Switchr Technology.

Gain: Controls the amount of distortion.

Weight: A multi-functional control, allows the level of saturation, low end response and the overall feel of the device to be altered.

Level: Controls the output.

Compression Switch:

Minus (-): open with more high-mids and bite.
Plus (+): crunchy and compressed with a bit less bite and a flatter mid response.
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.
Since the switching is relay based, it requires power to pass signal.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Earthquaker Devices always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise.

Do not run at higher voltages!

Tech Specs

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 10 mA
Input Impedance: 500 kO

Notes: Zoar is a highly interactive medium-high gain discrete distortion (using only transistors; no opamps or diodes in here!) that has that highly sought after touch sensitive amp-like quality.

It has been finely tuned to create a highly tweakable hi-fi and modern sounding distortion, but with the ghosts of old school circuitry to deliver a grind that is both instantly familiar and delightfully unique.

From defined sparkle and tightness of an overdrive to low-medium gain fuzz that's perfect for drop tuned guitars and basses, Zoar can do it all. Zoar lets you dial in and control every nuance of your tone from jangly on-the-verge of break up to blowing the walls out heavy saturation.

While having its roots in a very familiar past, the passive 3-band EQ has been finely tuned for modern tones. While this style of tone shaping seems simple on the surface, it is deceptively complex and highly interactive - yet surprisingly easy to instantly dial in dozens of mind blowing sounds.

Want to elevate your sonic spirit to a higher level? Try running Zoar at higher voltage! Zoar can handle power up to 18v DC. Higher voltages will yield a different frequency response with more defined dynamics and a faster response. When powered at 18v, the range of clean tones are widened, dirty tones become punchier with better note articulation, low frequencies are tightened, higher frequencies will cover a broader spectrum without becoming harsh and the output volume nearly doubles! The experience is not unlike plugging into a wall of high wattage tube amplifiers!

This meticulously crafted box has six knobs that allow you to truly customize your sound with the Level, Weight, Gain, Bass, Middle, and Treble controls.

The Gain control on Zoar goes from the edge of break up all the way over the cliff into the crunchy, grinding abyss. The character of the distortion is heavily dependent on the setting of the Weight control as well as the pickup type and further fine-tuned by the EQ section.

Zoar's 3-Band EQ and Gain controls give you nearly unlimited options with great focus and sensitive precision, but the real powerhouse of Zoar is the Weight control. This control dictates the amount of low end that is passed into the circuit, thus controlling the entire character of the pedal. Simply dial in the 3-Band EQ to 12 o'clock and adjust the Weight to see how drastically it dictates your sound. From a mere clean boost to a high gain distortion to overdrive to the crispy Hi-Fi fuzz territory, this function gives you everything.

The Level control hits unity around noon, but this is dependent on where the other controls are set. In addition to controlling the output volume, it also plays a small part in controlling the voice of Zoar. By adjusting the Level control with any combination of EQ (boosting the frequency bands and cutting the output volume), you can achieve drastically different curves that have the feel of the more traditional low pass filter type tone control.
