Notes: The DUALZDirect provides 2 x independent high quality totally passive interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs through high performance audio isolation transformers. Each of the high impedance single-ended 1/4" inputs is converted by a transformer into an isolated, balanced, low impedance signal output. The DUALZDirect's audio transformers have an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALZDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

The input attenuator switches allow for a wide range of signal levels and the input Thru jacks allows for tapping off of your signal chain. The ground lift switches let you totally separate the input and output signal grounds, when appropriate, to isolate 2 x systems, thereby reducing hum and ground-loop noise.

What further sets the DUALZDirect apart from other DI boxes are its extended features and versatility. Art have added switchable low pass filters that cut out all very high frequency interference. These Bessel filters on the outputs are placed out of the audio range and are primarily intended to reduce radio frequency interference before it gets into the main system. The filters are also very effective in reducing any digital computer noise artifacts when using the DUALZDirect as an interface between a computer-based audio workstation and your monitors. The pase invert switches, while not normally included with your run of the mill DI box, have been added to allow you to switch signal polarity right at the source. This feature is especially handy when you are combining a direct tap with a microphone feed in the mix.

The compact black-anodized all aluminum case and it's passive design allow the DUALZDirect to provide years of trouble free service in live sound, permanent/fixed Install, DJ, and virtually any PA application. It's full feature set, rugged construction, and high-end specifications make the DUALZDirect the obvious choice.

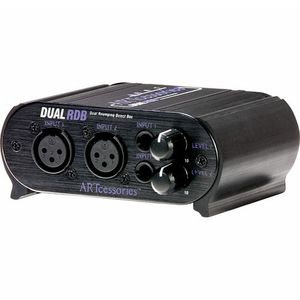

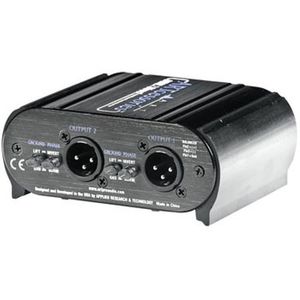

Notes: The Dual RDB is the ideal interface solution for any application where stereo or dual line level signals from recording interfaces, computers, mixers, iPods, consumer audio or video machines need to be connected to XLR microphone or 1/4" instrument level inputs.

The unit has 2 x high quality isolation transformers that prevent ground loops when connecting various systems together.

The Dual RDB accepts 1/4" TRS and XLR line level inputs and outputs mic or instrument levels. The Dual RDB's variable level controls allow volume control to be set at the source rather than in the studio, AV room, audio closet or installation rack. A 20Hz to 20 kHz frequency response ensures the Dual RDB will function transparently with any high quality audio source.

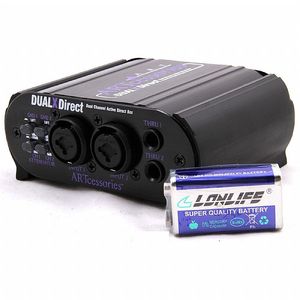

Notes: The DUALXDirect provides 2 x independent high quality active interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs. Each of the high impedance 1/4" and XLR inputs (provided via combo jacks) are buffered and converted by very low noise active electronics into an isolated, balanced, low impedance signal output. The DUALXDirect has an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALXDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

The input attenuator switches allow for a wide range of signal levels and the input Thru jacks allow for tapping off of your signal chain. The ground lift switches let you totally separate the input and output signal grounds, when appropriate, to isolate 2 systems, thereby reducing hum and ground-loop noise.

The DUALXDirect's active circuitry is powered by phantom voltage from the output connections or by an internal 9V battery, when external power is not available. When powered by a battery, it draws less than 7.5 mA which should provide more than 100 hours of operation with a new battery (alkaline recommended). If phantom power is available, then the DUALXDirect will automatically draw its power from the external source. The power on/off switch lights more dimly when the unit is running off of the battery, lights more brightly when it is running off of phantom power, and is off when the unit is inactive.

The compact black-anodized all aluminum case and it's active design allow the DUALXDirect to provide years of trouble free service in live sound, permanent/fixed install, DJ, and virtually any PA application. It's full feature set, rugged construction, and high-end specifications make the DUALXDirect the obvious choice.

The Art ARTcessories DUALXDirect features

Fully active design
Phantom voltage or 9V battery powered
Converts high-impedance balanced / unbalanced inputs into 600 Ohm balanced outputs
Switchable input attenuation (0, -30 dB)
Switchable ground lift
1/4" TRS / XLR combo connector inputs
XLR connectors for balanced outputs
Rugged extruded aluminum case
Frequency Response: 10 Hz - 100 kHz, i 0.5 dB @ +0 dBu
THD: <.05% (typical)
Dynamic Range: >100 dB (typical)
Channel Separation: > 80 dB (typical)
Maximum Input Level: +4, +34 dBu
Maximum Output Level: +6 dBu (battery powered), +14 dBu (phantom powered)
Input Connections: 1/4" TRS XLR female balanced / unbalanced (2), 470k Ohm
Thru Connections: 1/4" TRS (2)
Output Connections: XLR male balanced (2), <600 Ohm
Input Attenuation: Switchable, (0, -30 dB)
Power Requirements: 9V @ 7.5 mA (battery, alkaline recommended), 18 - 48V DC @ 6.4 mA (phantom power per channel)
Dimensions (DWH mm): 99 x 117 x 47
Weight: 0.38kg

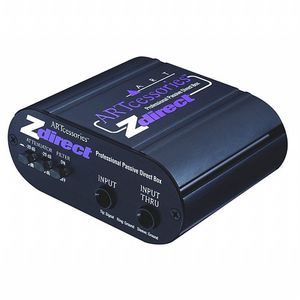

Notes: The Zdirect is a high quality totally passive interface that lets you connect instrument, line, or speaker level signals to a mixer or other balanced input thru a high performance audio isolation transformer. The high impedance single-ended 1/4" input is converted by the transformer into an isolated balanced low impedance signal source. The Zdirect's audio transformer has an extremely flat and wide frequency response and can handle high signal levels while still maintaining an isolated balanced low impedance output. This gives the Zdirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

The input attenuator switches allow for a wide range of signal levels and the input thru jack allows for tapping off of your signal chain. The ground lift switch lets you totally separate the input and output signal grounds, when appropriate, to isolate 2 systems, thereby reducing hum and ground-loop noise.

What further sets the Zdirect apart from other DI boxes are its extended features and versatility. ART have added a switchable low pass filter that cuts out all very high frequency interference. This Bessel filter on the output is placed out of the audio range and is primarily intended to reduce radio frequency interference before it gets into the main system. The filter is also very effective in reducing any digital computer noise artifacts when using the Zdirect as an interface between a computer-based audio workstation and your monitors. The phase invert switch, while not normally included with your run of the mill DI box, has been added to allow you to switch signal polarity right at the source. This feature is especially handy when you are combining a direct tap with a microphone feed in the mix.

The compact black anodized all aluminum case and it's passive design allow the Zdirect to provide years of trouble free service in Live Sound, Permanent/Fixed Install, DJ, and virtually any PA application. It's full feature set, rugged construction, and high-end specifications make the Zdirect the obvious choice.

Notes: With the DI100, you can rest assured that your sound source will reach the console balanced and noise free. Behringer's take on the all important active DI box gives you functionality, durability and incredible sound at a remarkable price.

Plug into the DI100's balanced 1/4" TRS or XLR input, then send a signal to your console via the balanced XLR output. You can even plug your guitar or bass amp's speaker output into the DI100, which can handle ratings of up to 3,000 Watts and still deliver a perfect signal. It also features a 1/4" link jack to send your signal to an on stage amplifier.

The DI100 also has a switchable attenuation pad, allowing input levels of up to +50dB. There is also a ground lift switch to eliminate noise associated with ground loops. The DI100 also features Behringer's renowned OT-1 output transformer.

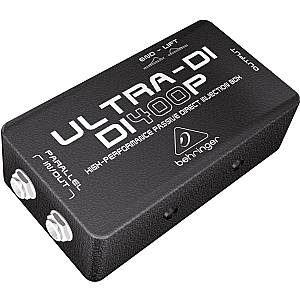

Notes: The Behringer Ultra DI DI400P is a passive DI (Direct Injection) box for connecting a guitar, bass or keyboard directly to your mixer. With the DI400P as your go between, impedance matching problems become a thing of the past, and long cable runs will not sacrifice all of your precious tone.

With its parallel 1/4" in and out jacks, the DI400P allows you to plug in your instrument and send the same signal to your onstage amplifier, while the XLR Output sends a balanced signal to your mixer. A ground lift switch eliminates hum associated with ground loops and our high performance transformer provides the ultimate in signal integrity.

The Ultra DI DI400P is compact and we house it in a tough, road ready metal case. This means the DI box will give you great sound gig after gig, session after session. And thanks to its low price, you can afford to outfit the entire band!

Notes: Consider this your clean slate. The Canvas Stereo is a Direct Box/LIne Isolator designed to remove any resistance between you and your audience by giving a pristine, sonic foundation to build your stereo masterpiece upon. From houses of worship to the dive bar downtown, Canvas Stereo is built to be the performance tool that goes wherever you are making your music.

Canvas Stereo is a Passive Line Isolator (LI) and Direct Injection (DI) device that converts your unbalanced signals into balanced signals for interfacing properly with your recording interface or mixer at front-of-house. If you're using an amp-in-a-box (DSP Guitar Rig), like our ACS1, keyboards, or any other instrument utilizing both left and right outputs, then the Canvas Stereo is your new bridge to the front-of-house. The Canvas Series DIs pack everything you need from a DI/LI into a standard pedal-sized enclosure designed to look great right on top of your board.

Direct Injection:
Use DI mode when connecting an unbalanced, high impedance source (Electric Guitar, Bass Guitar, etc). The signal will be reduced by -20dB (-35dB with pad engaged) and converted to a balanced signal via the transformer connected to the XLR output. Use the gain on your mixer or preamp to bring up to line level.

Line Isolator:
Use the LI when needing to connect your unbalanced, low impedance source (Amp + Cab Sim like the ACS1, keys, etc.). The signals will remain full volume and be converted to balanced signals via the transformer connected to the XLR output. Less preamp gain will be required in LI.

DI or LI?
When deciding between DI or LI, check with the manufacturer of your gear to find the output impedance of the device you are wanting to interface. For a general guide:High Impedance = anything above 1k = Use DILow Impedance = less than 1k = Use LI .

Troubleshooting:
This is a passive device, so you will not damage anything if connected improperly, but it could affect the signal level and frequency response if not connected properly. This is an easy thing to test since the LI/DI switch is built into Canvas. If you lose high-frequency information when using LI mode, then you should probably be in DI mode.

Notes: The Behringer Ultra DI Pro DI800 is a professional mains/phantom powered 8 channel active DI box. If you need a rack mountable DI unit with enough inputs to accommodate everyone on stage or in the studio, plug into the DI800.

Direct Injection (DI) boxes make it possible to connect guitars, basses and keyboards (as well as other line level devices) to audio mixers and recorders. They are absolutely essential for proper impedance matching and to maintain signal integrity. Behringer active DIs feature "buffered" inputs that won't degrade the source signal like passive DI boxes can. Balanced signals leaving the DI800 are extremely low impedance (typically less than 680 ohms), and far less susceptible to noise and interference.

When it comes right down to it, all DI boxes do the same thing, right? Yes, but the DI800 does much more than just "bass guitar in, mic level signal out." It really is a highly versatile input signal toolkit.

Here are just two special features that differentiate the DI800 from most standard DI boxes:
- You'd like to connect your guitar amp's speaker output to your mixer? Not a problem, the DI800 features a -30dB attenuation switch, allowing you to connect to speaker outputs (up to 3,000 Watts!) and convert them to balanced XLR outs.
- Got a weak incoming signal? The DI800 has a +20dB switch, which really comes in handy for boosting low-level input signals.

Of course, the DI800 provides a link output for easy connection to other equipment, such as onstage amplifiers and monitor consoles. Servo balanced performance guarantees ultra flat frequency response, and the gold plated XLR output connectors provide reliable, low noise operation. Per channel ground lift switches eliminate ground loop hum problems. The DI800 does everything a standalone DI can do - times eight!

Unlike their passive counterparts, active DI boxes require a power source to make their internal electronics work. The DI800 provides two power options: 120 - 240 V~ from the nearest wall outlet or power strip, or 18 to 48V DC from your mixer's phantom power supply.

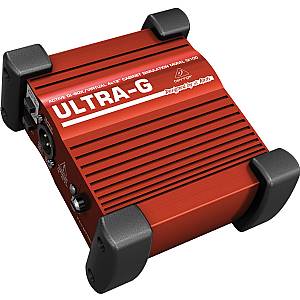

Notes: Whether you're recording or on stage, you need a great DI (direct injection) box to get your guitar sound to the console with full dynamics and power. The Ultra G GI100 active DI box gives you all the full rock glory of a cranked 4x12 cabinet at a fraction of the weight and floor space.

The Behringer GI100 works like a standard DI box. You can use it to tap into your amplifier's speaker outputs, even high powered rigs with ratings of up to 3,000 Watts. Or, just plug your guitar directly into the GI100, switch on the realistic 4x12 cabinet simulation designed by renowned engineer Juergen Rath, and you've got rock royalty sized tone in a package the size of a cheeseburger! You may never mic your speakers again!

The DI100 sounds amazing, and it comes equipped to meet the most common needs of gigging and recording, as well as the travel in between. There's a ground lift switch that eliminates typical ground loop problems, and when phantom power is connected, this DI box automatically shuts off the internal battery. The DI100 is housed in cool looking red aluminum and features stackable, oversized rubber corners.

The DI100 goes way beyond the typical abilities of a DI box to give you the sound and performance you'd expect from a super charged vintage half stack, plus enough power to have your audience wondering where you hid the amp. Introduce your axe to the guitar loving DI100.

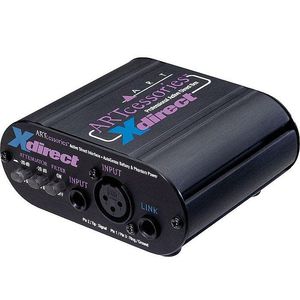

Notes: The Xdirect is a high quality interface that lets you connect instrument, line, or speaker level signals to a mixer or other balanced input. The high impedance single-ended 1/4" and XLR inputs are buffered and converted, by very low noise active electronics, into an isolated balanced low impedance signal source. The Xdirect has an extremely flat and wide frequency response and can handle high signal levels while still maintaining an isolated balanced low impedance output. This gives the Xdirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

The input attenuator switches allow for a wide range of signal levels and the input link jack allows for tapping off of your signal chain. The ground lift switch lets you totally separate the input and output signal grounds, when appropriate, to isolate 2 systems, thereby reducing hum and ground-loop noise.

What further sets the Xdirect apart from other Active DI boxes are its extended features and versatility. ART have added a switchable low pass filter that cuts out all very high frequency interference. This bessel filter on the input is placed out of the audio range and is primarily intended to reduce radio frequency interference before it gets into the main system. The filter is also very effective in reducing any digital computer noise artifacts when using the Xdirect as an interface between a computer based audio workstation and your monitors.

A phase invert switch, while not normally included with your run of the mill D.I. box, has been added to allow you to switch signal polarity right at the source. This feature is especially handy when you are combining a direct tap with a microphone feed in the mix.

The Xdirects active circuitry is powered by an internal 9V battery, when external power is not available. In this mode it draws 3.5 ma which should give you more than 250 hours of operation off of a new battery. If phantom power is available, then the Xdirect will automatically draw its power from the external source. The battery on/off switch lights dim when the unit is running off of the battery, lights brightly when it is running off of phantom power, and is off when the unit is inactive.

The compact black anodized all aluminum case and it's flexible power design allow the Xdirect to provide years of trouble free service in live sound, permanent/fixed install, DJ, and virtually any PA application. It's full feature set, rugged construction, and high-end specifications make the Xdirect the obvious choice whenever you have to interface high impedance sources with a low noise balanced system.

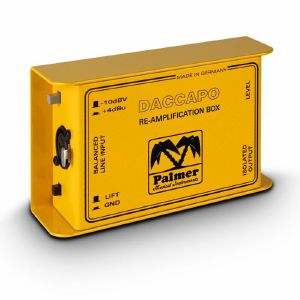

Notes: A Reamping-Box is mainly used in studios. It allows you to play back a recorded guitar signal and send it to a guitar amp, where it can again be taken and recorded by the microphone. This way, the recording engineer can experiment with the sound of an instrument and different amplifiers at his leisure.

The DACCAPO box ensures optimal impedance matching and eliminates ground loop hum through the use of a transformer. The signal level to the amplifier can be adjusted with a volume control.

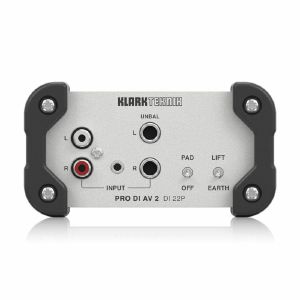

Notes: Building on KLARK TEKNIK's storied legacy of highest-quality direct injection devices, the DI 22P PRO DI AV 2 offers the same high headroom, dynamic response and sonic clarity you have come to expect. DI 22P combines many of the outstanding features of the DI 20P and DI 10P direct boxes into one powerful tool that should be in every audio engineers kit. The extremely versatile DI 22P accepts dual instrument, line and speaker levels, plus also accommodates MP3, CD players, keyboard or drum sub-mixers, and a variety of other stereo sources, and faithfully reproduces the character of electric and acoustic instruments, allowing far more of the detail of musical performances to be captured. A passive device, the DI 22P does not require any form of external power to complete its mission. Equipped with custom-built MIDAS transformers and switchable input Pads, the DI 22P is the perfect choice for premium-grade professional audio and multimedia applications.

Ever since its formation in the 1970s, MIDAS has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations world-wide, legendary MIDAS consoles such as the XL4 and Heritage H3000 quickly became industry standards.

MIDAS has earned their impeccable reputation due to their no-compromise approach for audio and build quality and in particular for their Award-winning products which are considered by industry experts as the industries best sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.

KLARK TEKNIK is proud to incorporate MIDAS designed transformers for the ultimate in high-quality audio reproduction in both live and studio environments. Find out more about MIDAS' amazing legacy by visiting their extensive website.

The ultra-compact DI 22P is built to handle the rigours of life on the road via a thick and rugged aluminium extrusion that protects the electronics. The enclosures road worthiness is further enhanced through the implementation of sturdy rubber corner bumpers.

A custom instrumentation-grade input circuit was designed for the DI 22P using advanced analogue design techniques to create the ideal input impedance match. This innovative approach provides an ultra-low noise, low harmonic and phase distortion input stage with a ruler-flat frequency response that ranges from 20 Hz to 30 kHz (+/- 1 dB).

DI 22P PRO DI AV 2 Inputs are: 2 x 1/4" TS; 2 x RCA; and 1 x 1/8" TRS connectors, which can accommodate virtually any type of signal for the utmost in versatility. The genuine Neutrik Output XLR jacks send balanced versions of the input signals to your mixing board or other processing device.

Notes: Adding another tool to the musical paint pallet, Walrus Audio is creating another way to design your tone with the Canvas Series Passive Re-Amp. The Re-Amp is a studio tool designed to send recorded guitar, drums, or other instrument tracks from your recording session through pedals and effects, or different amp combinations. The Re-Amp makes it's appearance to facilitate all-new ways to experiment with your songs.

Adding another tool to the musical paint pallet, Walrus Audio is creating another way to design your tone with the Canvas Series Passive Re-Amp. The Re-Amp is a studio tool designed to send recorded guitar, drums, or other instrument tracks from your recording session through pedals and effects, or different amp combinations. The Re-Amp makes it's appearance to facilitate all-new ways to experiment with your songs.

Artists and producers can save time on tracking sessions by recording dry tracks first, then using Canvas Re-Amp's custom transformer to convert line-level signals, optimizing them to work with amps and guitar pedals of any kind to explore limitless tones and sounds.

Using a Re-Amp

1. From your DAW, audio track goes into the Canvas Re-Amp.
2. Out from Re-Amp into pedals or mic'd amp.
3. Out from pedals / amp back into DAW.

Specs

Frequency Response: 20Hz To 20kHz
THD+N: 0.07% @ 20Hz / +4dBu Input 0.001% @ 1kHz / +4dBu Input
Maximum Input Level: +21dBu @ 20Hz
Noise Floor: -116dBu
Signal To Noise Ratio: 114dB @ 1kHz
Input: Balanced Line-Level
Input Impedance: 3k Ohms
Output: Unbalanced Instrumental-Level
Output Impedance: 2.5k Ohms
Common Mode Rejection Ratio:79dB @ 20Hz / +4dBu Input
Power Requirement : None - Passive
Audio Circuit: Transformer Isolated

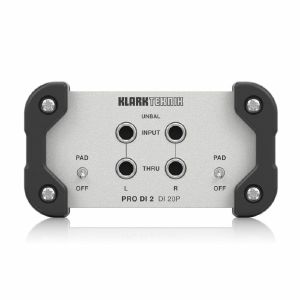

Notes: Building on KLARK TEKNIK's storied legacy of highest-quality direct injection devices, the DI 20P PRO DI 2 offers the same high headroom, dynamic response and sonic clarity you have come to expect. DI 20P is ideal for interfacing stereo keyboards, samplers and other electronic musical instruments to mixing consoles, and faithfully reproduces the character of electric and acoustic instruments, allowing far more of the detail of musical performances to be captured. A passive device, the DI 20P does not require any form of external power to complete its mission. Equipped with a custom-built MIDAS transformer and switchable input Pad, DI 20P easily accommodates instruments, line, and even loudspeaker level signals - making it the perfect choice for professional audio and multimedia applications.

Ever since its formation in the 1970's, MIDAS has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations world-wide, legendary MIDAS consoles such as the XL4 and Heritage H3000 quickly became industry standards.

MIDAS has earned their impeccable reputation due to their no-compromise approach for audio and build quality and in particular for their Award-winning products which are considered by industry experts as the industries best sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.

KLARK TEKNIK is proud to incorporate MIDAS designed transformers for the ultimate in high-quality audio reproduction in both live and studio environments. Find out more about MIDAS amazing legacy by visiting their extensive website.

The ultra-compact DI 20P is built to handle the rigours of life on the road via a thick and rugged aluminium extrusion that protects the electronics. The enclosures road worthiness is further enhanced through the implementation of sturdy rubber corner bumpers.

A custom instrumentation-grade input circuit was designed for the DI 20P using advanced analogue design techniques to create the ideal input impedance match. This innovative approach provides an ultra-low noise, low harmonic and phase distortion input stage with a ruler-flat frequency response that ranges from 20 Hz to 30 kHz (+/- 1 dB).

DI 20P PRO DI 2 features genuine high quality Neutrik XLR and high impedance 1/4" TS connectors to maintain the highest signal integrity. The Input connectors accept unbalanced signals over 1/4" TS cables, with the Thru jacks passing unbalanced 1/4" TS signals to local amps/monitors. The Output XLR jacks send balanced versions of the input signals to your mixing board or other processing device.

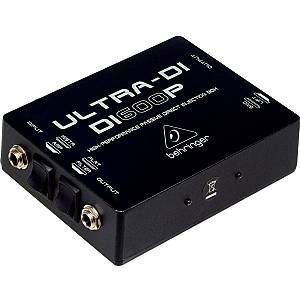

Notes: The Ultra DI DI600P is a passive DI (direct injection) box for connecting a guitar, bass or keyboard directly to your mixer. With the DI600P as your go between, impedance matching problems become a thing of the past, and long cable runs will not sacrifice all of your precious tone.

With its parallel 1/4" in and out jacks, Behringer's DI600P allows you to plug in your instrument and send the same signal to your onstage amplifier, while the XLR Output sends a balanced signal to your mixer. A ground lift switch eliminates hum associated with ground loops and our high performance transformer provides the ultimate in signal integrity.

Just flip the Inst/Amp switch and the DI600P can easily accommodate either the low level signal of a high impedance mic or guitar (inst mode), or the speaker output of a guitar amplifier (amp mode). Even if your amp cranks out as much as 3,000 Watts, you get a perfect signal every time!

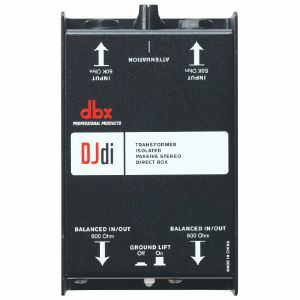

Notes: The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.

Features
Dual Channel
(2) 1/4" 50k Ohm TS Inputs
(2) XLR Transformer-Isolated 600 Ohm Input/Outputs
Passive Circuit Design
Continuously Variable Input Attenuator
Ground Lift Switch

Specifications
Circuit Passive
Inputs 2
Input Connectors 1/4" TS (Tip Hot, Sleeve Ground)
Input Type Unbalanced, RF Filtered
Input Impedance 50 kOhm
Outputs 2
Output Connectors Male XLR, Balanced, Pin 2 hot
Output Impedance 600 Ohms
Noise Level -104dBu (22Hz -22kHz, Input Shorted)
THD+N (10Hz-22kHz) 0.23% typical @ +4dBu @ 1kHz
Insertion Loss 21dB typical

Notes: The ULTRA-DI PRO DI4000 gives you 4 first-class DI channels in a single rack space. Each channel is equipped with two Inputs (XLR and 14" TRS), a balanced XLR Output - and a 14" Link output to connect to your amp or monitor console. Plus, the DI4000 is designed to accommodate virtually any input signal, up to 40 dB of switchable input attenuation and up to 20 dB of gain, while our highly acclaimed OT-1 output transformers ensure pristine and powerful output.

Direct Injection (DI) boxes make it possible to connect guitars, basses and keyboards (as well as other line-level devices) to audio mixers and recorders. The DI4000 takes the DI box to the next level with a special 8 kHz High-Cut filter per channel for guitar applications, along with a Phase Reverse switch for optimal signal alignment. Additionally, our DI4000 active DI features "buffered" inputs that respect your source signal much better than passive DI boxes can - outputting optimally-balanced, extremely low-impedance (600 O) signals that are far less susceptible to noise and RF Interference (RFI).

The DI4000 does much more than just "bass guitar in, mic-level signal out". It really is a highly versatile input-signal toolkit. Here are just two advantages the DI4000 has over standard DI boxes: Maybe you'd like to connect your guitar amp's speaker output to your mixer? Not a problem, the DI4000 features two -20 dB attenuation switches per channel, allowing you to connect to speaker outputs rated up to 3,000 Watts - and convert them to balanced XLR outs! Weak incoming signal? The DI4000 has a +20 dB switch, which really comes in handy for boosting low-level input signals to balanced signals with real power and rock-solid impact. Worried about fluctuating voltages in the venue? The DI 4000 is equipped with an internal switch-mode power supply that ranges from 100 to 240 V and automatically adapts to mains voltages wherever you go. Of course, the DI4000 provides a Link output for easy connection to other equipment, such as your onstage amplifiers and monitor consoles. Servo-balanced performance guarantees ultra-flat frequency response - and the gold-plated XLR output connectors provide reliable, low-noise operation. Per channel ground-lift switches eliminate ground-loop hum issues. The DI4000 does everything a standalone DI can do, and much more - times four!

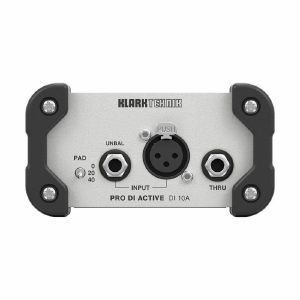

Notes: Building on KLARK TEKNIK's storied legacy of highest-quality direct injection devices, the DI 10A PRO DI ACTIVE offers the same high headroom, dynamic response and sonic clarity you have come to expect. DI 10A is ideal for interfacing keyboards, samplers and other electronic musical instruments to mixing consoles, and faithfully reproduces the character of electric and acoustic instruments, allowing far more of the detail of musical performances to be captured. The DI 10A is powered by +48 V phantom power with a 9 V battery backup, which automatically allows the device to function should phantom power fail, or be unavailable. Equipped with a switchable input attenuator, DI 10A easily accommodates instruments, line, and even loudspeaker level signals - and thanks to its extremely low noise input circuit topology (-112 dBu), DI 10A provides extended dynamic range, making it the perfect choice for professional audio and multimedia applications.

Compact & Rugged Construction:

The ultra-compact DI 10A is built to handle the rigours of life on the road via a thick and rugged aluminium extrusion that protects the electronics. The enclosure's roadworthiness is further enhanced through the implementation of sturdy rubber corner bumpers.

MIDAS - The Legend in Sound Quality:

Ever since its formation in the 1970s, MIDAS has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations world-wide, legendary MIDAS consoles such as the XL4 and Heritage H3000 quickly became industry standards.

MIDAS has earned their impeccable reputation due to their no-compromise approach for audio and build quality and in particular for their Award-winning products which are considered by industry experts as the industry's best sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.

KLARK TEKNIK is proud to incorporate MIDAS designed transformers for the ultimate in high-quality audio reproduction in both live and studio environments. Find out more about MIDAS' amazing legacy by visiting their extensive website.

High Headroom Design:

A custom instrumentation-grade input circuit was designed for the DI 10A using advanced analogue design techniques to create the very high input impedance required by passive guitar and bass pickups, whilst keeping the actual component values low to minimise noise. This innovative approach to circuit design produces a very low noise floor, which combined with the high clipping point creates an unrivalled dynamic range in a +48 V phantom powered DI Box.

Connectivity & More:

DI 10A PRO DI ACTIVE features genuine high quality Neutrik XLR and high impedance 1/4" TS connectors to maintain the highest signal integrity. The Input connectors accept balanced and unbalanced signals over TRS, TS or XLR cables with plugs, with the Thru jack passing an unbalanced 1/4" TS signal to local amps/monitors. The Output XLR jack sends a balanced version of the Input signal to your mixing board or other processing device.

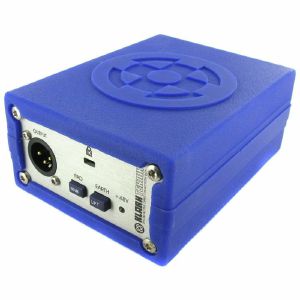

Notes: The DN100 has become an established favourite amongst both engineers and musicians alike. With its high headroom, dynamic response and sonic clarity, DN100 faithfully reproduces the character of electric and acoustic instruments and allows far more of the detail of musical performances to be captured. DN100 is intended for professional applications where +48 V phantom power is a standard feature on all mixing consoles, and its innovative design results in a significantly higher clipping point than many other active DI Boxes, providing +10 dBu output into a 2 k Ohm load. This increased headroom means that much higher level input signals can be accommodated without the need for an attenuating pad. Combined with a very low noise input circuit topology, DN100 offers a very wide dynamic range, and only requires a single -30 dB pad for use when connecting directly to instrument amplifier outputs.

DN100 is built to handle the rigours of life on the road, a thick aluminium extrusion protects the electronics, and in turn is covered by a tough silicone rubber sleeve. Exhaustive listening tests using a wide variety of active and passive bass guitars, electro-acoustic guitars and electronic musical instruments were carried out to select the components for DN100 to achieve the best musical sound. Not only was the choice of the audio transformer particularly important in achieving this goal, but the impedances of the surrounding components were also highly critical in getting the best possible performance out of the audio transformer. The line-driving characteristics of the transformer output were carefully optimised to provide the best frequency and phase responses for short and long cables and widely differing line and termination impedances. Care was taken in the design of the DN100 to avoid audio transformer core saturation and a fixed high pass filter has been included in the signal path to roll off frequencies below those that are musically important. The lowest note on a 5- or 6-string bass guitar is B0 with a frequency of 30.87 Hz, and the lowest note on an 88-key piano keyboard is A0 with a frequency of 27.50 Hz. DN100 still maintains a frequency response of i0.5 dB at these lowest musical notes. As well as the transformer in the signal path, DN100 also has a transformer to isolate the power rails to the input circuit from the phantom power supply sourced from the output XLR connector. When used in conjunction with the Earth Lift switch, this full galvanic isolation of input and output interfaces ensures that any risk of earth loops is avoided when taking a direct feed from stage backline equipment.

A custom instrumentation-grade input circuit was designed for the DN100 using advanced analogue design techniques to create the very high input impedance required by passive guitar and bass pickups, whilst keeping the actual component values low to minimise noise. This innovative approach to circuit design produces a very low noise floor, which combined with the high clipping point creates an unrivalled dynamic range in a +48 V phantom powered DI Box. DN100 features one parallel-connected XLR and two 14" TRS inputs, one which may also be used a link output for connection to a guitar or bass amplifier. When connecting to the XLR input only, the input impedance is 20 k Ohm, ideal for line level equipment and offering even lower noise performance. This input impedance is far too low for guitar and bass pickups and is removed from the circuit when a jack plug is inserted into a 14" TRS input, resulting in a nominal 1 M Ohm input impedance, ideal for passive electric pickups.

DN100 features illuminated Pad and Earth Lift switches, which along with the +48V phantom power indicator LED, provide 'at a glance' status display, even at wide distances and viewing angles.

The Earth Lift switch separates the input and output grounds, useful in eliminating earth loops between equipment on different mains electricity supplies.

DN100 is fitted with a locating slot for a Kensington lock for added security.

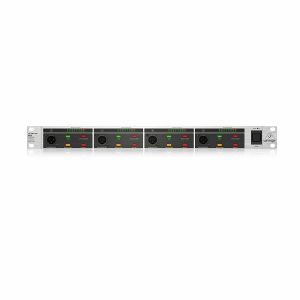

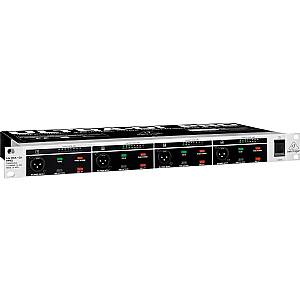

Notes: The DI4000 gives you four 1st class DI channels in one rack space.

With two inputs (XLR and 1/4" TRS), a balanced output (XLR) and a 1/4" link output per channel, up to 40dB of switchable input attenuation and up to 20dB of gain, the DI4000 is equipped to deal with virtually any input signal, while our OT-1 output transformers ensure clean, powerful output.

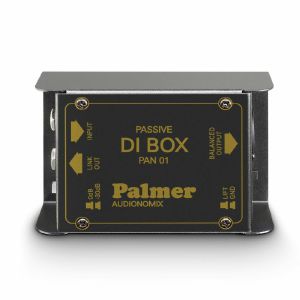

Notes: Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector for ground lift with or without filter.

Ground float option for ground lift with RF/mains filter
Ground lift option isolates signal ground without filter
3 pad settings for level matching

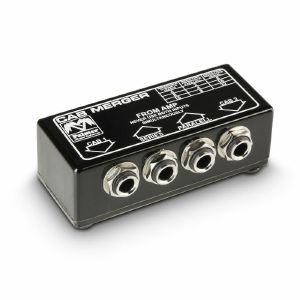

Notes: The concept behind Palmer's Cab Merger may be very simple, but the unit fills an important gap! Have you ever wanted to connect two guitar cabinets to just one amplifier output? It's quite simple with the PCABM!

In addition, you can choose parallel or series wiring. For instance, two 8 ohm cabinets can be connected for a total load of 4 ohms (parallel) or 16 ohms (in series). The device is entirely passive and does not affect tone in any way.

Notes: Consider this your clean slate. The Canvas Mono is a Direct Box/Line Isolator designed to remove any resistance between you and your audience by giving a pristine sonic foundation to build your masterpiece upon. From houses of worship to the dive bar downtown, Canvas Mono is built to be the performance tool that goes wherever you are making your music. Canvas Mono is a Passive Line Isolator (LI) and Direct Injection (DI) device that converts your unbalanced signal into a balanced signal for interfacing properly with your recording interface or mixer at front-of-house. If you're using an amp-in-a-box (DSP Guitar Rig), like our ACS1, or running an acoustic or bass guitar direct, then the Canvas Mono is your new bridge to the front-of-house. The Canvas Mono packs everything you need from a DI/LI into a standard pedal-sized enclosure designed to look great right on top of your board.

Direct Injection:
Use DI mode when connecting an unbalanced, high impedance source (Electric Guitar, Bass Guitar, etc). The signal will be reduced by -20dB (-35dB with pad engaged) and converted to a balanced signal via the transformer connected to the XLR output. Use the gain on your mixer or preamp to bring the signal up to line level.Line Isolator: Use LI mode when connecting your unbalanced, low impedance source (Amp + Cab Sim like the ACS1, keys, etc.). The signal will remain full volume and be converted to a balanced signal via the transformer connected to the XLR output. Less preamp gain will be required in LI mode.

DI or LI?
When deciding between DI or LI, check with the manufacturer of your gear to find the output impedance of the device you are wanting to interface with. For a general guide:High Impedance = anything above 1k = Use DILow Impedance = less than 1k = Use LI.

Troubleshooting:
This is a passive device, so you will not damage anything if connected improperly, but it could affect the signal level and frequency response if not connected properly. This is an easy thing to test since the LI/DI switch is built into Canvas. If you lose high-frequency information when using LI mode, then you should probably be in DI mode.

Notes: Samson's MDA1 Mono Active Direct Box combines premium sound circuitry with durable, roadworthy construction, providing high-quality signal connection solutions for live sound and recording studio applications. The MDA1 operates on either batteries or phantom power and allows clean, balanced lines to be sent from your guitars and basses.

Active Operation:

The active MDA1 provides an even frequency response on any audio signal you connect to regardless of its output impedance. As such, the MDA1 is ideal for connecting instruments with passive pickups, which have very high impedances, by preserving the top end of the instrument's frequency response. The MDA1's balanced output provides a clean signal that is less susceptible to noise than an unbalanced line, allowing for longer cable runs. In addition, a 2-position 0dB/-15dB attenuation switch lets you adapt the MDA1 to a wide variety of signals.

Thru Jack:

The MDA1's Thru jack enables you to tap off the signal from the input and pass the signal to an amplifier or monitor without affecting the original audio. This can eliminate the need for miking guitar amplifiers, which depending on your application may be preferable, especially as more musicians are using in-ear monitors.

Roadworthy Construction:

Housed in a 14-gauge steel chassis, the MDA1 is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all the MDA1's internal connections, switches and solder joints from failure, ensuring quiet, reliable performance.

Notes: Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console.

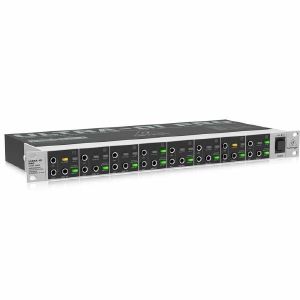

Notes: The ULTRA-DI PRO DI800 is a professional mains/phantom powered 8-channel active DI-box. If you need a rack-mountable DI unit with enough inputs to accommodate everyone on stage, or in the studio - then you need to plug into the DI800.

Direct Injection (DI) boxes make it possible to connect guitars, basses and keyboards (as well as other line-level devices) to audio mixers and recorders. They are absolutely essential for proper impedance-matching and to maintain signal integrity. The active DIs feature "buffered" inputs that respect your source signal much better than passive DI boxes can. Balanced signals leaving the DI800 are extremely low-impedance (typically less than 680 O), and far less susceptible to noise and RF Interference (RFI).

The DI800 does much more than just "bass guitar in, mic-level signal out." It really is a highly versatile input-signal toolkit. Here are just two advantages the DI800 has over standard DI boxes:

The DI800 features a -30 dB attenuation switch, allowing you to connect to speaker outputs rated up to 3,000 Watts - and convert them to balanced XLR outs- helping to connect your guitar amp speaker's output to your mixer.

The DI800 also has a +20 dB switch, which really comes in handy for boosting low-level input signals to balanced signals with real power and rock-solid impact.

Of course, the DI800 provides a Link output for easy connection to other equipment, such as your onstage amplifiers and monitor consoles. Servo-balanced performance guarantees ultra-fat frequency response - and the gold-plated XLR output connectors provide reliable, low-noise operation. Per channel ground-lift switches eliminate ground-loop hum issues. The DI800 does everything a standalone DI can do, and much more- times eight.

Unlike their passive counterparts, active DI boxes require a power source to make their internal electronics work. The DI800 provides two power options: 120 - 240 V~ from the nearest wall outlet or power strip, or +18 to +48 V DC from your mixer's phantom power supply.

The 8-channel ULTRA-DI PRO DI800 delivers exceptional sound quality - at an extremely affordable price.

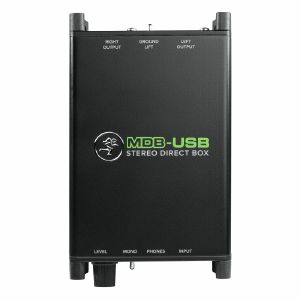

Notes: From acoustic guitars to laptops, always sound your best with MDB Series Direct Boxes. Available in four different models, the MDB Series will give you the peace of mind that your sound will faithfully get to your audience the way that you hear it on stage.

With the bus-powered MDB-USB Stereo DI, the days of relying on your headphone jack to get audio from a computer into analog gear are over. Combining a high-resolution audio interface with a noise and distortion-free stereo DI, MDB-USB converts your digital audio into clean, balanced, stereo output. The MDB-USB also features an output level control, headphone output, and mono sum for maximum versatility. Analog outputs are dual XLR with ground lift.

Premium - without the price tag:
Direct boxes are an essential tool for any stage or studio. They make it easy to get clean, low-noise audio to a mixer no matter what instrument you are using. Available in four versatile models, our ultra-affordable DI's offer the Mackie sound quality that you expect with 'Built-Like-A-Tank' construction for maximum reliability. From acoustic guitars to laptops, be ready for anything with MDB Series direct boxes.

The Perfect Match:
With four models to choose from, you can get the perfect match for your instruments. Acoustic guitars and keyboards are right at home with the MDB-1P and MDB-2P. High output instruments will appreciate the extra headroom in the MDB-1A.

Premium Analog Circuitry:
MDB Series direct boxes offer excellent noise performance and transparency. Whether you are in the studio or performing on stage, your instruments will always sound as good as they do at the source.

'Built-Like-A-Tank':
From the inside out, MDB Series direct boxes are built to last. Thick steel chassis, impact resistant corners, and long-wearing jacks will keep these in your bag for years to come.

Get the best sound from your laptop:
The MDB-USB is the ultimate way to get pristine digital audio from your laptop directly to a mixer or front-of-house in a venue.

***Now with Pro Tools First (including The Musician Collection) upon registration***

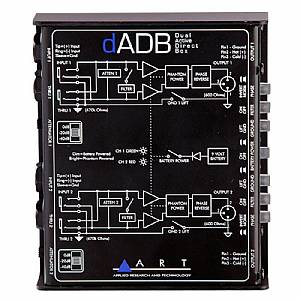

Notes: The ART dADB dual active direct box acts as two independent, high quality active interfaces for connecting instrument, line, or speaker level signals to balanced inputs. The high impedance ¼-inch inputs are buffered and converted by extremely low noise active electronics to deliver isolated, balanced, low impedance outputs.

The dADB delivers an extremely flat and wide frequency response even at high input levels, making it a virtually acoustically transparent DI solution.

Input attenuation on each channel allows for a wide range of source signal levels. Independent parallel thru jacks allow for tapping the signal chains. A Ground Lift on each channel allows for totally separate the input and output signal grounds to isolate two systems when required, thus reducing hum and ground-loop noise.

Switchable low pass Bessel filters eliminate high frequency interference. Operating outside of the audio range these complex and effective filter circuits are primarily intended to eliminate radio frequency interference before it gets into the main system. They also effectively reduce digital computer noise making the dADB the ideal DI solution for laptops, computer workstations and peripherals when used in stereo PA applications.

The dADB's active circuitry is powered by phantom power or by an internal 9V battery when external power is not available. Low current draw (less than 7.5 mA) should provide more than 100 hours of operation with a new battery (alkaline recommended).

The compact black all steel case and active design ensure unmatched long-term reliability in Live Sound, Permanent/Fixed Install, D.J., or virtually any PA application.

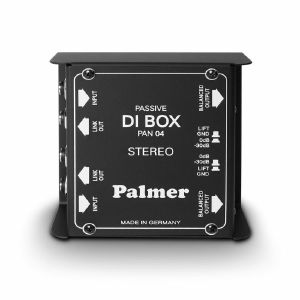

Notes: The PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This "stereo" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs. Attenuable input sensitivity, can handle both line level and speaker level signals.

Notes: Building on KLARK TEKNIK's storied legacy of highest-quality signal processing devices, the DS 50 PRO SPLITTER 5 offers the same high headroom, dynamic response and sonic clarity you have come to expect. DS 50 is ideal for routing balanced XLR signals to as many as 5 discrete destinations, including FOH and monitor consoles, active monitor loudspeakers, broadcast mixers, and more. A passive device, the DS 50 does not require any form of external power, making it the perfect solution for a wide range of professional audio and multimedia applications.

A custom instrumentation-grade input circuit was designed for the DS 50 using advanced analogue design techniques to create the ideal input impedance match. This innovative approach provides an ultra-low noise and ultra-linear system with a ruler-flat frequency response that ranges from 20 Hz to 22 kHz (+/- 0.05 dB).

All of the Input and Output connections on the DS 50 feature genuine high quality Neutrik XLR jacks for the ultimate in signal integrity.

The ultra-compact DS 50 is built to handle the rigours of life on the road via a thick and rugged aluminium extrusion that protects the electronics. The enclosures road-worthiness is further enhanced through the implementation of sturdy rubber corner bumpers.

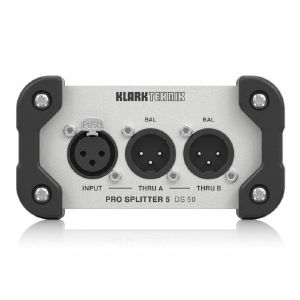

The DS 50 PRO SPLITTER 5 allows you to send identical copies of balanced input signals to up to 5 discrete destinations thanks to its incredible frequency response of 20 Hz to 22 kHz (+/- 0.05 dB) and highly intuitive design - all in a road-ready enclosure that stands ready for your input.

Notes: Building on the success of DN100, the DN200 offers the same high headroom, dynamic response and sonic clarity, with the added convenience of two stereo channels in the same sized enclosure. DN200 is ideal for interfacing computers, keyboards, samplers and other electronic musical instruments to mixing consoles, and faithfully reproduces the character of electric and acoustic instruments, allowing far more of the detail of musical performances to be captured. DN200 is intended for professional applications where +48 V phantom power is a standard feature on all mixing consoles, and its innovative design results in a significantly higher clipping point than many other active DI Boxes, providing +10 dBu output into a 2 k Ohm load. This increased headroom means that much higher level input signals can be accommodated without the need for an attenuating pad. Combined with a very low noise input circuit topology, DN200 offers a very wide dynamic range and only requires a single -20 dB pad, which is optimised for use with electronic musical instruments.

DN200 is built to handle the rigours of life on the road, a thick aluminium extrusion protects the electronics, and in turn is covered by a tough silicone rubber sleeve. DN200 offers two flexible signal routing options, in Sum mode both inputs are summed at -6 dB to maintain the overall signal level and are routed to the left output. In Split mode, the left input is routed to both outputs at unity gain. Both option switches include LEDs for clear indication of signal routing. Exhaustive listening tests using a wide variety of active and passive bass guitars, electro-acoustic guitars and electronic musical instruments were carried out to select the components for DN200 to achieve the best musical sound. Not only was the choice of the audio transformer particularly important in achieving this goal, but the impedances of the surrounding components were also highly critical in getting the best possible performance out of the audio transformers. The line-driving characteristics of the transformer outputs were carefully optimised to provide the best frequency and phase responses for short and long cables and widely differing line and termination impedances.

Care was taken in the design of the DN200 to avoid audio transformer core saturation and a fixed high pass filter has been included in the signal path to roll off frequencies below those that are musically important. The lowest note on a 5- or 6-string bass guitar is B0 with a frequency of 30.87 Hz, and the lowest note on an 88-key piano keyboard is A0 with a frequency of 27.50 Hz. DN200 still maintains a frequency response of i0.5 dB at these lowest musical notes.

As well as the transformers in the signal paths, DN200 also has separate transformers to isolate the independent power rails to the two input circuits from the phantom power supply sourced from the output XLR connectors. When used in conjunction with the Earth Lift switch, this full galvanic isolation of input and output interfaces ensures that any risk of earth loops is avoided when taking direct feeds from stage backline equipment.

A custom instrumentation-grade input circuit was designed for the DN200 using advanced analogue design techniques to create the very high input impedance required by passive guitar and bass pickups, whilst keeping the actual component values low to minimise noise. This innovative approach to circuit design produces a very low noise floor, which combined with the high clipping point creates an unrivalled dynamic range in a +48 V phantom powered DI Box.

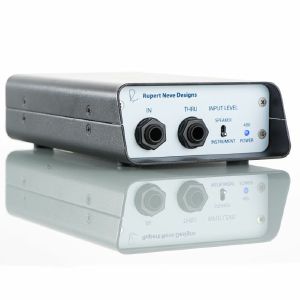

Notes: The RNDI's signature sound is the product of new custom Rupert Neve-designed transformers and class-A biased, discrete FET amplifiers. The carefully orchestrated union of these two elements is key to the RNDI's unique response, delivering a powerful and vibrant direct sound capable of reproducing the full harmonic depth of basses, guitars, acoustic instruments, and professional line level sources. With portable, powerful, larger-than-life tone for your instrument and amplifier signals, the RNDI is truly the first standalone DI worthy of the Rupert Neve name.

After coming into existence during an experimentation with new transformer designs, the RNDI was fine-tuned over a series of listening tests against the the most popular high-end DIs available. It was in these tests where the RNDI always seemed to add another dimension to the sound and bring the instruments to life. The lows felt richer, deeper and fuller, and the highs had outstanding clarity without any added harshness. Most importantly, the design team noted: "As musicians, the RNDI consistently stood out as the DI we wanted to play through."

The RNDI's signature sound is the product both of new custom Rupert Neve-designed transformers and class-A biased, discrete FET amplifiers. The carefully orchestrated union of these two elements is key to the RNDI's unique response.

The transformers provide superior passive isolation while adding musical harmonics and dimension to the sound. The low impedance, transformer balanced output excels at driving long cable runs, and performance is immensely consistent regardless of the connected equipment. This is very important for both live and studio environments where the unamplified signal may travel almost 100ft before hitting an amplifier. In other designs, these high capacitance lines cause major reductions in high frequencies, however the output stage of the RNDI unrivaled at handling long runs with minimal losses.

The class-A and discrete FET amplifier in the RNDI is powered by industry-standard 48V phantom power on the XLR connection, and creates a very high impedance input of 2M Ohms that ensures consistent performance with a wide variety of instruments. The significance of the RNDI's class-A design is that there is no crossover distortion added to the signal, which can add upper order odd harmonics to the sound that are musically dissonant in nature. With the RNDI, the overwhelming majority of harmonic content is 2nd order (octave) with some 3rd order present (fifth above octave). These musically relevant harmonics - present in subtle amounts - actually add to the richness of the original signal. The discrete aspect of the RNDI design means there are no ICs or digital components that can have negative effects on the tone.

These efforts to harmonize the performance of the transformer and the FET amplifier have resulted in the RNDI's extremely well balanced response. The low end tonality is thick and powerful, with frequency response several octaves below audibility. The high end is clear, present, and smooth, with a frequency response extending beyond 100kHz. The phase coherence is unrivaled at all frequencies, which keeps the sound as natural as possible - especially vital when blending the direct signal with a microphone capture of the same source. Simply put, there is no DI ever made that performs like the RNDI.

In instrument mode, the RNDI's high input headroom of +21.5dBU is capable of handling not only instruments, but professional, line level sources like interfaces, CD players and drum machines without a pad. This allows the RNDI to serve as a way to "Re-Preamp" any previously recorded track using your interface and a desired pre-amp. To do this, simply connect a channel output of the interface to the input of the RNDI and connect the RNDI's output to the preamp and engage 48V. By "Re-Preamping" you can apply the tone of another preamp to the source and more accurately automate or control the drive level on the preamp.

In speaker mode, the RNDI can handle the screaming output of a 1000-watt power amplifier (92 Vrms or 266Vp-p) to capture the full tone of the instrument, preamplifier, EQ, inserts, and the amplifier's output stages before it hits the speakers. This technique allows the engineer to avoid any bleed in a live environment and any unwanted tone added by the speaker cabinet or microphone. When used with modern speaker emulation plug-ins, this technique allows the engineer to take advantage of both the flexibility of digital modeling and the superior non-linear response of an actual analogue amplifier.

In a speaker feed configuration, the DI is used post-power amplifier to capture the tone of the preamp and power amp. Be sure to switch the RNDI input level to speaker and connect the amplifier and speaker BEFORE turning the amplifier on.

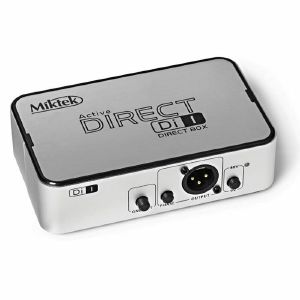

Notes: The Miktek DI-1 provides the facility for the direct insertion of an audio signal into a mixer or recorder. It offers a variety of DI solutions for live sound and recording applications. A variety of audio signals can be connected to your DI-1, e.g. guitars, bass guitars, drum machines, keyboards, outboard signal processors, high powered speaker output from an amplifier etc.

The DI-1 can be powered either by a single 9 volt battery or standard 48 volt phantom power. Whenever phantom power is present on the XLR cable (connected to the OUTPUT), the DI-1 will automatically disconnect the 9 volt battery and switch to phantom power.

The DI-1 enables you to tap off the signal from a guitar or bass guitar and pass the signal from the THRU output to the guitar / bass guitar amplifier without affecting the original sound. This can eliminate the need for miking the guitar amplifier, especially with bass guitar. DI-1 is an active direct box which has a power supply, hence you can rely on an even frequency response on any audio signal you connect to regardless of its output impedance. The OUTPUT connection gives cancellation of hums/buzzes while leaving the original signal clean and pure. Besides that the DI-1 is also useful for connecting imbalanced signals such as DJ mixers, effects processors and keyboards to a main PA or recording mixer.

Notes: Product Features:
Smart direct input box with ultra low distortion, it quietly transfers the sound of guitar or bass directly to the audio system Balanced/unbalanced output, gain switch, cabinet simulator and ground lift function included

Full metal shell
Very small and exquisite
True bypass
Requires DC 9V Adapter power supply

Notes: To The Max:

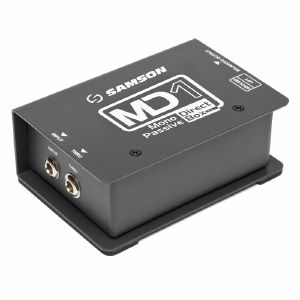

Samson's MD1 Mono Passive Direct Box combines premium sound circuitry with durable, roadworthy construction, providing high-quality signal connection solutions for a variety of live sound and recording applications. The MD1 allows clean, balanced lines to be sent from an unbalanced line or instrument signal to a microphone level balanced input.

Custom STL Transformer:
The MD1 features Samson's STL transformer that delivers an extended, flat frequency response with ultra-low distortion. The MD1's balanced output provides a clean signal that is less susceptible to noise than an unbalanced line, allowing for longer cable runs.

Thru Jack:
The MD1's Thru jack enables you to tap off the signal from the input and pass the signal to an amplifier or monitor without affecting the original audio. This can eliminate the need for miking guitar amplifiers, which depending on your application may be preferable, especially as more musicians are using in-ear monitors.

Roadworthy Construction:
Housed in a 14-guage noise-reducing steel chassis, the MD1 is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all the MD1's internal connections, switches and solder joints from failure, ensuring quiet, reliable performance.

Notes: To The Max.

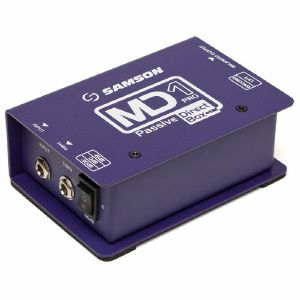

The Samson MD1 Pro Mono Passive Direct Box combines premium sound circuitry with durable, roadworthy construction, providing high-quality solutions for line, instrument and speaker level signals. The MD1 Pro allows balanced lines to be sent from your instrument long distances without inducing noise.

Custom STLX Transformer
The MD1 Pro features Samson's STLX Mu-Metal shielded transformer that delivers an extended, flat frequency response with ultra-low distortion and superior protection against hum and RF interference. The MD1 Pro's balanced output provides a clean signal that is less susceptible to noise than an unbalanced line, allowing for longer cable runs. The MD1 Pro also includes a 3-position 0dB/-15dB/-30dB attenuation switch to toggle between line and speaker level signals.

Thru Jack
The MD1 Pro's Thru jack enables you to tap off the signal from the input and pass the signal to an amplifier or monitor without affecting the original audio. This can eliminate the need for miking guitar amplifiers, which depending on your application may be preferable, especially as more musicians are using in-ear monitors.

Roadworthy Construction
Housed in a 14-guage noise-reducing steel chassis, the MD1 Pro is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all the MD1 Pro's internal connections, switches and solder joints from failure, ensuring quiet, reliable performance.

Notes: To The Max:

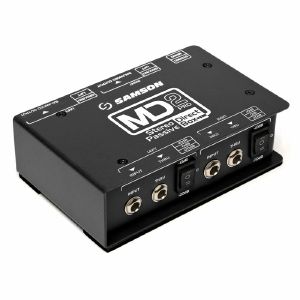

Samson's MD2 Pro Stereo Passive Direct Box combines two premium direct boxes in a single case. Rugged, roadworthy construction and two shielded transformers provide high-quality signal connection solutions for a variety of live sound and recording applications. The MD2 Pro is perfect for converting unbalanced stereo line level or instrument signals from keyboards, electronic drum kits, acoustic-electric guitars and more.

Custom STLX Transformers:
The MD2 Pro features two of Samson's STLX Mu-Metal shielded transformers that deliver an extended, flat frequency response with ultra-low distortion and superior protection against hum and RF interference. The MD2 Pro's balanced outputs provide clean signals that are less susceptible to noise than unbalanced lines, allowing for longer cable runs. The MD2 Pro also includes a 3-position 0dB/-10dB/-20dB attenuation switch for each input to toggle between line and speaker level signals, as well as a Stereo/Mono sum switch.

Thru Jack:
The MD2 Pro's Thru jacks enable you to tap off the signals from the inputs and pass the signals to amplifiers or monitors without affecting the original audio. This can eliminate the need for miking guitar amplifiers, which depending on your application may be preferable, especially as more musicians are using in-ear monitors.

Roadworthy Construction:
Housed in a 14-guage noise-reducing steel chassis, the MD2 Pro is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all the MD2 Pro's internal connections, switches and solder joints from failure, ensuring quiet, reliable performance.

Notes: To The Max:

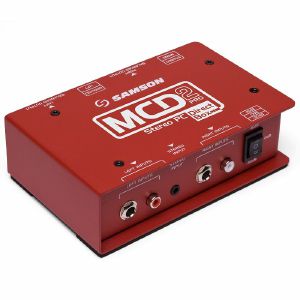

Samson's MCD2 Pro Stereo Passive PC Direct Box is the ideal solution for connecting unbalanced line level signals from laptops, CD/MP3 players, and DJ mixers to professional, balanced equipment. Durable, roadworthy construction and two Mu-metal shielded transformers provide high-quality signal connection solutions for a variety of live sound and recording applications.

Custom STLX Transformers:
The MCD2 Pro features two of Samson's STLX Mu-Metal shielded transformers that deliver an extended, flat frequency response with ultra-low distortion and superior protection against hum and RF interference. The MCD2 Pro's balanced outputs provide clean signals that are less susceptible to noise than unbalanced lines, allowing for longer cable runs.

Input Options:
The MCD2 Pro features dual 1/4", RCA and a stereo 1/8" input to accommodate any line level instrument or consumer audio connection. Its selectable Stereo/Mono sum switch allows users to accommodate typical mono "house" PA systems. Additionally, a 2-position 0dB/-12dB attenuation switch provides users with ample headroom to handle hotter inputs.

Roadworthy Construction:
Housed in a 14-guage noise-reducing steel chassis, the MCD2 Pro is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all the MCD2 Pro's internal connections, switches and solder joints from failure, ensuring quiet, reliable performance.

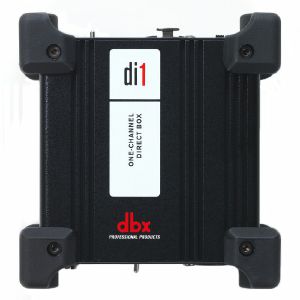

Notes: The DBX Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise.

Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone.

Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.

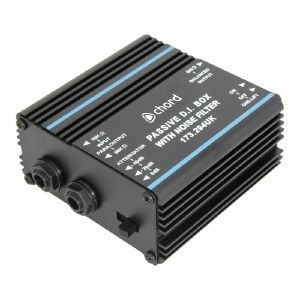

Notes: Passive Direct Injection box with noise filter to reduce RF interference, pad switch (attenuator) and ground lift option. Professional solution for connecting musical instruments directly to a mixing console.

Notes: This active DI box converts the high impedance signal from an instrument (guitar, bass, keyboard etc.) to a balanced low impedance one for direct connection to a mixing console. Also features attenuation and ground lift switches.

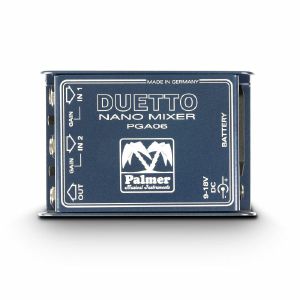

Notes: The Palmer DUETTO is a small format active mixer. Input sensitivity and impedance are optimised for electric guitar applications but the unit also works well with other instruments and devices with line level signals.

The DUETTO allows two active sources to be mixed to a single amplifier input. Each input has a volume controller for level adjustment. The DUETTO is typically used when guitar teachers want to practise with their students through a single input amp. The DUETTO is however very versatile and can also be used, for example, as cable driver, mono merger and recording preamp.

Due to its low power consumption, the DUETTO can be powered by a 9V battery permitting extended operation. A DC input is provided for use with a power adapter.

Notes: Passive DI box. Jack input with parallel "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

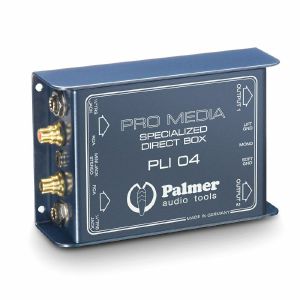

Notes: PRO MEDIA DI/ PLI-04. With the new PRO MEDIA DI/ PLI-04, Palmer introduces a DI-box, produced with the discerning needs of the computer-age media in mind. Using this uncomplicated method, personal computers and other consumer equipment with unbalanced outputs can be converted to balanced, in order to carry out, e.g., a presentation over a professional PA system. The PLI-04 accommodates all the common input types, TRS jacks accepting mono or stereo plugs, RCA phono sockets and a 3.5mm stereo jack input for use with the headphone output of a Laptop or similar device. The outputs are conventional transformer balanced XLR sockets, as used in professional PA systems, guaranteeing an electrically decoupled signal, a prerequisite to ensure noise-free operation. One other special feature which should not be forgotten! Although the PLI-04 is primarily a stereo unit, it can be switched to mono, with the two stereo signals summed and fed to both XLR outputs. The PLI-04 manifests a mechanically robust unit combined with outstanding technical specifications, adding to the list of high quality products that have come to be expected from Palmer.

Notes: Two-channel isolation transformer (line isolator). Neutrik combination socket input (XLR & jack socket) and XLR output. The PLI02 also has a ground-lift switch. Especially suitable for eliminating ground loops that cause hum. Conversion from unbalanced to balanced is possible. 600 ohm version can handle levels up to +20 dBu.

Professional dual channel line isolating unit for stage and studio use. A unique Neutrik input connector accepts both male XLR and jack plugs. The PLI-02 easily converts unbalanced outputs into balanced ones. It may also be used to transformer balance electronically balanced inputs and outputs.

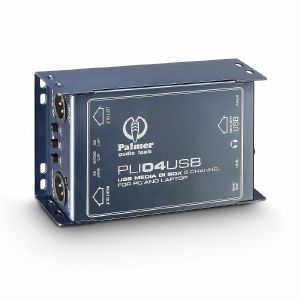

Notes: Providing compatibility between computers and professional equipment, the PLI04USB is a dedicated interface to feed unbalanced stereo audio from USB ports to balanced mic inputs of mixing consoles. Supporting 44.1, 48 and 96 kHz sample rates it provides high quality digital-to-analog conversion with 24-bit resolution. Signal output is transformer balanced on standard wiring male XLR connectors with individual isolating switches for the left and right channels. Featuring a mono summing switch, the unit effectively doubles as a signal splitter to route the mono signal into separate audio systems. In addition, the PLI04USB features a headphones output with level control for convenient monitoring and a ground lift.

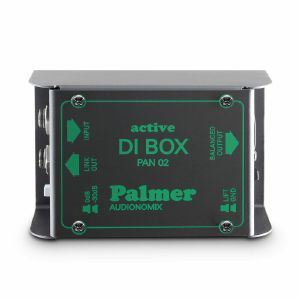

Notes: Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance (1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation.

Notes: Palmer line splitters are used when a signal source must be sent to multiple inputs. For example, when one mixer output is supposed to supply signals to multiple power amplifiers in different rooms. Thanks to the use of generously dimensioned audio frequency transformers, the sound is not influenced, but ground loop hum is prevented. The PLS02 can also be used to convert unbalanced signals into balanced signals and vice versa.

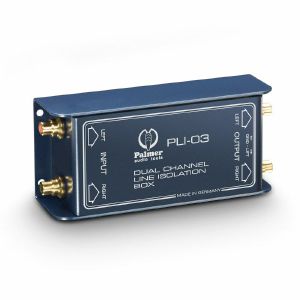

Notes: Two-channel isolation transformer (line isolator). With cinch (RCA) inputs and outputs, especially designed for connection to notebooks, sound cards, hi-fi systems, etc. The PLI03 eliminates ground loops and interference signals that can be caused by the computer, for example.

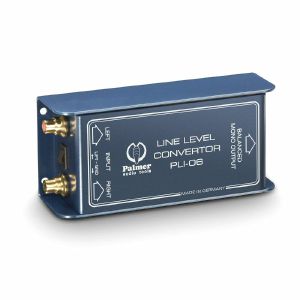

Notes: Connecting laptop computers to the mixing consoles of PA systems can be a major problem due to incompatible connector formats. The Palmer Line Level Convertor PLI06 is a dedicated interface to feed the unbalanced stereo signal typically provided by a laptop to the balanced (mono) microphone inputs of professional mixing desks. It mixes the stereo output to mono while impedance matching and signal balancing are achieved by a high-quality audio transformer especially designed for the unit. Moreover, it also prevents ground loops and the annoying hum they result in. The PLI06 is entirely passive and does not require mains power or batteries.

Connecting the PLI06
Equipment providing audio output on RCA phono sockets is connected to the PLI06's inputs using a shielded RCA stereo cable. For best results with laptops we recommend using their headphones output which is usually on a 3.5 mm miniature stereo socket. Use a shielded TRS mini jack to 2x RCA phono cable for connection to the PLI06. Place the unit close to the signal source and keep the input cable as short as possible since the unbalanced signal path is susceptible to interference. The PLI06's output is on a standard wiring male XLR connector. Use a high-quality microphone cable for connection to the mixing console. Due to the balanced lo-Z signal provided by the Palmer Line Level Converter cable lengths are uncritical while interference- free signal integrity is maintained.
